USER MANUAL ZZM 629 I AMICA

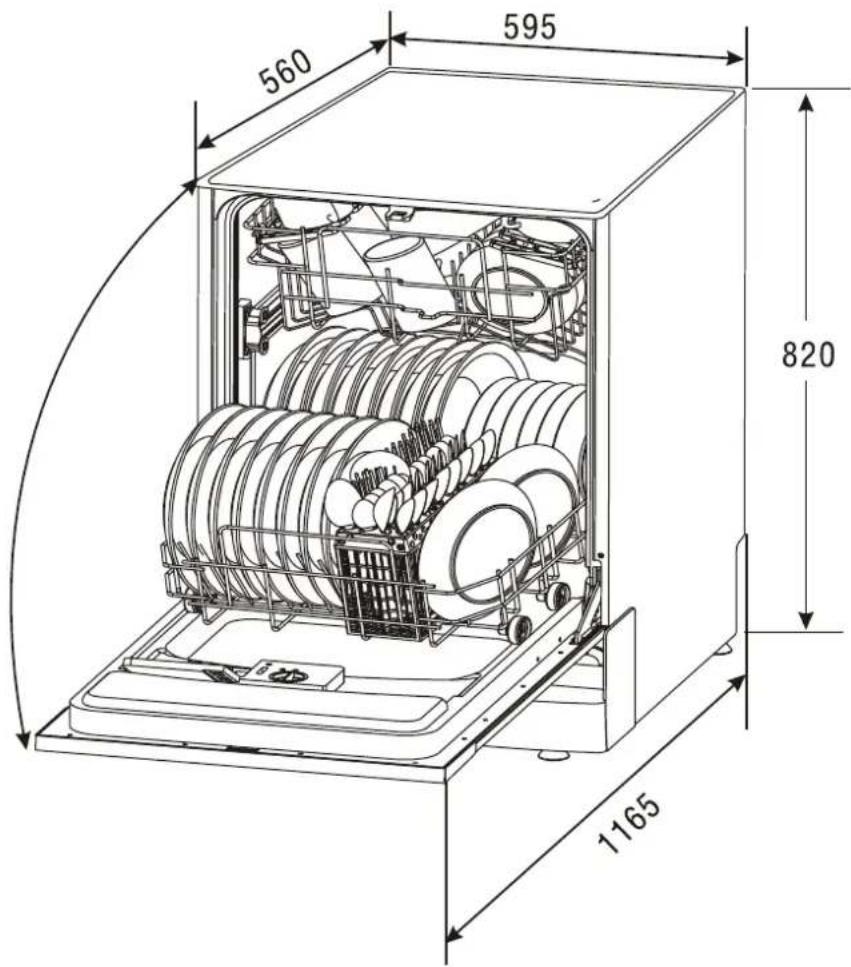

Technical line drawing of a multi-level cleaning machine with visible dish, wheels, and internal components (no text or labels)

Quick operation guide

For detailed operating method read the corresponding content on the instruction manual.

Switch on the appliance

Press the On/Off button to switch on the appliance, Open the door.

Fill the detergent dispenser

Compartment A:

With each wash cycle.

Compartment B:

For programmes with pre-wash only.

(Follow the user instructions!)

A B C

Check the rinse aid level

Mechanical indicator C.

Electric indicator on control panel (if provided).

Check the regeneration salt level

(On models with water softener system only.)

Electric indicator on control panel (if provided).

If there is no salt warning light in the control panel (for some models), you can estimate when to fill the salt the softener by the number of cycles the dishwasher has

into run.

Load the baskets

Scrape off any large amount of leftover food. Soften remnants of burnt food in pans, then load the baskets. Refer to the dishwasher loading instructions.

Select a programme

Close the door, press the Programme button until the selected programme lights up.

Running the dishwasher

Turn on the water tap and press the Start button. The machine will start working after about 10 seconds.

- Changing the programme

- 1. A running cycle can only be modified if it has been running for a short time. Otherwise the detergent may have already been released and the water already drained. If this is the case, the detergent dispenser must be refilled.

1. Press the Pause button, and press Program button for more than 3 seconds to cancel the running programme.

2. Select a new programme, and then restart the dishwasher.

WARNING!

- Add forgotten dishes in dishwasher.

the 1. Open the door a little to stop the dishwasher.

1. After the spray arms stop working, you can open the door complet.
2. Add the forgotten dishes.

Open the doo r carefully. Hot steam may escape | when the door is opened

1. Close the door, and the dishwasher will start running again in 10 seconds.

- If the appliance is switch off during a wash cycle.

- If the appliance is switched off during a wash cycle, when switched on again, please re-select the washing cycle and operate the dishwasher according to the original Power-on state).

Switch off the appliance

When the working cycle has finished, the buzzer of the dishwasher will sound 8 times, then stop. Turn off the appliance using the ON/OFF button.

Turn off the water tap, unload the baskets

Warning: wait a few minutes (about 15 minutes) before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break. They will also dry better. Unload the appliance, starting from the lower basket.

Read this Manual

Dear Customer,

This appliance is intended to be used in household and similar applications such as:

-staff kitchen areas in shops, offices and other working environments;

-farm hous es;

-by clients in hotels, motels and other residential type environments;

-bed and breakfast type environments.

Please carefully read this manu al before using the dishwasher, it will help you to us e and maintain the dishwasher properly.

- Keep it as a refer in the later days.

■ Pass it on to any subsequent owner of the appliance.

This manual contains sections on safety Instructions, Operating Instructions, Installation Instructions and Troubleshooting Tips, etc.

Before Calling for Service

To review the section on troubleshooting Tips will help you to solve some common problems by yourself.

If you can not solve the problems by yourself, please ask for the help of professional technicians.

NOTE:

The manufacturer, following a policy of constant development and updating of the product, may make modifications without giving prior notice.

1) Safety Information....1

2) Disposal....2

3) Operating Instructions....3

Control Panel.... 3 Dishwasher Features.... 3

4) Prior using for the first time....4

D Function of Detergent 6

5) Loading the Dishwasher Basket....9

Attention before or after loading the Dishwasher Baskets....9

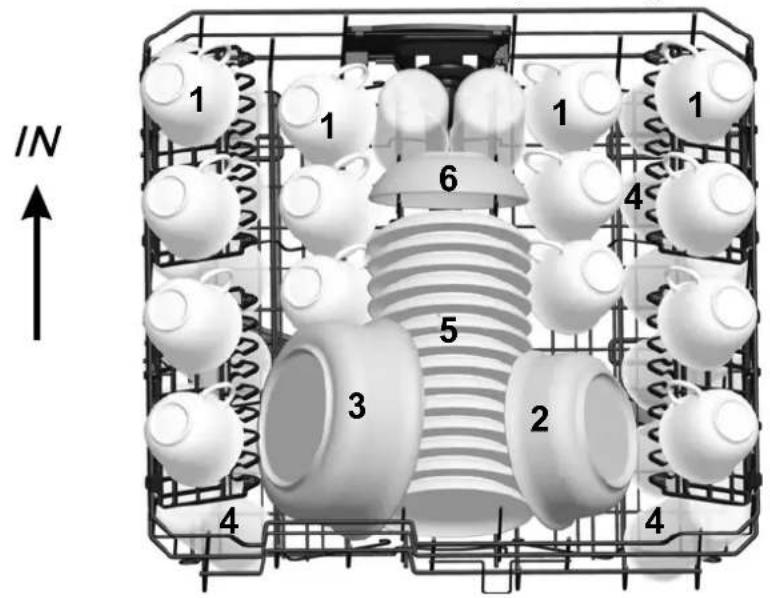

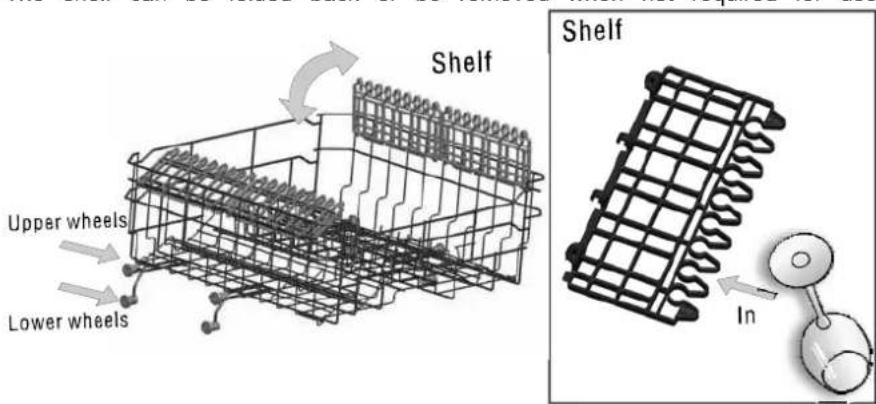

Loading the upper 10Basket

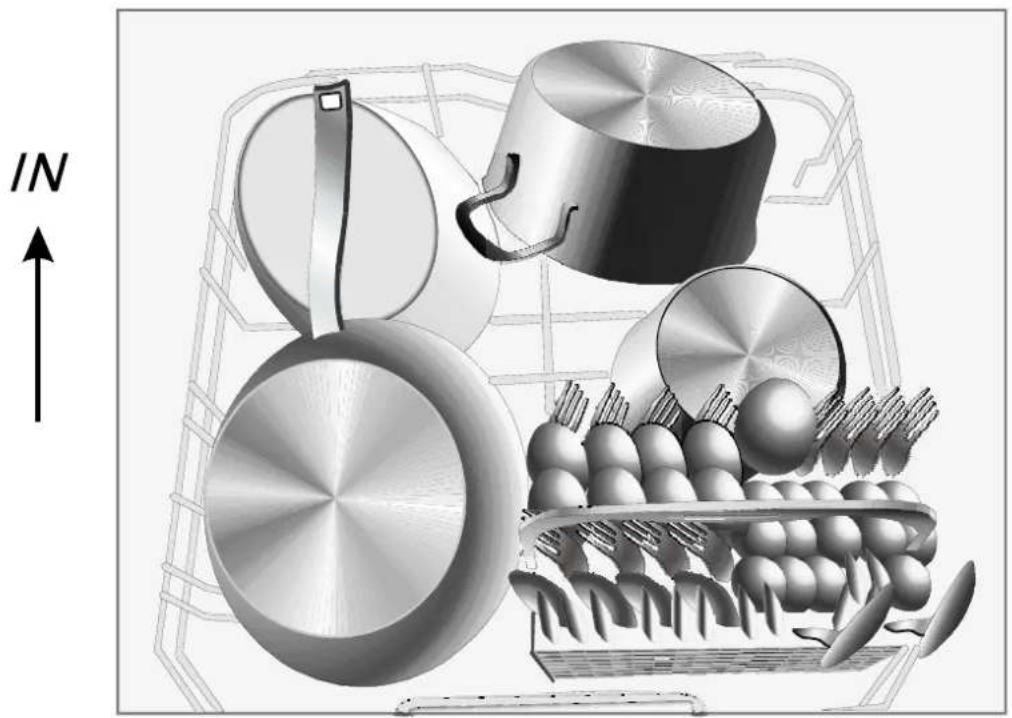

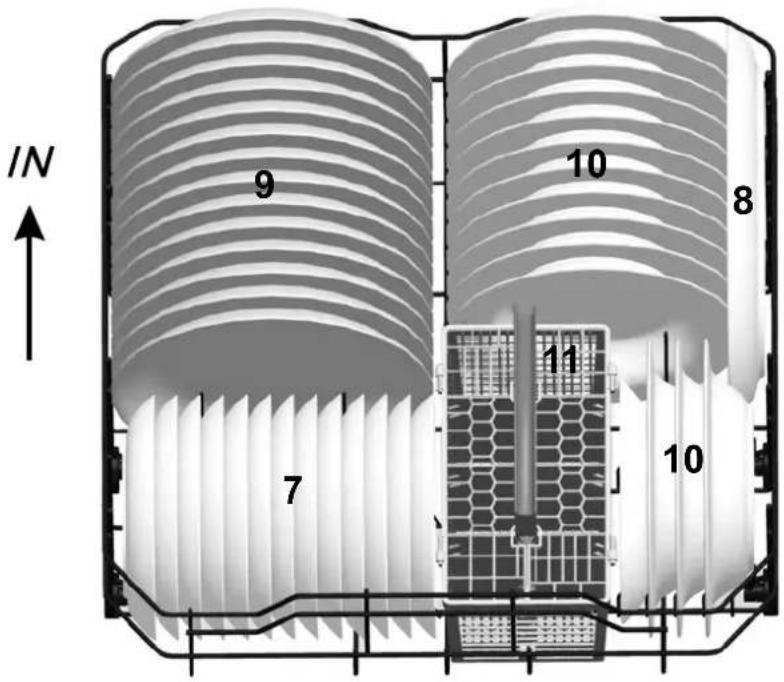

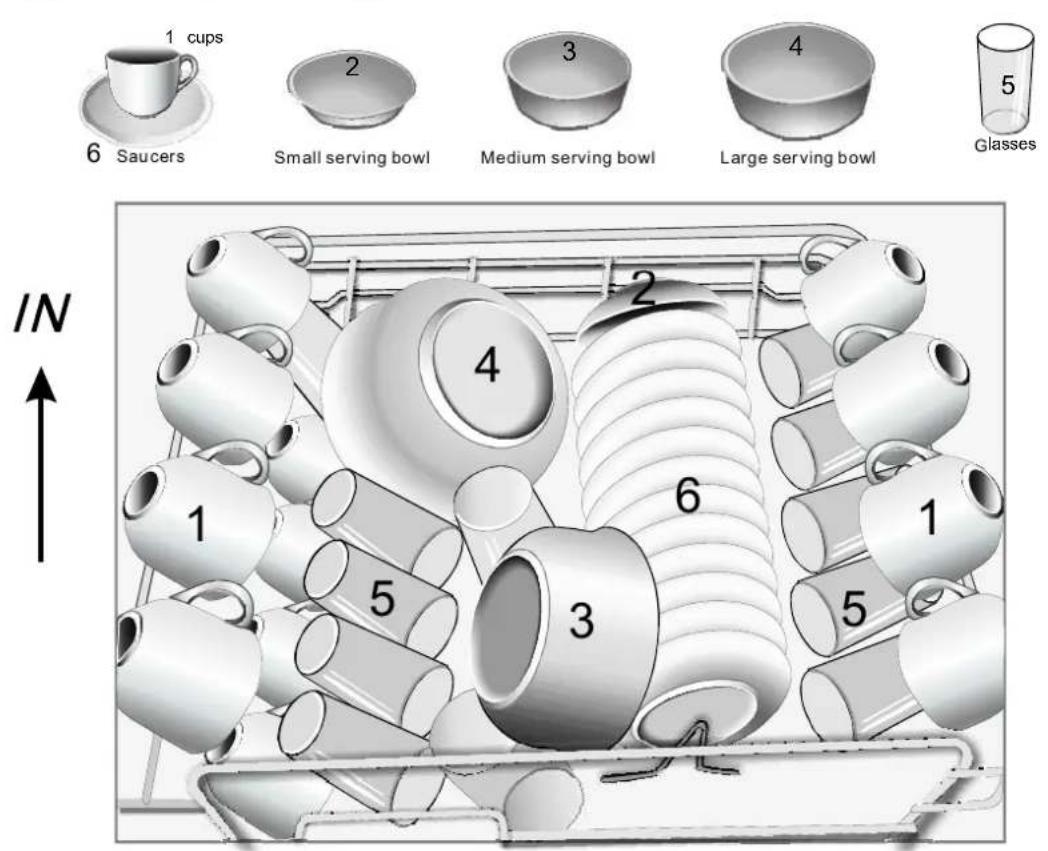

Loading the Lower 10Basket

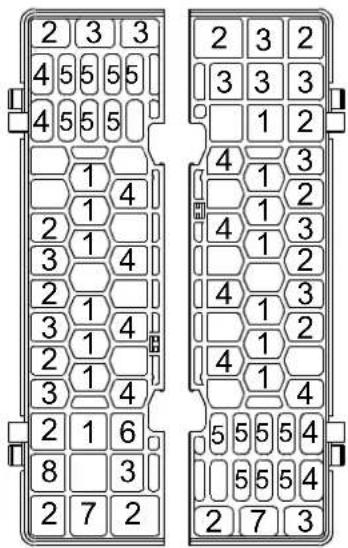

Cutlery Basket....11

Th e recommended method loading big dishware.... 12

6) Starting a washing programme....13

Wash Cycle Table....13

Turning on the Appliance....14

Change the Programme....14

At the End of the Wash Cycle....14

7) Maintenance and cleaning....15

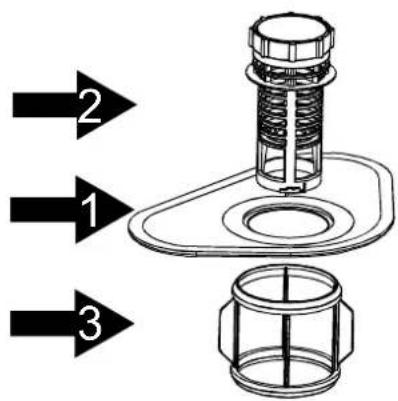

Filtering System....15 Caring for the Dishwasher....16.

8) Installation instruction....17

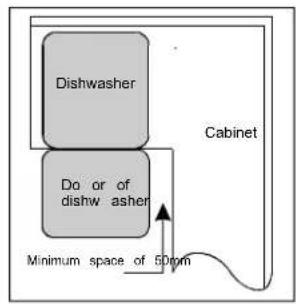

Installation preparation....17

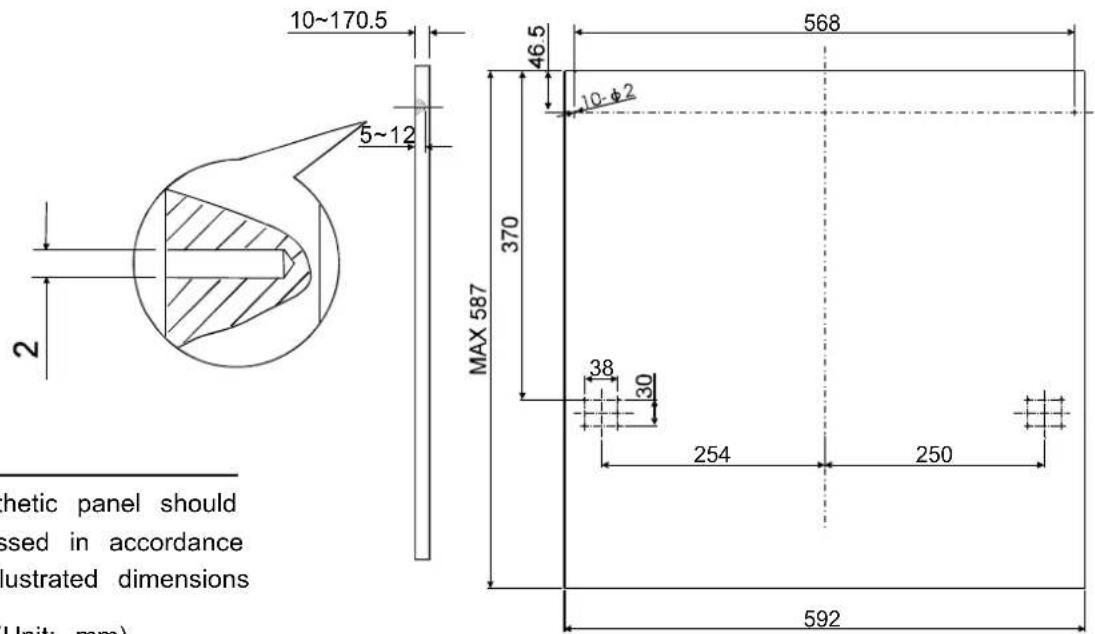

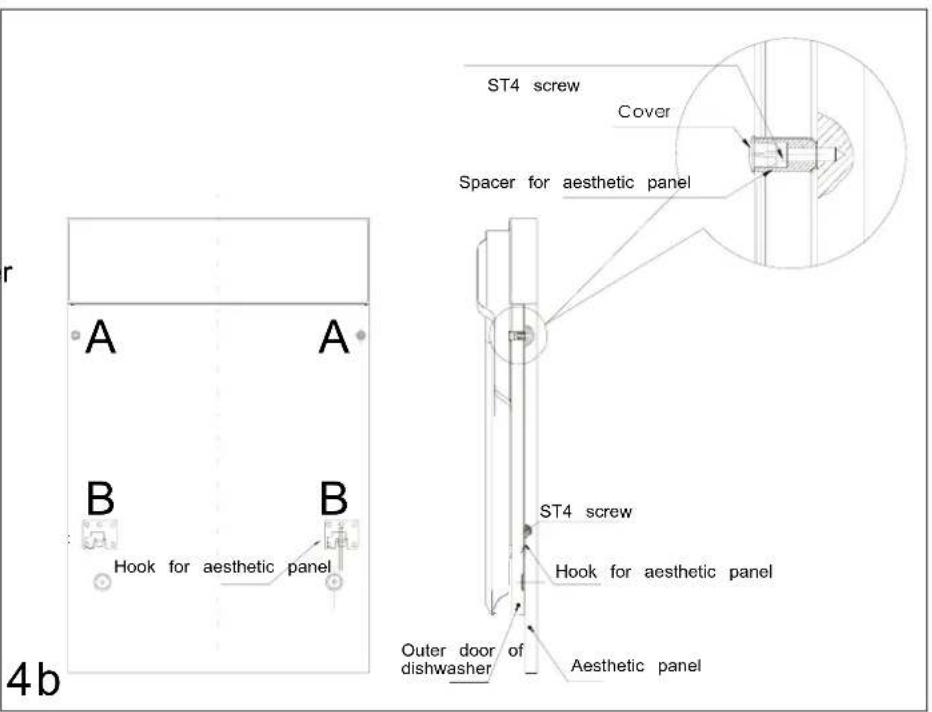

Aesthetic panel's dimensions and installation .... 18

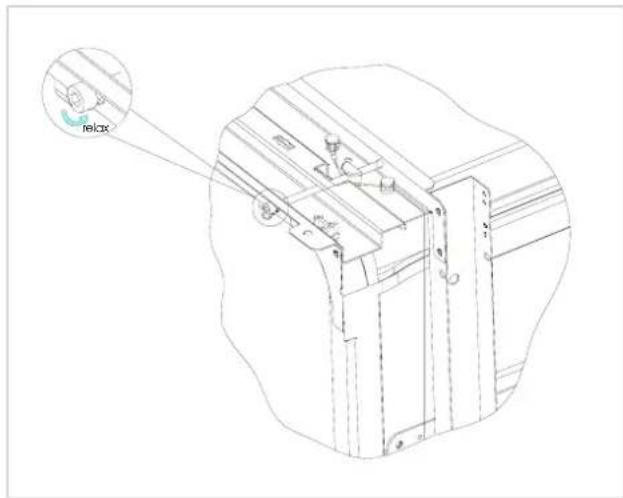

Ten sion adjustment of the door spring....20

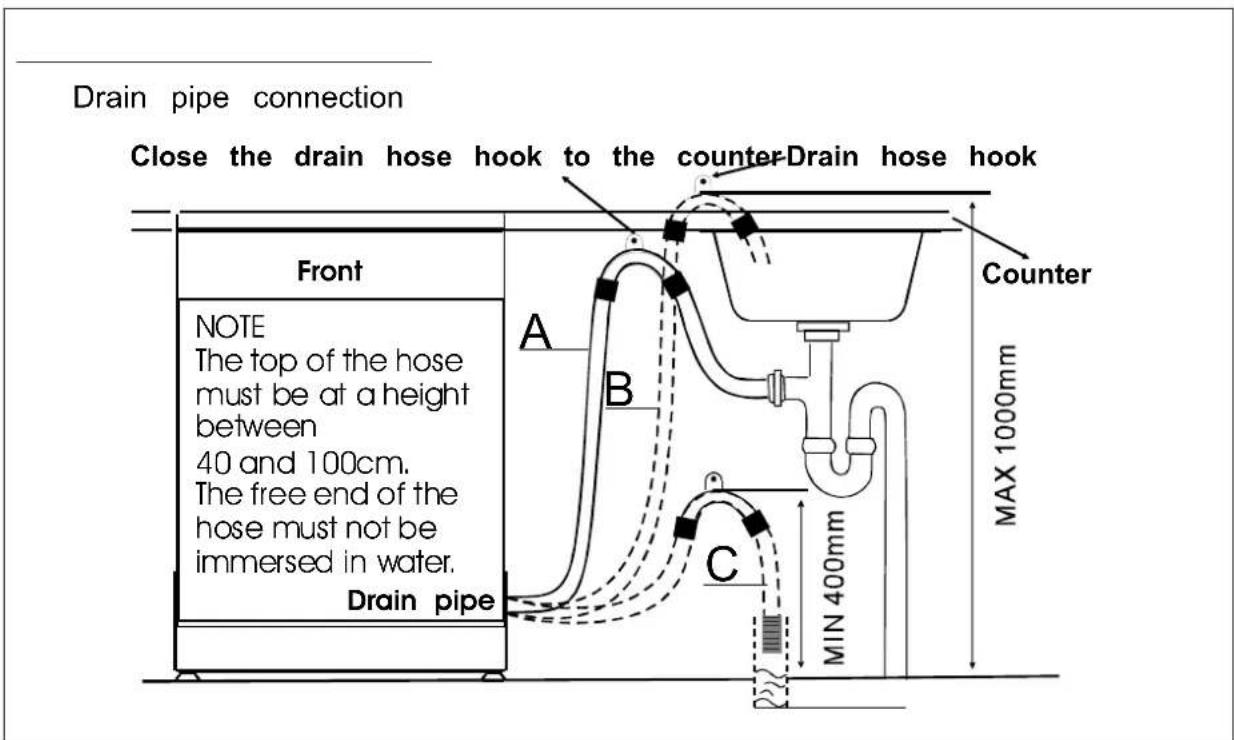

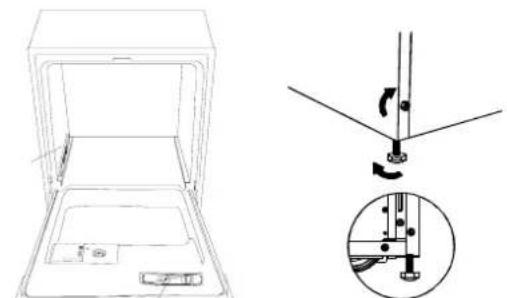

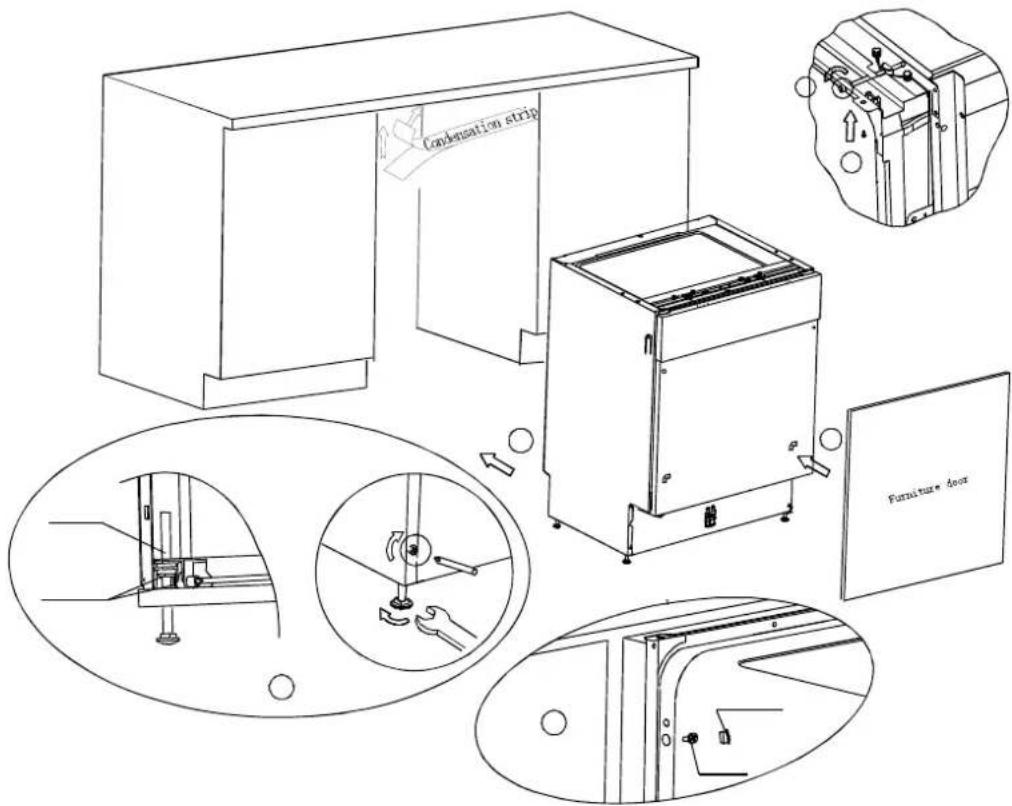

Dra in hose Connection....20 Dishwasher installation steps....21

About Power Connection....22

Water Connec tion....2 3 Start of dishwasher....23

9) Troubleshooting Tips....24

Before calling for service....24

Error codes....2 5

Technical information....26

1. IMPORTANT SAFETY INFORMATION READ ALL OF THE INSTRUCTIONS BEFORE USING

WARNING!

When using your dishwasher,

follow the precautions listed below:

GROUNDING INSTRUCTIONS

This appliance must be grounded. In the event malfunction or breakdown, grounding will reduce the risk of an electric shock by providing a path least resistance of electric current. This appliance is equipped with a cord having an equipment-grounding conductor and a grounding plug.

■ The plug must be plugged into an appropriate that is installed and grounded in accordance with all local codes and ordinances.

⚠ WARNING!

- Improper connection of the equipment-grounding conductor can result in the risk of an electric shock. - Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly grounded. Do not modify the plug provided with the appliance; If it does not fit the outlet. Have a proper outlet installed by a qualified electrician.

WARNING! PROPER USE

■ Do not abuse, sit on, or stand on the door or rack of the dishwasher.

■ Do not touch the heating element during or immediately after use. (This instruction is only applicable to machines with a visual heating element.)

Do not operate your dishwasher unless all enclosure panels are properly in place. Open the door very carefully if the dishwasher is operating, there is a risk of water squirting out.

■ Do not place any heavy objects withstand on door when it is open. The appliance could tip forward.

■ When loading items to be washed : 1) Locate sharp items so that they are not like to damage the door seal; 2) Warning: Knives and other utensils with sharp points must be loade d in the basket with their points down or placed in a horizontal position.

■ When using your dishwasher, you should prevent plastic items from coming into contact with the heating element.(This instruction is only applicable to machines with a visual heating element.)

- Check that the detergent compartment is empty after completion of the wash cycle.

- Do not wash plastic items unless they are marked dishwasher safe or the equivalent. For plastic item not so marked, check the manufacturer's recommendations.

■ Use only detergent and rinse additives designed for an automatic dishwasher.

■ Never use soap, laun dry detergent, or hand washing detergent in your dishwa sher. Keep these products out of the reach of children.

■ Keep children away from detergent and rinse aid, keep children away from the open door of the dishwasher, there could still be some detergent left inside.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

■ Children should be supervised to ensure that they do not play with the appliance.

■ Dishwash er detergents are strongly alkaline, they can be extremely dangerous if swallowed. Avoi d contact with skin and eyes and keep children away from the dishwasher when the door is open.

■ The door should not be left open, since this could increase the risk of tripping.

If the s upply cord is damaged, it must be replaced by the manufacturer or its serv ice agent or a similarly quali fied person in order to avoid a hazard.

■ Remove the door to the washing compartment when removing an old dishwasher from service or discarding it.

■ Please d dispose of packing materials properly.

■ Use the dishwasher only for its intended function.

■ During installation, the power supply must not be excessively or dangerously bent or flattened. Do not tamper with controls.

The appliance is to be connected to the water mains using new hose sets and that old hose-sets should not be reused.

■ The maximum number of place settings to be washed is 12.

■ The maximum permissible inlet water pressure is 1Mpa.

■ The minimum permissible inlet water pressure is 0.04Mpa.

READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY KEEP THESE INSTRUCTIONS

2.Disposal

Dispo se of the dishwasher packaging material correctly.

All pa ckaging materials can be recycled.

Plastic parts are marked with the standard international abbreviations:

■ PE-for-polyethylene, e.g. sheet wrapping material

■ PS-for-polysty rene, e.g. padding material

■ POM po lyoxymethylene, e.g. plastic clips

■ PP -polypropylene, e.g. Salt filler

■ ABS -Acrylonitrile Butadiene Styrene, e.g. Control Panel.

WARNING!

Packaging material could be dangerous for children!

For disposing of package and the appliance please go to a recycling centre. Therefore cut off the power supply cable and make the door closing device unusable.

Cardboard packaging is manufactured from recycled paper and should be disposed in the waste paper collection for recycling .

By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste han dling of this product.

For more detailed information a bout recycling of this product, please contact your local city office and your household waste disposal service.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

3. Operation Instruction

IMPORTANT To get the best performance from your dishwasher, read all operating instructions before using it for the first time.

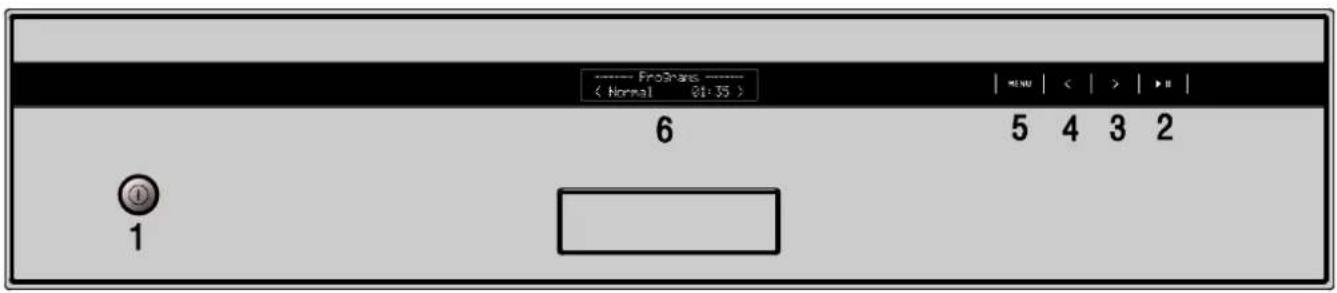

Control Panel

FroPhase < Normal 21:55 > 6 1 MENU | < | > | ▶ II | 5 4 3 2

1 Power switch: To turn on/off the power supply.
2 Start/Pause button: To start and pause the selected washing program or reset the washing program when themachine is working.
3 Button">":To selected programme,move to right.
4 Button "<": To selected programme, move to left.

5 Menu button: To press the button for select "Program->Zone washing->Delay time ->3in1->language " cycling.
6 Matrix LCD display :To show program, duration time delay start language,errors etc.If your dishwasher was no rinse aid ,the LCD display will indicator "need to add rinse when you turn on the application.

NOTE:

If your want to use child lock function, please press button "<" and button"> " at the same time more than 3s, then the LCD display will indicator" Lock", if your want to cancel the child lock function, please use the same method.

Dishwasher Features

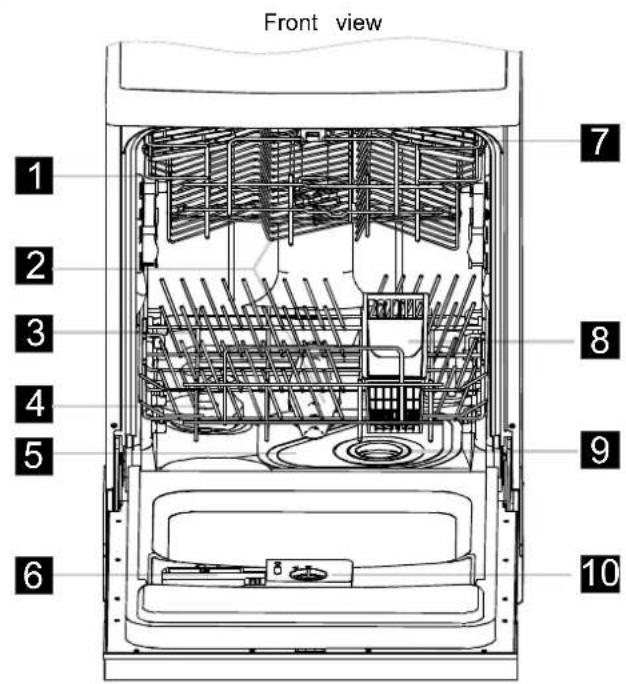

Front view 1 2 3 4 5 6 7 8 9 10

1 Upper Basket
2 Spray Arms
3 Lower Basket

4 Salt Container
5 Main Filter
6 Detergent Dispenser

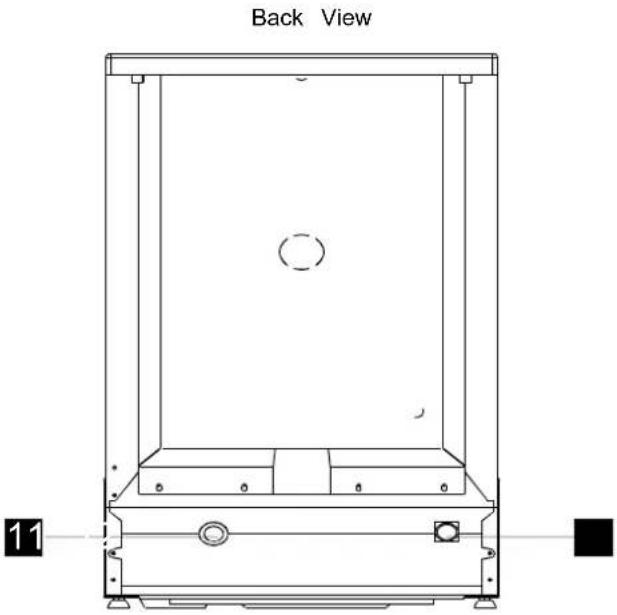

Back View 11

7 Cup Shelf
8 Cutlery Basket
9 Coarse Filter

10 Rinse Aid Dispenser
11 Drain pipe connector
12 Inlet pipe connector

4.Prior using for the first time

Before using your dishwasher for the first time:

A. Set the water softener
The image is too blurry to recognize any text content.
C. Fill the rinse aid dispenser

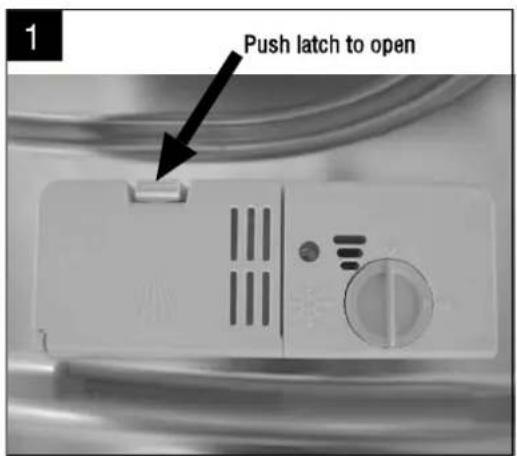

D. Fill in detergent

A. Water Softener

The water softener must be set manually, using the water hardness dial.

The water softener is designed to remove minerals and salts from the water, which would have a detrimental or adverse effect on the operation of the appliance. The higher the content of these minerals and salts, the harder your water is. The softener should be adjusted according to the hardness of the water in your area. Your local Water Authority can advise you on the hardness of the water in your area.

Adjusting Salt Consumption

The dishwasher is designed to allow for adjustment in the amount of salt consumed based on the hardness of the water used. This is intended to optimise and customise the level of salt consumption.

Circular diagram with directional arrows and symbols, no readable text or labels

Please fol low the steps below for a djustment in salt consumption.

1. Unscrew the cap from the salt container.

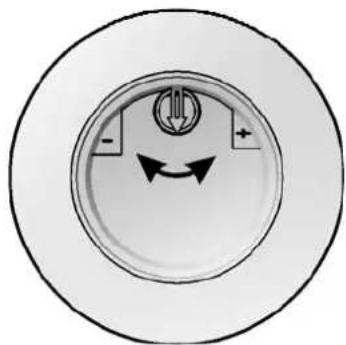

2. There is a ring on the container with an arrow on it (see figure on the side), if necessary, rotate the ring in the anticlockwise direction from the "-" Setting toward the "+" sign, based on the hardness of the water being used. It is recommended that adjustme nts should be made in accordance with the following scheme:

WATER HARDNESS				Selector Position	Sa It consumption (gram/cycle)	Auto no my (cycles/1kgs)
dH	fH	Clarke	mmol/l
	0~140~8 0~1.4 0~10			/	0	/
	14~398~22 1.4~3.910~28	20	50
22~45	39~80	28~56	3.9~8	Mid	40	25
45~60	80~107	56~75	8~11	+	60	16

Note:1

1 dH=1.25 Clarke=1.78 fH=0.178mmol/l

DH: German degree

fH: French degree

Clark: British degree

Note:2

"/"	No salt need added
"-	Se tting tow ard the"- sign
"+"	Se tting tow ard the"+" sign
"Mid"	Se tting tow ard between the "-" sign and "+" sign

Contact your local water board for information on the hardness of your water supply.

NOTE: If your model does not have any water softener, you may skip this section.

WATER SOFTENER

The hardness of the water varies from place to place. If hard water is used in the dishwasher, deposits will form on the dish and utensils. The applian ce is equipped with a special softener that uses a salt container specifically designed to eliminate lime and minerals from the water.

B. Loading the Salt Into the Softener

Always use the salt intended for use with dishwasher.

The salt container is located beneath the lower basket and should be filled as explained in the following:

Attention!

■ Only use salt specifically designed for the use in dishwashers! Every other type of salt not speci fically desig ned fo r the use in a dishwasher, espe cially table salt, will damage the water sof tener. In case of damages caused by the use of unsuitable salt the manufacturer does not give any warranty nor is liable for any damages caused.

■ Only fil I with salt just before starting one of the complete washing programs. This will prevent any grains of salt or salty water, which may have been spilled, remaining on the bottom of the machine for any period of time, which may cause corrosion.

1 Open

Diagram of a hand holding a device with a handle and internal components (no text or symbols)

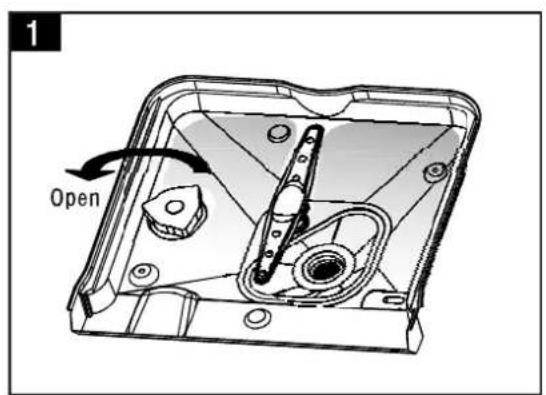

A Remove the lower basket and then unscrew and remove the cap from the salt container.

B Before the first wash, fill 1lt. of water in the salt container of your machine.

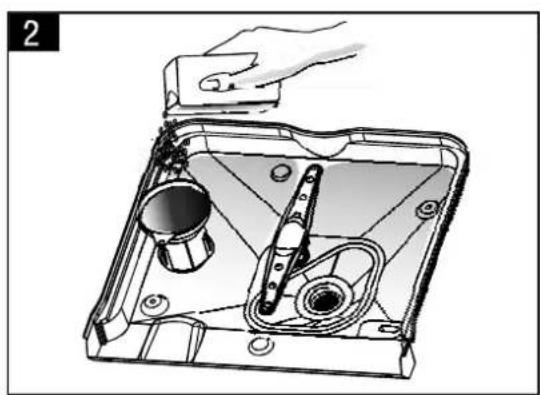

C Place the end of the funnel (supplied) into the hole and introduce about 1kg of salt.

normal for a small amount of water to come out of the salt co2ainer. It is

D After filling the container , screw the cap tightly back clockwise.

Usually, the salt warning light will stop being illuminated within 2-6 days after the salt container has been filled with salt.

F Immediately after filling the salt into the salt container, a washing program should be started (We suggest to use the soak or rapid program). Otherwise the filter system, pump or other important parts of the machine may be damaged by salty water. This is out of warranty.

NOTE:

1. The salt container must only be refilled when the salt warning light in the control panel comes on. Depending on how well the salt dissolves, the salt warning light may still be on even though the salt container is filled.

If there is no salt warning light in the control panel (for some Mode Is), you can estimate when to the salt into the softener by the cycles that the dishwasher has run.

1. If there are spills of the salt, a soak or a rapid program should be run to remove the excessive s

C. Fill the Rinse Aid Dispenser

Rinse Aid Dispenser

The rinse aid is released during the final rinse to prevent water from forming droplets on your dishes, which can leave spots and streaks. It also improves drying by allowing water to roll off the dishes. Your dishwasher is designed to use liquid rins e aids. The rinse aid dispenser is located inside the door next to the detergent dispense r. To fill the dispenser, open the cap and pour the rinse aid into the dispenser until the level indicator turns completely black. The volume of the rinse aid container is about 110ml.

Function of Rinse Aid

Rinse aid is automatically added during the last rinse, ensuring thorough rinsing, and spot and streak free drying.

Attention!

Only use branded rinse aid for dishwasher. Never fill the rinse aid dis penser with any other substances (e.g. Dishwasher cleaning agent, liquid detergent). This would damage the appliance.

When to Refill the Rinse Aid Dispenser

If there is no rinse-aid warning light in the control panel, you can estimate the amount from the colour of the optical level indicator C located next to the cap. When the rinse-aid c ontainer is full, the whole indicator will be dark .As the rinse-aid diminishes, the size of the dark dot decreases. You should never let the rinse aid level fall 1 / 4 full.

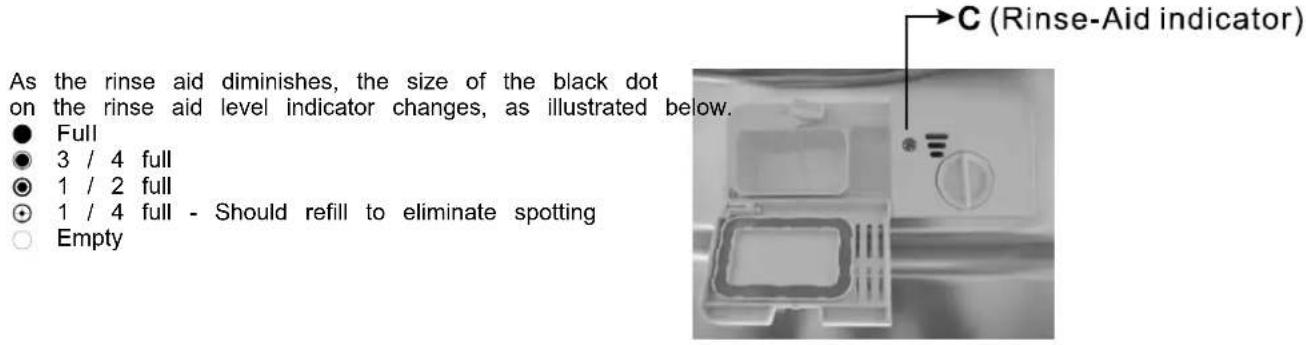

As the rinse aid diminishes, the size of the black dot on the rinse aid level indicator changes, as illustrated below. ● Full ● 3 / 4 full ● 1 / 2 full ● 1 / 4 full - Should refill to eliminate spotting ○ Empty →C (Rinse-Aid indicator)

Hand holding a circular button next to a white appliance panel (no visible text or symbols)

Close-up of a medical device with a white spherical object inserted, no visible text or symbols

Close-up of a hand pressing down on a white electronic device panel with a circular button, surrounded by cables (no visible text or symbols)

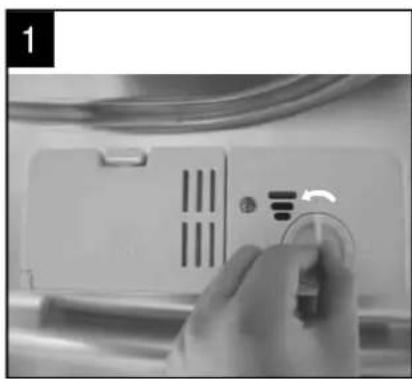

1 To open the dispenser, turn the cap to the "open" (left) arrow and lift it out.

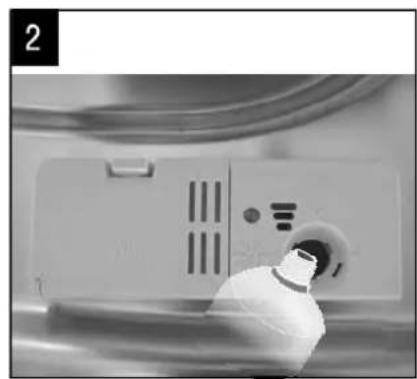

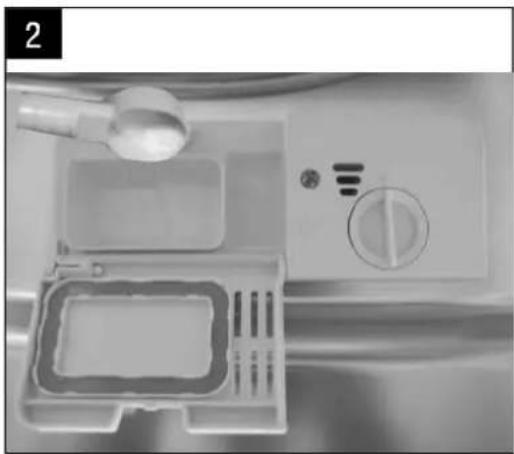

2 Pour the rinse aid into the dispenser, being careful not to overfill.

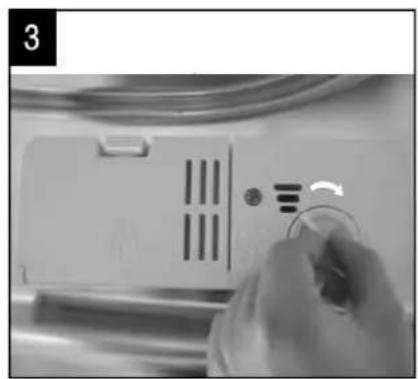

3 Replace the cap by inserting it aligned with "open" arrow and turning it to the closed (right) arrow.

NOTE: Clean up any rinse aid spilled while during filling with an absorbent cloth to avoid excessive foaming during the next wash. Don't forget to replace the cap before you close dishwasher door.

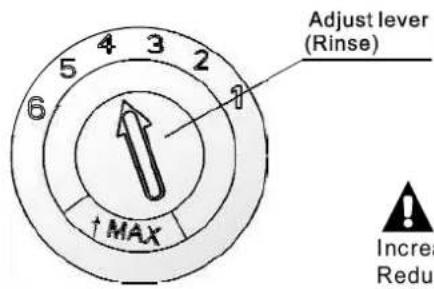

Adjusting Rinse Aid Dispenser

Adjust lever (Rinse) ↑ MAX Increase Reduce

The rinse aid dispenser has six or four settings. Always start with the dispenser set on "4". If spots and poor drying are a problem, increase the amount of rinse aid dispensed by removing the dispenser lid and rotating the dial to "5". If the dishes still are not drying properly or are show spots, adjust the dial to the next higher lever until your dishes are spot-free. The recommended setting is "4". (Factory value is "4".)

NOTE:

Increase the dose if there are drops of water or lime spots on the dishes after washing. Reduce it if there are sticky whitish stains on your dishes or a bluish film on glassware or knife blades.

D. Function of Detergent

Proper Use of Detergent

Detergents with its chemical ingredients are necessary to remove dirt, crush dirt and transport it out of the dishwasher. Use o nly detergent specifically made for use in dishwashers. Keep your detergent afreslery. Don't put powder detergent into the dis penser until you're ready to wash dishes.

Detergents

There are 3 sorts of detergents

1. With phosphate and with ch lorine
2. With phosphate and without chlorine
3. Without phosphate and without chlorine

Normally new pulverised detergent is without phosphate. Thus the water softener function of phosphate is not given. In this case we recommend to fill salt in the salt container even when the hardness of water is only 6 dH. If detergents without phosphate are used in the case of hard water often white spots appear on dishes and glasses. In this case please add more detergent to reach better results. Detergents without chlorine do only bleach a little. S trong and coloured spots will not be removed completely. In this case please choose a program with a higher temperature.

Concentrated Detergent

Based on their chemical composition, deterge nts can be split in two basic types:

■ co nventional, alkaline dete rgents with caus tic components
■ low alkaline co ncentrated detergents with natural enzymes

Detergent Tablets

Detergent tablets of different brands dissolve at different speeds. For this reason some detergent tablets cannot dissolve and develop their full cleaning power during short prog rams. There fore please use long programs when using detergent tablets, to ensure the complete removal of detergent residuals.

Detergent Dispenser

The dispenser must be refilled before the start of each wash cycle following the instructions provided in the wash cycle table. Your dis hwa sher uses less de tergent and rinse aid than Conventional dis hwasher. Generally, only one tablespoon of detergent is needed for a normal wash load. More heavily soiled it ems need more detergent. Always add the detergent just before starting the dish washer, otherwise it could get damp and will not dissolve properly.

Amount of Detergent to Use

Push latch to open

Close-up of a kitchen appliance with a plastic tray, handle, and control panel (no visible text or symbols)

NOTE:

■ If the lid is closed: press release button. T he lid will sp ring open.
■ Always add the detergent just before starting each wash cycle.
■ Only use branded detergent aid for dishwasher.

WARNING!

Dishwasher detergent is corrosive! Take care to keep it out of reach of children.

Fill in Detergent

Fill the detergent dispenser with detergent. The marking indicates the dosing levels, as illustrate d on the right:

A The place of main wash cycle deterg ent placed.

B The place of pre-wash cycle deterge nt placed.

Please observe the manufacturers dosing and storage Recommendations as stated on the detergent packaging.

Close the lid and press until it locks in place.

A B

If the dishes are heavily soiled, place an additional detergent do se in the pre-wash detergent chamber. This detergent will take effect during the pre-wash phas e.

NOTE:

■ You find information about the amount of detergent for the single programme on the last page.
■ Please aware, that according to the level soiling and the specific hardness of water differences are possible.
■ Please observe the manufacturer's recommendations on the de tergent packaging.

5. Loading the Dishwasher Baskets

Recommendation

■ Consider buying utensils which are identified as dishwasher-proof.
■ Use a mild detergent that is described as 'kind to dishes'. If necessary, seek further information from the detergent manufacturers.
■ For particular items, select a program with as low a temperature as possible.
■ To prevent damage, do not take glass and cutlery out of the dishwasher immediately after the programme has ended.

For washing in the dishwasher the following cutlery/dishes

Are not suitable

■ Cutlery with wooden, horn china or mother-of-pearl handles
■ Plastic ite ms that are not heat resistant
■ Older cutlery with glued parts that are not temperature resistant
■ Bonded cutlery ite ms or dishes
■ Pewter or cooper items
■ Crystal glass
■ Steel items subject to rusting
■ Wooden platters
■ Items made from synthetic fibres

Are of limited suitability

■ Some types of glasses can become dull after a large number of washes
■ Silver and aluminum parts have a tendency to discolour during washing
■ Glazed patterns may fade if machine washed frequently

Attention before or after loading the Dishwasher Baskets

(For best performance of the dishwasher, follow these loading guidelines.

Features and appearance of baskets and cutlery baskets may vary from your model.)

Scrape off any large amounts of leftover food. Soften remnants of burnt food in pans.

It is not necessary to rinse the d ishes under running water.

Place objects in the dishwasher in following way:

1. Items such as cups, glasses, pots /pans, etc. are faced downwards.
2. Curved items, or ones with recesses, should be loaded aslant so th at water can run off.
3. All utensils are stacked securely and can not tip over.
4. All utensils are placed in the way that the spray arms can rotate freely during washing.

NOTE: Very small items should not be washed in the dishwasher as they could easily fall out of the basket.

• Load hollow items such as cup s, glasses, pans etc. With the opening facing downwards so that water can not collect in the container or a deep base.
  ■ Dishes and items of cutlery must not lie ins ide one another, or cover each other.
  ■ To avoid damage to gl asse s, th ey must not touch.
  ■ Load large items w hich are most difficult to clea n into the lower bask et.
  ■ The upper basket is designed to ho ld more delicate and lighter dishware such as glasses, coffee and tea cups
  ■ Long bladed knives stored in an upright position are a potential haza rd!
  ■ Long and/or sharp items of cutlery such as carving kniv es must be positi oned horizontally in the upper basket.
  ■ Please do not overload yo ur dishwasher. This is important for good results and for reasonable consumption of energy.

Removing the Dishes

To prevent water dripping from the upper basket into the lower basket, we recommend that you empty the lower basket first and then the upper basket.

The Method Loading Normal Dishware

Loading the Upper Basket

The upper basket is designed to hold more delicate and lighter dishware such as glasses, coffee and tea cups and saucers, as well as plates, small bowls and shallow pans (as long as th ey are not too dirty).

Position the dishes and cookware so that they will not get moved by the spray of water.

1 1 1 6 4 5 3 2 4 4 IN

1 Cups
2 Small serving bowl
3 Large serving bowl
4 Glasses
5 Saucers
6 Dish

Loading the Lower Basket

We suggest that you place large items and the most difficult it to clean items are to be placed into the lower basket: such as pots, pans, lids, serving dishes and bowls, as shown in the figure below.

It is preferable to place serving dishes and lids on the side of the racks in order to avoid blocking the rotation of the top spray arm.

Please be reminded that:

■ Pots, serving bowls, etc, must always be placed top down.
- Deep pots should be slanted to allow water to flow out.
The Bottom Basket features folding spikes so that la rger or more pots and pans can be loaded.

IN 9 10 8 7 11 10

7 Dessert dishes
8 Oval platter
9 Dinner plates
10 Soup pla tes
11 Silverware basket

The recommended method loading big dishware (applicable to the special dishware: e.g. big pan、plate)

Loading the Upper Basket

1 cups 6 Saucers 2 Small serving bowl 3 Medium serving bowl 4 Large serving bowl 5 Glasses IN 1 2 3 4 5 6 1 1 5

Loading the Lower Basket

Illustration of kitchen utensils including a pot, lid, and tray with a north arrow (no text or symbols on main objects)

Adjusting the Upper Basket

The height of the upper basket can be adjusted in order to create more space for large utensils both for the upper/lower basket. The height of the upper basket can be adjusted by placing the wheels on different height of the rails. Long items, serving cutlery, salad servers and knives should be placed on the shelf so that they do not obstruct the rotation of the spray arms. The shelf can be folded back or be removed when not required for use.

Shelf Upper wheels Lower wheels In Shelf

Close-up of a mechanical pipe fitting with a white arrow pointing to a component (no visible text or symbols)

Close-up of a mechanical component with a curved arm and a small circular component, no visible text or symbols.

Close-up of a white wire cage with metal grilles and connectors, partially covered by a dark surface (no text or symbols visible)

Folding Spikes of Lower Basket

For better stacking of pots and pans, the spikes can be folded down as show in the picture right.

Cutlery Basket

Cutlery should be placed in the cutlery basket with the handles at the bottom. If the rack has side baskets, the spoons should be loaded separately into the appropriate slots, especially long utensils should be placed in the horizontal position at the front of the upper basket as shown in the picture.

2 3 3 4 5 5 5 5 4 5 5 5 1 4 2 1 3 1 4 2 1 4 3 1 4 2 1 6 8 3 2 7 2 2 3 2 3 3 3 1 2 4 1 3 1 2 4 1 3 1 2 4 1 3 1 2 4 1 4 5 5 5 5 4 5 5 5 4 2 7 3

1	Forks
2	Soup spoons
3	Dessert spoons
4	Teaspoons
5	Knives
6	Serving spoons
7	Gravy ladles
8	Serving forks

▲ WARNING!

- Do no t let any item extend through th e bottom. - Always load sh arp utensils with the sharp point down!

For personal safety and a top quality cleaning, place the silverware in the basket making sure that:

■ They do not nest together.
■ Silverware is placed with the handles-down.
■ But place knives and other potentially dangerous utensils are placed handles-up.

6. Starting a washing program

Wash Cycle Table

NOTE: (★) Means: need to fill rinse into the Rinse-Aid Dispenser.

Program	Cycle Selection Information	Description of Cycle	Detergent pre/main	Running time(min)	Energy (Kwh)	Water (L)	Rinse Aid
Pre-wash	To soak the plates and dish	Pre-wash	0	10	0.02	4
Short	Light soiled glass, to refresh	Wash(40 ) Rinse Rinse(45 )	0	30	0.54	12
Delicate	For dishes that need to be rinsed and dried only.	Pre-wash Wash(45 ) Rinse Rinse(55 ) Drying	15g	80	0.76	12.8
Rapid 45	Light soiled cups, plates .	Wash(55 ) Rinse Rinse(45 )	15g	45	0.78	11
Eco 50 (*EN 50242)	For normally soiled loads, such as pots, plates,glasses and lightly soiled pans. standard daily cycle.	Pre-wash Wash(55 ) Rinse Rinse(65 ) Drying	4/23g	160	1.04	12
Express 60	For lightly and normally soiled plates and pans for everyday use.	Wash(65 ) Rinse Rinse(60 ) Drying	15g	60	0.92	12
Intensive	For hard soiled pans, pots, plates and also to clean the Dws and also remove all bacteria.	Pre-wash Wash(45 ) Rinse Rinse(55 ) Drying	4/23 g	125	1.08	12.5
Extra intensive/ self clean	For the heaviest soiled loads, such as pots, pans,casserole dishes and dishes that have been sitting with dried food on them for a while.	Pre-wash(55 ) wash(68 ) rinse rinse(55 ) Drying	4/23g	120	1.12	17
Automatic	For lightly and norma lly soil d plates and pans.	Pre-wash(40 ) Autowash(50-60 ) Rinse Rinse(70 ) Drying	4/23 g	150	1.18	11~14

NOTE:

*EN 50242 : This programme is the test cycle. The information for comparability test in accordance with EN 50242, as follows:

■ Capacity: 14 setting
■ Position Upper basket: upper wheels on rails
■ Rinse aid setting: 6

Turning On the Appliance

Starting a cycle wash

1

2

3

4

5

Intensive->Normal->Eco->Glass->1 Hour->Rapid->Soak;

When you press the Pause button to pause during washing, the Display

Window will stop blinking and the dishwasher will mooing every minute unless you press the Start button to start.

Change the Program...

Premise:

PREMISE: A cycle that is underway can only be modified if it has only been running for a short time. Otherwise, the detergent may have already been washed and just a frozen water have already drained the wash water. If this morning the coarse tshor detetinge@disperser the dustetergefilleday(seve the inaction been entitled as bading the Detergent the) appli ance may have already drained the w ash water. If this is the case,

Pres the de e Stage/Radispenston, muten beressille de (S###houtr###othe maldake#dabing the in s##tgerstate, ). then press < you >can change the program to the desired cycle setting (see the sectionentile de "twarways aofwahange.the ."p )programme :

NOTEre Saiting bddelaying rustating press. therePthuse 3bstdonddeo cyoucetain theanggeshtlbee prudgarnofdesirelayrojime.

The aCD itdisplayrushafter the state ofstseedishwashetion entitled " Starting a wash c ycle. . . " ).

a2. Press CButtshow of desired--prog.--(except --bottom--o--f--runnistgnordy more than 3 seconds to change

b) The Loming shows H into the and shot which you press, it is will run after 10 seconds.

c) The LCD shows HH MM and blinking----Running

NOTE:

If you open the door during a wash cycle, the machine will pause. The LED Display Window will stop blinking and the buzzer will mooing every minute unless you close the door. After you close the door, the machine will keep on working after 10 seconds.

Forgot to Add a Dish?

A forgotten dish can be added any time before the detergent cup opens.

1 Press the Start/Pause button

4 Add forgotten dishes.

2 Open the door a little to stop the washing.

5 Close the dock press the Start/Pause button | and the dishwasher will run after 10 seconds.

3 After the spray arms stop working, you can open the door completely.

At the End of the Wash Cycle

When the working cycle has finished, the buzzer of the dishwasher will sound for 8 seconds, then stop. Turn off the appliance using the ON/OFF button, shut off the water supply and open the door of the dishwasher. Wait for a few minutes before unloading the dishwasher to avoid handling the dishes and utensils while they are still hot and more susceptible to break age. They will also dry better.

■ Switch Off the Dishwasher

In the digital display appears -:-- (remaining programme time), only in this case the programme has ended.

1. Switch off the dishwasher by pressing the ON/OFF button.

2. Turn off the water tap!

■ Open the door carefully.

Hot dishes are sensitive to knocks. The dishes should therefore be allowed to cool down around 15 minutes before removing from the appliance.

Open the dishwasher's door, leave it ajar and wait a few minutes before removing the dishes. In this way they will be cooler and the drying will be improved.

■ Unloading the dishwasher

It is normal that the dishwasher is wet inside.

Empty the lower basket first and then the upper one. This will avoid water dripping from the upper Basket onto the dishes in the lower one.

WARNING!

It is dangerous to open the door when was hing, because the hot water may scald you.

7. Maintenance and Cleaning

Filtering System

The filter prevents larger remnant s of food or other objects from getting inside the pum. The residues may block the filter, in this case they must be removed.

2 1 3

The filter system consists of a coarse filter, a flat (Main filter) And a microfilter(Fine filter).

Main filter 1

Fo od and soil particles trap ped in this filter are pulverized by a specia I jet on the lower spray arm and washed down to drain.

Coarse filter 2

La rger ite ms, such as p ieces of bon es or glass, that could block the drain are trapped in the coarse filter. To remove the items caught by the filter, gently squeeze the tap on the top of this filter and lift out.

Fine filter 3

This filter holds soil and food residues in the sump area and prevents it from being redeposit on the dishes during wash cycle.

Filter assembly

The filter efficiently removes food particles from the wash water, allowing it to be recycled during the cycle. For best performance and results, the filter must be cleaned regularly. This reason, it is a good idea to remove the larger food particles trapped in the filter after each wash cycle by rinsing the semicircular filter and cup under running water. To remove the filter device, pull the cup handle in the upward direction.

WARNING!

■ The d ishwasher must never be used without the filters.

■ Impro per replacement of the filter may reduce the performance level of the appliance and dama ge dishes and utensils.

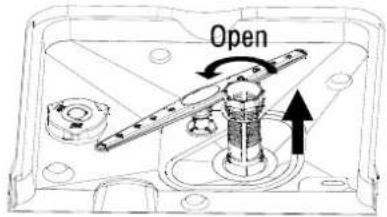

Open

1

Technical line drawing of a mechanical assembly with gears and a shaft (no text or symbols)

2

3

Technical line drawing of a mechanical assembly with gears and a central shaft (no text or symbols)

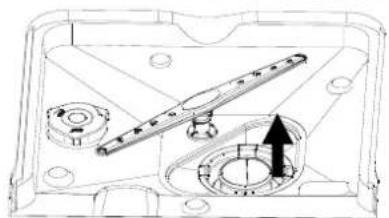

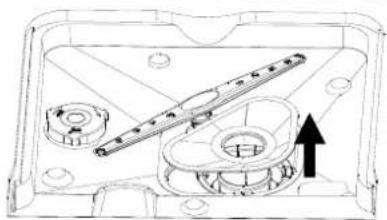

Step 1 Turn the filter in anti-clockwise direction, then lift it up.

NOTE: When following this procedure from step1 to step 3, the filter system will be removed; when following it from Step 3 to Step 1, the filter system will be installed.

Remarks:

• Inspect the filters for blocking a fter ever y time the dishwa sher has been used.
• By unscrewing the coarse filter, you can remove the filter system. Re move any foo d remnants and clean the filters under running water.

NOTE: The entire filter assembly should be cleaned once a week.

Cleaning the Filter

To clean the coarse filter and the fine filter, use a cleaning brush. Reassemble the filter parts as shown in the figures on the last page and reinsert the entire assembly in the dishwasher, positioning it in its seat and pressing dow nwards

WARNING!

When cleaning the filters, don't knock on them. Otherwise, the filters could be contorted and the performance of the dishwasher could be decreased.

Caring for the Dishwasher

The control panel can be cleaned by using a lightly dampened cloth. After cleaning, make sure to dry it thoroughly.

For the exterior, use a good appliance polish wax. Never use sharp objects, scouring pads or harsh cleaners on a ny part of the dishwasher.

Cleaning The Door

Diagram of a mechanical or electrical component with no visible text, numbers, or symbols

To clean the edge around the door, you should use only a soft warm, damp cloth. To avoid penetration of water into the door lock and electrical components, do not use a spray cleaner of any kind.

WARNING!

■ Never use a spray cleaner to clean the door panel as it may damage the door lock and electrical components.
■ Abrasive agents or some paper towels shou ld not be used because of the risk of scratching or leaving spots on the stainless steel surface.

Protect Against Freezing

please take frost protection measures on the dishwasher in winter. Extreme fair washing cycles, please operate as follows

1. Cut off the electrical power to the dishwasher.
2. Turn off the water supply and disconnect the water inlet pipe from the water valve.
3. Drain the water from the inlet pipe and d water valve. (Use a pan to catch the water)
4. Reconnect the water inlet pipe to the water valve.
5. Remove the filter at the bottom of the tub and use a sponge to soak up water in the sump.

NOTE: If your dishwasher cannot work because of the ice, please contact professional service persons.

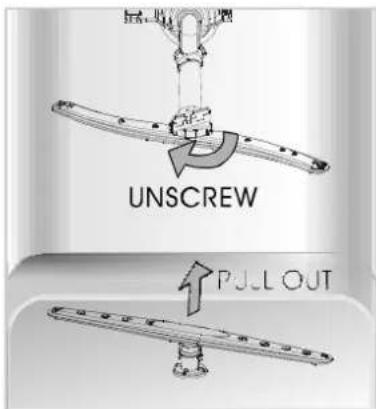

Cleaning the Spray Arms

It is necessary to clean the spray arms regularly for hard water chemicals will clog the sp ray arm jets and bearings.

To remove the upper spray arm, screw off the nut clockwise then remove the arm.

To remove the lower spray arm, pull out the spray arm upward.

Wash the arms in soapy and warm water and use a soft brush to clean the jets. Replace them after rinsing them thoroughly.

UNSCREW PULL OUT

How to Keep Your Dishwasher in Shape

■ After Every Wash

After every wash, turn off the water supply to the appliance and leave the door slightly open so that moisture and odours are not trapped inside.

■ Remove the Plug

Before cleaning or performing maintenance, always remove the plug from the socket.

■ No Solvents or Abrasive Cleaning

To clean the exterior and rubber parts of the dishwashes do not use solvents or abrasive cleaning products.

Only use a cloth with warm soapy water.

To remove spots or stains from the surface of the interior, use a cloth dampened with water an a little vinegar, or a cleaning product made specifically for dishwashers.

■ When not in Use for a LongTime

It is recommend that you run a wash cycle with the dishwasher empty and the n remove the plug from the socket, turn off the water supply and leave the door of the appliance slightly open. This will help the door seals to last longer and prevent odours from forming within the appliance.

■ Moving the Appliance

If the appliance must be moved, try to keep it in the vertical position. If absolutely necessary, it can be positioned on its back.

Seals

One of the factors that cau se odours to form in the dishwasher is food that remains trapped in the seals. Periodic cleaning with a damp sponge will prevent this from occurring.

7. Installation instruction

▲Attention:

The installation of the pipes and electrical equipments should be done by professionals.

Warning

Electrical Shock Hazard Disconnect electrical power before installing dishwasher.

Failure to do so can result in death or electrical shock.

Installation preparation

The installation position of dishwasher should be near the existing inlet and drain hoses and power cord.

One side of the cabinet sink should be chosen to facilitate the connection of drain hoses of the dishwasher.

NOTE: please check the accompanying installation accessories(hook for aesthetic panel ,screw)

Please carefully read the installation instruction.

Illustrations of cabinet dimensions and installation position of the dishwasher

Preparations should be made before moving the dishwasher to the installation place.

1 Choose a place near the sink to facilitate the installation of inlet and drain hoses (see figure 1).
2 If dishwasher is installed at the corner of the cabinet, there should be some space (illustrated in figure 2) when the door is opened.

Cabinet dimensions Less than 5mm between the top of dishwasher and cabinet and the outer door aligned to cabinet.

90 820mm 600mm Electrical, drain and water supply line entrances 80 100 600 mm

Minimum space when the door is opened

Aesthetic panel's dimensions and installation

1 The aesthetic wooden panel could be processed according to the Figure 3.

10~170.5 5~12 2 MAX 587 46.5 568 10-Φ2 370 38 30 254 250 592 Unit: mm) thetic panel should ssed in accordance ustrated dimensions

The aesthetic panel should be processed in accordance with the illustrated dimensions (Unit: mm)

2 Install the hook on the aesthetic wooden panel and put the hook into the slot of the outer door of dishwasher(see figure 4a). After positioning of the panel, fix the panel onto the outer door by screws and bolts(See figure 4b).

Installation of aesthetic panel

Outer door

The hook is lifted from position 1 to the appropriate place, then pushed right to the position 2, making the panel and the outer door align.

4a

Installation of aesthetic wooden panel

1. Take away the cover
2. Pin up the screw
3. Get back the cover

r A A B B Hook for aesthetic panel ST4 screw Cover Spacer for aesthetic panel ST4 screw Hook for aesthetic panel Outer door of dishwasher Aesthetic panel 4b

Tension adjustment of the door spring

The door springs are set at the factory to the proper tension for the outer door. If aesthetic wooden panel are installed, you will have to adjust the door spring tension. Rotate the adjusting screw to drive the adjustor to strain or relax the steel cable(see figure 5).

Adjust the door spring tension until the door remains balance in the fully-opened position.

Tension adjustment of the door spring

telix

Drain hose Connection

Insert the drain hose into a drain pipe with a minimum diameter of 4cm, or let it run into the sink, making sure to avoid bending or crimping it. Use the special plastic support that comes with the appliance (figure 7) the top of the hose must be at a height between 40 and 100cm. The free end of the hose must not be immersed in water to avoid the back flow of ATTENTION special plastic hose support must be solidly fastened to the wall to prevent the drain hose from moving and allowing water to spill outside the drain.

Drain pipe connection Close the drain hose hook to the counter-Drain hose hook Front NOTE The top of the hose must be at a height between 40 and 100cm. The free end of the hose must not be immersed in water. Drain pipe A B C MIN 400mm Counter MAX 1000mm

Dishwasher installation steps

1 Install the furniture door to the outer door of the dishwasher using the brackets provided. Refer to the template for positioning of the brackets.

2 Adjust the tension of the door springs by using an Allen key turning in a clockwise motion to tighten the left and right door springs. Failure to do this could cause damage to your dishwasher (Illustration 2).

3 Connect the inlet hose to the cold water supply.

4 Connect the drain hose. Refer to diagram.(Figure 6)

5 Connect the power cord.

6 Affix the condensation strip under the work surface of cabinet. Please ensure the condensation strip is flush with edge of work surface.

7 Place the dishwasher into position.

8 Level the dishwasher. The rear feet can be adjusted from the front of the dishwasher by turning the screws on the left and right hand side of the cabinet (Illustration 6A). To adjust the front feet, use a wrench and turn the front feet until the dishwasher is level (Illustration 6B).

9 The dishwasher must be secured in place. There are two ways to do this:

A. Normal work surface-secure to the work surface by using two woodscrews ensuring the dishwasher weight is not being hit by the surface (Illustration 7).

B. Marble or granite work top-secure the bracket to the side panel of the dishwasher and secure the dishwasher to the furniture housing. Put the rubber cap over the screw (Illustration 8).

Condensation strip Furniture door

Dishwasher must be level for proper dish rack operation and wash performance.

1 Place a spirit level on door and rack track inside the tub as shown to check that t dishwasher is level.
2 level the dishwasher by adjusting the four leveling legs individually.
3 When level the dishwasher, please pay attention not to let the dishwasher tip over.

Illustration of feet adjustment

NOTE:

The maximum adjustment height of the feet is 60 mm.

Technical line drawing of a refrigerator with an inset close-up showing internal components (no text or symbols)

About Power Connection

WARNING!

For personal safety:

■ DO NOT USE AN EXTENSION CORD OR AN ADAPTER PLUG WITH THIS APPLIANCE.
■DO NOT, UNDER ANY CIRCUMSTANCES, CUT OR REMOVE THE EARTHING CONNECTION FROM THE POWER CORD.

Electrical Requirements

Please look at the rating label to know the rating voltage and connect the dishwasher to the appropriate power supply. Use the required fuse 10 amp, time delay fuse or circuit breaker recommended and provide separate circuit serving only this appliance.

Electrical Connection

Insure proper ground exists before use

Ensure the voltage and frequency of the power being corresponds to those on the rating plate. Only in sert the plug into an electrica I socket which is earthe properly. If the electrical socket to which the appliance must be connected is not appropriate for the plug, replace the socket, rather than using a adaptors or the like as they could cause overheating and burns.

GROUNDING INSTRUCTIONS

This appliance must be earthed. In the event of a malfunction or breakdown, earthing will reduce the electric shock by providing a path of least resistance for the electric current. This appliance is equipped cord having an equipment-earthing conductor and an earthing plug. The plug must be plugged into an appropriate outlet that is installed and earthed in accordance with all local standards and requirements.

WARNING!

■ Improper connection of the equipment earthing conductor can result in the risk of an electric shock.
■ Check with a qualified electrician or service representative if you are in doubt whether the appliance is properly earthed.
■ Do not modify the plug provided with the appliance. If the plug does not fit properly to the outlet, please have a qualified electrician to install a proper outlet.

How to Connect the safety supply hose

Hand holding a faucet handle with a valve component (no text or symbols visible)

ABOUT THE SAFETY SUPPLY HOSE.

The safety supply hose consists of the double walls. The hose's system guarantees its intervention by blocking the flow of water in case of the supply hose breaking and when the air space between the supply hose itself and the outer corrugated hose is full of water.

▲ WARNING!

A hose that attaches to a sink spray can burst if it is installed on the same water line as the dishwasher. If your sink has one, it is recommended that the hose be disconnected and the hole plugged.

How to Disconnect the safety supply hose

Turn off the water.

Release the water pressure by depressing the pressure release button. This relieves water pressure and protects your room, from severe splashing.

Unscrew The safety supply hose from the faucet..

COLD WATER CONNECTION

Connect the cold water supply hose to a threaded 3/4(inch) connector and make sure that it is fastened tightly in p. If the water pipes are new or have not been used for an extended period of time, let the water run to make sure water is clear and free of impurities. If this precaution is not taken, there is a risk that the water inlet can get blocked and damage the appliance.

WARNING! Please close the hydrant after using.

Positioning the Appliance

Position the appliance in the desired location. The back should rest against the wall behind it, and the sides, along the adjacent cabinets or wa lls. The dishwasher is equipped with water supply and drain hoses that can be positioned either to the right or the left sides to facilitate proper installation.

How to Drain Excess Water From Hoses

If the sink is 1000 higher from the floor, the excess water in hoses cannot be drained directly into the sink. It will be necessary to drain excess water from hoses into a bowl or suitable container that is held outside and lower than the sink.

Water Outlet

Connect the water drain hose. The drain hose must be correctly fitted to avoid water lea ks. Ensure that the water drain hose is not kin ked or squashed.

Extension Hose

If you need a drain hose extension, make sure to use a similar drain hose. It must be no longer than 4 metres; otherwise the cleaning effect of the dishwasher could be reduced.

Syphon Connection

The waste connection must be at a height of between 40 cm (minimum) and 100 cm (maximum) from the bottom of the dish. The water drain hose should be fixed by a hose clip. The free end of the hose must not be immersed in water.

Start of Dishwasher

The following things should be checked before starting the dishwasher.

The dishwasher is level and fixed properly
■ The inlet valve is open
There is a leakage at the connections of the conducts
■ The wires are tightly connected
■ The power is switched on
■ The inlet and drain hoses are knotted

All packing materials and printings should be taken out from the dishwasher

Attention: After installation, please make sure to keep this manual.

The content of this manual is very helpful to the users.

Review the charts on the following pages may save you from calling for service.

Problem	Possible Causes What To Do
Dishwasher doesn't start	Fuse blown, or the circuit breaker acted	Replace fuse or reset circuit breaker. Remove any other appliances sharing the same circuit with the dishwasher
	Power supply is not turned on	Make sure the dishwasher is turned on and the door is closed securely.Make sure the power cord is properly plugged into the wall socket.
	Error code:E1;Water pressure is low	Check that the water supply is connected properly and the water is turned on.
	Door of dishwasher not properly closed.	Make sure to close the door properly and latch it.
water not pumped form dishwasher	Kink in drain hose	Check drain hose.
	Filter clogged	Check coarse the filter(see section titled )" Cleaning The Filter "
	Kitchen sink clogged	Check the kitchen sink to make sure it is draining well.If the problem is the kitchen sink not draining ,you may need a plumber rather than a serviceman for dishwashers.
Suds in the tub	Improper detergent	Use only the special dishwasher detergent to avoid suds.If this occurs, open the dishwasher and let suds evaporate.Add 1 gallon of cold water to the tub. Close and latch th dishwasher, then select any cycle. Dishwasher will drain out the water at the first step.Open the door after draining is stop and check if the suds is disappeared.Repeat if necessary.
	Spilled rinse-aid	Always wipe up rinse-aid spills immediately.
Stained tub interior	Detergent with colourant was used	Make sure that the detergent is the one without colourant.
White film on inside surface	Hard water minerals	To clean the interior, use a damp sponge with dishwasher detergent and wear rubber gloves.Never use any other cleaner than dishwasher detergent for the risk of foaming or suds.
There are rust stains on cutlery	The affected items are not corrosion resistant.
	A programme was not run after dishwasher salt was added.Traces of salt have gotten into the wash	Always run the quick wash programme .without any crockery in the dishwasher and without selecting the Turbo function (if present),after adding dishwasher salt.cycle.
	The lid of the softer is loose	Check the lip .Ensure the fix is fine.
Knocking noise in the wash cabinet	A sp ay arm is knocking against an item in a basket	Interrupt the programme, and rearrange the items which are obstructing the sp ay arm.r
Rattling noise in the wash cabinet	Items of crockery are loose in the wash cabinet	Interrupt the programme,and rearrange the items of crockery.
Knocking noise in the water pipes	This may be caused by on-site installation or the cross-section of the piping.	This has no influence on the dishwasher function.if in doubt, contact a suitably qualified plumber.

The dishes were not loaded correctly.	See notes in " Loading the Dishwasher Baskets ".
The programme was not powerful enough.	Select a more intensive programme.See" Wash Cycle Table ."
Not enough detergent was dispensed.	Use more detergent, or change your detergent.
Items are blocking the path of sp ay arms.r	Rearrange the items so that the sp ay can rotate freely
The filter combination in the base of wash cabinet is not clean or is not correctly fitted.This may cause the sp ay arm jets to get blocked.	Clean and/or fit the filter combination correctly.Clean the $p ay arm jets. See "Cleaning the Spray Arms".
Combination of soft water and too much detergent.	Use less detergent if you have soft water and select a shortest cycle to wash the glassware and to get them clean.
Aluminum utensils have rubbed against dishes.	Use a mild abrasive cleaner to eliminate those marks.
Dishes block detergent cups.	Re-loading the dishes properly.
Improper loading	Load the dishwasher as suggested in the directions.
Too little rinse-aid	Increase the amount of rinse-aid/refill the rinse-aid dispenser.
Dishes are removed too soon	Do not empty your dishwasher immediately after washing. Open the door slightly so that the steam can escape. Begin unloading the dishwasher only once t he dishes are barely warm to the touch. Empty the low basket first. This prevents water form dropping off dishes in the upper basket.
Wrong program has been selected	In short program the washing temperature is lower.This also lowers cleaning performance. Choose a program with a long washing time.
Use of cutlery with a low-quality coating	Water drainage is more difficult with these items.Cutlery or dishes of this type are not suitable for washing in the dishwasher.

When some malfunctions come on, the appliance will display error codes to warn you:

E1	Longer inlet time.	Faucets is not opened, or water intake is restricted, or water pressure is too low.
E3	Longer heating time,but not reaching required temperature	Malfunction of temperature sensor or of heating element.
E4	Overflow.	Some element of dishwasher leaks .
E6	Failure of temperature sensor	Open circuit or break of temperature sensor
E7	Failure of temperature sensor	Short circuit or break of temperature sensor
E8	Failure of orientation of distributary valve	open circuit or break of distributary valve.
E9	Failure of the buttons operating.	Buttons is pressed exceed 30s.

If overflow occurs, turn off the main water supply before calling a service. If there is water in the base pan because of an overfill or small leak, the water should be removed before restarting the dishwasher.

560 595 820 1165

Height : 820mm(adjustable+60mm)
Width : 595m m
Depth : 560mm
Water pressure: 0.04-1.0MPa
Power supply: see rating label
Capacity: 14 place settings

Amica

Service Help Line

For the UK: please call 0844 815 8880

For Ireland: please call 0818 46 46 46
