Product Type	Knife Sharpener
Brand	IdeenWelt
Model	LZ-123
Rated Voltage	230 V ~ 50 Hz
Rated Power	20 W
Duty Cycle	3 minutes continuous operation, then cool down
Sharpening Disc	Rotating abrasive disc
Honing Guide	Adjustable cap with guides for straight knives, serrated knives, scissors, and screwdrivers
On/Off Switch	Press and hold to operate; disc stops when released
Collection Container	Removable container for grinding dust
Dimensions (Approx.)	150 x 100 x 80 mm (estimated)
Weight (Approx.)	0.5 kg (estimated)
Power Cord	Wraps around housing for storage
Knife Types	Straight knives (both sides), serrated knives (right side only), scissors (both blades), screwdrivers (front tip)
Safety Features	Automatic stop when switch released; requires safety gloves when using without honing guide
Cleaning	Wipe with a damp cloth; do not immerse in water
Certification	CE approved
Disposal	Do not dispose with household waste; take to authorized collection point

Frequently Asked Questions - LZ-123 IdeenWelt

How do I sharpen a straight knife?

Can I sharpen serrated knives?

How do I sharpen scissors?

Can I sharpen screwdrivers?

How long can I use the sharpener continuously?

What safety precautions should I take?

How do I clean the sharpener?

What does the clicking sound mean?

What should I do if the sharpening disc blocks?

Can I use the sharpener for wet sharpening?

USER MANUAL LZ-123 IdeenWelt

3D rendered image of a silver stationery device with a black handle and control knob (no text or symbols visible)

D

Important Safety Instructions 4

Before first use 4

Cleaning and Maintenance 4

Product description 4

Use 5

Technical Data 6

CZ

Close-up of a kitchen knife and a pair of kitchen utensils (no text or symbols visible)

Close-up of a black object with a white stripe and a knife-like tool beside it (no visible text or symbols)

Important Safety Instructions

When using electrical devices, you should always follow basic safety instructions in order to limit the risk of fire, electric shock, and/or personal injuries.

1. Read this instruction manual carefully.
2. To protect yourself from electric shock, make sure you do not immerse the power cord, power plug, or the device in water or other liquids. The device is not suitable for wet sharpening.

3. Keep body parts, hair, etc, away from the rotating sharpening disc. If necessary, pull your hair back. Always wear safety gloves when using the device without the honing guide.

4. The device is intended to be operated for a maximum of 3 minutes at a time. If you need more time, switch it off until the motor cools down to room temperature before resuming use.

5. The sound that the motor makes is not a product error.

6. When using the device in the vicinity of children, constant supervision is absolutely essential.

7. Disconnect the device from the electrical socket before cleaning and if you are not going to use it for an extended period of time. Let the device cool down before cleaning.

8. Do not use electrical devices with a damaged power cord. Do not attempt to operate the device after a malfunction has occurred, or if it has been damaged in any way. Only an authorized Service Centre can check, repair, or regulate the device.

9. The device is not suitable for outdoor use.

10. Do not let the power cord hang over an edge of a table, and make sure the device does not come into contact with hot surfaces, especially cookers.

11. Turn the device off prior to disconnecting it from the power supply.

12. Do not clean the device with scouring agents, steel sponges, or similar scouring materials.

13. Use the device for its intended purpose only.

Before first use

Unpack the device carefully and remove all packaging materials.

Do not use scouring materials to remove the grinding rests from the detachable parts.

Cleaning and Maintenance

CAUTION: Make sure the device is not connected to an electrical socket. To protect yourself from electric shock, do not immerse the power cord, power plug, or the device in water or other liquids.

If necessary, the device can be cleaned with a clean, damp cloth.

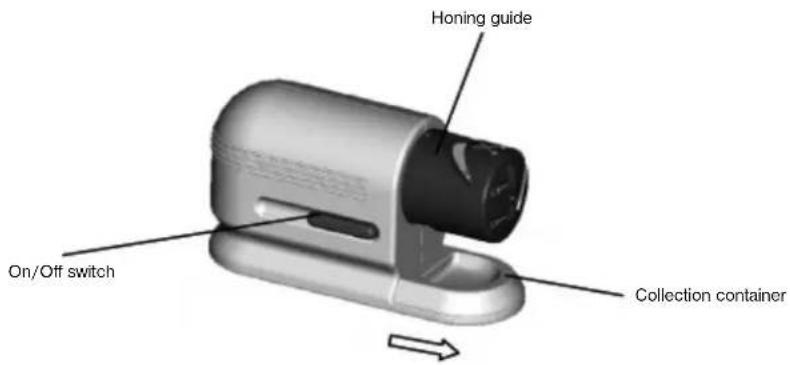

Product description

Honing guide On/Off switch Collection container

Use

1. Wind up the power cord as much as needed and guide it through the openings on the housing. Connect the power plug to a 230V\~50Hz socket. If necessary, place a pad under the device, because some dust may be produced during sharpening.
2. Turn the cap with the honing guide to the appropriate position.

A "clicking" sound must be heard.

1. Place the device on a level surface. Keep pressing the switch when operating the device, because the sharpening disc will stop moving as soon as you release it.
2. Insert the objects to be sharpened only after the sharpener has been turned on.

Always insert knives or scissors at the beginning of the shaft into the corresponding honing guide. With smooth movements, move the knives or scissors towards yourself. Do not move back and forth, as grinding will not be even.

Repeat the procedure until you have reached the desired sharpness. The quality of the results greatly depends on the quality of the steel.

Applying strong pressure or tilting the objects can block the sharpening disc.

Sharpen clean objects only, otherwise the disc gets dirty and the sharpening power decreases.

After 3 minutes, switch the device off so that the motor can cool down to room temperature.

Close-up of a kitchen knife and a knife with a blade, alongside a close-up of the blade (no text or symbols visible)

Serrated knives can be sharpened only on the right side, where they are serrated. Serrated knives are manufactured using a highly complex procedure. Sharpening such knives is therefore possible only in some cases.

Close-up of a black mechanical device with a white strap and a knife, next to a flat surface (no text or symbols visible)

Regular knives have to be sharpened on both sides. There are two honing guides intended for that purpose.

Insert the knife into the right guide as far as possible to the right, and into the left guide as far as possible to the left.

Scissors must be open. Sharpen both blades of the scissors one after another. Be careful when touching the sharpened blade.

Screwdrivers must be sharpened on the front side. Tips of the blade can be brought into the correct form.

In this position the honing guide can be detached from the device. The sharpening disc is easily accessible. Now it is easy to sharpen small tools.

Always wear safety gloves when using the device without the honing guide.

Also use gloves when attaching the honing guide.

Technical Data

Nominal voltage : 230V \~ 50Hz

Nominal powerstung : 20 Watt

Short-time operation : 3 minutes

Model no.: : LZ-123

Imported by:

Declaration of conformity / Disposal

In conformity with the European directives this device has been granted the CE approval.

Used devices must not be disposed of with regular household waste; they must be brought to authorized collecting points.

Close-up of a kitchen knife and a knife blade, no visible text or symbols

Close-up of a black object with a white band and a black tool beside it, no visible text or symbols.

Two black-and-white images: one showing a knife and the other showing a saw blade (no text or symbols visible)

Close-up of a kitchen knife and a knife with a knife handle, no visible text or symbols

Close-up of a kitchen knife and a saw blade (no text or symbols visible)

Close-up of a black object with a white band and a knife-like tool beside it (no visible text or symbols)
