Product Type	Centrifugal Juicer
Brand	Blaupunkt
Model	EJE401
Color	White
Power Consumption	800 W
Juice Jug Capacity	0.8 L
Pulp Container Capacity	1.0 L
Feed Chute Diameter	65 mm
Speed Settings	1 speed
Safety Lock	Locking arm with safety switch
Non-Slip Feet	Yes
Dishwasher Safe Parts	Yes (all removable parts)
Dimensions (HxWxD)	25 x 20 x 30 cm
Weight	2.5 kg
Power Cord Length	1.0 m
Warranty	2 years
Anti-Drip Function	Yes
BPA-Free Materials	Yes
Overheat Protection	Yes
Repairability Index	7.2 / 10
Spare Parts Availability	Online (filter, jug, lid)

Frequently Asked Questions - EJE401 BLAUPUNKT

How do I assemble the Blaupunkt EJE401 juicer?

Place the pulp container under the main unit, then attach the filter basket and locking arm. Insert the juice jug with the spout aligned. Ensure the locking arm clicks into place before use.

Can I juice whole fruits like apples?

Yes, the 65 mm feed chute can accommodate whole apples, carrots, and other medium-sized fruits and vegetables without pre-cutting.

How do I clean the juicer after use?

Unplug the unit. Disassemble the removable parts (pulp container, filter jug, lid) and rinse them under running water. They are dishwasher safe on the top rack.

What safety features does the EJE401 have?

The juicer includes a locking arm safety switch that prevents operation when the arm is open, non-slip feet for stability, and overheat protection to shut off automatically in case of motor strain.

Is the juice pulp separate from the juice?

Yes, the centrifugal design separates the pulp into a dedicated 1.0 L container, while the juice flows into the 0.8 L jug with a built-in foam separator.

Can I juice soft fruits like berries or tomatoes?

Yes, but for best results, use a low speed setting (if adjustable) or alternate with firmer produce. The included pulp adjuster allows finer control.

What is the maximum operating time?

The juicer is designed for intermittent use: run it for up to 2 minutes continuously, then allow it to cool for 2 minutes before next use.

Where can I find replacement parts?

Replacement filters, jugs, and lids are available on the Blaupunkt official website and authorized online retailers. Use the model number EJE401.

Does the juicer have an anti-drip function?

Yes, the spout is designed with an anti-drip valve that closes when the locking arm is opened, preventing drips on your counter.

What should I do if the motor stops during operation?

If the motor stops, it may be due to overload protection. Turn off, unplug, and remove the locking arm. Clear any blockage in the feed chute or filter. Wait 5 minutes before restarting.

USER MANUAL EJE401 BLAUPUNKT

Exterior view of a modern BLAUPUNKT brand juice maker (no signage or text visible on device body)

Enjoy it.

Sokowirówka

Juice extractor

Сокоизстисквачка

Odštavňovač

Αποχυμωτής

Mahlapress

Sokovnik

Gyümölcscentrifuga

Sulčiaspaudė

Storcător de fructe

Odštavovač

Sokovnik

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

- This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

- Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

- This equipment can be used by children aged 8 years and over under as long as supervision is provided. People with reduced physical or mental capabilities, as well as people with no previous experience of using this equipment must be supervised and made aware of the risks. The instruction manual should be used as a reference for the safe use of this equipment. Children should not play with the equipment.

• Children without ensured supervision should not be allowed to perform the cleaning and maintenance of equipment.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not

work properly. Do not try to repair the defected product by yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

• All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.
• Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.
• Before you turn on your device, make sure that all parts are installed correctly. Plug it only with well-established safety clamps on the cover and properly installed feeder.
• Before each use, check out the juicer's filter. If you see any cracks or damage, do not use the device.
• Do not remove the container to a pulp during the operation.
• During operation, do not put your hands or any objects into feeder. To push fruits, use only the pusher.
• Fruits should be put into feeder during operation, you cannot fill feeder with fruit or vegetable at a standstill.
• Be careful not to overload the juicer, do not use too much force to push products through the feeder.
• Do not disassemble the juicer if it is plugged into a power outlet.
• Open safety lock after switching off the appliance and filter stops.
• Do not operate the Juicer continuously more than 3 minutes with any loading. Wait about 30 minutes before next use.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

Technical data

Power: 800W

Power supply: 220-240V\~50/60Hz

Max operation time KB = 3min

Min rest time = 30min

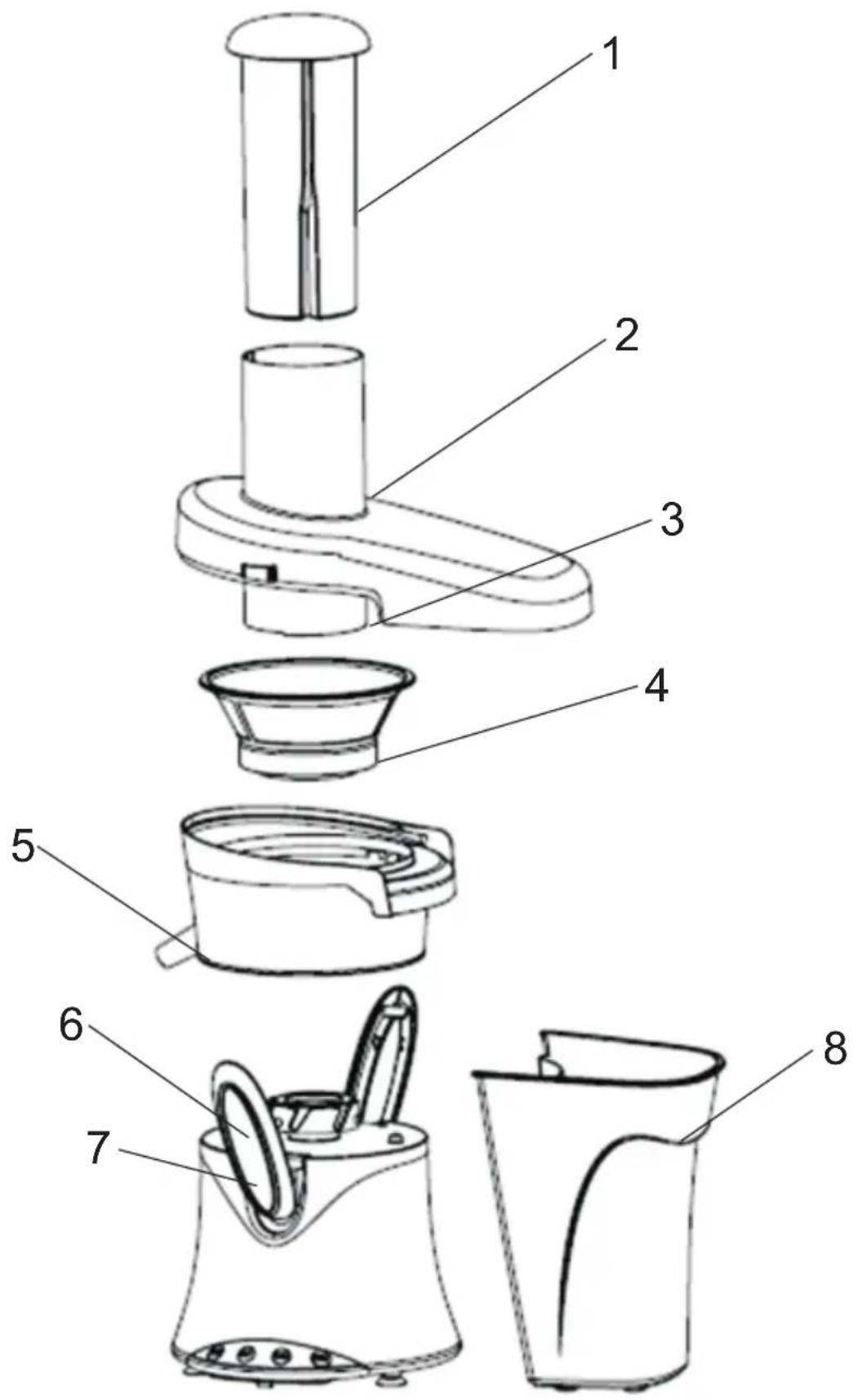

1. Pusher
2. Juicer's cover
3. Filter basket
4. Juice collector

5. Safety locking clamps

6. Basewith motor

7. Switch panel (Pulse, Off, Low, High)

8. Pulp container

9. Juice cup

BEFORE FIRST USE

1. Remove all papers, cartons, foil which secure the juicer and juicer parts.
2. Clean the juicer following the advice in Cleaning and Maintenance chapter.
3. It is recommended to assemble and disassemble the juicer before using.

ASSEMBLING THE JUICER AND DISASSEMBLING

1. Fit the juice collector (4) to the base (6).
2. Fit the filter basket (3) to the motor drive coupling and push down until it into place. Ensure the filter basket (3) is fitted securely inside the juice collector (4).
3. Place the juicer's cover (2) over the juice collector (4).
4. Place the tops of the safety locking clamps (5) on the respective slots on the juicer's cover (2), leaving the clamp (5) hinges resting out. Press the bottom of the clamps (5) in, until they snap snugly into place.
5. Place the pulp container (8) into position by tilting slightly.
6. Place the juice jug under the juice outlet.
7. To disassemble do all the previous operation at the reversed order.

FOOD PREPARATION

Remove stones (plums, peaches, cherries etc).

Remove tough skins (melons, pineapples, cucumbers, potatoes etc).

Soft-skinned and other foods just need washing.

Cut the food into small pieces to fit the feed tube.

USING THE DEVICE

Switch on, put some fruits and vegetables into the feeder and push down with the pusher.

Use low speed for softer food;

Use high speed for harder food.

Some very hard foods may make your juicer slow down or stop. If this happens switch off and unblock the filter.

Insert soft food slowly to get the most juice.

Switch off and clear the pulp collector regularly during use.

CLEANING AND MAINTENANCE

For easy cleaning - immediately after each use rinse removable parts under running water (to remove wet pulp). Allow parts to dry.

After disassembling the unit all removable parts may be washed in hot soapy water.

The juicer cover, juice collector, pulp container, stainless steel filter basket and juice jar are dishwasher safe.

Wipe the motor base with a damp cloth.

Always treat the filter (3) with care as it can be easily damaged.

If pulp is left to dry on the filter it may clog the fine pores of the filter mesh thereby lessening the effectiveness of the juicer.
