FCG701 - Coffee grinder BLAUPUNKT - Free user manual and instructions

Product Type	Coffee Grinder
Brand	Blaupunkt
Model	FCG701
Dimensions (HxWxD)	220 x 120 x 120 mm
Weight	0.5 kg
Power Consumption	150 W
Voltage	220-240 V, 50/60 Hz
Material	Stainless steel grinding burrs, plastic body
Grinding Capacity	60 g
Adjustable Coarseness	Yes, from fine to coarse
Safety Features	Overload protection, non-slip base
Maintenance	Removable grinding cup, cleaning brush included
Cleaning	Wipe with damp cloth, do not immerse
Spare Parts Available	Grinding burrs, container, lid
Repairability	Designed for easy disassembly, spare parts available
Usage Area	Kitchen use only
Noise Level	< 80 dB
Warranty	1 year

Frequently Asked Questions - FCG701 BLAUPUNKT

How to clean the coffee grinder?

Unplug the grinder and remove the grinding cup. Wipe the cup and lid with a damp cloth. Do not immerse in water. Use the included brush to clean the grinding burrs.

What is the maximum grinding capacity?

The maximum capacity is approximately 60 grams of coffee beans. Do not exceed this amount to avoid overloading the motor.

Can I grind spices or other ingredients?

This grinder is designed for coffee beans only. Grinding spices or other hard ingredients may damage the burrs and void the warranty.

Why is the grinder not working?

Ensure the grinder is properly plugged in and the cup is securely in place. Check if the overload protection has tripped; wait a few minutes before retrying.

How to adjust the grind coarseness?

Turn the coarseness selector located on the top of the grinder. Turn clockwise for finer grind, counterclockwise for coarser. Adjust while the grinder is off.

Is it safe to leave the grinder unattended?

No, never leave the grinder unattended while in use. It has automatic shut-off but should always be monitored to prevent overheating.

How loud is the grinder?

The noise level is typical for a coffee grinder, usually below 80 dB. It operates for short periods, so noise is minimal.

What type of coffee beans should I use?

Use whole roasted coffee beans. Do not use pre-ground coffee, green beans, or flavored beans as they may clog the grinder.

How should I store the grinder?

Store in a dry place away from heat. Keep the cord wrapped and the grinding cup clean. Avoid storing with beans inside.

What is the warranty period?

The Blaupunkt FCG701 comes with a 1-year warranty against manufacturing defects. Keep your purchase receipt for warranty claims.

USER MANUAL FCG701 BLAUPUNKT

Exterior view of a modern stainless steel coffee maker with a circular control knob (no visible text or symbols)

Enjoy it.

Coffee grinder

Kaffeemühle

Młynek do kawy

Mlýnek na kávu

Mlynček na kávu

Kávéőrlő

Mlinček za kavo

Mlinac za kavu

Μύλος καφέ

Кафемелачка

Râşniţă de cafea

Kavos malūnélis

Kohviveski

Kafejas grinder

IMPORTANT NOTES

- Before using this device read the instruction manual and follow the instructions inside. The manufacturer is not liable for any damages caused by the misuse of this device due to inappropriate handling. Please keep this manual for future reference.

• This device is for domestic use only. Do not use for any other purposes.

- The device should only be connected to an socket with values corresponding to the values on the rating label.

- It is necessary to check, if total current consumption of all devices plugged into the wall outlet does not exceed the fuse in the circuit.

- If you are using an extension cord, make sure that the total power consumption of the equipment plugged into the extension cord does not exceed the extension cord power rating. Extension cords should be arranged in such a way as to avoid tripping hazards.

- Do not let cord hang over edge of counter, or touch any hot surface.

- The device is not designed to be controlled via an external timer, separate remote control, or other equipment that can turn the device on automatically.

- Before maintenance work always disconnect the unit from the power supply.

- When unplugging the power cord from electrical outlet, hold it by the plug only and remove the plug carefully. Never pull the cable as it may cause damage to the plug or power cord.

- Damage to the power cord or plug can lead to an electrocution hazard.

• Never leave the product connected to the power source

without supervision.

- Never put the power cable, the plug or the whole device into the water or any other liquids.

- The device should be cleaned regularly complying with the recommendations described in the section on cleaning and maintenance.

- Do not place the device near sources of heat, flame, an electric heating element or a hot oven. Do not place on any other device.

• The appliance must not be used by children. Keep the appliance and its cord out of the reach of children.

- The appliance may be used by individuals with limited physical, sensory or mental capability as well as those without knowledge of or previous experience in the use of similar appliances, provided such individuals are supervised or instructed with regard to the safe operation of the appliance and are informed about the potential hazards.

• Additional precautions should be taken when using this device in the presence of children or pets. Do not allow children to play with the device.

- Never use the product close to combustibles.

- Never expose the product to atmospheric conditions such as direct sun light or rain, etc... Never use the product in humid conditions (like bathroom or camping house).

• The power cable should be periodically checked for damage.

- If the power cable is damaged the product should be taken to a professional service location to be fixed or replaced to prevent any hazards from arising.

- Never use the product with a damaged power cable or if it was dropped or damaged in any other way or if it does not work properly. Do not try to repair the defected product by

yourself as it can lead to electric shock. Always return the damaged device to a professional service in order to repair it.

- All the repairs should only be performed by authorized service professionals. Any attempted unauthorised repairs performed can be a hazard to the user.

- Only Original accessories should be used, as well as accessories recommended by the manufacturer. Using accessories which are not recommended by the manufacturer may result in damage of the device and may render the device unsafe for use.

- Use extreme caution with the blades, which are very sharp.

• The coffee grinder is suitable for dry grinding only.

- Do not fill the mill bowl above the Max. level

- Keep the cable out of reach of children and babies to avoid the risk of electrocution and strangulation, keep the appliance and its cable out of the reach of children under 8 years of age.

CE

Device is compliant with EU directives:

- Low voltage directive (LVD)

- Electromagnetic compatibility (EMC)

Device marked CE mark on rating label

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2012/19/EU. Please inform yourself about the local separate collection system for electrical and electronic products. Used appliance should be delivered to the dedicated collecting points due to hazardous components, which may affect the environment. Do not dispose this appliance In the common waste bin.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and poly ethylene (bags, protective foam sheet). Your system consists of material which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Your products is designed a manufactured with high quality materials and components, which can be recycled and reused.

TECHNICAL DATA

Power: 200W

Power supply: 220-240V \~50-60Hz

Maximum continuous operation time KB = 1 min

Minimum interval time = 10 min

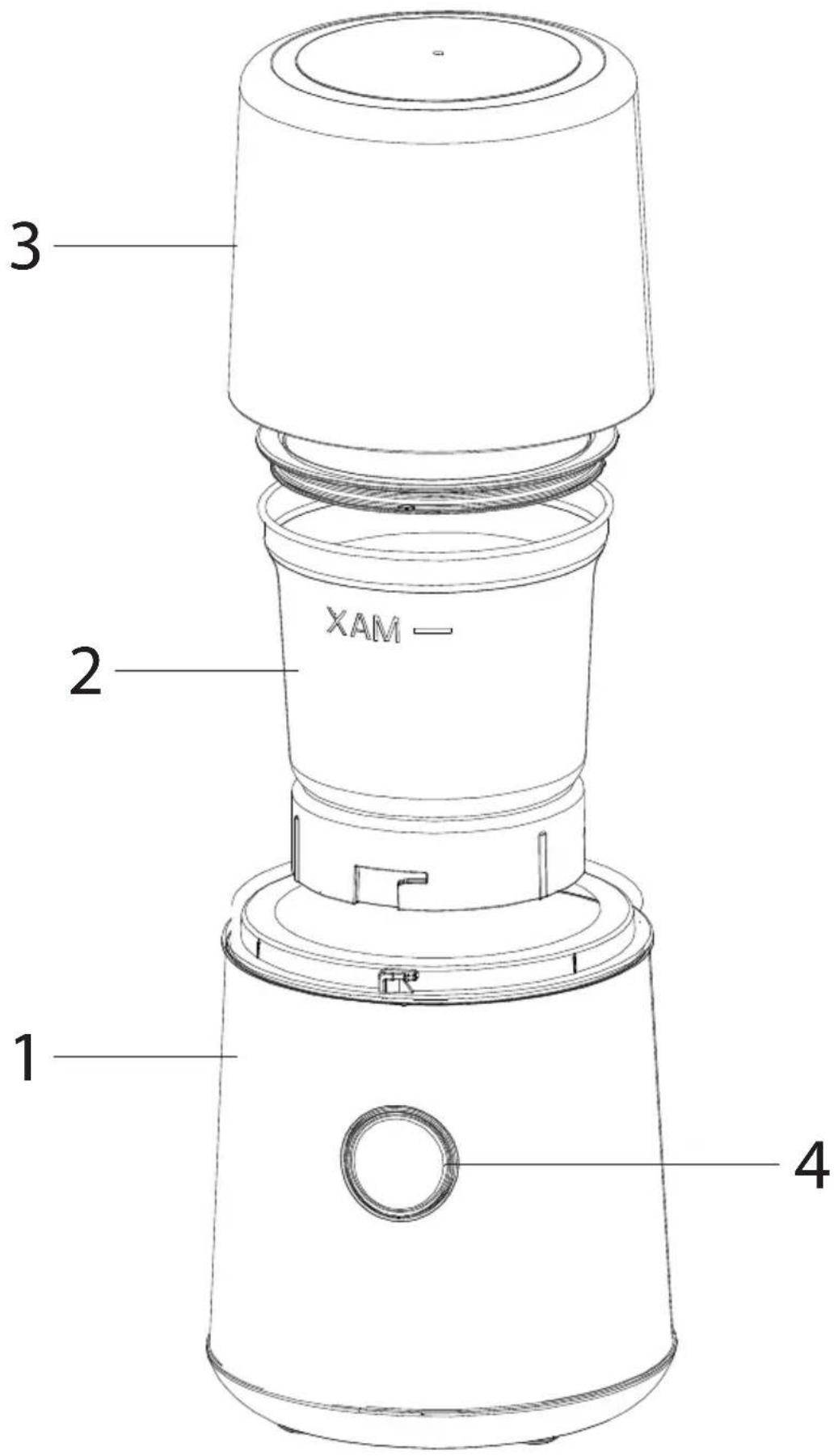

1. Body with motor

2. Mill bowl with blades

3. Cover

4. On/Off switch

BEFORE FIRST USE

1. Remove all papers, cartons and foils protecting the appliance and its parts.
2. Clean the appliance according to the recommendations contained in the CLEANING AND MAINTENANCE section.

USING THE MILL

The mill is suitable only for milling dry products, such as coffee beans and nuts.

Place the mill bowl (2) on the body (1) and lock it by turning it right (clockwise).

Put the products to be processed into the mill bowl (2). Place the cover (3) on the mill.

Plug the power cord into an electric socket. Start the appliance by pushing the ON button (4).

Unplug the appliance after the ingredients have been milled. Remove the cover (3). In order to make emptying the bowl (2) easier, it can be disconnected from the body (1) by turning it left (counterclockwise).

CLEANING AND MAINTENANCE

Make sure the mill has been disconnected from the power source.

Clean the body (1) with a mildly damp cloth and then wipe it dry. Do not submerge the body in water or other liquids.

All elements, except for the body (1) with the motor, are suitable for cleaning with water and a dishwashing liquid.
