USER MANUAL MFT-3 AFK

White square air fryer with French fries being opened, accompanied by a set of skewers (no text or symbols visible)

Mini-Fritteuse

Mini Deep Fryer

Mini Frytkownica

Mini Friteuse

Mini Friteuse

Congratulations on your purchase of this high-quality product. Read the instruction manual carefully to get the best results from this Fondue/Deep-fryer. These instructions give you all the necessary directions and advice for using, cleaning and maintaining the appliance. If you follow these instructions, you will always achieve excellent results.

We hope that you will enjoy using this Fondue/Deepfryer.

SAFETY INSTRUCTIONS

General

• Read these instructions carefully and keep them in a safe place.
• Only use the appliance as described in this instruction manual.
• Any damage caused by failure to observe this instruction manual will immediately void the warranty. The manufacturer/importer accepts no liability for damages caused by failure to observe this instruction manual, careless use of the appliance or use that is not in accordance with the instructions set out in this instruction manual.
• Keep the appliance out of the reach of children.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
• Keep the appliance and its cord out of reach of children below the age of 8 years.
• Children must be strictly supervised to prevent them from treating the appliance like a toy.
• Do not allow unsupervised children to clean or maintain this appliance.

• Always remove the plug from the plug socket and allow the appliance to cool down:

• before moving the appliance;

• before storing the appliance;
• before assembling or disassembling parts;
• before cleaning the appliance or performing maintenance;
• after using the appliance.

- Repairs may only be carried out by a qualified service centre*.

* Qualified service centre: the manufacturer's or importer's after-sales service department, which is authorised and competent to perform such repairs so that any danger is avoided. In the event of any problems, please return the appliance to this department.

Electricity and heat

• Before use! check that the mains power supply voltage is the same as the voltage indicated on the appliance.
• Clways plug the appliance into an earthed plug socket2
• Regularly check the power cord for damage2
• Do not use the appliance if the power cord is damaged2 Have a damaged power cord replaced by a qualified service centre.
• Do not use any appliance with a damaged cord or plug or after the appliance has shown signs of defects, has fallen or has been damaged in any way. Return the appliance to the manufacturer or the nearest qualified service centre for inspection, repairs or electrical or mechanical modifications.
• Clways remove the plug from the wall socket by pulling on the plug, not the power cord.
• Yake sure the power cord does not come into contact with hot surfaces or steam.

• Clways remove the plug from the power socket before moving the appliance.

• Do not operate the appliance by means of an external time switch or a separate remote control system.

• If an extension lead is required! use a 10 amp power cord2 Power cords with a lower amp rating may burn out. When positioning the power cord, make sure that it cannot be pulled on or tripped over.

- Cvoid overloading by not connecting too many appliances to a group.

- Never immerse the appliance! the plug or the housing in water or other liquids! to avoid the risk of electric shock2

- Do not touch the appliance if it has fallen into water2 Remove the plug from its socket, turn off the appliance and do not use it again.

- Do not use the appliance close to sources of heat! such as a stove or oven. Using the appliance

- This appliance is intended for domestic and similar use! such as:

- in staff kitchens in shops, offices and other working environments;

- on farms;

- by hotel or motel guests or guests in other residential settings;

- in bed and breakfasts or similar environments.

- The use of accessories not recommended by the manufacturer of the appliance may result in personal injury.

- Only use this appliance indoors! in dry areas away from water.

- Never immerse the appliance or the plug in water or any other liquid2 This may result in a fatal electric shock!

- Do not use the appliance outdoors or on wet surfaces! to avoid the risk of electric shock.

• Place the appliance on a stable, level surface from which it cannot fall onto the floor.
• Place the appliance on a heat-resistant surface and not, for example, on varnished furniture.
• Place the appliance at least 50 cm from a wall or inflammable materials (such as curtains, candles or cloths).
• Place the appliance on a stable and flat surface, not too close to hot objects or naked flames (such as stovetops or hotplates).
• Remove the plug from its socket when the appliance is not in use and for cleaning.
• Do not allow the power cord to hang over sharp edges, and keep it away from hot objects and naked flames.
• Never use the appliance if the power cord or plug show any signs of damage, if the appliance has fallen on the ground or in the event of any other form of damage. In such cases, take the appliance to a qualified person for inspection and, if necessary, have it repaired.
• Never allow unsupervised children to use electrical household appliances. Children are unable to assess the dangers associated with the incorrect use of electrical appliances.
• Children who are close to the appliance or who are using it must always be kept under adult supervision.
• Never leave the appliance unattended whilst it is in use.
• Only use this appliance for fonduing or deep-frying food. The appliance could be damaged if you use it for other purposes.
• Keep the appliance clean, since it comes into direct contact with foodstuffs.
• Only pick up the appliance by its handle, certain parts of the appliance become hot during use. You may suffer a

serious burn if you touch hot parts of the appliance.

- Do not leave products in the appliance too long, and do prepare them at the right temperature. Otherwise, they may burn and produce smoke.

Warning

Please do not touch the surface while the appliance is in use. The accessible surface may become hot when the appliance is switched on.

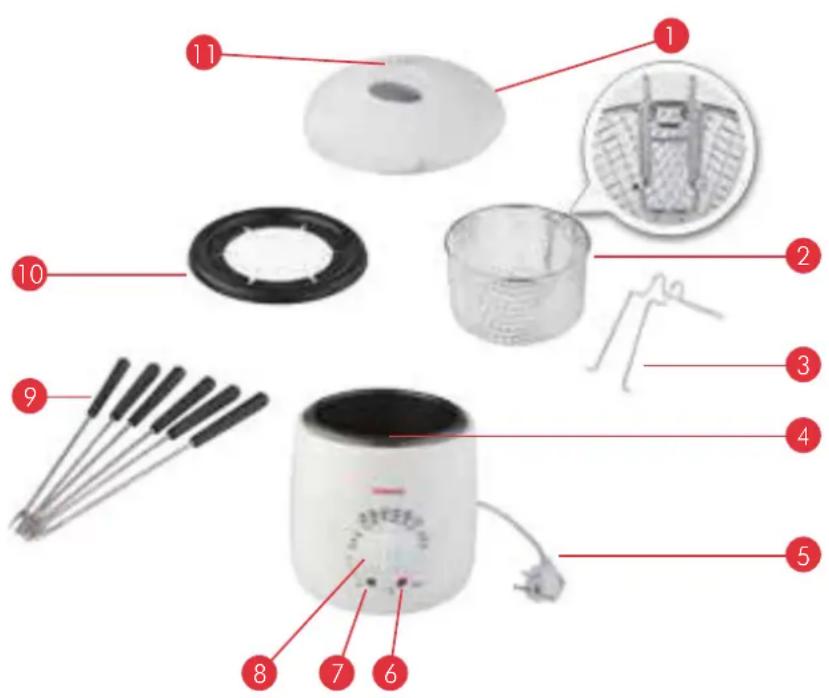

DESCRIPTION OF PARTS

1. Lid with viewing window
2. Frying basket
3. Handle
4. Recess for frying basket handle
5. Power cord and plug
6. Red indicator lamp (appliance connected to mains power)
7. Green indicator lamp (heating element on)
8. Temperature switch
9. Fondue forks (x 6)
10. Fondue ring
11. Filter

Labeled diagram of a kitchen appliance with numbered parts for identification

OPERATION

You can use this Fondue/Deep-fryer for both deepfrying and fonduing. As a deep-fryer, this appliance is suitable for small quantities of snacks, such as spring rolls, chicken wings and fries. Ideal for preparing a savoury snack. In addition, this appliance can also be used for fonduing at the table with family and friends.

USING FOR THE FIRST TIME

• Remove all packaging from the appliance.
• Clean the appliance, see 'Cleaning and Maintenance'.
• Attach the handle to the frying basket. Squeeze both sides of the handle together for this. The end of the handle will then fit into the basket's handle holder. Now slowly release the handle and make sure that both ends lock into the eyes and clamps of the basket(see also the picture in the description of parts).
• When the appliance is switched on and heats up for the first time, a small amount of smoke may be released and you may detect a certain smell. This is normal, and will disappear after a few minutes.
• Continue with the procedure in ‘Using the appliance’.

USING THE APPLIANCE

Filling the appliance with oil, fat or fondue oil

• Open the lid.
• Use the handle to remove the frying basket from the appliance.
• Fill the appliance with the required amount of oil or liquid fat. Make sure that the appliance is filled to at least the minimum level and no higher than the maximum level indicated on the inside of the appliance.

- For fonduing, you should only use oil that is suitable for fonduing.

- For the best deep-frying results, we recommend that you should never mix different types of oil.

- Close the lid.

Deep-frying

• Insert the plug into the mains power socket. The red indicator lamp will illuminate.
• Set the temperature switch to the desired temperature. The green indicator lamp (°C) will illuminate.
• Wait until the oil or fat reaches the set temperature. The green

indicator lamp will then go out. To keep the oil or fat at this temperature, the heating element will repeatedly switch on and off, and the green indicator lamp will also go on and off.

• Open the lid.
• Place the food to be deep-fried in the frying basket. For the best result, we recommend placing dry food in the basket.
• Slowly submerse the frying basket into the appliance. Make sure the handle drops into the handle recess.
• Make sure that the oil or fat does not pass over the edge of the appliance. If this is about to happen, it means the basket is too full and you will have to take something out of it.
• Leave the handle attached to the basket and close the lid. The frying time depends on the foodstuffs and your own taste.
• Use the handle to remove the frying basket from the appliance once the frying time has elapsed.
• Hang the hook of the frying basket in the recess on the front edge of the appliance to allow the oil to drain from the fried food. Never shake the basket
• Set the temperature switch to the lowest setting.
• Remove the plug from the mains power socket.

Fonduing

• Insert the plug into the mains power socket. The red indicator lamp will illuminate.
• Set the temperature switch to the desired temperature. The green indicator lamp (°C) will illuminate.
• Wait until the oil reaches the set temperature. The green indicator lamp will then go out. To keep the oil at this temperature, the heating element will repeatedly switch on and off, and the green indicator lamp will also go on and off.
• Remove the lid from the appliance. You can do this by opening the lid and then lifting it up.
• Position the fondue ring on the appliance. The appliance is now ready for use for fonduing.

- Skewer the desired food with a fondue fork and place the fork in the appliance.

- Make sure that the oil does not pass over the edge of the appliance. If this is about to happen, there is too much food in the appliance and you will have to wait until there is some more room.

- Never use a fondue fork to scrape the bottom of the appliance! as this may damage the appliance.

- Remove the food from the appliance as soon as it is cooked.

- Cfter fonduing! always set the temperature switch to the lowest setting.

- Remove the plug from the mains power socket2

NOTE

- Remove the food from the appliance on time2 Otherwise the food may get burnt and give off smoke.

- Regularly replace the frying oil or the liquid frying fat2 Fat or oil quality diminishes each time you use it for frying! as well as becoming contaminated with food remains.

- Never switch on the appliance without oil or liquid fat! as this could damage the appliance2 Never pour any other liquids! such as water or other substances, into the deep-fryer.

CLEANING AND MAINTENANCE

Warning

Before cleaning the appliance, always switch it off, unplug it from the electricity supply and allow it to cool down completely.

Cleaning

- Never immerse the appliance or power cord in water! or in any other liquid2 This may cause an electric shock or a short circuit2

- Do not clean the appliance with an aggressive or abrasive cleaner or with a sharp object, such as a hard brush or a knife.

- Completely remove the lid from the appliance2 You can do this by opening the lid and then lifting it up.

- First remove any oil or fat still inside the appliance:

• Make sure that the oil or fat has cooled down completely.

• Frying oil or fat should be disposed of at a special purpose collection point.

• Clean the frying basket! the inner pan and the lid using hot water and washing-up liquid2 Dry them thoroughly2

• Clean the outside of the appliance only with a moist cloth and thoroughly dry the outside afterwards.
• Fit the lid back on the appliance2 You can do this by placing the lid in the hinge recesses and then closing the lid.

Replacing the filter

• Open the lid2
• Unscrew the metal inner lid2
• Remove the filter present from the lid2
• )lace the new filter2
• Reattach the metal inner lid2
• Close the lid2

STORAGE

Store the appliance and the accessories in a dry place.

After long storage periods without use, drain the oil or fat from the appliance and store the oil or fat separately.

TECHNICAL DATA

Voltage: 220-240 V\~50/60 H*

)ower: 800 W

Capacity: 1 litres

Quantity of oil/fat: between 450 ml and 600 ml

Waste Management

The symbol above and on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life.

The Waste of Electrical and Electronic Equipment (WEEE) Directive (2002/96/EC) has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Contact local authorities for information on the correct disposal of Electrical or Electronic equipment.
