Product Type	Range Hood (Mora OK 623 X)
Installation Type	Wall-mounted, ducted or recirculating (filter version)
Controls	Push buttons: light on/off, motor off, 3 suction speeds (min, med, max)
Lighting	LED lamp, max 3W, E14 base
Suction Speeds	3 speeds (c. minimum, d. medium, e. maximum)
Grease Filter	Washable metal mesh; clean monthly (by hand or dishwasher at low temp)
Charcoal Filter	Optional for recirculation; replace every 4 months; not washable
Air Outlet Diameter	Equivalent to connection flange (likely 120mm or 150mm, not specified exactly)
Minimum Distance to Hob	50 cm (electric), 70 cm (gas or mixed)
Electrical Supply	220-240 V, see rating plate inside hood
Power Cord	Plug type; if hardwired, use double pole switch
Safety	Child lock not mentioned; accessible parts may get hot
Cleaning	Use damp cloth with neutral detergent; no abrasive or alcohol
Lamp Replacement	E14 3W max LED; replace after cooling
Weight	Approx. 10 kg (estimate for 60 cm hood)
Dimensions (W x D x H)	Approx. 60 cm width, 50 cm depth, variable height (not specified)
Noise Level	Not specified; varies by speed
Version	Ducting (exhaust) or filter (recirculation)
Backdraft Damper	Optional accessory for ducting version
Regulatory Compliance	EN/IEC 60335, 61591, etc.; WEEE directive

Frequently Asked Questions - OK 623 X Mora

What is the minimum installation height above the hob?

For electric hobs, the minimum distance is 50 cm; for gas or mixed hobs, it is 70 cm to the lowest part of the hood. Always follow the hob manufacturer's instructions if they specify a greater distance.

How often should I clean the grease filter?

The grease filter should be cleaned once a month (or when the saturation indicator lights up, if available). It can be washed by hand or in the dishwasher at a low temperature and short cycle.

When should I replace the charcoal filter?

The charcoal filter (for recirculation mode) must be replaced every four months or more frequently depending on use. It cannot be washed or regenerated.

Can I use the hood without a charcoal filter?

Yes, if the hood is connected to an outside exhaust (ducting version). For filter (recirculation) version, the charcoal filter is essential to absorb odors.

How do I replace the light bulb?

First disconnect the hood from power. Remove cover A to access the housing. Use only E14 3W max LED lamps. Ensure the bulb is properly fitted before turning power back on.

What are the different fan speeds used for?

Speed c (minimum) for normal cooking, speed d (medium) for more smoke, speed e (maximum) for heavy fumes or odors. Use boost only in extreme situations to reduce energy consumption.

Is it safe to use the hood with a gas hob?

Yes, but ensure the room is well ventilated when used simultaneously with gas appliances. The minimum distance must be 70 cm to reduce fire risk.

How do I set up the hood for recirculation?

Install the deflector F on the flue and attach one or more charcoal filters (depending on model). The air is recycled through the upper grill H. If no charcoal filter is supplied, order and mount one.

What should I do if the hood is not working after cleaning?

Check that the power supply is connected and the plug is in. Ensure lamps are properly fitted. If still not working, contact a qualified technician. Do not attempt to repair electrical parts yourself.

Can I install the hood myself?

Installation should be performed by a qualified technician to ensure correct mounting and electrical connection. The wall must be strong enough to support the weight. Follow the safety instructions in the manual.

USER MANUAL OK 623 X Mora

EN Instruction on mounting and use

1

Technical line drawing of a mechanical device with a circular component and mounting base (no text or symbols)

R

2

a. Zapnutie/vypnutie svetla

b. Vypnutie motora

a. ВКЛ/ВЫКЛ подсветки

a. Жарыкты КОСУ/ӨШІРУ
b. Моторларды ⏊ШIPY
c. - d. - e. Минималды сору күші (c.), орташа (d.), максимальды (e.).

EN - Instruction on mounting and use

Closely follow the instructions set out in this manual. All responsibility, for any eventual inconveniences, damages or fires caused by not complying with the instructions in this manual, is declined. This appliance is intended to be used in household and similar application such as: - staff kitchen areas in shop, offices and other working environments; - farm houses; - by clients in hotels, motels and other residential type environments; - bed and breakfast type environments.

• It is important to conserve this booklet for consultation at any moment. In the case of sale, cession or move, make sure it is together with the product.
• Read the instructions carefully: there is important information about installation, use and safety.
• Do not carry out electrical or mechanical variations on the product or on the discharge conduits.
• Before proceeding with the installation of the appliance verify that there are no damaged all components. Otherwise contact your dealer and do not proceed with the installation.

Note: The parts marked with the symbol "(*)" are optional accessories supplied only with some models or otherwise not supplied, but available for purchase.

Caution

• Before any cleaning or maintenance operation, disconnect hood from the mains by removing the plug or disconnecting the mains electrical supply.
  • Always wear work gloves for all installation and maintenance operations.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- Children shall not be allowed to tamper with the controls or play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision.

- The premises where the appliance is installed must be sufficiently ventilated, when the kitchen hood is used together

with other gas combustion devices or other fuels.

• The hood must be regularly cleaned on both the inside and outside (AT LEAST ONCE A MONTH).
• This must be completed in accordance with the maintenance instructions provided. Failure to follow the instructions provided regarding the cleaning of the hood and filters will lead to the risk of fires.
• Do not flambé under the range hood.
• For lamp replacement use only lamp type indicated in the Maintenance/Replacing lamps section of this manual.

The use of exposed flames is detrimental to the filters and may cause a fire risk, and must therefore be avoided in all circumstances.

Any frying must be done with care in order to make sure that the oil does not overheat and ignite.

CAUTION: Accessible parts of the hood may become hot when used with cooking appliances.

- Do not connect the appliance to the mains until the installation is fully complete.

• With regards to the technical and safety measures to be adopted for fume discharging it is important to closely follow the regulations provided by the local authorities.
• The air must not be discharged into a flue that is used for exhausting fumes from appliance burning gas or other fuels.
• Do not use or leave the hood without the lamp correctly mounted due to the possible risk of electric shocks.
• Never use the hood without effectively mounted grids.
• The hood must NEVER be used as a support surface unless specifically indicated.
• Use only the fixing screws supplied with the product for installation or, if not supplied, purchase the correct screws type.
• Use the correct length for the screws which are identified in the Installation Guide.
• In case of doubt, consult an authorized service assistance center or similar qualified person.

WARNING!

- Failure to install the screws or fixing device in accordance with these instructions may result in electrical hazards.

- Do not use with a programmer, timer, separate remote control system or any other device that switches on automatically.

• This appliance is marked according to the European directive 2012/19/EC on Waste Electrical and Electronic Equipment (WEEE).
• By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

• The symbol ■ on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. Disposal must be carried out in accordance with local environmental regulations for waste disposal.
• For further detailed information regarding the process, collection and recycling of this product, please contact the appropriate department of your local authorities or the local department for household waste or the shop where you purchased this product.

Appliance designed, tested and manufactured according to:

• Safety: EN/IEC 60335-1; EN/IEC 60335-2-31, EN/IEC 62233.
  • Performance: EN/IEC 61591; ISO 5167-1; ISO 5167-3; ISO 5168; EN/IEC 60704-1; EN/IEC 60704-2-13; EN/IEC 60704-3; ISO 3741; EN 50564; IEC 62301.
• EMC: EN 55014-1; CISPR 14-1; EN 55014-2; CISPR 14-2; EN/IEC 61000-3-2; EN/IEC 61000-3-3. Suggestions for a correct use in order to reduce the environmental impact: Switch ON the hood at minimum speed when you start cooking and kept it running for few minutes after cooking is finished. Increase the speed only in case of large amount of smoke and vapor and use boost speed(s) only in extreme situations. Replace the charcoal filter(s) when necessary to maintain a good odor reduction efficiency. Clean the grease filter(s) when necessary to maintain a good grease filter efficiency. Use the maximum diameter of the ducting system indicated in this manual to optimize efficiency and minimize noise.

Use

The hood is designed to be used either for exhausting or filter version.

Ducting version

The hood is equipped with a top air outlet B for discharge of fumes to the outside (exhaust pipe and pipe fixing clamps not provided).

Connect the hood and discharge holes on the walls with a

diameter equivalent to the air outlet (connection flange).

Using the tubes and discharge holes on walls with smaller dimensions will cause a diminution of the suction performance and a drastic increase in noise.

Any responsibility in the matter is therefore declined.

Attention! If the hood is supplied with carbon filter, then it must be removed.

Filter version

In the case of not being able to discharge the fumes and the steam of cooking outside, the hood in the filter version can be used mounting the F deflector on the flue and one or more carbon filters (on the basis of the model possessed). The fumes and steam are recycled into the kitchen through upper grill H.

Attention! If the hood is not supplied with carbon filter, then it must be ordered and mounted.

Installation

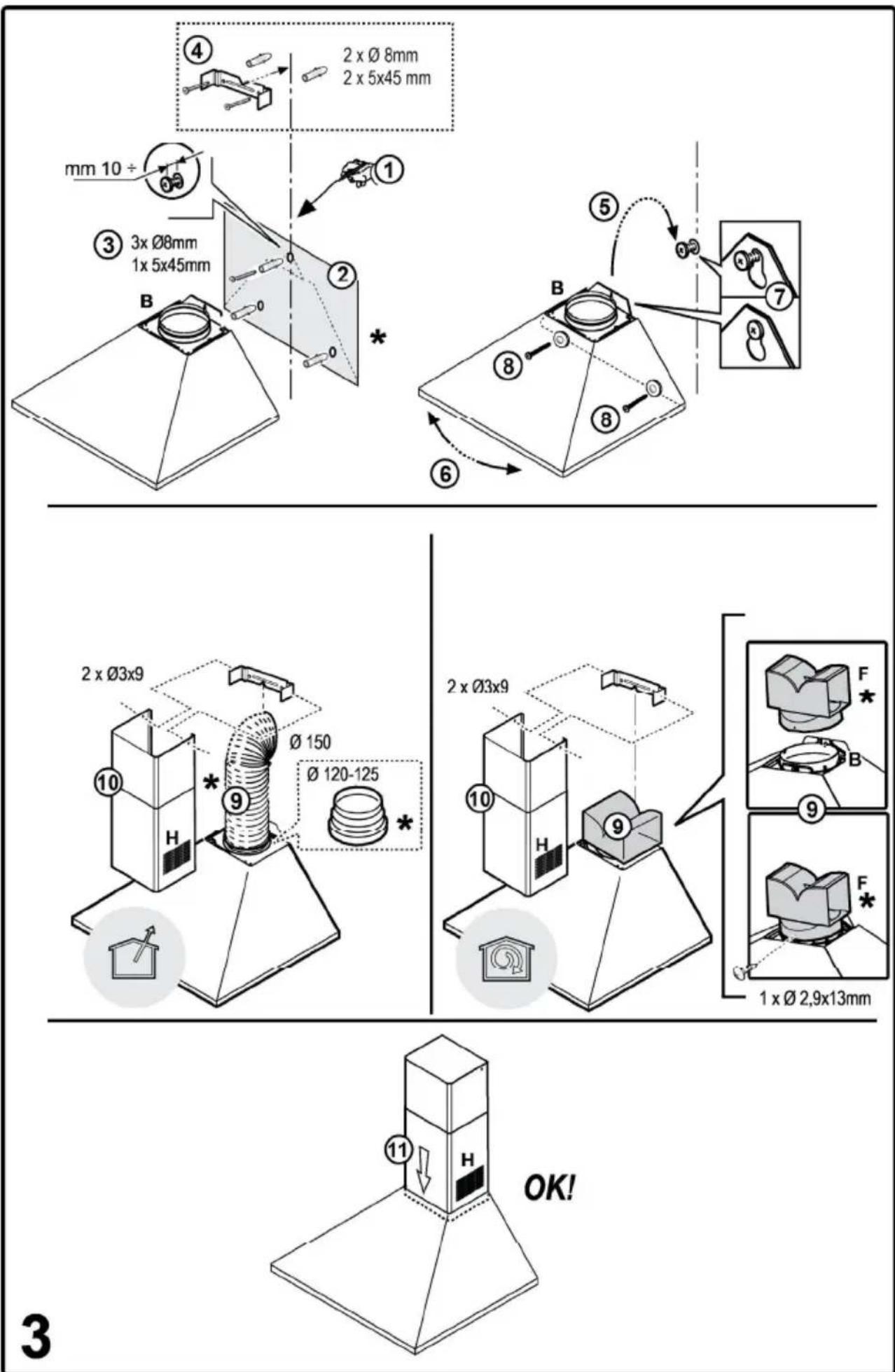

Fig. 3

The minimum distance between the supporting surface for the cooking equipment on the hob and the lowest part of the range hood must be not less than 50cm from electric cookers and 70cm from gas or mixed cookers.

If the instructions for installation for the gas hob specify a greater distance, this must be adhered to.

Electrical connection

The mains power supply must correspond to the rating indicated on the plate situated inside the hood. If provided with a plug connect the hood to a socket in compliance with current regulations and positioned in an accessible area, after installation. If it not fitted with a plug (direct mains connection) or if the plug is not located in an accessible area, after installation, apply a double pole switch in accordance with standards which assures the complete disconnection of the mains under conditions relating to over-current category III, in accordance with installation instructions.

WARNING!

Before re-connecting the hood circuit to the mains supply and checking the efficient function, always check that the mains cable is correctly assembled.

Warning! If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid hazard.

Mounting

Expansion wall plugs are provided to secure the hood to most types of walls/ceilings. However, a qualified technician must verify suitability of the materials in accordance with the type of wall/ceiling. The wall/ceiling must be strong enough to take the weight of the hood.

Do not tile, grout or silicone this appliance to the wall. Surface mounting only.

Operation

The hood is fitted with a control panel with aspiration speed selection control and a light switch to control cooking area lights.

a. ON/OFF lighting

b. OFF motors

c. - d. - e. Minimum suction power (c.), medium (d.), maximum (e.).

a. ON/OFF light switch
b. Speed 1/OFF switch
c. 2-speed selection
d. 3-speed selection

Maintenance

Cleaning

Clean using ONLY a cloth dampened with neutral liquid detergent. DO NOT CLEAN WITH TOOLS OR INSTRUMENTS. Do not use abrasive products. DO NOT USE ALCOHOL!

Grease filter

Traps cooking grease particles.

This must be cleaned once a month (or when the filter saturation indication system – if envisaged on the model in possession – indicates this necessity) using non aggressive detergents, either by hand or in the dishwasher, which must be set to a low temperature and a short cycle.

When washed in a dishwasher, the grease filter may discolor slightly, but this does not affect its filtering capacity.

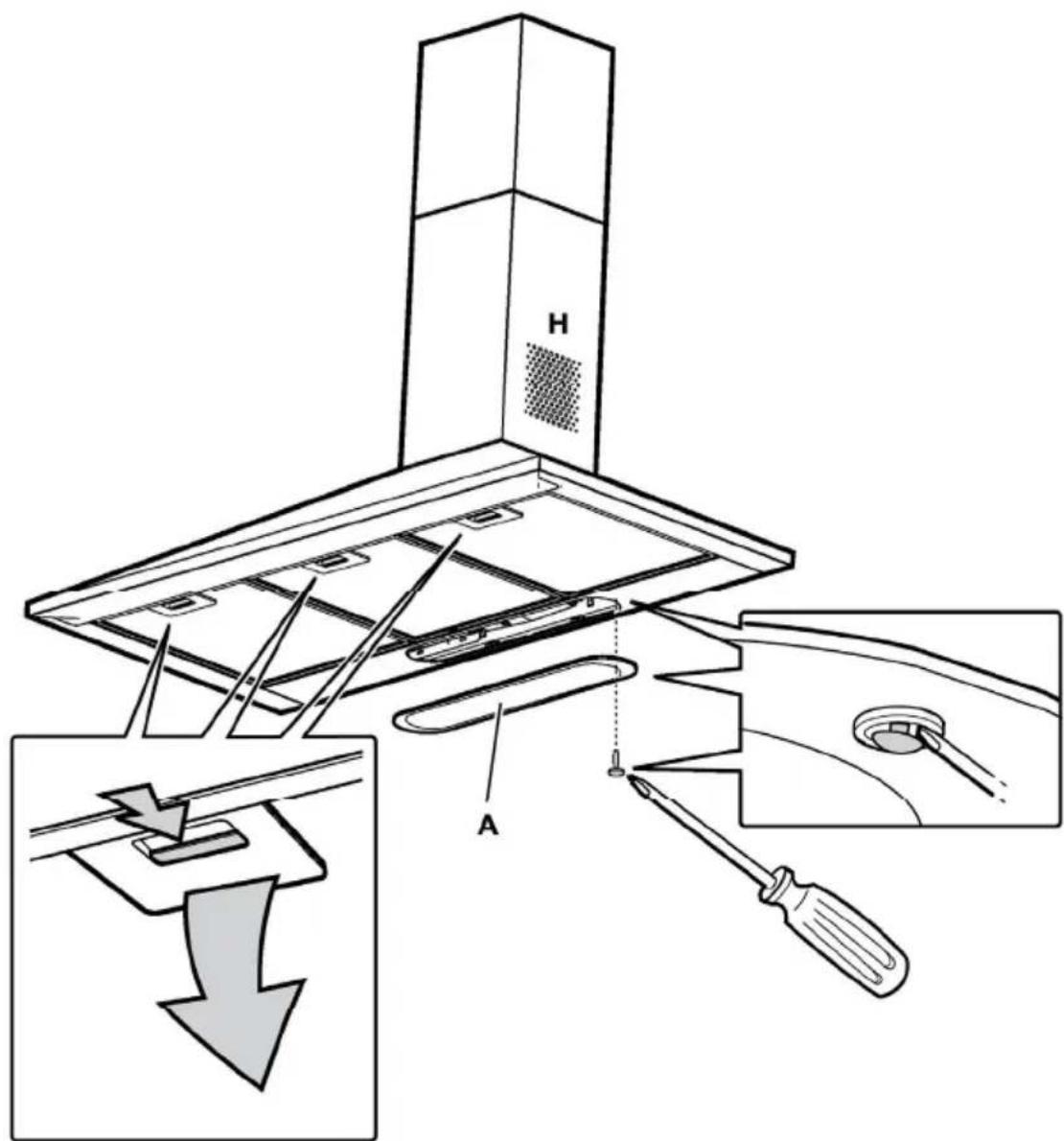

To remove the grease filter, pull the spring release handle.

Fig. 1

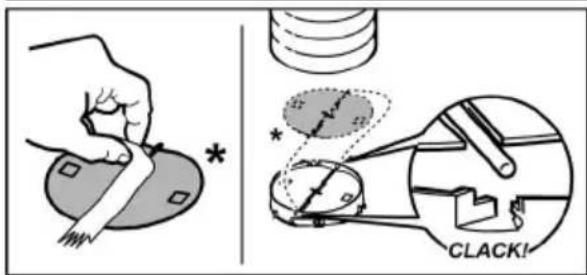

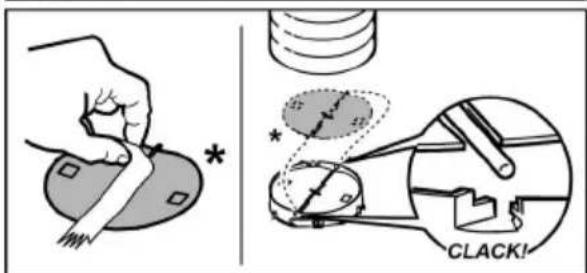

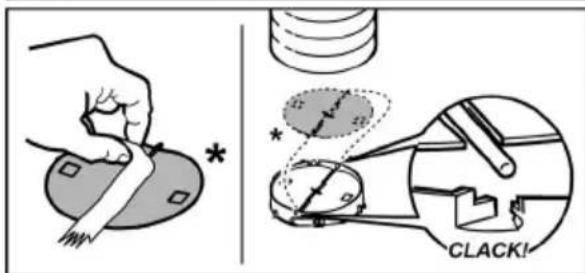

Charcoal filter (filter version only)

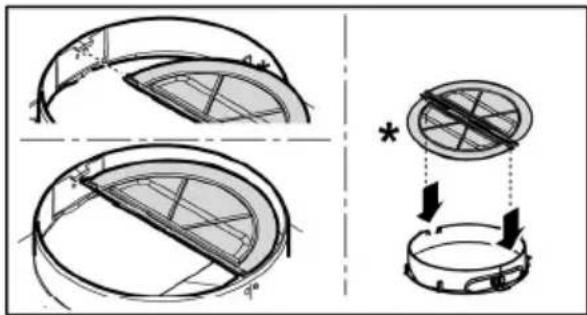

Fig. 2

It absorbs unpleasant odors caused by cooking.

The saturation of the charcoal filter occurs after more or less prolonged use, depending on the type of cooking and the regularity of cleaning of the grease filter.

In any case it is necessary to replace the cartridge at least every four months.

The charcoal filter may NOT be washed or regenerated.

Remove the grease filters.

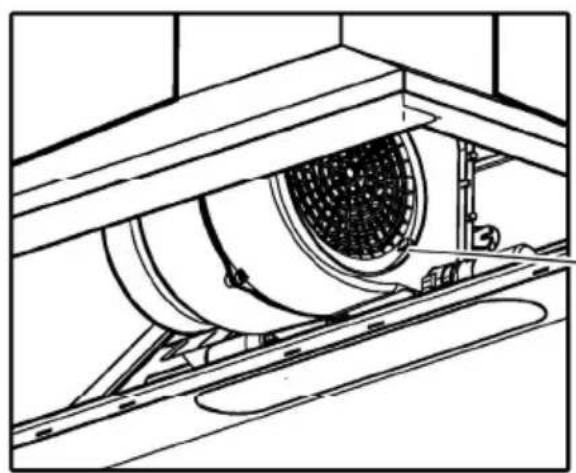

Fit the charcoalfilters over the motor.

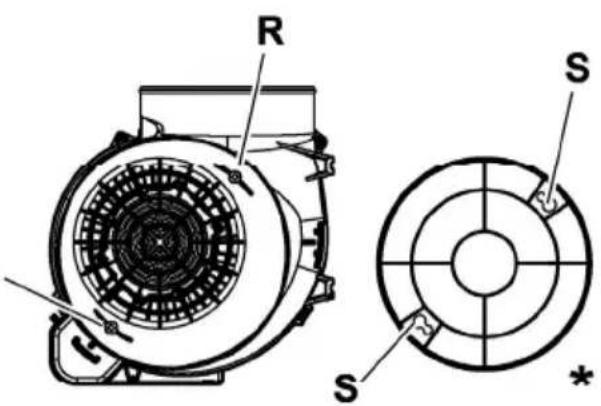

Align the pins R on the cowl with the slots S, then turn the filter clockwise until it locks in place.

Reverse the above procedure to remove the charcoal filters.

Refit the grease filters.

Replacing lamps

Fig. 1

Disconnect the appliance from the electricity.

Warning! Prior to touching the light bulbs ensure they are cooled down.

Remove cover A to access the lamp housing A.

Replace the damaged lamp.

Use E14 3W max LED lamps only. For more details, check enclosed leaflet "ILCOS D" (alfanumeric position "1d").

If the lights do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

On some models ONLY:

A Non Return Backdraft Damper is included in the supply, as optional accessory to be installed under certain installation conditions (i.e. if there is no protection against accidental backdraft of air from the outside). The damper must be installed inside the dedicated housing, inside of the Air Outlet Fitting, before installing the flue.
