USER MANUAL Toledo 4 High Peak

Line drawing of a tent-like structure with geometric panels and windows, labeled 'Sümex Sport' (no other text or symbols)

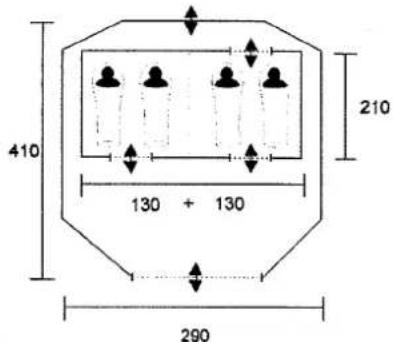

Toledo 4

410 130 + 130 290 210

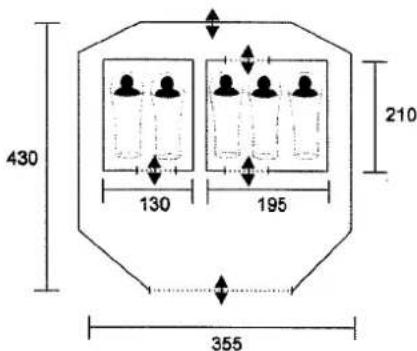

Toledo 5

430 130 195 210 355

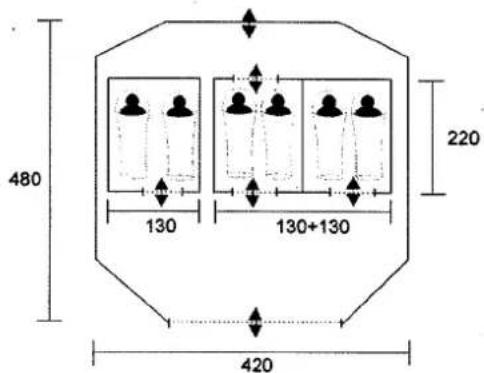

Toledo 6

480 130 130+130 220 420

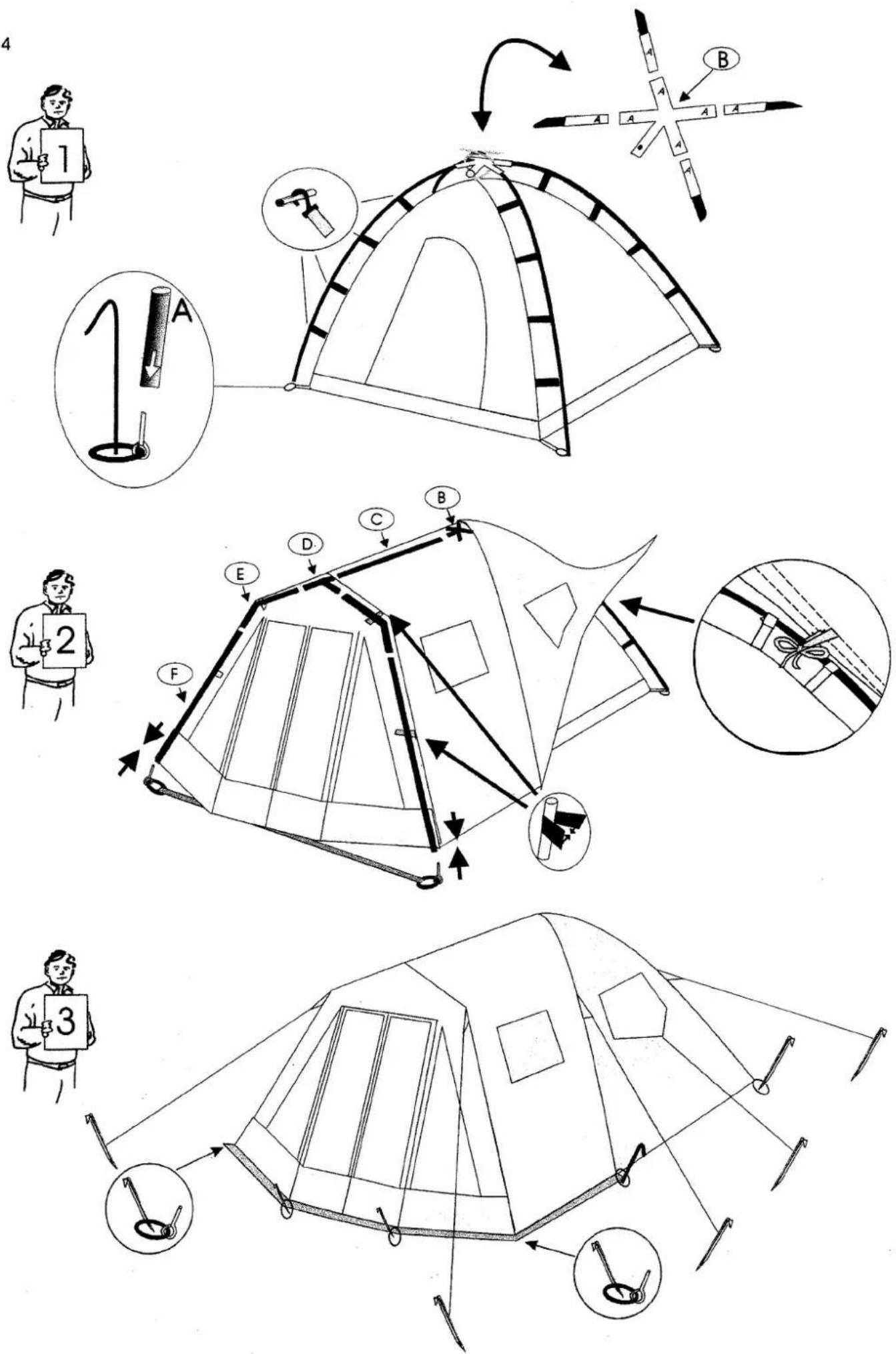

1. Two persons are necessary to erect the tent.
2. Spread out the inner tent on clean and even surface.
3. Ensure that the zippers are closed.
   4.Fit the pole sections A together and connect with steel cross B.
4. Insert the fibreglass poles diagonally into the provided pins.
   6.Raise the inner tent with provided hooks.
5. Connect the inner tent with the poles on top by using the tie.
   7.Peg down the inner tent with provided pegs at pin and ring - system.

Phase 2

1. Mount the steel frame and connect the ridge pole C with steel cross B.
2. Spread out the fly over the frame and inner tent.
3. Make sure that the entrance of inner tent match to outer tent.
   4.Fix the poles F into the provided pins.
4. Secure the steel frame with provided ties and velcro tape at the inside of the flysheet.

Phase 3

1. Anchor the ring and pin system and the corners with stakes (pole F) and fix the remaining pegging points with provided pegs.
   2.Fix the guy ropes and secure with provided stakes.
   3.Do not allow too much tension to the flysheet.

Toledo 4

Toledo 5 / 6

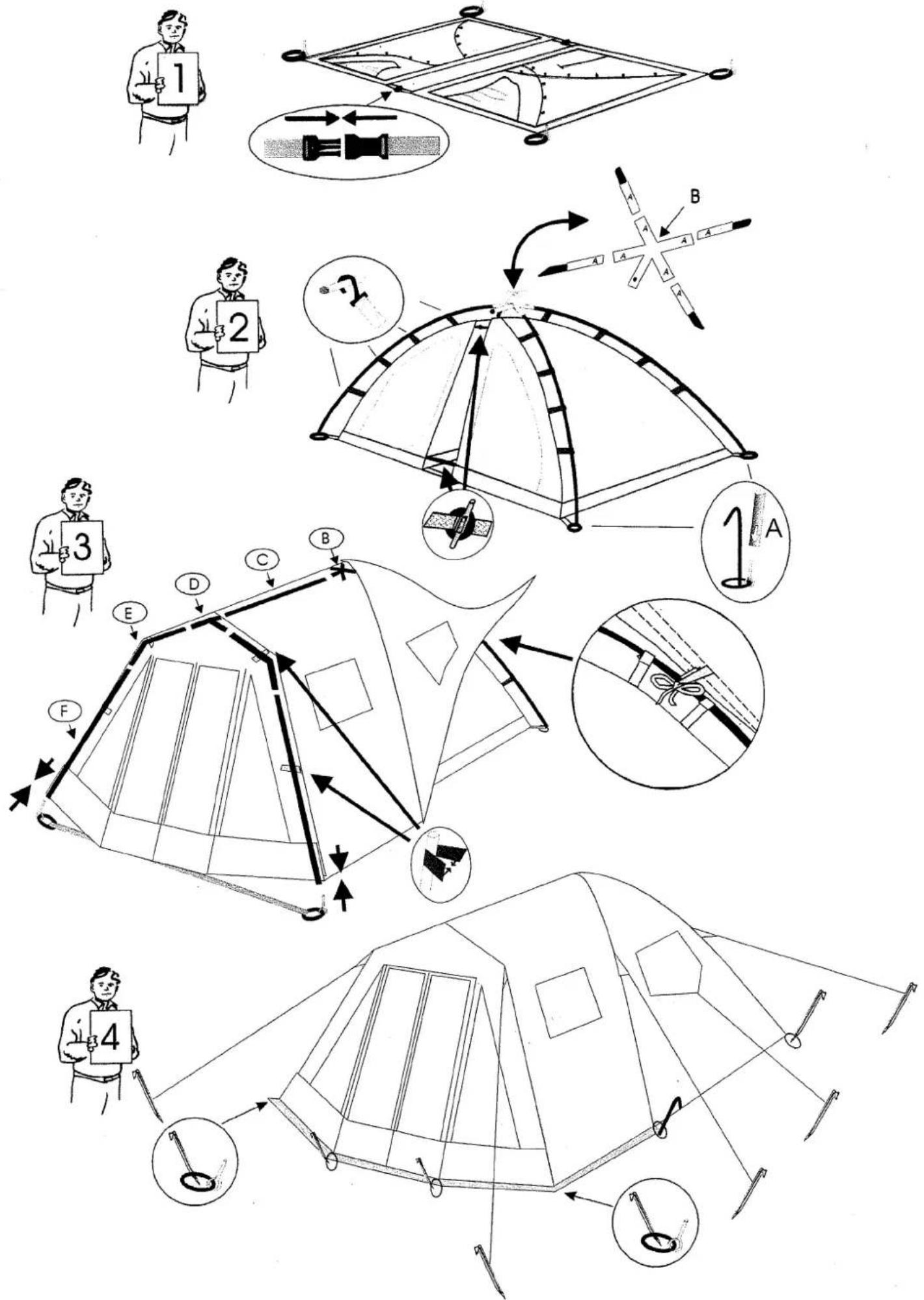

Phase 1

1. Two persons are necessary to erect the tent.
2. Spread out the inner tents on clean and even surface.
3. Ensure that the zippers are closed.
4. Connect the two inner tents together.

Phase 2

1. Fit the pole sections A together and connect with steel cross B.
2. Insert the fibreglass poles diagonally into the provided pins.
3. Raise the inner tents with provided hooks.
4. Connect the inner tent with the poles on top by using the provided ties.
5. Connect the inner tents with provided toggles.
   6.Peg down the inner tent with provided pegs at pin and ring - system.

Phase 3

1. Mount the steel frame and connect the ridge pole C with steel cross B.
2. Spread out the fly over the frame and inner tent.
3. Make sure that the entrance of inner tents match to outer tent.
   4.Fix the poles F into the provided pins.
4. Secure the steel frame with provided ties and Velcro tape at the inside of the flysheet.

Phase 4

1. Anchor the ring and pin system and the corners with stakes (pole F) and fix the remaining pegging points with provided pegs.
2. Fix the guy ropes and secure with provided stakes.
   3.Do not allow too much tension to the flysheet.

Toledo 5+6

Technical diagram illustrating four different types of camping or scaffolding setups with labeled components and directional arrows.

Ein paar Tipps,

To maximize your pleasure with this tent please follow these recommendations:

Before your camping trip, take the time to familiarize yourself with the assembly instruction. If possible, do have a trial set up.

Be sure that your camping equipment is complete, and suitable for the local conditions you expect to find. Use special pegs for a sandy or for a rocky ground. Bring additional guy lines for increased safety under all weather conditions.

Set up

Look for a even ground. Remove any large and sharp stones as well as branches. Use natural windbreakers such as hedges or boulders. Avoid to set up your tent under trees because of the danger of lightning.

Be sure that the tension of the elastic rings and the tent fabric is not to strong enable to release strength during wind.

All zippers should be closed during set.up. Please handle the zippers with care because they are wear and tear parts and excluded from guarantee.

For better stability drive the pegs into the ground at a slant, making sure that there is an even tension on the tent from all sides.

Dismantling

If possible, dismantle the tent under dry conditions to avoid fungus and stains. If the tent is wet, however, it should be put up again as soon as possible to dry completely.

Remove the pegs and guy lines carefully to avoid damage to the tent fabric.

Care

Clean the tent with clear water only.

For persistent stains use only mild cleaning agent. Check with your camping dealer for advice.

Do not clean the tent in the washing machine or dry cleaning.

The tent fabric and the seams should be waterproof treated after few time of use. Check with your camping dealer for advice.

Small damages of the tent fabric can be repaired with repair kits provided by your camping dealer.

The poles require no special care. The zippers should be from time to time treated with silicone or paraffin to retain their suppleness.

Packing

Pack the poles and accessories into the provided bags. Fold the inner and outer tent into rectangular shape measured to the width of the carry bag. Put the flat folded outer tent on top of the flat folded inner tent, roll together and fix with provided straps.

Put the tent into the carry bag and close the zipper carefully.

Store the tent in a dry, cool and well ventilated place.

Ultra violet - rays

Please be aware that all materials are effected by ultra - violet rays from the sun, and may become subject to fading colors. A tent will be obviously be effected less during short holidays. If the tent is put up for a very long period we recommend that you select a shady place.

Condensation

All tents are subject to some condensation. It is therefore essential that proper use is made of the provided ventilation, especially during the night time when the temperature drops.

Do not mix up condensation with leakage!

Please attend the following rules:

Don't keep cookers, heaters and lamps close to the tent-fabric.
Listen to the safety-instruction for these sets.
Keep the entrance clear.
Ask for the safety installation against fire on the camp
