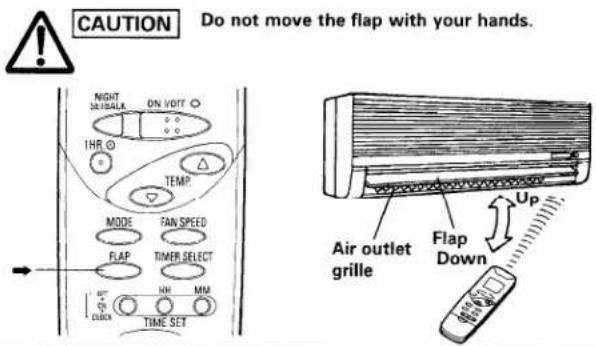

For vertical sweep, press the FLAP button to start automatic up/down movement. Press again to stop at a desired angle. For horizontal direction, move the vertical vanes manually left or right.

What is the maximum length for the remote control to work?

The remote control should be within 26 feet (8 meters) of the indoor unit, with no obstacles. A check signal is sent every 5 minutes.

How does the automatic restart function work after a power failure?

If power is interrupted, the unit stops. When power resumes, it automatically restarts after a 3-minute delay, using the previously programmed settings.

USER MANUAL KMS1212 SANYO

Black-and-white illustration of scattered black and white flowers on a textured background (no text or symbols)

Save These Instructions!

Features

This air conditioner is equipped with cooling function. Details on this function are provided below; refer to these descriptions when using the air conditioner.

• Comfort Control in Two Rooms Simultaneously

You can control the temperature in two rooms simultaneously. And you have fingertip control over both rooms with a convenient remote control unit.

- Microprocessor Controlled Operation

The interior compartment of the remote control unit contains several features to facilitate automatic operation, easy logically displayed for easy use.

• Simple One-touch Wireless Remote Control

The remote control unit has several features to facilitate automatic operation.

• 24-hour ON or OFF Timer

This timer can be set to automatically turn the unit on or off at any time within a 24 hour period.

1-Hour OFF Timer

This timer can be set to automatically turn off the unit at any time after one hour.

Night Setback

Pressing this button changes the setting of the room temperature thermostat, allowing you to set the temperature at whatever level that you find comfortable.

Automatic and 2 stop Fan Speed

Auto/High/Medium/Low

• Air Sweep Control

This function moves a flap up and down in the air outlet, directing air in a sweeping motion around the room and providing comfort in every corner.

• Automatic Restart Function for Power Failure

Even when power failure occurs, preset programmed operation can be reactivated once power resumes.

• Anti-Mold Filter

This unit is equipped with an anti-mold filter that inhibits the growth of mold and bacteria.

Contents

Page

Features....2

Product Information 3

Alert Symbols 3

Installation Location 4

Electrical Requirements 4

Safety Instructions 4

Names of Parts 5

Using the Remote Control Unit 10

Operation with the Remote Control Unit....12

1. Operation 12

2. Adjusting the Fan Speed....13

3. Fan Only 13

4. Night Setback Mode 14

Special Remarks 15

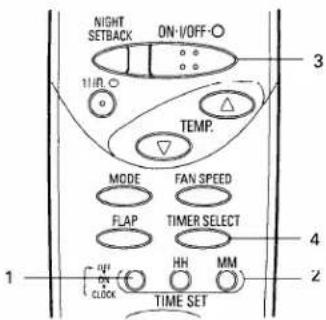

Setting the Timer 16

Using the 1-Hour OFF Timer....18

Adjusting the Airflow Direction 19

Operation without the Remote Control Unit 19

Care and Cleaning....20

Troubleshooting....21

Tips for Energy Saving....21

Operating Range 21

Product Information

If you have problems or questions concerning your Air Conditioner, you will need the following information. Model and serial numbers are on the nameplate on the bottom of the cabinet.

Model No. ____ Serial No. ____

Date of purchase ____

Dealer's address ____

Phone number ____

Alert Symbols

The following symbols used in this manual, alert you to potentially dangerous conditions to users, service personnel or the appliance:

This symbol refers to a hazard or unsafe practice which can result in severe personal injury or death.

This symbol refers to a hazard or unsafe practice which can result in personal injury or product or property damage.

Installation Location

• We recommend that this air conditioner be installed properly by qualified installation technicians in accordance with the installation Instructions provided with the unit.
• Before installation, check that the voltage of the electric supply in your home or office is the same as the voltage shown on the nameplate.

Avoid: To protect the air conditioner from heavy corrosion, avoid installing the outdoor unit where salty sea water can splash directly onto it or in sulphurous air near a spa.

Electrical Requirements

1. All wiring must conform to the local electrical codes. Consult your dealer or a qualified electrician for details.
2. Each unit must be properly grounded with a ground (or earth) wire or through the supply wiring.
3. Wiring must be done by a qualified electrician.
   • Power supply: 60 Hz, single-phase, 230/208 volts.

Safety Instructions

• Read this Instruction Manual carefully before using this air conditioner. If you still have any difficulties or problems, consult your dealer for help.
  This air conditioner is designed to give you comfortable room conditions. Use this only for its intended purpose as described in this Instruction Manual.

• Never use or store gasoline or other flammable vapor or liquid near the air conditioner — it is very dangerous.
  This air conditioner has no ventilator for intaking fresh air from outdoors. You must open doors or windows frequently when you use gas or oil heating appliances in the same room, which consume a lot of oxygen from the air. Otherwise there is a risk of suffocation in an extreme case.

• Do not turn the air conditioner on and off from the power mains switch. Use the ON/OFF operation button.
• Do not stick anything into the air outlet of the outdoor unit. This is dangerous because the fan is rotating at high speed.
  • Do not let children play with the air conditioner.
  • Do not cool the room too much if babies or invalids are present.

Names of Parts

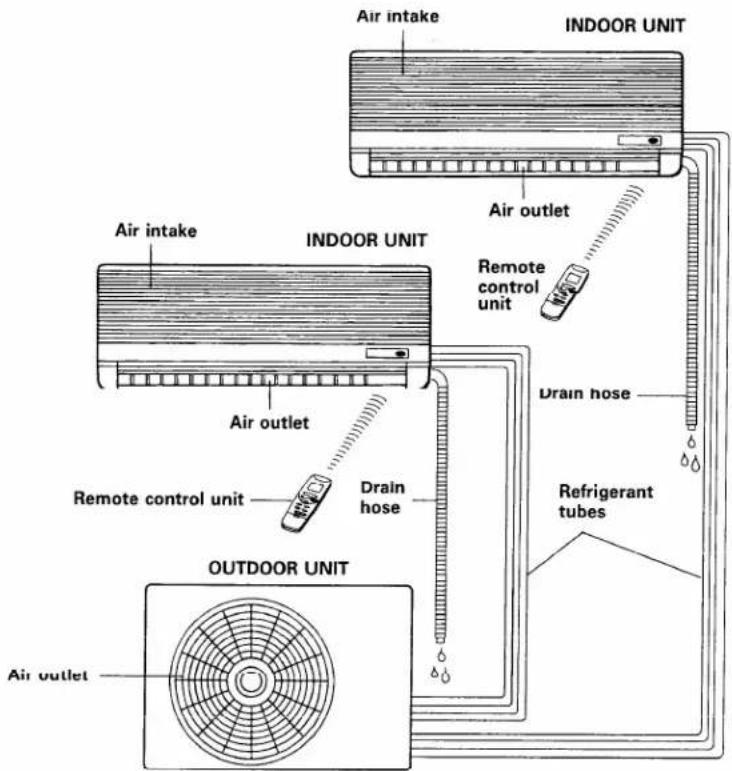

Air intake INDOOR UNIT Air intake INDOOR UNIT Air outlet Remote control unit Drain hose Refrigerant tubes Air outlet Air outlet Remote control unit Drain hose OUTDOOR UNIT

NOTE

This illustration is based on the external view of a standard model. Consequently, the shape may differ from that of the air conditioner which you have selected. This air conditioner consists of two indoor units and an outdoor unit. You can control the air conditioner with the remote control unit.

Air Intake	Air from the room is drawn into this section and passes through air filters which remove dust.
Air Outlet	Conditioned air is blown out of the air conditioner through the air outlet.
Remote Control Unit	The wireless remote control unit controls power ON/OFF, operation mode selection, temperature, fan speed, timer setting, and air sweeping.
Refrigerant Tubes	The indoor and outdoor units are connected by copper tubes through which refrigerant gas flows.
Drain Hose	Moisture in the room condenses and drains off through this hose.
Outdoor (Condensing) Unit	The outdoor unit contains the compressor, fan motor, heat exchanger coil, and other electrical components.

01-975-05EG

Unit Display and Operation Selector

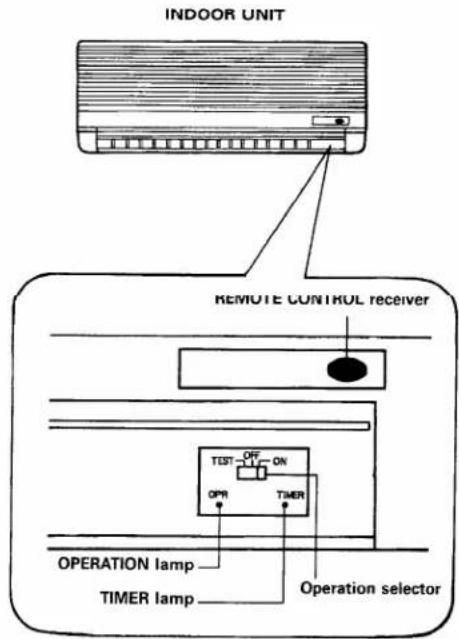

INDOOR UNIT REMOTE CONTROL receiver TEST OFF ON OPR TIMER OPERATION lamp TIMER lamp Operation selector

REMOTE CONTROL receiver	This section picks up infrared signals from the remote control unit (transmitter).
Operation selectorON position	This position is for operating the air conditioner with the wireless remote control unit.Set the selector normally in this position.
OFF positionWARNING	Switch the selector to the OFF position if you are not going to use the air conditioner for a few days or longer.The OFF position does not disconnect the power. Use the main power switch to turn off power completely.
TEST positionCAUTION	This position is used only when servicing the air conditioner.Do not set at the TEST position for normal operation.
OPR (operation) lamp	This lights when the system is in the continuous COOL or rAN mode.
TIMER lamp	This lamp lights when the system is being controlled by the timer.

Remote Control Unit (Display)

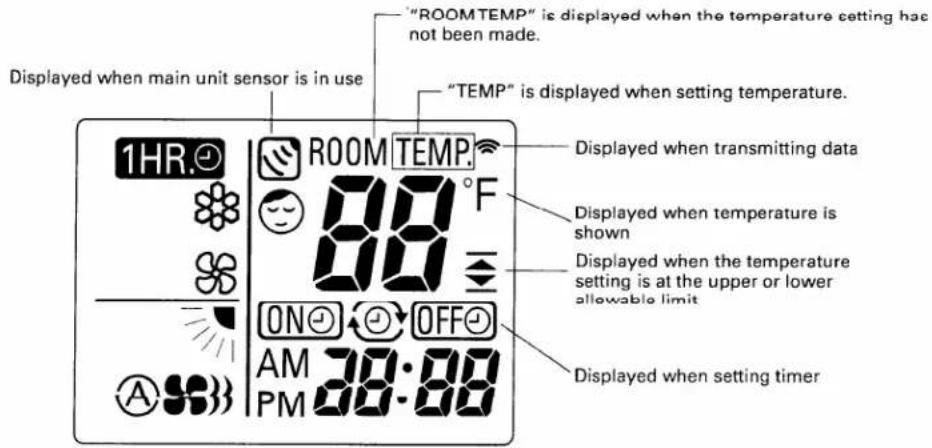

"ROOMTEMP" is displayed when the temperature setting has not been made. "TEMP" is displayed when setting temperature. Displayed when transmitting data Displayed when temperature is shown Displayed when the temperature setting is at the upper or lower allowable limit Displayed when setting timer 1HR.0 ROOM TEMP. 00 °F ON OFF AM 30:00 PM

Symbols

(1) Operation mode

COOL

FAN

(3) Set temperature

60 - 86 °F When set to 82 °F .....

Current temperature indication ....

(4) Timer

(2) Fan speed

Automatic operation......

HIGH....

MEDIUM....

LOW

24 hour clock with ON/OFF

Program Timer....

24-hour ON Timer......

24-hour OFF Timer......

1-hour OFF Timer......

(5) NIGHT SETBACK......

(6) Confirmation of transmission ....

(7) Sweep indication......

01:975-07EG

Remote Control Unit

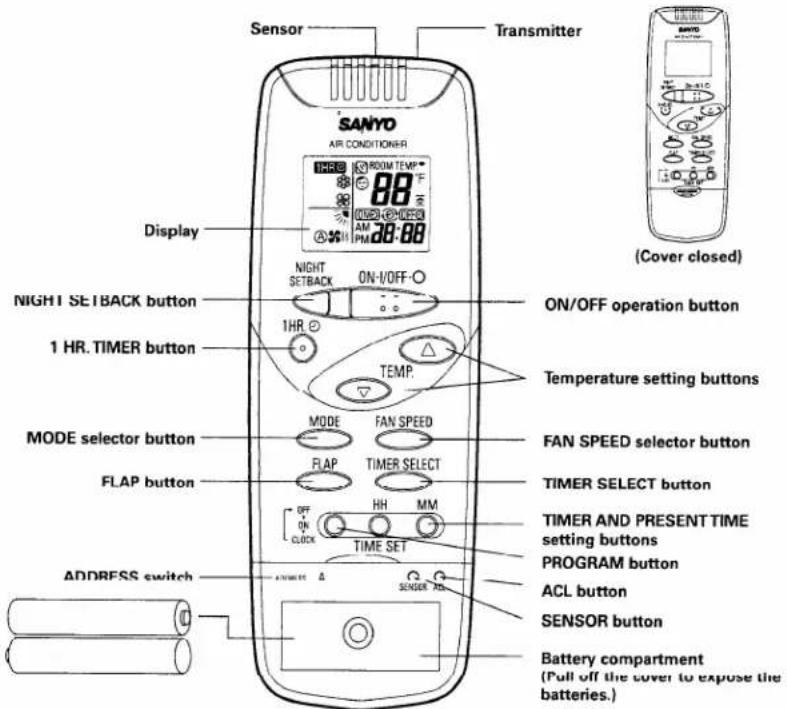

Sensor Transmitter SANYO AIR CONDITIONER 1HR. ROOM TEMP* 88 ON/OFF operation button AM 728:0000 PM 28:00 Display NIGHT SETBACK ON-I/OFF 1HR. TEMP. Temperature setting buttons ON/OFF operator button MODE selector button FAN SPEED selector button FLAP TIMER SELECT button TIME AND PRESENT TIME setting buttons PROGRAM button ACL button SENSOR button ADDRESS switch SENGER TIME SET OFF ON ON CLICK

NOTE

The illustration above pictures the remote control unit after the cover has been lowered and removed.

NOTE The remote control unit sends the temperature signal to the air conditioner regularly at five minute intervals. If the signal from the remote control unit stops for more than ten minutes due to the loss of the remote control unit or other trouble, the air conditioner will switch to the temperature sensor which is built into the indoor unit and control the room temperature. In these cases, the temperature around the remote control unit may differ from the temperature detected at the air conditioner's position.

Transmitter	When you press the buttons on the remote control unit, the ≈ mark appears in the display to transmit the setting changes to the receiver in the air conditioner.
Sensor	A temperature sensor inside the remote control unit senses the room temperature.
Display	Information on the operating conditions is displayed while the remote control unit is switched on. If the unit is turned off, only the mode that was out previously is still displayed.

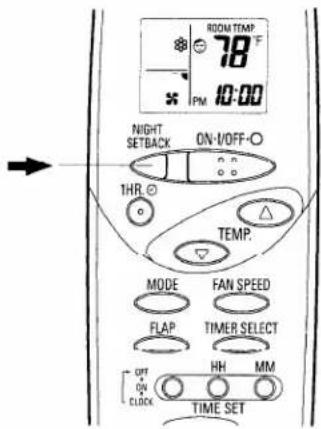

NIGHT SETBACK button	For details, see “Night Setback Mode”. When you press this button in the COOL mode, the ≈ mark appears in the display, and the remote control unit automatically adjusts the set temperature to save energy.
Temperature setting buttons (TEMP.)	Press the ⚫ button to increase the set temperature.Press the ⚙ button to reduce the set temperature.
ON/OFF operation button	This button is for turning the air conditioner on and off.
Timer and Present Time setting buttons	First, press the program button to select the mode you want.Each time you press the “HH” button, the hours advance by one.Each time you press the “MM” button, the minutes advance by one.
Program button	For details, see "Setting the Timer".Press this button to select the mode you want to program.
TIMER SELECT button	No display: The timer does not operate.: The air conditioner stops at the set time.: The air conditioner starts at the set time.: The air conditioner stops and starts, or starts and stops, at the set times every day.
MODE selector button (COOL) (FAN)	Use this button to select the COOL or FAN mode.: The air conditioner makes the room cooler.: The air conditioner works only as a circulation fan.
FLAP button	Press this button to select the sweep function, which moves the flap up and down automatically.: The flap moves up and down automatically.
FAN SPEED selector button	: The air conditioner automatically decides the fan speeds.: High tan speed: Medium fan speed: Low fan speed
1 HR.TIMER button (1-HOUR OFF TIMER)	: When you press this button, regardless of whether the unit is operating or stopping, the unit operates for one hour and then shuts down.
ACL button (ALL CLEAR)	Puts the remote control unit into pre-operation status. Always press this button after replacing the batteries.
ADDRESS switch	· Change the address switch to prevent mixing of signals from remote control units when two Sanyo air conditioners are installed next to each other. Normally, the address switch is set to A. When switching the address, the remote control must be changed, and the jumper cables on the indoor unit board must be cut. For more information, please contact the dealer where you made the purchase.· Normally, the tabs on the remote control unit should not be bent.
SENSOR button	When you press this button (use a small-tipped object such as a ballpoint pen), the mark will appear at the display. And the room temperature is detected by the sensor which is built into the indoor unit and the air conditioner is controlled accordingly.
NOTE	If the remote control is located near a heat source, such as a space heater or in direct sunlight, press the SENSOR button to switch to the sensor on the indoor unit.

Using the Remote Control Unit

How to Install Batteries

ACL button

NOTE

1. Slide the cover in the direction indicated by the arrow and remove it.
2. Install two AAA alkaline batteries. Make sure the batteries point in the direction marked in the battery compartment.

3. Use a thin object such as the tip of a pen to press the ACL button.

4. The batteries last about six months, depending on how much you use the remote control unit. Replace the batteries when the remote control unit's display fails to indicate, or when the remote control cannot be used to change the air conditioner's settings.
   • Use two fresh leak-proof type-AAA alkaline batteries.

5. In replacing batteries, follow the instructions as mentioned in the sub-section "How to Install Batteries".
6. If you do not use the remote control unit more than 1 month, take out the batteries.

How to Use the Remote

Control Unit

When using the remote control unit, always point the unit's transmitter head directly at the air conditioner's receiver.

Air conditioner

(Indoor unit)

Remote control

unit

(Transmitter head)

Remote Control Unit

Installation Position

The remote control unit may be operated either from a non-fixed position or from a wall-mounted position. To ensure that the air conditioner operates correctly, DO NOT install the remote control unit in the following places:

DO NOT

• In direct sunlight
• Behind a curtain or other places where it is covered
• More than 26 feet (8 m) away from the air conditioner
• In the path of the air conditioner's airstream
• Where it may become extremely hot or cold
• Where it may be subject to electrical or magnetic noise
- Where there is an obstacle between the remote control unit and air conditioner (since a check signal is sent from the remote control unit every 5 minutes)

Using the Remote Control Unit (continued)

Mounting the Remote Control Unit

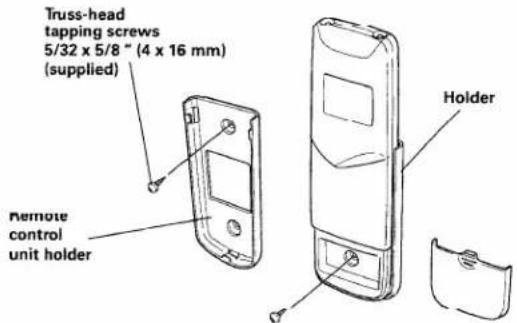

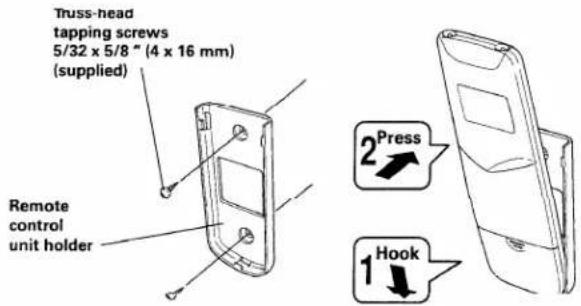

Truss-head tapping screws 5/32 x 5/8" (4 x 16 mm) (supplied) Remote control unit holder 2 Press 1 Hook

When attaching to wall

1) Confirm the indoor unit beeps when the ON/OFF button is pressed at the wall location where the remote control unit is to be attached, then attach the holder to the wall.
2) When taking out the remote control unit, pull it from the holder.
- Point the transmitter on the remote control unit at the sensor on the indoor unit when operating the remote control unit and the air conditioner. - Do not place objects which may block the transmitted signals between the receiver and the remote control unit.

Truss-head tapping screws 5/32 x 5/8" (4 x 16 mm) (supplied) Remote control unit holder Holder

Securing the remote control unit to prevent theft

1) Attach the holder to the wall with one screw in the upper hole only.
2) Remove the cover from the remote control unit, and then remove the batteries. Next, place the remote control unit in the holder.
3) Secure both the remote control unit and the holder to the wall with another screw through the lower hole.
4) Put the batteries back in the remote control unit, and then replace the cover.

Operation with the Remote Control Unit

1. Operation

SANYO AIR CONDITIONER 83 RADIATEMP 80°F AM 10:00 NIGHT SFRADY ON/OFF IHR TEMP. MODE FAN SPEED FLAP TIMER SELECT OFF ON TIME SET CLOCK STEP 2 STEP 3 STEP 4 STEP 5

NOTE

Check that the circuit breaker on the power panel is turned on and that the operation selector of the indoor unit is in the ON position.

Press the setting buttons as described below and change the settings as desired.

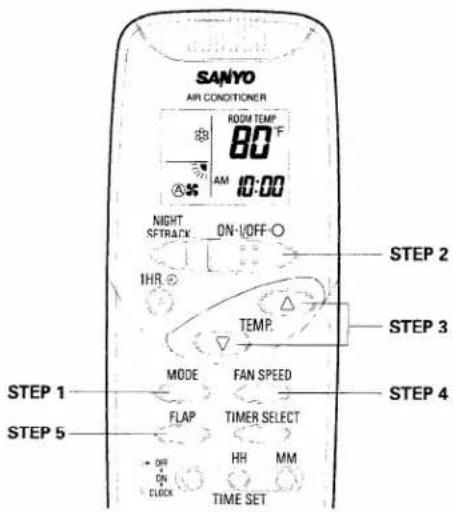

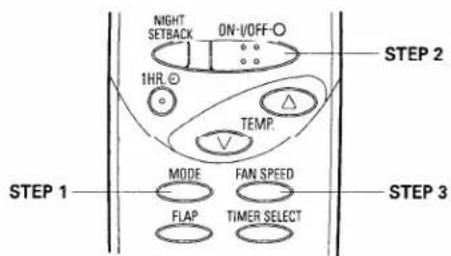

STEP 1	Set the MODE selector button to COOL. For cooling operation → ☑
STEP 2	To start the air conditioner, press the ON/OFF operation button.
STEP 3	Press theTEMP. setting buttons to change the temperature setting to the desired temperature. Adjustable temperature range: 86°F max. 60°F min.
NOTE	The temperature setting changes by two degrees each time the button is pressed. (The air conditioner remembers the new temperature setting even when it is turned off.)
STEP 4	Set the FAN SPEED selector button to the setting you want.
NOTE	If the fan speed is set to ⚙(Automatic), the fan speed switches automatically, according to the difference between the actual room temperature and the temperature setting.
STEP 5	Press the FLAP button and set the airflow direction as desired. (Refer to “Adjusting the Airflow Direction” on page 19.)

To stop the air conditioner, press the ON/OFF operation button again.

Operation with the Remote Control Unit (continued)

NOTE

• Choose the best position in the room for the remote control unit, which also acts as the sensor for room comfort and transmits the operating instructions. Once you've found this best position, always keep the remote control unit there.
• This appliance has a built-in 3-minute time delay circuit to ensure reliable operation. When the operation button is pressed, the compressor will start running within three minutes. In the event of power failure, the unit will stop. When the power is restored, the unit will restart automatically after three minutes.

2. Adjusting the Fan Speed

A. Automatic

Simply set the FAN SPEED selector to the Ⓐ position.

A microcomputer in the air conditioner automatically controls the fan speed when the Ⓧ mode is selected. When the air conditioner starts operating, the difference between the room temperature and the set temperature is detected by the microcomputer which then automatically switches the fan speed to the most suitable level.

Cooling mode:

When difference between room temperature and set temperature is	FAN SPEED
4 °F and over	High
Between 4 °F and 2 °F	Medium
Below 2 °F	Low

NOTE

The above table assumes that the sensor on the remote control is being used. If the sensor on the indoor unit is being used (the indicator is on), actual operation may differ slightly from the operation described in the table.

(Refer to "SENSOR button" on page 9.)

B. Manual

If you want to adjust fan speed manually during operation, just set the FAN SPEED selector as desired. [ * , * , or * ]

3. Fan Only

If you want to circulate air without any temperature control, follow these steps:

STEP 1: Press the MODE selector button to switch to the fan mode. (8)
STEP 2: Press the ON/OFF button.
STEP 3: Press the FAN SPEED button to select the fan speed of your choice ( ### , ### , or ### ).

Operation with the Remote Control Unit (continued)

4. Night Setback Mode

ROOM TEMP 78°F PM 10:00 NIGHT SETBACK ON-1/OFF-O 1HR. TEMP. MODE FAN SPEED FLAP TIMER SELECT OPT HH MM ON CLOCK TIME SET

Night Setback Mode is used for saving energy.

Press the NIGHT SETBACK button while operation. The 😊 mark appears in the display.

To release the night setback function, press the NIGHT SETBACK button again.

NOTE

In Cooling Mode: (※)

The night setback mode cannot be used during automatic operation.

When the night setback mode is selected, the air conditioner automatically raises the temperature setting 2 °F when 30 minutes have passed after the selection was made, and then another 2 °F after another 30 minutes have passed, regardless of the indoor temperature when night setback was selected. This enables you to save energy without sacrificing comfort. This function is convenient when gentle cooling is needed.

Setting temperature 2 °F Press the NIGHT SETBACK button 30 min. 2 °F 30 min. Time

Special Remarks

Power failure during operation

Remote Control Unit

• In the event of power failure, the unit will stop. When the power is resumed, the unit will restart automatically after three minutes.
• The remote control unit sends the setting condition to the air conditioner regularly at three minute intervals.

Setting the Timer

NIGHT SETBACK ON-1/OFF 3 11/10.0 TEMP. MODE FAN SPEED FLAP TIMER SELECT 4 2 TIME SET 1 OFF ON clock HH MM

1. How to set the present time


(Example) To act to 0:10 pm.

Operation	Indication
1. Press the Program button (OFFCN)three times.2. • Press the HH button until PM 9 is displayed.• Press the MM button until 10 is displayed.	The time indication alone blinks.The display will automatically stop blinking except for the “:” symbol after 10 sec.

2. How to set the OFF time (Example) To stop the air conditioner at 11:30 pm.

1. Press the Program button (OFFON)once.2. • Press the HH button until PM 11 is displayed.• Press the MM button until 30 is displayed.3. Press the ON/OFF button to start the air conditioner.4. Press the TIMER SELECT button to set OFF time.

The timer indicates indication blinks and present OFF time is shown.The display will change automatically back to show the present time after 10 sec.The present time is displayed.The present time and are displayed.

Setting the Timer (continued)

3. How to set the ON time

(Example) To start operation at 7:10 am.

Operation	Indication
1. Press the Program button (OFFON) twice.2. • Press the HH button until AM 7 is displayed.• Press the MM button until 10 is displayed.3. Press the ON/OFF button to start the air conditioner.4. Press the TIMER SELECT button to set ON time.	The timer indication blinks and present ON time is shown.The display will change automatically back to show the present time after 10 sec.The present time is displayed.The present time and are displayed.

4. How to set a program for daily ON/OFF operation

(Example) To start operation at 7:10 am. and stop the air conditioner at 11:30 pm.

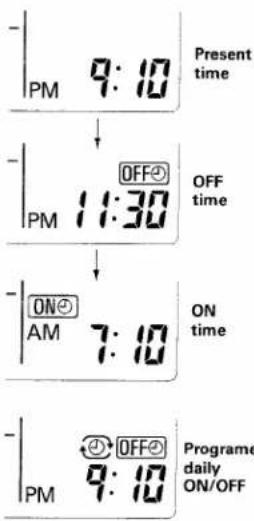

-PM 9:10 Present time -PM 11:30 OFF OFF time -ON AM 7:10 ON time -PM 9:10 Program daily ON/OFF

1. Set the timer ON/OFF times as shown in 2-1, 2 and 3-1, 2.2. Press the ON/OFF button to start the air conditioner.3. Press the TIMER SELECT button to set the ON/OFF combination timer.

The present time PM 9:10 and are displayed.

NOTE When the Daily ON/OFF program is set to start the air conditioner before the ON time setting, the ON ◦ indications appear on the display. On the other hand, when the Daily ON/OFF program is set to start the air conditioner after the ON time setting, the ◦ indications appear on the display. Thus, these indications show the timer program which will operate next.

NOTE You can check the timer ON/OFF times after you have set them by pressing the PROGRAM button.

Using the 1-Hour OFFTimer

1. 1-Hour OFF Timer

1HR.

NIGHT SETBACK ON-I/OFF 1HR TEMP. MODE FAN SPEED

This function causes the unit to operate for one hour and then stop, regardless of whether the unit is on or off when this button is pressed.

The 11.0.3 indicator in the display indicates that this function is operating.

Setting procedure:

Regardless of whether the unit is operating or stopped, press the 1 HR.TIMER button.

THR appears in the display.

Cancellation procedure:

Press the ON/OFF operation button to turn the unit off, wait for the unit to stop operating, and then press the ON/OFF operation button again. The 1-Hour Timer function is now cancelled and the unit operates normally.

NOTE

- If, while the 1-Hour Timer function is operating, the 1 HR. TIMER button is pressed once to cancel the function and then again, the unit continues to operate for one hour from that point in time and then stops.

2. Operation Together with the Program Timer

- The 1-Hour OFFTimer setting is given priority over the daily program setting.

- It is not possible to use the OFFTimer and 1-Hour OFFTimer together. Whichever function is set last takes precedence. If the 1 HR. TIMER button is pressed while the TIMER OFF function operates, OFFTimer is cancelled and the unit will stop operating one hour later.

Adjusting the Airflow Direction

A. Horizontal

The horizontal airflow can be adjusted by moving the vertical vane to the left or right.

Indoor unit Zone "Δ" for COOLING

Left Vertical valve Right

B. Vertical

Confirm that the remote control unit has been turned on. Press the FLAP button to start the flap moving up and down (☐). If you want to stop the flap movement and to direct the air in the desired direction, press the FLAP button again. In the COOL mode, don't direct the flap down more than 30° otherwise, condensation may drip on to the floor. Zone "A" is the recommended flap position for cooling.

CAUTION Do not move the flap with your hands. NIGHT SATELATE ON VOLT THR TEMP MODE FAN SPEED FLAP TIMER SELECT UP TIME SET OFF ON OFF Up Air outlet grille Flap Down

Operation without the Remote Control Unit

INDOOR UNIT Operation selector Flap

If you have lost the remote control unit or it has trouble, follow the steps below.

1. When the air conditioner is stopped.

If you want to turn on the air conditioner, switch the operation selector to the OFF position, and then to the ON position.

NOTE The set temperature and fan speed are automatically set at the last selection before stopping.

1. When the air conditioner is running.

If you want to turn off the air conditioner, switch the operation selector to the OFF position.

Care and Cleaning

WARNING

Casing and Grille (Indoor Unit)

1. For safety, be sure to turn the air conditioner off and also to disconnect the power before cleaning.
2. Do not pour water on the indoor unit to clean it. This will damage the internal components and cause an electric shock hazard.

Clean the casing and grille of the indoor unit with a vacuum cleaner brush, or wipe them with a clean, soft cloth.

If these parts are stained, use a clean cloth moistened with a mild liquid detergent. When cleaning the grille, be careful not to force the vanes out of place.

CAUTION

1. Never use solvents, or harsh chemicals when cleaning the indoor unit. Do not wipe the plastic casing using very hot water.
   2 Some metal edge and the fine are sharp and may cause injury if handled improperly; be especially careful when you clean these parts.
2. The internal coil and other components of the outdoor unit must be cleaned every year. Consult your dealer or service center.

① Push up

then,

② Pull down

Air filter

Air Filter

The air filter behind the air intake grille should be checked and cleaned at least once every two weeks.

How to remove the filter

1. Move the flap on the air outlet grille to its lowest position with the remote control unit.
2. The filter is disengaged by pushing the tab up gently. Hold the air filter by the tab at the bottom, and pull downward.

Use a vacuum cleaner to remove light dust. If there is sticky dust on the filter, wash the filter in lukewarm, soapy water, rinse it in clean water, and dry it. When replacing the filter, make sure that the FRONT mark is facing you. Push it up until you hear it click back into position.

Troubleshooting

If your air conditioner does not work properly, first check the following points before requesting service. If it still does not work properly, contact your dealer or service center.

Trouble	Possible Cause	Remedy
Air conditioner does not run at all.	1. Power failure.2. Leakage breaker tripped.3. Line voltage is too low.4. Operation button is OFF.5. Batteries in remote control unit have run down.	1. Restore power.2. Contact service center.3. Consult your electrician or dealer.4. Press the button again.5. Replace batteries.
Compressor runs but soon stops.	Obstruction in front of condenser coil.	Remove obstruction.
Poor cooling performance.	1. Dirty or clogged air filter.2. Heat source or many people in room.3. Doors and/or windows are open.4. Obstacle near air intake or air discharge port.5. Thermostat is set too high.	1. Clean air filter to improve airflow.2. Eliminate heat source if possible.3. Shut them to keep the heat out.4. Remove it to ensure good airflow.5. Set the temperature lower.

Tips for Energy Saving

Do not · Block the air intake and outlet of the unit. If they are obstructed, the unit will not work well, and may be damaged.

- Let direct sunlight into the room. Use sunshades, blinds or curtains. If the walls and ceiling of the room are warmed by the sun, it will take longer to cool the room.

Do • Always try to keep the air filter clean. (Refer to "Care and Cleaning".) A clogged filter will impair the performance of the unit.

• To prevent conditioned air from escaping, keep windows, doors and any other openings closed.

Operating Range

The air conditioner is operable within the temperature ranges as listed below:

	Temperature	Indoor air temperature	Outdoor air temperature
COOLING	Max.	95 °F DB/71 °F WB	115 °F DB
	Min.	67 °F DB/57 °F WB	67 °F DB

SANYO FISHER COMPANY

A DIVISION OF SANYO NORTH AMERICA CORPORATION

21605 Plummer Street

Chatsworth, CA 91311 U.S.A.

In Canada

SANYO Canada Inc.

300 Applewood Crescent,

Concord, Ontario,

L4K 5C7, Canada
