Thank you for purchasing the XLayer Powerbank PLUS All-in-One PD3.0 18W 10000 mAh. This powerbank can be widely used for all kinds of electronic devices such as iPhone, iPad or other smartphones.

Contents

1 Powerbank, 1 USB to Typ C Cable, 1 User Guide

Pure electrical circuit lines without any symbols

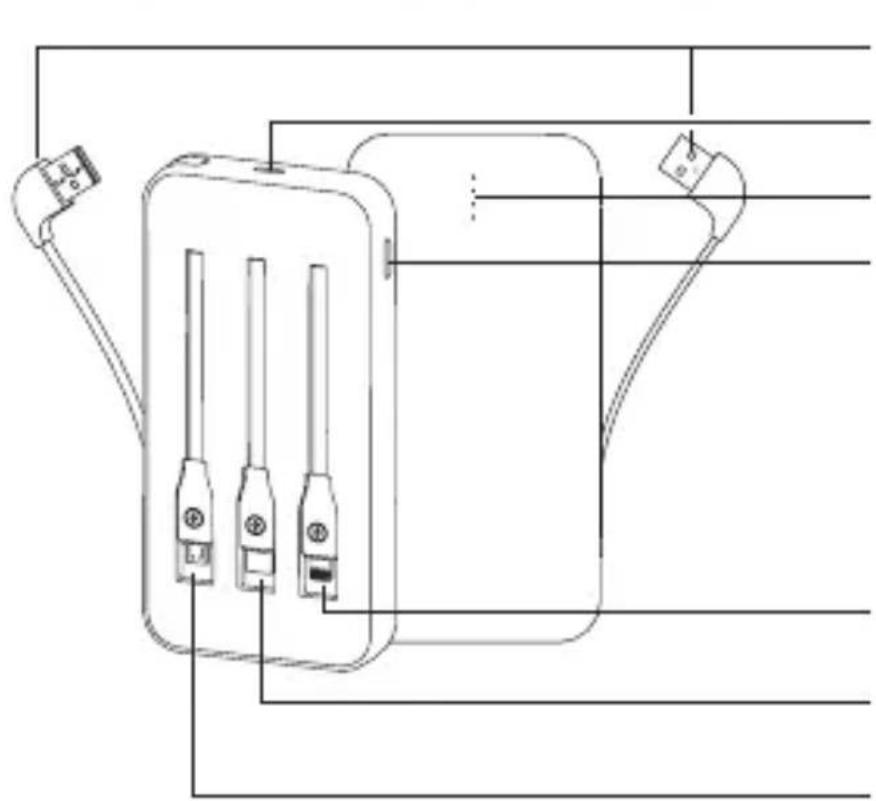

USB cable for recharging

the powerbank

Type C Input/Output

LED indicator

Power On/Off

Lightning cable for charging iOS devices

Type C cable for charging

Type C devices

Micro-USB cable for charging

Micro-USB devices

LED Indicator

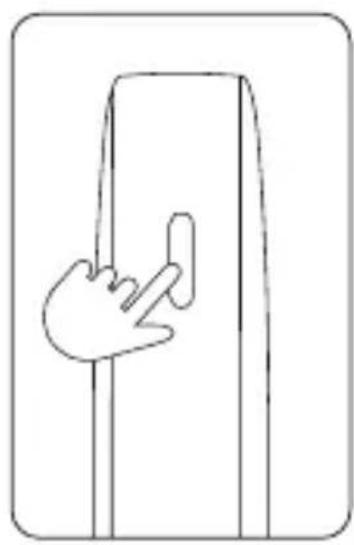

Press the Power On/Off Button to check the remaining capacity.

Simple line drawing of a hand pressing down on a vertical door (no text or symbols)

The powerbank All-in-One has 4 LEDs installed which show the charging status as follows:

Battery capacity is low,

Battery capacity is middle,

- less than 25% remaining.

less than 50% remaining.

Battery capacity is good,

Battery capacity is sufficient,

less than 75% remaining.

more than 75% remaining.

Product Specification

Battery type:

Lithium Polymer

Capacity:

37.0 Wh (3.7V/10.000 mAh)

Type C Input:

max. 18 W PD 3.0 & QC 3.0

USB Input:

5V/2.0A

Type C Output:

Type C USB max. 18W PD3.0 & QC3.0

Type C cable max. 18W QC3.0

Lightning Output:

5V/1.0A

Micro-USB Output:

5V/1.0A

Size:

153×76×22mm

Weight:

260 g

Compatibility

The powerbank is compatible with all smartphones, tablets and all USB-powered device with 5V or 9V input.

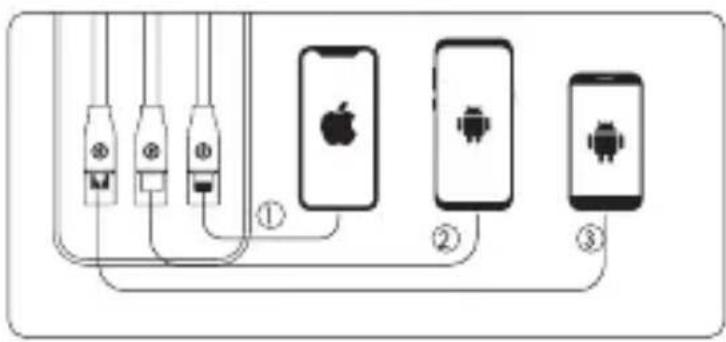

The Powerbank integrates universal charging cable adapters including the light fast QC 3.0 Type C, common Micro-USB and Lightning adapters for Apple devices. Connect one out of the adapters that fits your device(s), the capacity LED will light when charging.

(1) For iPhone, iPad, iPod
(2) For Android devices mit Type C output
(3) For Android devices Micro-USB input

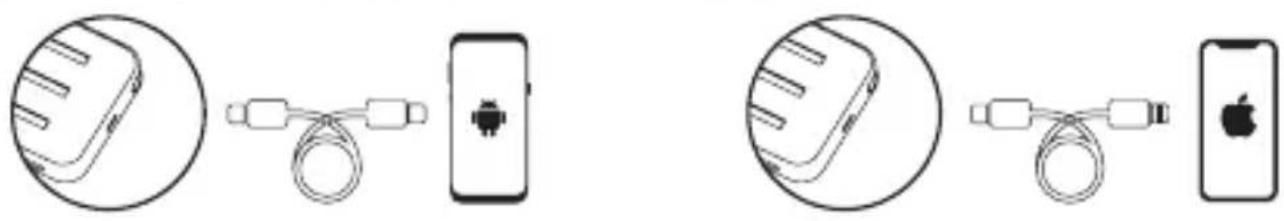

For the iPhone X user, you can also buy a Type C to Lightning cable from Apple stores and charge your iPhone X fast through the Type C port.

For Type C phone user, if your device also supports the fast Type C power delivery PD 3.0, you can also connect it to the Type C port with a Type C to Type C cable, and charge your device fast. You can buy a XLayer Premium Type C to Type C cable by connecting our service.

• One of the capacity LEDs will blink during charging, and will stop blinking when the device is fully charged.
• Pull the cable from the mobile device after finishing charging.
- The Powerbank would automatically shut off in a few seconds after finishing charging.

How to charge the powerbank

We suggest that you fully charging the powerbank before each use. To charge your powerbank, use one of the following 2 charging options.

1. Charge with a power adapter with USB or Type C port:

Connect the powerbank to a power adapter USB port with the integrated USB cable directly.

Or connect the powerbank to a power adapter USB port with the supplied USB to Type C cable in the box.

Or connect the powerbank to power adapter Type C port with a Type C to Type C cable (not included).

If your adapter supports QC 3.0 or PD 3.0 fast charging, the powerbank will be charged fast when charging through Type C port.

ATTENTION: The integrated Type C cable is not capable of charging the powerbank.

DO NOT connect the integrated Type C cable to a power adapter.

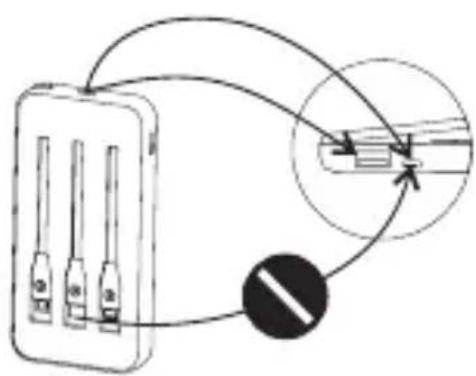

2. Charge with a free USB or Type C port on your computer:

Diagram showing a device with cable and a magnified inset highlighting a component (no text or symbols)

Connect the powerbank to power adapter USB port with the integrated USB cable directly.

Or connect the powerbank to power adapter USB port with the supplied USB to Type C cable in the box.

Diagram showing a device connected to a cable with three probes, illustrating electrical or mechanical connection.

Or connect the powerbank to power adapter Type C port with a Type C to Type C cable (not included).

If your adapter supports QC3.0 or PD3.0 fast charging, the powerbank will be charged fast when charging through Type C port.

ATTENTION: The integrated Type C cable is not capable of charging powerbank.

DO NOT connect the integrated Type C cable to a power adapter.

Safety Notice

• Fully charge the powerbank once before first use.
- Use the included cable to charge the powerbank.
- In order to ensure the durability of the battery during irregular use, charge the powerbank once every three months.
- Charging by unsupervised, short circuit or mechanical damage would cause overheating and fire.
- Do not immerse the product in water or other liquids.
- Handle the product carefully. Shocks, vibrations or fall from a low height can damage the product.
• If liquid is leaking, stop using the device.
- A remodeling or modification of the product would affect the safety. Risk of injury!
- Don't open the appliance without proper authorization and don't perform repairs yourself!
- Please keep the product away from children.
- Modifications and mistakes reserved.

This Electrical device does not belong in the garbage. For proper disposal, please contact the public collection in your community.

Please note: we don't accept liability for any damages on connected devices. Please check compatibility of our product with the manufacturer of your device before use.

Herewith explains Gaudia, that the device XLayer Powerbank PLUS All-in-One PD3.0 18W 10.000 mAh is in accordance with the basic requirements and other relevant provisions of the guideline 1999/5/EG.

The declaration of conformity can be found under the following address: www.gaudio.de/ke/214459.pdf
