Product Type	Built-in gas cooktop
Brand	Mora
Model	VP 670
Cutout Dimensions (W x D)	560 x 480 mm
Overall Dimensions (W x D)	500 x 585 mm
Height	40 mm
Number of Burners	4 (auxiliary, semi-rapid, rapid, triple-crown)
Burner Types	Auxiliary (1.0 kW), Semi-rapid (1.75 kW), Rapid (3.0 kW), Triple-crown (3.5 kW approx.)
Gas Connection	G 1/2" threaded
Gas Types Supported	Natural gas, LPG (butane/propane) with injector change
Ignition	Automatic electric ignition (push-and-turn)
Safety Features	Flame failure safety device (thermocouple) on each burner
Material	Stainless steel top, enamelled pan supports
Pan Support Material	Enamelled steel (dishwasher safe)
Additional Grids	Optional small pan grid & WOK grid
Electrical Supply	220-240 V ~ 50/60 Hz (for ignition only)
Power Cord	0.75 mm², 3-core (L/N/E)
Cleaning	Mild soap and water; no abrasive cleaners; burners removable
Installation Requirements	Cutout in heat-resistant worktop (≥90°C); ventilation opening ≥100 cm²
Certifications	CE, complies with EU Directives (Low Voltage, Gas Appliances, EMC)

Frequently Asked Questions - VP 670 Mora

How do I ignite a burner on the Mora VP 670 cooktop?

Turn the knob to the maximum position, press and hold it down for 4-5 seconds. The ignition device will spark. If the burner does not light within 15 seconds, wait 1 minute before trying again.

What should I do if the burner flame is irregular or goes out?

Immediately turn the knob to the 'off' position. Check that the burner cap is correctly positioned and that the thermocouple and electrode (fig.11) are clean. If the problem persists, contact After-sales service.

Can I use a wok on this cooktop?

Yes, but only with the special WOK support grid (optional) placed on the triple-crown burner. Never use a wok without this grid or use the WOK grid for flat-bottomed pans.

How should I clean the cooktop?

Allow the cooktop to cool, then clean enamelled parts with a sponge and soapy water. For stainless steel, use a damp cloth and proprietary detergent. The enamelled pan supports are dishwasher safe. Never use abrasive products.

How can I convert the cooktop to a different gas type?

Replace the injectors with the correct ones for the new gas (refer to the injectors table), then adjust the minimum setting using the bypass screw. This must be done by a qualified technician.

What are the minimum clearance requirements for installation?

The cutout must be at least 600 mm from the rear wall and 120 mm from side walls. Above the cooktop, maintain a minimum clearance of 55 mm to cabinets. The worktop must be heat-resistant up to 90°C.

Why do the knobs become stiff or smell of gas?

If the knobs are difficult to turn or you smell gas, shut off the gas supply immediately and call After-sales service. Faulty taps must be replaced along with their gaskets.

Can I use aluminium foil or plastic on the cooktop?

No, never place aluminium foil or plastic containers on the hob. They can cause damage or fire hazard. Use only stainless steel pots and pans with flat, dry bottoms.

How do I dispose of the appliance responsibly?

Do not dispose of it with household waste. Take it to a recycling collection point for electrical and electronic equipment to prevent negative environmental and health impacts.

What should I do if the cooktop cracks or overheats?

Immediately turn off the appliance and call the assistance service. Do not attempt to repair it yourself. The same applies if the controls malfunction or the hob shuts off by itself.

USER MANUAL VP 670 Mora

INSTRUCTIONS BOOKLET

built-in cooktops

NÁVOD NA POUŽITÍ

Plynová varná deska

Important warnings and tips for use

- IMPORTANT! This manual constitutes an integral part of the appliance. It must be kept intact and within easy reach during the entire life of the cooktop. Please carefully read this manual and all the instructions contained herein before using the appliance. Keep any spare parts supplied with the appliance. Installation and all gas/electric connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and in full compliance with current laws and safety regulations. This appliance is intended solely for domestic use and is designed for the following functions: cooking and reheating food. Any other use is considered as improper.

The manufacturer declines all liability resulting from poor installation, tampering, inexpert use and use for purposes other than those specifically stated.

- Check that the appliance has not been damaged during transport; Keep all packaging materials (plastic bags, polystyrene foam, nylon, etc.) away from children, as they are potentially dangerous.

- The packaging material is recyclable, and marked with the recycling symbol

Dispose of the appliance responsibly

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance

- Electrical safety can only be guaranteed if the product is connected to a suitable earth connection.

- After using the cooktop, ensure the indicator on the knob is turned to the "off" position.

- Should you decide not to use the appliance any longer, before scrapping it make it unusable in accordance accordance with current environmental health and safety laws, ensuring any parts which might constitute a danger to children are rendered harmless.

- Warning: in case of disassembly, maintenance and cleaning of the appliance, be careful Please use suitable prevention and protection equipment

- The label with technical specifications is placed under the bottom and in the manual. Do not remove it.

- Never place inflammable object on the hob. FIRE HAZARD!

- When a cooking zone is turned off, it remains hot for a while. During this time avoid touching the hot zone.

- Do not use aluminium foil or plastic containers (the protective films are not suitable for this hob)

- If there is a drawer under the hob, it is advisable not to keep inflammable objects or spray cans in it.

- The power supply cable must never touch hot cooking zones, it might get damaged.

- The cooking zone and pan bottom must always be dry and clean.

- If you find cracks on the appliance; if the cooking zones are overheated; if the display or the knobs does not work or if the hob turn-off by itself: immediately turn-off the appliance and call the assistance service. In case of any malfunction, do not attempt to repair the hob by yourself, but contact the assistance service

- Do not cook with empty pan, especially if it is an enamelled or aluminium pan.

Pan bottoms and ceramic glass could be damaged. Use only stainless steel pots and pans

- Never place hot pans, frying pans, hard or pointed objects on the control panel, knobs area or the frame

- Sugar and other food with high sugar content will damage the hob. Any spilt food must be removed immediately with a scraper for glass. Warning !!! The optional scraper for glass has a sharp blade.

- The following damages will not affect the correct functioning or the stability of the appliance:

The formation of gelatinous residues due to melted sugar or food with a high sugar content; Scratches due to salt, sugar or sand grains or rough pan bottoms; metal colour from pan stands.

- Only use warm water with a mild detergent. Do not use corrosive or abrasive products, as they could damage the surfaces. Warning: a steam cleaner is not to be used to clean the appliance.

- These instructions are valid only for those countries whose ID initials appear on the data plate found on the instructions handbook and on the appliance.

Declaration of Conformity

This appliance is in compliance with the following European Directives:

• 93/68/CE : General regulations

• 2006/95/CE : Concerning low tensions

• 2009/142/CE : Concerning gas appliances

• 89/336/CE : Electromagnetic compatibility

- CE Regulation n° 1935/2004: this appliance is suitable to come in contact with food products.

COOKTOP SPECIFICATIONS

Warnings:

This appliance is designed to be built into a housing unit.

• The installation class is type 3 for gas and type Y for electric parts.
• Housing units must be designed to withstand temperatures of up to 90°C or over.
• For correct installation, refer to the relevant paragraph and reference drawings.

- The use of a gas cooking appliance produces heat and humidity in the room in which it is installed. Ensure the kitchen is well ventilated: keep natural ventilation openings open, or install a mechanical ventilation device (extractor hood with exhaust duct). In the case of intensive or prolonged use of the appliance it may be necessary to provide additional ventilation, for example, by opening a window, or more efficient ventilation, for example by increasing the hood speed.

This handbook is valid for several types of cooktop.

Refer to the data plate on the back in order to identify the model that corresponds to your appliance.

These informations, together with the instructions and the illustrations in the following paragraphs will show you the characteristics of your appliance.

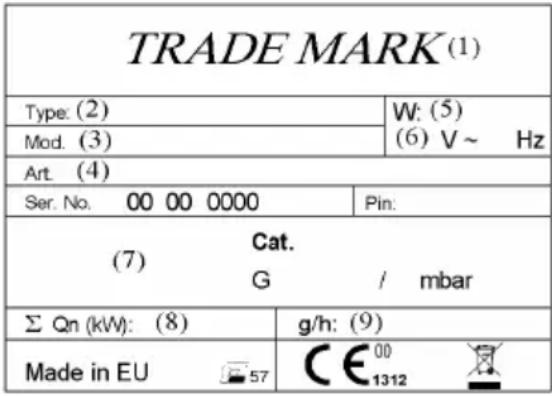

An Example:

Legend:

(1)	Trade Mark
(2)	Corresponding model
(3)	Technical code
(4)	Customer code
(5)	Power inputs
(6)	Voltage and frequency data
(7)	Country of target market and gas details
(8)	Gas burners power
(9)	Gas burners consumptions

USING THE COOKTOP

Gas burners

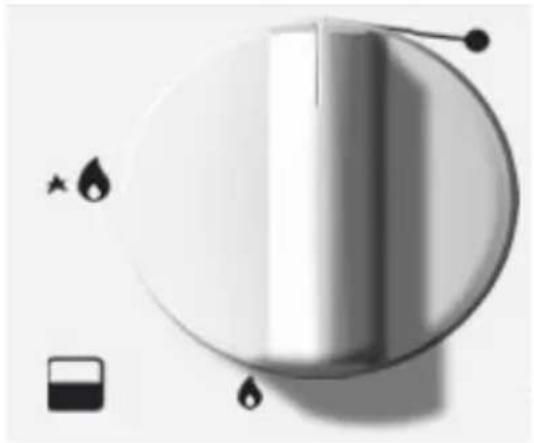

The delivery of gas to the burners is controlled by the knobs shown in fig.2 that in turn control the taps.

The symbols, depending on the various versions, may be printed over or under the knobs.

By moving the indicator to coincide with the printed symbols, the following adjustment can be made:

Tap closed, no gas delivery

Maximum capacity, maximum gas delivery
Minimum capacity, minimum gas delivery

Burners ignition

These models are equipped with safety valves which automatically shut off the gas delivery in the event the burner should, for any reason, go out. To relight the burner, turn the knob to position "tap closed" and repeat the ignition procedure explained in the following paragraph:

For light one burner, turn the gas tap knob to the maximum

delivery position, then press and hold down it for about 4÷5 seconds.

Warnings:

- Once the burner is light on, adjust the flame by turning the knob to obtain the desired intensity. The setting must always be positioned between the maximum and minimum, and never between the maximum setting and the off position.

• If the burner is difficult to light on, or if the flame is tall or irregular, turn off immediately turning the knob to "off" position and call Assistance Service.
• If the particular nature of the local gas supply makes it difficult to ignite the burners with the knob turned to the maximum setting, repeat the operation without a pan in position and with the knob turned to the minimum setting and without pan stands.
• Warning: The ignition device must not be used for more than 15 seconds. If after this length of time the burner does not light, or if it goes out again accidentally, wait 1 minute before trying to ignite it again

Grids

The panstand grids are designed to make the appliance easy and safe to use. Always check the panstand grids are properly positioned before using the appliance. Furthermore, always check the protective rubber feet are all present and correctly positioned.

◆ Grid for small pots or pans (optional - Fig.1A)

This is placed on top of the auxiliary burner grid (the smallest one) when pots or pans of reduced diameter are used, to avoid unbalancing.

◆ Special "WOK" support grid (optional - Fig.1B)

This is placed on top of the triple crown burner when using a "WOK" (concave bottom pan).

In order to prevent serious malfunction of the burner, never use a wok without this special grid and never use the wok grid for flat bottomed pans

Choosing the right burner

The symbols stamped on the control panel (fig.2) near the knobs indicate which knob correspond to which burner. To choose the most suitable burner, take into account the diameter of the pan as well as the pan capacity (see table).

The diameter of the pan must be proportionate to the burner power in order to ensure high yield.

Pan diameter

Burners		Hob model
		all models		VP670 - VP650
		∅ minimum	∅ maximum	∅ minimum	∅ maximum
A	Auxiliary	60 mm (with reducer)	140 mm	60 mm (with reducer)	140 mm
SR	Semi-rapid	160 mm 200 mm		160 mm	front∅180mm rear∅200mm
R	Rapid	200 mm 240 mm		160 mm 200 mm
TR	Triple-crown	240 mm 260 mm		160 mm 200 mm

INSTALLATION INSTRUCTIONS

Important!

• These instructions are intended for qualified technicians.
• The appliance must be installed correctly, in compliance with current laws.
• Before carrying out any operation on the appliance, it must be disconnected from the electric supply.

Fitting the appliance in the worktop

The cooktop may be fitted into any worktop, as long as it is heat resistant (minimum temperature of 90°C)

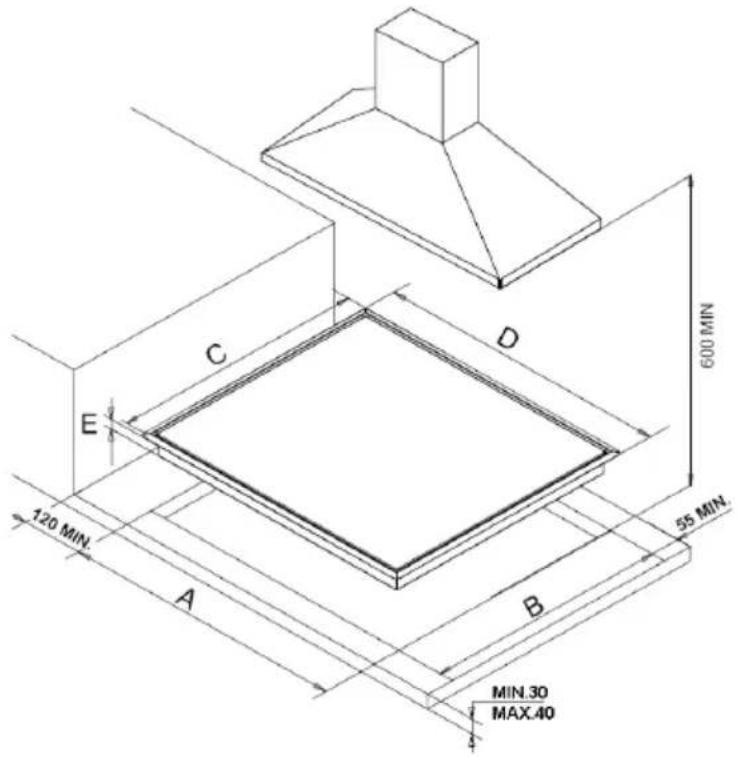

The dimensions of the hole to be made in the worktop and the minimum distances between rear and side walls and those above the appliance are shown in figure 4.

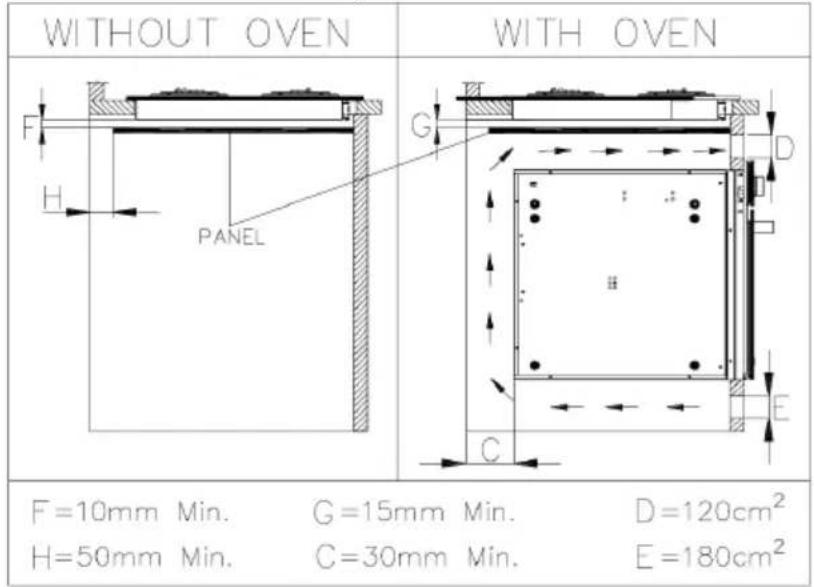

Isolation below (fig.6):

• If the cooktop is installed without an oven below it, a separator panel must be placed between the bottom of the cooktop and the housing below it, at a minimum distance of 10 mm.
• If the cooktop is installed over an oven, place a separator panel at a minimum distance of 15mm and follow the oven manufacturer's instructions, ensuring nonetheless sufficient aeration as specified in fig.6.

In any event, the electrical connection of the two appliances must be carried out

separately, both for electrical safety and to facilitate removal.

It is advisable to use an oven equipped with an internal forced cooling system.

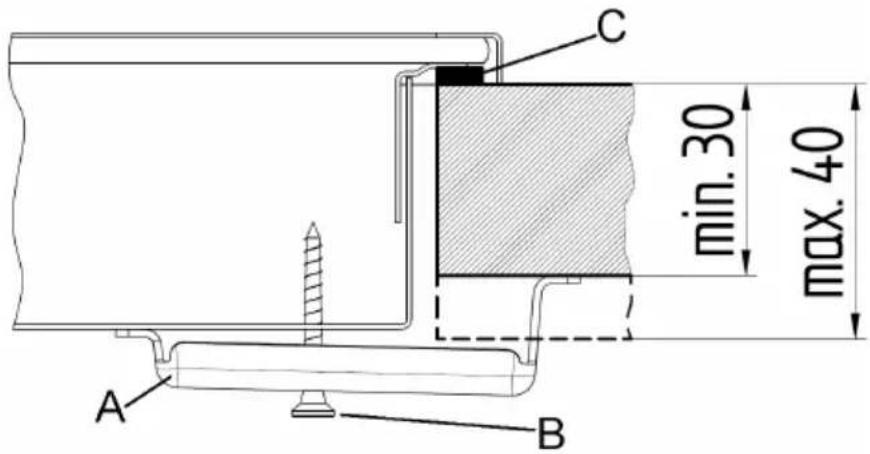

Fixing the cooktop (fig.7):

To fix the cooktop in the housing, proceed as follows:

• Position the special gasket supplied [C] along the outer perimeter of the worktop, following the diagram shown in fig.4, so that the ends of the gasket meet exactly without overlapping.
• Position the cooktop into the worktop, taking care to ensure it is placed exactly in the centre.
• Fix the cooktop to the worktop using the special brackets supplied [A], as shown in fig.7.

Correct installation of the sealing gasket ensures complete protection against infiltration of liquids.

Installation area and removal of combustion fumes

The appliance must be installed and operated in suitable areas, and in compliance with current laws. The installation technician must observe current laws governing ventilation and removal of combustion fumes. Please remind that the air required for combustion is 2m^3/h per kW of power (gas) installed.

◆ Installation area

In the room where the gas appliance is installed, there must be a sufficient natural air supply to allow the gas to burn correctly (in conformity of currents laws).

The natural flow of air must take place through an opening made on an outside wall of the room and having a working section of at least 100 cm^2 (A). In the case of appliances without safety valves, this opening must have a minimum working section of 200 cm^2 (fig.8).

This opening must be made in such a way that it cannot be obstructed from inside or outside.

It should be positioned near floor level, preferably on the side opposite the fume exhaust devices.

If it is not possible to make the necessary openings, the air can be supplied from an adjacent, suitably ventilated room, as long as this room is not a bedroom, a dangerous area or a low-pressure area.

◆ Removal of combustion fumes

Combustion fumes produced by gas appliances must be removed by means of a hood connected directly either to an exhaust duct or to the outside (fig.8).

If a hood cannot be installed, an electric extractor fan must be fitted to the outside wall or the window. This electric extractor fan must have a sufficient capacity to guarantee a change of air of the kitchen of at least 3-5 times its volume.

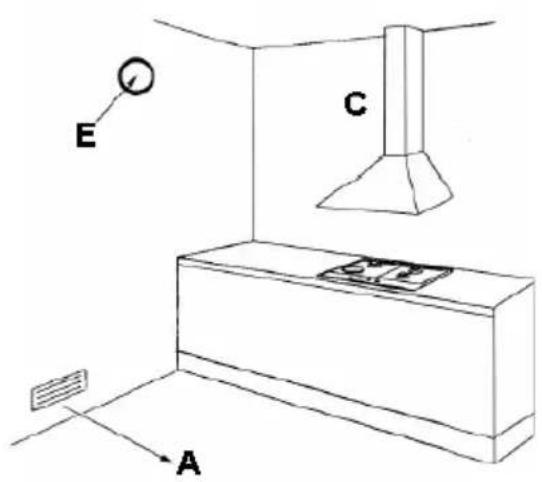

◆ Components shown in fig.8:

A Opening for air supply
C Hood for exhaust removal of combustion fumes
E Electric extractor fan for removal of combustion fumes

Connection to gas supply

Before installation, make sure the type and pressure of the local gas supply are compatible with the cooktop settings.

To do this, check the data on the appliance data plate on the cooktop as well as on this handbook.

The gas connection must be carried out by a qualified technician in compliance with local current laws. If using metal hoses, ensure these do not come into contact with any movable parts and are at no point crushed.

Carry out the connection in such a way as does not cause any stress whatsoever on the appliance.

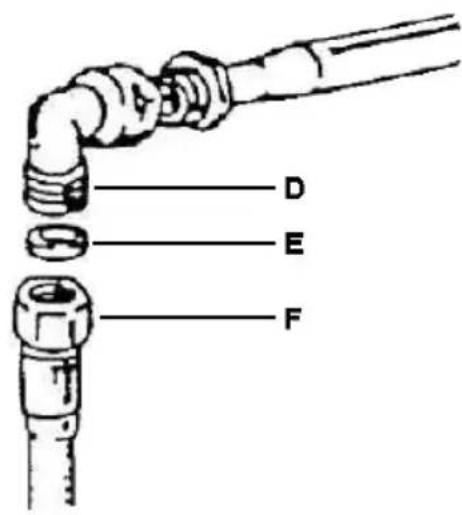

The gas supply connector is threaded G ^1/2 " (fig.12).

For ISO R7 connections, the gasket is not required.

For ISO R228 connections, the washer supplied must be fitted.

After connection operations, check for leaks using a soapy solution.

Electrical connection

Before connecting the appliance to the electricity supply, check that the voltage corresponds to that on the data plate and that the power supply cable is suitable for the appliance load also stated on the data place. If the appliance is connected directly to the mains, fit an all-pole disconnect switch with minimum contact gap of 3 mm, adequate for the appliance load and complying to regulations.

The plug used must support the power of work of the appliance.

Warnings:

• Do not use reducers, adapters or switches for connection to the mains, since these could overheat and cause burns.
• Earth connection is required by law (fig.10).

The manufacturer declines all liability resulting from failure to observe this regulation.

If the power cable must be replaced, use a cable having identical characteristics to the original supplied by the manufacturer, suitable for the load and temperature (type T90°C). This is available from After-sales service. Furthermore, the end of the power cable to be connected to the appliance must have the Yellow-Green earth conductor 20 mm longer than the other conductors.

The cable must support the load of the appliance.

Refer to the table below for the size of the power cable

Cooktop type	Wire size
Only with gas burners	0,75 mm^2
With electric plate(s) <= 1000W	0,75 mm^2

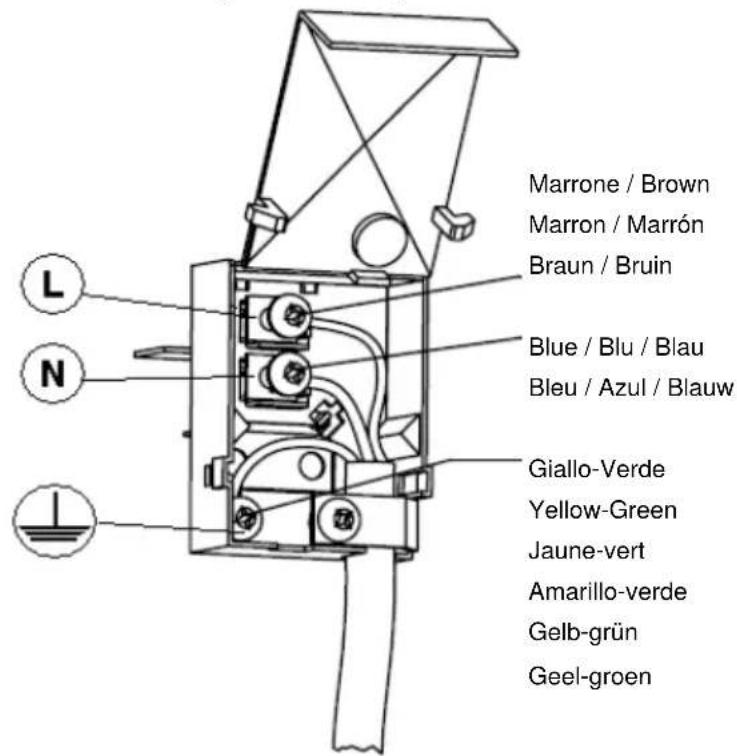

Should it be necessary to replace the supply cord,

connect the wire in accordance with the following colours/codes:

BLUE NEUTRAL (N)

BROWN LIVE (L)

YELLOW-GREEN EARTH (-)

- Check whether there is a omnipolar switch available on the domestic line which is compliant with current standards laws.

Otherwise, place a device easily reachable between the appliance and the electricity line.

- If the cable result damaged, it must be quickly replaced with a new one by a qualified technician or call the After-Sales service.

ADJUSTMENT TO DIFFERENT TYPES OF GAS

If a different type of gas from the one indicated on the rating plate is used, the injectors must be replaced.

If spare injectors are not supplied with the appliance, they are available from the After-sales service.

For the choice of replacement injectors, refer to the injectors table at the end of this booklet.

The injectors are identified by their diameter, which is expressed in hundredths of mm, stamped on the body of the injector itself.

Replacing the injectors

• Remove the grids and burner caps from the cooktop

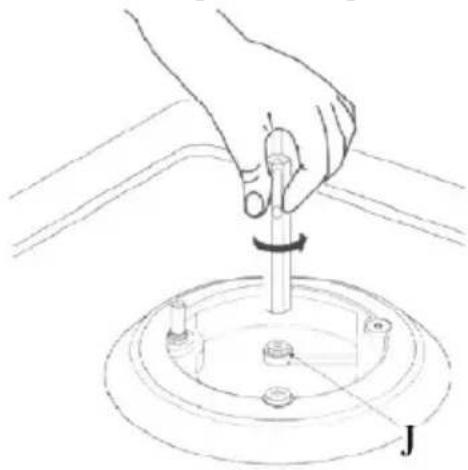

• Using a socket wrench, replace the injectors "J" (fig.9) with the suitable ones for the gas used
• Replace the burners

The burners do non require primary air adjustment.

Adjustment of minimum setting

After replacing the injectors, light the burner and remove the knob. Turn the tap to the minimum setting and insert a screwdriver in the rod: tighten to reduce the flame, loosen to increase the flame (fig.9)

For gas G30/G31, tighten the adjustment screw fully

The flame must result small, uniform and regular all around the burner crown.

Check that:

• quickly turn the knob from max. to min. position of gas power, the flame doesn't go over
• for burners with a safety device, the flame have to licks the thermocouple
• leaving the burner alight for a few minutes, it doesn't go over

CLEANING AND MAINTENANCE

To maintain the cooktop in optimum condition, clean it regularly after each use, allowing it to cool before cleaning.

• Never use abrasive or sharp substances or materials to clean the surfaces
• Never clean the appliance with high pressure water or steam cleaning equipment
• Do not use flammable or alcoholic cleaners

Enamelled parts:

All enamelled parts should be cleaned with a sponge and soapy water or specific detergents.

Never use abrasive cleaning products. Dry thoroughly after cleaning.

Stainless steel top:

The stainless steel top should be cleaned with a damp cloth and proprietary detergents commercially available. After rinsing, dry preferably with a chamois leather.

Grids:

The enamelled panstand grids of the cooktop are dishwasher safe.

Stainless steel panstand grids may take on a bluish tinge on parts around the burners as a result of the high temperatures. This effect can be reduced by using commercially available steel wool pads.

Burners:

The burners, comprising two parts, can be removed and cleaned using suitable detergents.

After cleaning, dry the burners thoroughly and reposition them carefully in their seats.

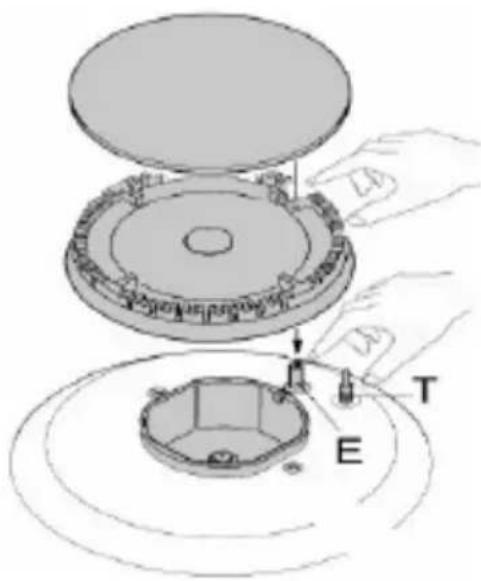

In models with electric ignition, always check that the electrode "E" (fig.11) is clean.

In models with safety device, clean the probe "T" (fig.11) in order to allow regular operation of the safety valve. Both the electrode and probe must be cleaned with care.

Upon completion of cleaning, replace the burners accurately in their seats.

To prevent damaging the electric ignition, avoid using it when the burners are not in place.

Maintenance

The appliances do not require any particular maintenance, nonetheless it is advisable to have them checked at least once every two years.

If the knobs become difficult to turn, or if there is a smell of gas, shut the gas supply tap and call After-sales service. Faulty taps must be replaced along with their gasket.

Simple geometric star-like shape with no text or symbols

Simple black metal grate with two side handles, no text or symbols present

Black plastic mechanical component with symmetrical cutouts and mounting holes (no text or symbols)

Fig./Obr. 2

Abstract grayscale graphic with a circular gradient, droplet icons, and a small rectangular symbol (no text or symbols)

Fig./Obr. 3

Simple line drawing of a cooking pot on a gas stove with a prohibition symbol (no text or labels)

Simple line drawing of a cooking pot on a stove with a prohibition symbol (no text or labels)

Simple line drawing of a cooking pot on a gas stove with a prohibition symbol (no text or labels)

Simple line drawing of a gas stove with a prohibition symbol (no text or labels)

Simple line drawing of a cooking pot with a flame and a prohibition symbol (no text or labels)

Line drawing of a cooking pan on a gas stove with a checkmark indicating the cooking step (no text or symbols present)

Simple line drawing of a cooking pot on a gas stove with a checkmark indicating heating (no text or symbols)

Fig./Obr. 4

Name	Code	A	B	C	D	E
4302.0002	298514	560	480	500	585	40
4302.1002	298515	560	480	500	585	40
4332.1002	298506	560	480	500	585	40
4332.2002	298507	560	480	500	585	40
4344.0002	298508	560	480	500	685	40
4344.1002	298509	560	480	500	685	40
4335.0002	300607	560	480	500	585	40
4110.0002	298510	270	490	510	290	40
4110.1002	298511	270	490	510	290	40
VP670	298512	560	480	500	585	40
VP650	298513	560	480	510 595		40

Fig./Obr. 6

Fig./Obr. 7

Fig./Obr. 9Fig./Obr. 8

Line drawing of a hand using a tool to press or install a mechanical component on a circular base (no text or symbols)

Fig./Obr. 10 Fig./Obr. 11

Fig./Obr. 12

	D:	E:	F:
IT	Raccordo	Guarnizione	Tubo rigido o tubo flessibile
GB	Union	Gasket	Pipe or hose
FR	Raccord	Joint	Tuyau rigide ou flexible
DE	Gewindeanschluss	Dichtung	Starres Rohr oder Metallschlauch
ES	Empalme de gas	Anillo	Tubo flexibile
PT	Conexão	Vedante	Tubo rígido e tubo flexível
GR	ρακόρ	ραρέμβυς μα	Ακαμρτος ή εύκαμρτος σωλήνας
NL	Kopstuk	Dichtingsring	Harde buis of soepele buis
HU	Csatlakozàs Tömités		Merev csö vagy hajlékony csö
PL	Zlaczka	Uszczelka	Rura sztywna lub rura gietka
CZ	spojka	tesnení	pevná ci ohebná trubka
	وصلة	طبة	ماسورة أو خرطوم الغاز
RU	Myфта	Прокладка	Труба или шланг

Symbol of a trash bin crossed with diagonal lines, no text or labels present

EN	The symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.
DE	Dieses Produkt darf am Ende seiner Lebensdauer nich über den normalen Haushaltsabfall entsorgt werden, sondern muss an einem Sammelpunkt für das Recycling von elektrischen und elektronischen Geräten abgegeben werden. Das Symbol auf dem Produkt, der ebrauchsanleitung oder der Verpackung weist darauf hin. Die Werkstoffe sind gemäß ihrer Kennzeichnung wiederverwertbar. Mit der Wiederverwendung, der stofflichen Verwertung oder anderen Formen der Verwertung von Altgeräten leisten Sie einen wichtigen Beitrag zum Schutze unserer Umwelt. Bitte erfragen Sie bei der Gemeindeverwaltung die zuständige Entsorgungsstelle.
IT	Il simbolo sul prodotto o sulla confezione indica che il prodotto non deve essere considerato come un normale rifiuto domestico, ma deve essere portato nel punto di raccolta appropriato per il riciclaggio di apparecchiature elettriche ed elettroniche. Provedendo a smaltire questo prodotto in modo appropriato, si contribuisce a evitare potenziali conseguenze negative per l'ambiente e per la salute, che potrebbero derivare da uno smaltimento inadeguato del prodotto. Per informazioni più dettagliate sul riciclaggio di questo prodotto, contattare l'ufficio comunale, il servizio locale di smaltimento rifiuti o il negozio in cui è stato acquistato il prodotto.
FR	Ce symbole figure sur le produit ou sur son emballage en application de la directive européenne 2002/96/CE sur les Déchets d'Équipement Électrique et Électronique (DEEE). Cette directive sert de règlement cadre à la reprise, au recyclage et à la valorisation des appareils usagés dans toute l'Europe. Ce produit doit donc faire l'objet d'une collecte sélective. Lorsque vous ne l'utiliserez plus, remettez-le à un service de ramassage spécialisé ou à une déchèterie qui traite les DEEE ; vous contribuerez ainsi à éviter des conséquences néfastes pour la santé et l'environnement. Pour tout renseignement sur la mise au rebut et le recyclage de ce produit, veuillez contacter la mairie ou le service de la propreté de votre commune, ou encore le magasin dans lequel vous l'avez acheté.
ES	Este aparato lleva el marcado CE en conformidad con la Directiva 2002/96/EC del Parlamento Europeo y del Consejo sobre residuos de aparatos eléctricos y electrónicos (RAEE). La correcta eliminación de este producto evita consecuencias negativas para el medioambiente y la salud. El símbolo en el producto o en los documentos que se incluyen con el producto, indica que no se puede tratar como residuo doméstico. Es necesario entregarlo en un puntode recogida para reciclar aparatos eléctricos y electrónicos. Deséchelo con arreglo a las normas medioambientales para eliminación de residuos. Para obtener información más detallada sobre el tratamiento, recuperación y reciclaje de este producto, póngase en contacto con el ayuntamiento, con el servicio de eliminación de residuos urbanos o la tienda donde adquirió el producto.
PT	O símbolo no produto ou na embalagem indica que este produto não pode ser tratado como lixo doméstico. Em vez disso, deve ser entregue ao centro de recolha selectiva para a reciclagem de equipamento eléctrico e electrónico. Ao garantir uma eliminação adequada deste produto, irá ajudar a evitar eventuais consequências negativas para o meio ambiente e para a saúde pública, que, de outra forma, poderiam ser provocadas por um tratamento incorrecto do produto. Para obter informações mais pormenorizadas sobre a reciclagem deste produto, contacte os serviços municipalizados locais, o centro de recolha selectiva da sua área de residência ou o estabelecimento onde adquiriu o produto.
UA	Цей символ на виробі або на його упаковці позначас, що з ним не можна поводитися, як із побутовим сміттям. Замість цього його необхідно повернути до відповідного пункту збору для переробки електричного та електронного обладнання. Забезпечуючи належну переробку цього виробу, Видопомагасте попередити потенційні негативні наслідки для навколишнього середовища та здоров'я людини, які могли би виникнути за умов неналежного позбавлення від цього виробу. Щоб отримати детальнішу інформацію стосовно переробки цього виробу, зверніться до свого місцевого офісу, Вашої служби утилізації або до магазина, де Ви придбали цей виріб.
NL	Het symbool op het product of op de verpakking wijst erop dat dit product niet als huishoudafval mag worden behandeld. Het moet echter naar een plaats worden gebracht waar elektrische en elektronische apparatuur wordt gerecycled. Als u ervoor zorgt dat dit product op de correcte manier wordt verwijderd, voorkomt u mogelijk voor mens en milieu negatieve gevolgen die zich zouden kunnen voordoen in geval van verkeerde afvalbehandeling. Voor meer details in verband met het recyclen van dit product, neemt u het best contact op met de gemeentelijke instanties, het bedrijf of de dienst belast met de verwijdering van huishoudafval of de winkel waar u het product hebt gekocht.
RO	Simbolul de pe produs sau de pe ambalaj indică faptul că produsul nu trebuie aruncat împreună cu gunoiul menajer. Trebuie predat la punctul de colectare corespunzător pentru reciclarea echipamentelor electrice și electronice. Asigurându-vă că ati eliminat în mod corect produsul, ajutați la evitarea potențialelor consecințe negative pentru mediul înconjurător și pentru sănătatea persoanelor, consecințe care ar putea deriva din aruncarea necorespunzătoare a acestui produs. Pentru mai multe informații detaliate despre reciclarea acestui produs, va rugăm să contactați biroul local, serviciul pentru eliminarea deșeurilor sau magazinul de la care l-ati achiziționat.
SLO	Simbol na izdelku ali njegovi embalaži označuje, da z izdelkom ni dovoljeno ravnati kot z običajnimi gospodinjskimi odpadki. Izdelek odpeljite na ustrezno zbirno mesto za predelavo električne in elektronske opreme. S pravilnim načinom odstranjevanja izdelka boste pomagali preprečiti morebitne negativne posledice in vplive na okolje in zdravje ljudi, ki bi se lahko pojavile v primeru nepravilnega odstranjevanja izdelka. Za podrobnješe informacije o odstranjevanju in predelavi izdelka se obrnite na pristojen mestni organ za odstranjevanje odpadkov, komunalno službo ali na trgovino, v kateri ste izdelek kupili.
PL	Symbol na produkcie lub na opakowaniu oznacza, že tego produktu nie wolno traktować tak, jak innych odpadów domowych. Należy oddać go do właściwego punktu skupu surowców wtörnych zajmującego się złomowanym sprzętem elektrycznym i elektronicznym. Właściwa utylizacja i złomowanie pomaga w eliminacji niekorzystnego wpływu złomowanych produktów na środowisko naturalne oraz zdrowie. Aby uzyskać szczegółowe dane dotyczące możliwości recyklingu niniejszego urządzenia, należy skontaktować się z lokalnym urzędем miasta, slużbami oczyszczania miasta lub sklepem, w którym produkt został zakupiony.
SK	Symbol na výrobku alebo na jeho obale znamená, že s výrobkom sa nesmie zaobchádzať ako s domovým odpadom. Namiesto toho ho treba odovzdať v zbernom stredisku na recykláciu elektrických alebo elektronických zariadení. Zabezpečte, že tento výrobok bude zlikvidovaný správnym postupom, aby ste predišli negativnym vplyvom na životné prostredie a lüdské zdravie, čo by bolo spôsobené nesprávnym postupom pri jeho likvidácii. Podrobnješie informacie o recyklácii tohto výrobku ziskate, ak zavoláte miestny úrad vo Vašom bydlisku, zberné suroviny alebo obchod, v ktorom ste výrobok kupili.
CZ	Symbol na výrobku nebo jeho balení udává, že tento výrobek nepatří do domácího odpadu. Je nutné odvézt ho do sběrného místa pro recyklaci elektrického a elektronického zařízení. Zajištěním správné likvidace tohoto výrobku pomůžete zabránit negativním důsledkům pro životní prostředí a lidské zdraví, které by jinak byly způsobeny nevhodnou likvidaci tohoto výrobku. Podrobnější informace o recyklaci tohoto výrobku zjistíte u příslušného místního úřadu, služby pro likvidaci domovního odpadu nebo v obchodě, kde iste výrobek zakoupili.
SV	Symbolen på produkten eller emballaget anger att produkten inte får hanteras som hushålsavfall. Den skall i stället lämnas in på uppsamlingsplats för återvinning av el- och elektronikkomponenter. Genom att säkerställa att produkten hanteras på rätt sätt bidrar du till att förebygga eventuellt negativa miljö- och hålsoeffekter som kan uppstå om produkten kasseras som vanligt avfall. För ytterligare upplysningar om återvinning bör du kontakta lokala myndigheter eller sophämtningstjänst eller affären där du köpte varan
NO	Symbolet på produktet eller på emballasjen viser at dette produktet ikke må behandles som husholdningsavfall. Det skal derimot bringes til et mottak for resirkulering av elektrisk og elektronisk udstyr. Ved å sørge for korrekt ahvending av apparatet, vil du bidra til å forebygge de negative konsekvenser for miljø og helse som gal håndtering kan medføre. For nærmere informasjon om resirkulering av dette produktet, vennligst kontakt kommunen, renovasjonsselskapet eller forretningen der du anskaffet det.
DK	Elektrisk og elektronisk udystyr indeholder materialer, komponenter og stoffer, der kann være skadelige for menneskers sundhed og for miljøet, hvis kasseret elektrisk og elektronisk udystyr ikke håndteres korrekt. Elektrisk og elektronisk udystyr er mærket med nedenstående overkrydsede skraldespand. De symboliserer, at elektrisk og elektronisk udystyr ikke må bortskaffes sammen med usorteret husholdningsaffald, men skal indsamles særskilt. Alle kommuner har etableret indsamlingsordninger, hvor elektrisk og elektronisk udystyr gratis kann afleveres af borgerne på genbrugsstationer og andre indsamlingssteder eller bliver afhentet direkte fra husholdningerne. Nærmere information kann fås hos kommunens tekniske forvaltning
FI	Symboli joka on merkitty tuotteeseen tai sen pakkaukseen, osoittaa, että tätä tuotetta ei saa käsitellä talousjätteenä. Tuote on sen sijaan luovutettava sopivaan sähkö- ja elektronikkalaitteiden kierrätyksestä huolehtivaan keräyspisteeesen. Tämän tuotteen asianmukaisen hävittämisen varmistamisella autetaan estämään sen mahdolliset ympäristöön ja terveyteen kohdistuvat hahitavaikutukset, joita voi aiheutua muussa tapauksessa tämän tuotteen epäasianmukaisesta jätekäsittelystä. Tarkempia tietoja tämän tuotteen kierrättämisestä saa paikallisesta kunnantoimistosta, talousjätehuoltopalvelusta tai likkeestä, josta tuote on ostettu
GR	To søμβολο στο προϊόν ή επάνω στη συσκευασία του υποδεικνύει ότι δεν πρέτει να μ εταχειρίζεστε το προϊόν αυτό ως οικιακό απόρριμμα. Αντιθέτως θα πρέτει να παραδίδεται στο κατάλληλο σημείο συλλογής για την ανακύκλωση ηλεκτρικού και ηλεκτρονικού εξοπλισμού. Εξασφαλίζοντας ότι το προϊόν αυτό βιατίθεται σωστά, συμβάλλετε στην αποτροτή ενδεχόμενων αρνητικών συνεπείων για το περιβάλλον και την ανθρώτινη υγεία, οι οποιες θα μπορούσαν διαφορετικά να προκληθούν από ακατάλληλο χειρισμό απόρριψης του προϊόντος αυτού. Για λεπτομερέστερες πληροφορίες σχετικά με την ανακύκλωση του προϊόντος αυτού, επικοινωνήστε με το δημαρχείο της περιοχής σας, την τοτική σας υπηρεσία αποκομιδής οικιακών απορριμμάτων ή με το κατάστημα όπου αγοράσατε το προϊόν.
EE	Tootel või selle pakendil asuv sümbol nätab, et seda toodet ei tohi kohelda majapidamisjäätmetena. Selle asemel tuleb toode anda vastavasse elektri- ja elektronikaseadmete taastöötlemiseks kogumise punkti. Toote õige utiliseerimise kindlustamisegsa aitate ära hoida võimalikke negativiseid tagajárgi keskkonnale ja inimtervisele, mida võiks vastasel juhul põhjustada selle toote ebäöge kaïtfemine. Lisainfo saamiseks selle toote taastöötlemise kohta võtke ühendust kohaliku linnavalitsuse, oma majapidamisjäätmete utiliseerimisteunse või kauplusega, kust te toote ostsite.
HR	Simbol na proizvodu ili na njegovoj ambalaži označuje da se tim proizvodom ne smije postupiti kao s otpadom iz domaćinstva. Umjesto toga treba biti uručen prikladnim sabirnim točkama za recikliranje elektronikčkih i električkih aparata. Ispravnim odvoženjem ovog proizvoda spriječit ćete potencijalne negativne posljedice na okoliš i zdravlje ljudi, koje bi inače mogli ugroziti neodgovarajućim rukovanjem otpada ovog proizvoda. Za detaljnije informacije o recikliranju ovog proizvoda molimo Vas da kontaktirate Vaš lokalni gradski ured, uslugu za odvoženje otpada iz domaćinstva ili trgovinu u kojoj ste kupili proizvod.
HU	A terméken vagy a csomagoláson található szimbólum azt jelzi, hogy a termék nem kezelhető háztartási hulladékként. Ehelyett a terméket el kell szállítani az elektromos és elektronikai készülékek újrahasznosítására szakosodott megfelelő begyűjtő helyre. Azzal, hogy gondoskodik ezen termék helyes hulladékba helyezéséről, segít megelőzni azokat, a környezetre és az emberi egészségre gyakorolt potenciális kedvezőtlen következményeket, amelyeket ellenkező esetben a termék nem megfelelő hulladékezkelése okozhatna. Ha részletesebb tájékoztatásra van szüksége a termék újrahasznosítására vonatkozóan, kérjük, lépjen kapcsolatba a helyi önkormányzattal, a háztartási hulladékok kezelését végző szolgálattal vagy azzal a bolttal, ahol a terméket vásárolta.
LT	Šis ant produkto arba jo pakuotés esantis simobilis nurodo, kad su šiuo produktu negalima elgtis kaip su buitinémis šiukšlěmis. Jí reikia perduoti atitinkam surinkimo punktui, kad elektros ir elektronikos įranga būtu perdirbta. Tinkamai išmesdami ši produktą, jūs prisidésite prie apsaugos nuo galimo neigiamo poveikio aplinkai ir žmonių sveikaitai, kurji sukielti netinkamas šio produkto išmetimas. Dėl išssamesnės informacijos apie šio produkto išmetima, prašom kreiptis į savo miesto valdžios istaiga, buitinių šiukšlių išmetimo tarnybą arba prarduotuve, kurioje pirkote ši produktą.
LV	Simbols uz produkta vai tā iepakojuma norāda, ka šo produktu nedrīkst izmest saimniečības atkritumos. Tas jānodod attiecigos elektrisko un elektronisko iekārtu savākšanas punktos pāstrādāšanai. Nodrošinot pareizu atrbrīvošanos no šī produktą, jūs palidzēsiet izvařīties no potenciálam negativám sekām apkārtējai videi un cilvēka veselībīla, kuras iespējams izraisīt, nepareizi izmetot atkritumos šo produktu. Lai iegūtu detalizētāku informāciju par atrbrīvošanos no šī produkta, lūdzu sazinieties ar jūsu pilsētas domi, saimniečības atkritumu savākšanas dienestu vai veikalu, kurā jūs iegādājaties šo produktu
YU	Ova je oprema označena u skladu s evropskom smernicom 2002/96/EG o otpadnoj električnoj i elektronskoj opremi (waste electrical and electronic equipment - WEEE). Smernica opredeljuze zahteve za sabiranje i rukovanje otpadnom električnom i elektronskom opremom, koji su na snazi u celokupnoj Evropskoj Uniji.
MK	Овој апарат е означен според европейскиот пропис 2002/96/E3 за електро и електронски апарати (waste electrical and electronic equipment - WEEE). Прописот ja дава рамката за враćање и искористување на старите апарати, важчко ширум Европа.
SQ	Ky aparat pērmban shēnjēn e aparaturave elektrike dhe elekroteknike sipas Udhežimit 2002/96/EG (waste electrical and electronic equipment - WEEE). Udhežimi jep kuadrin ligjor pēr te drejtēn e kthimit mbrapsht tē aparaturave tē pērdorura né tē gjithē BE.
TK	Bu cihaz Avrupa’n 2002/96/EC Art k Elektrik ve Elektronik Donan mlar (WEEE) talimatlar yla iaretlenmi2. Bu yönerge Avrupa’n 2 Art k Elektrik ve Elektronik Donan mlar geri verme ve yeniden kullan I durumuna getirme geni geçirlilik çerçevesidir.
UA	Такий символ на виробі та на його упаковці показує, що цей продукт або його упаковка не можуть бути викинуті подібно звичайному сміттю. Замість цього його треба передати на пункт утилізації приладів для переробки електричного або электронного обладнання. Забезпечуючи правильну утилізацію приладу, ви допоможете запобітки небезпечному впливу на природу та здоров'я людей, який може виникнути, якщо не дотримуватись вимог щодо утилізації подібних виробів. За більш детальною інформацією щодо переробки цього приладу звертайтесь до місцевого представництва, служби по утилізації відпрацьованих побутових приладів або до магазину, де ви придбали цей прилад.
UA	Цей символ на виробі або на його упаковці позначас, що з ним не можна поводится, як із побутовим сміттям. Замість цього його необхідно повернути до відповідного пункту збору для переробки електричного та електронного обладнання. Забезпечуючи належну переробку цього виробу, Видопомагаєте попередити потенційні негативні наслідки для навколишнього середовища та здоров'я людини, які могли би виникнути за умов неналежного позбавлення від цього виробу. Щоб отримати детальнішу інформацію стосвно переробки цього виробу, зверніться до свого місцевого офісу, Вашої служби утилізації або до магазина, де Ви придбали цей виріб.
RUS	Символ на изделии или на его упаковке указывает, что оно не подлежит утилизации в качестве бытовых отходов. Вместо этого его следует сдать в соответствующий пункт приемки электроэлектронного и электрооборудования для последующей утилизации. Соблюдая правила утилизации изделия, Вы поможете предотратить причинение окружающей среде и здоровью людей потенциального ущерба, который возможен, в противном случае, вследствие неподобающего обращения с подобными отходами. За более подробной информацией об утилизации этого изделия просьба обращаться к местным властям, в службу по вывозу и утилизации отходов или в магазин, в котором Вы приобрели изделие.
BG	Символьт върху продукта или опаковката му покава, че този продукт не трябва да се третира като домакинските отпадыци. Вместо това, той трябва да се предаде в специализиран пункт за рециклиране на електрическо и електронно оборудване. Като се погрижите този продукт да бъде изхърлен по подходящ начин, вие ще помогнете за предотравиване на възможните негативни последствия за околната среда и човешкого здраве, които иначе биха могли да бъдат предизвикани от неправилного изхърляние като отпадык на този продукт. За по-подробна информация за рециклиране на този продукт се обърнете към местната градска управа, службата за вторични суровини или магазина, отъкъдето сте закупили продукта.
