| Product Type | Built-in Gas Hob |
| Brand | Mora |
| Model | VDP 646 X7 |
| Number of Gas Burners | 4 |
| Burner Types | 2 Semi-rapid, 1 Rapid, 1 Auxiliary (estimated) |
| Energy Efficiency (Hob) | 58.0% |
| Appliance Dimensions (W x D x H) | 600 x 520 x 40 mm |
| Cutout Dimensions (W x D) | 560 x 490 mm |
| Gas Connection | Natural gas or LPG (nozzle conversion required) |
| Ignition | Electronic ignition integrated in knobs |
| Safety Feature | Flame failure safety device (thermocouple) on each burner |
| Control Knobs | Front mounted, push and turn |
| Cleaning | Removable burner caps and pan supports for easy cleaning; enamel surface |
| Material | Stainless steel / enamel (top) |
| Installation Type | Built-in, flush or on top of worktop |
| Regulatory Compliance | EU Regulation 66/2014, EN 60350-2 |
Frequently Asked Questions - VDP 646 X7 Mora
How do I ignite the gas hob?
Push and turn the control knob to the spark position (symbol of spark). The electronic ignition will create sparks until the flame ignites. Once lit, adjust the flame to the desired level.
What should I do if a burner fails to ignite?
Check that the gas supply is on and that the burner cap is correctly positioned. Clean the burner crown and igniter electrode. If the problem persists, contact a qualified technician.
Can I use this hob with LPG (propane/butane)?
Yes, but the nozzles must be replaced and the minimum flame setting adjusted. Refer to the user manual for the correct nozzle kit and conversion procedure, or have it done by a professional.
What are the exact cutout dimensions for installation?
The recommended cutout dimensions are 560 mm (width) x 490 mm (depth). The cutout must be at least 50 mm from the rear wall and 60 mm from side walls. Ensure a 100 mm gap to adjacent vertical surfaces.
How do I clean the hob?
Remove the pan supports and burner caps. Wash them with warm soapy water and a non-abrasive sponge. Wipe the hob surface with a damp cloth. Do not use abrasive cleaners or steel wool.
What does the flame failure safety device do?
If the flame unintentionally goes out, the thermocouple senses the temperature drop and automatically shuts off the gas supply to that burner to prevent gas leaks. Wait a few minutes before relighting.
Why is the flame uneven or yellow?
Uneven or yellow flames may indicate blocked burner ports or improper air mixture. Clean the burner crown thoroughly. If using LPG, ensure the correct injectors are installed. Adjust the air shutter if possible.
Can I use a wok on this hob?
Yes, if you have a wok burner or use a wok stand accessory. For standard burners, use a flat-bottomed wok. The pan supports can accommodate woks, but check stability.
How do I adjust the minimum flame setting?
After converting gas types or if the flame is too low, locate the bypass screw on the gas valve (usually near the knob). Turn it to adjust the minimum flame height. Use a small screwdriver; refer to manual for exact position.
What is the warranty period?
Warranty terms vary by country and retailer. Typically, Mora offers a 2-year manufacturer warranty. Check your purchase invoice and the user manual for specific conditions.
User questions about VDP 646 X7 Mora
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Cooker in PDF format for free! Find your manual VDP 646 X7 - Mora and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VDP 646 X7 by Mora.
USER MANUAL VDP 646 X7 Mora
NÁVOD SI PEČLIVĚ PŘEČTĚTE A UCHOVEJTE HO PRO BUDOUCÍ POTŘEBU!
Obecné
VDP646X7
VDP647X7
VDP665X7
| Information according to regulation 66/2014Measurements according to EN60350-2 | |||
| Model identification | VDP646X7 VDP647X2VDP647X7 | VDP665X7 | |
| Type of hob | Gas hob | Gas hob | |
| Number of gas burners | 4 | 4 | |
| Heating technology | Gas burner | Gas burner | |
| Energy efficiency per gas burner(EEgasburner) in % | Semi-rapid burner (2x): | 58.0 | 58.0 |
| Rapid burner: | 58.0 | - | |
| Wok burner: | - | 57.7 | |
| Energy efficiency for the gas hob | 58.0 | 58.0 | |
Přestavba trysek
REGULACE MINIMÁLNÍHO NASTAVENÍ HOŘÁKU
| A (mm) | B(mm) | C (mm) | D (mm) | E (>mm) | F (mm) | G (mm) |
| 600 | 560 | 490 | 60 | 50 | 50 | 100 |

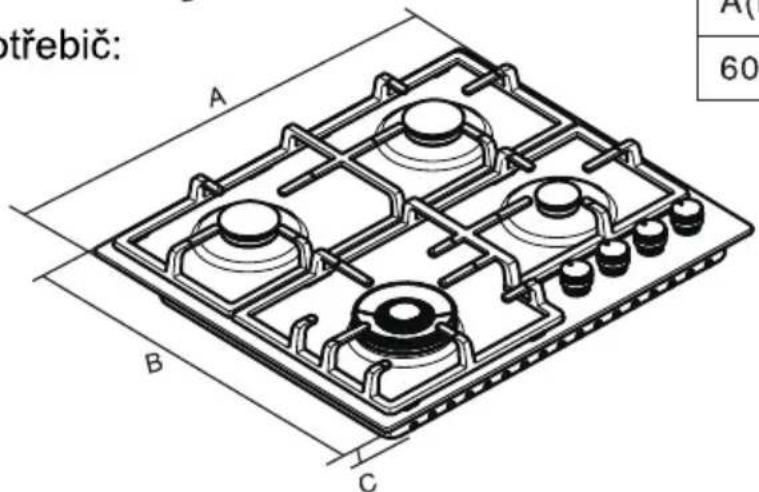

Rozměry
Spotřebič:
| A(mm) | B(mm) | C(mm) |
| 600 | 520 | 40 |
⚠️ VAROVÁNÍ!
| EINGESTE.LT AUF | KORBIGALT | |
| 3 ПОПРАВНОНА | НАСТРОЕНО ДЛЯ | |
| PRILAGOGEN ZA | КЕЛЕСИ УЛИН ТЕНИЛЕ/ТЕН | |
| PO ОСІТENI O | ||
| PO ОСІТENI O | ||
| PRILAGOGEN ZA | ||
| AJUSTATE PENTRU | ||
| GXX | XX mbar |
