| Product Type | Freestanding cooker |
| Brand | Mora |
| Model | VDP 647 X2 |
| Dimensions (approx.) | 90 cm height × 60 cm width × 60 cm depth |
| Weight (approx.) | 50 kg |
| Power Supply | 220-240 V, 50 Hz |
| Oven Type | Electric fan oven |
| Hob Type | Gas hob with 4 burners |
| Oven Functions | Conventional, fan, grill, defrost |
| Cleaning | Easy-clean enamel interior |
| Safety Features | Flame failure device on gas burners, child lock on oven door |
| Spare Parts | Available from authorized service centers |
| Reparability | Designed for easy access to main components |
| Energy Efficiency Class (oven) | A |
| Included Accessories | Oven shelf, baking tray, grill pan |
| Documentation Languages | Multiple languages available (PDF) |
Frequently Asked Questions - VDP 647 X2 Mora
How do I install the Mora VDP 647 X2 cooker?
Installation must be carried out by a qualified technician. Ensure the gas supply is connected correctly and the electrical supply matches the rating plate. The cooker must be placed on a level, heat-resistant surface with adequate ventilation.
What should I do if the oven does not heat up?
First, check that the oven is properly plugged in and the circuit breaker has not tripped. If the problem persists, the heating element or thermostat may be faulty. Contact a certified service center for repair.
How do I clean the gas hob burners?
Remove the burner caps and heads after they have cooled. Wash them in warm soapy water, rinse, and dry thoroughly. Clean the burner bases with a damp cloth. Ensure all parts are completely dry before reassembly.
Can I use aluminum foil in the oven?
Yes, but avoid covering the entire oven floor or blocking air circulation. Do not let foil touch the heating elements. Use foil only on the baking tray or to cover dishes.
Why does the oven fan make noise?
A slight noise is normal during operation. If the noise is excessive, it may indicate a loose fan blade or bearing. Stop use and consult the technical support.
How do I set the clock on the oven?
Press the clock button and use the +/- buttons to adjust the time. Refer to the manual for detailed instructions, as models may vary.
What is the maximum oven temperature?
The maximum temperature is typically 250°C (482°F) for conventional cooking. For grill mode, it may differ. Always preheat the oven as instructed.
How do I replace the oven light bulb?
Disconnect the cooker from the power supply. Remove the glass lens cover by twisting it. Replace the bulb with a new 25W/300°C halogen bulb (E14 base). Reattach the cover and restore power.
The gas burner flame is uneven. What should I do?
Clean the burner ports with a toothpick or soft brush. Ensure the burner cap is correctly positioned. If the problem continues, the injector may be blocked; contact a professional technician.
Where can I find spare parts for my Mora cooker?
Authorized Mora service centers carry genuine spare parts. You can also order them online via the official Mora website or contact customer service with your model number VDP 647 X2.
User questions about VDP 647 X2 Mora
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Cooker in PDF format for free! Find your manual VDP 647 X2 - Mora and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. VDP 647 X2 by Mora.
USER MANUAL VDP 647 X2 Mora
NÁVOD SI PEČLIVĚ PŘEČTĚTE A UCHOVEJTE HO PRO BUDOUCÍ POTŘEBU!
Obecné
VDP646X7
VDP647X7
VDP665X7
| Information according to regulation 66/2014Measurements according to EN60350-2 | |||
| Model identification | VDP646X7 VDP647X2VDP647X7 | VDP665X7 | |
| Type of hob | Gas hob | Gas hob | |
| Number of gas burners | 4 | 4 | |
| Heating technology | Gas burner | Gas burner | |
| Energy efficiency per gas burner(EEgasburner) in % | Semi-rapid burner (2x): | 58.0 | 58.0 |
| Rapid burner: | 58.0 | - | |
| Wok burner: | - | 57.7 | |
| Energy efficiency for the gas hob | 58.0 | 58.0 | |
Přestavba trysek
REGULACE MINIMÁLNÍHO NASTAVENÍ HOŘÁKU
| A (mm) | B(mm) | C (mm) | D (mm) | E (>mm) | F (mm) | G (mm) |
| 600 | 560 | 490 | 60 | 50 | 50 | 100 |

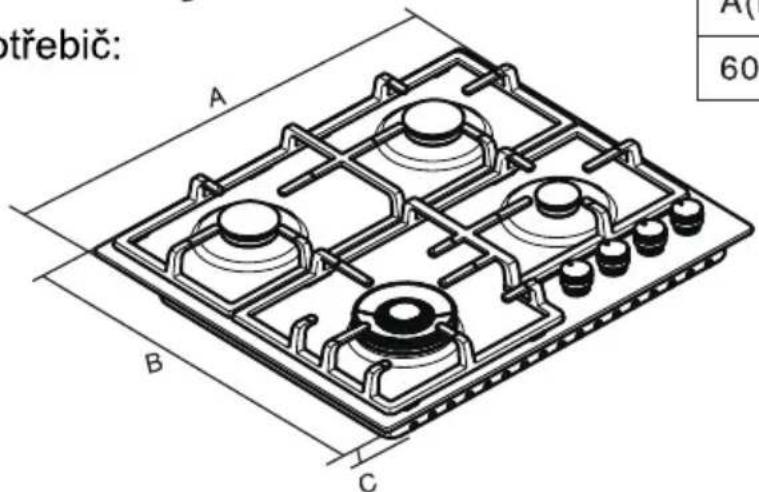

Rozměry
Spotřebič:
| A(mm) | B(mm) | C(mm) |
| 600 | 520 | 40 |
⚠️ VAROVÁNÍ!
| EINGESTE.LT AUF | KORBIGALT | |
| 3 ПОПРАВНОНА | НАСТРОЕНО ДЛЯ | |
| PRILAGOEN ZA | КЕЛЕСИ УЛИН ТЕНИЛЕ/ТЕН | |
| PO ОСІТЕНИ О | ||
| PO ОСІТЕНИ О | ||
| PRILAGOEN ZA | ||
| AJUSTATE PENTRU | ||
| GXX | XX mbar |
