USER MANUAL BTC6720SS BAUMATIC

BTC6720SS/ F60.2BL/ F60.2SS Cooker Hood

Instruction manual

User Manual for your Baumatic

BTC6720SS

F60.2 BL/ F60.2 SS

Cooker Hood

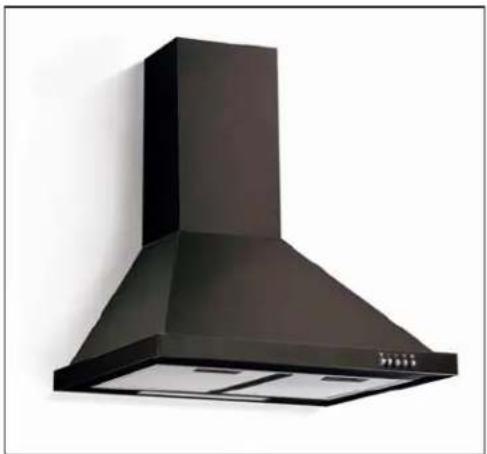

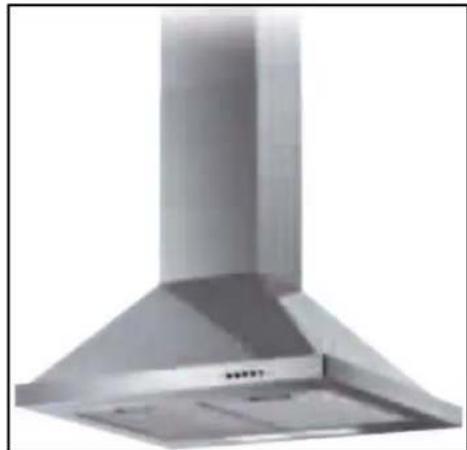

60 cm Cooker Hood in black 60 cm Cooker Hood in stainless steel

Black industrial smoke hood with conical chimney and ventilation slots (no text or symbols visible)

Exterior view of a stainless steel kitchen ventilation duct (no text or symbols visible)

Baumatic®

You will be mine ...

NOTE: This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference; for you or any person not familiar with the operation of the appliance.

DD 15/10/07

Contents Page

E

n

v

i

r

o

n

m

e

n

t

a

l

IMPORTANT SAFETY INFORMATION

Specifications of your cooker hood

Using your Baumatic cooker hood

B

e

f

o

r

e

f

i

r

s

t

u

To

use

your

cooker

hood

9

Cleaning your Baumatic cooker hood

The grease filters

M

a

i

n

t

e

n

a

n

c

e

Removing and cleaning the grease filters

C

h

a

n

g

i

n

g

a

l

i

Fitting

the

carbon

filters

13

I

n

s

t

a

l

l

a

t

i

o

n

Electrical connection

Before beginning installation

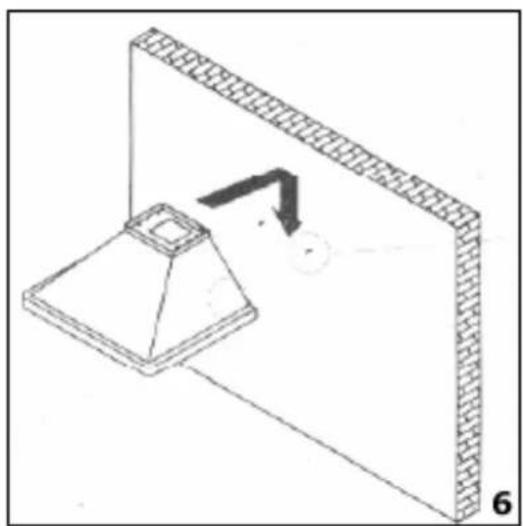

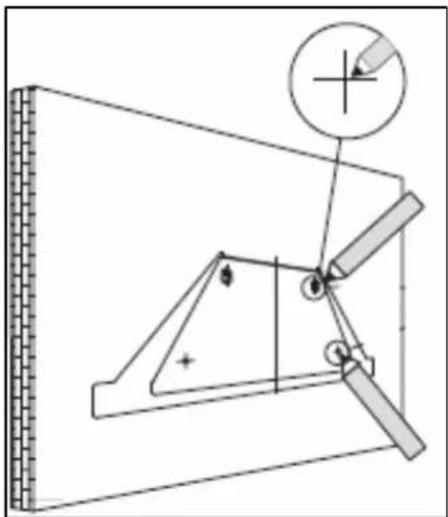

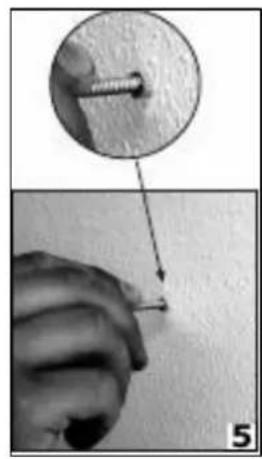

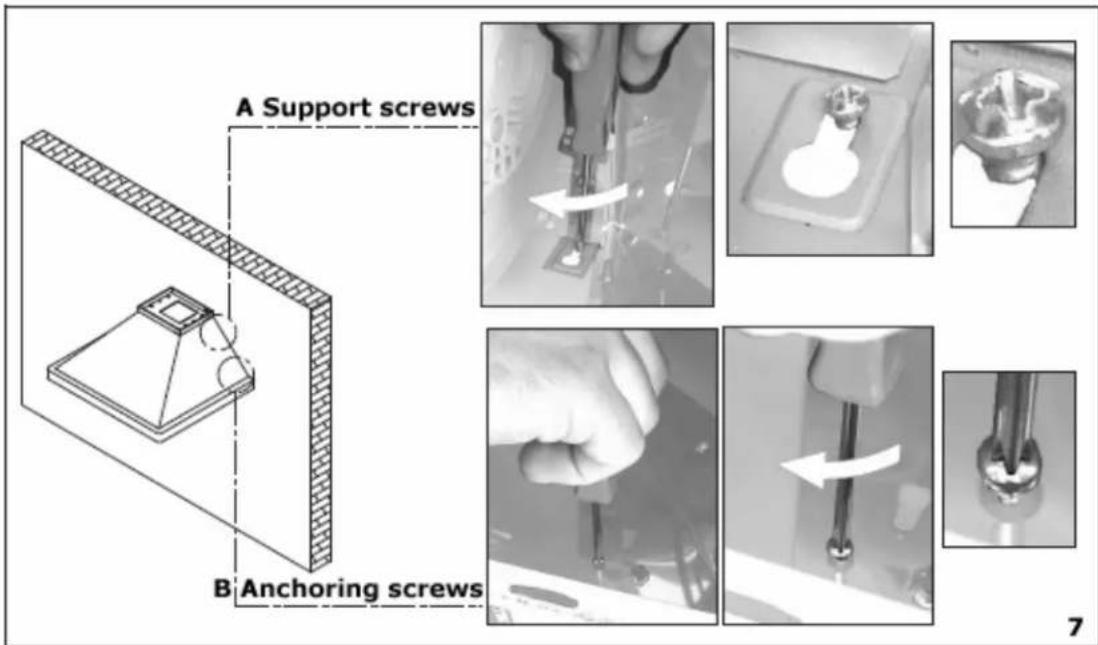

Installing your cooker hood

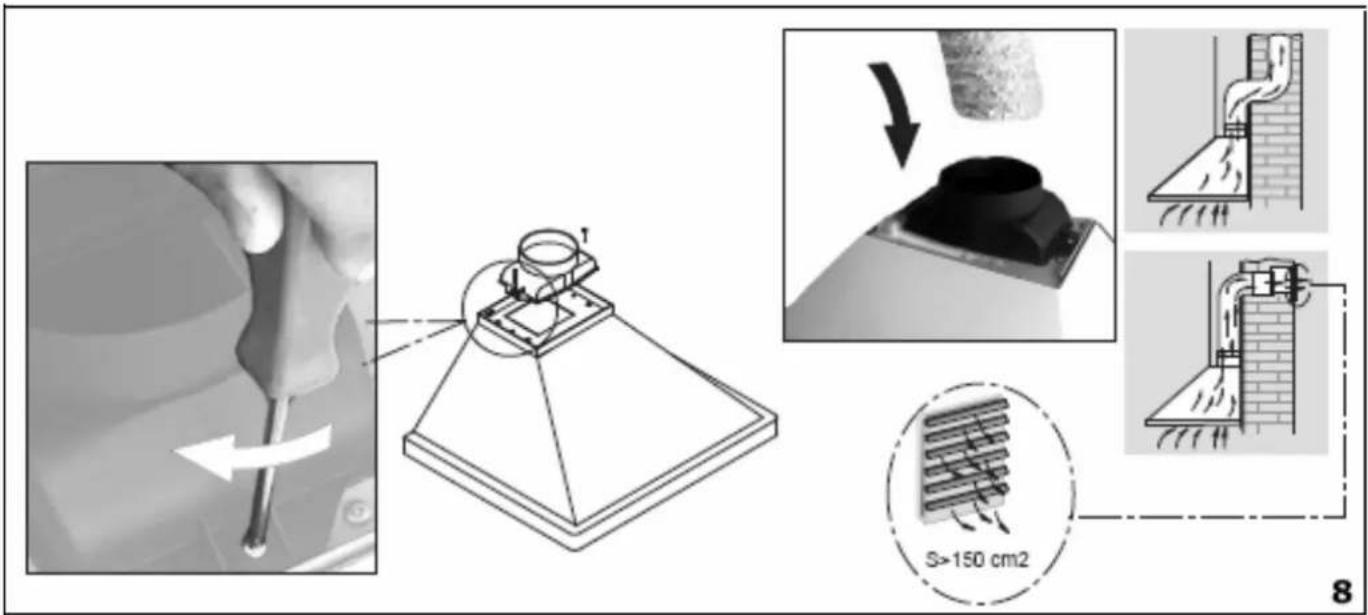

Connecting to external ducting

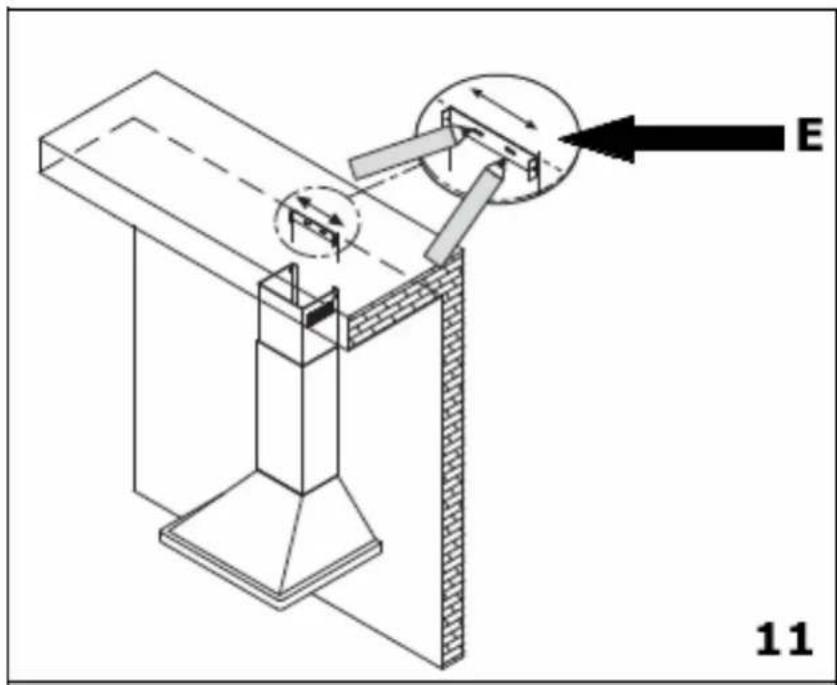

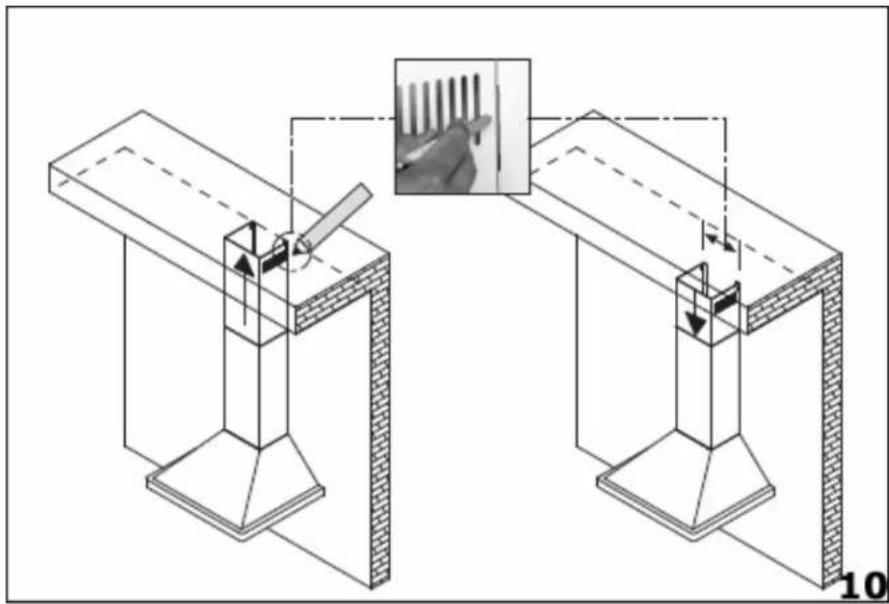

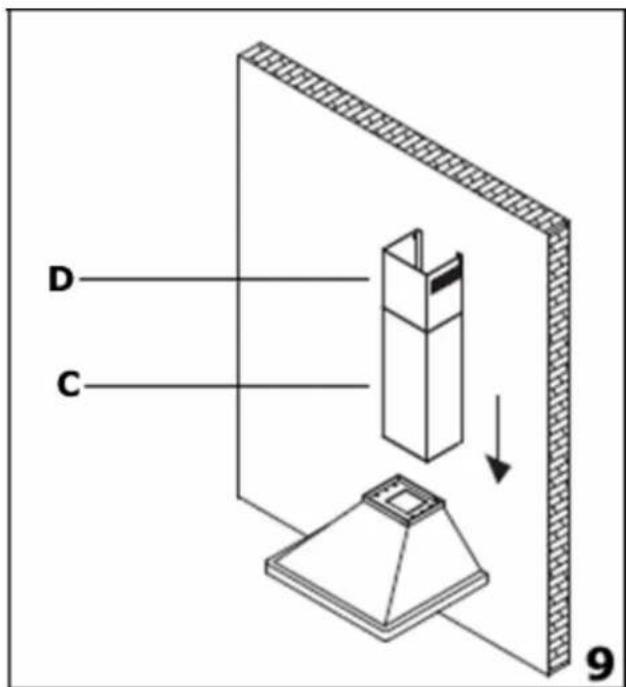

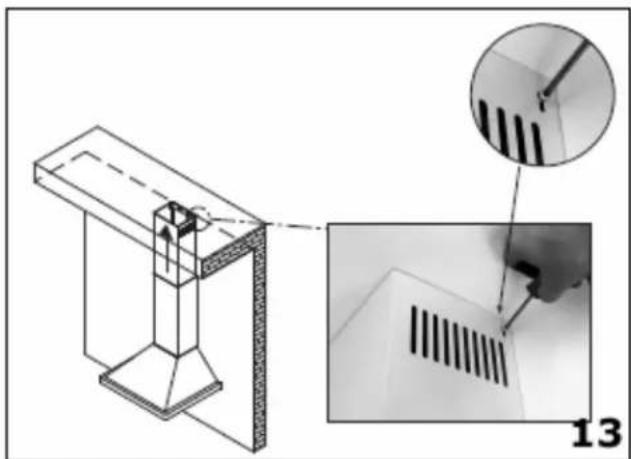

Fitting the chimney

Completing the installation

Extraction mode or recirculation mode?

T

r

o

u

b

l

e

s

h

o

o

t

i

C

o

n

t

a

c

t

d

e

t

a

i

ENVIRONMENTAL NOTE

Note: Before discarding an old appliance, switch off and disconnect it from the power supply. Cut off and render any plug useless. Cut the cable off directly behind the appliance to prevent misuse. This should be undertaken by a competent person.

CONFORMITY TO W.E.E.E. DIRECTIVE

This appliance is marked according to the European directive 2002/96/EC on Waste electrical and Electronic Equipment (WEEE). By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product.

The symbol

on the product, or on the documents accompanying the product, indicates that this appliance may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment.

Disposal must be carried out in accordance with local environmental regulations for waste disposal.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Pure electrical circuit lines without any symbols

RoHS 2002/95/EC

Illustration of an owl reading a book (no text or symbols present)

Your safety is of the utmost importance to Baumatic. Please make sure that you read this instruction booklet before attempting to install or use the appliance. If you are unsure of any of the information contained in this booklet, please contact the Baumatic Technical Department.

STOP

IMPORTANT: Any installation work must be carried out by a qualified electrician or competent person.

• The hood must be installed in accordance with the installation instructions and all measurements followed.
• If the cooker hood is installed for use above a gas appliance then the provision for ventilation must be in accordance with the Gas Safety Codes of Practice BS.6172, BS.5440 & BS.6891 (Natural Gas) and BS.5482 (LP Gas) 1994, the Gas Safety (Installation & Use) Regulations, the Building Regulations issued by the Department of the Environment, the Building Standards (Scotland) (Consolidated) Regulations issued by the Scottish Development Department.
• It is dangerous to alter the specifications or to modify this product. Do not tamper with it or attempt to modify the appliance in any way.
• When installing the hood, ensure that the following recommended distances are observed between the highest point on the hob top (including the burners) and the bottom of the cooker hood:

➢ Electric cookers: 700 mm
Gas cookers: 700 mm
Coal/ oil cookers: 800 mm

IMPORTANT: DO NOT SET YOUR COOKER HOOD LESS THAN 700mm ABOVE YOUR COOKER.

- When installed between adjoining wall cabinets, the cabinets must not overhang the hob.

- The edges of the cooker hood are sharp – be mindful of this as you handle your appliance, especially during installation and cleaning. DO NOT CLEAN IN BEHIND THE GREASE FILTERS!

- If the room where the cooker hood is to be used contains a fuel burning appliance such as a central heating boiler then its flue must be of the sealed or balanced flue type.

- If other types of flue or appliances are fitted, ensure that there is an adequate supply of air in the room.

- When the hood is being used in its extractor function, ensure that the ducting is fire retardant and that there are no bends sharper than 90 degrees as this will reduce the efficiency of the hood.

- Ensure the ducting for the extractor function has the same diameter as the outlet hole all the way through.

- Keep young children from using, playing with or tampering with the cooker hood. Older children and infirm persons should be supervised if they are using the cooker hood.

- Your cooker hood is for domestic use only.

Prohibition sign with two people crossed out, indicating no smoking or rejection

- Please dispose of the packing material carefully – children are especially vulnerable to it.

- Dirty oil is an even greater fire risk.

Illustration of a cartoon character in a hooded outfit holding a long tool (no text or symbols)

○ Always put lids on pots and pans when cooking on a gas cooker.

Illustration of a cooking pot with a lid and handle (no text or symbols)

- The manufacturer refuses to accept any responsibility for damages arising to the hood or it catching on fire, from a failure to observe the fire safety advice contained in this instruction booklet.

- Remember that when in extraction mode, your cooker hood is removing air from your room. Ensure that proper ventilation measures are being observed.

- Note that it removes odours from your room, not steam.

○ Warning - Always ensure that the cooker hood has been disconnected from the power supply before carrying out any work on the hood, including replacing light bulbs.

Abstract geometric illustration with a stylized animal figure and circular elements (no text or symbols)

- Do not connect the ducting system of this appliance to any existing ventilation system which is being used for any other purpose.

- Do not install above a cooker with a high level grill.

- Never leave frying pans unattended during use as overheated fats and oils might catch fire.

Illustration of a person cooking with a pan (no text or symbols)

- Do not leave naked flames under the cooker hood.

Do not attempt to use the cooker hood if it is damaged in any way. Never attempt to use it without the grease filters fitted or if the filters are excessively greasy!

o Never flambé cook under this cooker hood.

THE MANUFACTURER DECLINES ALL RESPONSIBILITY IN THE EVENT OF FAILURE TO OBSERVE THE INSTRUCTIONS GIVEN HERE, FOR INSTALLATION, MAINTENANCE AND SUITABLE USE OF THE HOOD.

Specifications of your cooker hood

Congratulations on purchasing a Baumatic cooker hood!

221 170 min. 700 / max. 1080 300 500 40 600

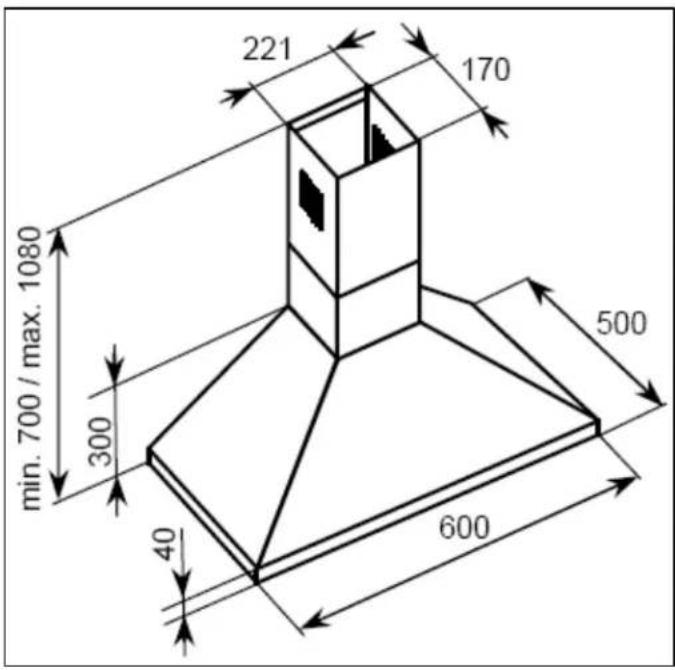

PRODUCT DIMENSIONS

Height: 700 ~mm - 1080 ~mm

Width: 600 mm

Depth: 500 mm

DIMENSIONS OF CHIMNEY SECTION:

170 mm × 221 mm

Your stainless steel cooker hood is fitted with:

○ High extraction tangential motor
- Push button control operation
- 3 Speeds
- 2 Metallic grease filters
○ 2 lights

Extraction capacity: 500 m³/hr (F60.2BL/F60.2SS) 750 m³/hr (BTC6720SS)

Noise level min/max: 54 - 62 dB

MODEL NUMBER CARBON FILTER
	REQUIRED
F60.2 from serial number07300001	ST1
F60.2 upto serial number07300000	S1
BTC6720SS	S1

Using your Baumatic cooker hood

Before first use

IMPORTANT: THIS PROCESS MUST BE FOLLOWED BEFORE THE COOKER HOOD IS USED FOR THE FIRST TIME.

• You should use a good quality stainless steel cleaner on ALL of the stainless steel areas of your cooker hood, before it is used for the first time.
• This will help to leave a silicone water-resistant film to protect the stainless steel surfaces.

To use your cooker hood

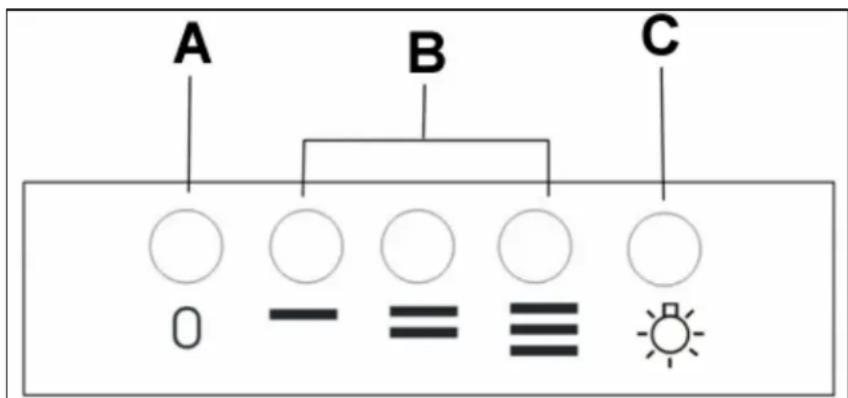

A B C 0 - = = =

○ Make sure that it has been installed by a suitably qualified person, as per the information contained in Baumatic's installation instructions.
- Find the control panel, which is located at the front right of the canopy.
- There are several buttons on the control panel, which perform separate functions.
○ A = ON/OFF button
○ B = Speed selection buttons

= Low speed

= Medium speed

= High speed

○ C = Light on/off button

IMPORTANT: IDEALLY YOU SHOULD TURN ON YOUR HOOD TEN MINUTES BEFORE YOU START TO COOK, OR AT THE VERY LEAST WHEN YOU BEGIN COOKING. YOU SHOULD ALSO RUN YOUR HOOD FOR TEN MINUTES AFTER YOU HAVE FINISHED COOKING.

Cleaning your Baumatic cooker hood

STOP

IMPORTANT: BEFORE CLEANING, ALWAYS ENSURE THAT YOU HAVE SWITCHED YOUR COOKER HOOD OFF AT THE OMNI-POLAR SWITCH, SET AT THE WALL FROM THE CABLE.

Cleaning

• Clean the external parts of your cooker hood with mild liquid detergent and a new damp cloth.
• Never use abrasive powder, corrosive solvents or brushes.
• Never insert pointed objects into the motor's protective grid.
• Only clean the control panel and grease filter grill with mild liquid detergents and a new damp cloth.
• If you are using the appliance in recirculation mode, then be sure to replace the carbon filter at the recommended interval (see section on “Fitting the carbon filter”). A build up of grease could cause a fire hazard.
• Never attempt to clean the area above the grease filters.

The grease filters

• Your cooker hood includes grease filters which help to absorb grease particles to protect your kitchen & furniture from greasy residues.
• This metallic filters may become inflammable if they become saturated with this greasy residue.
  To prevent this fire hazard, the filters should be cleaned regularly. Depending on use, this should be done every 10-15 days or at least once a month, using hot water and normal washing-up detergent.
• DO NOT WASH THE GREASE FILTERS IN A DISHWASHER.

Maintenance

Removing and cleaning the grease filters

ON OFF

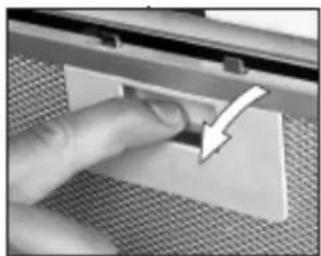

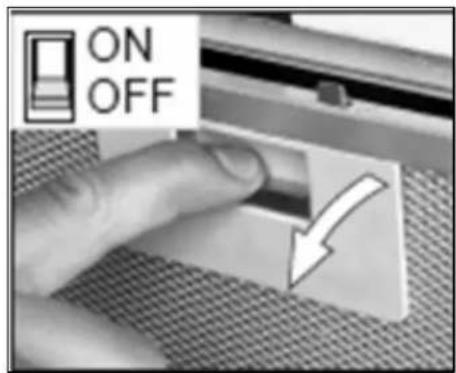

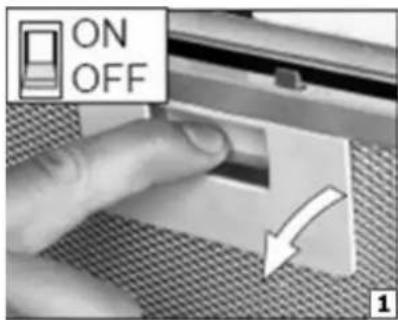

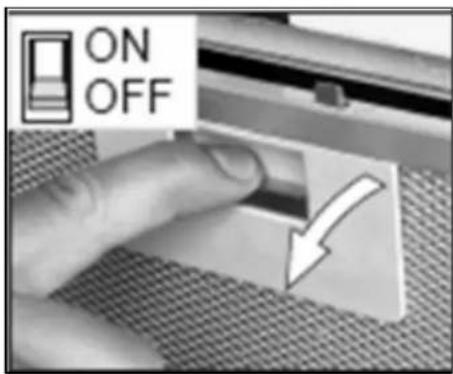

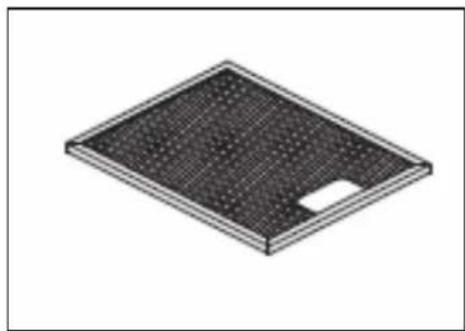

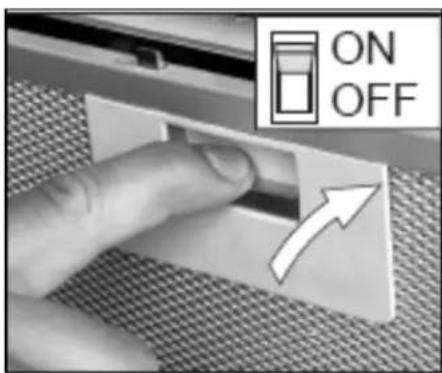

- First remove the grease filters by pulling down on the handle and pulling them away from the cooker hood.

Isometric view of a rectangular metal plate with a grid pattern and a small cutout (no text or symbols)

Illustration of a person preparing food at a counter with stacked coins and steam rising (no text or symbols)

• Soak the grease filter in hot water and washing up liquid for about an hour.
• Rinse them off thoroughly with hot water.
• Repeat the process if required.

ON OFF

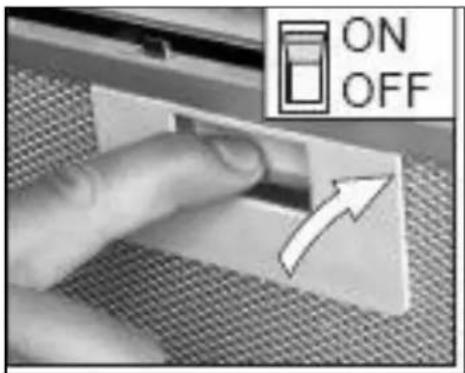

- Refit the grease filters once they have dried.

- IMPORTANT: Let the grease filters dry thoroughly before refitting them in the cooker hood.

Changing a light bulb

STOP

IMPORTANT: BEFORE ATTEMPTING TO CHANGE A LIGHT BULB, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

ON OFF

- Remove the grease filters (as described on page 11).

o Prior to touching the light bulbs ensure they are cooled down.
- Find the bulb that requires replacement, you will find it located in the light fixture which is inside the exposed section of the canopy.

○ Unscrew the light bulb that needs to be replaced and insert a new E14 40W (max) bulb.
o IMPORTANT: Defective bulbs should be replaced immediately.
- If the lights still do not work, make sure that the lamps are fitted properly into their housings before you call for technical assistance.

ON OFF

- Refit the grease filters.

Fitting the carbon filters

If the appliance is being used to be used in recirculation mode then it is necessary to fit carbon filters. This will help to absorb unpleasant odours caused by cooking.

STOP

IMPORTANT: BEFORE ATTEMPTING TO FIT OR REMOVE THE CARBON FILTERS, YOU MUST ENSURE THAT YOU HAVE DISCONNECTED THE COOKER HOOD FROM YOUR MAINS SUPPLY.

ON OFF

1) Remove the grease filters.

Close-up of hands holding a mechanical component with wires and a circular component (no visible text or symbols)

Close-up of mechanical components with a highlighted circular area (no visible text or symbols)

2) Hook the carbon filter over the pins that are located at the end of the motor.

Close-up of hands adjusting a mechanical component with an arrow indicating rotation (no visible text or symbols)

3) Turn the carbon filter anticlockwise, until you feel it click into place.

• Repeat this process for the second carbon filter. You need to place a carbon filter at either end of the motor.
• Refit the grease filters.
• The carbon filters should be replaced every three months or if they show signs of damage.

Installation

STOP

IMPORTANT: Before installation and usage read all the instructions and make sure that the voltage (V) and the frequency (Hz) indicated on the rating plate are exactly the same as the voltage and frequency in your home. The rating plate can be found behind the grease filter.

Close-up of a finger pressing a button on a textured surface, with a curved arrow indicating the action (no text or symbols visible)

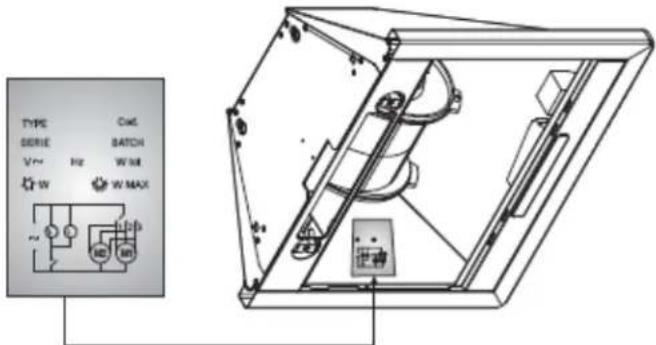

TYPE CAM SERIE BATCH V,W H,W M W WMAX W W W W W W 正 确

The manufacturer declines all responsibility in the event of the installer failing to observe all the accident prevention regulations in force, which are necessary for normal use and the regular operation of the electric system.

Electrical connection

YOUR COOKER HOOD IS INTENDED FOR FITTED AND PERMANENT INSTALLATION.

- The cooker hood's power cable must be fitted upstream from the electrical connection, using an omni-polar switch with a contact distance of at least 3 mm. THE FUSE MUST BE RATED AT 3 AMPS.

WARNING: THIS APPLIANCE MUST BE EARTHED. It should only be connected by a competent person, using fixed wiring via a double pole switched fused spur outlet. (UK ONLY).

We recommend that the appliance is connected by a qualified electrician, who is a member of the N.I.C.E.I.C. and who will comply with the I.E.E. and local regulations. The wires in the mains lead are coloured in accordance with the following UK code:

$$ \text { Blue } = \text { Neutral }, \text { Brown } = \text { Live }, \text { Green } / \text { Yellow } = \text { Ground } $$

If you only find two wires in the main's lead (blue and brown), then neither must be connected to the earth terminal.

- As the colours of the wires in the appliance's mains lead may not correspond with the coloured markings identifying the terminals in your spur box, please proceed as follows:

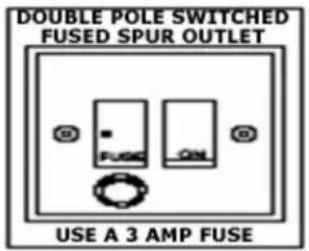

DOUBLE POLE SWITCHED FUSED SPUR OUTLET USE A 3 AMP FUSE

- The blue wire must be connected to the terminal marked "N" (neutral), or coloured black.

- The brown wire must be connected to the terminal marked "L" (live), or coloured red.

Before beginning installation

- Check that the product purchased is of a suitable size for the chosen installation area. In addition check whether there is an electrical socket available that will be accessible once the hood is mounted. If the product is going to be used in extraction mode, then there should also be space to connect a ducting hose to the outside.

○ Carry out all necessary masonry work prior to the fitting of the cooker hood.

- Ensure that all electrical connections are carried out by a suitably qualified person.

Before commencing installation of the cooker hood the grease filters should be removed.

- Check inside the product and insure that there is no transit packaging or any other materials, such as packets of screws, guarantees etc. These should be removed and kept for future use.

- If possible, disconnect and move freestanding or slot-in cookers from their position, to provide easier access to the rear wall and ceiling. If this is not possible, then a thick, protective covering should be placed over the worktop, hob top or cooker. This will help to protect these surfaces from damage and debris.

- Select a flat surface for assembling the cooker hood. Cover that surface with a protective covering and place all cooker hood parts and fittings on to it.

- Rawl plugs are provided to secure the hood to most types of walls and ceilings. However a qualified technician must verify the suitability of the materials, in accordance with the type of wall and ceiling. The wall and ceiling must be strong enough to take the weight of the hood.

- Do not tile, grout or silicone this appliance to the wall. This appliance is designed to be surface mounted only.

Installing your cooker hood

IMPORTANT: YOU WILL HAVE TO DECIDE BEFORE INSTALLING YOUR COOKER HOOD WHETHER TO USE IT IN EXTRACTION MODE OR RECIRCULATION MODE. PLEASE TURN TO PAGE 22 NOW TO UNDERSTAND THE DIFFERENCES BETWEEN THESE TWO MODES.

- The cooker hood should not be exposed to a direct heat source from the cooking device underneath it, i.e. a naked flame from a gas burner or heat from electric hob zones without a pan on them.

- We recommend that at least two people install this hood.

- The lights on this appliance should only be used during operation of the cooker hood. They should not be left on permanently and used as a lighting source.

IMPORTANT: YOUR COOKER HOOD SHOULD BE CONNECTED TO YOUR MAINS SUPPLY AFTER THE REST OF THE INSTALLATION PROCESS HAS BEEN COMPLETED.

Close-up of a finger pressing a button on a white surface, with a curved arrow indicating motion (no text or symbols visible)

1) Remove the metal grease filters.

Technical line drawing of a mechanical assembly with no visible text or symbols

2) Position the hood against the wall that you are intending to install it on and mark the position of the support holes that are to be drilled (as shown in the figure below).

200 A B 2a

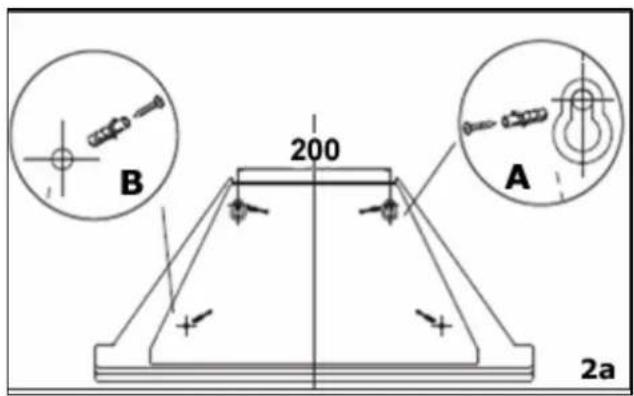

2a) The support screw holes are indicated by figure A in this drawing and the anchoring screw holes are indicated by figure B.

Ø8 212

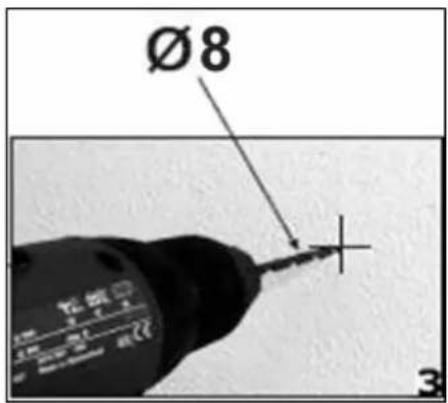

3) Using a drill bit with a 8 mm diameter, make holes in the wall on the positions that you have marked in step 2.

Close-up of a hand holding a small object, with an inset showing a magnified view of a textured surface (no text or symbols visible)

4) Insert rawl plugs into all of the holes that you have drilled.

Close-up of a hand holding a screw with a magnified inset showing the detail (no text or symbols)

Close-up of a metallic screw with a 10mm measurement label (no other text or symbols)

5) Fasten the support screws halfway in, leaving them 10 mm out of the wall.

Isometric diagram of a lampshade casting an arrow from a platform, no text or symbols present

6) Hang the hood onto the support screws.

A Support screws B Anchoring screws

7) Fully tighten the support screws (A) and then screw the anchoring screws (B) through the relevant holes in the cooker hood. Fully tighten the anchoring screws fully into the wall.

Connecting to external ducting

Technical diagram illustrating a mechanical assembly with labeled components and motion indicators, including a tool and airflow path.

8) Connect the coupling to the top of the cooker hood, and then connect a 125 mm ducting hose to the coupling (please note that the ducting hose is not supplied with the appliance).

• The other end of the ducting hose should be connected to a discharge outlet that is suitable for cooking vapours. It should have a cross section of at least 150 cm ^2 .
• The maximum distance between the coupling and your discharge outlet should be 3 metres, with one 90 degree bend.

Fitting the chimney

D C 9

9) Take the two chimney sections (C and D).

Rest the bottom of chimney section C on the top of the hood. You should take care to position the tabs on the chimney section into the rear of the hood.
○ Mark the side measurement of both sides of chimney section C on the wall with a pencil.

Technical diagram of a structural assembly with two identical platforms and a close-up inset showing a magnified view of a component (no text or symbols present)

10) Lift chimney section D upwards until it reaches the ceiling. You must ensure that it is perpendicular to the hood.

○ Mark the side measurement of both sides of chimney section D on the wall with a pencil and then remove chimney section D.

E 11

11) Take the fixing bracket (E) and place it between the two pencil marks that you made in step 9

- Keeping the bracket in contact with the wall, use a pencil to mark on the wall the anchoring holes that are cut out of the bracket

Ø8 12

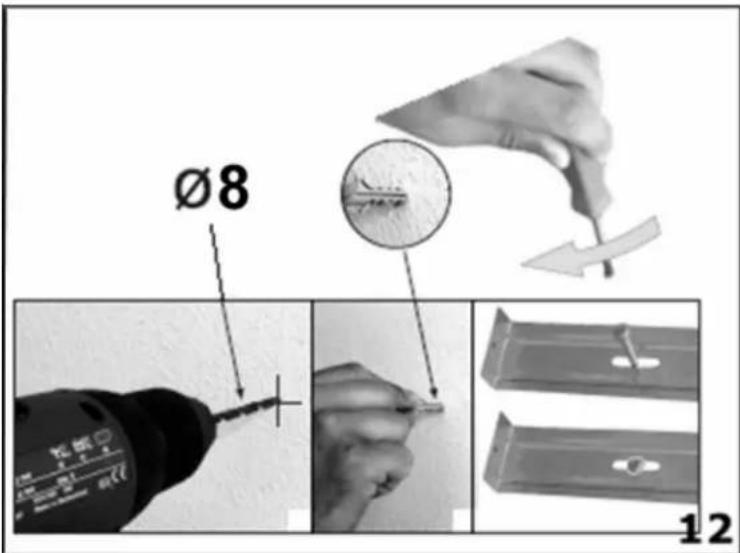

12) Using a 8 mm drill bit, drill out two holes on the pencil markings that you made in step 11. Insert raw plugs into the holes and then use a screwdriver to secure the fixing bracket to the wall.

• Refit chimney section C to the hood and fix it onto the hood using the two screws that are supplied.
• Secure the top of chimney section C to the fixing bracket, using the screws provided.

Technical diagram showing a structural component with an inset close-up of a detail (no text or symbols present)

- C10. The chimney section D inside of chimney section secure the upper bracket to the wall, using the same method as you have just used to secure the lower bracket.

13) Lift chimney section D up to the ceiling and secure it to the fixing bracket using the screws provided.

Completing the installation

If you are setting the appliance to recirculation mode, then you should now fit the two carbon filters. See the “Fitting the carbon filters” section on page 13.

The electrical connection must correspond to the electrical requirement noted on the rating plate, which is placed inside the cooker hood. The appliance should now be connected to the electrical supply. See page 14 – 15 for detailed information on the electrical connection.

Use a stainless steel cleaner on the stainless steel sections of the appliance.

Refit the grease filter and then switch on the mains supply to the appliance. Check that the appliance is operating correctly by selecting each speed and switching the light bulbs on and off.

Extraction mode or recirculation mode?

What is the difference between extraction and recirculation modes?

To get optimum performance from your cooker, the air will be taken out of the room via external ducting.

Unfortunately if you live in a flat or the hood is too far from an outside wall, this may not be possible. The only alternative is to recirculate the air.

In recirculation mode stale air is taken via the grease filter, and passed through a charcoal filter for purification. The air then re-enters the kitchen via an opening in the hood.

What is a charcoal filter and do I need one?

All cooker hoods have a grease filter but if you are using your cooker hood in recirculation mode, then a charcoal filter must be fitted in addition to the grease filter.

Troubleshooting

IMPORTANT: If your cooker hood appears not to be operating properly, before contacting the Baumatic Service Department, please refer to the checklist below.

My cooker hood will not start.

• Check electricity supply connected to th
• Check that the fan speed control is set correctly.

My cooker hood is not working effectively.

• Th fan speed is not set high enough
• The grease filters are dirty and require cleaning.
• The kitchen is not well ventilated enough.
• If the hood is set up for recirculation mode, check that the carbon filters do not need replacing.
• If the hood is set up for extraction mode, check that the ducting hose and discharge outlet are not blocked.

My cooker hood has switched off during operation.

• Th safety cut-out device has been tripped.
• Turn off the hob and then wait for the safety cut-out device to reset.
• IMPORTANT: If you have installed your cooker hood too low, the safety cut-out device will frequently trip. Your cooker hood may become damaged if the safety cut-out device is tripped frequently.

Warning symbol image with exclamation mark inside a triangle

IMPORTANT: If your appliance appears not to be operating correctly, then you should disconnect it from your mains supply and then contact the Baumatic Service Department on telephone number [phone].

DO NOT ATTEMPT TO REPAIR THE APPLIANCE YOURSELF.

Please note that if san engineer is asked to attend whilst the product under guarantee and def problem is not the result of an appliance fault, then you may be liable for the cost of the call out charge.

The appliance must be accessible for the engineer to perform any necessary repair. If your appliance is installed in such a way that an engineer is concerned that damage will be caused to the appliance or your kitchen, then he will not complete a repair.

This includes situations where appliances have been tiled in, sealed in with sealant, have wooden obstructions placed in front of the appliance, like plinths. Or any installation other than the one specified by Baumatic Ltd. has been completed.

Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.

Baumatic®

You will be mine ...

United Kingdom

Baumatic Ltd.,

Baumatic Buildings,

6 Bennet Road,

Reading, Berkshire

RG2 0QX

United Kingdom

Sales Telephone

[phone]

Sales Fax

[phone]

Service Telephone

[phone]

Service Fax

[phone]

Spares Telephone

[phone]

Technical Advice Telephone

[phone]

E-mail:

[e-mail]

[e-mail]

Website:

www.baumatic.co.uk

Republic of Ireland

01-6266798

Czech Republic

Baumatic CR spol s.r.o.

Amperova 495

46215, Librec

Czech Republic

[phone]

www.baumatic.cz

Slovak Republic

Baumatic Slovakia, s.r.o.

Skultetyho 1

831 04 Bratislava 3

Slovakia

[phone]

Germany

Baumatic GmbH

Janderstrasse 9

Mannheim, 68199

Germany

[phone]

www.baumatic.de

Italy

Baumatic Italia S.R.L.

Via Caltana 129

Campodarsego (Padova), 35011

Italy

[phone]

www.baumatic.it

Holland

Baumatic Benelux B.V.
