W155 / FZ295W W185 / FZ365W / FZ369W / FZ379W / FZ375W

UK Instructions for use

As the appliance contains a flammable refrigerant, it is essential to ensure that the refrigerant pipes are not damaged. The quantity and type of the refrigerant used in your appliance is indicated on the rating plate.

Standard EN378 specifies that the room in which you install your appliance must have a volume of 1 m^3 per 8 g of hydrocarbon refrigerant used in the appliances. This is to avoid the formation of flammable gas/air mixtures in the room where the appliance is located in the event of a leak in the refrigerant circuit.

WARNING:

Keep ventilation openings in the appliance's cabinet or in the built-in structure clear of obstruction.

WARNING:

Do not use other mechanical devices or other means to accelerate the defrosting process than those recommended by the manufacturer.

WARNING:

Do not damage the refrigerant system.

WARNING:

Do not use electrical appliances inside the refrigerated storage compartment, unless they are of a type recommended by the manufacturer.

WARNING:

Do not expose the appliance to rain.

WARNING:

This appliance may be used by children over the age of 8 years old and by persons with reduced physical, sensory or mental capabilities or by persons with a lack of experience or knowledge if they are supervised or are instructed by a person responsible for their safety how to use the appliance safely and have understood the associated hazards.

WARNING:

Children must not play with, on, or around the appliance.

WARNING:

Children must not clean the appliance or carry out general maintenance unless they are at least 8 years old and are being supervised.

WARNING:

Do not store explosives, such as aerosol cans with flammable propellants in the unit.

Warning sign depicting a flame symbol in a triangular shape

WARNING:

Danger risk of fire or explosion if flammable refrigerant are used. To be repaired only by trained personnel.

WARNING:

When positioning the appliance, ensure the power cord is not trapped or damaged.

WARNING:

Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.

● Always keep the keys in a separate place and out of reach of children.

- Before servicing or cleaning the appliance, unplug the appliance from the mains or disconnect the electrical power supply.

- Relevant for Australia: Supply cord fitted with a plug complies with AS/NZS 3112.

- Frost formation on the interior evaporator wall and upper parts is a natural phenomenon. Therefore, the appliance should be defrosted during normal cleaning or maintenance.

- Please note that changes to the appliance construction will cancel all warranty and product liability.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

- Do not use extension cords.

- This appliance is intended to be used exclusively for the storage of wine

CLASS 1 LED PRODUCT

Contents

Warning 2

Before use ....4

Technical data ....4

Savings in energy consumption in the use....4

Get to know your wine cooler ....5

Installation and start-up 6

Reversible door 9

Operation and function ......10

Defrosting, cleaning and maintenance .....12

Fault finding ....13

Warranty, spare parts and service .....14

Disposal 15

Before use

On receipt, check to ensure that the appliance has not been damaged during transport. Transport damage should be reported to the local distributor before the wine cooler is put to use.

Remove the packaging. Clean the inside of the cabinet using warm water with a mild detergent. Rinse with clean water and dry thoroughly (see cleaning instructions). Use a soft cloth.

If during transport the appliance has been laid down, or if it has been stored in cold surroundings (colder than +5°C), it must be allowed to stabilise in an upright position for at least an hour before being switched on.

Technical data

Wiring and connections in power supply systems must be all applicable (local and national) electrical codes. Consult these codes lengths and sizes prior to cabinet installation.

This device complies with relevant EU directives including Low Voltage Directive 2014/35/EU and Electromagnetic Compatibility Directive 2014/30/EU

The socket should be freely accessible.

Connect the appliance only to 220/240 V / 50Hz alternating current via a correctly installed earthed socket.

The socket must be fused with a 10-13 A fuse.

If the appliance is to be operated in a non-European country, check on the rating plate whether the indicated voltage and current type correspond to the values of your mains supply.

Information regarding voltage, current or power are given on the rating plate

The power cord may be replaced by a technician only.

The rating plate provides various technical information as well as type and serial number.

Savings in energy consumption in the use

The energy consumption reduces.

1)..the lower the ambient temperature is.
2)..the warmer thermostat set point is.
3)..the lower the number and the shorter the length of the door openings is.

Get to know your wine cooler

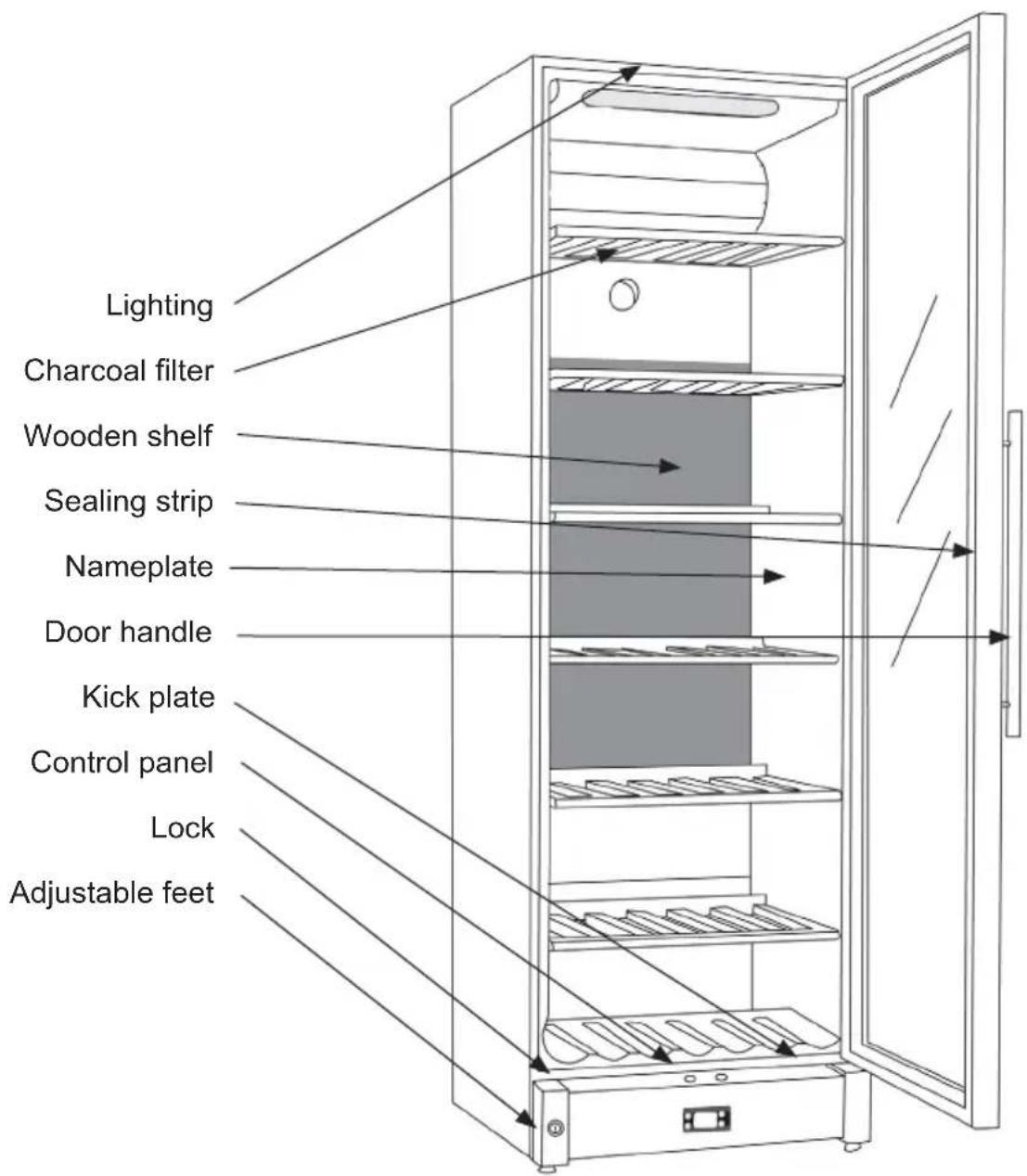

Lighting Charcoal filter Wooden shelf Sealing strip Nameplate Door handle Kick plate Control panel Lock Adjustable feet

fig. 1

Installation and start-up

Placement

For safety and operational reasons, the appliance must not be installed outdoors.

The appliance should be placed on a level surface in a dry, well ventilated room (max. 75% relative air humidity). Never place the appliance close to sources of heat such as cookers or radiators, and avoid placing it in direct sunlight.

Optimum temperature

The climate class is stated on the nameplate. This specifies the optimum ambient temperature. Wine coolers with winter position, however, function at ambient temperatures as low as 5^ C.

Climate class Optimum room temperature
SN +10 °C to +32	°C
N +16 °C to +32	°C
ST +16 °C to +38	°C
T +16 °C to +43	°C

Installation

The surface on which the appliance is to be placed must be level. Do not use a frame or similar

The appliance can be installed as a free-standing unit against a wall, built into a kitchen element, or lined up with other appliances (figs 2-3).

600

fig. 2

600

fig. 3

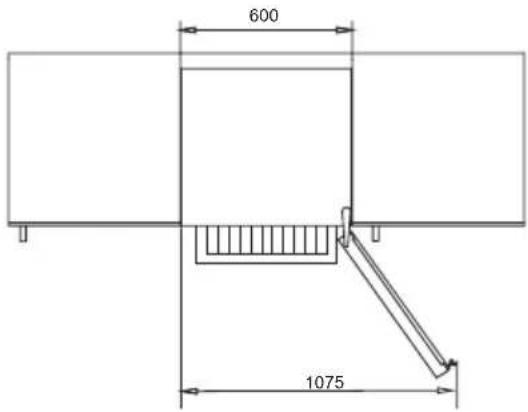

The appliance viewed from above

If the appliance is placed beside a wall, there must be sufficient room for its door to be opened wide enough to allow the shelves to be pulled out (fig. 4)

600 1075

fig. 4

Ventilation

It is important that the appliance be well ventilated and that air can circulate unhindered above, below and around it.

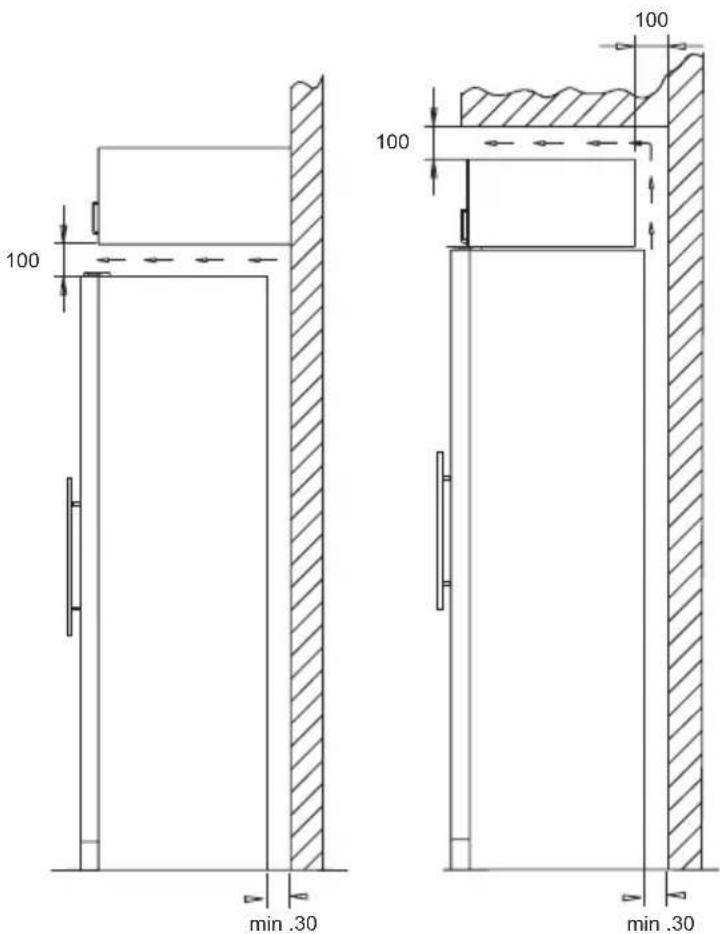

The figurs (figs 5-6) illustrate how the necessary air circulation around the appliance can be ensured.

100 100 min .30 100 min .30

fig. 6fig. 5

Setting up

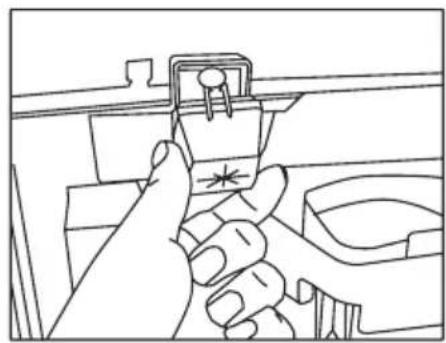

The distance pieces on the rear of the appliance ensure sufficient air circulation. Fit the two caps supplied with the appliance as shown in fig. 7.

Line drawing of a hand inserting a plastic clip into a housing (no text or symbols)

fig. 7

It is important that the appliance be absolutely level. It can be levelled by screwing the adjustable feet at the front of the appliance up or down (figs 8).

Use a spirit level to check that the appliance is absolutely level sideways.

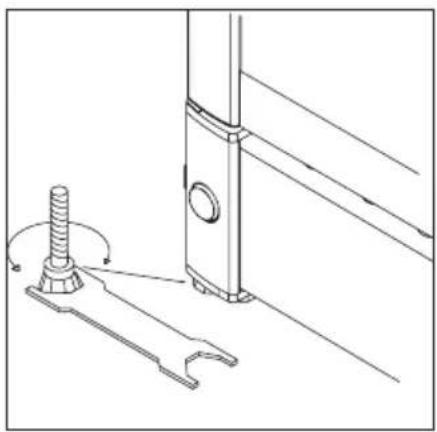

Technical line drawing of a mechanical assembly with a bolt and wrench (no text or symbols)

fig. 8

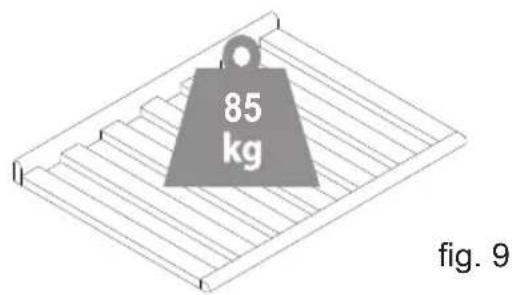

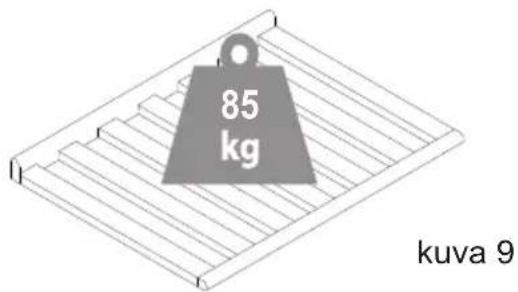

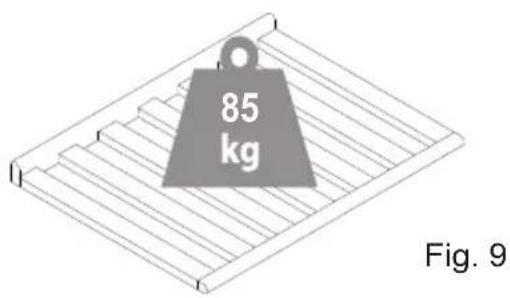

Max. 85 kg.

85 kg fig. 9

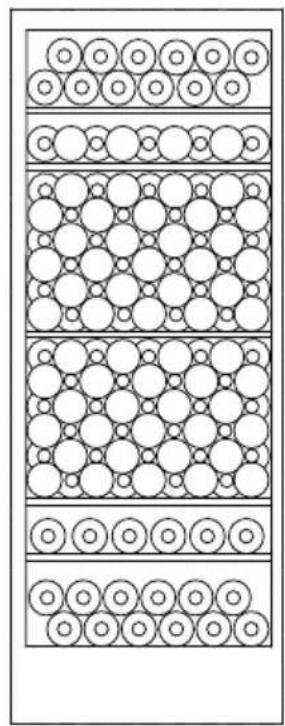

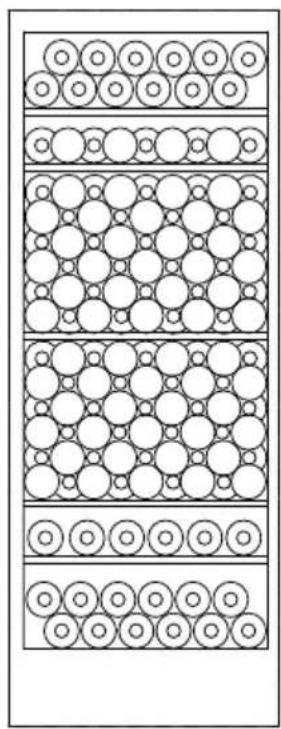

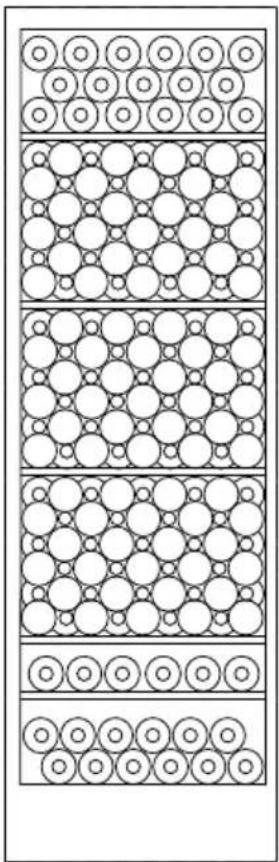

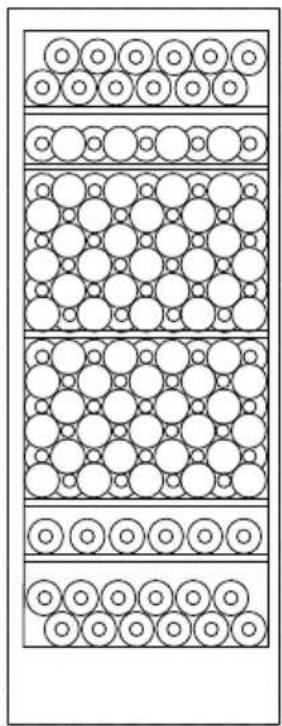

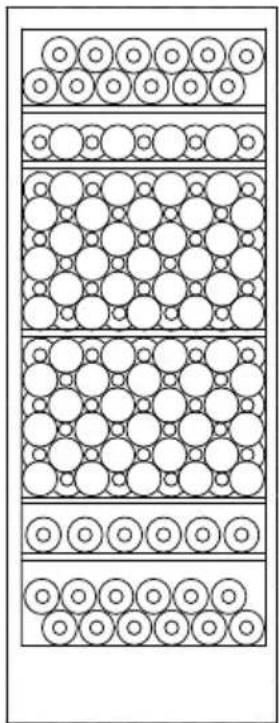

Diagram of layered circular arrangements with concentric circles, no text or symbols present

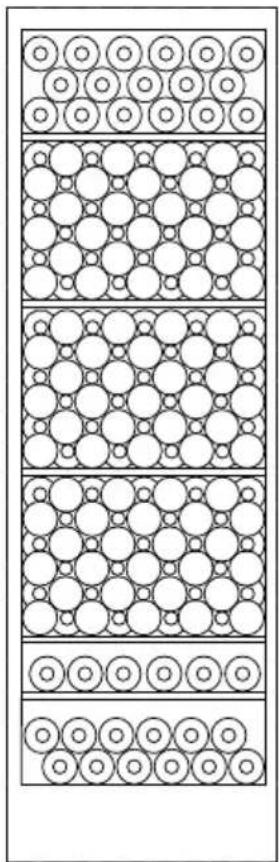

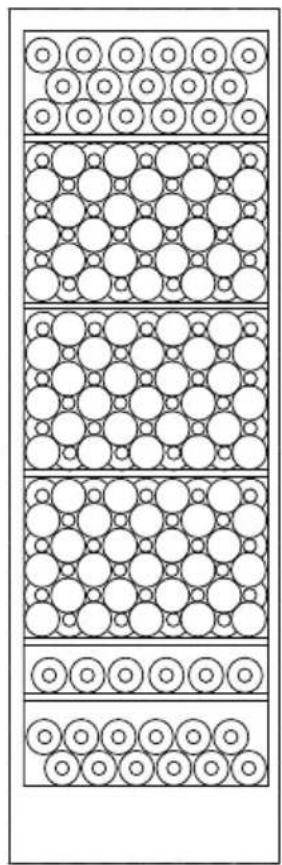

Diagram of layered circular structures with uniform spacing, no text or symbols present

fig. 10

Reversible door

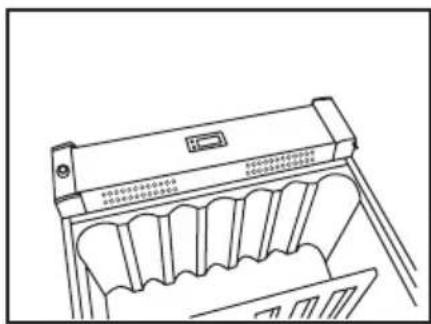

The door can be changed from right-hinged to left-hinged and vice versa as follows:

Line drawing of a hand using a tool to tighten or adjust a metal bracket (no text or symbols)

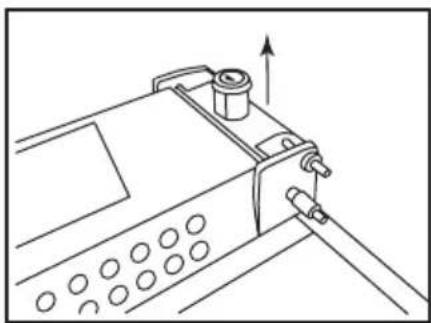

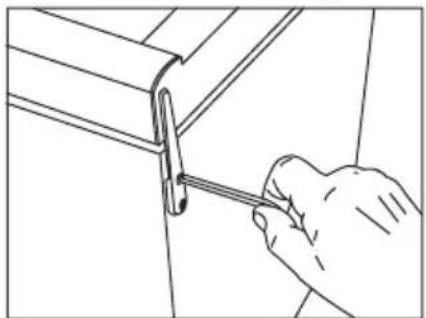

1. Lay the appliance on its back and loosen the upper hinge.

Technical line drawing of a corner joint with angle θ and base marked (no text or symbols)

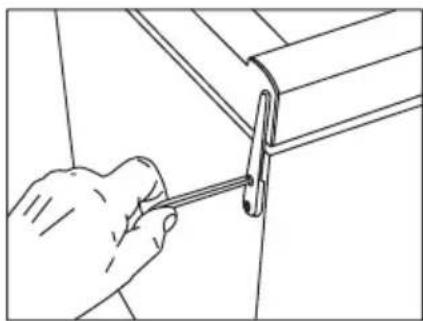

1. Remove the upper hinge.

Line drawing of a mechanical device with rotating arrows indicating motion (no text or symbols)

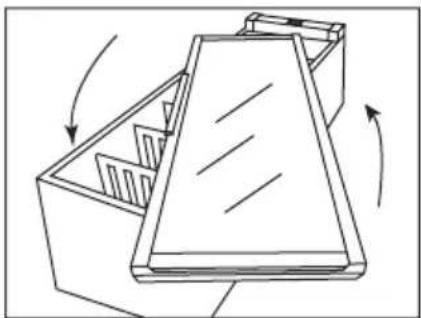

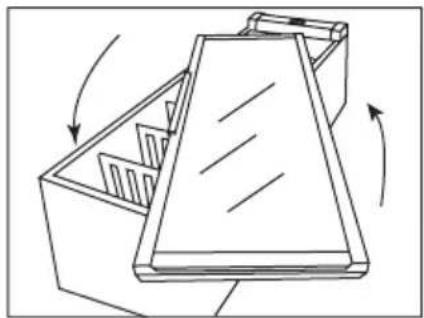

1. Rotate the glass door through 180° (on FZ 295 W, pull the handle to loosen it on the inside from beneath the sealing strip).

Line drawing of a hand using a screwdriver to adjust or install a rack-mounted device (no text or symbols present)

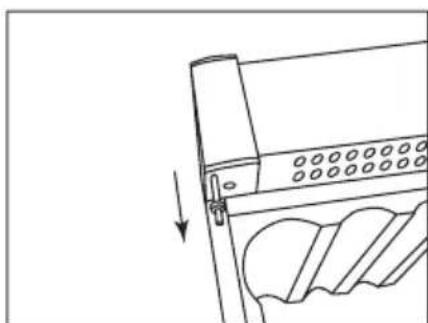

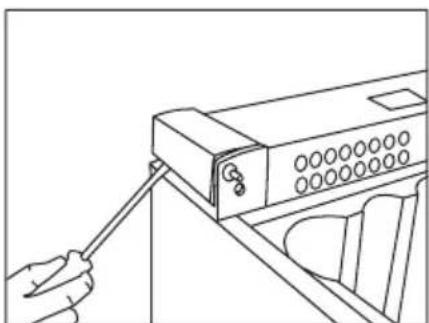

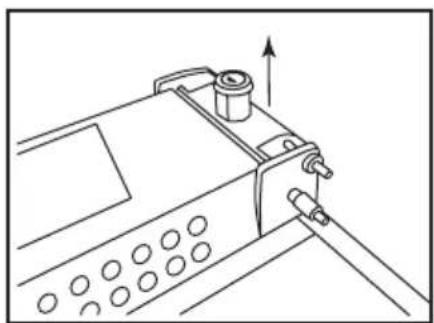

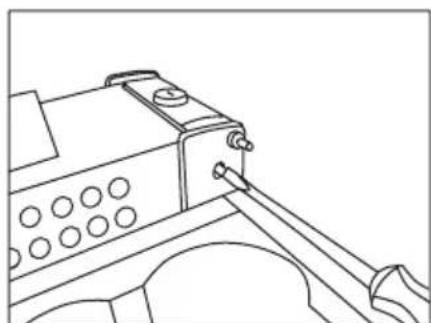

1. Carefully remove the covers on the side of the plinth using a flat-headed screwdriver.

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

1. Pull up the hinge pin... ...and fit it on the opposite side.

Line drawing of a mechanical device with circular components and a rod inserted (no text or symbols)

1. Unscrew the lock pin using a flat-headed screwdriver.

Technical line drawing of a mechanical device with mounting bracket and circular components (no text or symbols)

1. When the lock pin has been loosened completely, pull it up together with the lock cylinder and refit on opposite side.

Line drawing of a refrigerator with rack and door (no text or symbols)

1. Click the covers into place on the plinth sides on the opposite side.

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

1. Fit the door onto the bottom pin, fit the top hinge and tighten securely.

2. After reversing the door, it is important to check that the sealing strip provides a tight seal all the way round. If it does not, carefully heat the strip all the way round using a hair dryer. Then ease the strip outwards slightly so that it forms a tight seal against the cabinet. Be careful not to heat the strip so much that it melts!

OBS: You will need to remove the magnet on the underside of the door by unscrewing the two screws, pulling the magnet away from the door and mount it at the other end of the door. If there is a logo badge on the door you will have to remove it and possibly fit it at the other end of the door.

Remove the top and bottom bushes on the door frame (the bushes are the black, round plastic pieces which fit into the top and bottom hinges) and reverse them so that the bush which was at the top is now at the bottom and vice versa.

Operation and function

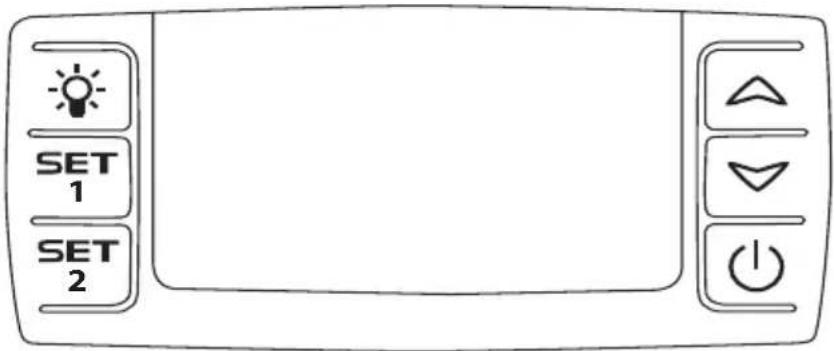

SET 1 SET 2

fig.11

Electronic control

The electronic control ensures that the temperatures set at the top and at the bottom of the appliance are maintained. This is achieved by means of an advanced control of the refrigeration system, the heating element, and the fan. The set temperature will be stored in the event of power failure.

The electronic control has the following functions:

• On/off switch
• Light switch*
  • Temperature setting
  • Temperature indication
• Alarm for too high and too low temperatures
• Door alarm

* The light may either be turned on constantly or only when the door is open.

Temperature indication

The display shows the actual temperature. The upper digits of the display indicate the temperature at the top of the appliance, and the lower digits of the display indicate the temperature at the bottom of the appliance. The temperature indicator is equipped with

a built-in filter which simulates the actual temperature in the bottles. Consequently, the indicator does not react on short-term fluctuations of the air temperature

Temperature setting

The thermostat is equipped with a child lock device. This device is activated by pushing the “up and down” buttons simultaneously. After approx. 3 seconds “Pof” flashes in the display. Then the actual temperatures are shown as usual. In addition, the set temperatures can be shown by pushing SET1 and SET2, respectively.

The child lock device is cancelled by pushing the "up and down" buttons simultaneously. After approx. 3 seconds "Pon" flashes in the display, and the temperature can be set.

Temperature setting at the top of the appliance

Push SET1. Then the temperature at the top of the appliance can be adjusted up and down by means of the “up and down” buttons. The temperature can be adjusted from 8 to 22°C, however so that the temperature cannot be set at a lower temperature than the actual set point for the bottom temperature sensor.

Temperature setting at the bottom of the appliance

Push SET2. Then the temperature at the bottom of the appliance can be adjusted up and down by means of the “up and down” buttons. The temperature can be adjusted from 5 to 22°C, however so that the temperature cannot be set at a higher temperature than the actual set point for the upper temperature sensor.

Alarm devices

There is a sub-alarm for the low-temperature sensor and an excess-alarm for the high-temperature sensor.

The alarm consists of a beeper and a warning on the display.

Alarm for high temperature: beep sound + alternating display of “HtA” and actual temperature

Alarm for low temperature: beep sound + alternating display of “LtA” and actual temperature

The alarm temperature depends on the set points.

The beep sound can be cancelled by pushing a random thermostat button. Push the on/off button to erase the display alarm, first for cancelling the alarm, then again for restarting the compressor.

Door alarm

When the door has been open for more than 2 min. the door alarm is activated.

Permanent lighting

For presentation purposes of your wine, you can turn on the lights permanently. Please press the light switch image twice. If the controller is placed inside the cabinet press twice, if the controller is placed in the kick plate only press once. To switch off the permanent light press on again.

The light will always be on when the door is open.

Two-zone setting for serving temperature

Typical serving temperature settings for the top and bottom sections are 16^ C and 6^ C respectively. With these settings, a suitable temperature gradient will be achieved in the cabinet for the storage of various types of wine distributed from top to bottom as follows:

• heavy red wines +16 to +19°C
• rosé and light red wines +12 to +16°C
• white wines +10 to +12°C
• champagne and sparkling wines +6 to +8°C

It is recommended that wine be served at a temperature which is a couple of degrees lower than the desired drinking temperature as the wine will be warmed slightly when it is poured into the glass.

Single-zone setting for long-term storage

For long-term wine storage, the top and bottom sections should both be set at 12^ C. With identical settings for the top and bottom sections, the controls will maintain an even temperature throughout the cabinet.

However, the temperature in the room will gradually affect the temperature in the cabinet through its door and sides, creating a slight temperature gradient from top to bottom. The controls will maintain the set temperature at the bottom of the cabinet, and any deviation from the setting will therefore occur at the top.

The difference will vary from 0 to 3°C, depending on the ambient temperature.

The frost protection thermostat

The appliance has a frost protection thermostat that take over control and run the appliance in safety mode in case of malfunction. In safety mode the cabinet will contain temperature between 2^ C – 4^ C.

Defrosting, cleaning and maintenance

Automatic defrosting

The wine cooler is defrosted automatically. Defrost water runs through a pipe and is collected in a tray above the compressor where the heat generated by the compressor causes it to evaporate. The defrost water tray should be cleaned at intervals.

Cleaning

Before cleaning the appliance, unplug it from the main supply. The cabinet is best cleaned using warm water (max. 65°C) with a little mild detergent. Never use cleaning agents that scour. Use a soft cloth. Rinse with clean water and dry thoroughly. The defrost water channel, in which condensation from the evaporator runs, is located at the bottom of the rear inside wall of the cabinet and must be kept clean.

Add a few drops of disinfectant, e.g. Rodalon, to the defrost water drain a couple of times a year, and clean the drain using a pipe cleaner or similar. Never use sharp or pointed implements.

The sealing strip around the door must be cleaned regularly to prevent discolouration and prolong service life. Use clean water. After cleaning the sealing strip, check that it continues to provide a tight seal.

Dust collecting on the condenser on the rear of the cabinet, the compressor and in the compressor compartment is best removed using a vacuum cleaner.

Fault finding

Fault Possible cause	Remedy
The appliance not working	The appliance is switched off.Power failure; the fuse is blown; the appliance is not plugged in correctly.	Press the on/off switch.Check that power is connected.Reset the fuse.
Water collects in the bottom of the cabinet.	The defrost water pipe is blocked.	Clean the defrost water channel and the drain hole on the rear wall of the cabinet.
Vibration or bothersome noise.	The appliance is not level.The appliance is resting against other kitchen elements.Containers or bottles inside the cabinet are rattling against one another.	Level the appliance using a spirit level.Move the appliance away from the kitchen elements or appliances it is in contact with.Move containers and/or bottles apart.
Compressor runs continuously.	High room temperature. Ensure adequate ventilation.
P1 is shown on the display.	The upper sensor is disconnected or short-circuited.	Call for service. The temperature within the entire cabinet is maintained at the higher of the two setpoints until the fault has been corrected.
P2 is shown on the display.	The lower sensor is disconnected or short-circuited.	Call for service. The temperature within the entire cabinet is maintained at the higher of the two setpoints until the fault has been corrected.
The appliance is too cold	The appliance runs in safety mode	Call for service

Warranty, spare parts and service

Warranty disclaimer

Faults and damage caused directly or indirectly by incorrect operation, misuse, insufficient maintenance, incorrect building, installation or mains connection. Fire, accident, lightening, voltage variation or other electrical interference, including defective fuses or faults in mains installations.

Repairs performed by others than approved service centres and any other faults and damage that the manufacturer can substantiate are caused by reasons other than manufacturing or material faults are not covered by the warranty.

Please note that changes to the construction of the appliance or changes to the component equipment of the appliance will invalidate warranty and product liability, and the appliance cannot be used lawfully. The approval stated on rating plate will also be invalidated.

Transport damage discovered by the buyer is primarily a matter to be settled between the buyer and the distributor, i.e. the distributor must ensure that such complaints are resolved to the buyer's satisfaction.

Before calling for technical assistance, please check whether you are able to rectify the fault yourself. If your request for assistance is unwarranted, e.g. if the appliance has failed as a result of a blown fuse or incorrect operation, you will be charged the costs incurred by your call for technical assistance.

Spare parts

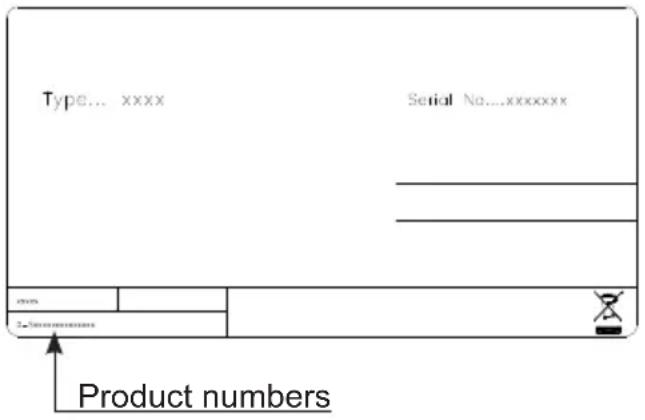

When ordering spare parts, please state the type, serial and product numbers of your appliance. This information is given on the rating plate. The rating plate contains various technical information, including type and serial numbers.

Type... xxxx Serial No....xxxxxxxxx ... ... ... Product numbers

Disposal

Information for Users on Collection and Disposal of Old Equipment and used Batteries

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points, in accordance with your national legislation and the Directives 2012/19/EU and 2006/66/EC.

By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling.

For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

Penalties may be applicable for incorrect disposal of this waste, in accordance with national legislation.

For business users in the European Union.

If you wish to discard electrical and electronic equipment, please contact your dealer or supplier for further information.

Information on Disposal in other Countries outside the European Union

These symbols are only valid in the European Union. If you wish to discard this product, please contact your local authorities or dealer and ask for the correct method of disposal.

Note for the battery symbol:

This symbol might be used in combination with a chemical symbol. In this case it complies with the requirement set by the Directive for the chemical involved.

Warnung

Warning symbol of a flame inside a triangle (no text or numbers)

WARNUNG:

Line drawing of a hand inserting a plastic clip into a housing (no text or symbols)

Abb. 7

Aufstellung

Technical line drawing of a mechanical assembly with a bolt and base mount (no text or symbols)

Abb. 8

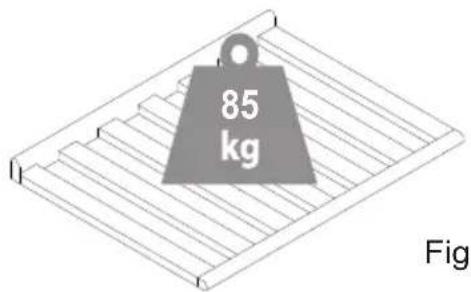

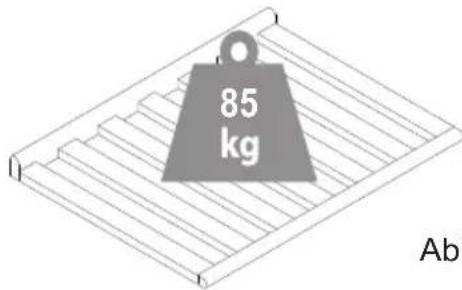

Max. 85 kg.

85 kg Abl

Abb. 9

Diagram of layered circular arrangements with no text or symbols

Diagram of layered circular structures with uniform spacing, no text or symbols present

Abb. 10

Wendbare Tür

Line drawing of a hand using a tool to tighten or adjust a metal bracket (no text or symbols)

Technical line drawing of a corner joint with labeled angle θ and point O (no text or symbols beyond basic geometry)

Line drawing of a mechanical device with arrows indicating motion or assembly (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a wall-mounted device (no text or symbols present)

Line drawing of a door handle with a downward arrow indicating direction (no text or symbols)

Line drawing of a mechanical device with circular components and a rod inserted (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a refrigerator with rack and door (no text or symbols)

Line drawing of a hand using a tool to tie or attach a metal clip (no text or symbols)

SET 1 SET 2

Abb.11

Warning sign depicting a flame symbol in a triangular shape

AVERTISSEMENT:

Line drawing of a hand inserting a plastic clip into a door panel (no text or symbols)

fig. 7

Max. 85 kg.

85 kg Fig. 9

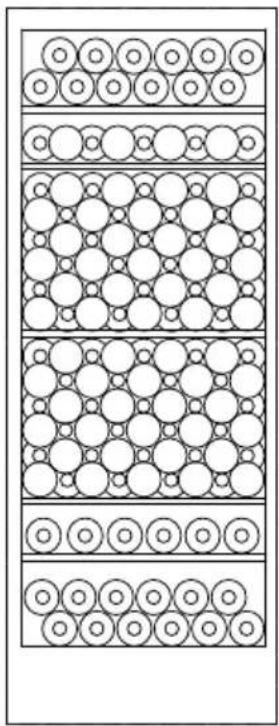

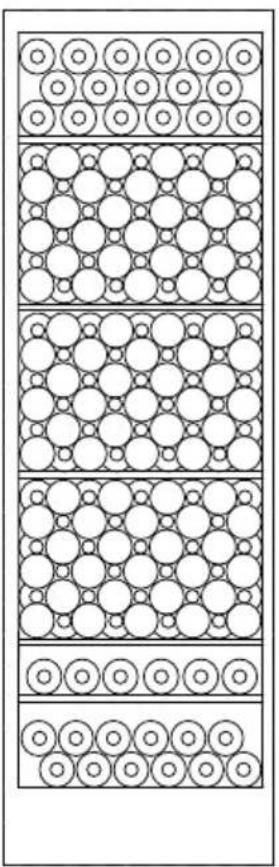

Mise en place

Technical line drawing of a mechanical assembly with a screw and wrench (no text or symbols)

fig. 8

Diagram of layered circular structures with uniform spacing, no text or symbols present

Diagram of layered circular structures with uniform spacing, no text or symbols present

fig. 10

Porte réversible

Line drawing of a hand using a tool to adjust or install a component (no text or symbols present)

Technical line drawing of a corner joint with angle θ and dimension label o (no text or symbols beyond basic geometry)

Line drawing of a mechanical assembly with rotating components (no text or symbols)

Line drawing of a hand using a tool to lift a wall-mounted device (no text or symbols)

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with circular components and a lever (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a refrigerator with rack and door (no text or symbols)

Line drawing of a hand holding a tool near a metal bracket (no text or symbols)

SET 1 SET 2

fig.11

Warning sign depicting a flame symbol in a triangular shape

ADVARSEL:

Line drawing of a hand inserting a plastic clip into a housing (no text or symbols)

fig. 7

Max. 85 kg.

85 kg Fig. 9

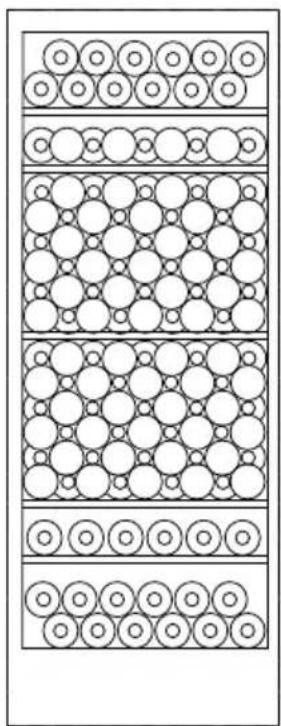

Opstilling

Technical line drawing of a mechanical assembly with a spring and wrench, no text or symbols present

fig. 8

Diagram of layered circular arrangements with no text or symbols

Diagram of layered circular structures with uniform spacing, no text or symbols present

fig. 10

Vendbar dør

Line drawing of a hand using a tool to adjust or install a metal bracket (no text or symbols)

Technical line drawing of a corner joint with labeled angle θ and base point o (no text or symbols beyond basic geometry)

Line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a rack-mounted device (no text or symbols present)

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with circular components and a shaft (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a refrigerator with rack and door (no text or symbols)

Line drawing of a hand using a tool to install or install a wall-mounted component (no text or symbols present)

SET 1 SET 2

fig.11

Elektronisk styring

Warning sign depicting a flame symbol in a triangular shape

ADVARSEL:

Line drawing of hands inserting a plastic clip into a housing (no text or symbols)

fig. 7

Max. 85 kg.

85 kg Fig. 9

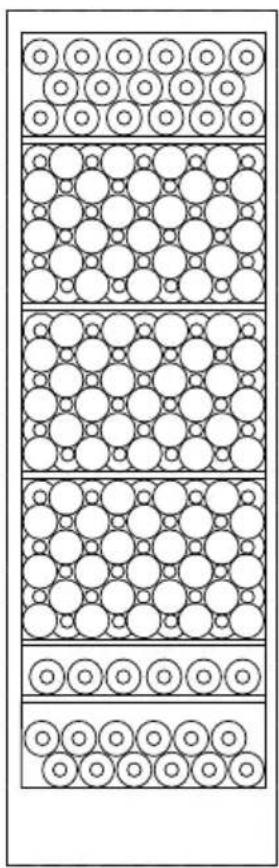

Oppstilling

Technical line drawing of a mechanical assembly with a bolt and bracket, no text or symbols present

Diagram of layered circular structures with uniform spacing, no text or symbols present

Diagram of layered circular structures with uniform spacing, no text or symbols present

fig. 10

Vendbar dør

Line drawing of a hand using a tool to adjust or install a metal bracket (no text or symbols present)

Technical line drawing of a corner joint with angle θ and dimension o (no text or symbols)

Line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a wall-mounted device (no text or symbols present)

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with circular components and a rod (no text or symbols)

1. Låsetappen skrus løs med en flat skrutrekker.

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with multiple blades and a top component (no text or symbols)

Line drawing of a hand using a tool to tie or attach a wall corner (no text or symbols)

SET 1 SET 2

fig.11

Elektronisk styring

Warning sign depicting a flame symbol in a triangular shape

WARNING:

Line drawing of a hand inserting a plastic clip into a door panel (no text or symbols)

fig. 6

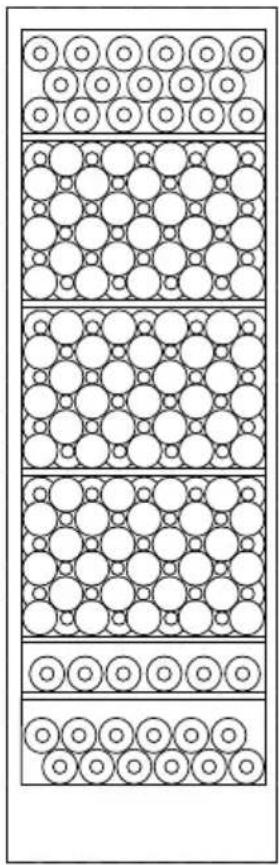

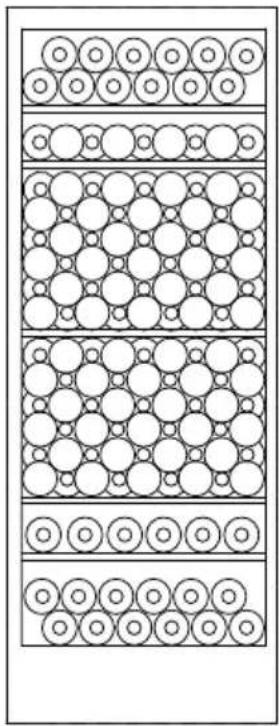

Placering

Technical line drawing of a mechanical assembly with a spring and wrench, no text or symbols present

fig. 7

Max. 85 kg.

85 kg Fig

Fig. 9

Diagram of layered circular structures with uniform spacing, no text or symbols present

Diagram of layered circular structures with uniform spacing, no text or symbols present

fig. 10

Vändbar dörr

Line drawing of a hand using a tool to adjust or install a metal bracket (no text or symbols present)

Technical line drawing of a corner joint with labeled angle θ and point O (no text or symbols beyond basic geometry)

Line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a wall-mounted device (no text or symbols present)

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with circular components and a lever (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with multiple blades and a top component (no text or symbols)

Line drawing of a hand using a tool to tie or attach a cable to a wall corner (no text or symbols)

SET 1 SET 2

fig. 11

Elektronisk styrning

Warning symbol of a flame inside a triangle (no text or numbers)

VAROITUS:

Line drawing of a hand inserting a plastic clip into a door panel (no text or symbols)

kuva. 7

Max. 85 kg.

Technical line drawing of a mechanical assembly with a threaded bolt and wrench, showing alignment and rotation (no text or symbols)

kuva. 8

Diagram of layered circular arrangements with concentric circles, no text or symbols present

Diagram of layered circular structures with uniform spacing, no text or symbols present

kuva 10

Käännettävä ovi

Line drawing of a hand using a tool to adjust or install a metal bracket (no text or symbols present)

Technical line drawing of a corner joint with labeled angle θ (no text or symbols beyond basic geometry)

ista yläsarana.

Line drawing of a mechanical device with rotating components and directional arrows (no text or symbols)

Line drawing of a hand using a screwdriver to adjust or install a wall-mounted device (no text or symbols present)

Line drawing of a mechanical component with a downward arrow indicating motion (no text or symbols)

Line drawing of a mechanical device with circular components and a rod inserted (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Line drawing of a mechanical device with multiple blades and a top component (no text or symbols)

Line drawing of a hand using a tool to tie or attach a metal clip (no text or symbols)

SET 1 SET 2

kuva. 11

Elektroninen ohjaus

GB Reserving the right to alter specifications without prior notice.
