Product type	Electric shaver
Brand	REMINGTON
Model	Limitless X5 XR1755
Power supply	USB (5V), rechargeable lithium-ion battery
Runtime	Up to 50 minutes
Charging time	90 minutes
Quick charge	5 minutes for 1 shave (3 min)
Shaving heads	2 flexible pivoting heads
Precision trimmer	Removable, included
Hair reservoir	Integrated
Usage	Dry or gel shaving, usable in the shower
Cleaning	Rinseable under water, cleaning brush included
Protection cap	Included
Battery	Non-replaceable, rechargeable
Indicator lights	Charging (red), fully charged (green)
Included accessories	USB cable, precision trimmer, cap, brush

Frequently Asked Questions - Limitless X5 XR1755 REMINGTON

How do I charge the Remington Limitless X5 XR1755 shaver?

Turn off the shaver, plug the supplied USB cable into the power connector, then connect the USB end to a powered USB port. The red indicator flashes during charging. A full charge takes 90 minutes and provides up to 50 minutes of use.

Can I use the shaver in the shower?

Yes, this device can be used in the bathtub or shower. It is designed to be waterproof. You can also shave with shaving gel; then rinse the head under warm water.

How do I clean the shaver?

After each use, turn off the shaver and unplug it. Press the release button to open the head, rinse it under a tap to remove hair, then brush the blades with the included brush. Do not remove individual blades for cleaning.

Are the blades replaceable?

Individual blades are not designed to be removed by the user. If worn, contact Remington customer service or an authorized center. The shaving head can be replaced as a whole.

How do I use the precision trimmer?

Turn off the shaver, pull off the head and blade unit, then attach the precision trimmer to the body. It allows precise trimming of contours. Lubricate the teeth every six months with a drop of sewing machine oil.

What should I do if the shaver does not turn on?

Check that the battery is charged: when you press the on/off button, the red indicator flashes slowly for 5 seconds if the battery is low. Fully recharge the shaver. If the problem persists, contact customer service.

What is the battery life?

The lithium-ion battery is designed to last several years. To extend its life, let it fully discharge every 6 months, then recharge for 24 hours. The battery is not user-replaceable.

Can the shaver be used by persons with reduced mobility?

Yes, provided they have received appropriate instructions and are under the supervision of a responsible adult. The appliance must be kept out of reach of children.

How do I recycle the shaver at the end of its life?

Do not dispose of the appliance with household waste. Remove the rechargeable battery (follow the instructions in the manual) or take the shaver to an official recycling point for electrical and electronic equipment.

What should I do if the USB cable is damaged?

Do not use the appliance with a damaged cable. Only use the supplied cable or a compatible standard USB cable. If the cable is defective, contact customer service for a replacement.

USER MANUAL Limitless X5 XR1755 REMINGTON

Black Remington Hybrid electric shaver with three circular buttons and power button (no text or symbols visible on body)

X5 Limitless X Rotary Shaver XR1755

Line drawing of a grimmer with ridges and a handle, labeled with number 7 (no text or symbols on the diagram itself)

Technical line drawing of a three-pin electric shaver with a labeled section A (no text or symbols on the diagram itself)

Diagram of a hairbrush cutting into a circular component, labeled B (no text or symbols on the diagram itself)

Diagram of a hairbrush with three circular blades and an arrow pointing to the base (no text or symbols)

Diagram of a biological structure with spiral patterns and a directional arrow, no text or symbols present

Thank you for buying your new Remington® product. Please read these instructions carefully and keep them safe. Remove all packaging before use.

IMPORTANT SAFEGUARDS

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been supervised/instructed and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be done by children unless they are older than 8 and supervised. Keep the appliance and cable out of reach of children under 8 years.

Suitable for use in a bath or shower.

• Do not use the product with a damaged cord.
  • The battery in this device is not replaceable.
• Do not use the appliance if it is damaged or malfunctions.
• Do not use attachments other than those we supply.
• This appliance should never be left unattended when plugged into a power outlet, except when charging.
• Keep the power plug and cord away from heated surfaces.
• Do not plug or unplug the appliance with wet hands.
• Do not twist or kink the cable, or wrap it round the appliance.
  • This appliance is not intended for commercial or salon use.

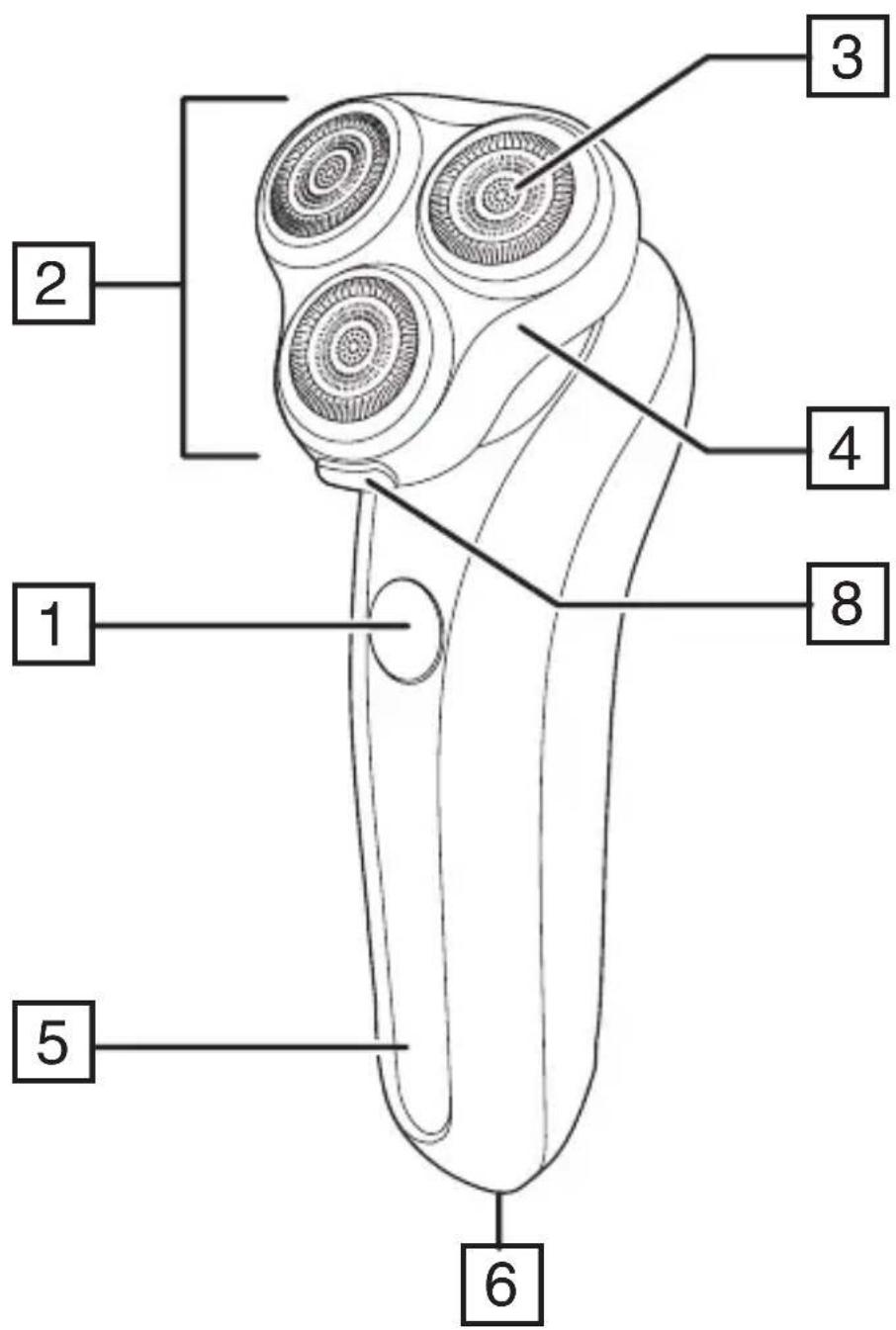

PARTS

1. On/off switch
2. Pivoting head and cutter assembly
3. Individual flexing heads
4. Hairpocket
5. Charging indicator lights

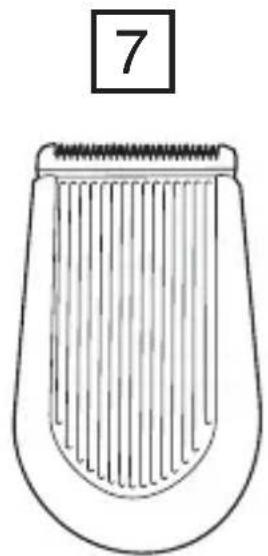

6. Detail trimmer

7. Head release button

8. Power connector

Not shown

- USB charging cable

- Cleaning brush

- Head guard

GETTING STARTED

CHARGING

• It is recommended to fully charge your product before using for the first time.
• Ensure the product is switched off.
• Connect the product to the USB cable and then to the USB end of the cable to a powered USB port.

CHARGING INDICATOR LIGHTS

• The red light will flash slowly when your shaver is charging.
• When charging is complete, the red light will go out and the green light will come on for 5 seconds.
• If your shaver does not run when you switch it on, and the red light slowly flashes for 5 seconds, your shaver needs charging.
• Run time from fully charged is up to 50 mins.
• Charge time from empty is 90 mins.
• Do not recharge your product after each use as this will shorten the life of the battery.
• Note: To preserve the life of your batteries, let them run out every 6 months then fully charge.

QUICK CHARGE FEATURE

- Your shaver has a 5 minute quick charge feature that will provide enough charge for 1 shave (3 minutes).

INSTRUCTIONS FOR USE

SHAVING

1. Switch the shaver on by pressing the on/off button.
2. Stretch the skin with your free hand so the hairs stand upright.
3. Only apply light pressure on the shaving head while shaving (pressing too hard can cause skin irritation).
4. Use short, circular strokes.

SHAVING WITH SHAVING GEL

• Follow the same instructions as dry shaving if using shaving gel.
• CAUTION After use with shaving gel, please rinse the head and cutters under warm water to clean away any excess gel and debris.

DETAIL TRIMMER ATTACHMENT

To fit the detail trimmer attachment:

1. Switch off your shaver.

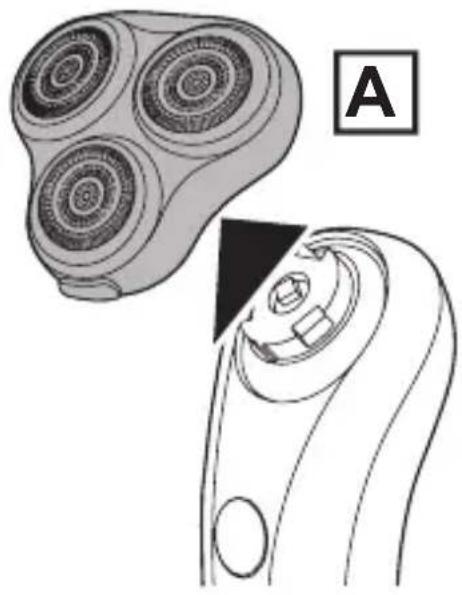

2. Pull the head and cutter assembly away from the body of your shaver (Fig A).

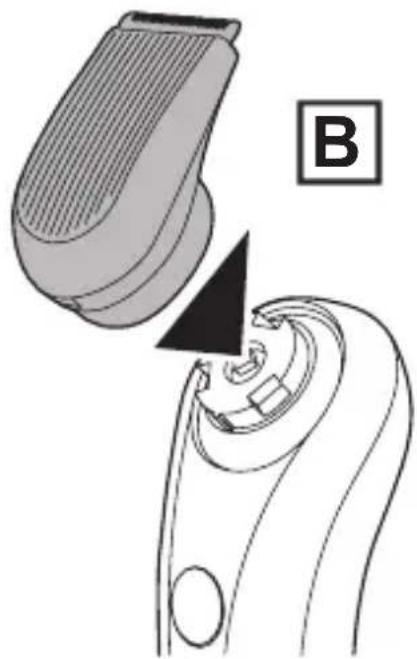

3. Clip the detail trimmer onto the body of your shaver (Fig. B).

TIPS FOR BEST RESULTS

• Always hold the shaver at right angles to the skin so that all three heads are touching the skin with equal pressure.
- Use moderate to slow stroking movements. The use of short circular motions in stubborn areas may obtain a closer shave, especially along the neck and chin line.
• DO NOT press hard against the skin in order to avoid skin irritation.

CARE FOR YOUR SHAVER

Care for your appliance to ensure a long lasting performance. We recommend you clean your appliance after each use.

• Ensure the appliance is switched off and unplugged from the mains before cleaning.

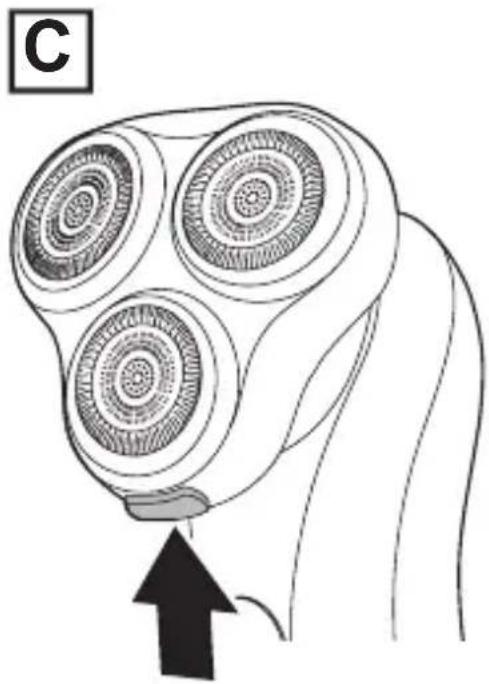

• Open the shaver head by pressing the release button (Fig. C).

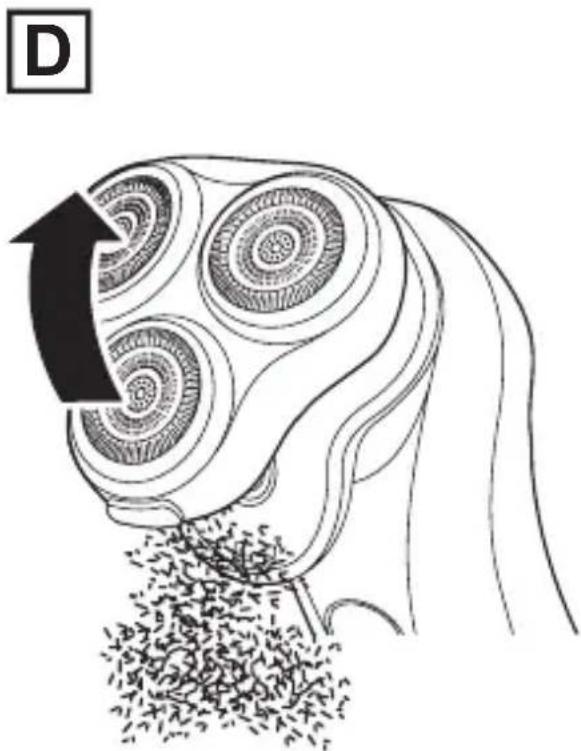

• The head assembly will open (Fig. D).
• Rinse under a tap to wash away hair trimmings.
• Carefully brush away any hairs from the cutters.
• Close the head assembly.
  Note: The individual cutters are designed to be permanently retained in the shave head and flushed out with water. Do not remove the individual cutters for cleaning.

DETAIL TRIMMER

Lubricate the teeth of the detail trimmer every six months with a drop of sewing machine oil.

REMOVING THE RECHARGEABLE BATTERY

This appliance contains batteries that are non-replaceable. When the battery is at the end of its life, the appliance and battery must be properly disposed of at an official recycling point. We strongly recommend that a professional removes the rechargeable battery. Parts of the shaver case, and tools have sharp edges and may cause injury if not handled correctly.

• The battery must be removed from the appliance before it is scrapped.
• Disconnect the charging adapter before removing the battery.

• Be aware of the risk of terminals of the battery-operated appliance or battery being short circuited by metal objects.

• Ensure that the battery is fully discharged. To do this, operate the device until it stops.

• Remove the shaver head (pull the head up and off).
• Using a small screwdriver, pry the front panel off the handle.
• Unscrew the 3 screws located on front of shaver.
• Using a small flat screwdriver, pry the front housing from the body.
• Unscrew the 6 screws to open the inner housing.
• Take out the circuit board.

• Disconnect the battery from the circuit board.

• Used batteries must be removed from the appliance and disposed of at an appropriate official recycling/collection point.

• Do not attempt to operate the device once you have opened it.

RECYCLING

To avoid environmental and health problems due to hazardous substances, appliances and rechargeable and non-rechargeable batteries marked with one of these symbols must not be disposed of with unsorted municipal waste. Always dispose of electrical and electronic products and, where applicable, rechargeable and non-rechargeable batteries, at an appropriate official recycling/collection point.
