USER MANUAL TAD-2326HP Toyotomi

Line drawing of a white industrial air conditioning unit with cooling fan and ventilation slots (no text or symbols)

Models: TAD-2320

TAD-2326 HP

TAD-2335 HP

1. Safety Awareness ....
2. Name of Parts ....
3. Accessories ....
4. Appearance and Function of Control Panel......
5. Appearance and Function of Remote Control......
6. Operation Introduction......
7. Installation Explanations......
8. Maintenance Explanations ....
9. Troubleshooting......
10. For Authorised Service Personnel Only ....

1. SAFETY AWARENESS

1.1 General Information

This chapter contains important safety, regulatory, and compliance information for the portable air conditioner.

▲ IMPORTANT

Read this manual carefully before installing or operating the appliance. Keep this manual for future reference, servicing, and warranty purposes.

The appliance is intended for indoor domestic use only.

1.2 Intended Use

1.2.1 This appliance is designed exclusively for cooling and/or heating (if applicable) indoor air in domestic environments.

1.2.2 The appliance shall not be used:

• Outdoors.
• In bathrooms, laundry rooms, or wet environments.
• For industrial, commercial, or professional purposes.

- For preservation of food, animals, plants, precision equipment, art, or medicines.

1.3 General Safety Instructions

1.3.1 The appliance shall be installed, operated, and stored in accordance with this manual and national regulations.
1.3.2 Do not cover the appliance or obstruct air inlets or outlets.
1.3.3 Do not insert fingers, tools, or other objects into the air outlet or inlet.
1.3.4 Do not operate the appliance if it has been dropped, damaged, or is malfunctioning.
1.3.5 Disconnect the appliance from the power supply before cleaning, servicing, or moving it.
1.3.6 In the event of abnormal operation (noise, smell, smoke), switch off the appliance immediately and disconnect the power supply.

1.4 Safety of Children and Vulnerable Persons

1.4.1 This appliance may be used by children aged 8 years and above, and by persons with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, provided they have been given supervision or instruction concerning safe use and understand the hazards involved.

1.4.2 Children shall not play with the appliance.

1.4.3 Cleaning and user maintenance shall not be carried out by children without supervision.

1.4.4 Keep packaging materials out of reach of children.

1.5 Electrical Safety

1.5.1 The appliance shall be connected only to a 220–240 V\~, 50 Hz, single-phase power supply.
1.5.2 The electrical installation shall comply with national wiring regulations.
1.5.3 Do not use extension cords, adapters, or multi-socket outlets.
1.5.4 Do not operate the appliance with wet hands or in wet environments.
1.5.5 Do not pull, deform, modify, or immerse the power supply cord in water.
1.5.6 Do not operate or stop the appliance by inserting or removing the power plug.

1.5.7 Ensure the plug is fully inserted and free from dust.
1.5.8 If the power supply cord is damaged, it shall be replaced by the manufacturer, its service agent, or similarly qualified persons to avoid a hazard.
1.5.9 Fuse type: T 250 V AC, 2 A or 3.15 A (model dependent).

1.6 Installation and Operating Conditions

1.6.1 Place the appliance on a stable, flat, and level surface.
1.6.2 Maintain a minimum clearance of 30 cm from walls and other objects.
1.6.3 Do not operate the appliance:

• Near open flames or ignition sources.
• Near gas appliances or electric heaters.
• In areas exposed to direct sunlight for prolonged periods.
• In areas where oil, chemicals, or water may splash.

1.6.4 Do not tilt or operate the appliance on its side or upside down.

1.6.5 Remove drain water before moving the appliance.

1.7 Refrigerant Safety – R290 (Propane)

⚠ WARNING – FLAMMABLE REFRIGERANT

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

1.7.1 This appliance contains R290 (propane), a flammable refrigerant.
1.7.2 The refrigerant circuit is sealed. Do not puncture, crush, or burn the appliance.
1.7.3 Be aware that refrigerants may be odourless.
1.7.4 Do not use any means to accelerate the defrosting process or to clean the appliance other than those recommended by the manufacturer.
1.7.5 The appliance shall be stored in a room without continuously operating ignition sources, such as:

• Open flames
• Operating gas appliances
• Electric heaters

1.7.6 The appliance shall be stored and operated in a well-ventilated area.
1.7.7 The appliance shall be stored in such a way as to prevent mechanical damage.
1.7.8 Ducts, hoses, or other air conduits connected to the appliance shall not contain any potential ignition source.

1.8 Refrigerant Charge and Minimum Room Size

1.8.1 The appliance contains R290 (propane) refrigerant in the following quantities:

• TAD-2320: 80 g
• TAD-2326 HP: 140 g
• TAD-2335 HP: 175 g

(Refer to the rating label on the rear of the appliance.)

1.8.2 The appliance shall be installed, operated, and stored in a room with a minimum floor area (Amin) calculated in accordance with EN 60335-2-40, based on the refrigerant charge and appliance configuration.
1.8.3 Minimum room area (Amin):

Model Refrigerant charge Minimum room area (Amin)

TAD-2320 80 g

TAD-2326 HP 140 g

TAD-2335 HP 175 g

1.8.4 Do not install, operate, or store the appliance in rooms smaller than the specified minimum floor area.

1.9 Servicing and Repairs

1.9.1 Servicing shall be performed only as recommended by the manufacturer.
1.9.2 Any person working on or accessing the refrigerant circuit shall hold a valid certificate from an industry-recognized assessment authority for handling flammable refrigerants.
1.9.3 Maintenance and repairs requiring assistance from other skilled personnel shall be carried out under the supervision of a person competent in the use of flammable refrigerants.
1.9.4 Repairs carried out by unqualified persons may be dangerous and shall be avoided.

1.10 Symbols Used on the Appliance

1.10.1 The following symbols may appear on the appliance or packaging:

Five black-and-white icons representing documents, an open book with a 'i' symbol, a wrench on an open book, and a crossed-out tool (no text or symbols)

• Appliance contains flammable refrigerant (R290)
• Read the user manual before installation and use
• Read service instructions before repair
• Disposal and Environmental Protection (WEEE)

1.11 Radio Equipment (Wi-Fi)

1.11.1 This appliance contains radio equipment operating in the 2.4 GHz frequency band.

1.11.2 Radio characteristics:

• Wi-Fi operating frequency: 2412–2472 MHz
  • Maximum transmitted power: ≤ 20 dBm

1.11.3 The radio equipment complies with the requirements of Directive 2014/53/EU (Radio Equipment Directive).

1.12 Regulatory Compliance

1.12.1 The manufacturer declares that this appliance complies with the essential requirements of the following EU legislation:

• Low Voltage Directive (LVD) 2014/35/EU
  • Electromagnetic Compatibility Directive (EMC) 2014/30/EU
  • Radio Equipment Directive (RED) 2014/53/EU
  • RoHS Directive 2011/65/EU
  • Applicable Ecodesign and Energy Labelling Regulations

1.12.2 The full EU Declaration of Conformity is available from the manufacturer or authorized representative upon request, or via the manufacturer's official website

(www.toyotomi.eu) or customer support contact.

1.13 Disposal and Environmental Protection (WEEE)

1.13.1 This product shall not be disposed of with household waste.

1.13.2 Dispose of the appliance through designated collection and recycling systems in accordance with local regulations.

1.13.3 Proper disposal helps prevent negative effects on the environment and human health and promotes sustainable reuse of materials.

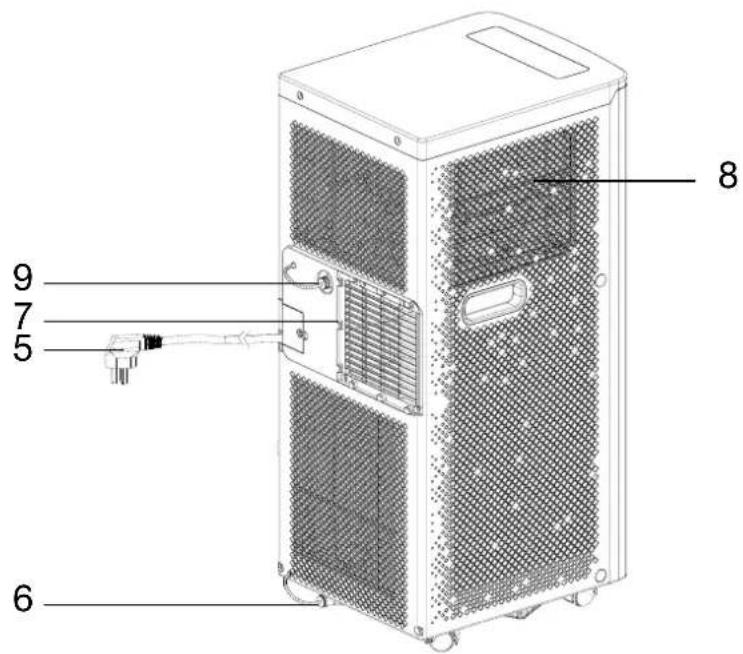

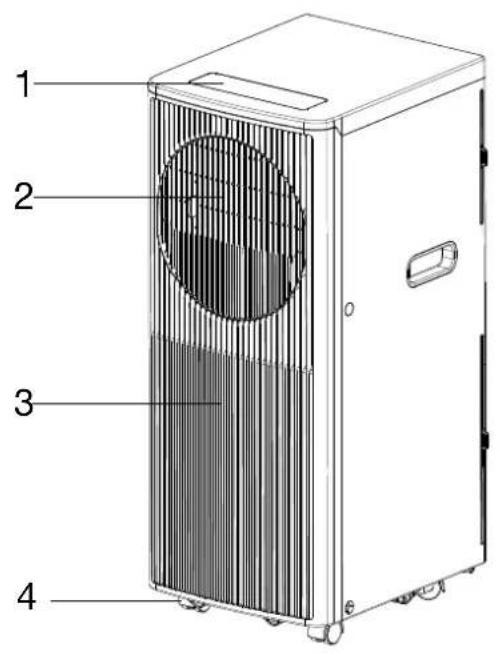

2. Name of Parts

1 2 3 4

8 9 7 5 6

1 Control panel 6	Rubber drain plug
2 Louver 7 Air outlet
3 Front panel 8 Air inlet
4 Castor 9 Rubber drain plug
5 Power cord

3. Accessories

Part Description Quantity
	Exhaust hose 1
	Window Connector 1
	Housing adaptor 1
	Remote Controller 1
	Window Kit 1
	Dowel 2
	Water pipe	1
	Batteries	2

After unpacking, please check whether the above-mentioned accessories are included, and check their purposes in the installation introduction in this manual.

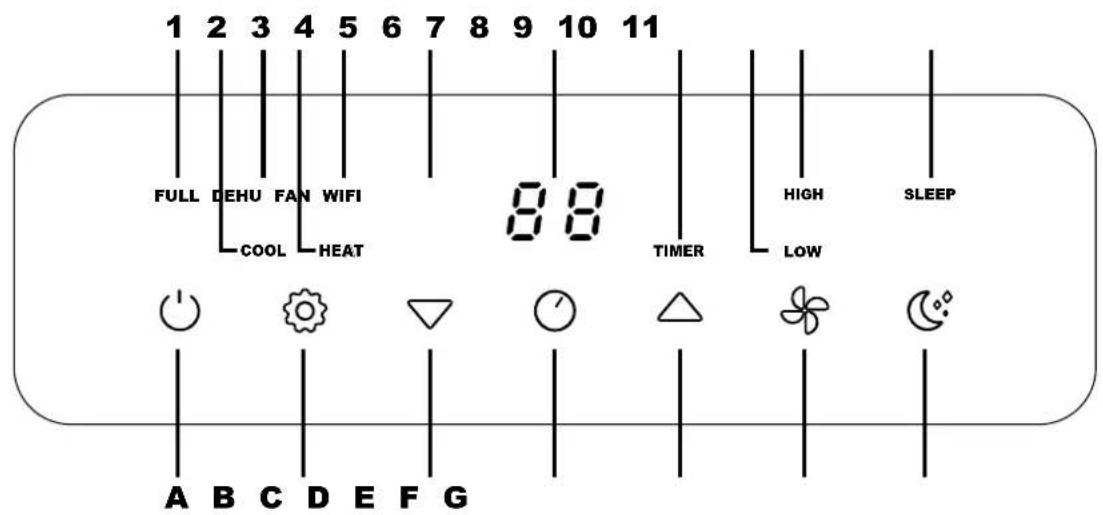

4. Appearance and Function of Control Panel

TAD-2320 / TAD-2326 HP / TAD-2335 HP

1 2 3 4 5 6 7 8 9 10 11 FULL DEHU FAN WIFI 88 TIMER HIGH SLEEP COOL HEAT LOW A B C D E F G

A	Power on/off	1	Water full
B	Operation mode	2	Cooling
C	Temperature down	3	Dehumidifying
D	Timer on/off	4	Heat (Only for heat pump models (HP))
E	Temperature up	5	Fan
F	Fan speed	6	WIFI
G	Sleep mode	7	Display panel
		8	Timer
		9	Low fan speed
		10	High fan speed
		11	Sleep

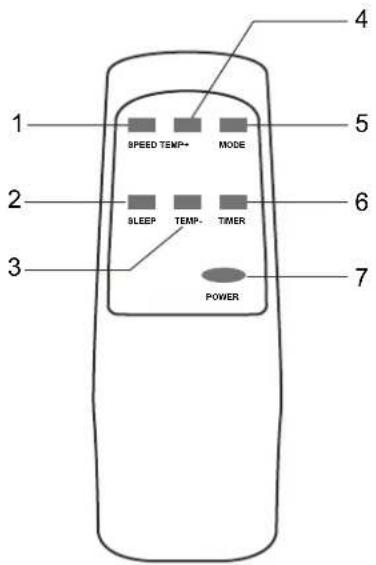

5. Appearance and Function of Remote Control

1 SPEED TEMP+ MODE 2 SLEEP TEMP- TIMER 3 POWER 4 5 6 7

1	Fan speed
2	Sleep mode
3	Temperature down
4	Temperature up
5	Operation MODE
6	Timer on/off
7	Power on/off

6. Operation Introduction

Before starting operations in this section:

1) Find a place where there is power supply nearby.

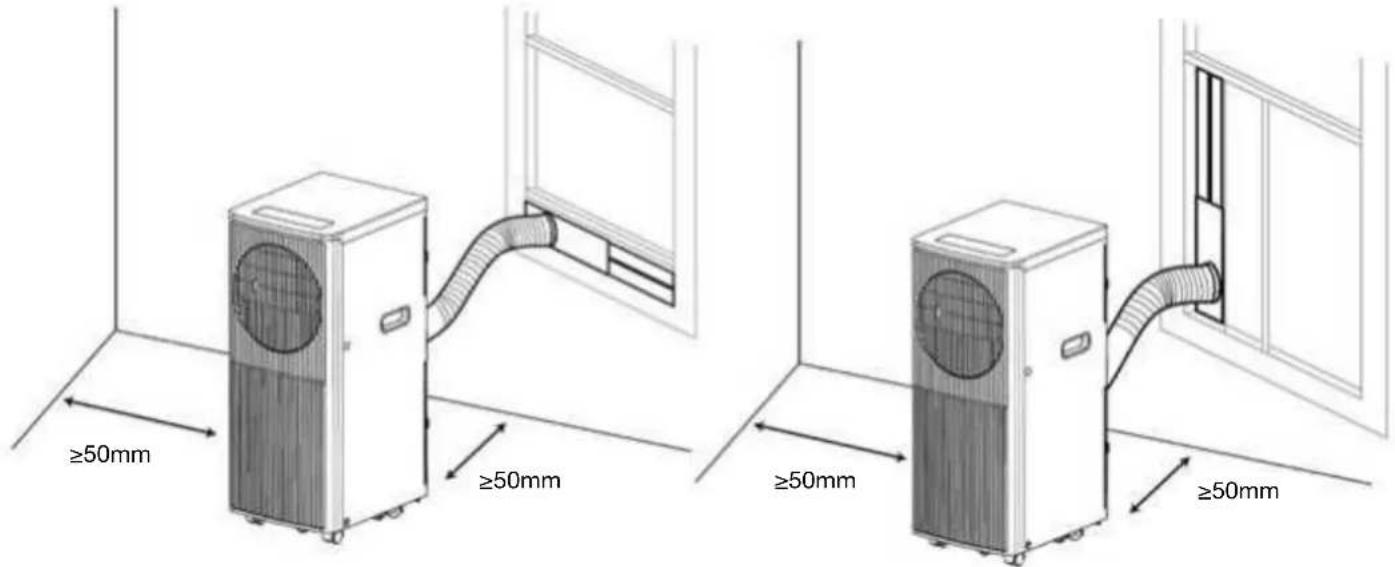

2) As shown in Fig.2 and Fig.3, install the exhaust hose, and adjust the window position well.

≥50mm ≥50mm ≥50mm ≥50mm

Fig. 2 Fig. 3

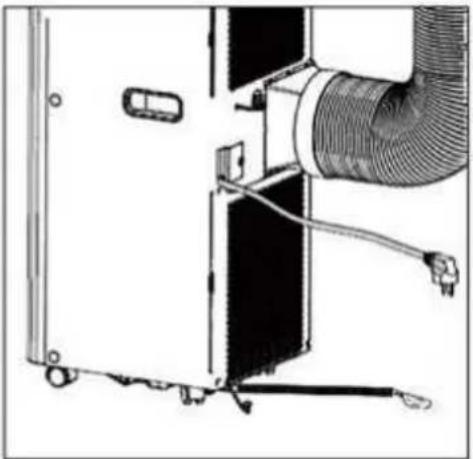

3) As shown in Fig.9, connect drain hose well (only for using heating model);
4) Insert the power cord into an grounded AC220\~240V/50Hz socket;
5) Press the POWER button to turn on the air-conditioner.

Before using Notice:

1. Operation temperature range

	Maximum cooling Minimum cooling
DB/WB(°C) 35/24 18/12

	Maximum heating Minimum heating
DB/WB(°C) 27/--- 7/---

Check up whether the exhaust hose has been mounted properly. Cautions for cooling and dehumidifying operations:

- When using functions on cooling and dehumidifying, keep an interval of at least 3 minutes between each POWER. Power supply meets the requirements. The socket is for AC use. Do not share one socket with other appliances. Power supply is AC220-240V, 50Hz.

2. Cooling operation

Press the "Mode" button till the "Cool" icon appears.

Press the "▲" or "▼" button to select a desired room temperature. (16 °C-31 °C). Press the "Fan Speed" button to select wind speed.

3. Dehumidifying operation

Press the "Mode" button till the "Dehumidify" icon appears.

Automatically set the selected temperature to current room temperature minus 2 °C.(16 °C-31 °C) Automatically set the fan motor to LOW wind speed.

4. Fan operation

Press the "Mode" button till the "Fan" icon appears. Press the "Fan Speed" button to select wind speed.

5. Heating operation TAD-2326 HP / TAD-2335 HP

Press the "Mode" button till the "Heat" icon appears. Press the "▲" or "▼" button to select desired room temperature. (16 °C-31 °C) Press the "Fan Speed" button to select wind speed.

6. Timer operation

TimerON setting:

When the air-conditioner is OFF, press the "Timer" button and select desired ON time through the temperature and time setting buttons.

"Preset ON Time" is displayed on the operation panel. ON time can be regulated at any time in 0-24hours.

Press the "Timer" button again to confirm, Timer indicator turns on.

To deactivate the timer function, press "Timer" button until timer indicator turns off.

Timer OFF setting:

When the air-conditioner ON, press "Timer" button and select a desired OFF time through the temperature and time setting buttons. "Preset OFF Time" is displayed on the operation panel. OFF time can be regulated at any time in 0-24 hours. Press the "Timer" button again to confirm, Timer indicator turns on. To deactivate the timer function, press "Timer" button until timer indicator turns off.

7. SLEEP mode

• While in cooling mode, press the SLEEP key to set the temperature. It increases 1 °C after an hour and at most increases 2 °C after 2 hours.
• While in heating mode, press the SLEEP key to set the temperature. It decreases 1 °C after an hour and at most decreases 2 °C after 2 hours.
• Press the SLEEP key again can cancel the setting.

8. Water Drainage

Water Full Alarm Function

The inner water tray in the air-conditioner has one water level safety switches, it controls the water level. When water level reaches an anticipated height, the water full indicator lights up. When the water is full, please remove the rubber blockage from the drainage hole at the bottom of unit, and drain all water outside.

Continuous Drainage

When you plan to leave this unit unused for a long time, please remove the rubber blockage from the drainage hole at the bottom of unit, and drain all water outside. You can use the continuous drainage with a drainage hose connected to the bottom drain hole, when the unit working at the HEAT mode. The continuous drainage is not need to be applied when the unit working at the COOL or DEHUMIDIFY mode. The unit can evaporate the condensate water automatically by the splash motor. Make sure the drainage holes are stemmed well. If water splash motor is damaged, continuous drainage can be used. To connect the drain hose to the bottom drain hole (Fig.9), the unit can also work well. If splash motor is damaged, intermittent drainage can also be used. Under this condition, when the water full indicator lights up, please connect a drain hose to the bottom drainage hole, then all the water in the water tank will be drained outside. The unit can also work well.

9. WIFI function

• Long press the SPEED button for 5s, enter the WIFI factory set up mode;
• When the WIFI indicator flashing quickly, the unit is at the WIFI EZ mode if flashing slowly, the unit is at the WIFIAP mode;
• For WiFi and Bluetooth combo devices, turn on Bluetooth and location and allow the app to access your location. The Bluetooth permission is required too. WiFi and Bluetooth combo devices can be automatically discovered. Or choose "Portable Air Conditioner (BLE+Wi-Fi)" in the application. Then tap on "Wi-Fi Mode" on the top right and select "Bluetooth";
  • You can realize all the air conditioner functions by the mobile phone APP with the WIFI connected.

QR code with a blue home icon in the center, likely linking to a digital service or application.

Scan the QR code to download the Smart Life app.

(The QR code automatically redirects to the correct store for Android or iOS). If you cannot scan the QR code:

On Android, open the Google Play Store and search for Smart Life. On iPhone, open the Apple App Store and search for Smart Life. Follow the steps in the app to complete installation and device setup.

For more information, check the Smart Life manual on: www.toyotomi.eu/customer-service/faq/

7. Installation Explanations

1. Installation Explanations:

• A removal air-conditioner shall be installed in the flat and empty place all around. Don't block the air outlet, and the required distance around should be at least 50cm.(See Fig.4)
  • Should not be installed in wet location, such as the laundry room.
• Socket wiring should be in accordance with the local electric safety requirements.

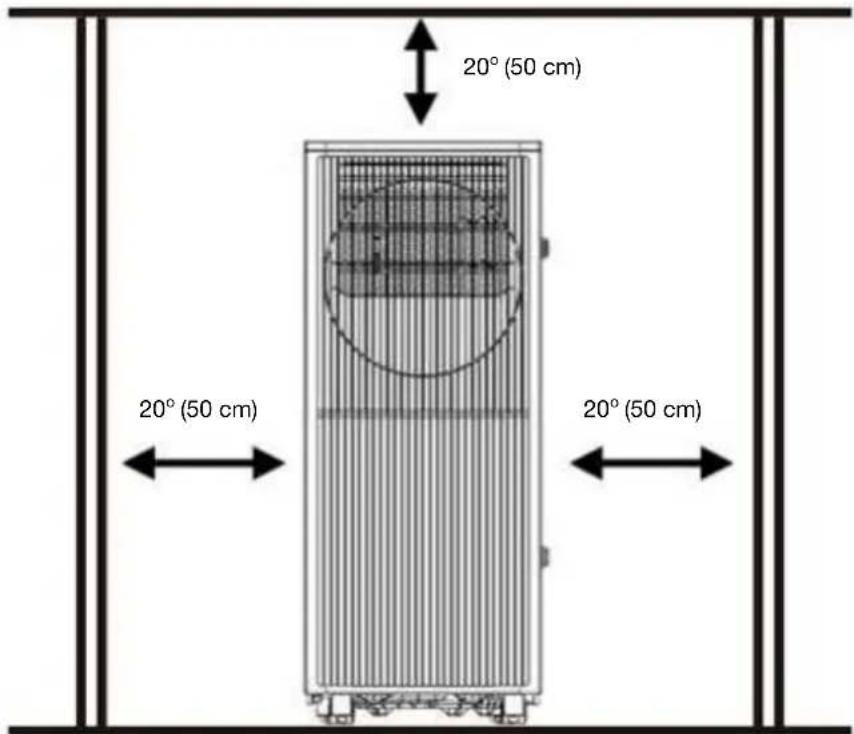

20° (50 cm) 20° (50 cm) 20° (50 cm)

Fig. 4

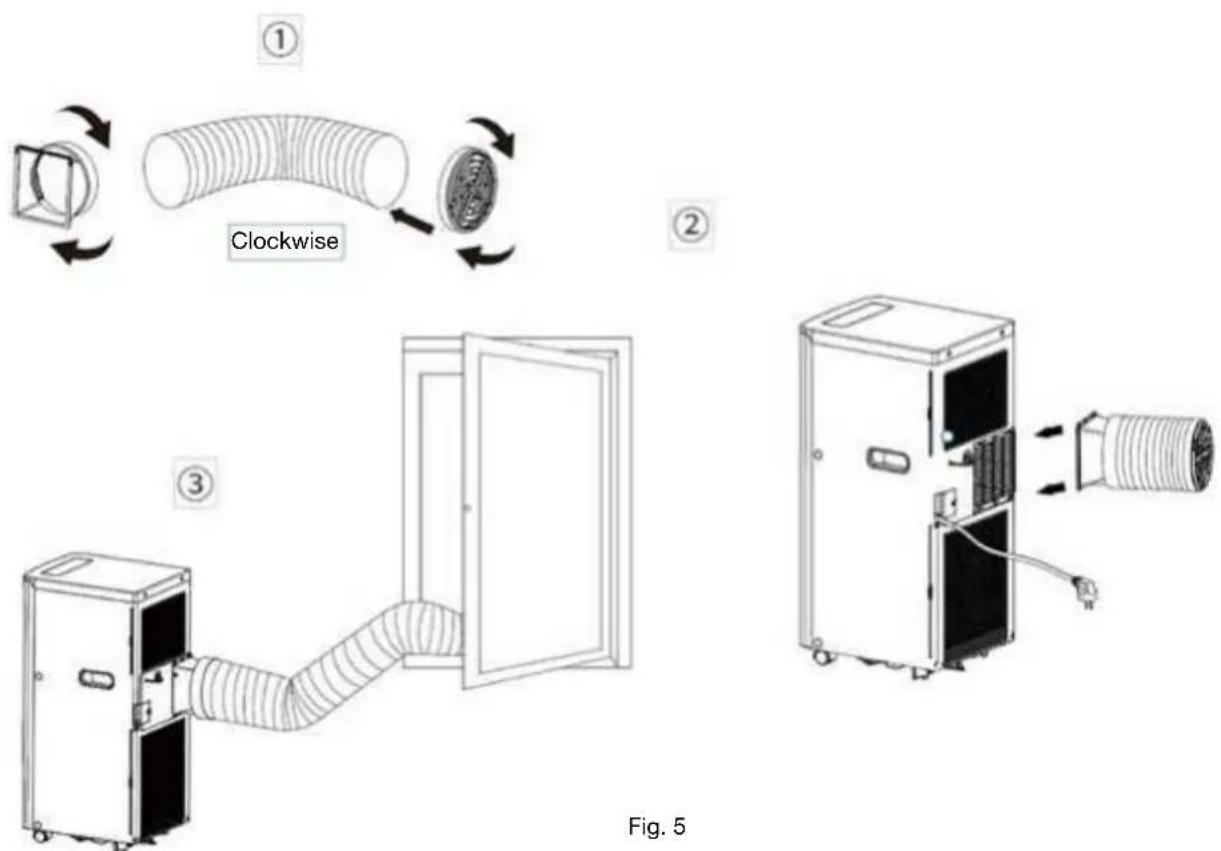

2. Introduction to Exhaust Hose Installation

A) Temporary installation

1. Twist the housing adaptor and the window Connector to the ends of the exhaust hose.
2. Insert the fixing clip of the housing adaptor into the openings at back of the air conditioner.
3. Put the other end of the exhaust hose to the near windowsill (see Fig.5).

① Clockwise ② ③ Fig. 5

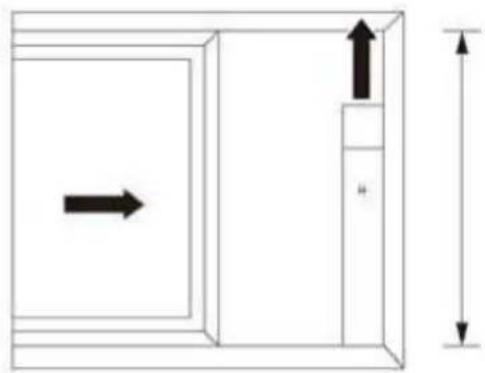

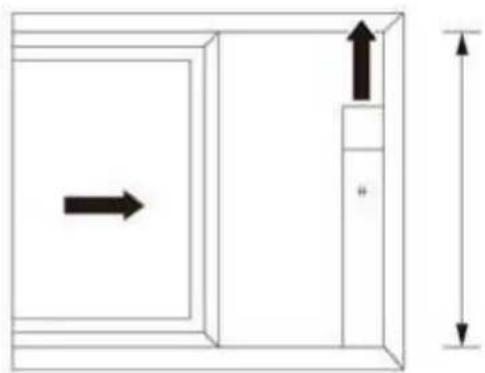

B) Window Kit Installation

The installation manner of window slider kit is mostly in "horizontal" or "vertical". As shown Fig.6 and Fig.7, check the min and max size of the window before the installation.

1. Install the window kit on the window (Fig.6, Fig.7);
2. Adjust the length of the window slider kit according to the window width or height, and fix it with the dowel;
3. Insert the window connector of the hose to the hole of the window kit (Fig.8).

①

wind speedometer

window width
min: 67.5cm
max: 125cm
Fig. 6 Fig. 7

Simple line drawing of a cabinet or enclosure with an arrow indicating direction and a vertical dimension line (no text or symbols)

window width
min: 67.5cm
max: 125cm

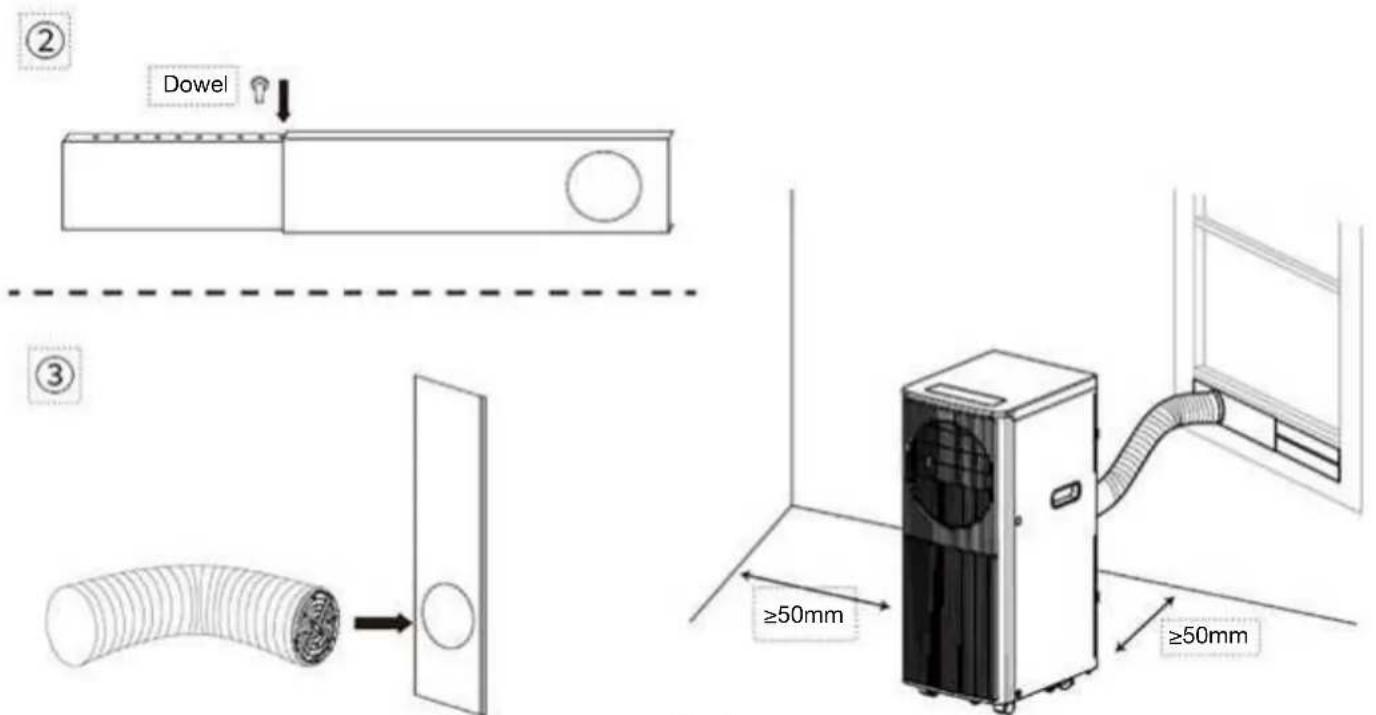

② Dowel ③ ≥50mm ≥50mm

Fig. 8

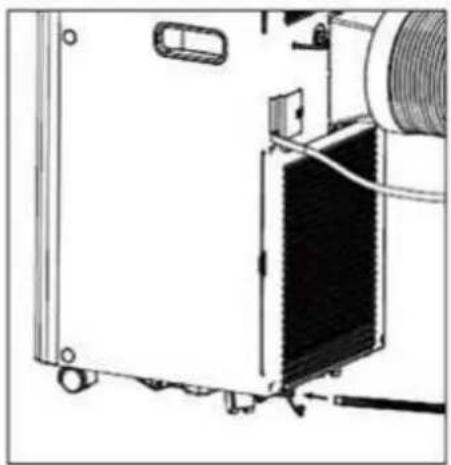

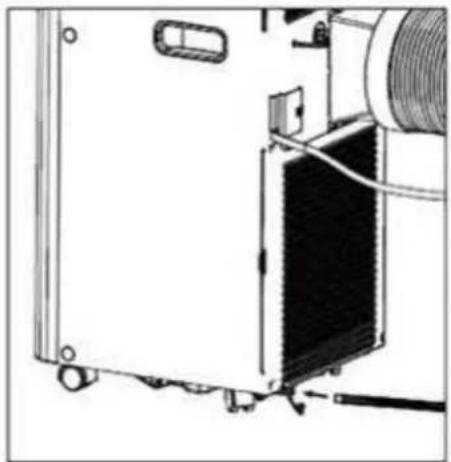

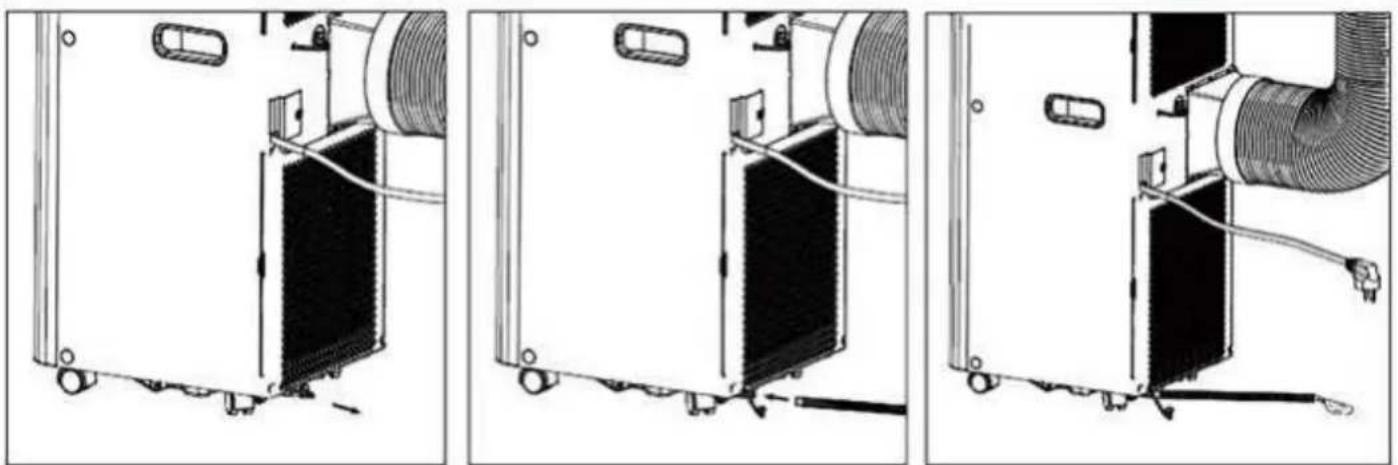

Water Full Alarm Function

The inner water tray in the air-conditioner has one water level safety switches, it controls water level. When water level reaches an anticipated height, the water full indicator lamp lights up. (If water splash motor is damaged, when the water is full, please remove the rubber blockage at the bottom of unit, and all water will drai outside.)

Three-panel technical illustration showing mechanical components with no visible text or symbols

Fig. 9

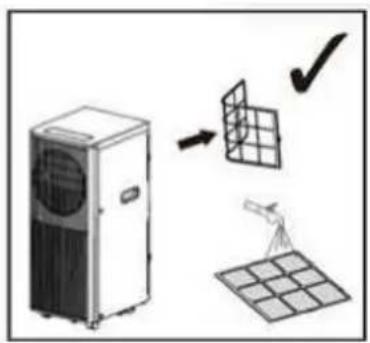

8. Maintenance Explanations

Declaration:

1) Before cleaning, be sure to disconnect the unit from any electric supply outlet;
2) Do not use gasoline or other chemicals to clean the unit;
3) Do not wash the unit directly;
4) If the conditioner is damaged, please contact the dealer or repair shop.

Illustration of a refrigerant air conditioner unit with cooling fan and piping (no text or symbols)

Diagram illustrating the installation of a solar panel array using a grid-based sensor, with a server unit and checkmark indicating inspection.

1. Air Filter

• If the air filter becomes clogged with dust/dirt, the air filter should be cleaned once every two weeks.
• Dismounting open the air inlet grille and takeoff air filter.
• Cleaning clean the air filter with neural detergent in lukewarm (40 oC) and dry it up in the shade.
• Mounting putting the air filter into the inlet grille, replace the components as they were.

2. Clean the Air-conditioner Surface

- First clean the surface with a neutral detergent and wet cloth, and then wipe it with a dry cloth.

1. Troubleshooting

Troubles Possible Causes Suggested Remedies
1. Unit does not start when pressing on/off button	Water full indicator lamp blinks, and water tray is full	Dump the water out of the water tray.
	Room temperature is higher than the setting temperature. (Electric heating mode)	Reset the temperature.
	Room temperature is lower than the setting temperature. (Cooling mode)	Reset the temperature.
2. Not cool enough	The doors or windows are not closed.	Make sure all the windows and doors are closed.
	There are heat sources inside the room. Remove the heat sources if possible
	Exhaust air hose is not connected or blocked.	Connect or clean the exhaust air hose.
	Temperature setting is too high. Reset the temperature.
	Air inlet is blocked. Clean the air inlet.
3. Noisy	The ground is not level or not flat enough.	Place the unit on a flat, level ground if possible.
	The sound comes from the flowing of the refrigerant inside the air conditioner.	It is normal.
4. E0 Code Room temperature sensor failed.		Replace room temperature sensor (the unit can also work without replacement.)
5. E1 Code	Condenser temperature Replace condenser sensor failed. temperature sensor.
6. E2 Code Water tray full when cooling		Take off rubber stopper and empty the water.
7. E3 Code Evaporator temperature sensor failed.	Replace evaporator temperature sensor
8. E4 Code Water tray full when heating	Please empty the water tray.

Note: The real products may look different.

10. FOR AUTHORISED SERVICE PERSONNEL ONLY

The information in this section is intended exclusively for qualified and authorised service technicians trained in the handling of electrical equipment and flammable refrigerants.

1. GENERAL INSTRUCTIONS

1.1 Checks to the area

Prior to beginning work on systems containing flammable refrigerants, safety checks are necessary to ensure that the risk of ignition is minimised. For repair to the refrigerating system, the following precautions shall be complied with prior to conducting work on the system.

1.2 Work procedure

Work shall be undertaken under a controlled procedure so as to minimise the risk of a lammable gas or vapour being present while the work is being performed.

1.3 General work area

All maintenance staff and others working in the local area shall be instructed on the nature of work being carried out. Work in confined spaces shall be avoided. The area around the workspace shall be sectioned off. Ensure that the conditions within the area have been made safe by control of flammable material.

1.4 Checking for presence of refrigerant

The area shall be checked with an appropriate refrigerant detector prior to and during work, to ensure the technician is aware of potentially flammable atmospheres. Ensure that the leak tection equipment being used is suitable for use with flammable refrigerants, i.e. nonsparking, adequately sealed or intrinsically safe.

1.5 Presence of fire extinguisher

If any hot work is to be conducted on the refrigeration equipment or any associated parts appropriate fire extinguishing equipment shall be available to hand. Have a dry powder or CO2 fire extinguisher adjacent to the charging area.

1.6 No ignition sources

No person carrying out work in relation to a refrigeration system which involves exposing any pipe work that contains or has contained flammable refrigerant shall use any sources of ignition in such a manner that it may lead to the risk of fire or explosion. All possible ignition sources, including cigarette smoking, should be kept sufficiently far away from the site of installation, repairing, removing and disposal, during which flammable refrigerant can possibly be released to the surrounding space. Prior to work taking place, the area around the equipment is to be surveyed to make sure that there are no flammable hazards or ignition risks. "No Smoking" signs shall be displayed.

1.7 Ventilated area

Ensure that the area is in the open or that it is adequately ventilated before breaking into the system or conducting any hot work. A degree of ventilation shall continue during the period that the work is carried out. The ventilation should safely disperse any released refrigerant and preferably expel it externally into the atmosphere.

1.8 Checks to the refrigeration equipment

Where electrical components are being changed, they shall be fit for the purpose and to the correct specification. At all times the manufacturer's maintenance and service guidelines shall be followed. If in doubt consult the manufacturer's technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: the charge size is in accordance with the room size within which the refrigerant containing parts are installed; the ventilation machinery and outlets are operating adequately and are not obstructed; if an indirect refrigerating circuit is being used, the secondary circuit shall be checked for the presence of refrigerant; marking to the equipment continues to be visible and legible. Markings and signs that are illegible shall be corrected; refrigeration pipe or components are installed in a position where they are unlikely to be exposed to any substance which may corrode refrigerant containing components, unless the components are constructed of materials which are inherently resistant 9 to being corroded or are suitably protected against being so corroded.

1.9 Checks to electrical devices

Repair and maintenance to electrical components shall include initial safety checks and component inspection procedures. If a fault exists that could compromise safety, then no electrical supply shall be connected to the circuit until it is satisfactorily dealt with. If the fault cannot be corrected immediately but it is necessary to continue operation, an adequate temporary solution shall be used. This shall be reported to the owner of the equipment so all parties are advised. Initial safety checks shall include: that capacitors are discharged: this shall be done in a safe manner to avoid possibility of sparking; that there no live electrical components and wiring are exposed while charging, recovering or purging the system; that there is continuity of earth bonding.

2. REPAIRS TO SEALED COMPONENTS

2.1 During repairs to sealed components, all electrical supplies shall be disconnected from the equipment being worked upon prior to any removal of sealed covers, etc. If it is absolutely necessary to have an electrical supply to equipment during servicing, then a permanently operating form of leak detection shall be located at the most critical point to warn of a potentially hazardous situation. Servicing shall be performed only as recommended by the manufacturer. The appliance shall be stored in a well-ventilated area where the room size corresponds to the room area as specified for operation. 2.2 Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications.

NOTE The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

2.2 Particular attention shall be paid to the following to ensure that by working on electrical components, the casing is not altered in such a way that the level of protection is affected. This shall include damage to cables, excessive number of connections, terminals not made to original specification, damage to seals, incorrect fitting of glands, etc. Ensure that apparatus is mounted securely. Ensure that seals or sealing materials have not degraded such that they no longer serve the purpose of preventing the ingress of flammable atmospheres. Replacement parts shall be in accordance with the manufacturer's specifications

NOTE The use of silicon sealant may inhibit the effectiveness of some types of leak detection equipment. Intrinsically safe components do not have to be isolated prior to working on them.

3. REPAIR TO INTRINSICALLY SAFE COMPONENTS

Do not apply any permanent inductive or capacitance loads to the circuit without ensuring that this will not exceed the permissible voltage and current permitted for the equipment in use. Intrinsically safe components are the only types that can be worked on while live in the presence of a flammable atmosphere. The test apparatus shall be at the correct rating. Replace components only with parts specified by the manufacturer. Other parts may result in the ignition of refrigerant in the atmosphere from a leak.

4. CABLING

Check that cabling will not be subject to wear, corrosion, excessive pressure, vibration, sharp edges or any other adverse environmental effects. The check shall also take into account the effects of aging or continual vibration from sources such as compressors or fans.

5. DETECTION OF FLAMMABLE REFRIGERANTS

Under no circumstances shall potential sources of ignition be used in the searching for or detection of refrigerant leaks. A halide torch (or any other detector using a naked flame) shall not be used.

6. LEAK DETECTION METHODS

The following leak detection methods are deemed acceptable for systems containing flammable refrigerants.

Electronic leak detectors shall be used to detect flammable refrigerants, but the sensitivity may not be adequate, or may need recalibration. (Detection equipment shall be calibrated in a refrigerant-free area.) Ensure that the detector is not a potential source of ignition and is suitable for the refrigerant used. Leak detection equipment shall be set at a percentage of the LFL of the refrigerant and shall be calibrated to the refrigerant employed and the appropriate percentage of gas (25% maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chlorine shall be avoided as the chlorine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed or extinguished. If a leakage of refrigerant is found which requires brazing, all of the refrigerant shall be recovered from the system, or isolated (by means of shut off valves) in a part of the system remote from the leak. Oxygen free nitrogen (OFN) shall then be purged through the system both before and during the brazing process.

7. REMOVAL AND EVACUATION

When breaking into the refrigerant circuit to make repairs or for any other purpose conventional procedures shall be used. However, it is important that best practice is followed since flammability is a consideration. The following procedure shall be adhered to: remove refrigerant; purge the circuit with inert gas; evacuate; purge again with inert gas; open the circuit by cutting or brazing. The refrigerant charge shall be recovered into the correct recovery cylinders. The system shall be "flushed" with OFN to render the unit safe. This process may need to be repeated several times. Compressed air or oxygen shall not be used for this task. Flushing shall be achieved by breaking the vacuum in the system with OFN and continuing to fill until the working pressure is achieved, then venting to atmosphere, and finally pulling down to a vacuum. This process shall be repeated until no refrigerant is within the system. When the final OFN charge is used, the system shall be vented down to atmospheric pressure to enable work to take place. This operation is absolutely vital if brazing operations on the pipework are to take place. Ensure that the outlet for the vacuum pump is not close to any ignition sources and there is according to IEC 60079-15:2010. Information about the correct working procedures: a) Commissioning

• Ensure that the floor area is sufficient for the refrigerant charge or that the ventilation duct is assembled in a correct manner.
• Connect the pipes and carry out a leak test before charging with refrigerant.
• Check safety equipment before putting into service. b) Maintenance
• Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.
• Ensure sufficient ventilation at the repair place.
• Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
• Discharge capacitors in a way that won't cause any spark. The standard procedure to short circuit the capacitor terminals usually creates sparks.
• Reassemble sealed enclosures accurately. If seals are worn, replace them. ·Check safety equipment before putting into service. c) Repair
• Portable equipment shall be repaired outside or in a workshop specially equipped for servicing units with flammable refrigerants.
• Ensure sufficient ventilation at the repair place.
• Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
• Discharge capacitors in a way that won't cause any spark.
• When brazing is required, the following procedures shall be carried out in the right order :

- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.
• Purge the refrigerant circuit with nitrogen for 5 min.
• Evacuate again.
• Remove parts to be replaced by cutting, not by flame.
• Purge the braze point with nitrogen during the brazing procedure.
• Carry out a leak test before charging with refrigerant.
• Reassemble sealed enclosures accurately. If seals are worn, replace them.
• Check safety equipment before putting into service. d) Decommissioning
• If the safety is affected when the equipment is put out of service, the refrigerant charge shall be removed before decommissioning.
• Ensure sufficient ventilation at the equipment location.
• Be aware that malfunction of the equipment may be caused by refrigerant loss and a refrigerant leak is possible.
• Discharge capacitors in a way that won't cause any spark.
• Remove the refrigerant. If the recovery is not required by national regulations, drain ventilation available.

8. CHARGING PROCEDURES

In addition to conventional charging procedures, the following requirements shall be followed.

• Ensure that contamination of different refrigerants does not occur when using charging equipment. Hoses or lines shall be as short as possible to minimise the amount of refrigerant contained in them.
  • Cylinders shall be kept upright.
  • Ensure that the refrigeration system is earthed prior to charging the system with refrigerant.
  • Label the system when charging is complete (if not already).
• Extreme care shall be taken not to overfill the refrigeration system. Prior to recharging the system it shall be pressure tested with OFN. The system shall be leak tested on completion of charging but prior to commissioning. A follow up leak test shall be carried out prior to leaving the site.

9. DECOMMISSIONING

Before carrying out this procedure, it is essential that the technician is completely familiar with the equipment and all its detail. It is recommended good practice that all refrigerants are recovered safely. Prior to the task being carried out, an oil and refrigerant sample shall be taken in case analysis is required prior to reuse of reclaimed refrigerant. It is essential that electrical power is available before the task is commenced.

a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
c) Before attempting the procedure ensure that :mechanical handling equipment is available, if required, for handling refrigerant cylinders; all personal protective equipment is available and being used correctly; the recovery process is supervised at all times by a competent person; recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes place.
g) Start the recovery machine and operate in accordance with manufacturer's instructions.
h) Do not overfill cylinders. (No more than 80% volume liquid charge).
i) Do not exceed the maximum working pressure of the cylinder, even temporarily.
j) When the cylinders have been filled correctly and the process completed, make sure that the cylinders and the equipment are removed from site promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system unless it has been cleaned and checked.

10. LABELLING

Equipment shall be labelled stating that it has been decommissioned and emptied of refrigerant. The label shall be dated and signed. Ensure that there are labels on the equipment stating the equipment contains flammable refrigerant

11. RECOVERY

When removing refrigerant from a system, either for servicing or decommissioning, it is recommended good practice that all refrigerants are removed safely. When transferring refrigerant into cylinders, ensure that only appropriate refrigerant recovery cylinders are employed. Ensure that the correct number of cylinders for holding the total system charge are available. All cylinders to be used are designated for the recovered refrigerant and labelled for that refrigerant (i.e. special cylinders for the recovery of refrigerant). Cylinders shall be complete with pressure relief valve and associated shut-off valves in good working order. Empty recovery cylinders are evacuated and, if possible, cooled before recovery occurs. The recovery equipment shall be in good working order with a set of instructions concerning the equipment that is at hand and shall be suitable for the recovery of flammable refrigerants. In addition, a set of calibrated weighing scales shall be available and in good working order. Hoses shall be complete with leak-free disconnect couplings and in good condition. Before using the recovery machine, check that it is in satisfactory working order, has been properly maintained and that any associated electrical components are sealed to prevent ignition in the event of a refrigerant release. Consult manufacturer if in doubt. The recovered refrigerant shall be returned to the refrigerant supplier in the correct recovery cylinder, and the relevant Waste Transfer Note arranged. Do not mix refrigerants in recovery units and especially not in cylinders. If compressors or compressor oils are to be removed, ensure that they have been evacuated to an acceptable level to make certain that flammable refrigerant does not remain within the lubricant. The evacuation process shall be carried out prior to returning the compressor to the suppliers. Only electric heating to the compressor body shall be employed to accelerate this process. When oil is drained from a system, it shall be carried out safely.

Competence of service personnel General

Special training additional to usual refrigerating equipment repair procedures is required when equipment with flammable refrigerants is affected. In many countries, this training is carried out by national training organizations that are accredited to teach the relevant national competency standards that may be set in legislation. The achieved competence should be documented by a certificate.

Training

The training should include the substance of the following:

Information about the explosion potential of flammable refrigerants to show that flammables may be dangerous when handled without care. Information about potential ignition sources, especially those that are not obvious, such as lighters, light switches, vacuum cleaners, electric heaters. Information about the different safety concepts: Unventilated (see Clause GG.2) Safety of the appliance does not depend on ventilation of the housing. Switching off the appliance or opening of the housing has no significant effect on the safety. Nevertheless, it is possible that leaking refrigerant may accumulate inside the enclosure and flammable atmosphere will be released when the enclosure is opened. Ventilated enclosure (see Clause GG.4) Safety of the appliance depends on ventilation of the housing. Switching off the appliance or opening of the enclosure has a significant effect on the safety. Care should be taken to ensure a sufficient ventilation before. Ventilated room (see Clause GG.5) Safety of the appliance depends on the ventilation of the room. Switching off the appliance or opening of the housing has no significant effect on the safety. The ventilation of the room shall not be switched off during repair procedures. Information about the concept of sealed components and sealed enclosures the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet.

Take special care that drained refrigerant will not float back into the building.

• Evacuate the refrigerant circuit.
• Purge the refrigerant circuit with nitrogen for 5 min.
• Evacuate again
• Fill with nitrogen up to atmospheric pressure
- Put a label on the equipment that the refrigerant is removed. Disposal
• Ensure sufficient ventilation at the working place.
- Remove the refrigerant. If the recovery is not required by national regulations, drain the refrigerant to the outside. Take care that the drained refrigerant will not cause any danger. In doubt, one person should guard the outlet. Take special care that drained refrigerant will not float back into the building.
• Evacuate the refrigerant circuit.
• Purge the refrigerant circuit with nitrogen for 5 min.
• Evacuate again.
• Cut out the compressor and drain the oil

Transportation, marking and storage for units that employ flammable refrigerants

Transport of equipment containing flammable refrigerants

Attention is drawn to the fact that additional transportation regulations may exist with respect to equipment containing flammable gas. The maximum number of pieces of equipment or the configuration of the equipment, permitted to be transported together will be determined by the applicable transport regulations.

Marking of equipment using signs

Signs for similar appliances used in a work area generally are addressed by local regulations and give the minimum requirements for the provision of safety and/or health signs for a work location. All required signs are to be maintained and employers should ensure that employees receive suitable and sufficient instruction and training on the meaning of appropriate safety signs and the actions that need to betaken in connection with these signs. The effectiveness of signs should not be diminished by too many signs being placed together. Any pictograms used should be as simple as possible and contain only essential details. Disposal of equipment using flammable refrigerants See national regulations.

Storage of equipment/appliances

The storage of equipment should be in accordance with the manufacturer's instructions. Storage of packed (unsold)equipment Storage package protection should be constructed such that mechanical damage to the equipment inside the package will not cause a leak of the refrigerant charge. The maximum number of pieces of equipment permitted to be stored together will be determined by local regulations.

Contenu

Warning sign depicting a flame symbol with hazard symbol inside a triangle

Five black-and-white icons representing documents, an open book with a 'i' symbol, a wrench on an open book, and a crossed-out bar (no text or labels)

QR code with embedded logo and text promoting mobile app download services

Diagram showing a container with a downward arrow and an arrow pointing left, labeled 'downward velocity' and 'upward velocity'.

Simple line drawing of a cabinet or enclosure with an arrow indicating direction and a vertical dimension line (no text or symbols)

Cheville ≥50mm ≥50mm

Fig. 8

Three-panel technical illustration showing mechanical components with no visible text or symbols

Fig. 9

Illustration of a refrigerant air conditioner unit with a piping and antenna, no text or symbols present

Diagram illustrating the installation of a solar panel array using a grid-based sensor, with a server unit and checkmark indicating inspection.

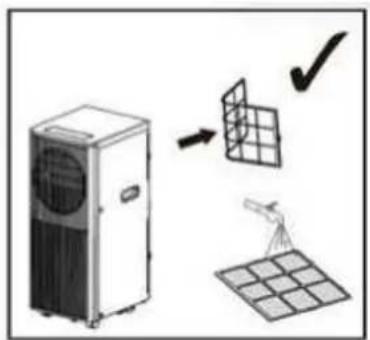

1. Filtre à air

Warning sign depicting a flame symbol in a triangular shape

Five black-and-white icons representing documents, an open book with a 'i' symbol, a wrench on an open book, a crossed-out tool, and a prohibition symbol (no text or labels)

Smart Smart Ltd. iPhone of Wireless Information

20° (50 cm) 20° (50 cm) 20° (50 cm)

Abb. 4

Ecoated volume

Simple line drawing of a cabinet or enclosure with an arrow indicating direction and a vertical dimension line (no text or symbols)

Technical line drawing of a mechanical device with wheels and a coiled component (no text or symbols)

Technical line drawing of a mechanical device with wheels and a coiled component (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Abb. 9

Illustration of a refrigerant air conditioner unit with a piping and antenna, accompanied by a 'X' symbol (no text or labels present)

Diagram illustrating the installation of a solar panel array using a grid-based sensor, with a server unit and checkmark indicating inspection.

1. Luftfilter

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

(Refer to the rating label on the rear of the appliance.)

Five black-and-white icons representing documents, an open book with an information symbol, a wrench, a crossed-out tool, and a prohibition symbol (no text or labels)

QR code with embedded logo and text promoting mobile app access

om de Smart Life-app te downloaden.

20° (50 cm) 20° (50 cm) 20° (50 cm)

Afb. 4

Simple line drawing of a container with an upward arrow and a horizontal dimension line (no text or symbols)

vensterbreedte
min: 67,5cm max: 125cm

Simple line drawing of a door frame with an arrow indicating leftward direction and a vertical dimension line (no text or symbols)

vensterbreedte
min: 67.5cm max: 125cm
Fig. 6 Fig. 7

② Drevel ③ ≥50mm ≥50mm

Fig. 8

Technical line drawing of a mechanical device with wheels and a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with wheels and a coiled cable (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Fig. 9

Illustration of a refrigerant air conditioner unit with exhaust pipe and warning symbol (no text or labels)

Diagram illustrating the installation of a solar panel array via a grid-based sensor, with a server unit and satellite view.

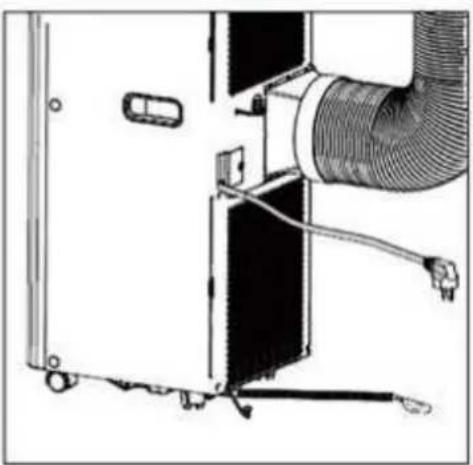

1. 1. Luchtfilter

Warning sign depicting a flame symbol with hazard symbol inside a triangle

Five black-and-white icons representing documents, an open book with an information symbol, a wrench, a bicycle, and a crossed-out tool (no text or labels)

20° (50 cm) 20° (50 cm) 20° (50 cm)

Fig. 4

Simple line drawing of a container with an upward arrow and a horizontal dimension line (no text or symbols)

Simple line drawing of a door with an arrow indicating leftward direction and height dimension (no text or symbols)

ancho de la ventana
min: 67.5cm max: 125cm
Fig. 6 Fig. 7

② Pasador ③ ≥50mm ≥50mm

Fig. 8

Technical line drawing of a mechanical device with wheels and a cylindrical component (no text or symbols)

Technical line drawing of a mechanical device with wheels and a coiled component (no text or symbols)

Technical line drawing of a mechanical or electrical component with no visible text or symbols

Fig. 9

Illustration of a large air conditioner unit with cooling fan and piping, no text or symbols present

Diagram illustrating the installation of a solar panel array, showing a server unit and a satellite dish with a grid overlay.

1. Filtro de aire

Warning sign depicting a flame symbol in a triangular shape, commonly used to indicate hazard or caution.

Five black-and-white icons representing documents, an open book with a 'i' symbol, a wrench on an open book, a crossed-out trash bin, and a prohibition symbol (no text or labels)

We are online to access We create a new We have a personal Pension information.

QR per scaricare l'app Smart Life.

20° (50 cm) 20° (50 cm) 20° (50 cm)

Fig. 4

Simple line drawing of a cabinet or enclosure with an arrow indicating direction and a vertical dimension line (no text or symbols)

Three-panel technical illustration showing mechanical components with no visible text or symbols

Fig. 9

Illustration of a large air conditioner unit with cooling fan and piping, next to an X symbol (no text or labels)

Diagram illustrating the installation of a solar panel array, showing a server unit and a satellite dish with checkmark indicators.

1. Filtro dell'aria

GB This product has been assessed and complies with the applicable EU legislation and essential requirements, including but not limited to:

– Low Voltage Directive (2014/35/EU)
– Electromagnetic Compatibility Directive (2014/30/EU)
– Radio Equipment Directive (2014/53/EU)
- RoHS Directive (2011/65/EU)
– Commission Implementing Regulation (EU) 2023/2854 regarding cybersecurity requirements for radio equipment

The full EU Declaration of Conformity is available at any time upon request from the official EU importer ([e-mail]) or can be downloaded from the manufacturer's website (www.toyotomi.eu). For product-specific downloads, please consult the corresponding product page.

Energy efficiency information for this product is provided on the official EU energy label, which is supplied with the appliance and displayed on the product packaging and at the point of sale, in accordance with applicable EU Energy Labelling regulations.

RESPONSIBLE EU ECONOMIC OPERATOR (IMPORTER):

TOYOTOMI EUROPE SALES B.V.

BINNENVELD 11, 5462 GK, VEGHEL

Tel: [phone]

www.toyotomi.eu

SUBSIDIARIES (DISTRIBUTION & SUPPORT):

OFFICIAL REPRESENTATIVE ITALY

TOYOTOMI ITALIA S.R.L.

VIA T. EDISON, 11

20875 BURAGO DI MOLGORA (MB)

Tel: [phone]

Fax: [phone]

www.toyotomi.eu/it/

This product is made in China.
