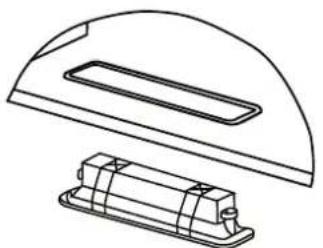

Aktivkohlefilter (Umluftversion)

Line drawing of a mechanical component with no visible text or symbols

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

Line drawing of two hands holding a rectangular object, no text or symbols present

Symbol of a trash bin crossed with a diagonal line, no text or numbers present

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

DATENSCHUTZHINWEIS

make yourself at home

www.midea.com

Simple line drawing of a T-shaped object with no text or symbols

Hotte aspirante

SmartHome

APERÇU DU PRODUIT 06

INSTALLATION DU PRODUIT 08

INSTRUCTIONS D'OPÉRATION 12

CONFIGURATION ET FONCTIONNEMENT DE L'APP 14

NETTOYAGE ET ENTRETIEN 16

DÉPANNAGE 18

MARQUES, DROITS D'AUTEUR ET MENTIONS LÉGALES 19

ÉLIMINATION ET RECYCLAGE 20

AVIS DE PROTECTION DES DONNÉES 21

CONSIGNES DE SÉCURITÉ

Utilisation prévue

Two circular fan diagrams with radial blades, one labeled with number 5 (no text or symbols on the diagrams themselves)

Dimensions

INSTALLATION DU PRODUIT

Two simple line drawings of a flat-screen TV or monitor, no text or symbols present.

Correct Faux

Technical diagram illustrating the process of a mechanical device before and after pressurizing, with labeled components and directional arrow.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

INSTRUCTIONS D'OPÉRATION

Illustration of a hand interacting with a smartphone displaying a simple UI element (no text or symbols present)

Illustration of a smartphone screen with a hand interacting with it, showing a button labeled 'ADD ITEMS' and a finger pointing at the button.

Illustration of a hand interacting with a tablet device (no text or symbols visible)

Line drawing of a mechanical component with a handle and base (no text or symbols)

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

Line drawing of two hands holding a flat object, no text or symbols present

Symbol of a trash bin crossed with no text or labels, accompanied by a blank rectangular block below (no text or symbols present)

Recycling symbol with four arrows forming a triangle (no text or labels)

make yourself at home

www.midea.com

Simple line drawing of a T-shaped object with no text or symbols

Cappa aspirante

SmartHome

Technical diagram showing exploded view of a mechanical assembly with numbered components and labeled parts

Two circular fan diagrams with radial blades, one labeled with number 5 (no text or symbols on the diagrams themselves)

20 12 11 21 10

Dimensioni

Simple line drawing of a blank rectangular frame with no text, numbers, or symbols

Simple line drawing of a rectangular object with a horizontal base and a flat top (no text or symbols)

Destra Sbagliato

Technical diagram illustrating the assembly of a mechanical device before and after SPINGERE, with labeled components and directional arrows.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

ISTRUZIONI OPERATIVE

Illustration of a hand interacting with a smartphone displaying a small icon (no text or symbols present)

Illustration of a smartphone screen with a hand pointing to a button labeled 'OK', showing a UI interface with text fields and a magnified circular detail.

Illustration of a hand pressing down on a device with a downward arrow (no text or symbols)

Line drawing of a mechanical component with hands operating it (no text or symbols)

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

Line drawing of a hand holding a tray or bench (no text or symbols)

Symbol of a trash bin crossed with a diagonal line, no text or labels present

Recycling symbol with three chasing arrows forming a triangle (no text or labels)

make yourself at home

www.midea.com

Simple line drawing of a mechanical component or assembly (no text or symbols)

Cooker Hood

SmartHome

Download the app & activate product

USER MANUAL

MH60J72T6B

MH80J72T6B

MH90J72T6B

THANK YOU LETTER

Thank you for choosing Midea! Before using your new Midea product, please read this manual thoroughly to ensure that you know how to operate the features and functions that your new appliance offers in a safe way.

CONTENTS

THANK YOU LETTER 01

SAFETY INSTRUCTIONS 02

SPECIFICATIONS 05

PRODUCT OVERVIEW 06

PRODUCT INSTALLATION 08

OPERATION INSTRUCTIONS 12

APP SETUP AND OPERATION 14

CLEANING AND MAINTENANCE 16

TROUBLE SHOOTING 18

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

DISPOSAL AND RECYCLING 20

DATA PROTECTION NOTICE 21

SAFETY INSTRUCTIONS

Intended Use

The following safety guidelines are intended to prevent unforeseen risks or damage from unsafe or incorrect operation of the appliance. Please check the packaging and appliance on arrival to make sure everything is intact to ensure safe operation. If you find any damage, please contact the retailer or dealer. Please note modifications or alterations to the appliance are not allowed for your safety concern. Unintended use may cause hazards and loss of warranty claims.

Explanation of Symbols

	DangerThis symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.
	Warning of electrical voltageThis symbol indicates that there is a danger to life and health of persons due to voltage.
	WarningThe signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.
	CautionThe signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.
	AttentionThe signal word indicates important information (e.g. damage to property), but not danger.
	Observe instructionsThis symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

WARNING

• The instructions for Use apply to several versions of this appliance. Accordingly, you may find descriptions of individual features that do not apply to your specific appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. (EN 60335-1 & EN 60335-2-31)
  • Children shall not play with the appliance. (EN 60335-1 & EN 60335-2-31)
• Cleaning and user maintenance shall not be made by children without supervision. (EN 60335-1 & EN 60335-2-31)
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• This appliance incorporates an earth connection for functional purposes only.
• There shall be adequate ventilation of the room when the range hood is used at the same time as appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room) The kitchen must have an opening.
• There is a fire risk if cleaning is not carried out in accordance with the instructions;
• Do not flame under the range hood.
• CAUTION: Accessible parts may become hot when used with cooking appliances.
• The air must not be discharged into a flue that is used for exhausting fumes from appliances burning gas or other fuels (not applicable to appliances that only discharge the air back into the room).
• The minimum distance between the supporting surface for the cooking vessels on the hob and the lowest part of the range hood. (When the range hood is located above a gas appliance, this distance shall be at least 65 cm. If the instructions for installation for the gas hob specify a greater distance, this has to be taken into account. The distance of 65cm can be reduced for
  • non-combustible parts of range hoods, and
• parts operating at safety extra low voltage,
  provided these parts do not give access to live parts if deformed)
• Regulations concerning the discharge of air have to be fulfilled.
• The appliance uses 4 hob elements at most.
• The manufacturer will not be held liable for any damages resulting from incorrect or improper installation.
• Check that the mains voltage corresponds to that indicated on the rating plate fixed to the hood.
• For Class I appliances, check that the domestic power supply guarantees adequate earthing.

• Connect the extractor to the exhaust flue through a pipe of minimum diameter 120mm.

• This appliance is for indoor household use only.

• To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid.
• Please unplug before cleaning and maintenance the appliance.
• Use a soft cloth moisten with mild soap, and then use a dry cloth to wipe it again.
• The route of the flue must be as short as possible.

CAUTION

• If the instructions for installation for the gas hob specify a greater distance specified above, this has to be taken into account.
• The extractor hood has been designed exclusively for domestic use to eliminate kitchen smells.
• Never use the hood for purposes other than for which it has been designed.
• Never leave high naked flames under the hood when it is in operation.
• Adjust the flame intensity to direct it onto the bottom of the pan only, making sure that it does not engulf the sides.
• Deep fat fryers must be continuously monitored during use: overheated oil can burst into flames.
• Regulations concerning the discharge of air have to be fulfilled.
• Extension sockets are forbidden.
• Please cut off the power before maintenance.
• This appliance has been designed for home use only, and may cause danger if used in special occasions.

ATTENTIION

• The cooker hood and its filter should be cleaned regularly according to the instruction.
• Switch off or unplug the appliance from the mains supply before carrying out any maintenance work.
• Clean the hood using a damp cloth and a neutral liquid detergent.
• There is a fire risk if cleaning is not carried out in accordance with the instructions.

SPECIFICATIONS

Product Model	MH60J72T6B/MH80J72T6B/MH90J72T6B
Voltage	220V-240V~/50Hz
Rated Power	82 W
Lighting Power	1 W X 2
Motor Input Power	80 W
Diameter of air tube	150 mm
Air flow	650m^3/h
Noise	≤slant 59 dB(A)

PRODUCT OVERVIEW

Components

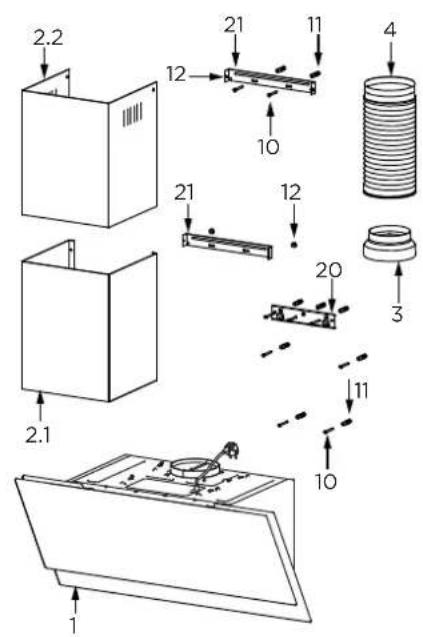

Ref.	Qty.	Product Components
1	1	Hood Body, complete with: Controls, Light, Blower, Filter.

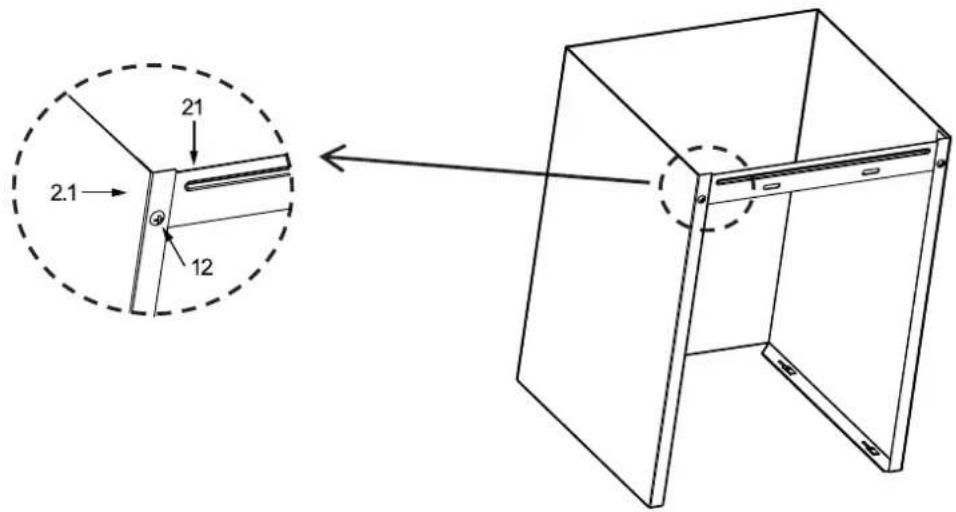

2.1	1	Lower Decorative Chimney (optional)
2.2	1	Upper Decorative Chimney (optional)
3	1	Flange (optional)
4	1	Exhaust Pipe (optional)

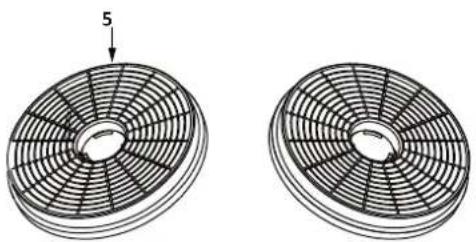

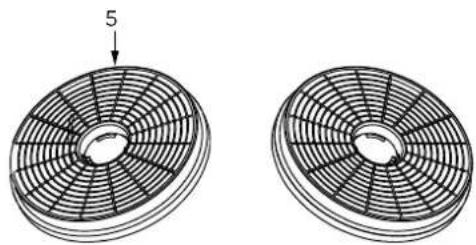

5	2	The Activated Charcoal filter (optional)

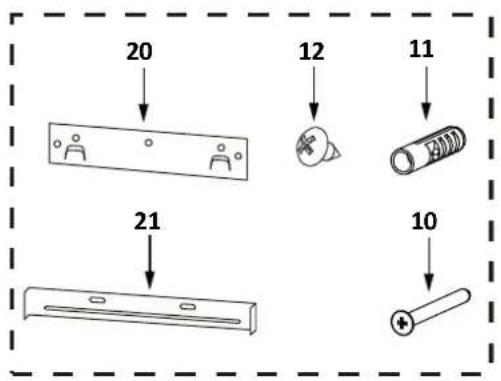

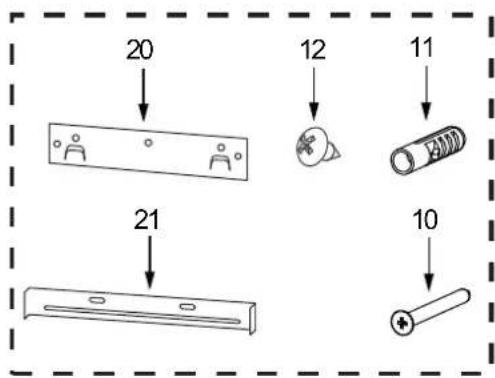

Ref.	Qty.	Optional Installation Components
10	7	Screws 5 x 50
11	7	Wall Plugs
12	6	Screws 4.2 x 9.5
20	1	Hood fixing bracket ( optional )
21 2 Chimney fixing bracket( 0 / 1 optional )

Qty. Documentation

1 Instruction Manual

Technical diagram of a mechanical assembly with numbered components and directional arrows indicating assembly steps.

Two circular fan diagrams with radial blades, one labeled with number 5 (no text or symbols on the diagrams themselves)


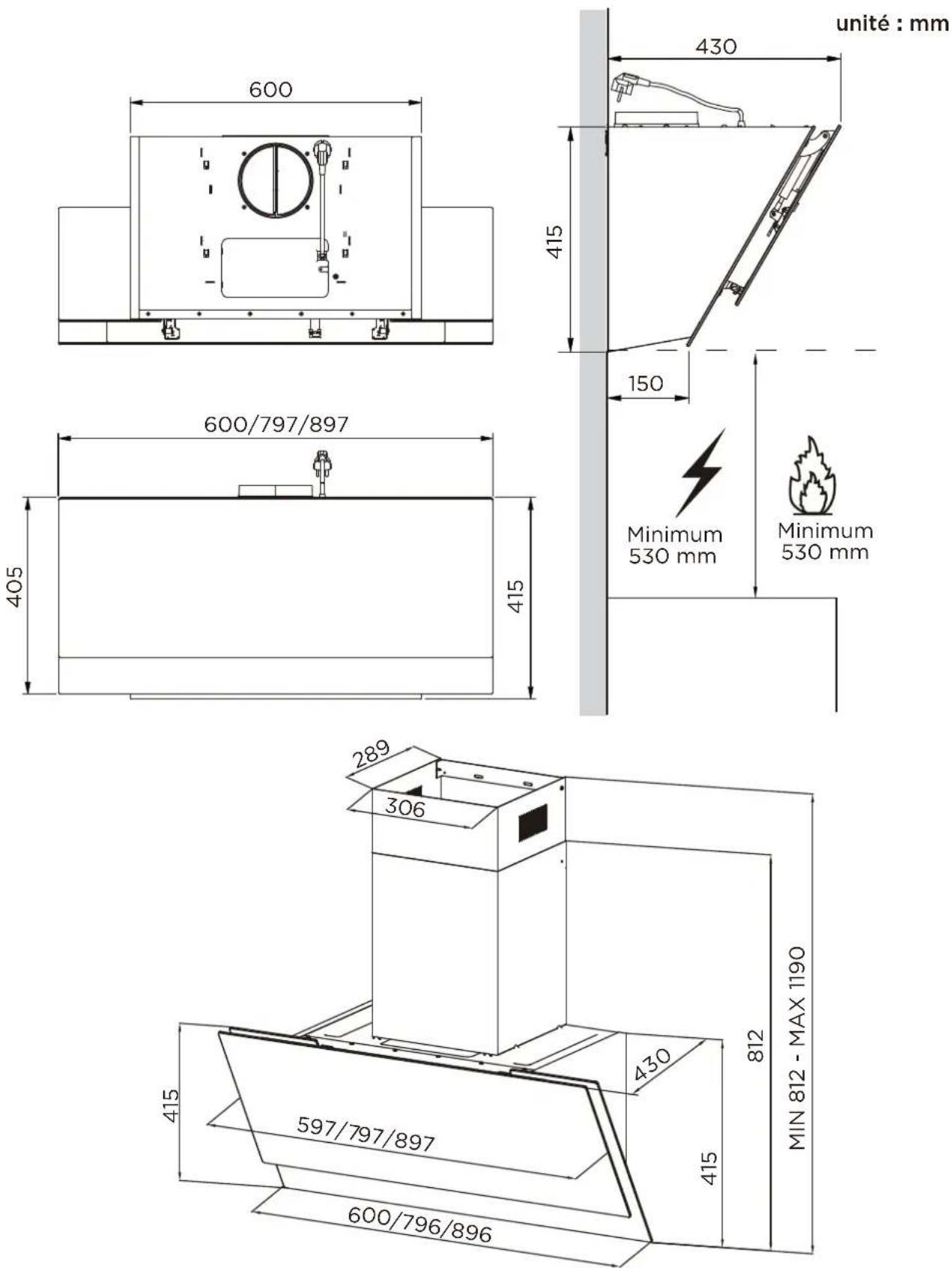

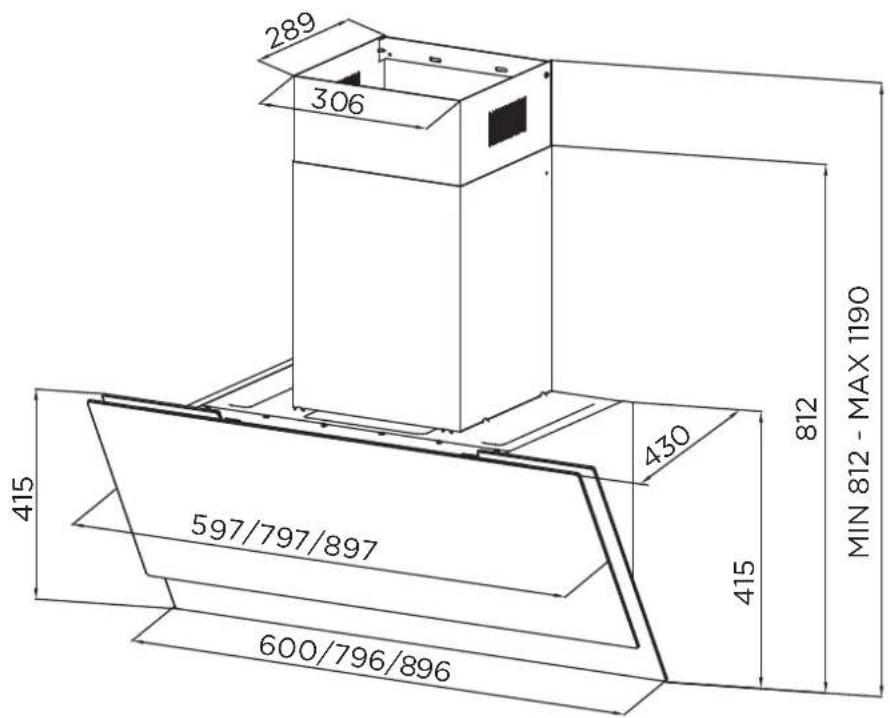

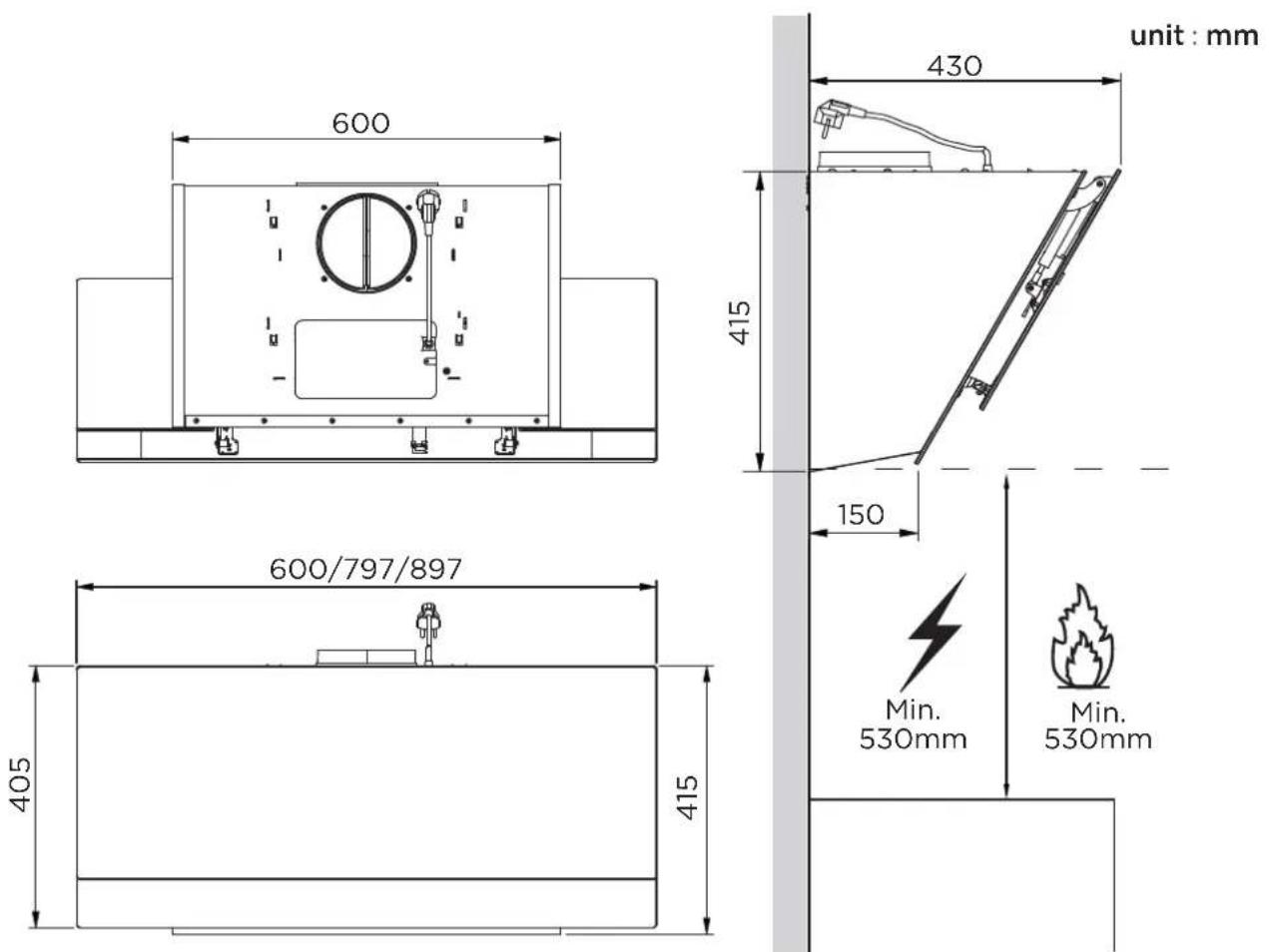

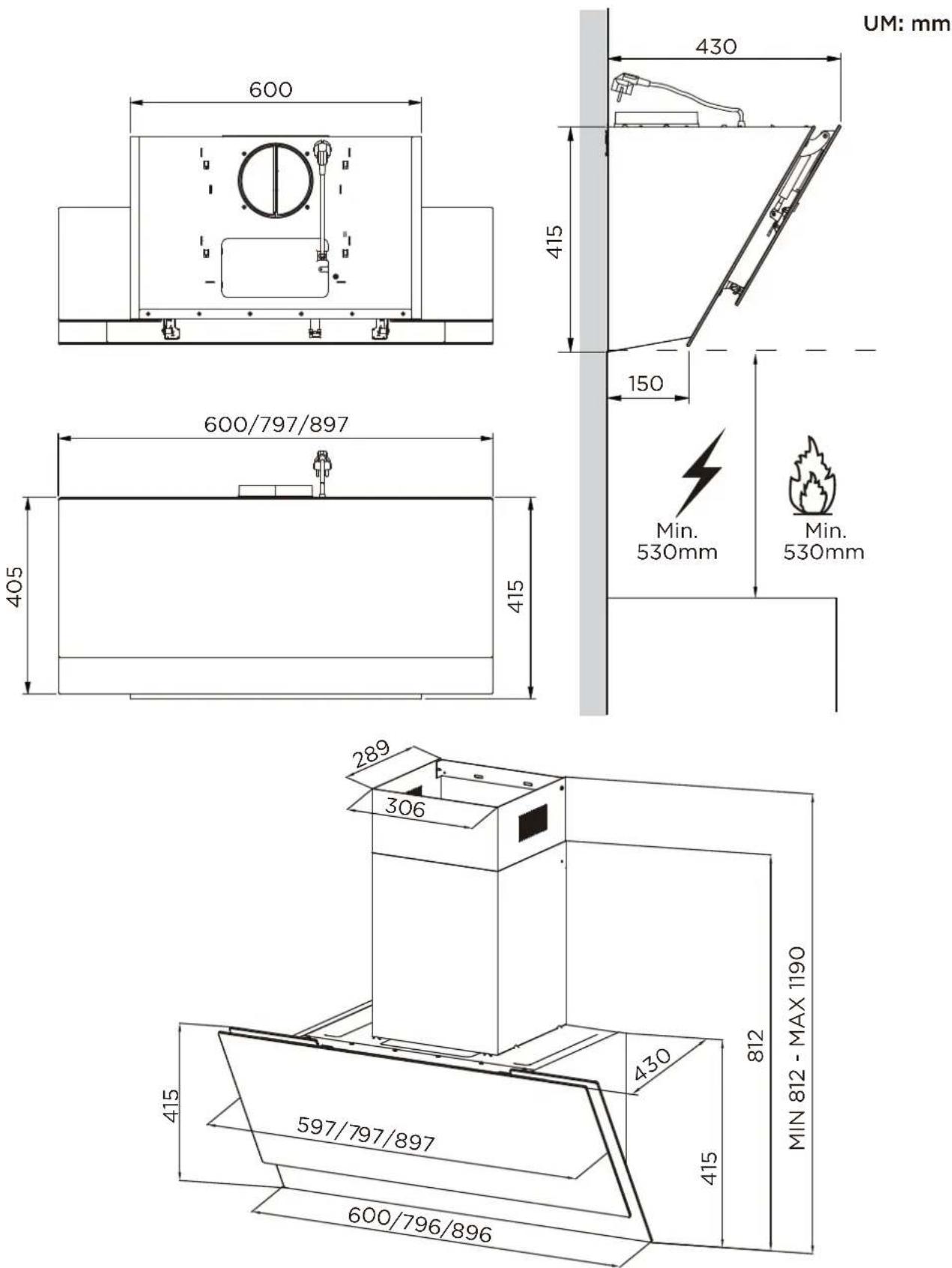

Dimensions

289 306 415 597/797/897 600/796/896 430 415 812 MIN 812 - MAX 1190

PRODUCT INSTALLATION

Wall Drilling And Bracket Fixing

A (1) 60 60 B (2) 80 80 C(OPTIONAL) 250 250 C (3) 130 130 926 730 910 530 1320-1700 10 21 11 12 10 20 11 10 Optional 11 10 11

As a first step, proceed with the following drawings:

• A vertical line up to the ceiling or up to the upper limit, at the center of the area in which the hood is to be fitted.
  • A horizontal line A at 1320 - 1700 mm above the cooker top.
  • A horizontal line B at a minimum 926 mm above the cooker top.
• A horizontal line C at a minimum 730 (910 optional) mm above the cooker top.

Mark Points:

• Mark a point (1) on the horizontal line A, 60 mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are leveled.
• Mark a point (2) on the horizontal line B, 80 mm to the right of the vertical reference line.
• Repeat this operation on the other side and on the vertical reference line, checking that the hree marks are leveled.
• Mark a point (3) on the horizontal line C, 130 (250 optional) mm to the right of the vertical reference line.
• Repeat this operation on the other side, checking that the two marks are on the same horizontal line.

Fix the brackets (Optional):

• Drill at the marked points (1) (2) (3), using a 10 mm drill bit.
• Insert the Wall Plugs 11 into the holes (1) (2) (3).
• Fix the hood fixing bracket 20 with 3 screws 10 (5 x 50) supplied with the hood.
• Fix a Chimney fixing bracket 21 with 2 screws 10 (5 x 50) supplied with the hood.

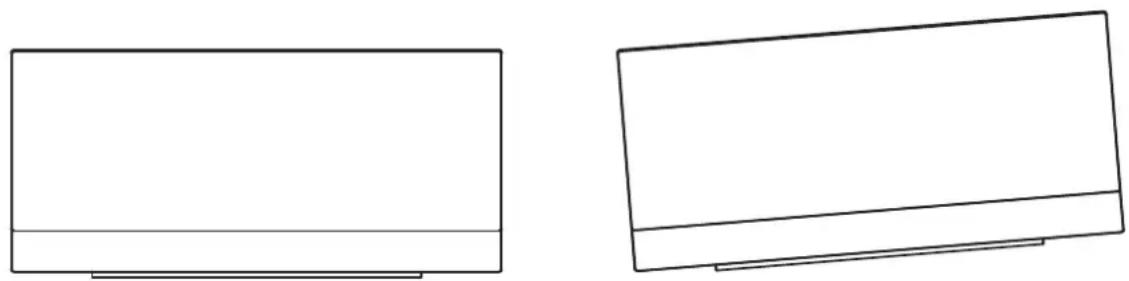

Hook The Hood Body

• Open the panel.
• Remove the Metal grease filter using the handles provided.
• Hook the hood body to the bracket 20.
  • Level the hood body itself.

Two simple line drawings of a flat-screen monitor, one blank and one tilted (no text or symbols)

Right Wrong

• From the inside of the hood body, fix the screws 10 to Wall Plugs 11 at the points (3).
• Fit the filter into the hood.
• Close the panel.

Connections

Ducted Version Air Exhaust System

When installing the ducted version, connect the hood to the chimney using either a flexible or rigid pipe 150 or 120 mm, the choice of which is left to the installer.

• To install a 120 mm air exhaust connection, insert the reducer flange 3 on the hood body outlet.
• Fix the pipe 4 in position using sufficient pipe clamps (not supplied).
• Remove possible charcoal filters.

Φ150 Φ120

CHIMNEY ASSEMBLY

The chimney can only be installed with exhausting hood.

Lower Decorative Chimney

- Fix a Chimney fixing bracket 21 onto the Lower Decorative Chimney with 2 screws 12(4.2 x 9.5) supplied with the hood.

21 2.1 12

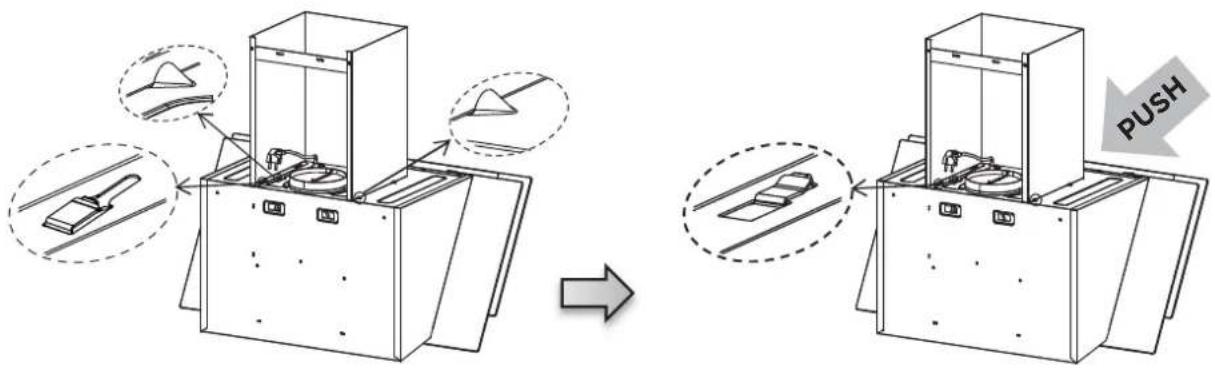

- Slightly widen the two sides of the flue and hook them onto the hood body, making sure that they are well seated.

Technical diagram illustrating a mechanical device before and after assembly, with labeled components and a 'PUSH' arrow indicating the process.

Upper Decorative Chimney

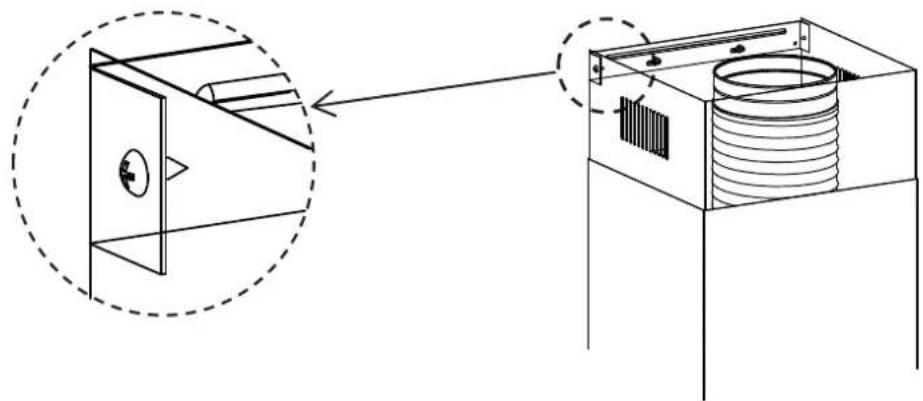

• Slightly widen the two sides of the upper chimney and hook them between the wall and the bracket 21 which is fixed on the Lower Decorative Chimney.
• Fix the upper chimney onto the bracket 21 with 2 screws 12 (4.2 x 9.5) supplied with the hood.

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

OPERATION INSTRUCTIONS

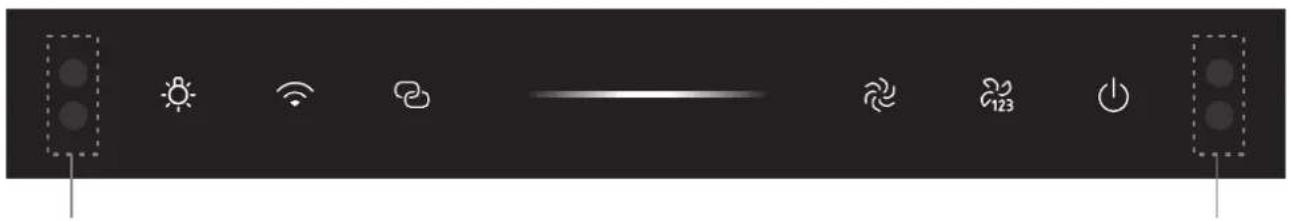

Speed Adjustment. See Below Fig(For Some Models)

Black rectangular bar with white icons representing various functions (sun, Wi-Fi, cloud, speed limit, refresh, power) and two dashed control points at the bottom left (no text or labels)

Gesture control left Gesture control right

Short Press:0.5 s

Long Press:2-3 s

		Short Press:turn on/off the light.Light
	Wireless Network	The button is invalid when the hood is off;)Long press: Turn on the WLAN function,Connecting the indicator light flashes ,Connection successful the indicator light is always on ,Connection failed the indicator light is Semi-bright ;Short press: Turn off the WLAN function.(When WLAN function is on)
	Linkage of hood & stove	Long press: enter the linkage function.Pairing: the indicator light flashes.Pairing is completed: the indicator light is always on.Short Press: close the function.(When the function is on)
	Boost Short	press: Turns the Motor on at Boost.
	Speed1-2-3	1^st Short press: Turns the Motor on at speed 1; 2^nd Short press: Turns the Motor on at speed 2; 3^rd Short press: Turns the Motor on at speed 3.
	Switch	1^st Short press: Start up; 2^nd Short press: Delay 3 mins; 3^rd Short press:Standby 5 mins; 4^th Short press: OFF immediately.
Gesture control	Wave hand from left to right in stand by status to turn on the product. The default speed is the last speed set by user. Default speed is the 03 speed at the first switch on. In running state, waving hand to the left side to enter the delay off state for 3 minutes. Waving hand to the right side to switch speed (01-02-03-0b-01) repeatedly.
Light strip		When the Motor is at speed 1.
		When the Motor is at speed 2.
		When the Motor is at speed 3.
		When the Motor is at speed Boost.

APP SETUP AND OPERATION

Download the SmartHome app

On an app market (Google Play Store, Apple App Store), search for SmartHome* and find the SmartHome app. Download and install it on your phone. You can also download the app by scanning the QR code below.

Register and log in

Open the SmartHome app, and create a new account to start (you can also register through a third-party account). If you already have an existing account, use the account to log in.

Login Enter add Enter password Enter password Login

Connect your devices to SmartHome

1. Please make sure your mobile phone is connected to a wireless network. If it is not, go to Settings and enable wireless networks and Bluetooth.
2. Please power on your devices.
3. Open SmartHome app on your phone.
4. If a message of "Smart devices discovered nearby" appears, click to add.

Illustration of a hand interacting with a smartphone displaying a small icon (no text or symbols present)

1. If no message appears, select "+" on the page and select your device in the list of nearby devices available. If your device is not listed, please add your device manually by the device category and device model.

Add items

1. Connect your device to the wireless network according to instructions on app. If the connection fails, please follow the instructions provided by the app to continue with the operation.

NOTE

1. Make sure your devices are powered on.
2. Keep your mobile phone close enough to your device when you are connecting your device to the network.
3. Connect your mobile phone to the wireless network at home, and make sure you know the password of the wireless network.
4. Check if your wireless router supports 2.4 GHz band and turn it on. If you are not sure whether the router supports 2.4 GHz band, please contact the router manufacturer.
5. The device cannot connect to the wireless network that requires authentication, and it usually appears in public areas such as hotels, restaurants, etc. Please connect to a wireless network that does not require authentication.
6. Turn of the WLAN+ (Android) or WLAN Assistant (iOS) function of your mobile phone when connecting your device to the network.
7. In the case that your device connected to a wireless network before but it needs to reconnect, please click "+" on the app Home page, and add your device again by the device category and model according to the instructions on app.

CLEANING AND MAINTENANCE

Grease Filters

CLEANING METAL SELF-SUPPORTING GREASE FILTERS

• The filters must be cleaned every 2 months of operation, or more frequently for particularly heavy usage, and can be washed in a dishwasher.
• Pull the comfort panels to open them.

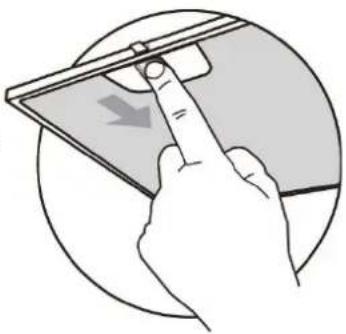

• Remove the filters one by one pushing them towards the back side of the hood unit and simultaneously pulling downwards.
• Any kind of bending of the filters has to be avoided when washing them. Before fitting them again into the hood make sure that they are completely dry. (The color of the filter surface may change throughout the time but this has no influence to the filter efficiency).
• When fitting the filters into the hood pay attention that they are mounted in correct position the handle facing outwards.
• Close the comfort panel.

Hand holding a tablet device with a finger pointing at it, enclosed in a circular frame (no text or symbols visible)

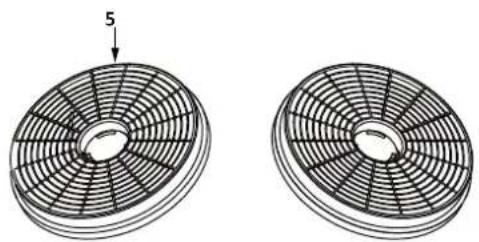

Activated Charcoal Filter (Recirculation Version)

• These filters are not washable and cannot be regenerated, and must be replaced approximately every 4 months of operation, or more frequently with heavy usage.

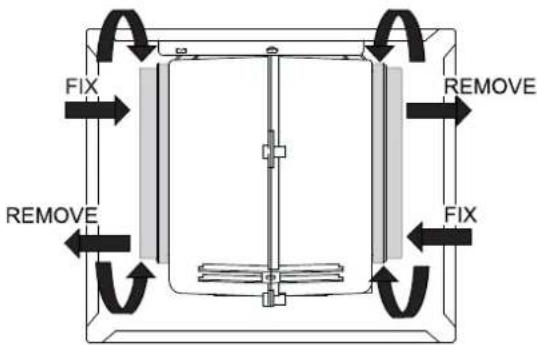

Replacing The Activated Charcoal Filter

• Open the comfort panels pulling them downwards.
• Remove the metal grease filters.
• Remove the saturated activated charcoal filter.
  • Fit the new filters.
• Replace the metal grease filters.
• Close the comfort panel.

FIX REMOVE REMOVE FIX

Lighting

LIGHT REPLACEMENT

• Switch off the extractor hood and isolate the extractor hood by pulling out the mains plug or switching off the fuse.
• Remove the grease filter.

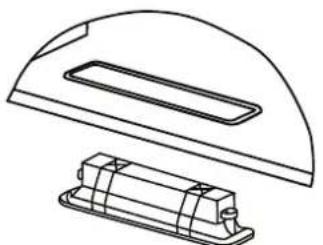

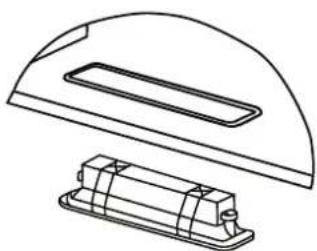

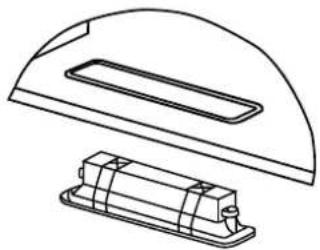

• Remove the light by levering its fitting from the hood body(this may require pressure or force to be applied).

	Max Power	Voltage Picture	Lamp Cap ILCOS D code
LED modules separate ballast	1W	DC 12 V	Square/Diameter:33.2mmx120mm	--	DSS-1-S-33.2/120

Line drawing of a mechanical component with hands operating it (no text or symbols)

Technical line drawing of a mechanical component with a curved top and rectangular base (no text or symbols)

• Disconnect the connector of the light.
• Replace the light with a new one of the same type, making sure that you connect the light with the light cable correctly.
• Reinstall the light back to the hood body.

Line drawing of a hand holding a rectangular object with a curved handle (no text or symbols)

TROUBLESHOOTING

	Possible reason SolutionProblem
Light on, but motor does not work	The blades are blocked.	Check the blades
	The capacitor is damaged.	Replace capacitor.
	The motor is damaged.	Replace motor.
	The internal wiring of motor is cut off/disconnected. An unpleasant smell may be produced.	Replace motor.
Both light andmotor do notwork	Apart from the above mentioned, check the following:
	Light damaged. Replace lights.
	Power cord loose. Connect the wires as the electric diagram.
Oil leakage	Outlet and the air ventilation entrance are not tightly sealed.	Take down the outlet and seal with glue.
Vibration	The blade, if damaged, can cause vibrating.	Replace the blade.
	The motor is not tightly fastened.	Fasten the motor tightly.
	The cooker hood is not tightly fixed.	Fixed the cooker hood tightly.
Insufficient suction	The distance between the cooker hood and the cooker top is too large.	Readjust the distance.
	Too much ventilation from open doors or windows.	Choose a new place to install the appliance or close some doors / windows.
The machine inclines	The fixing screws are not tight enough.	Tighten the fixing screw and make it horizontal.
	The hanging screws are not tightenough	Tighten the hanging screw and make it horizontal.

TRADEMARKS, COPYRIGHTS AND LEGAL STATEMENT

Midea logo, word marks, trade name, trade dress and all versions thereof are valuable assets of Midea Group and/or its affiliates (“Midea”), to which Midea owns trademarks, copyrights and other intellectual property rights, and all goodwill derived from using any part of an Midea trademark. Use of Midea trademark for commercial purposes without the prior written consent of Midea may constitute trademark infringement or unfair competition in violation of relevant laws.

This manual is created by Midea and Midea reserves all copyrights thereof. No entity or individual may use, duplicate, modify, distribute in whole or in part this manual, or bundle or sell with other products without the prior written consent of Midea.

All the described functions and instructions were up to date at the time of printing this manual. However, the actual product may vary due to improved functions and designs.

DISPOSAL AND RECYCLING

Important instructions for environment

Compliance with the WEEE Directive and Disposing of the Waster Product: This product complies with EU WEEE Directive (2012/19/EU). This product bears a classification symbol for waster electrical and electronic equipment (WEEE).

This symbol indicates that this product shall not be disposed with other household wastes at the end of its service life. Used device must be returned to official collection point for recycling of electrical electronic devices. To find these collection systems please contact to your local authorities or retailer where the product was purchased. Each household performs important role in recovering and recycling of old appliance. Appropriate disposal of used appliance helps prevent potential negative consequences for the environment and human health.

Symbol of a trash bin crossed with no text or labels, accompanied by a black rectangular block below (no text or symbols present)

Compliance with RoHS Directive

The product you have purchased complies with EU RoHS Directive (2011/65/EU). It does not contain harmful and prohibited materials specified in the Directive.

Package information

Packaging materials of the product are manufactured from recyclable materials in accordance with our National Environment Regulations. Do not dispose of the packaging materials together with the domestic or other wastes. Take them to the packaging material collection points designated by the local authorities.

Recycling symbol with four arrows forming a triangle (no text or labels)

DATA PROTECTION NOTICE

For the provision of the services agreed with the customer,

we agree to comply without restriction with all stipulations of applicable data protection law, in line with agreed countries within which services to the customer will be delivered, as well as, where applicable, the EU General Data Protection Regulation (GDPR).

Generally, our data processing is to fulfil our obligation under contract with you and for product safety reasons, to safeguard your rights in connection with warranty and product registration questions. In some cases, but only if appropriate data protection is ensured, personal data might be transferred to recipients located outside of the European Economic Area.

Further information are provided on request. You can contact our Data Protection Officer via [e-mail]. To exercise your rights such as right to object your personal date being processed for direct marketing purposes, please contact us via [e-mail]. To find further information, please follow the QR Code.

PRODUCT FICHE FOR DOMESTIC RANGE HOOD

According to Delegated Regulation (EU) No. 65/2014

Supplier's name or trade mark	Midea
Model name / identifier	MH60J72T6B/MH80J72T6B/MH90J72T6B
Annual Energy Consumption (AEChood)	15,1 kWh/year
Energy Efficiency class (A+++ to D)	A++
Fluid Dynamic Efficiency (FDE _hood )	37,6
Fluid Dynamic Efficiency class (A to G)	A
Lighting Efficiency (LE _hood )	38 Lux / Watt
Lighting Efficiency class (A to G)	A
Grease Filtering Efficiency	69 %
Grease Filtering Efficiency class (A to G)	D
Air flow in normal use(min. speed):	220 m ^3 /h
Air flow in normal use(max. speed):	470 m ^3 /h
Air flow (intensive or boost setting): Exterior	650 m ^3 /h
Airborne acoustical A-weighted sound power emissions (min. speed)	45 dB
Airborne acoustical A-weighted sound power emissions (max. speed)	59 dB
Airborne acoustical A-weighted sound power emissions (intensive or boost setting)	66 dB
Power consumption in off mode (Po)	N/A
Power consumption in standby mode (Ps)	1,9 W

NOTE: The BEP Best Efficiency Point test in boost setting needs to press the combination key ""power key + lighting key"" for at least 3 seconds to enter the test mode. The BEP test was conducted without a back flow preventer plate.

Midea

make yourself at home

www.midea.com
