USER MANUAL ProVenturix S90 Sievert
Pro Venturix - Regulator
Operating Instructions 1
Safety Instructions / Declaration 5-7
Designed in Sweden Manufactured in Estonia
54705_1
Getting started / Komma igäng / Starter / Kom godt i gang / Päästä alkuun / Inbetriebnahme / Beginnen / Commencer
Technical Data
| Pro Venturix C60 Burner 496000 | |
| Burner Diameter, mm Ø 60 mm | |
| Number of Core Flames 4 | |
| Gas Consumption, g/h at 3,7 Bar 980 g/h | |
| Effect, kW 12,6 kW | |
| Noise, dB 82 dB |
| Pro Venturix D60 Burner 356002 | |
| Burner Diameter, mm Ø 60 mm | |
| Number of Core Flames 4 | |
| Gas Consumption, g/h at 3,7 Bar 980 g/h | |
| Effect, kW 12,6 kW | |
| Noise, dB 82 | |
| Fixed Titanium Neck Tube Yes |
| Pro Venturix S130 Burner 696000 | |
| Burner Width, mm 130 mm | |
| Burner Height, mm 22 mm | |
| Number of Core Flames 6 | |
| Gas Consumption, g/h at 3,7 Bar 1100 g/h | |
| Effect, kW 14,2 kW | |
| Noise, dB 80 dB |
| Pro Venturix S90 Burner 696090 | |
| Burner Width, mm 90 mm | |
| Burner Height, mm 22 mm | |
| Number of Core Flames 4 | |
| Gas Consumption, g/h at 3,7 Bar 650 g/h | |
| Effect, kW | 8,3 kW |
| Noise, dB 80 dB | |
| Pro Venturix Handle 348876 | |
| Handle Connection BSP 3/8” LH | |
| Burner Connection M20x1 | |
| Working Pressure, Bar 1,5 - 4 Bar | |
| Preset Pilot Flame Yes |
| Pro Venturix Regulator 309223 | |
| Pressure Regulation Device Connection POL / BSP 3/8" LH | |
| Pressure Regulation Device Bar Pressure, Bar 3,7 bar | |
| Pressure Regulation Device Maximum Capacity, kg/h 12 kg/h | |
| Hose Failure Valve Included Yes |
Read the operating instructions carefully before using the tool and always observe the safety rules.
Warning
Non-observance of the safety rules while working with this tool may cause fire, explosion, or burns. Exercise care when using the tool in the proximity of combustible materials. Do not use the tool in an explosive atmosphere. Heat may be conducted to combustible materials that are out of sight. Do not leave the tool unattended when in operation. Use national working guidelines regarding safe work environment with open flame / propane torches.
Beware of toxic gases and ignition hazards
Toxic gases may occur when working on plastics, paints varnishes or similar materials. Avoid breathing in vapours, even when they appear to be harmless. Be aware of fire and ignition hazards.
Caution
For your own safety, only use the accessories and attachments that are shown in the operating instructions or recommended or specified by the manufacturer. Using attachments or accessories other than those recommended in the operating instructions or catalogue may result in personal injury. This tool should not be used by children or others who lack the appropriate knowledge or training.
Disposal
Dispose this product in accordance with national regulation.
Connection of regulator / hose-failure valve to gas cylinder
Connect the inlet thread [cylinder connection] to a suitable gas cylinder and the outlet thread [hose connection] direct to the hose nut connection or by a hose-failure valve. All connections have a left-handed thread (notch in nut) and must be tightened with a suitable spanner.
Leakage check

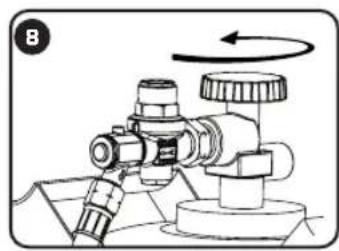

Check for leakage every time when connected to the gas cylinder. Close the control knob of any connected appliance. Open the gas cylinder valve slowly and brush or spray the connections with leakspray or a soapy solution (detergent + water or the like). Look for leaks which will occur as bubbles. If bubbles occur, close the gas cylinder valve and check that all washers are undamaged and in place. Also check tightness of connections. If this does not help, contact your authorised dealer. NOTE! Never search for a leak with an open flame. No smoking!
Hose-failure valves
A hose-failure valve automatically shuts off the gas in the event of hose fracture, major leakage or if gas withdrawal from the cylinder is too high. Use of a hose-failure valve gives a considerably added safety against accidents. If the hose-failure valve has closed, the cylinder valve must be closed and eventual damage repaired. To re-set the valve, open the gas cylinder valve and depress the re-set button on the hose-failure valve. Using a too long gas hose may impair the function of the hose-failure valve. Maximum length of hose with an interior diameter of 5mm (3/16") is 8 metres (26 feet) and with a hose with a interior diameter of 8mm (5/16") is 16 metres (52 feet).
Lighting, regulating and extinguishing
The size of the flame is regulated with the regulating knob. When the knob is opened, the air present in the hose will escape first so that it will take a few seconds before the burner can be lit, particularly in the case of the smaller burners. Extinguishing by closing the regulating knob. In the event of a burn-back shut off the torch and re-ignite. Make sure that the area of work is well ventilated when use of the appliances. Important for performance and safety!
General Safety
Shut-off of gas supply is always made by closing the cylinder valve.
Never use a regulator or hose-failure valve as a handle to lift the gas cylinder. This might damage the valve and make it non-functional.
Always change or fit the gas cartridge or cylinder in a safe place, only outside, away from any source of ignition such as naked flames, pilot lights, electric fires and away from other people.
If you have to check the gas soundness of the appliance, do this outdoors.
Do not check for leaks with a naked flame. Use soapy water only.
If there has been a leakage you have to be extra careful and evacuate the gas by ventilation.
Note that LP Gas is heavier than air, therefore it can easily accumulate in trenches or below ground level. Never try to repair or modify a defective regulator yourself.
Always keep the gas cylinder standing up. Follow instruction provided on the gas cylinder and have the Safety Datasheet available.
Never leave the appliance unattended when lit.
General advice and care

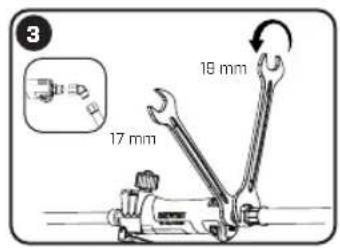

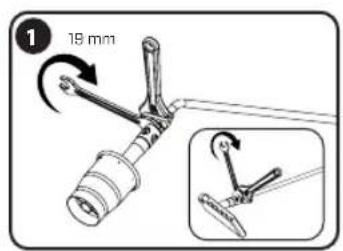

Always use two spanners when assembling the burner system [see page 2].
Check the burner system for leakage before each use.
Clean the burner nozzle, burner head and cover after each use. Cleaning should be done with brass brush or steel brush while the burner is still hot. When cleaning always use protective equipment.
Sharp objects or excessive force risk damaging the tool.
Use of pilot flame should only take place for a limited time.
The burner must not be altered or modified in any way.
The burner system must always be used with the associated Sievert regulator.

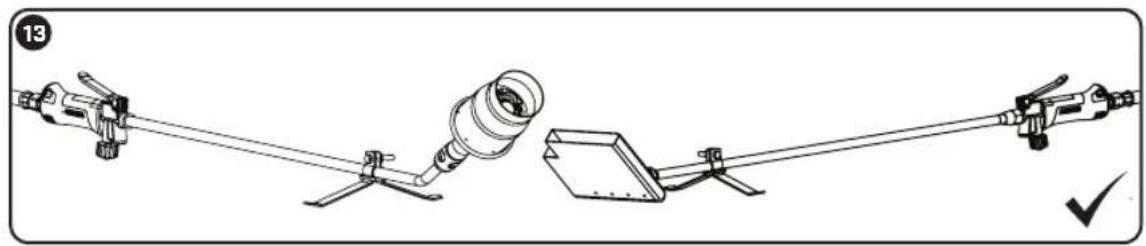

Neck tube support must always be mounted during use.
Warning US customers only
This product can expose you to chemicals including lead, which is known to the State of California to cause cancer and birth defects or reproductive harm. For more information go to www.P65Warnings.ca.gov.
Wash hands after using.
CE Declaration
Sievert AB, P.O. Box 1366, 171 26 Solna - Sweden, manufacturer of this product, declares it complies with the requirements of the following Standards:
Standard
Description
Edition
EN ISO 9012:2023 Gas Welding Equipment 2023
EN 15202:2019 LPG Equipment and accessories 2019
EN 16129:2013 Pressure regulators, maximum regulated pressure 4 bar 2013
EN 16436-1 Class 3 Rubber hoses and assemblies for use with propane 2014A3:2020
Product Manager
Sievert AB
R&D Manager
Sievert AB
Designed in Sweden
Manufactured in Estonia
Warranty
Sievert provides a warranty of twelve months/one year from the date of purchase as evidenced by invoice or delivery document. Any damage that has occurred shall be dealt with, at Sievert's sole discretion, by repair or replacement of the product or defective parts. Any other claims in particular those for indirect damage or consequential losses are excluded, subject always to mandatory statutory regulations. Damage caused by normal wear and tear, improper handling contrary to the user manual and insufficient maintenance is excluded. This also applies where the product has been altered or changed by the purchaser. Warranty claims will only be accepted if the product is returned to an authorised Sievert Dealer complete and properly packaged and accompanied by a copy of the invoice or sales receipt or delivery document.
SBF 2023:1 Declaration
| a) Models | The burner system components according to SBF 2023:1 norm: 356002 / 496000 / 696000 / 696090 - Pro Venturix burners 348876 - Pro Venturix Handle 309223 - Regulator including hose failure valve 717241 - Neck tube support |
| b) Maximum working pressure 3,7 bar | |
| c) Maximum effect 8,3 - 14,2 kW |
f) Manufacturer: Sievert AB, P.O. Box 1366, 171 26 Solna - Sweden
g) Sievert AB declares that this product is manufactured according to the following norm:
Norm
Description
SBF 2023:1 Technical specification for propane burners with enclosed flame Section 4 and 5 for bituminous waterproofing on roofs
h] Issuers
Jesper Kristensson CEO
Mathias Karlsson
R&D Manager
Edison Youail Product Manager
2022-09-29 Solna, Sweden
