USER MANUAL RTPSJ644DCWIFI ROSIERES

Instruction Manual For Induction Hob

ENGLISH

Table De Cuisson Induction

FRENCH

Pure electrical circuit lines without any symbols

RTPSJ644DCWIFI

Thank you for purchasing the Rosieres induction hob. Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

By placing the CE CE marking on this product, we declare, on our own responsibility, compliance to all the European safety, health and environmental requirements stated in the legislation for this product. As applicable, the parts of this appliance are compliant to:

REGULATION (EC) No 1935/2004 on materials and articles intended to come into contact with food.

Safety Reminding and Maintenance:

- WARNING: The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements.

• Children under 8 Year of age must be kept away from the appliance unless they are continuously supervised.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the

- appliance in a safe way and understand the hazards involved. Children must not play with the appliance.

- Cleaning and user maintenance shall not be made by children without supervision

- WARNING: Unattended cooking on a hob with fat or oil can be dangerous and may result in fire.

- NEVER try to extinguish a fire with water, but switch off the appliance and then cover flame e.g. with a lid or a fire blanket.

- WARNING: Danger of fire: do not store items on the cooking surfaces.

• WARNING: If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.
• Do not use a steam cleaner for cleaning operations
• Metallic objects such as knives, forks, spoons and sauce pan lids must not be placed on the hob surface as they can get hot. Any spillage should be removed from the lid before opening.
• The hob surface must be allowed to cool down before closing the lid.
  • After use, switch off the hob element by its control. Do not rely on the pan detector.
• This appliance is not intended to be operated by means of an external timer or separate remote - control system.
• The means for disconnection must be incorporated in the fixed wiring in accordance with the wiring rules.
• The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer's service agent or similarly qualified persons in order to avoid a hazard.
• CAUTION: In order to avoid a hazard due to inadvertent resetting of the thermal cutout, this appliance must not be supplied through an external switching device, such as a timer, or connected to a circuit that is regularly switched on and off by the utility.

WARNING: Use oly hob guards designed by manufacturer of the cooking appliance or indicated by the manufacturer of the appliance in the instructions for use as suitable or hob guards incorporated in the appliance. The use of inappropriate guards can cause accidents.

• Always use the appropriate cookware.
• Always place the pan in the center of the unit that you are cooking on.

- Do not place anything on control panel.

- Do not use the surface as a cutting board.

- The means for disconnection must be incorporated in the fi ed wiring in accordance with the wiring rules.- The instructions state the type of cord to be used, taking into account the temperature of the rear surface of the applicance.

- The hob surface must be allowed to cool down before closing the lid.- CAUTION: the cooking process must be supervised. A short term cooking process has to be supervised continuously

Dear Customer:

Thank you for purchasing the Rosieres induction hob. We hope it will give many years of good service.

Please read this instruction manual carefully before using the hob and keep it in a safe place for future reference.

Product Introduction

The induction hob caters for all kind of cooking, with its electromagnetic cooking zones, and its micro-computerised controls and multi-functions, making it the ideal choice for today's family.

Manufactured with specially imported materials, the Rosieres induction hob is extremely user-friendly, durable and safe.

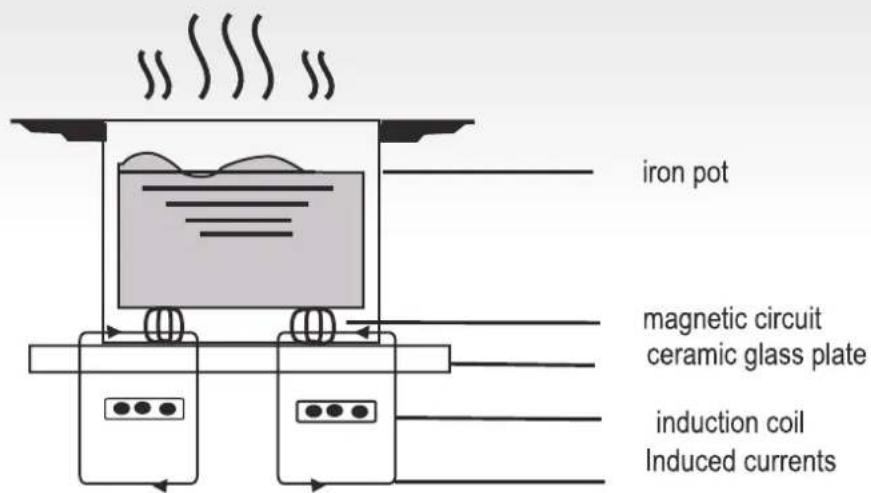

Working Principle

The induction hob comprises a coil, a hotplate made of ferromagnetic material and a control system. Electrical current generates a powerful magnetic field through the coil. This produces a large number of vortices which in turn generate heat which is then transmitted through the cookingzone to the cooking vessel.

iron pot magnetic circuit ceramic glass plate induction coil Induced currents

Safety

This hob was specially designed for domestic use.

In its constant search to improve its products, Rosieres reserves the right to modify any technical, programme or aesthetic aspects of the appliance at any time.

● Protection from over-heating

A sensor monitors the temperature in the cooking zones. When the temperature exceeds a safe level, the cooking zone is automatically switched off.

- Detection of small or non-magnetic items

When a pan with a diameter of less than 80 mm, or some other small item (e.g. knife, fork, key) or a non-magnetic pan (e.g. aluminium) has been left on the hob, a buzzer sounds for approximately one minute, after which the hob goes automatically on to standby.

- Residual heat warning

When the hob has been operating for some time, there will be some residual heat. The letter "H" appears to warn you to keep away from it.

Auto shutdown

Another safety feature of the induction hob is auto shutdown. This occurs whenever you forget to switch off a cooking zone. The default shutdown times are shown in the table below:

Power level	The heating zone shut down automatically after
1~3	8 hours
4~6	4 hours
7~9	2 hours

When the pan is removed from the cooking zone, it stops heating immediately and switches itself off after the buzzer has sounded for one minute.

Warning: Anyone who has been fitted with a heart pacemaker should consult a doctor before using the induction hotplate.

Installation

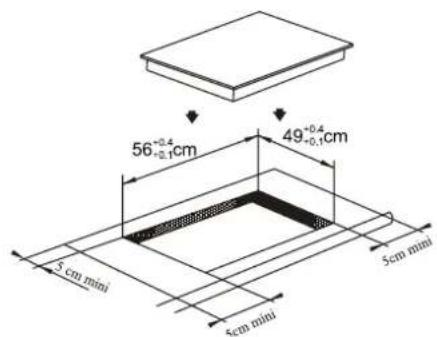

1. Cut a hole in the worktop of the dimension shown in the diagram below. A minimum of 50 mm space should be left around the hole. The worktop should be at least 30 mm thick and made of heat-resistant material. As shown in Figure (1)

1. It is essential that the induction hob is well ventilated and that the air intake and exit are not blocked.

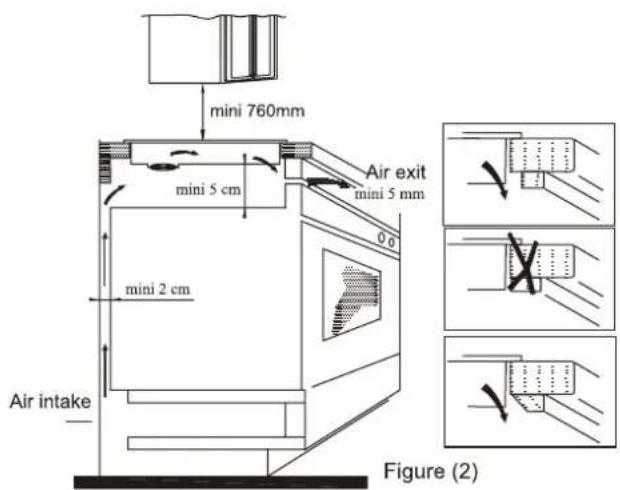

Make sure the hob is correctly installed as shown in Figure 2.

Figure (2)

NB: For safety, the gap between the hob and any cupboard above it should be at least 760 mm.

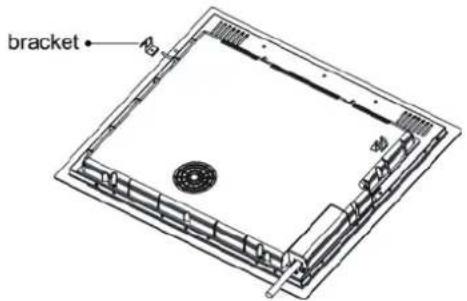

1. Fix the hob to the worktop using the four brackets on the base of the hob. The position of the brackets can be adjusted according to the thickness of the top.

bracket A₁

Warnings:

(1) The induction hob must be installed by a properly qualified person. We have our own qualified installers. Never try to install the appliance yourself.
(2) The induction hob must not be installed above refrigerators, freezers, dishwashers or tumble dryers.
(3) The induction hob should be installed so that optimum radiation of heat is possible.
(4) The wall and the area above the hob should be able to withstand heat.
(5) To avoid any damage, the sandwich layer and adhesive should be heat-resistant.

4. Connection to power supply

The socket should be connected in compliance with the relevant standard, to a single-pole circuit breaker. The method of connection is shown in Figure 3.

Voltage	Wire connection
380-415V 3N~			[HZW]
	Black Brown	Blue	Yellow/Green
220-240V~			[3507]
	Black & Brown	Blue	Yellow/Green

Figure (3)

If the cable is damaged or needs replacing, this should be done by an after-sales technician using the proper tools, so as to avoid any accidents.

If the appliance is being connected directly to the mains supply, an omnipolar circuit breaker must be installed with a minimum gap of 3 mm between the contacts.

The installer must ensure that the correct electrical connection has been made and that it complies with safety regulations.

The cable must not be bent or compressed.

The cable must be checked regularly and only replaced by a properly qualified person.

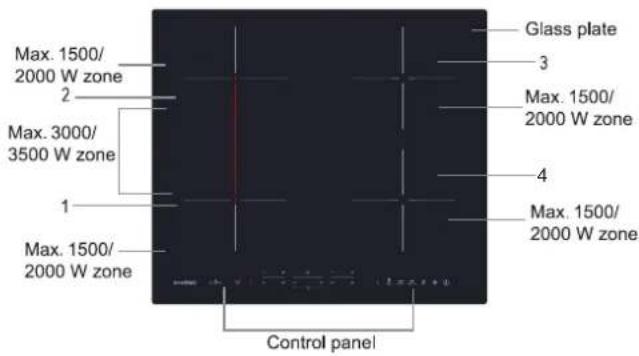

Diagram of induction hob:

Max. 1500/ 2000 W zone 2 Max. 3000/ 3500 W zone 1 Max. 1500/ 2000 W zone Glass plate 3 Max. 1500/ 2000 W zone 4 Max. 1500/ 2000 W zone Control panel

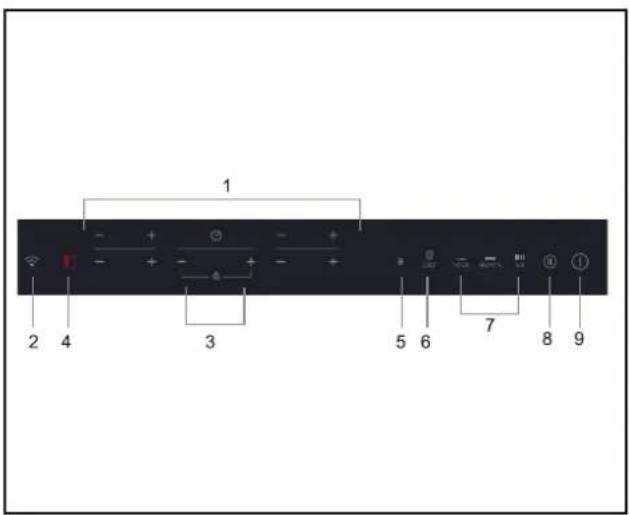

Schematic diagram of the control panel

1 2 4 3 5 6 7 8 9

1. Heating zone power controls
2. WIFI control
3. Timer control / Keylock control
4. Flexible Area control
5. Booster control
6. Chef Function control
7. Special function control
8. Pause control
9. ON/OFF control

Operation of Product

Touch Controls

•The controls respond to touch, so you don't need to apply any pressure.
- Use the ball of your finger, not its tip.
- You will hear a beep each time a touch is registered.
- Make sure the controls are always clean, dry, and that there is no object (e.g. a utensil or a cloth) covering them. Even a thin film of water may make the controls difficult to operate.

Diagram showing two hand gesture options: checkmark and cross, likely for correct or incorrect task instructions.

How to use

1. Touch the ON/OFF control for three seconds. After power on, the buzzer beeps once, all displays show “—” or “——”, indicating that the induction hob has entered the state of standby mode.

Line drawing of a hand pressing a button (no text or symbols)

1. Place a suitable pan on the cooking zone that you wish to use.

• Make sure the bottom of the pan and the surface of the cooking zone are clean and dry.

Line drawing of a cooking pot on a stand (no text or symbols)

1. Select a heat setting by touching the “-” or “+” control.

2. If you don't choose a heat setting within 1 minute, the Induction hob will automatically switch off. You will need to start again at step 1.

3. You can modify the heat setting at any time during cooking.

- 8 + ⊖ 1 +

If the display flashes ≥ U ≤ alternately with the heat setting

This means that:

• you have not placed a pan on the correct cooking zone or,
• the pan you're using is not suitable for induction cooking or,
• the pan is too small or not properly centered on the cooking zone.

No heating takes place unless there is a suitable pan on the cooking zone.

The display will automatically turn off after 1 minute if no suitable pan is placed on it.

Double zones

In this zone can be used a cookware with the diameter between 160mm and 290mm in order to have more flexibility on the zone."

FLEXIBLE AREA

• This area can be used as a single zone or as two different zones, accordingly to the cooking needs anytime.
• Free area is made of two independent inductors that can be controlled separately.

As big zone

1. To activate the free area as a single big zone, Touching the Flexible Area control.

- 8 + ----- ■] - +

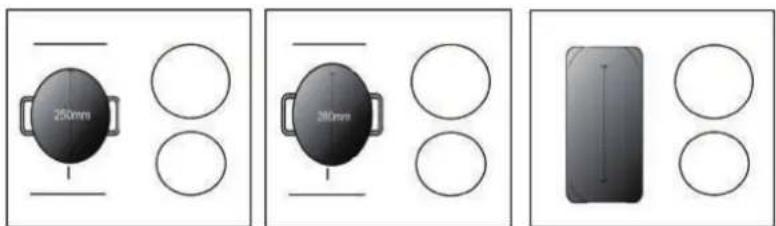

1. As a big zone, we suggest the used as the follow: Cookware: 250mm or 280mm diameter cookware (Square or Oval cookware are acceptable)

250mm 300mm

We don't recommend other operations except for above mentioned three operations because it might effect the heating of appliance

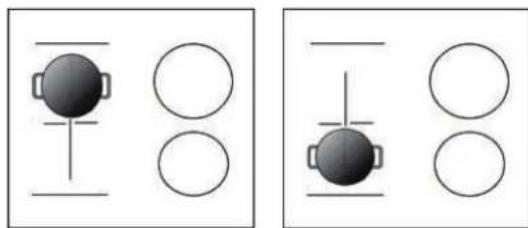

As two independent zones

To use the flexible area as two different zones, you can have two choices of heating. (a) Put a pan on the right up side or the right down side of the flexible zone.

Two identical diagrams showing a central black circle with two side handles, flanked by empty circles and horizontal lines (no text or symbols)

(b) Put two pans on both sides of the flexible zone.

Simple diagram with two oval shapes and two empty circles, no text or symbols present

Notice: Make sure the pan is bigger than 12cm.

Chef Function

First of all, you should download Simply-Fy and install to your portable device. Then enroll your induction hob.

Refer to annex for details.

To use the WIFI function, switch the hob on and press the WIFI key. The wifi LED flash fast for 5 seconds which means the WIFI module is booting. If the WIFI module connects the router, the wifi LED will remain on all the time. Otherwise, the WIFI LED will be flashing in cycles of 1 second on 1second off. If connect correctly, you can find many hob information from Simply-Fy, e.g. Zone power, remaining heat time.

How to set Chef Function

Set the Chef Function parameters on Simply-Fy, and send the command to the Hob.

If the Hob receives the command from Simply-Fy, the hob will beep for 2 times and the flashing in cycles of 1 second on and 1 second off.

If you want to stop Chef Function, set the power of the zones to "0" or turn the Hob off.

Using the Boost function

Activate the boost function

Touching the power regulating key "+" to select the cooking zone.

Touching the booster key, the zone indicator show "b" and the power reach Max

Cancel the Boost function

Cancel the "Boost" mode by pressing the "+" or "-" key of the corresponding zone.

- b + ⊕

• The function can work in any cooking zone.
• The cooking zone returns to its original setting after 5 minutes.
- If the original heat setting equals 0, it will return to 9 after 5 minutes.

Pause Mode

• You can pause the heating instead of shutting the hob off.
• When entering the Pause mode, all the controls except the ON/OFF control are disabled.

To enter pause mode
Touch the pause control "". 11	All the indicator will show "11"
To exit pause mode
Touch the pause control.

When the hob is in the pause mode, all the controls are disable except the ON/OFF ①, you can always turn the induction hob off with the ON/OFF ① control in an emergency. The hob will shut down after 10min if you don't exit the pause mode.

Locking the Controls

• You can lock the controls to prevent unintended use (for example children accidentally turning the cooking zones on).
• When the controls are locked, all the controls except the ON/OFF control are disabled.

To lock the controls
Touch and hold the Timer “and Timer ” +” at the same time for a while.	The timer indicator will show “Loc ”
To unlock the controls
Touch and hold the Timer “and Timer ” +” at the same time for a while.

Power Management Function

• it is possible to set a maximum power absorption level for the induction hob, choosing up to different power ranges.
• induction hobs are able to limit themselves automatically in order to work at lower power level, to avoid the risk of overloading.

To enter Power Management Function
Turn on the hob, then Press at the same time the booster key and Timer “+”.	The timer indicator will show “P5” which means power level 5. The default mode is on 7.0Kw。
To switch to another level
press +/- of the timer or	There are 5 power levels, from "P1" to "p5". Th timer indicator will show one of them."P1": the maximum power is 2.5Kw."P2": the maximum power is 3.5Kw."P3": the maximum power is 4.5Kw."P4": the maximum power is 5.5Kw."P5": the maximum power is 7.0Kw.
Confirmation and Exit Power Management Function
Press at the same time booster key and Timer "+" for confirmation.	Then the hob will be turned off.

Timer control

You can use the timer in two different ways:

• You can use it as a minute minder. In this case, the timer will not turn any cooking zone off when the set time is up.
• You can set it to turn one or more cooking zones off after the set time is up.

The timer of maximum is 10 hours.

a) Using the Timinas a Minute Minderder

If you are not selecting any cooking zone

Make sure the cooktop is turned on.Note: you can use the minute minder even if you're not selecting any cooking zone.
Touch "+" the controls of the timer. The minder indicator will start flashing and "0:10" will show in the timer display.
Set the time by touching the "-" or "+" control of the timer. Hint:Touch the "-" or "+" control of the timer once to decrease or increase by 1 minute.Touch and hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.
Touching the "-" and "+" together, the timer is cancelled, and the "0:00" will show in the minute display.

When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.
Buzzer will beep for 30 seconds and the timer indicator shows “- - -” when the setting time finished.

b) Setting the time to turn one or more cooking zones off

Set one zone
Touching the power regulating key "+" to select the cooking zone.
Set the time by touching the "-" or "+" control of the timerHint: Touch the "-" or "+" control of the timer once to decrease or increase by 1 minute.Touch and hold the "-" or "+" control of the timer to decrease or increase by 10 minutes.
Touching the "-" and "+" together, the timer is cancelled, and the "0:00" will show in the minute display.
When the time is set, it will begin to count down immediately. The display will show the remaining time and the timer indicator will flash for 5 seconds.
When cooking timer expires, the corresponding cooking zone will be switched off automatically.

Other cooking zone will keep operating if they are turned on previously.

set more zones:

Timer can be set on all 4 cooking zones. When you set the time for several cooking zones simultaneously, decimal dots of the relevant cooking zones are on.

⊖ 6.⊕⊖ 9.⊕

On the timer display will be shown the timer than will expire first.The dot of the corresponding zone will be on but flashing.Once the countdown timer expires the corresponding zone will be switch off.Then it will be shown the new first expiring timer and the corresponding zone will have the dot flashing.
If the timer is set but not active on any zone, it will work simply as timer countdown.

c) Cancel the timer

Touching the power regulating key "+" to select the cooking zone.
Touching the "-" and "+" together, the timer is cancelled, and the "0:00" will show in the minute display.
Touch the slider control to set the timer to "00", the timer is cancelled.

Special function

..... DOUX ...... MOYEN VIF

How to set Special function
Ativate the selected zone by pushing "+" or "-" .
press the DOUX key, the indicator will be show " | "
press the MOYEN key, the indicator will be show " | | "
press the VIF key, the indicator will be show " | || "

Selection of cooking vessels

Iron oil frying pan

Stainless steel pot

Iron pan

Iron kettle

Enamel stainless steel kettle

Enamel cooking utensil

Iron plate

You may have a number of different cooking vessels

1 This induction hob can identify a variety of cooking vessels, which you can test by one of the following methods:

Place the vessel on the cooking zone. If the corresponding cooking zone displays a power level, then the vessel is suitable. If "U" flashes, then the vessel is not suitable for use with the induction hob.

2 Hold a magnet to the vessel. If the magnet is attracted to the vessel, it is suitable for use with the induction hob.

NB: The base of the vessel must contain magnetic material.

It must have a flat bottom with a diameter of more than 14 cm.

③ Use pans whose diameter is as large as the graphic of the zone selected.

Using a pot a slightly wider energy will be used at its maximum efficiency. If you use smaller pot efficiency could be less than expected. Pot less than 140 mm could be undetected by the hob.

	The base diameter of induction cookware
Cooking zone	Minimum Maximum
1 & 2 140		180
	140	1803 & 4
Flexi zone 250 400

The above may vary according to the size of the pan and the material it is made from.

Cleanness and Maintenance

The surface of the induction hob may be easily cleaned in the following way:

Type of contamination	Method of cleaning	Cleaning materials
Light	Immerse in hot water and wipe dry	Cleaning sponge
Rings and lime scale	Apply white vinegar to the area, wipe with a soft cloth or use a commercially available product	Special adhesive for ceramic glass
Sweetmeat, melted aluminium or plastics	Use a special scraper for ceramic glass to remove residue (a silicon product is best)	Special adhesive for ceramic glass

NB: Disconnect the power supply before cleaning.

Failure Display and Inspection

If any abnormality occurs, the induction hob will automatically go into protective mode and display one of the following codes:

Failure code	Problem	Solution
Auto-Recovery
E1	Supply voltage is above the rated voltage.	Please inspect whether power supply is normal.Power on after the power supply is normal.
E2	Supply voltage is below the rated voltage.
E3	High temperature of ceramic plate sensor . (1#)	Wait for the temperature of ceramic plate return to normal.Touch “ON/OFF” button to restart unit.
E4	High temperature of ceramic plate sensor . (2#)
E5	High temperature of IGBT . (1#)	Wait for the temperature of IGBT return to normal.Touch “ON/OFF” button to restart unit.Check whether the fan runs smoothly;if not , replace the fan.
E6	High temperature of IGBT. (2#)
No Auto-Recovery
F3/F6	Ceramic plate temperature sensor failure- -short circuit. (F3 for 1#,F6 for2#)	Check the connection or replace the ceramic plate temperature sensor.
F4/F7	Ceramic plate temperature sensor failure--open circuit. (F4 for 1#,F7 for2#)
F5/F8	Ceramic plate temperature sensor failure--invalid . (F5 for 1#,F8 for2#)
F9/FA	Temperature sensor of the IGBT failure. (short circuit/open circuit for 1#)	Replace the power board.
FC/FD	Temperature sensor of the IGBT failure. (short circuit/open circuit for 2#)

Failure	Problem	Solution A	Solution B
The LED does not come on when unit is plugged in.	No power supplied.	Check to see if plug is secured tightly in outlet and that outlet is working.
	The accessorial power board and the display board connected failure	Check the connection.
	The accessorial power board is damaged.	Replace the accessorial power board.
	The display board is damaged.	Replace the display board.
Some buttons can't work, or the LED display is not normal.	The display board is damaged.	Replace the power board
The Cooking Mode Indicator comes on, but heating does not start.	High temperature of the hob.	Ambient temperature may be too high. Air Intake or Air Vent may be blocked.
	There is something wrong with the fan.	Check whether the fan runs smoothly; if not , replace the fan.
	The power board is damaged.	Replace the power board.
Heating stops suddenly during operation and the display flashes "u".	Pan Type is wrong.	Use the proper pot (refer to the instruction manual.)	Pan detection circuit is damaged, replace the power board.
	Pot diameter is too small.
	Cooker has overheated;	Unit is overheated. Wait for temperature to return to normal.Push "ON/OFF" button to restart unit.
Heating zones of the same side ( Such as the first and the second zone ) would display "u".	The power board and the display board connected failure;	Check the connection.
	The display board of communicate part is damaged.	Replace the display board.
	The Main board is damaged.	Replace the power board.
Fan motor sounds abnormal.	The fan motor is damaged.	Replace the fan.

The above table shows how to assess and check common faults.

Do not dismantle the appliance yourself, otherwise you may damage the induction hob.

Parameter	Specifications
Wireless Standard	802.11b/g/n
Frequency Range	2.412GHz-2.484GHz
Max Transmit Power:	+16 ± 2dBm
Maximum Receiving Sensitivity	-87dBn
Channel	13 channels
Product information for networked equipment
Power consumption of the product in networked standby if all wired network ports are connected and all wireless network ports are activated:	2W
How to active wireless network port:	If the hob has been enrolled with the APP, turn on the hob to activate wireless network port.
How to deactivate wireless network port:	If the hob has been enrolled with the APP, turn off the hob to deactivate wireless network port. If the hob hasn't been enrolled with the APP, wireless network port will be deactivated even the hob is on

Customer Care Service

If a fault should occur, before calling After Sales Service, please do the following:

-Check that the appliance is correctly plugged in

-Read the failure and display table above

If you are still unable to resolve the problem, switch off the appliance, do not try to dismantle it, and call

After Sales Service.

Special Declaration

The contents of this manual have been carefully checked. However, the company cannot be held responsible for any misprints or omissions.

Also, any technical modifications may be included in a revised version of the manual without notice. The appearance and colour of the appliance in this manual may differ from the actual one.

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

This appliance is labelled in compliance with European directive 2012/19/EC for Waste Electrical and Electronic Equipment (WEEE).

By ensuring that this appliance is disposed of correctly, you will help prevent any possible damage to the environment and to human health, which might otherwise be caused if it were disposed of in the wrong way.

The symbol on the product indicates that it may not be treated as normal household waste. It should be taken to a collection point for the recycling of electrical and electronic goods.

This appliance requires specialist waste disposal. For further information regarding the treatment, recovery and recycling of this product please contact your local council, your household waste disposal service, or the shop where you purchased it.

For more detailed information about treatment, recovery and recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Product Information for Domestic Electric Hobs Compliant to Commission Regulation (EU) No 66/2014
		Position	Symbol	Value	Unit
Model identification				RTPSJ644DCWIFI
Type of hob:				Electric Hob
Number of cooking zones and/or areas	zones			4
	areas
Heating technology (induction cooking zones and cooking areas, radiant cooking zones, solid plates)	Induction cooking zones			X
	Induction cooking cooking areas
	radiant cooking zones
	solid plates
For circular cooking zones or areas: diameter of useful surface area per electric heated cooking zone, rounded to the nearest 5mm		Rear left	∅	18,0	cm
		Rear central	∅		cm
		Rear right	∅	18,0	cm
		Central left	∅		cm
		Central central	∅		cm
		Central right	∅		cm
		Front left	∅	18,0	cm
		Front central	∅		cm
		Front right	∅	18,0	cm
For non-circular cooking zones or areas: length and width of useful surface area per electric heated cooking zone or area, rounded to the nearest 5mm		Rear left	LW		cm
		Rear central	LW		cm
		Rear right	LW		cm
		Central left	LW		cm
		Central central	LW		cm
		Central right	LW		cm
		Front left	LW		cm
		Front central	LW		cm
		Front right	LW		cm
Energy consumption for cooking zone or area calculated per kg		Rear left	ECelectric cooking	192.8	Wh/kg
		Rear central	ECelectric cooking		Wh/kg
		Rear right	ECelectric cooking	193.3	Wh/kg
		Central left	ECelectric cooking		Wh/kg
		Central central	ECelectric cooking		Wh/kg
		Central right	ECelectric cooking		Wh/kg
		Front left	ECelectric cooking	200.3	Wh/kg
		Front central	ECelectric cooking		Wh/kg
		Front right	ECelectric cooking	177.6	Wh/kg
Energy consumption for the hob calculated per kg			ECelectric hob	191	Wh/kg
Standard applied : EN 60350-2 Household electric cooking appliances - Part 2: Hobs - Methods for measuring performance
Suggestions for Energy Saving:To obtain the best efficiency of your hob, please place the pan in the centre of the cooking zone.Using a lid will reduce cooking times and save energy by retaining the heat.Minimise the amount of liquid or fat to reduce cooking times.Start cooking on a high setting and reduce the setting when the food has heated through.Use pans whose diameter is as large as the graphic of the zone selected.
These information are to be considered as part of the appliance user manual.

Protection anti-surchauffe

Diagram showing two hand-drawn correct and incorrect positions on a line, with checkmark and cross symbols indicating correct and incorrect states.

Comment l'utiliser

Simple line drawing of a cooking pot on a stand (no text or symbols)

250mm 280mm

Two identical diagrams showing a black circular object with a horizontal line and two empty circles, each with a vertical line and horizontal baseline (no text or symbols)

Simple diagram with two oval shapes and two empty circles, no text or symbols present
