USER MANUAL IsyTech 46 M Colged

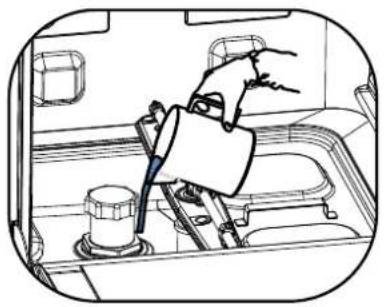

After salt fill, empty the machine and do a manual tank rinse.

Manual tank rinse

Obr. 11

INSTRUCTION MANUAL FOR DISHWASHERS

TRANSLATION OF ORIGINAL INSTRUCTIONS

CONTENTS

CHAP 1 RISKS AND IMPORTANT WARNINGS 2

1.1 NORMAL OPERATING CONDITIONS 3

CHAP 2 PREFACE 3

2.1 Warnings 3
2.2 WARRANTY 3
2.3 STORAGE 3

CHAP 3 INSTALLATION 4

3.1 UNPACKING 4
3.2 POSITIONING 4
3.3 ELECTRICAL CONNECTION 4
3.4 HYDRAULIC CONNECTION 5
3.5 CONNECTION TO THE DRAIN LINE 6
3.6 RINSE AID AND DETERGENT 6

CHAP 4 USING THE MACHINE 7

4.1 KEY AND SYMBOLS 7
4.2 SWITCHING THE DISHWASHER ON 7
4.3 FILLING THE RACK 7
4.4 CYCLE SELECTION AND START-UP 7
4.5 PROGRAMMES AND SPECIAL PROGRAMMES 8
4.6 AUTOMATIC CYCLE START-UP 9
4.7 REMOVING THE INTEGRAL FILTER 9
4.8 EMPTYING THE DISHWASHER 9

4.8.1 Appliances with no drain pump 9
4.8.2 Appliances with drain cycle (*optional) 9

4.9 TURNING THE DISHWASHER OFF 9
4.10 RESIN REGENERATION (*OPTIONAL) 9
4.11 LIST OF VIEWABLE MESSAGES 10
4.12 END OF SHIFT 10

CHAP 5 MAINTENANCE 11

5.1 GENERAL RULES 11
5.2 CLEANING 11
5.3 CLEANING THE FILTER UNIT 11
5.4 CLEANING THE ARMS 11
5.5 DISPENSERS 11

CHAP 6 SELF DIAGNOSTICS 12

CHAP 7 ADJUSTMENTS AND SETTINGS 14

7.1 INTEGRATED SOFTENER HARDNESS SETTING 15

CHAP 8 SCRAPPING 15

CHAP 9 ENVIRONMENT 16

9.1 RESPECT FOR THE ENVIRONMENT 16

The manufacturer retains ownership of this document according to the time limits laid down by law, a reproduction and dissemination by any means without its prior written authorisation is prohibited.

N.B. The manufacturer reserves the right to modify the electrical, technical and aesthetic features of this appliance and replace any of its parts without notice, as he deems necessary to offer a re product with a long service life and advanced technology.

CHAP 1 RISKS AND IMPORTANT WARNINGS

Read the instruction manual carefully before starting the machine. It contains important information regarding safe installation, use and maintenance. Failure to observe the instructions in the enclosed documentation may compromise appliance safety and immediately voids the warranty.

This appliance is intended solely for the use for which it was designed. Any other use is deemed improper therefore hazardous.
- The specialised technician responsible for installing the appliance must instruct the user on its operation and attendant safety measures, including practical demonstrations.
- Only the manufacturer or an authorised service centre with qualified staff may work on the machine, ever of malfunction, using only original spare parts.
- Always disconnect or isolate the machine from its power and water supplies before servicing, repairing or cleaning it.
- The machine must NOT be used by untrained persons.
- The appliance may be used by children aged at least 8 years old or persons with reduced physical, sensory, mental capacities, or with no experience or knowledge, provided they are supervised or after they have received training in the safe use of the appliance.
Children must not play with the appliance.
- Cleaning and maintenance by the user must not be performed by unsupervised children.
- The machine must NOT remain switched on when not in use.
- If the machine is not fitted with a plug or other means of complete disconnection with separation of all the contacts, these disconnection devices must be incorporated into the power mains, in compliance with the installation rules.
- If the power cable is damaged, it must be replaced by the manufacturer or an authorised technical assist service, or in any case by a person with similar qualifications, to prevent any risk.
- The screw on the appliance marked with theIEC 60417standard symbol 5021 represents the equipotential connection.
- NEVER open the machine quickly if it has not completed its cycle.
- NEVER use the machine without the protection devices arranged by the manufacturer.
- NEVER use the machine to wash objects of type, shape or material not guaranteed as machine washable or not perfectly intact.
NEVER use the appliance or any of its parts as steps or a support for people, property or animals.
- NEVER overload the open door of front-loading machines, which is rated only to support the rack loaded with dishes.
- NEVER place your bare hands in the wash solution.
- NEVER overturn the machine after it has been installed.
If you notice any malfunction or fluid leak, immediately disconnect the power supply and shut off the water supply.
- Do not install the dishwasher near heat sources over 50^ .
- NEVER leave the dishwasher exposed to the weather (rain, direct sunlight, etc.)
- The dishwasher may not be installed outdoors without proper cover.
- Never start a wash programme without the overflow in the tub, as applicable.
- Never place magnetic objects in the vicinity of the machine.
- Do not use the top of the machine as a table or support.
- The installer is responsible for checking that the grounding system is fully operational.
- At the end of testing, the installer must issue a written declaration stating that the machine has been instested in accordance with established legislation and good practice.
DO NOT change the position of or tamper with the machine's parts, as this could compromise its safety.
- Noise pressure level according to EN ISO 4871:

LpA Max = 55db Kpa=2.5db for undercover versions
LpA Max = 65db Kpa=2.5db for hood versions
LpA Max = 76db Kpa=1.5db for utensil washer versions.

Max inlet water temperature: 50^
- Max inlet water pressure: 4 bar (400 kPa).

• Appliance designed for permanent connection to the water supply.
• Do not clean the appliance with steam or water jets.
• Max unloading height:

On the ground in versions with overflow.
Maximum height 1 m in versions with drain pump.

1.1 Normal operating conditions

Ambient temperature:

40^ max / 4^ min (average 30^ )

Altitude: Up to 2000 metres

Relative humidity:

Max 30% at 40^ / 90% at 20^

CHAP 2 PREFACE

2.1Warnings

Keep all documentation in the vicinity of the appliance; make it available to the technicians and operators charged with operating it and keep it in good condition in a safe place, along with extra copies for frequent

The operator must read, understand and familiarise himself with the contents of this manual before working on or with the appliance.

The appliance is intended solely for professional heavy duty dishwashing applications and must be installed, operated and serviced only by qualified persons according to the manufacturer's instructions.

2.2 Warranty

The manufacturer is not liable for any damage or injury resulting from failure to observe the instructions or improper use of the machine.

Failure to observe the instructions in the enclosed documentation may compromise appliance safety and immediately voids the warranty.

Installation and repair by unauthorised technicians and the use non-original spare parts immediately void the warranty.

2.3 Storage

Transport and warehousing: Between -10^ and 55^ with peaks up to 70^ (for max 24 hours).

CHAP 3 INSTALLATION

Proper installation is essential to the good operation of the appliance. Some of the data required for installation of the appliance are given on the nameplate on its RH body panel, and a copy is included on the cover page of this manual.

The appliance may only be installed by qualified persons authorised to do so.

3.1 Unpacking

Check the condition of the packaging, and note any evident damage on the shipping bill. Remove the pack and check that the appliance is in good condition; immediately report any damage to the reseller and the shipping agent by fax or registered letter with return receipt. If the damage is such as to compromise the s of the appliance, do not install or operate it until it has been inspected by a qualified technician.

The packaging (plastic bags, expanded polystyrene, nails, etc.) is hazardous and must not left within the reach of children or pets.

3.2 Positioning

• Check that there are no objects or materials in the installation area which may be damaged by the steam emitted by the appliance during operation, or if there are, make sure they are properly protected.
• Before positioning the dishwasher, set up the electrical power supply, water supply and drain connections.
• For flush-mounting single panel machines, leave a space of at least 10mm between machine walls and the adjacent surfaces.
• The floor or build-in unit must be rated to support the weight of the appliance.
• To ensure that it is stable, level the appliance with its four feet.
• The appliance is intended for fixed installation only; any other approaches must be agreed with and approved by the manufacturer.
• Remove the protective film from its body panels before operating the dishwasher.

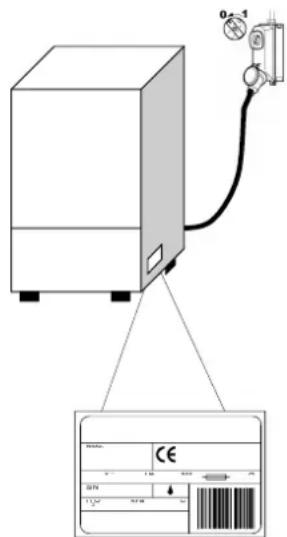

3.3 Electrical connection

• The power supply must be fitted with a omnipolar circuit breaker (master power switch) to break all contacts including neutral, with a contact gap of at least 3mm and the cutout or fuses, which must be set or rated to the power indicated on the machine nameplate.
• The master power switch must be fitted to the power line in the vicinity of the insta and may be connected to only one machine at a time.
• The mains voltage and frequency must match the nameplate ratings.

• The installation must include a grounding system conforming with established electric safety legislation, to protect the operator and the appliance itself.

• This appliance conforms to EN/IEC 61000-3-11 certification if the system impedances less than or equal to Z_max in the point of interface between the user's supply system and the public system. The installer or app user is responsible for checking that the appliance is connected exclusively to a supply with system impedance less than or equal to t_ha .

	Zmax
Utensil washers 0.21 Ω
Hood 0.24 Ω
Undercounter 0.41 Ω

• The power cable, which must be exclusively typeH07RN-Fwith current capacity at 60^ on the cable:

Three-phase machine

-5x2.5 m#up to 20 A
-5x4 mnhup to 30 A
-5x6 mnhup to 38 A
-5x10 mm up to 54 A

Single-phase machines

-3x1.5 m#up to 16 A
-3x2.5 mthup to 25 A

• Must not be stretched or crushed during normal operation or routine maintenance.
• The appliance must also be connected to an equipotential system, connected by a screw marked by the 5021 -IEC 60417.
• The equipotential cable must have a cross section of 1 .mm
• Respect the polarities indicated in the wiring diagram.
• For further information, refer to the wiring diagram.

Do not use multi-sockets, adapters, cables of an inadequate cross-section or type or with extensions not conforming to established electrical installation regulations.

3.4 Hydraulic connection

The appliance must be connected to its water supply with a flexible hose. A shut valve (cock) must be installed between the water supply line and the appliance's solenoid valve. The cock must be close to the appliance.

• The water supply, temperature and pressure must be compatible with the ratings shown on the technical data plate on the machine.
• Make sure that the water supply flow rate is no less than 20 l/min.
• If the water hardness is greater than 14^ ( 8^ ), we recommend using an internal water softener. If the hardness is greater than 35^ ( 19.5^ ), install an external water softener upline of the solenoid valve.
• For machines without water softener: if the water hardness is greater than 14^ ( 8^ ), install an exterr softener upline of the solenoid valve.

• If the water has a very high residual concentration of high conductivity minerals, we recommend installing demineralisation system.

• Machines intended for use with desalinated water or in any case with high sodium chloride concentration be ordered specifically, as they require specific construction materials

• Do not supply fully demineralised water to machines with a heat recovery unit with batteries with copper this case, request the version with batteries with stainless steel pipes.

3.5 Connection to the drain line

Free drain

• The drain line must consist of a free drain sump with siphon suited to the capacity of the drain hose supplied with the appliance. The hose must be able to reach the sump without stretching, restriction, folding, crushing, pressing or forcing in any way.
• The tub drains under gravity, so the drain sump must be lower than the machine's base.

With drain pump (available on request)

• If the drain is not lower than the base of the appliance, you can use the version with drain pump (available on request).
• In this case, the drain connection may be no higher than 1m .
• Always check that the drain works properly and is not blocked.
• Any other solution must be approved by the manufacturer in advance.

3.6 Rinse aid and detergent

• The rinse aid and detergent are dispensed by the machine's integral dispenser (depending on model).
• The dose is set by the installer in relation to the hardness of the water, and he also calibrates the disperse themselves.
• Before calibrating them, fill the dispenser supply tubes with their respective product.
• The units are calibrated with the adjuster screws, or directly with the control panel (as applicable).
• The level of fluid in the container must be sufficient for priming; do not allow it to drain completely or top it up with corrosive or impure product.

NEVER use CHLORINE or HYPOCHLORITE based detergents.

We recommend installing an automatic detergent dispenser.

CHAP 4 USING THE MACHINE

4.1 Key and symbols

Referring to (Fig. 1)

1	ON/OFF BUTTON 5 TEMPERATURE DISPLAY
2	SPECIAL PROGRAMME SELECTION BUTTON	6	WASH AND RINSE LED
3	PROGRAMME SELECTION BUTTON	7	INFORMATION DISPLAY
4	START BUTTON

4.2 Switching the dishwasher on

Referring to (Fig. 2):

• Turn on the main power switch and open the external water tap.
• Check the presence of the overflow.
• The DISPLAY will show the dishwasher's software information; when the check is complete, the DISPLAY will switch off.
• Press ON/OFF (1).
• Water loading begins automatically when the machine is switched on
• On INFORMATION DISPLAY, Load indicates that water is currently being loaded.
• The WASH AND RINSE LEDs flash alternately to indicate heating is ON.
• The TEMPERATURE DISPLAY indicates the tub and boiler temperature reached.
• When optimal operating conditions have been reached, the START (4) button stays on, lit in green.
• The optimal wash conditions have been reached.

4.3 Filling the rack

Referring to (Fig. 3), to ensure the correct operation of the dishwasher, follow the rules described below:

• Use a suitable rack, fill without overloading and without overlapping the dishes.
• Always wipe the dishes before placing in the dishwasher; do not put dishes with dry or solid residues in washer.
• Place the empty dishes in the rack facing downwards.
• Place plates and the like in the sloping rack, with the inner surface facing upwards.
• Place the cutlery in the cutlery basket, handle end down.
• Do not place silver and stainless steel cutlery in the same cutlery basket as this will turn the silver brown corrode the steel.
• Wash the dishes immediately after use, in order to prevent any residue from hardening and sticking on the
• Use only solid, dishwasher-proof dishes.

4.4 Cycle selection and start-up

• Press the PROGRAMME SELECTION (3) or SPECIAL PROGRAMME SELECTION (2) button repeatedly to select a wash cycle that is suitable for the dishes to be washed; the display will show the cycle number selected (Fig. 4).
  To start the programme, press the START (4) button, which will turn blue to indicate that the cycle is in progress.
• Once the cycle is complete, the button will turn green again (Fig. 5).
• For rapid drying, remove the rack from the machine as soon as the cycle finishes.
• To stop a wash cycle early, press the START (4) button.

N. B. In hood versions, after the first work cycle the automatic start is automatically enabled; the subsequent cycles will be enabled automatically when the hood is closed. This operating mode marked on the display by "AS".

4.5 Programmes and Special Programmes

Pr1	Lightly soiled dishes, short wash programme.
Pr2	Averagely soiled dishes, medium wash programme.
Pr3	Heavily soiled dishes, long wash programme.
Pr6	ECO cycle.
CLE1	Drain and self-cleaning cycle to be used at the end of working day.
CLE2	Intensive drain and self-cleaning cycle to be used at the end of working day.
rEFr	Recommended when you wish to wash with a total change of water in the washing tub suitable for consecutive washes of particularly greasy and dirty dishes. The complete change of the water in the tub requires a longer wash cycle.
dr	Drain cycle.
bot1	Bottle rinse programme, for water bottles.
bot2	Bottle wash programme.
CUP1	Mug and cup wash programme.
GLS1	Intensive glass wash programme.
GLS2	Standard glass wash programme.
GLS3	Gentle glass wash programme.
LonG	This is an extended cycle; the duration varies according to the model. The cycle duration may be varied as required by pressing START (4) any time during the wash, to interrupt the wash phase and start the rinse phase.
A030	Recommended when the dishes to be washed also have to be sanitised. This program controls the wash temperature and time calculating the constant A0. The programme ends when the A0 value equals 30. The length of the programme is variable, but is generally around 20 minutes and the wash temperature reaches approximately 70 C°. N. B. If you require an A0 value other than 30, contact an authorised technician who will modify the machine software for you.
Pt1	Pot wash programme.
PLA1	Plastic dish wash programme.

Caution:

Programmes and Special Programmes may vary according to the dishwasher model.

4.6 Automatic cycle start-up

This function is used to make the chosen cycle start automatically when the door is closed. To enable, pro as follows (Fig. 6):

• If not made available by default, the function must first be enabled via the settings menu.
• With the appliance on and the door open, press and hold (for at least 5 seconds) the START (4) button until AS shows on the display.
• To disable the function, with the door open press START (4) again for five seconds.

4.7 Removing the integral filter

• Move the washing and rinsing arms at right angles to the edge of the door (Fig. 7).
• Lift each semi-filter by the relative handle.

4.8 Emptying the dishwasher

4.8.1 Appliances with no drain pump

• Switch the dishwasher off.
• If present, remove the integral filter (Fig. 7 A).
• Pull up and remove the overflow pipe (Fig. 8 B).
• Wait for the tub to empty completely.
• If necessary, extract the tub filter and clean it (Fig. 8 C).

4.8.2 Appliances with drain cycle (*optional)

• If present, remove the integral filter (Fig. 7 A).
• If present, remove the overflow pipe by pulling it upwards (Fig. 9).
• Close the door.
• Select cycle dr.
• Press START (4) to start the cycle.
• The machine runs a drain cycle with self-cleaning (*where foreseen) and then switches off.
• If necessary, extract the tub filter and clean it (Fig. 8 C).

4.9 Turning the dishwasher off

• To switch the machine off, press ON/OFF (1); on the DISPLAY (7) the central segments will remain displayed to indicate the presence of voltage.

4.10 Resin regeneration (*optional)

In machines fitted with water softener, when the warning SALt appears, you should add salt to the relative container; proceed as follows:

• Remove the rack from the machine.
• Remove the integral filter (Fig. 7).
• Unscrew the cap on the salt container (Fig. 11).
• Fill the tank with regeneration salt, using the funnel provided. (when filling for the first time, fill the tank firstly with water).
• Close the container firmly.
• Rinse the area around the salt cap by hand and run a self-cleaning cycle to prevent possible corrosion is
• The warning SALt will disappear after a few minutes.

The warning rEG on the display indicates that the machine is running a resin regeneration cycle, which is necessary for the water softener to work correctly; while this warning is shown, cycles that have been started could run longer than usual.

N.B. Do not switch off the machine if a regeneration cycle is underway.

4.11 List of viewable messages

door	Door open	AS Automatic	start enabled
Lood	Water loading	End	End of cycle
b	Rinse temperature	nodt	No detergent
t	Wash temperature	nobl No rinse	aid
rEG	Regeneration system on	CH	Menu key
SALT No salt in the softener Fu Firmware revision
Cy	Number of cycles carried out	Su Software code

4.12 End of shift

• At the end of the day, always drain the machine as described in section 4.8 Emptying the dishwasher.
• Disconnect the power supply by means of the main switch and close the external water cock.
• Perform routine maintenance and clean the machine as described in section CHAP 5 MAINTENANCE.
• If possible, leave the door ajar to prevent bad odours building up inside the machine.

CHAP 5 MAINTENANCE

5.1 General rules

Before doing any maintenance, completely drain out all water, shut off the power supply close the water supply cock.

Do not use water under pressure - it can damage the electrical equipment. Only wash the body panelling v is cold, using only products specifically designed for steel.

If there is a risk of ice forming, drain the water from the boiler and wash pump.

5.2 Cleaning

To keep the machine in good working order, it must be maintained regularly as explained below. We recon periodically running a sanitising treatment with suitable non-corrosive commercial products.

5.3 Cleaning the filter unit

Run this procedure at the end of the day or when you see the filters are dirty:

1. Remove and clean the racks.
2. Empty out the tub as explained in section 4.8 Emptying the dishwasher.
3. Remove and carefully clean all the filters.
4. Do not use abrasive products to clean the tub.
5. Restore all removed parts when finished.

5.4 Cleaning the arms

The wash and rinse arms are easily removed in order to clean their nozzles and prevent blockage/encrusta

Proceed as follows (Fig. 10):

• Remove the spray arms by unscrewing the retaining nuts or by unclipping the quick-fit attachments on man so equipped.
• Wash all parts under a jet of running water and clean the nozzles thoroughly, using a toothpick or pointe necessary.
• Clean the arm rotation pins inside the machine and the wash and rinse water drainage area.
• Restore the arms and check that they rotate freely.

5.5 Dispensers

To ensure that the dishwasher operates efficiently, the tubes inside the detergent and rinse aid dispensers be replaced periodically.

The tubes have a service life that can vary depending on the chemicals used.

We recommend that you periodically check the condition of the tubes and plan to replace them at least on year.

CHAP 6 SELF DIAGNOSTICS

The machine is equipped with a self-diagnosis system that registers and warns of a number of malfunctions

Fault		Description and possible remedies
Er01		No rinsing. The rinsing cycle was not completed correctly. Make sure that the rinsing nozzles are clean.
Er02		No water drained. The water was not drained or drained incorrectly. Check that drain pipe is not bent or crushed and that the siphon and filters are not blocked. In machines fitted with an overflow pipe, remove this before starting the drainage cycle.
Er03		Rinse temperature reset fault. The boiler temperature did not reset in the set time during the washing cycle. Switch the machine off and then on and run a new cycle.
SAFE	Er04	Water filling in tank fault. Make sure the pipes are connected correctly, and that the water tap is open. Where foreseen, check the presence of the overflow. Switch the dishwasher off and then on and fill again.
Er05		Tank thermometer fault. (Probe open) The machine does not read the tank temperature value. Switch the dishwasher off and then on.
Er06		Tank thermometer fault. (Probe short circuited) The machine does not read temperature value. Switch the dishwasher off and then on.
Er07		Boiler thermometer fault. (Probe open) The machine does not read the boiler temperature value. Switch the dishwasher off and then on.
Er08		Boiler thermometer fault. (Probe short circuited) The machine does not read the boiler temperature value. Switch the dishwasher off and then on.
Er09		Boiler loading timeout: boiler not filled. Impossible to carry out rinse cycle. Check that the water tap is open. Switch the dishwasher off and then on and run a new cycle.
Er21		Insufficient rinse The right amount of rinsing did not take place; make sure the nozzles are clean. The error does not block the machine.
Er22		Tank temperature reset fault: The tank temperature did not reset in the set time du the washing cycle. Switch the machine off and then on and run a new cycle.
Er25		Run external regeneration: The number of litres set for external water treatment equipment has been reached, the error does not prevent dishwasher operation, the message can be reset from the settings in menu 12.
SAFE	ErSF	Electro-mechanical safety device: The boiler or tub safety thermostats have been tripped, or the tub safety pressure switch has been triggered.
	ErSL	Level safety switch: Incorrect water level in the tank.
	Erb	Excessive Boiler Temperature: Probable heating contactor /relay failure
	Ert	Excessive Tub Temperature: Probable heating contactor /relay failure
drt		Dirty filter: Incorrect water level in tub, caused by dirty filter or poorly inserted overflc
ErSI		Supply safety error: Fatal error, contact a technical assistance centre.
Er98		Soft start error: Soft start system error, contact a technical assistance centre.
NO SALT		No salt: In dishwashers with water softener, this means that there is no salt. Add salt.
Fault		Description and possible remedies
NO DT		No detergent: Add detergent in the priming tank.
NO BL		No rinse aid: Add rinse aid in the priming tank.
SERV		Maintenance required: General maintenance is required, if pre-set.
REG ON		Regeneration in progress: the regeneration cycle for the water softener resin is underway.
REG REQ		Regeneration Required: Start the regeneration if not automatically scheduled.
Er27		Boiler gradient error: The boiler is not heating correctly.
Er28		Tub gradient error: The tub is not heating correctly.
Er99		Auxiliary board error: Communication with the auxiliary board is not correct.
Er30		Automatic open error: In dishwashers with hood with automatic open, the opening system is not operating correctly. Check that nothing is stopping the hood from opening. If the problem persists, contact a technical assistance centre.
Er31		Automatic close error: In dishwashers with hood with automatic open, the closing system is not operating correctly. Check that nothing is stopping the hood from closing. If the problem persists, contact a technical assistance centre.
Er33		Osmosis with minimum pressure: Check that the water tap is open.
Er34		Osmosis water loss: Close the power and water supply for the dishwasher; contact a technical assistance centre.
Er35		Osmosis conductivity error: Osmosis system does not work properly, contact a technical assistance centre.
Er36		Osmosis filter: The osmosis filter needs to be replaced; contact a technical assistance centre.
Er37		Boiler heating timeout: The rinse water heating element does not work properly, contact a technical assistance centre.
Er38		Tub heating timeout: The wash water heating element does not work properly, a technical assistance centre.
Er39		Faulty boiler pressure switch.
Er40		Faulty tank pressure switch.
Switching the dishwasher off and then on again "resets" the signals, if after carrying on instructions given the problem persists, contact an Authorised Service Centre.

The following settings should only be configured by a qualified technician.

The parameters listed below can be set during installation or afterwards, accessing the settings menu as follows:

• Machine in standby with door open.
• Press buttons 1 and 2 (ON/OFF and SPECIAL PROGRAMME SELECTION) simultaneously for 5 seconds and insert key CH 12 (buttons 3 and 4 to change the parameter, 1 to confirm).
• Then, by repeatedly pressing buttons 1 and 2 you can scroll through the options and activate and/or edit them using buttons 3 and 4 (the edited parameter remains stored with no need to confirm). The list of parameters may vary according to the type of machine.
• If you press and hold button 1, you can exit programming mode and the change will be saved. The list of parameters may vary according to the type of machine.

	Language Select language.
b	Boiler Temperature	Adjust the boiler temperature for programmes. Versions with atmospheric boiler (rinse pump) have different settings for each programme (b1 - b2 - b3).
t	Tank Temperature	Tub temperature regulation for programmes. Versions with rinse pump have different settings for each programme (t1 - t2 - t3)
tH	Thermo - Stop Activation	ThermoStop function which ensures correct rinse temperature.
ES	Energy Saving Activation	Energy Saving function which allows energy-savings to be made when the machine is switched on but not in use.
dn	Detergent Pump Manual operation of detergent dispenser.
bn	Rinse Aid Pump Manual operation of rinse aid dispenser.
rn	ManualRinse	Manual operation of rinse pump.
dt	Dosage Detergent	Detergent dosing time.
bl	Dosage Rinse Aid	Rinse aid dosing time.
dH	WaterHardness	Input water hardness setting (machines with water softener): enter the values with reference to the table below.
CC	Set Number Service Cycles	Cycle counter setting and activation to enable the Service alert for an external water softener. The “Service” alert can be cancelled by holding pressed all 3 buttons with the machine off and the door open.
CLS	Water Service Set	Setting of litres of autonomy for external water treatment equipment, adjustment setting from 0 to 12000 litres in steps of 200.
AA	Autostart Autoenabling	Automatic start enabled.
dr	Manual Drain	Manual operation of drain pump.

Once all necessary parameters have been set, to save and exit simply press and hold button 1 until the on-line dashes appear.

7.1 Integrated softener hardness setting

Set the supply water hardness degree, dH, in the settings menu as shown in the following table:

Measured hardness dH		Measured hardness dH
°fr dGH	n° °fr dGH n°
0 ÷ 20 0 ÷	11 1 41 ÷ 45 23 ÷ 25 6
21 ÷ 25 12	÷ 14 2 46 ÷ 50 26 ÷ 28 7
26 ÷ 30 15	÷ 17 3 51 ÷ 55 29 ÷ 31 8
31 ÷ 35 17	÷ 20 4 56 ÷ 60 31 ÷ 34 9
36 ÷ 40 20	÷ 22 5

CHAP 8 SCRAPPING

Our machines do not contain materials requiring special handling.

N.B. (Applicable in the EU and countries with sorted waste disposal).

The WEEE mark applied to the product or its documentation indicates that it must not be scrapped with domestic waste when it reaches the end of its service life. To prevent damage to the environment or health due to improper scrapping, keep this product separate from other waste and recycle it so as to promote sustainable use of materials.

Corporate users are requested to contact their supplier and check the terms and conditions of the purchase contract.

The product may not be scrapped together with other commercial waste.

Can be recycled directly	Symbols		Object	Material	%
	40 FE		Sheet	Steel	80
	20 PAP		Cardboard packaging	PAP
	50 FOR		Wooden pallet	ISPM15
	05 PP		Plastic parts	PP, PP+FV
Compounds		WEEE	Motors	Assemblies	20
			Electric parts
			Electronic parts
			Rubber parts	EPDM

CHAP 9 ENVIRONMENT

9.1 Respect for the environment

Proper use of the dishwasher can improve its environmental footprint, if the following simple rules are observed:

• Only wash full racks.
• Switch the dishwasher off when not using it.
• Keep the machine closed when it is in standby.
• Use wash programmes suited to the amount of soiling.
• Supply the machine with hot water, if gas heated.
• Make sure the drains flow into a suitable sewer.
• Do not exceed the recommended dose of detergent.

2.1 WAARSCHUWINGEN 3
2.2 GARANTIE 3
2.3 OPSLAG 3

HOOFDSTUK 3 INSTALLATIE 4

3.1UITPAKKEN 4
3.2 PLAATSING 4
3.3 ELEKTRISCHE AANSLUITING 5
3.4 AANSLUITING OP HET WATERNET 6
3.5 VERBINDING MET DE AFVOERLEIDING 7
3.6 GLANSMIDDEL EN VAATWASMIDDEL 7

HOOFDSTUK 4 GEBRUIK VAN DE MACHINE 8

4.1 LEGENDA EN SYMBOLEN 8
4.2 AANZETTEN 8
4.3 VOORBEREIDING REK 8
4.4 PROGRAMMAKEUZE EN-START 8
4.5 PROGRAMMA'S EN SPECIALE PROGRAMMA'S 9
4.6 AUTOMATISCHE CYCLUS STARTEN 11
4.7 HET INGEBOUWDE FILTER VERWIJDEREN 11
4.8 DE MACHINE LEGEN 11

Er40 Drukschakelaar bak defect.

1.1 NORMALE DRIFTSFORHOLD 3

KAP. 2 FORORD 3

2.1 ADVISLER 3
2.2 GARANI 3
2.3 OPBEVARING 3

KAP. 3 INSTALLATION 4

3.1 UDPAKNING 4
3.2 PLACERING 4
3.3 ELTILSLUTNING 4
3.4 HYDRAULISK TILSLUTNING 5
3.5 TILSLUTNING TIL AFLØB 6
3.6 AFSP/ENDINGSMIDDEL OG VASKEMIDDEL 6

KAP. 4 BRUG AF MASKINEN

4.1 OVERSIGT OG SYMBOLER 7
4.2 T/ENDING 7
4.3 FORBEREDELSE AF KURVEN. 7
4.4VALGOGSTARTAFCYKLUS 7
4.5 PROGRAMMER OG SPECIALPROGRAMMER 8
4.6 START AF AUTOMATISK CYKLUS 9
4.7 FJERN INTEGRERET FILTER 9
4.8 TOMNING AF MASKINEN 9

4.8.1 Maskiner Eden aflobspumpe 9
4.8.2 Maskiner med udledningscyklus (*ekstraudstyr) 9

4.9 SLUKNING AF MASKINEN 9
4.10 REGENERERING AF HARPIKS (*EKSTRAUDSTYR) 9
4.11 LISTE OVER MEDDELELSER, DER KAN VISES 10
4.12 SLUT PÄ DRIFT 10

KAP. 5 VEDLIGEHOLDELS

5.1 GENERELLE REGLER 11
5.2 RENGØRING 11
5.3 RENSNING AF FILTERAGGREGAT 11
5.4 RENGØRING AF ARME 11
5.5 DISPENSERE 11

KAP. 6 SELVDIAGNOSE 12

KAP. 7 JUSTERINGER OG INDSTILLINGER 14

7.1 INDSTILLING AF HARDHED INDBYGGET BLDGORINGSANL/EG 15

KAP. 8 BORTSKAFFALSE 15

KAP. 9 MILJØ 16

9.1 BRUG MED RESPEKT FOR MILJØET 16

INNEHÄLLSFÖRTECKNING

KAP 1 RISKER OCH VIKTIGA WARNINGAR

1.1 NORMALA ANVÄNDNINGSVILLKOR 3

KAP 2 FÖRORD 3

2.1 VARNINGAR 3
2.2 GARANTI 3
2.3 FÖRVARING 3

KAP 3 INSTALLATION 4

3.1 UPPACKNING 4
3.2 PLACERING 4
3.3 ELEKTRISK ANSLUTNING 4
3.4 VATTENANSLUTNING 5
3.5 ANSLUTNING TILL AVLOPPET 6
3.6 GLANSMEDEL OCH DISKMEDEL 6

KAP 4 ATT ANVÄNDAMASKINEN

4.1 TECKENFÖRKLARING OCH SYMBOLER 7
4.2 PÅSLAGNING 7
4.3 ATT LASTA DISKKORGEN 7
4.4 VAL OCH START AV PROGRAM 7
4.5 PROGRAM OCH SPECIALPROGRAM 8
4.6 AUTOMATISK PROGRAMSTART 9
4.7 ATT TA LOSS INTEGRALFILTRET 9
4.8 TOMNING AV MASKINEN 9

4.8.1 Maskinerutan tomningspump 9
4.8.2 Maskiner med tomningsprogram (*tillval) 9

4.9 AVSTÄNGNING AV MASKINEN 9

4.10 REGENERERING AV HARTSER (*TILLVAL) 9
4.11 LISTA OVER MEDDELANDEN SOM KAN VISAS 10
4.12 VID ARBETSDAGENS SLUT 10

KAP 5 UNDERHÄLL 11

5.1 ALLMÄNNAREGLER 11
5.2 RENGÖRING 11
5.3 RENGORING AV FILTERENHETEN 11
5.4 RENGÖRING AV DISK- OCH SPOLARMAR 11
5.5 DOSERARE 11

KAP 6 SJÄLVDIAGNOS. 12

KAP 7 REGLERINGAR OCH INSTÄLLNINGAR 14

7.1 INSTÄLLNING AV HÄRDHETSGRAN MED INTEGRERAD AVHÄRDARE 15

KAP 8 AVFALLSHANTERING 15

KAP 9 MILJÖ 16

9.1 MILJÖVÄNLIG ANVÄNDNING 16

KAP 4 ATT ANVANDA MASKINEN

4.8 Ekkvwo n mXavipatoC

4.8.1 Mnxavnata xwpi c avTia Ekkevwnc

• Aπενεργοτοιησε ο μήχανημα.
  ApaipoeToEvomegaatwévo pIAtpo,Eav utapxE1 (Eik.7 A).
• AφaipéoTe Tny utepxéiλion tpaβwvtac Tny Tpoç Ta Távω (Eik. 8 B).
• Pεριμενετε va αδειασει πληρως o θαλαμος.
  Eav eivai aattapaitto, apaipote to pfItpo Tou oalauou kai katheta to (Eik. 8 C).

4.8.2 Mxavnpatae Kukko EKKevwoon (*TpoaipeTIKA)

ApaipoeToEvawmuTwévo pIAtpo, evu unApxEi (Eik. 7 A).
- Apaipoe Tny utepxieian, ev utapxie, tpaewta Tnv Tpoa Tavw (Eik. 9).
Kλείστε ξανα τη Θυρίδα.
- Eπiλεξτe Tov KukAo dr.
- PatnoTe To Koupti START (4) yia va eKivnoeTe Tov KukAo.
To uynxavnua ekteleiv evav kuklo ekkevwogns autoupto kaopioo (*av TpoBtEra). To uynxavnua atvepyoioiia.
Eav eivai aattapaitto, apaipote to pfItpo Tou oalauou kai katheta to (Eik. 8 C).

4.9 Anevepyonoinon Tou nXavipatoS

• Tia va atevepyoioeTo uXavna, PataoTo koupti ON/OFF (1). TnV OONH (7) Ekaolouoov v a eapaviOvta Ta Kevtpika Tmuata Tou UTOEikvouuv Tnv EvpyoioinTtspopooiaoc.

4.10 Avayevnon pntivwv (*npoaipeTiká)
