USER MANUAL 61300M-IN AEG

Thank you for choosing one of our high-quality products.

With this appliance you will experience the perfect combination of functional design and cutting edge technology.

Convince yourself that our appliances are engineered to deliver the best performance and control - indeed we are setting the highest standards of excellence.

In addition to this you find environmental and energy saving aspects as an integral part of our products.

To ensure optimal and regular performance of your appliance please read this instruction manual carefully. It will enable you to navigate all processes perfectly and most efficiently.

To refer to this manual any time you need to, we recommend you to keep it in a safe place. And please pass it to any future owner of the appliance.

We wish you much joy with your new appliance.

The following symbols are used in this user information:

Warning! This must be read! Important advice for the safety of persons and information on avoiding damage to the appliance

General information and advice

Information on environmental protection

Dangerous voltage

Contents

Operating Instructions 4

Safety instructions 4
Description of the Appliance 6
Cooking surface layout 6Residual heat indicator 6
Operating the hob 7
Switching the outside ring on and off 7
Tips on Cooking and Frying 8
Cookware 8Energy saving 8
Cleaning and Care 9
What to do if ... 10
Disposal 11
Installation Instructions 12
Safety instructions 12
Guarantee/Customer Service	14
Service	15
Built-in installation	50
Rating Plate	55

Operating Instructions

⚠️Safety instructions

Please comply with these instructions. If you do not, any damage resulting is not covered by the warranty.

Correct use

• This appliance is not intended for use by children or other persons whose physical, sensory or mental capabilities or lack of experience and knowledge prevents them from using the appliance safely without supervision or instruction by a responsible person to ensure that they can use the appliance safely.
• Do not leave the appliance unattended during operation.
• This appliance should be used only for normal domestic cooking and frying of food.
• The appliance must not be used as a work surface or as a storage surface.
• Additions or modifications to the appliance are not permitted.
• Do not place or store flammable liquids, highly inflammable materials or fusible objects (e.g. plastic film, plastic, aluminium) on or near the appliance.

Children's safety

• Small children must be kept away from the appliance.
• Only let bigger children work on the appliance under supervision.

General safety

- The appliance may only be installed and connected by trained, registered service engineers.

- Built-in appliances may only be used after they have built in to suitable built-in units and work surfaces that meet standards.

- In the event of faults with the appliance or damage to the glass ceramic (cracks, scratches or splits), the appliance must be switched off and disconnected from the electrical supply, to prevent the possibility of an electric shock.

- Repairs to the appliance must only be carried out by trained registered service engineers.

Safety during use

• Remove stickers and film from the glass ceramic.
• There is the risk of burns from the appliance if used carelessly.
• Cables from electrical appliances must not touch the hot surface of the appliance or hot cookware.
  • Overheated fats and oils can ignite very quickly. Warning! Fire hazard!
• Switch the cooking zones off after each use.
• Do not cover the oven's steam outlet.
• When the oven is working, there is the danger of scalds from the steam outlet.

Safety when cleaning

• For cleaning, the appliance must be switched off and cooled down.
• For safety reasons, the cleaning of the appliance with steam jet or high-pressure cleaning equipment is not permitted.

How to avoid damage to the appliance

• The glass ceramic can be damaged by objects falling onto it.
• The edge of the glass ceramic can be damaged by being knocked by the cookware.
• Cookware made of cast iron, cast aluminium or with damaged bottoms can scratch the glass ceramic if pushed across the surface.
• Objects that melt and things that boil over can burn onto the glass ceramic and should be removed straightaway.
• To avoid damaging cookware and glass ceramics, do not allow saucepans or frying pans to boil dry.
• Do not use the cooking zones with empty cookware or without cookware.

Description of the Appliance

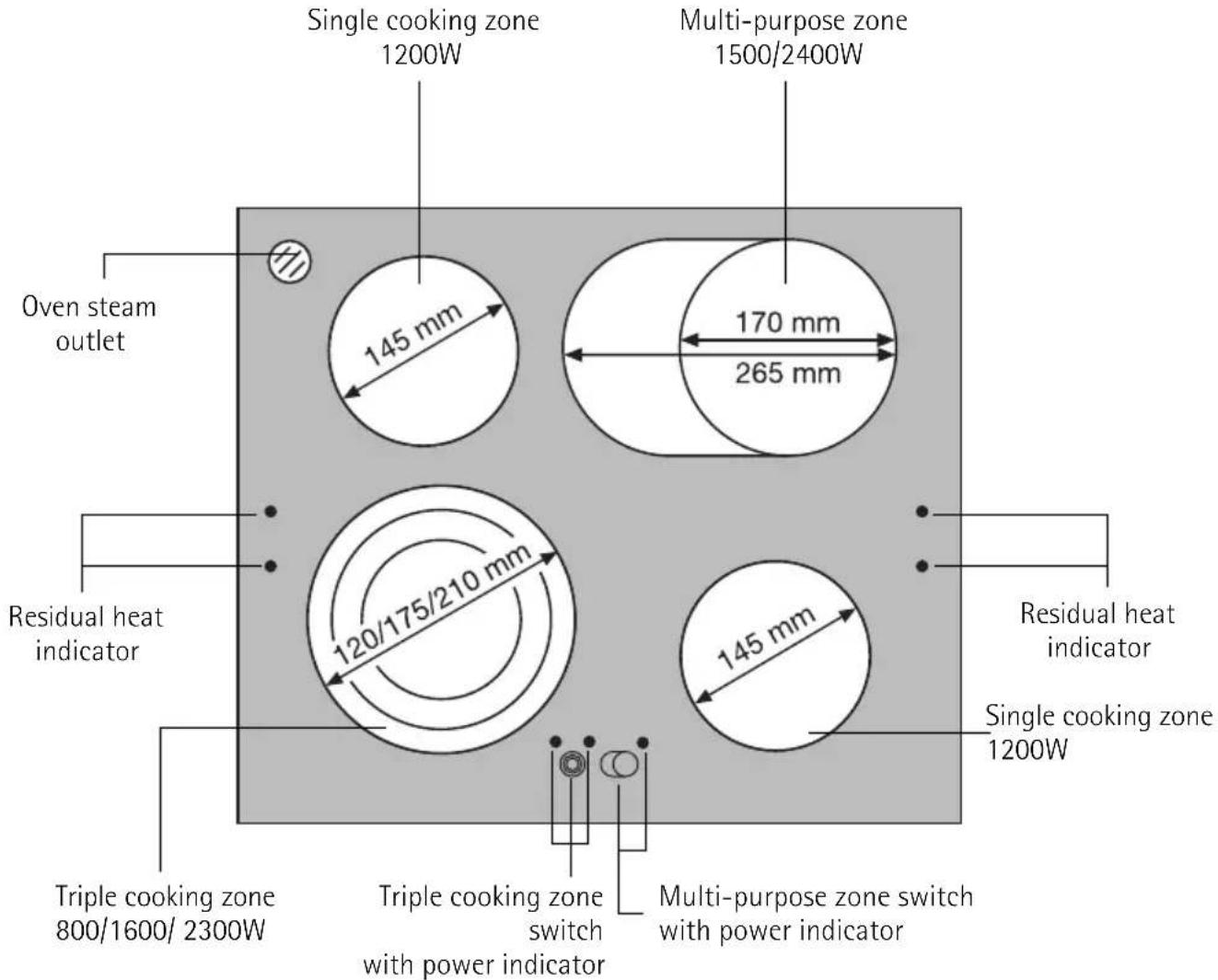

Cooking surface layout

Single cooking zone 1200W Multi-purpose zone 1500/2400W Oven steam outlet 145 mm 170 mm 265 mm Residual heat indicator 120/175/210 mm 145 mm Residual heat indicator Single cooking zone 1200W Triple cooking zone 800/1600/ 2300W Triple cooking zone switch with power indicator Multi-purpose zone switch with power indicator

Touch control sensor panels

Outside rings are switched on by touching the Touch Control Sensor panels.

Sensor panel Function
◎	Triple cooking zone switch Switching the outside ring on and off
○	Roasting zone switch Switching the outside ring on and off

Residual heat indicator

The residual heat indicator lights up, as soon as the corresponding cooking zone is hot.

Danger! Risk of burns from residual heat. After being switched off, the cooking zones need some time to cool down. Look at the residual heat indicator.

Residual heat can be used for melting and keeping food warm.

Operating the hob

You operate the appliance with the combination appliance's ring switches. The operation and the function of the ring switches is described in the Operating Instructions for the combination appliance.

When a cooking zone is switched on, it may hum briefly. This is a characteristic of all ceramic glass cooking zones and does not impair either the function or the life of the appliance.

Switching the outside ring on and off

By switching the outside rings on or off, the effective heating surface can be matched to the size of the cookware.

Before an outside ring can be switched on, the inside ring must be switched on.

Triple cooking zone Sensor panel Power indicator
To switch on middle ring	Touch 📋 for 1-2 seconds.	One power indicator is lit.
To switch on outside ring	Touch 📋 for 1-2 seconds.	Two power indicators are lit.
To switch off outside ring	Touch 📋 for 1-2 seconds.	Second power indicator goes out.
To switch off middle ring	Touch 📋 for 1-2 seconds.	First power indicator goes out.

Roasting zone Sensor panel Power indicator
To switch on outside ring	Touch ☐ for 1-2 seconds	is lit
To switch off outside ring	Touch ☐ for 1-2 seconds	goes out

Tips on Cooking and Frying

Cookware

• You can recognise good cookware from the bottoms of the pans. The bottom should be as thick and flat as possible.
• Cookware made of enamelled steel or with aluminium or copper bottoms can leave discolorations on the glass ceramic surface which are difficult or impossible to remove.

Energy saving

Always place cookware on the cooking zone before it is switched on.

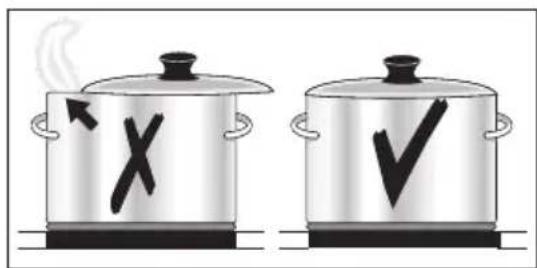

If possible, always place lids on the pans.

Illustration of two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating a cooking or cooking process.

Switch cooking zones off before the end of the cooking time, to take advantage of residual heat.

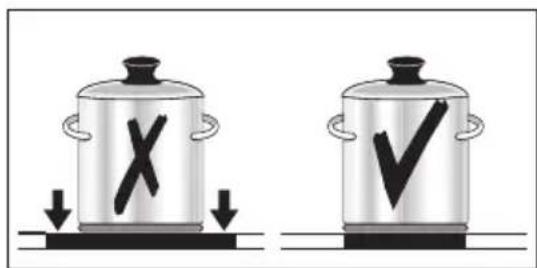

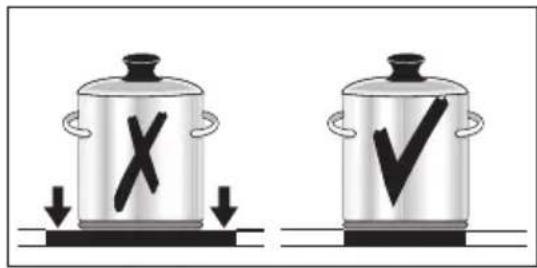

Bottom of pans and cooking zones should be the same size.

Illustration showing two cooking pots with X and ✓ symbols indicating cooking process or inspection, each with downward arrows.

Cleaning and Care

Take care! Risk of burns from residual heat.

Warning! Sharp objects and abrasive cleaning materials will damage the appliance. Clean with water and washing up liquid.

Warning! Residues from cleaning agents will damage the appliance. Remove residues with water and washing up liquid.

Cleaning the appliance after each use

1. Wipe the appliance with a damp cloth and a little washing up liquid.
2. Rub the appliance dry using a clean cloth.

Removing deposits

1. Place a scraper on the glass ceramic surface at an angle.
2. Remove residues by sliding the blade over the surface.
3. Wipe the appliance with a damp cloth and a little washing up liquid.
4. Rub the appliance dry using a clean cloth.

Type of dirt	Remove
	immediately	when the appliance has cooled down	using
sugar, food containing sugar yes ---			a scraper*
plastics, tin foil yes ---
limescale and water rings --- yes			cleaner for glass ceram- ic or stainless steel*
fat splashes --- yes
shiny metallic discolouration --- yes

*Scrapers and cleaners for glass ceramic and stainless steel can be purchased in specialized shops

Remove stubborn residues with a cleaner for glass ceramic or stainless steel.

Scratches or dark stains on the glass ceramic that cannot be removed do not however affect the functioning of the appliance.

What to do if ...

Problem Possible cause Remedy
The cooking zones are not functioning.	The desired heat setting is not set.	Set the heat setting.
	The fuse in the house's electrical wiring (fuse box) has been tripped.	Check the fuse.If the fuses trip a number of times, please call an authorised electrician.
The residual heat indicator is not displaying anything	The cooking zone was only on for a short time and is therefore not hot	If the cooking zone is supposed to be hot, call the Customer Service Department.
The outside rings cannot be switched on.	The inner ring is not switched on.	Switch on the inner ring.

If you are unable to remedy the problem by following the above suggestions, please contact your local Service Force Centre.

Warning! Repairs to the appliance are only to be carried out by qualified service engineers. Considerable danger to the user may result from improper repairs.

If the appliance has been operated incorrectly, the engineer's visit will be chargeable, even during the warranty period.

Disposal

Packaging material

The packaging materials are environmentally friendly and can be recycled. The plastic components are identified by markings, e.g. >PE<, >PS<, etc. Please dispose of the packaging materials in the appropriate container at the community waste disposal facilities.

Old appliance

The symbol 📋 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Installation Instructions

Safety instructions

Warning! This must be read!

The laws, ordinances, directives and standards in force in the country of use are to be followed (safety regulations, proper recycling in accordance with the regulations, etc.)

Installation may only be carried out by a qualified electrician.

The minimum distances to other appliances and units are to be observed.

Drawers may only be installed under the appliance with a protective floor.

The cut surfaces of the worktop are to be protected against moisture using a suitable sealant.

The sealant seals the appliance to the work top with no gap.

Avoid installing the appliance next to doors and under windows. Otherwise hot cookware may be knocked off the rings when doors and windows are opened.

4Risk of injury from electrical current.

The combination appliance is live.

• Observe electrical safety rules.
• Ensure anti-shock protection through correct installation by a qualified electrician.
• Rated voltage of the combined appliances must match.

4Risk of injury from electrical current.

Loose and inappropriate plug and socket connections can lead to overheating of the plug.

- Fit plug and socket connections together properly.

A device must be provided in the electrical installation which allows the appliance to be disconnected from the mains at all poles with a contact opening width of at least 3 mm.

Suitable isolation devices include line protecting cut-outs, fuses (screw type fuses are to be removed from the holder), earth leakage trips and contactors.

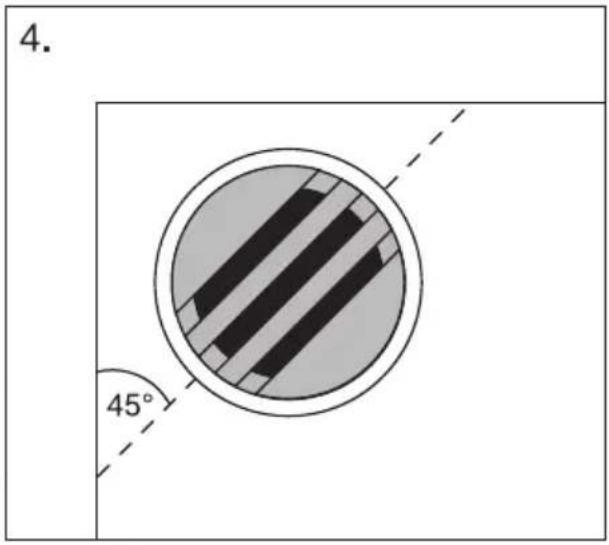

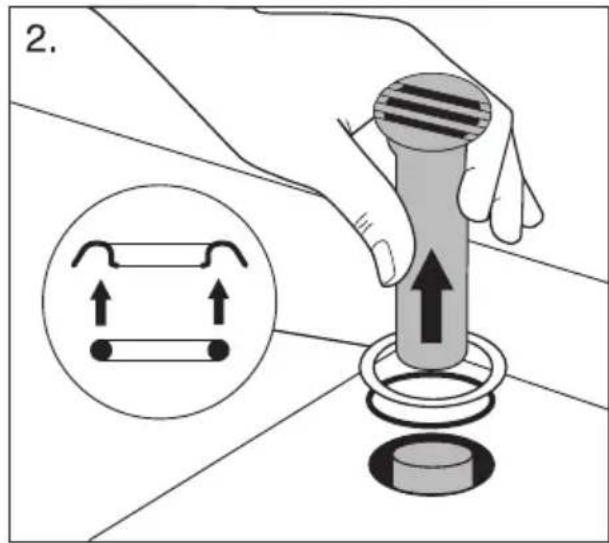

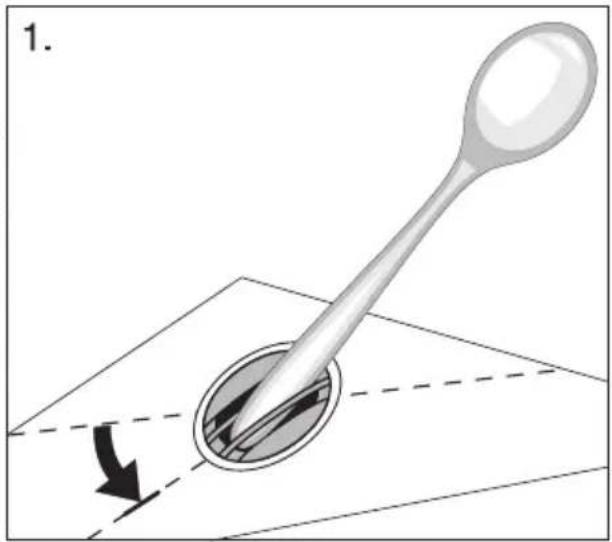

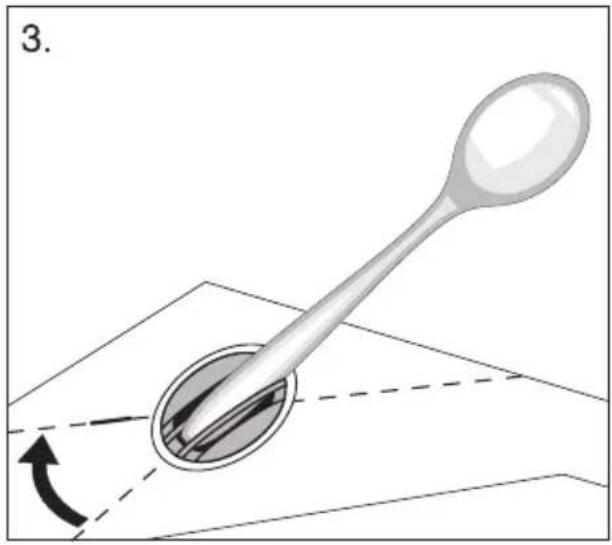

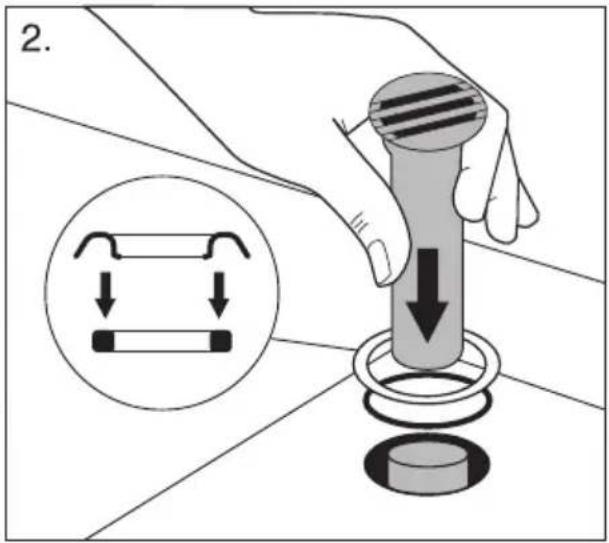

Move the oven steam outlet pipe with a screwdriver to the centre of the opening in the hob. Then put the outlet connection piece over the pipe.

- In order to facilitate access if servicing is required, there must be a space the size of the cut-out section in the worktop and 150mm high under the hob. Anything installed in this area, e.g. anti-shock protection, must be easily removable.

Sticking the seal in the rabbet

• Clean the rabbet in the work surface.
• Stick the one-sided self-adhesive sealing tape supplied onto the upper surface of the rabbit along the edges of the cut-out section.

—Cut the sealing tape into four pieces relating to the length of the edges of the rabbet.
- For the four corners of the rabbet the ends of the sealing tapes must be cut into mitres. Do not stick the ends over one another.
—Stick the sealing tape flush into the corner of the rabbit, so that no silicon compound can get under the glass ceramic when grouting.
-Don't stretch the tapes when sticking them on.

Guarantee/Customer Service

European Guarantee

This appliance is guaranteed by Electrolux in each of the countries listed at the back of this user manual, for the period specified in the appliance guarantee or otherwise by law. If you move from one of these countries to another of the countries listed below the appliance guarantee will move with you subject to the following qualifications:

• The appliance guarantee starts from the date you first purchased the appliance which will be evidenced by production of a valid purchase document issued by the seller of the appliance.
• The appliance guarantee is for the same period and to the same extent for labour and parts as exists in your new country of residence for this particular model or range of appliances.
• The appliance guarantee is personal to the original purchaser of the appliance and cannot be transferred to another user.
• The appliance is installed and used in accordance with instructions issued by Electrolux and is only used within the home, i.e. is not used for commercial purposes.
• The appliance is installed in accordance with all relevant regulations in force within your new country of residence.

The provisions of this European Guarantee do not affect any of the rights granted to you by law.

Service

In the event of technical faults, please first check whether you can remedy the problem yourself with the help of the operating instructions (section "What to do if...").

If you were not able to remedy the problem yourself, please contact the Customer Care Department or one of our service partners.

In order to be able to assist you quickly, we require the following information:

-Model description -Product number (PNC) -Serial number (S No.) (for numbers see rating plate)

- Type of fault - Any error messages displayed by the appliance

-three digit letter-number combination for glass ceramic

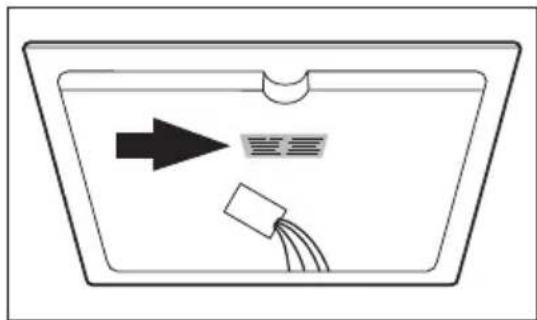

Diagram of a device with an arrow pointing to a grid and cable, no text or symbols present

So that you have the necessary reference numbers from your appliance at hand, we recommend that you write them in here:

Model description: ....

PNC: ....

S No: ....

Chère cliente, cher client

Touche sensitive "Touch Control"

Illustration of two cooking pots with checkmarks and a crossed-out 'X' symbol, likely indicating cooking or cooking advice.

Illustration showing two cooking pots with checkmarks and X and ✓ symbols, indicating a cooking process or inspection.

Simple line drawing of a container with an arrow pointing to a rectangular object and a connector (no text or symbols)

Touch-control-sensorvelden

Illustration of two cooking pots with checkmarks and X symbols, likely indicating cooking or cooking process.

Illustration showing two cooking pots with checkmarks and X and ✓ symbols, indicating a cooking process or inspection.

Simple line drawing of a rectangular container with an arrow pointing to a grid and a connector attached (no text or symbols)

Modelaanduiding: ....

PNC: ....

S-No: ....

Illustration of a hand using a screwdriver to press or install a circular component with directional arrows (no text or symbols)

2.

Illustration of a spoon interacting with a circular object, showing motion direction (no text or symbols)

4. 45°

Diagram of a mechanical or electrical component with directional arrows indicating movement, no text or symbols present.

Illustration of a spoon interacting with a circular object, showing a force or motion indicator (no text or symbols)

2.

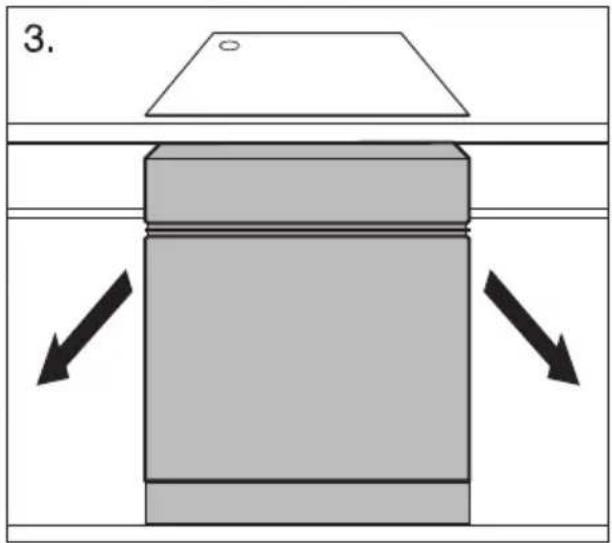

3.

Rating Plate / Plaque signalétique / Typeplaatje

Modell 61300 M-IN		Prod.Nr. 949 592 307
Typ 55AAD55Z0	230 V 50 Hz
Made in Germany	Ser.Nr. .....		7,1 kW
