DO7091P - Ironing board DOMO - Free user manual and instructions

Brand	DOMO
Model	DO7091P
Product type	Ironing board with suction and blower
Supply voltage	220-240 V
Maximum power of the built-in socket	2400 W (for 240 V)
Adjustable height	Yes, by pull rod
Suction function	Yes, adjustable
Blower function	Yes, adjustable
Integrated iron rest	Yes, with insulation
Indicator light	Yes, as operation indicator
Non-slip feet	Yes
Casters	Yes, for easy storage
Ironing board cover	Included, removable
Use with iron	Standard or steam iron
Safety	Do not leave unattended, do not touch hot parts
Maintenance	Clean with a damp cloth, do not use solvents
Warranty	2 years
Recycling	Do not dispose of with household waste, deposit at WEEE collection point

Frequently Asked Questions - DO7091P DOMO

How to use the suction function?

Turn the air adjustment knob to the suction position. The board sucks air to hold the fabric in place while ironing.

How to adjust the height of the board?

Pull the height adjustment and lift the board to the desired height. Make sure the board is stable before use.

Can I use a steam iron with this board?

Yes, the board is compatible with steam irons. However, do not use a steam generator directly on the board while in operation to avoid moisture buildup.

How to clean the ironing board cover?

Remove the cover by pulling it gently without using the zipper to avoid damage. Hand wash with a damp cloth and mild soap, then air dry.

What to do if the indicator light does not turn on?

Check that the power cord is plugged in and the on/off button is set to 'on'. If the problem persists, contact customer service.

Can the board be used with a steam generator?

No, do not use a steam generator on the board while in operation. Moisture could accumulate and damage the device.

How to store the board after use?

Turn off the device, unplug the iron and the board, wait for it to cool down. Pull the height adjustment and fold it gently. Use the casters to move it.

What is the maximum allowed power of the iron?

The maximum power is 2200 W for 220 V, 2300 W for 230 V, and 2400 W for 240 V. Do not exceed these values.

Does the warranty cover the ironing board cover?

The cover is a wear part and is not covered by the 2-year warranty, except in case of manufacturing defect.

How to close the board safely?

Make sure the board has cooled down. Pull the height adjustment and lower it carefully. Be careful not to pinch your fingers while closing.

USER MANUAL DO7091P DOMO

Modern folding table with metal legs and adjustable armrest (no text or symbols visible)

GARANTIEVOORWAARDEN

CONDITIONS DE GARANTIE

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures which are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The warranty will only be valid if the warranty application has been completed by the dealer at the time of purchase. All parts, such as brushes and batteries, which are subject to wear, are excluded from the warranty.

RECYCLAGE INFORMATIE

RECYCLING INFORMATIONEN

RECYCLING INFORMATION

The symbol 📄 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it shall be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service of the shop where you purchased the product.

GEBRUIK

VERWENDUNG

For safety purpose you should read these instructions carefully before using the appliance

The appliance is designed for domestic use and may only be operated in accordance with these instructions for use.

- Check the mains voltage stated on the rating plate corresponds to the local electricity supply

- Unwind and straighten the power cord before use

- Disconnect appliance from the mains supply. Before plug in or unplug any ironing machine to appliance. Before remove any part from the appliance or refi t any part to the appliance. Before cleaning and/or maintenance. If work improperly. After used

- Keep away the appliance from children

- Turn the power switch off before disconnect the appliance from mains supply

- The iron board shall only be used in conjunction with iron or iron with separate boiler

- The supply voltage of the iron or iron with separate boiler being connected shall correspond with the voltage marked for the socket.

- The max load of the socket is

2200 W (for AC220 V)

2300 W (for AC230 V)

2400W (for AC240V)

- If the power cord/any part of the appliance is damaged, the manufacturer or its service agent or similarly qualified person must replace it in order to avoid hazard

- Do not allow children touch the appliance or the power cord when operating

- Do not use an extension power cord set unless competent authority has approved it.

- Do not touch any hot part of appliance.

- Do not using a steam iron / generator when the ironing board is cold or unventilated as this might cause humidity to accumulate within the ironing board

- Do not contact with the metal parts of the device that are subject to heat.

- Do not leave the appliance unattended when it is connected to a mains supply outlet.

- Avoid that fi ngers becomes squeezed during closing the board

- Do not use the appliance when it is damaged or performs abnormally

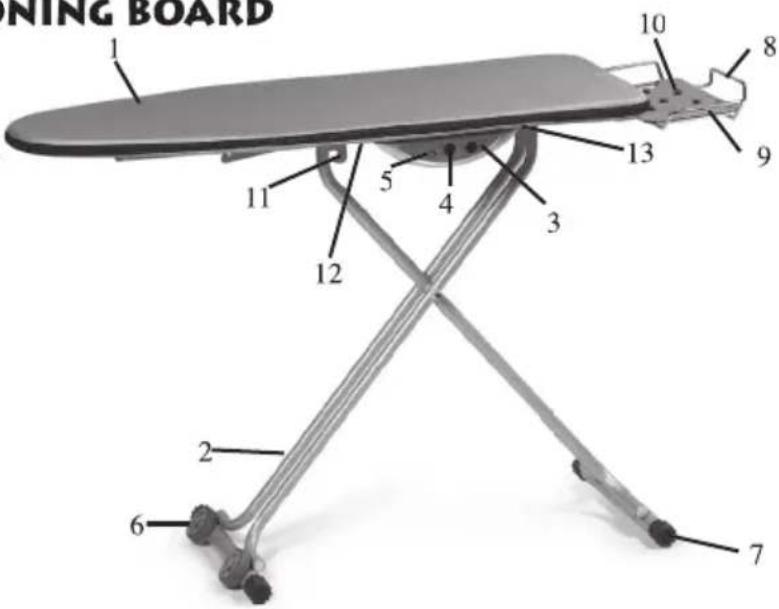

GET TO KNOW YOUR IRONING BOARD

1. Ironing board
2. Feet
3. Air (intake/off/outward) switch
4. Power on/off switch
5. Power indicator
6. Rolling wheel
7. Non-skid rubber footings
8. Handle
9. Inro supprot
10. Iron support heat insulation
11. Height adjusting lever
12. Circulation fan
13. Power point base

HOW TO USE

How to Open

• Place the ironing board in a horizontal position (fi g. 1) and the iron support upwards drive the height adjusting lever and pull the feet outwards until the desired height is reached.
• It is also possible to change the height of the ironing board according to the different positions. All you need to do is pull the handle and adjust the ironing board to position.
• The ironing board must be firmly supported on the ground
• Place the iron on the iron support and plug the iron's feed cable in to power point b base.
• Connect the plug of the iron into the mains. Make sure that the tension of the mains is the same as that indicated on the feature plate on the device.
• Start the device by pressing on the power switch.
• Ironing Board gradually heat up (LED Power indicator will light up always)
• Simply by select air (intake/off/outfl ow) switch for airfl ow upward, airfl ow off airfl ow downward respectively

NOTE: After you have fi nished ironing, leave the ironing board plugged in for 3 or 4 Minutes, so as to ensure that there is no humidity trapped inside the board. This will contribute to extend the board's life span.

HOW TO CLOSE

• Turn off the ironing board by pressing on the switch; Disconnect the iron from the power point basis, disconnect the ironing board.
• Pull the handle to release the feet
• As soon as the ironing board is cold, place in vertical position with the iron support

upward (fi g. 2), drive the height adjusting lever and pull the feet outwards unit the board is completely folded.

CLEANING

Disconnect the appliance before cleaning it. Gently remove the ironing board cloth from the appliance.

IMPORTANT : never remove the ironing board cloth with zipper, it may damage your ironing board. Never submerge the appliance in water nor any other liquid, and do not let it stand under a running tap. Do not use solvents nor abrasive products to clean it.

STORAGE

The appliance equipped with Easy rolling wheel, for easy storage/relocate
