DO735F - Fondue, raclette and wok appliance DOMO - Free user manual and instructions

Brand	DOMO
Model	DO735F
Product type	Fondue, raclette and wok appliance
Pot material	Stainless steel
Pot capacity	Min and max level markings inside
Thermostat	Adjustable from MIN to MAX
Indicator light	Indicates when temperature is reached
Included accessories	8 stainless steel skewers with color markers, ring support
Handles	On pot and base
Power supply	220-240 V ~ 50/60 Hz (estimate)
Power	Approximately 1500 W (estimate)
Dimensions (approx.)	Height 20 cm, diameter 25 cm (estimate)
Weight (approx.)	2.5 kg (estimate)
Cleaning	Pot, ring and skewers dishwasher safe
Base maintenance	Do not immerse, clean with soft cloth
Safety	Do not leave unattended, do not mix water and oil
Warranty	2 years

Frequently Asked Questions - DO735F DOMO

How to use the fondue?

Fill the pot with oil between the min and max levels, place it on the base, plug in and set the thermostat. Wait for the light to go out, then dip the meat pieces.

Can I use cheese or broth?

Yes, you can use cheese (cheese fondue) or broth (Chinese fondue) instead of oil. Make sure to respect the levels.

How to clean the pot and skewers?

Let cool, then wash with soapy water or in the dishwasher. The base must not be immersed.

What to do if the oil boils too much?

Lower the thermostat towards MIN to reduce the temperature. The oil should not boil.

Are the skewers dishwasher safe?

Yes, the stainless steel skewers and the ring support can go in the dishwasher.

Which oil to use?

Use oils suitable for high temperature: sunflower, peanut, corn germ oil or special fondue oil.

Does the warranty cover accessories?

Accessories and wear parts have a 6-month warranty. The appliance is warranted for 2 years.

Can I use the appliance outdoors?

No, the appliance is designed for indoor use only.

How to store the appliance?

Wrap the cord in its compartment under the base and place the pot with the ring and skewers.

Does the appliance have an automatic shut-off?

No, the appliance does not have automatic shut-off. Never leave it unattended.

USER MANUAL DO735F DOMO

Black and beige Domo hotpot with various skewers and a wooden base (no text or symbols visible)

DO735F

Handleiding Fondue
Mode d'emploi Fondue
Gebrauchsanleitung Fondue
Instruction booklet Fondue
Manual de instrucciones Fondue
Istruzioni per l'uso Fondue
Návod k použití Fritéza fondue
Návod na použitie Fritéza fondue

Two black-and-white icons: a warning triangle with an exclamation mark and an open book with stacked pages (no text or symbols)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Row of identical medical or laboratory instruments with black and yellow connectors, no visible text or symbols

PROBLEEM EN OPLOSSING

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Row of eight identical cylindrical electronic components with black leads and yellow connectors, no visible text or symbols.

AVANT LA PREMIÈRE UTILISATION

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Row of eight identical cylindrical electronic components with black leads, no visible text or symbols

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
• In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

- This appliance is intended to be used in household and similar applications such as:

· staff kitchen areas in shops, offices and other working environments;

· farm houses;
- by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

· Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

- Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

⚠️ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to “OFF” or “o” position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• The appliance may not be used with an extension lead or a multiple socket.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

· Do not place near flammable materials, gases or explosives.
· Do not use or store this appliance outdoors.
· Always use the appliance on a steady, dry and level surface.
- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

The surface(s) marked with this symbol are liable to get hot during use. It is advised not to touch the surfaces of the appliance other than the handles to avoid burns.

• Do not move or carry the appliance when it is hot. Hot fluids may spill out.
  · Never pour together water and oil. Hot fluids may spill out.
• The appliance becomes very hot. Only touch the appliance by the relevant handles and knobs.
• Caution: never mix fats and oils, the fondue pot could boil over. Even mixing different types of oil and/or fat can be dangerous.
• If the oil or fat catches fire, do not try to put out the flames with water. Instead, suffocate the flames with a damp cloth.
  · Do not put the fondue forks in your mouth. They are sharp.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

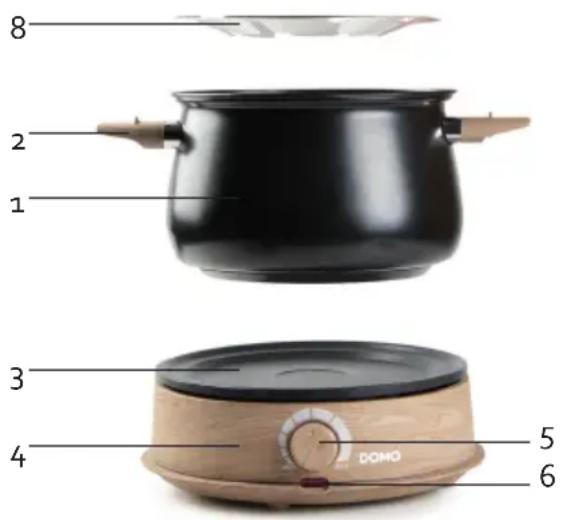

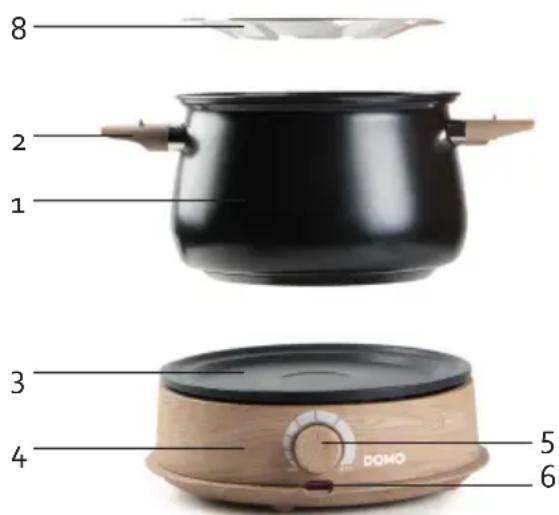

PARTS

1. Stainless steel fondue pot
2. Handles
3. Cooking plate
4. Base
5. Thermostat
6. Indicator light
7. 8 stainless steel forks with colour markings
8. Ring-shaped frame for holding 8 forks

Row of identical cylindrical electronic components with black leads and a yellow end, no visible text or symbols

BEFORE THE FIRST USE

• Prior to initial use, remove all packaging materials and any promotional stickers.
• Before first use carefully clean the appliance. (See "cleaning and maintenance").
• Place the appliance on a dry, flat surface and ensure there is adequate ventilation.

USE

1. Put the base with the cooking plate on the table or another spot where you will be using the fondue. This way you avoid moving the fondue pot when the oil is hot.
2. Pour the oil into the fondue pot. There are 2 level marks on the inside of the pot, indicating the maximum and minimum levels. Make sure the oil level is between these 2 indicator lines. If not, the fondue can be damaged or it can be dangerous as you may get burned by splashing oil.
   Always use oil that is suitable for high temperatures, such as fondue oil, sunflower oil, peanut oil, maize germ oil, etc. The fondue can also be used with cheese or broth.
3. Put the pot on the cooking plate of the base and put the ring-shaped frame on the pot.
4. Plug in the appliance. Turn the thermostat knob to the desired position between MIN and MAX. The indicator light will light up.
5. Cut the meat in small, equal pieces (2 to 3 cm).
6. Wait until the oil has reached the desired temperature. When the set temperature is reached, the indicator light will turn off. Immerse a piece of meat in the oil to check if the oil is warm enough. If the meat starts cooking immediately, the oil has reached the necessary temperature.
7. Pierce a piece of meat with a fork and carefully put the fork into the oil. Be careful not to make the oil splash. Let the fork rest in one of the slots of the ring-shaped frame and wait until the meat is cooked. Depending on the amount of meat you immerse, the oil may start to boil. If this happens, turn the temperature knob towards the "MIN" position to reduce the temperature.
8. Do not cross the forks and carefully remove the forks from the oil to put the meat on your plate. Let the meat drip first before putting it on the plate.

CLEANING AND MAINTENANCE

· As oil quickly loses its optimal quality, it is best to change the oil after every use.
- Switch off and unplug the appliance and let it cool down before cleaning it.
- Clean the base with a soft cloth.
- Never use any abrasive products.
· Never immerse the base with the cooking plate in water or any other liquid.
- Clean the fondue pot, the ring-shaped holder and forks with water and some soap and a soft cloth or sponge. If necessary, soak the pot in hot soapy water.
· Never use scouring pads or scrapers since they can damage the appliance.
· The fondue pot, ring-shaped holder, and forks are dishwasher-safe.
· Wind the cord around the cord winder in the base for compact storage.

PROBLEM AND SOLUTION

PROBLEM SOLUTION
The oil/cheese is boiling. The oil or cheese must always remain below boiling point. Turn the thermostat knob down a little.
My cheese is too thick. When making a cheese fondue, make sure there is enough liquid. For example, make a roux in which you further melt the cheese. You can also add a splash of white wine.

ENVIRONMENTAL GUIDELINES

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.
