USER MANUAL DO243SV DOMO

Black and silver vacuum cleaner with extended handle and black base (no visible text or symbols)

DO243SV

Handleiding Steelstofzuiger

Mode d'emploi Aspirateur-balai

Gebrauchsanleitung Handstaubsauger

Instruction booklet Stick vacuum cleaner

Manual de instrucciones Aspirador escoba

Istruzioni per l'uso Scopa elettrica

Návod k použití Tyčový vysavač 2v1

Návod na použitie Tyčový vysávač 2v1

Two black-and-white icons: a triangular warning symbol with an exclamation mark and a stack of open books (no text or symbols present)

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Labeled diagram of a vacuum cleaner with numbered parts and internal components including a precision lens and cable.

Diagram showing three steps of a vacuum cleaner assembly: adding a cable, adjusting the component, and finally adding a handheld device.

MUURBEVESTIGING

Black vacuum cleaner with attached clip, shown with a 120 cm height dimension label (no text or symbols on the device itself)

OPLADEN

Close-up of a hand inserting a black cable into a device (no visible text or symbols)

Black vacuum cleaner on a white background (no text or symbols visible)

Two black plastic hair clip accessories with blue filter bands, shown from different angles (no text or symbols visible)

Close-up of a black handheld device handle with a small blue component inserted, no visible text or symbols

Close-up of two precision air purifiers with circular buttons, no visible text or symbols on the surfaces

OPMERKING:

Two black vacuum cleaner devices with attached clamps, shown from different angles (no text or symbols visible)

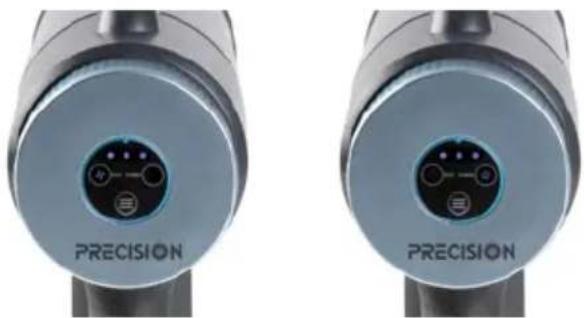

INDICATIELAMPJES

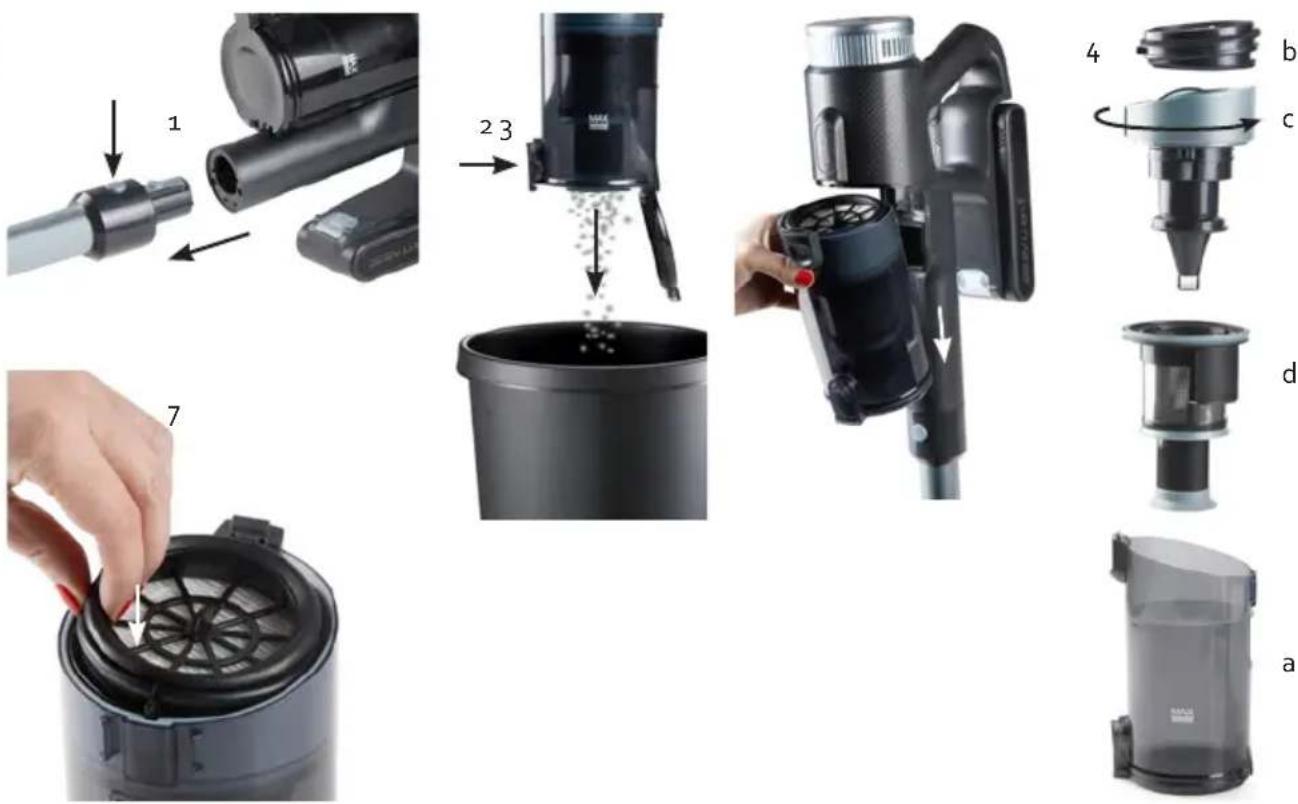

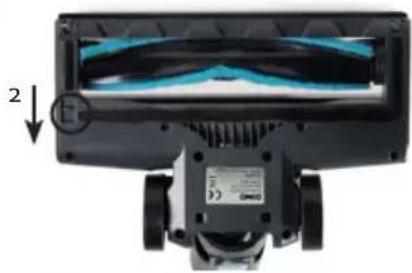

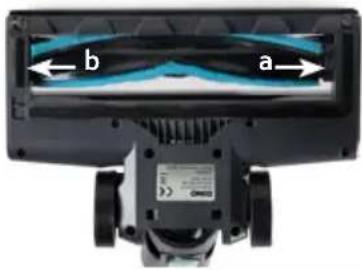

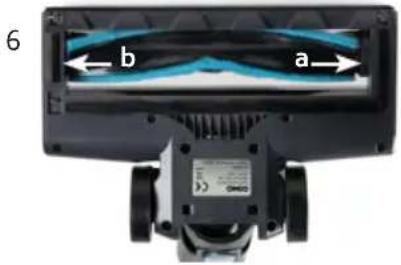

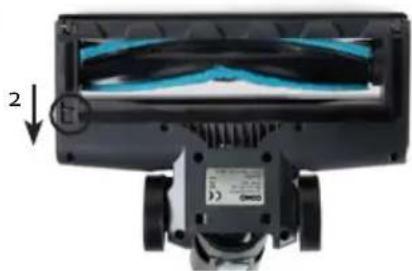

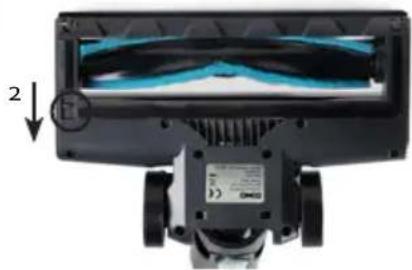

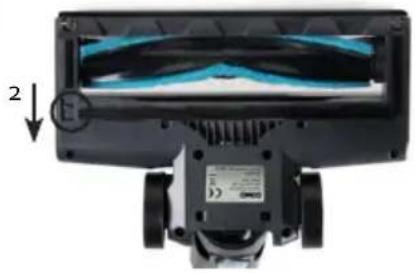

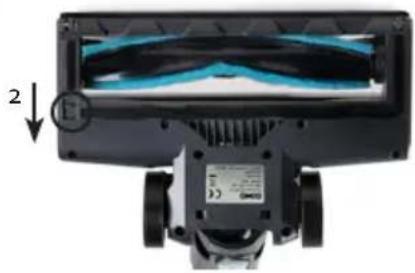

DE VLOERBORSTEL SCHOONMAKEN

Close-up of a black vacuum cleaner handle with a labeled component (no text or symbols on the device itself)

Close-up of a black robotic device with blue mesh and control panel, no visible text or symbols

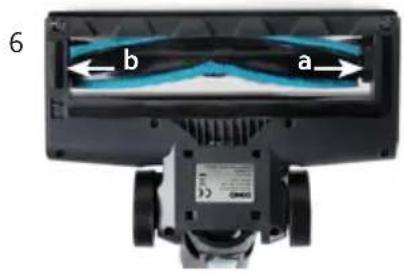

6

a b

PROBLEEM EN OPLOSSING

Prohibition sign depicting a trash bin crossed with no signage, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or numbers present)

⚠ AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Labeled diagram of a vacuum cleaner with numbered parts and internal components including a precision valve and power plug.

AVANT LA PREMIÈRE UTILISATION

Diagram showing three steps of a vacuum cleaner assembly: adding a cable, adjusting the component, and adding a handheld device.

SUPPORT MURAL

Product photo of a black vacuum cleaner with attached clip, shown with a 120 cm height dimension (no text or symbols on the device itself)

CHARGE

Close-up of a hand inserting a black plastic clip into a black device (no text or symbols visible)

Black vacuum cleaner with attached lever (no visible text or symbols)

Two black plastic electrical connectors with blue leads, shown from different angles (no text or symbols visible)

Close-up of a black handheld device handle with a small blue component inserted, showing no visible text or symbols.

Close-up of two precision air purifiers with circular buttons, no visible text or symbols on the devices themselves.

REMARQUE :

Two black vacuum cleaner devices with adjustable arm and handle, shown against white background (no text or symbols visible)

LES TÉMOINS


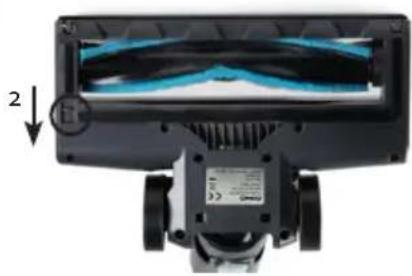

NETTOYER LA BROSSE DE SOLS

Close-up of a black vacuum cleaner handle with a labeled component (no text or symbols visible)

Close-up of a black electronic device with blue wave patterns and a circular indicator labeled '2' pointing to a button (no readable text or symbols)

6

a b

Diagram of a waste bin with crossed lines indicating no waste, and a black rectangular symbol below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

BATTERIE AMOVIBLE

Diagram showing three steps of a vacuum cleaner assembly: adding a cable, adjusting the component, and finally adding a device.

WANDBEFESTIGUNG

Product photo of a black vacuum cleaner with attached clip, shown with a 120 cm height dimension (no text or symbols on the device itself)

AUFLADEN

Close-up of a hand inserting a black plastic device into a black rectangular device (no visible text or symbols)

Black vacuum cleaner with attached lever (no visible text or symbols)

Two black plastic cable connectors with blue fins, shown from different angles (no text or symbols visible)

Close-up of a black handheld device handle with a small blue button and arrow pointing to the grip (no visible text or symbols)

Close-up of two precision air purifiers with sensor icons, no visible text or symbols on the devices themselves.

ANMERKUNG

Two black vacuum cleaner devices with extended handle and attached base, shown against white background (no text or symbols visible)

KONTROLLLEUCHTEN

Close-up of a black vacuum cleaner handle with a labeled component (no text or symbols visible)

Close-up of a robotic device with blue mesh and control panel, no visible text or symbols

6

a b

Prohibition sign depicting a trash bin crossed with no signage, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

HERAUSNEHMBARE BATTERIE

All of our products are always submitted to a strict quality control before they are sold to you.

Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty. If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g. electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
  · In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following:

• Read all instructions carefully. Keep this manual for future reference.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is intended to be used in household and similar applications such as:

• staff kitchen areas in shops, offices and other working environments;
  · farm houses;

• by clients in hotels, motels and other residential type environments;

• bed and breakfast type environments.

• Children should be supervised to ensure that they do not play with the appliance.

• This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.
  · Children shall not play with the appliance.
• Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.
• Keep the appliance and its cord out of reach of children younger than 16 years.
• All repairs should be carried out by the manufacturer or its aftersales service.
• Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

▲ELECTRICAL WARNINGS

• In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a separate remote control, or connected to a circuit that is regularly switched on and off by the utility.
• The appliance must be disconnected from its power source when not in use, during service and when replacing parts. Allow to cool before putting on or taking off parts, and before cleaning the appliance. To disconnect, turn controls to "OFF" or "o" position, then remove the plug from the wall. Never pull the cord or appliance to remove the plug from the socket.
• Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

• The appliance must be plugged into an appropriate outlet that is installed and grounded in accordance with local installation regulations.

• Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

• Keep the power cord away from hot parts and don't cover the appliance.
• Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.
• Do not operate this appliance with a damaged cord or plug or in the event the appliance malfunctions or has been damaged in any manner. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

· Do not place near flammable materials, gases or explosives.
· Do not use or store this appliance outdoors.
· Always use the appliance on a steady, dry and level surface.
- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

· Do not use this appliance for other than intended use.
- Only use the appliance for domestic use. The manufacturer cannot be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· Never leave the appliance unattended while it is functioning.
· Do not operate the appliance with wet hands.
- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

• To protect against electrical shock or burns, do not immerse unit, floor nozzle, cord, or plug in water or other liquid.
• Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCT-SPECIFIC WARNINGS

• Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
  Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Avoid vacuuming large objects and items that could become entangled in the brush (long hair, plastic bags, string, etc.). Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
• Make sure that the air intake or the floor suction opening do not become blocked.
• Make sure that the machine does not come into contact with liquids.
• First charge a new battery up completely.
• Pull the plug from the outlet when the vacuum cleaner is fully charged.
• This product contains a rechargeable battery. Batteries should be recycled. Do not drill into the battery or expose it to high temperatures; the battery could explode.
  · Under extreme circumstances, there could be leakage of the battery. If the liquid from the battery comes into contact with the skin, wash it off immediately with water and soap or neutralize it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them liberally with water for at least 10 minutes and contact a doctor.
• Do not place foreign objects in the openings of your machine. Do not use the machine if an opening is blocked. Keep the machine free from dust, dirt, hair or anything that could reduce the air supply.
• Remove large and sharp objects from the floor to prevent damage to the plastic components, the brushes and the motor.
• Keep hair, loose clothing, fingers and other body parts away from openings and moving parts.
• Never use the appliance without filters. This will damage the motor and render it unusable.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

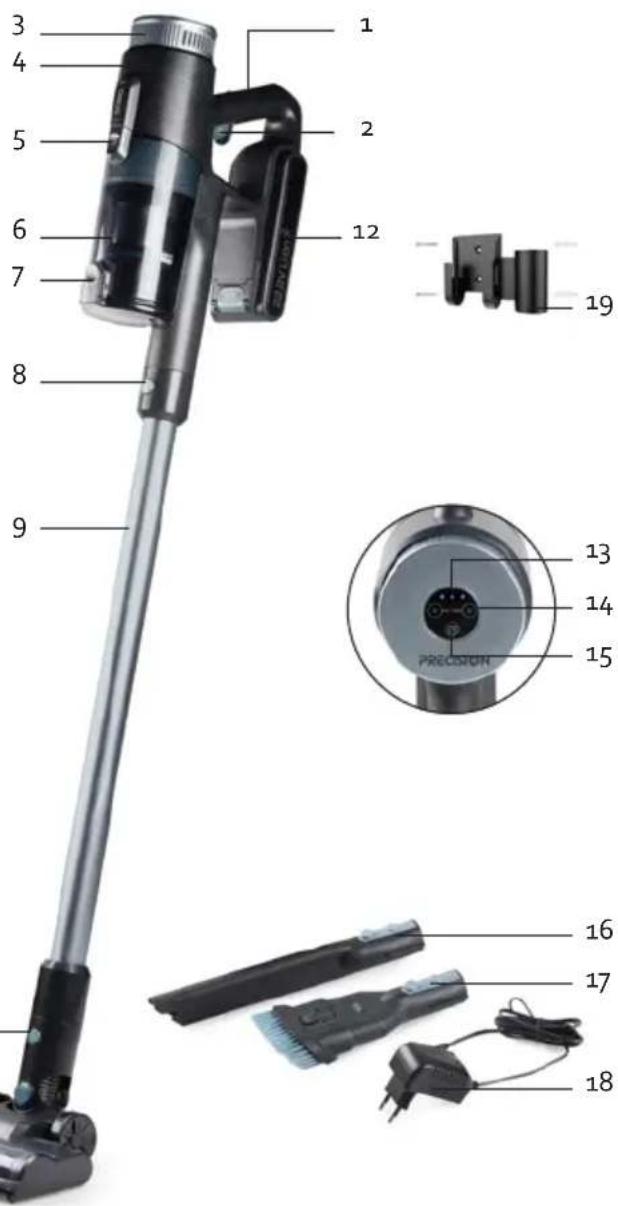

PARTS

1. Ergonomic handle
2. On/off button
3. Exhaust filter cover
4. Motor compartment
5. Dust container release button
6. Dust container
7. Dust container lid release button
8. Metal tube release button
9. Metal tube
10. Release button floor nozzle
11. Floor nozzle with rotating floor brush
12. Removable battery
13. Battery level indicator lights
14. Indicator lights (Eco/Turbo)
15. Mode button (Eco/Turbo)
16. Long crevice tool
17. 2-in-1 fabric brush
18. Adapter
19. Wall fixing (screws and plugs included)

1 2 3 4 5 6 7 8 9 12 13 14 15 16 17 18 19 PRECISION

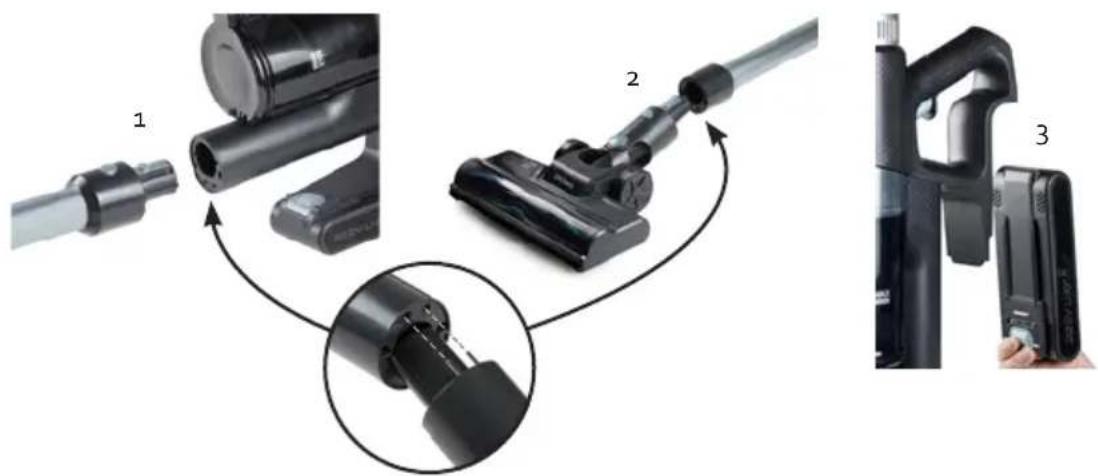

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
  · Assemble all the parts:

• Slide the wand assembly into the motor part until it clicks into place. Make sure the power pins slide into the intended holes properly.

• Slide the floor attachment on to the wand assembly until it clicks into place. Make sure the power pins slide into the intended holes properly.

• Slide the battery into the battery holder at the bottom of the motor part until it clicks into place.

Diagram showing three steps of a vacuum cleaner assembly: adding a cable, adjusting the component, and finally adding a device.

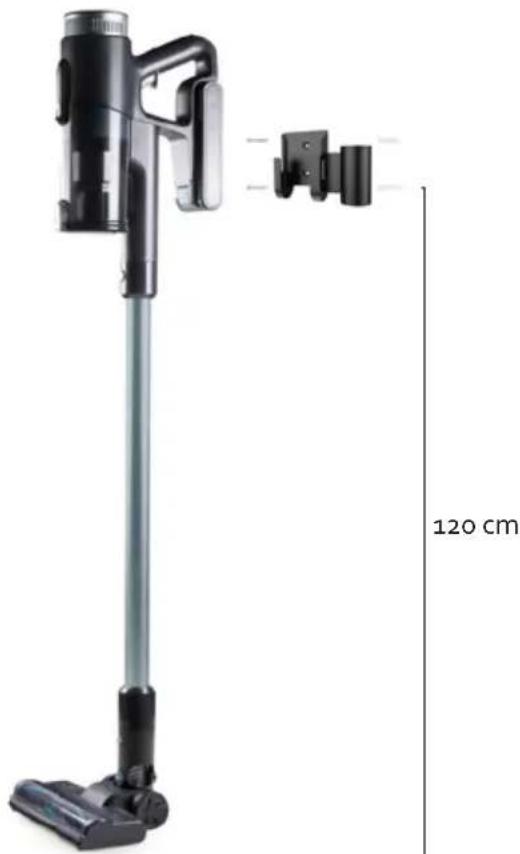

WALL MOUNT

Please follow below instructions to fix the wall mount:

1. Drill 2 holes in the wall corresponding to the attachment points of the wall mount, whereby the bottom hole is at least 120 cm from the ground.
2. Insert the supplied plugs into the wall.
3. Fix the wall mount using the supplied screws.
4. To store the device, simply hang it on the wall mount. You can also store accessories on the wall mount, both at the top and bottom.

Product photo of a black vacuum cleaner with attached clip, shown with a 120 cm size dimension label (no text or symbols on the device itself)

CHARGING

- Connect the adapter into the battery via the provided connection, and then plug the adapter into the wall socket.

Close-up of a hand inserting a black cable into a device (no visible text or symbols)

• The battery level indicator lights will flash (see also "Indicator lights"). The battery is fully charged when all three lights are on.
  · The machine cannot be started during charging.
• Prior to first use, charge the machine for 24 hours in order to be able to utilize the full capacity of the battery.
• It is recommended that the battery be fully charged for the first three charges.

NOTES:

• Battery charging may take longer under the following conditions:
• if the room temperature is higher than 30^ C ;
  · if the vacuum cleaner is charged immediately after being used.
• It is recommended that the vacuum cleaner be charged after each use regardless of the duration of the use.
• Do not charge the battery for extended periods. This can damage the battery. Disconnect the adapter once the battery is fully charged.
• The recommendation is to disconnect the battery and adapter if the vacuum cleaner is not used for more than two months. To ensure a longer lifespan, the battery must be charged at least once every two months.
• The battery and adapter may become hot during charging. Take the necessary precautions to avoid coming into contact with it during this time.

USE

1. Choose the correct accessory for the cleaning task you want to carry out:

- Floor attachment with rotating floor brush: suitable for floors and carpets. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up.

Black vacuum cleaner with attached lever (no visible text or symbols)

· Long crevice tool: for corners, cracks, skirting board edges and hard-to-reach places.

2-in-1 fabric brush: use on upholstered surfaces, keyboards, lamps, curtains, blinds, ventilation openings, etc. The brush offers extra friction to make it easier to loosen hair and dust stuck on fabric. Use the short crevice tool for regular cleaning of small surfaces. To switch between brush and crevice tool, press the button to unlock the brush and slide it up or down.

Two black plastic connectors with blue ribbed tops, shown from different angles (no text or symbols visible)

1. Press the on/off button. The vacuum cleaner starts working. Press again to stop.

Close-up of a black ergonomic device handle with a small blue component inserted, no visible text or symbols

1. Press the mode button to switch between the two suction power levels: ECO (energy efficient) or TURBO (maximum suction power).

Close-up of two precision air purifiers with circular buttons, no visible text or symbols on the surfaces

NOTE:

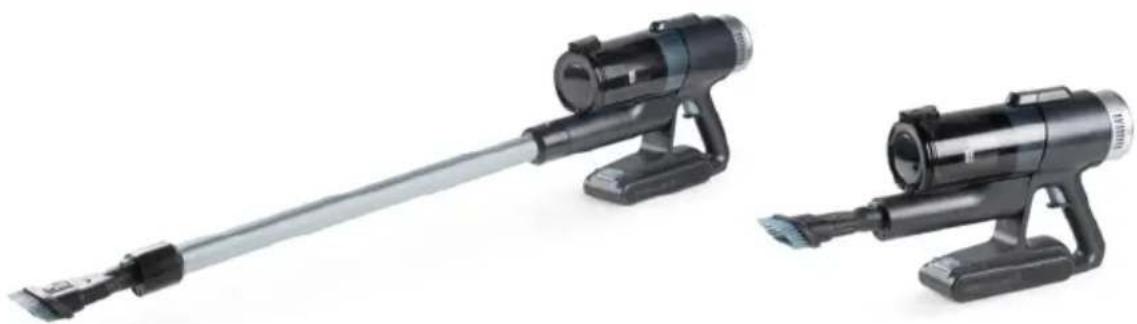

The various accessories can be clicked onto the wand assembly (stick vacuum cleaner) or directly onto the motor part, without the handle (hand vacuum cleaner).

Two black vacuum cleaner devices with extended handle and blue clip, shown against white background (no text or symbols visible)

INDICATOR LIGHTS

There are indicator lights at the top of the motor part to show the battery level:

• While charging from low to high: the indicator lights will flash alternately until all three lights are on.
- During use: the indicator lights turn off alternately (from right to left) as the battery level decreases.
- The last (left) light flashes: the battery is almost empty. Turn off the vacuum cleaner and put it on charge.
- All three lights flash at the same time: the rotating floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.

CLEANING AND MAINTENANCE

CLEANING THE APPLIANCE

Clean the appliance with a slightly moist soft cloth. Dry the machine off well. Never submerge the appliance in water!

CLEANING THE DUST RESERVOIR

Clean the dust container and filters at least once a month to maintain optimal performance.

1. Disconnect the wand assembly from the motor part.
2. Hold the dust container over a rubbish bin and press the release button to open the cover. Empty the dust container.

3. Close the dust container, slide the dust container release button down, and detach the dust container from the motor part.

4. Hold the dust container (a), remove the HEPA inlet filter (b), then lift out the filter compartment (c+d). Turn the upper part anti-clockwise and pull the inner part (c) out of the outer coarse filter (d).

5. Wash all the parts under cold running water, including the dust container.

6. Allow all the parts to dry completely before reassembling them.

7. Make sure all the parts fit together nicely when assembling before clicking the dust container back into the motor part.

Exploded view diagram of a smart air conditioner with labeled parts including cleaning, pouring, and drying steps.

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.
2. Slide the switch backwards to unlock the floor brush.
3. Gently remove any hair and dirt from around the brush; do this by hand or carefully with a knife.
4. Rinse the brush under cold running water.

5. Allow the brush to dry completely before reassembling it.

6. To refit the brush, place the right side of the brush against the gear (a) and push the left side (b) until it clicks into place.

7. Push the nozzle back onto the stick. The machine is now again ready for use.

Close-up of a black vacuum cleaner handle with a labeled component (no text or symbols visible)

Close-up of a black industrial device with blue heat dissipation and a circular arrow labeled '2' pointing to a component (no readable text or symbols)

6

a b

PROBLEM AND SOLUTION

PROBLEM SOLUTION
The machine does not start up. · The battery is empty.	Charge the machine.
Loss of suction. · The filters are dirty/the dust reservoir is full. · The floor nozzle is clogged/the floor brush is blocked. · Clean the machine as described in this manual.
The rotating floor brush is not rotating.	· The floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush. · The floor brush is assembled incorrectly. Follow the instructions to correctly assemble the floor brush as described in this manual.
All the indicator lights are flashing simultaneously.	· The floor brush is blocked. Turn off the vacuum cleaner and remove the object blocking the floor brush.

ENVIRONMENTAL GUIDELINES

Symbol of a trash bin crossed with no text or numbers, indicating no waste or discharge (no text present)

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

Symbol of a trash bin crossed out by diagonal lines, representing waste sorting or disposal (no text or labels)

REMOVABLE BATTERY

The appliance is battery-operated, and the battery must not be disposed of with household waste, even after use. You can take the appliance to a collection point for discarded electrical appliances (Recupel) in your neighbourhood (container park, specialist shop, etc.). Batteries contain substances that are dangerous to human health and to the environment.

Remove the battery from the appliance before disposal as described in this manual. Recycle the battery in accordance with local laws and regulations. Never pierce the battery or expose it to high temperatures; this may cause the battery to explode.

Battery leakage may occur under extreme conditions. If the liquid from the battery comes into contact with the skin, immediately wash it off with soap and water or neutralise it with a mild acid such as lemon juice or vinegar. If the liquid comes into contact with the eyes, rinse them abundantly with water for at least 10 minutes and contact a doctor.

GARANTIA

Diagram showing three steps of a vacuum cleaner assembly: adding a cable, adjusting the component, and finally adding a handheld device.

SOPORTE MURAL

Product photo of a black vacuum cleaner with attached clip, shown with a 120 cm height dimension (no text or symbols on the device itself)

120 cm

CARGA

Close-up of a hand inserting a black plastic device into a black tray (no text or symbols visible)

Black vacuum cleaner with attached lever (no visible text or symbols)

Two black plastic connectors with blue ribbed heads, shown from different angles (no text or symbols visible)

Close-up of a black handheld device handle with a small blue button and arrow pointing to the component (no visible text or symbols)

Close-up of two precision air purifiers with circular buttons, no visible text or symbols on the surfaces

COMENTARIO

Close-up of a black vacuum cleaner with a labeled component (no text or symbols visible)

Close-up of a black electronic device with blue LED display and a circular button labeled '2' pointing to a button (no readable text or symbols)

6

b a

PROBLEMAS Y SOLUCIONES

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, enclosed in a rounded square (no text or labels)

BATERÍA EXTRAÍBLE

Diagram showing three steps of a vacuum cleaner assembly: pinning, cleaning, and disassembly.

SOSTEGNO A PARETE

Product photo of a black vacuum cleaner with attached mounting bracket and 120 cm height dimension (no text or symbols on device)

CARICARE

Close-up of a hand holding a pen next to a black device with a handle (no visible text or symbols)

Close-up of a black vacuum cleaner (no visible text or symbols)

Two black plastic connectors with blue ribbed heads, shown from different angles (no text or symbols visible)

Close-up of a car handle with a small blue component inserted, showing no visible text or symbols.

Close-up of two precision air purifiers with circular buttons, no visible text or symbols on the surfaces

NOTE:

Two black vacuum cleaner devices with attached sensors, shown against a white background (no text or symbols visible)

INDICATORI LUMINOSI

Close-up of a black vacuum cleaner handle with a labeled component (no text or symbols visible)

Close-up of a black electronic device with blue and white lighting, showing internal components and a circular arrow labeled '2' pointing to a component (no readable text or symbols)

6

a b

Symbol of a trash bin crossed with no visible text or numbers, enclosed in a rounded square frame (no text or numbers present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, representing no waste or discharge (no text or labels)

BATTERIA RIMOVIBILE

Diagram showing three steps of a vacuum cleaner assembly: adding a cable, adjusting the component, and finally adding a handheld device.

DRŽÁK NA STĚNU

Product photo of a black vacuum cleaner with attached clip, shown with a 120 cm height dimension (no text or symbols on the device itself)

120 cm

N

NABÍJENÍ

Close-up of a hand holding a pen next to a black handheld device (no visible text or symbols)

Black vacuum cleaner with attached lever (no visible text or symbols)

Two black plastic electrical connectors with blue leads, shown from different angles (no text or symbols visible)

Close-up of a black automotive hover key with a small blue component inserted, no visible text or symbols

Close-up of two precision air purifiers with circular buttons and a connector, shown from different angles (no text or symbols visible)

POZNÁMKA

Two black vacuum cleaner devices with attached handles, shown against a white background (no text or symbols visible)

KONTROLKY

Close-up of a black vacuum cleaner handle with a labeled component (no text or symbols visible)

Close-up of a black electronic device with blue wave patterns and a small circular indicator labeled '2' pointing to it (no readable text or symbols)

6 b a

PROBLÉMY A ŘEŠENÍ

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Symbol of a trash bin crossed with no visible text or numbers, enclosed in a rounded square frame (no text or numbers present)

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed with no text or numbers, enclosed in a rounded square frame (no text or symbols present)

VYJÍMATELNÉ/VYMĚNITELNÉ BATERIE

Diagram showing three steps of a vacuum cleaner assembly: adding a cable, adjusting the component, and adding a handheld device.

DRŽIAK NA STENU

Product photo of a black vacuum cleaner with attached mounting bracket and 120 cm height dimension (no text or symbols on device)

NABÍJANIE

Close-up of a hand holding a pen next to a black electronic device (no visible text or symbols)

Black vacuum cleaner with attached screwdriver (no visible text or symbols)

Two black plastic electrical connectors with blue leads, shown from different angles (no text or symbols visible)

Close-up of a black handheld device handle with a small blue button and arrow pointing to the grip (no visible text or symbols)

Close-up of a precision medical device with a circular display showing internal components (no readable text or symbols)

Close-up of a precision device with a circular dial and indicator lights (no readable text or symbols)

POZNÁMKA:

Two black vacuum cleaner units with adjustable arm and handle, shown against white background (no text or symbols visible)

KONTROLKY

Exploded view diagram of a smart air conditioner with labeled parts including pump, filter, and cleaning steps

ČISTENIE PODLAHOVÉ HUBICA

1. Vysávač obrátte a vysuňte podlahovú hubicu. Najskôr musíte stlačit uvolňovacie tlačidlo v zadnej časti hubice, a následne hubicu odňat.
2. Posunutím spínača dozadu odblokujte podlahovú kefu.
3. Rukou alebo nožom jemne odstráňte všetky vlasy a nečistoty z okolia kefy.
4. Umyte kefu pod tečúcou studenou vodou.

5. Pred opätovnou montážou nechajte kefu úplne vyschnút.

6. Pri výmene kefy priložte pravú stranu kefy k ozubenému koliesku (a) a zatlačte ľavú stranu (b) na miesto, kým nezapadne na miesto.

7. Oba dva klipy po strane podlahovej hubice zacvaknite opät dole, tak aby sa podlahová hubica zaistila.

Close-up of a black vacuum cleaner handle with a labeled component (no text or symbols visible)

Close-up of a black electronic device with blue wave patterns and a small labeled component (no readable text or symbols)

6 a b

PROBLÉMY A RIEŠENIA

Diagram of a waste bin with crossed lines indicating no waste, and a black rectangular symbol below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Symbol of a trash bin crossed out by two diagonal lines, enclosed in a rounded square (no text or labels)

VYBERATEL'NÉ/VYMENITEL'NÉ BATÉRIE

Looking for extra accessories or you have a broken piece?

ORDER the original DOMO accessories and parts on our webshop.

QR code image containing encoded data, no visible human-readable text

Webshop

Stack of sheets of paper with a small circular object on top (no visible text or symbols)

Close-up of two white plastic electrical connectors (no text or symbols visible)

White ceramic bowl with black interior (no text or symbols visible)

Black and white photo of a clear glass coffee maker with handle and lid (no text or symbols visible)
