USER MANUAL DO1009S DOMO

Black vacuum cleaner with coiled hose and handle, isolated on white background (no text or symbols visible)

DO1009S

Two black-and-white icons: a triangular warning triangle with an exclamation mark and an open book (no text or symbols)

Close-up of a mechanical component with a numbered label (13) pointing to a grid-like structure, no readable text or symbols beyond the number.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

Close-up of a black vacuum cleaner with a coiled hose and handle (no visible text or symbols)

TELESCOPISCHE BUIS

Illustration of hands holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a measuring tape, no text or symbols present

Simple line drawing of a mechanical device with a circular head and lever mechanism (no text or symbols)

ACCESSOIRES

Two black hair blower tools with numbered labels (1 and 2) indicating different components, shown against a white background.

GEBRUIK

Close-up of a black vacuum cleaner's head and neck with a coiled hose, no visible text or symbols

Close-up of a mechanical component with a square housing and circular hole, no visible text or symbols

Close-up of a car interior showing structural components and a directional arrow (no text or symbols)

DE HEPA 12-FILTER SCHOONMAKEN

Close-up of a car air vent or fan grille with a numbered label (2) and an arrow pointing to the grille area (no text or symbols on the grille itself)

Close-up of a hand pressing down on a black handheld device with a grid of rectangular buttons (no visible text or symbols)

OPGELET:

Warning sign with crossed-out recycling bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a mechanical component with a numbered label (13) pointing to a grid-like structure, no readable text or symbols beyond the number.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

AVANT LA PREMIÈRE UTILISATION

Close-up of a black vacuum cleaner with a coiled hose and handle (no visible text or symbols)

TUBE TÉLESCOPIQUE

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of hands holding a rope or tape measure, no text or symbols present

Simple line drawing of a medical or laboratory procedure with a tool and device (no text or symbols)

ACCESSOIRES

Two black hair blower tools with labeled parts (1 and 2), no text or symbols present.

UTILISATION

Close-up of a black vacuum cleaner's handle and neck (no text or symbols visible)

Close-up of a mechanical component with a square metallic part and circular hole, no visible text or symbols

Close-up of a car interior showing internal components and a directional arrow (no text or symbols)

NETTOYAGE DU FILTRE HEPA 12

Close-up of a mechanical component with a grating and mounting bracket, labeled with number 2 (no text or symbols on the main body)

Hand pressing a grid of buttons on a device (no visible text or symbols)

ATTENTION:

Warning sign with crossed-out trash bin and black rectangle symbol

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a car air conditioner unit with a numbered label pointing to the grille (no text or symbols on the device itself)

Labeled diagram of a DOKO vacuum cleaner with numbered parts for identification

Close-up of a black vacuum cleaner with a coiled hose and handle (no visible text or symbols)

TELESKOPROHR

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of hands holding a measuring tape, no text or symbols present

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

ZUBEHÖR

Two black hair blower tools with numbered labels (1 and 2) indicating different components, shown from different angles (no text or symbols on the tool itself)

GEBRAUCH

Close-up of a black vacuum cleaner's handle and neck, showing coiled tube and circular component (no text or symbols visible)

Close-up of a mechanical component with a circular hole and metallic housing, partially enclosed in a black helmet (no visible text or symbols)

Interior view of a car showing internal components and a directional arrow (no text or symbols)

DEN HEPA-12 FILTER REINIGEN

Close-up of a car air conditioner panel with a highlighted grille and arrow indicator (no text or symbols)

Hand pressing a grid of four squares on a black device, no visible text or symbols

ACHTUNG:

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

· If the instructions in this manual have not been followed.
· In case of incorrect connection, e.g., electrical voltage that is too high.
· In case of incorrect, rough or abnormal use.
· In case of insufficient or incorrect maintenance.
- In case of repairs or alterations to the device by the consumer or non-authorised third parties.
- If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

• This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.
• Children cannot be allowed to play with the appliance.
• Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision.
• Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
· Farms
· Hotel or motel rooms and other surroundings with a residential character
- Guest rooms or similar

Attention: This appliance cannot be used with an external timer or a separate remote control.

• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.
  · Always use the appliance on a steady, dry and level surface.
  · Only use the appliance for domestic use. The manufacturer can not be held responsible for

accidents that result from improper use of the appliance or not following the instructions described in this manual.

· All repairs should be carried out by the manufacturer or its aftersales service.

· Never immerse the appliance, the cord or the plug in water or any other liquid.

· Make sure that children do not touch the cord or appliance.

- Keep the cord away from sharp edges and hot parts or other heat sources.

· Before use, remove all packaging materials and any promotional stickers.

- To prevent the risk of electrocution, do not use the vacuum cleaner outdoors or on wet surfaces.

- Only use the vacuum cleaner as described in this instruction booklet. Only use accessories recommended by the manufacturer.

- Do not use the appliance when the plug or cord is damaged, when the vacuum cleaner malfunctions, when it has been dropped, has been damaged, has been left outside or has been dropped in water. In that case, take your vacuum cleaner to a service center for a check-up and/or repair.

- Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.

· Do not touch the plug or the vacuum cleaner when you have wet hands.

- Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.

- Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner and from moving parts.

- Be extra careful when cleaning stairs.

· Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.

- Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.

- Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.

- Unplug the appliance before connecting the hose.

· Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.

- Do not use the vacuum cleaner without dust bag and/or filter.

· Always connect the appliance to an earthed socket.

SAVE THESE INSTRUCTIONS

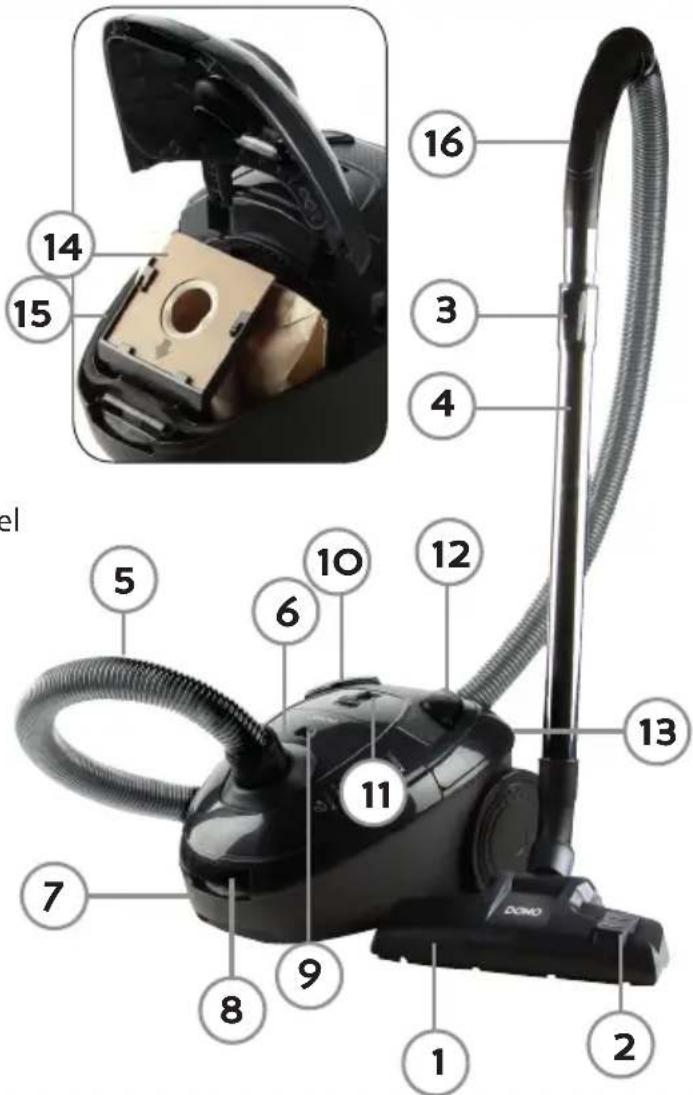

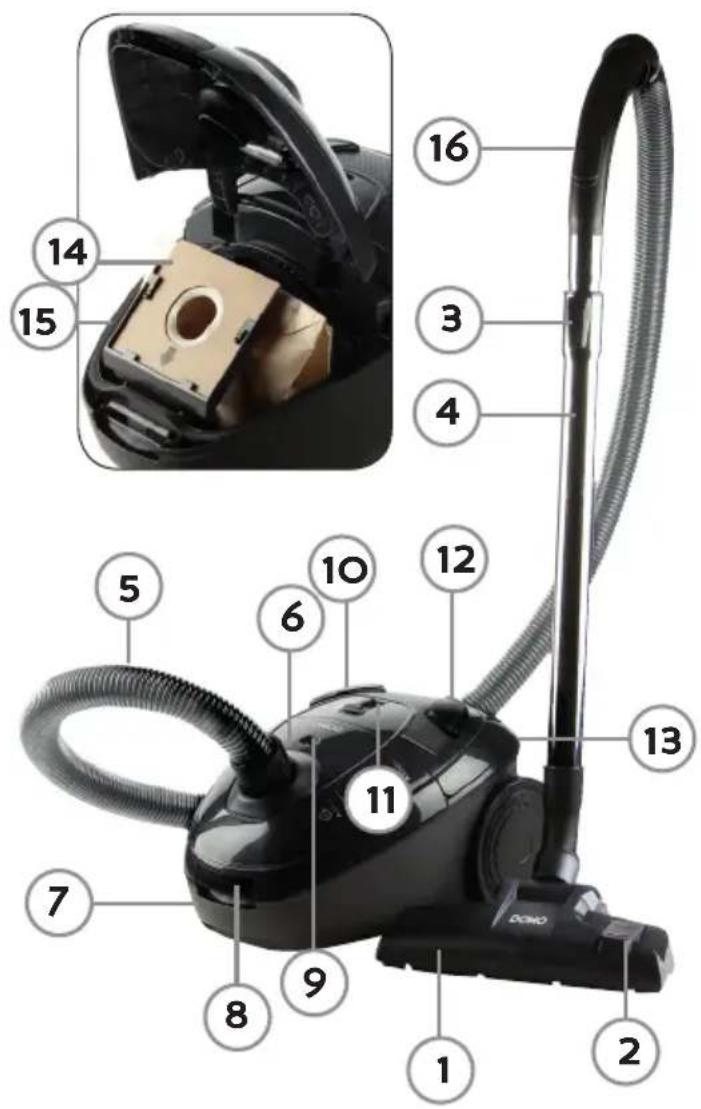

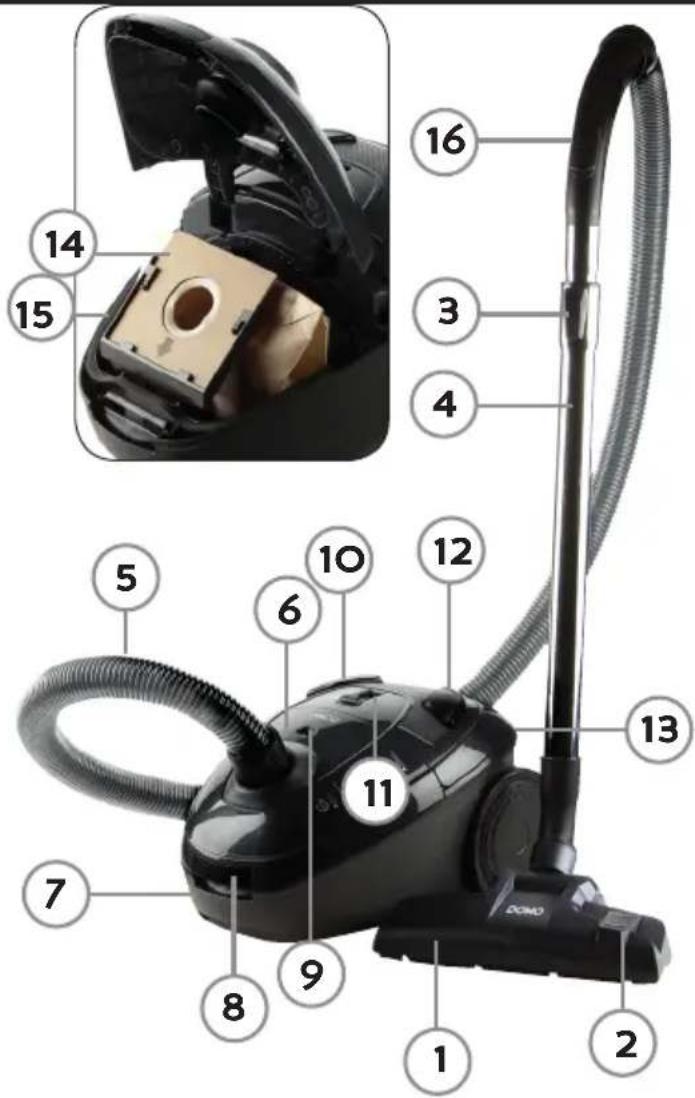

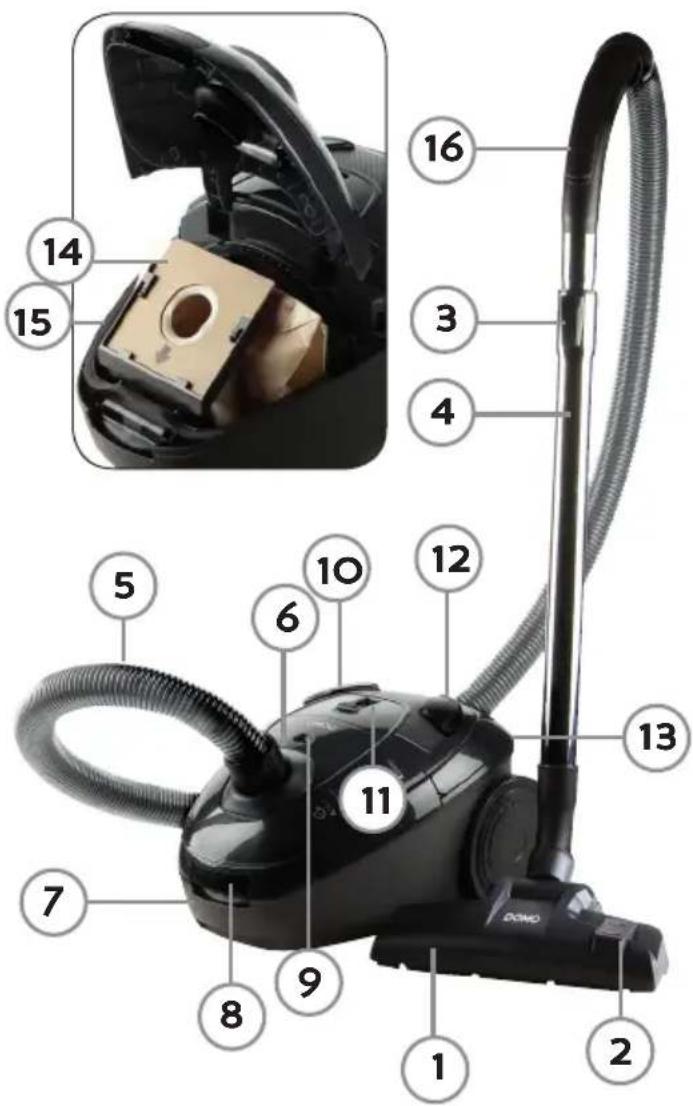

PARTS

1. Floor nozzle
2. Button to pull out or retract brushes
3. Slide button to set length of tube
4. Telescopic tube
5. Hose
6. Connection for hose
7. Handle
8. Handle lid dust bag compartment
9. Full dust bag indicator
10. Button for automatic cord rewinding
11. Button to set the suction power
12. On/off button

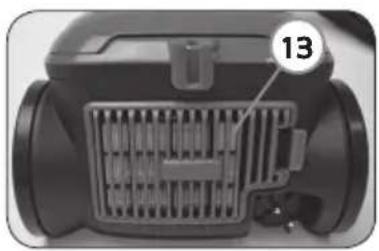

13. HEPA 12 filter behind grid
14. Dust bag: 2 l
15. Dust bag frame
16. Additional suction power control

Close-up of a car air vent with a numbered label (13) pointing to the grille (no text or symbols on the vent itself)

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

BEFORE THE FIRST USE

Always unplug the vacuum cleaner before (dis)assembling any parts.

HOSE

• Assembly: Put the connection ring at the end of the hose into the hose connection in the vacuum cleaner and turn to the right so that it is locked into place.
• Disassembly: Unplug the vacuum cleaner. Turn the connection ring at the end of the hose to the left and remove from the hose connection.

Close-up of a black vacuum cleaner with coiled hose and handle (no visible text or symbols)

TELESCOPIC TUBE

1. Put the handle of the hose into the telescopic tube.

2. Set the telescopic tube to the desired length. For this, push the slide on the wand downwards and pull on the upper part of the wand to extend it. Release the slide button and let the tube snap into place.

3. Attach the floor nozzle to the telescopic tube by firmly sliding the tube into the nozzle.

Illustration of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of a medical procedure with hands holding a syringe (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a syringe and tool, no text or symbols present.

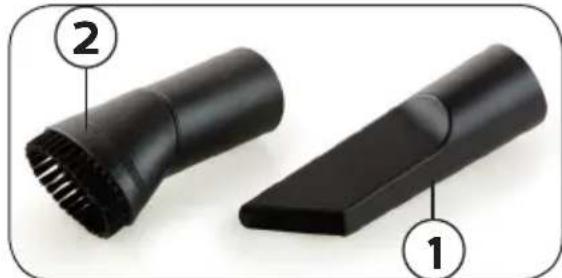

ACCESSORIES

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...
2. Dust brush: for furniture, shelves,...

Two black hair blisters with numbered labels (1 and 2) showing different sizes and features (no text or symbols on the main objects)

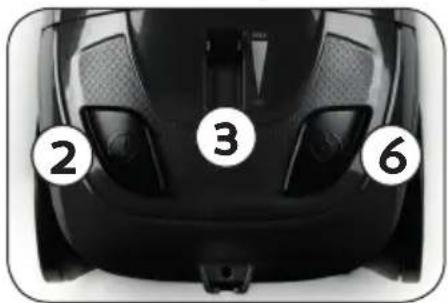

USE

1. Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length of the cord, that should not be exceeded.
2. To turn the vacuum cleaner on and off, press the foot pedal with the Ⓐ symbol.
3. To set the suction power, slide the suction power button upwards or downwards in between the MIN and MAX indicators. For delicate materials it is best to use the minimum power level, a medium power is recommended for mattresses, furniture and carpets and the maximum power level should be used for tiles, wood and other hard floors.
4. When you want to clean hard floors, make sure that the brushes in the floor nozzle are down.
5. When you want to clean carpet, make sure that the brushes in the floor nozzle are retracted.
6. When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the 🔒 symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

② ③ ⑥

DOKO ④ ⑤

CLEANING AND MAINTENANCE

Check the hose, dust bag and filters regularly. Empty the hose when it is clogged, replace the dust bag when it is full and clean the filters when they are dirty.

DISPOSABLE DUST BAGS AND FILTERS

• The dust bag and the motor filter play a very important roll in the efficiency of the vacuum cleaner. The purpose of the dust bag is to capture dirt, but at the same time the filter needs to be porous enough to allow air to pass through. If the bag or motor filter get clogged, no air can pass through the cleaner and no cleaning can take place regardless of how powerful the unit is.
• To keep the cleaner operating at maximum efficiency, change the dust bag frequently and clean the filter when needed. Some fine particles can restrict the air flow very quickly and will decrease the performance even before the bag appears to be full. For that reason, the bag and filter may need to be changed more often when vacuuming carpet fresheners or cleaners, powder, plaster dust or similar fine substances.

REPLACING THE DUST BAG AND CLEANING THE MOTOR FILTER

The dust bag must be replaced if the indicator turns red.

Be sure to turn off and unplug the vacuum cleaner before replacing the dust bag or cleaning the filter. Never vacuum without the dust bag or filters in place.

1. Turn off and unplug the vacuum cleaner.

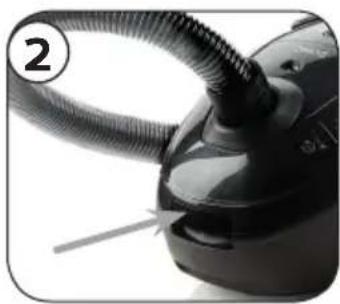

2. Remove the hose from the hose connection and open the dust bag compartment by pushing the handle upwards and lifting the lid.

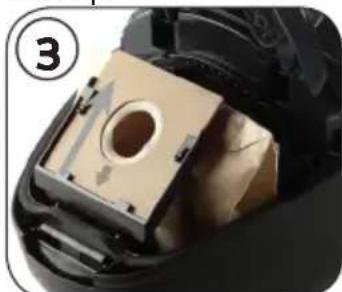

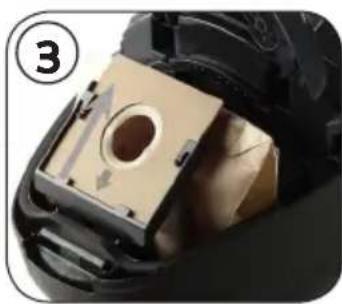

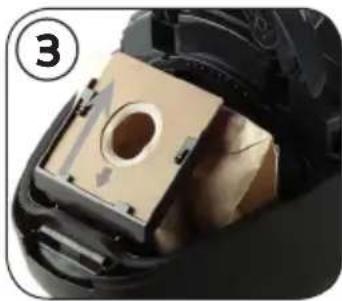

3. Slide the dust bag out of the frame and remove the dust bag from the dust bag compartment.

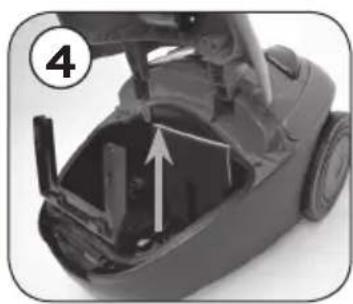

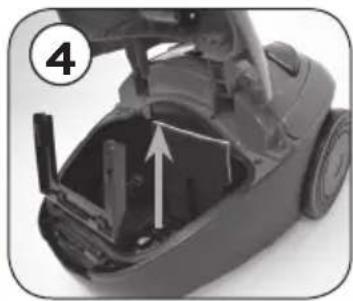

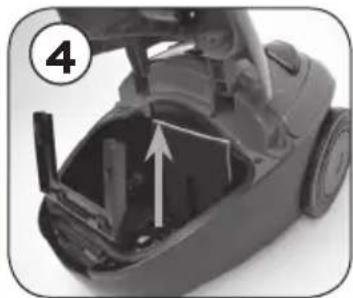

4. If at this point you want to clean the motor filter, take out the filter by sliding it upwards. Clean the filter by rinsing it under warm water. Let the filter air dry completely before reinstalling it. Reinstall the filter before placing the dust bag into the dust bag compartment.
5. Slide a new dust bag (2 l) in the dust bag frame.
6. Close the dust bag compartment and push the lid back into place. The spring on the dust bag frame will make sure that the opening of the dust bag is pushed into the right position when closing the lid.

Close-up of a black vacuum cleaner with coiled hose and handle (no visible text or symbols)

Close-up of a mechanical component with a square housing and circular opening, no visible text or symbols

Close-up of a mechanical device interior with visible internal components and an arrow indicating direction (no text or symbols)

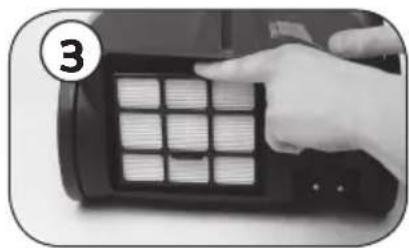

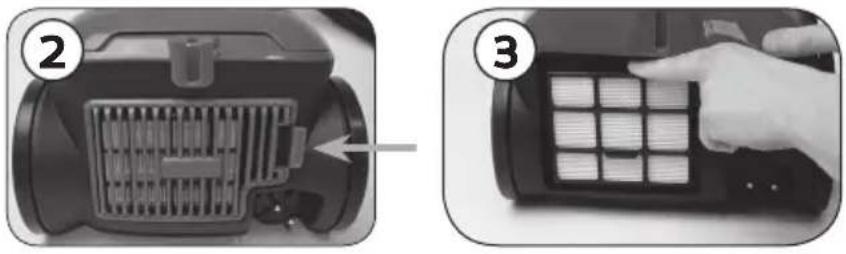

CLEANING THE HEPA 12 FILTER

The HEPA 12 filter cleans the air a final time before it leaves the vacuum cleaner. This filter and the grid that covers the filter should be cleaned regularly. You can clean the filter as follows:

1. Turn off and unplug the vacuum cleaner. Always pull the plug itself, never pull the cord.
2. Open the grid that covers the filter by pushing it left at the clip. The filter is visible when the grid is removed.

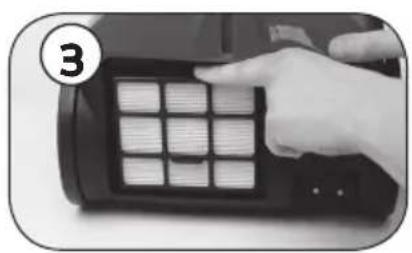

3. Take out the filter.
4. Rinse the filter under cold water and let it air dry completely.
5. Put the filter back into place or replace the filter by a new one. Make sure that the filter is placed properly.
6. Seal with the grid. Make sure that the grid clicks into place.

Two-step diagram showing a car air conditioner inside and a hand pressing down the grille (no text or symbols)

CAUTION:

- Always use the vacuum cleaner with the filters in place. If not, this can lead to loss of power or damage to the motor.

• Remove the plug from the socket before cleaning the filters.
  · Do not place the filters in the dishwasher.
  · Do not use a hair dryer to dry the filters.

ENVIRONMENTAL GUIDELINES

Prohibition sign with crossed-out trash bin and no text, indicating no waste disposal or recycling.

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Close-up of a mechanical component with a grid-like structure and a numbered label (13), no readable text or symbols present.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

Close-up of a black vacuum cleaner with a coiled hose and handle (no visible text or symbols)

TUBO TELESCÓPICO

Two black hair blower tools with numbered labels (1 and 2) indicating different component sizes, shown from different angles (no text or symbols on the tools themselves)

USO

Close-up of a black vacuum cleaner with coiled hose and handle (no visible text or symbols)

Close-up of a mechanical component with a square housing and central hole, no visible text or symbols

Close-up of a mechanical device with an arrow indicating a component, no visible text or symbols

LIMPIEZA DEL FILTRO HEPA 12

Two-step diagram showing a car air vent and its internal grid layout, with no visible text or symbols.

ATENCIÓN:

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a mechanical component with a grid-like grille and a numbered label (13) pointing to a feature, no readable text or symbols beyond the number.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

PŘED PRVNÍM POUŽITÍM

Close-up of a black vacuum cleaner with coiled hose and handle (no visible text or symbols)

TELESKOPICKÁ TRUBICE

Line drawing of hands holding a flexible hose with a coiled tube, no text or symbols present

Illustration of hands holding a measuring tape, no text or symbols present

Simple line drawing of a mechanical device with a circular head and lever, no text or symbols present

PŘÍSLUŠENSTVÍ

Two black hair blisters with labeled parts, shown from different angles (no text or symbols on the main objects)

POUŽITÍ

Close-up of a black vacuum cleaner's handle and neck (no visible text or symbols)

Close-up of a mechanical component with a square housing and circular hole, no visible text or symbols

Close-up of a car interior showing internal components and a directional arrow (no text or symbols)

Close-up of a car air conditioner unit with cooling fins and ventilation slots (no text or symbols visible)

Close-up of a hand pressing down on a black handheld device with a grid of buttons (no visible text or symbols)

UPOZORNĚNÍ:

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a mechanical component with a grid-like grille and labeled part (13), no readable text or symbols beyond the number.

Labeled diagram of a vacuum cleaner with numbered parts for identification and assembly reference.

PRED PRVÝM POUŽITÍM

Close-up of a black vacuum cleaner with a coiled hose and bulb (no visible text or symbols)

TELESKOPICKÁ TRUBICA

1. Koniec plastové hadice spojte s teleskopickou trubicou.
2. Nerezovú trubicu si pomocou posuvného tlačidla predížte na požadovanú dížku. Posunutím čierneho tlačidla uvolníte trubicu a môžete ju volne vytiahnuť / zasunút.
3. Podlahovú hubicu pevne nasadte na koniec nerezové teleskopické trubice.

Illustration of a hand holding a flexible hose with a coiled tube, labeled with number 123 (no text or symbols on the diagram itself)

Illustration of a hand holding a syringe with a magnified view of the tip (no text or symbols)

Simple line drawing of a medical or laboratory procedure with a bulb, needle, and tool (no text or symbols)

PRÍSLUŠENSTVO

Two black hair blower tools with numbered labels (1 and 2) indicating different component sizes, shown against a white background.

POUŽITIE

Close-up of a black vacuum cleaner with coiled hose and handle (no visible text or symbols)

Close-up of a mechanical component with a circular hole and directional arrow, no visible text or symbols

Close-up of a mechanical device showing internal components and a directional arrow (no text or symbols)

ČISTENIE HEPA 12 FILTRU

Two-step diagram showing a device's internal structure before and after pressing a grid on a keypad (no text or symbols present)

UPOZORNENIE:

· Vysávač používajte iba s filtrami. Pri použítí bez filtrov hrozí porucha motora.
- Pred čistením filtrov vždy odpojte vysávač z elektrickej siete.
- Filtre nevkladajte do umývačky riadu.
- Na vysúšanie filtrov nepoužívajte vlasovej fény.

OHŁAD NA ŽIVOTNÉ PROSTREDIE

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Two cylindrical white objects with clear caps, possibly milk or similar beverage (no text or symbols visible)

Three product photos: square tiles, a clear glass coffee maker with black handle, and a rectangular container filled with dark liquid (no text or symbols visible)

of scan hier:

ou scannez ici:

oder hier scannen:

or scan here:

QR code image containing encoded data, no visible human-readable text
