Product type	Stick vacuum cleaner
Brand	DOMO
Model	DO1019SV
Power supply	Rechargeable battery (mains charger)
Battery	Li-ion (not specified)
Runtime	Variable depending on use (not specified)
Charging time	Not specified
Dust cup capacity	Approximately 0.5 L (estimate)
Suction power	Adjustable (speed control)
Main functions	Vacuuming, rotating brush, detachable handheld mode
Included accessories	Flat crevice tool, small dusting brush, wall charger
Filters	Washable filter (A) and EPA filter (B)
Maintenance and cleaning	Water-washable dust cup and filters; floor brush washable
Safety	Automatic shut-off in case of overload or blockage
Use	Household use only, indoors
Warranty	2 years (consumable parts: 6 months)
Customer service	Linea 2000: [phone]
Spare parts and repairability	Accessories and filters available; repair by manufacturer or customer service

Frequently Asked Questions - DO1019SV DOMO

How to charge the DO1019SV vacuum?

Place the vacuum on the wall charger aligning the contacts. Plug in the charger. The battery indicator lights up. The appliance cannot be used while charging. Charge fully before first use.

How to detach the handheld unit (portable part)?

Press the handheld unit release button on the handle. The handheld unit detaches. To use it alone, press its on/off button.

What to do if the vacuum no longer sucks?

Check that the dust cup is not full and the filters are not dirty. Clean the dust cup and filters (A and EPA) with clean water and dry them. Ensure the nozzle and brush are not clogged.

How to clean the rotating brush of the floor nozzle?

Detach the nozzle, open the side flap by pressing until it clicks. Remove the brush, remove hair and dirt. Rinse it with water if necessary, dry it, then put it back and close the flap.

Can the vacuum suck up liquids?

No, never use the vacuum to pick up liquids, detergents, sharp or flammable objects. This could damage the appliance and create a risk of electrocution.

Why doesn't the charge indicator light up?

Make sure the handheld unit is properly attached to the stick vacuum. Check the contacts and that the charger is plugged in. If the problem persists, contact customer service.

How to adjust the suction power?

Press the speed control on the handle to increase or decrease suction power. This allows you to adapt the suction to the surface.

What is the battery lifespan?

The battery gradually degrades over time and use. If the runtime decreases significantly, it may be time to replace the battery. Contact customer service for a replacement battery.

Can I use accessories not provided?

No, only use accessories recommended by the manufacturer. Using non-recommended accessories may cause fire, electric shock, or damage the appliance.

How to maintain the filters and dust cup?

Empty the dust cup after each use. Wash the dust cup, filter (A) and EPA filter (B) with running water. Make sure they are completely dry before putting them back. Replace the filters regularly for optimal performance.

USER MANUAL DO1019SV DOMO

White vacuum cleaner with black handle and blue control panel (no visible text or symbols)

DO1019SV

Handleiding Steelstofzuiger 2-in-1
Mode d'emploi Aspirateur	balai 2-en-1
Gebrauchsanleitung Handstaubsauger 2-in-1
Instruction booklet 2-in-1 Stick vacuum cleaner
Manual de instrucciones Aspirador escoba
Istruzioni per l'uso Aspirapolvere 2 in 1
Návod k použití Tyčový vysavač 2v1
Návod na použitie Tyčový vysávač 2v1

Two black-and-white icons: a triangular warning symbol with an exclamation mark and an open book (no text or symbols present)

Exterior view of a white and black handheld vacuum cleaner with labeled parts (3 and 7), no text or symbols on the device itself.

10 11 12 13

1 2 3 4 5 6 7 8

Black ergonomic device with a white handle and cable, no visible text or symbols

Close-up of a black plastic mechanical component labeled A and B, with no visible text or symbols on the body itself.

Close-up of a mechanical device with visible internal components and a black arrow pointing to a feature (no text or symbols)

PROBLEEM EN OPLOSSING

Warning sign with crossed lines and a trash can symbol, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Illustration of a white and black handheld vacuum cleaner with labeled parts (3 and 7), no text or symbols present.

10 11 12 13

1 2 3 4 5 6 7 8 9

AVANT LA PREMIÈRE UTILISATION

Black ergonomic device with a handle and cable, no visible text or symbols

Close-up of two mechanical components labeled A and B, showing different sizes and surfaces (no text or symbols beyond labels)

Close-up of a mechanical device with a textured top and wheels, no visible text or symbols

Warning symbol for a trash bin with crossed lines indicating no waste or discharge, and a black rectangle below.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Illustration of a white and black handheld vacuum cleaner with labeled parts (3 and 7), no text or symbols present.

10 11 12 13

1 2 3 4 5 6 7 8

Black ergonomic device with a white head and attached cable, no visible text or symbols

Close-up of a black plastic mechanical component labeled A and B, with no visible text or symbols on the body itself.

Close-up of a mechanical device with a grid-like internal structure and a small inset view (no visible text or symbols)

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

All of our products are always submitted to a strict quality control before they are sold to you. Should you nevertheless experience problems with your device, we sincerely regret this.

In that case, we kindly request you to contact our customer service.

Our staff will gladly assist you.

[phone]

[e-mail]

Monday – Thursday: 8.30 – 12.00 and 13.00 – 17.00

Friday: 8.30 – 12.00 and 13.00 – 16.30

This appliance has a two year warranty period. During this period the manufacturer is responsible for any failures that are the direct result of construction failure. When these failures occur the appliance will be repaired or replaced if necessary. The warranty will not be valid when the damage to the appliance is caused by wrong use, not following the instructions or repairs executed by a third party. The guarantee is issued with the original till receipt. All parts, which are subject to wear, are excluded from the warranty.

If your device breaks down within the 2-year warranty period, you can return the device together with your receipt to the shop where you purchased it.

The guarantee on accessories and components that are liable to wear-and-tear is only 6 months.

The guarantee and responsibility of the supplier and manufacturer lapse automatically in the following cases:

• If the instructions in this manual have not been followed.
  · In case of incorrect connection, e.g., electrical voltage that is too high.
  · In case of incorrect, rough or abnormal use.
  · In case of insufficient or incorrect maintenance.
• In case of repairs or alterations to the device by the consumer or non-authorised third parties.
• If the customer used parts or accessories that are not recommended or provided by the supplier / manufacturer.

SAFETY INSTRUCTIONS

This appliance may be used by children from the age of 16 and up, and also by persons with a physical or sensory limitation, as well as mentally limited persons or persons with a lack of experience and knowledge. But only on the condition that these persons have received the necessary instructions on how to use this appliance in a safe way and know the dangers that can occur by using this appliance.

Children cannot be allowed to play with the appliance.

Maintenance and cleaning of the appliance may not be done by children, unless they are older than 16 years old and are under supervision. Keep the appliance out of reach of children younger than 16 years old.

This appliance is suitable to be used in a household environment and in similar surroundings such as:

· Kitchen for personnel of shops, offices or other similar professional surroundings
· Farms
· Hotel or motel rooms and other surroundings with a residential character
· Guest rooms or similar

• Attention: This appliance cannot be used with an external timer or a separate remote control.
• Read all instructions before use.
• Before use, check if the voltage stated on the appliance corresponds with the voltage of the power net at your home.
• Do not let the cord hang on a hot surface or on the edge of a table or counter top.
• Never use the appliance when the cord or plug is damaged, after malfunction or when the appliance itself is damaged. In that case, take the appliance to the nearest qualified service center for check-up and repair.
• Close supervision is necessary when the appliance is used near or by children.
• The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries.
• Unplug the appliance when it is not in use, before assembling or disassembling any parts and before cleaning the appliance. Put all buttons and knobs into the 'off' position and unplug the appliance by grasping the plug. Never unplug by pulling the cord.
  · Do not leave a working appliance unattended.
• Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.
• Do not use the appliance outdoors.
• Only use the appliance for its intended use.

· Always use the appliance on a steady, dry and level surface.
- Only use the appliance for domestic use. The manufacturer can not be held responsible for accidents that result from improper use of the appliance or not following the instructions described in this manual.
· All repairs should be carried out by the manufacturer or its aftersales service.
· Never immerse the appliance, the cord or the plug in water or any other liquid.
- Make sure that children do not touch the cord or appliance.
- Keep the cord away from sharp edges and hot parts or other heat sources.
· Before use, remove all packaging materials and any promotional stickers.
- Do not use the vacuum cleaner to vacuum up detergents, liquids, needles, matches and other similar liquids, sharp objects or flammable objects.
- Do not use the vacuum cleaner to vacuum up cement, powder and other small particles. Also avoid vacuuming up large objects. The vacuum cleaner could be clogged, the motor could overheat or other damage may occur.
· Make sure that the air intake or the floor suction opening do not become blocked.
· Make sure that the machine does not come into contact with liquids.
- First charge a new battery up completely.
· Pull the plug from the outlet when the vacuum cleaner is fully charged.

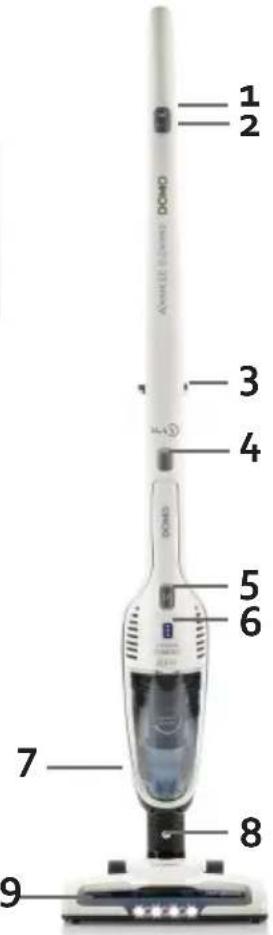

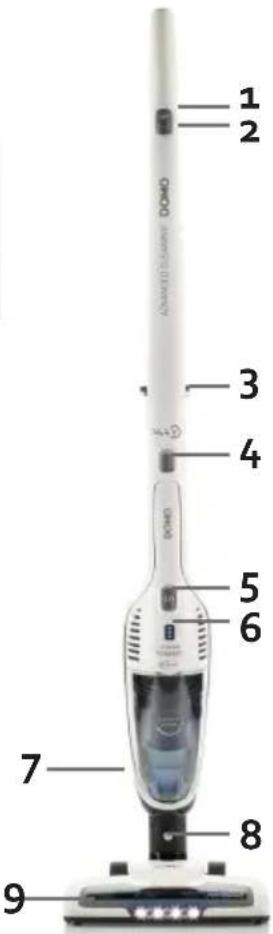

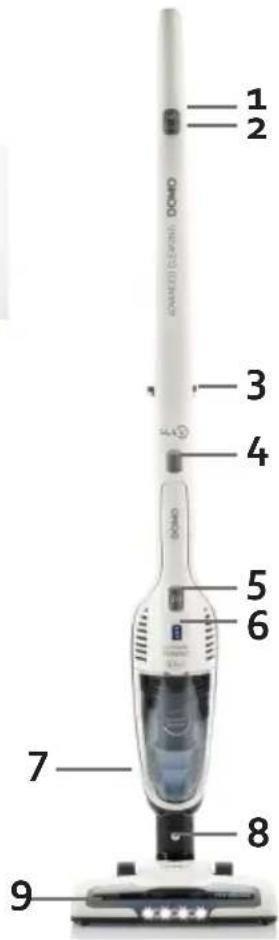

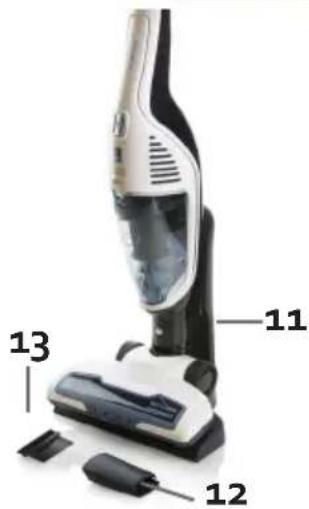

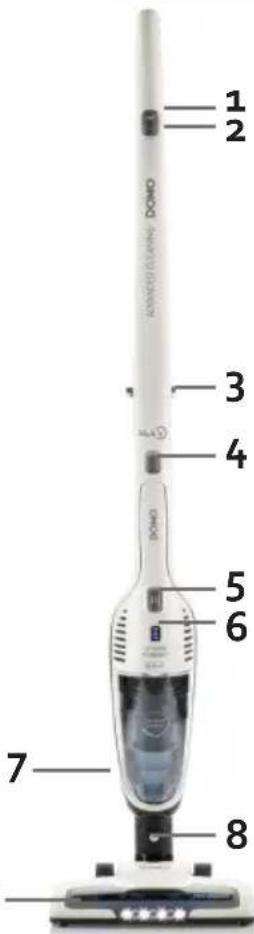

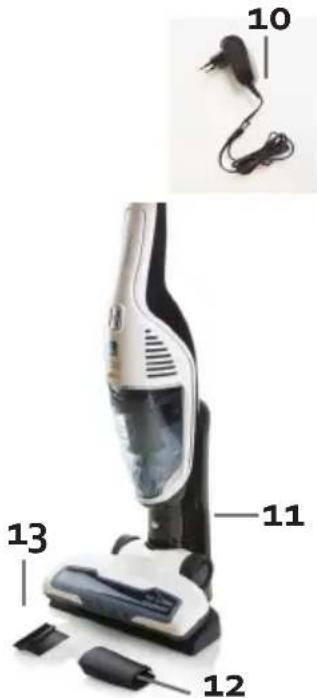

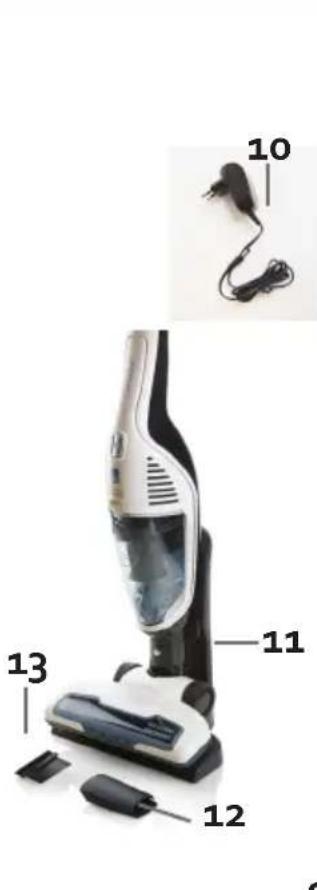

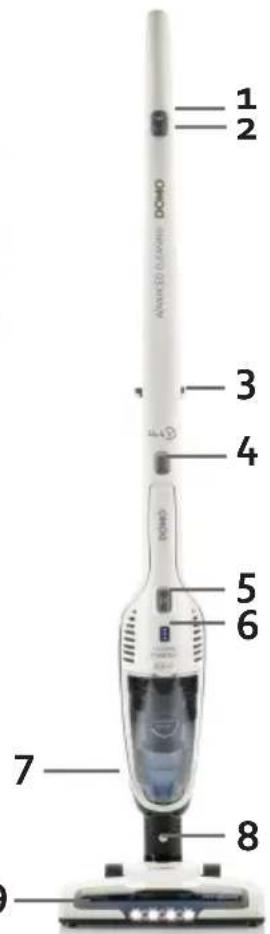

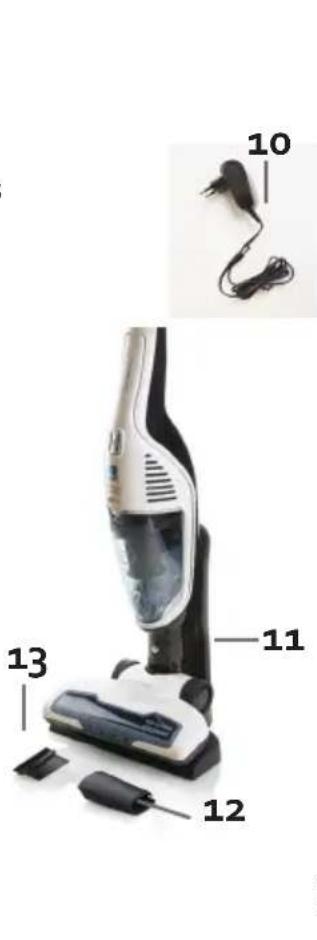

PARTS

1. On-off button
2. Speed control
3. Button to bend the handle
4. Release button hand-held vacuum cleaner

5. On-off button hand-held

6. Battery charge indicator

7. Unlock button for dust reservoir

8. Release button floor nozzle

9. Floor nozzle with rotating floor brush

10. Charging station cord

11. Charging station

12. Crevice vacuum cleaner

13. Dust brush

Close-up of a white and black handheld vacuum cleaner with labeled parts (3 and 7), no visible text or symbols on the device itself.

10 11 12 13

1 2 3 4 5 6 7 8 9 DNOG Vacuum Cleaner

BEFORE THE FIRST USE

To set up the machine properly, please follow the steps below:

• Straighten the handle of the stick vacuum until it clicks into position.
  · Make sure that the floor nozzle is clicked on tightly to the stick vacuum cleaner.

CHARGING

· The charging station may be attached to the wall for extra stability.
· The charging station has a holder for the accessories included.

1. Attach the charger to the charging station via the in-built connector on the side.

Black handheld device with a cable and plug, no visible text or symbols

1. Place the hand-held vacuum into the stick vacuum cleaner.
2. Put the stick vacuum cleaner into the charging station, so that the contact points on

the vacuum cleaner are aligned with the contact points on the charging station. Push the vacuum cleaner and the charging station together so that the stick vacuum cleaner remains standing vertically on the station. Make sure it all is stable.

1. The battery level indicator will now light up and indicate when the machine is fully charged.
2. The machine cannot be started during charging.

USE

• Press the on-off switch on the handle to turn the machine on. When you switch on the machine, the rotating floor brush at the bottom of the floor nozzle will begin to turn. This will cause the dirt in the opening to be shifted and thereby vacuumed up. The dirt will be collected in the dust reservoir of the hand-held vacuum cleaner.
• Press the speed control to increase or lower the suction power.
• Press the release button on the hand-held vacuum cleaner to remove the hand-held vacuum cleaner and only use the hand-held vacuum cleaner. To use just the hand-held vacuum, press the on-off switch on the hand-held vacuum cleaner.
• The machine is equipped with a safety which will ensure that the machine shuts itself off if, for example, objects which are too large are sucked up, or if fingers become tangled in the floor brush. This is for personal safety and to protect the motor. To reverse the floor brush, press the on/off button again or press the speed control.

ACCESOIRES

You can attach the following accessories to the hand-held vacuum:

· Dust brush: for furniture, bookshelves, curtains and hard to clean surfaces.
- Crevice vacuum cleaner: for crevices, corners, stairs, keyboards,...

CLEANING AND MAINTENANCE

CLEANING THE DUST RESERVOIR

1. Remove the hand-held vacuum cleaner from the stick vacuum and press the release button on the dust reservoir on the hand-held vacuum cleaner.
2. Remove the dust reservoir from the motor section. Then take the filters out of the dust reservoir.
3. Empty the dust reservoir. The dust reservoir, the filter (A) and the EPA filter (B) can be cleaned under running water. Do take care to dry them completely before using them again in the machine.

Two black plastic components labeled A and B, shown from different angles (no text or symbols on the parts themselves)

We advise replacing the filters regularly to ensure an optimal operation of the machine. Dirty filters will reduce the suction power drastically. After every cleaning, clean the dust reservoir and the filters to extend the life span of your machine.

CLEANING THE FLOOR BRUSH

1. Remove the floor nozzle from the upright vacuum cleaner. Press the release button at the back of the floor nozzle and remove it from the machine.
2. Click on the release button on the left of the floor brush.

Close-up of a mechanical device with a grid-like internal structure and a small circular base (no visible text or symbols)

1. Remove the rotating floor brush from the floor nozzle.
2. Remove hairs and other dirt that have wrapped around the floor brush. If you do not clean the floor brush regularly, it will become damaged and your machine will become unusable.
3. The rotating floor brush may be rinsed off under running water. Make sure that it is completely dry before using it.
4. Place the floor brush back into the floor nozzle when it is clean.
5. Click the closure valve back into place to close it.
6. Push the nozzle back onto the stick. The machine is now again ready for use.

Stuck hairs can damage the machine or your floor. Always remove the hairs stuck on the brushes.

CLEANING THE MACHINE

Clean the machine with a slightly moist soft cloth. Dry the machine off well. Never submerge the machine in water!

PROBLEM AND SOLUTION

Problem Solution
The machine does not start up.	The battery is empty. Charge the machine.The hand-held vacuum cleaner is not correctly mounted on the stick vacuum cleaner. Make sure that the hand-held vacuum cleaner is correctly installed.
The machine does not vacuum.	The filters are dirty/the dust reservoir is full.The floor nozzle is clogged/the floor brush is blocked.The nozzle opening is clogged.Clean the machine as described in this manual.
The running time of the machine is shorter and shorter.	The machine is not sufficiently charged. Charge the machine fully and try again.The battery is broken or old. Replace the battery.Stuck hairs.Remove the hairs stuck on the brushes.
The indicator light does not burn while charging.	The hand-held vacuum cleaner is not correctly mounted on the stick vacuum cleaner. Make sure that the hand-held vacuum cleaner is correctly installed.

ENVIRONMENTAL GUIDELINES

Warning sign with crossed-out trash bin and no text, indicating no waste or discharge

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

The packaging is recyclable. Please treat the packaging ecologically.

GARANTIA

Exterior view of a white and black handheld vacuum cleaner with labeled parts (3 and 7), no text or symbols on the device itself.

13 12 11

1 2 3 4 5 6 7 8 9

Black electronic device with a cable and indicator lights, no visible text or symbols

Close-up of a black plastic mechanical component labeled A and B, with no visible text or symbols on the body itself.

Close-up of a mechanical device with a grid-like structure and a small inset component, no visible text or symbols.

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows inside a rounded square (no text or labels)

Black electronic device with a cable and plug, no visible text or symbols

Close-up of a black plastic connector with labeled points A and B, no text or symbols present.

Close-up of a mechanical device with visible internal components and a downward arrow indicator (no text or symbols)

Prohibition sign depicting a trash bin crossed with a diagonal line, indicating no waste or discharge.

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Close-up of a white and black handheld vacuum cleaner with labeled parts (3 and 7), no visible text or symbols on the device itself.

10 11 12 13

OKO 1 2 3 4 5 6 7 8

PŘED PRVNÍM POUŽITÍM

Black ergonomic device with a white handle and black buttons, showing a small cable attached to the base (no text or symbols visible)

Two black plastic components labeled A and B, shown against a plain background (no text or symbols on the parts themselves)

Close-up of a mechanical device with a grid-like structure and a small inset image, no visible text or symbols.

OHLED NA ŽÍVOTNÍ PROSTŘEDÍ

Prohibition sign with crossed-out trash bin and black rectangular symbol below

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

Exterior view of a white and black handheld vacuum cleaner with labeled parts (3 and 7), no text or symbols on the device itself.

10 11 12 13

1 2 3 4 5 6 7 8 9

PRED PRVÝM POUŽITÍM

Black ergonomic device with a cable and plug, no visible text or symbols

POUŽITIE

Close-up of two black plastic components labeled A and B, with no visible text or symbols on the body.

Close-up of a mechanical device with a grid-like structure and mounting base (no visible text or symbols)

Prohibition sign with crossed-out trash bin and no text, indicating no waste or discharge

Recycling symbol icon with three chasing arrows forming a triangle (no text or labels)

QR code image containing encoded data, no visible human-readable text
