DO1152S - Vacuum Cleaner DOMO - Free user manual and instructions

USER MANUAL DO1152S DOMO

White and black vacuum cleaner with blue filter, no visible text or symbols

EN Instruction booklet Vacuum cleaner

Read all instructions carefully.

Save this instruction manual for future reference.

⚠PRODUCTSPECIFIEKE WAARSCHUWINGEN

Labeled diagram of a vacuum cleaner with numbered parts for identification

8 9 10

DOMO 14 13

Front view of a white and black vacuum cleaner with blue handle and ventilation grille (no text or symbols visible)

Close-up of a white handheld device with black cable and blue buttons, no visible text or symbols

BUIS

Mechanical component with two rotational arrows labeled 1 and 2, no text or symbols present

GEBRUIK

Close-up of a white DOHO vacuum cleaner with blue control knobs and black cable (no visible text or symbols)

White and black vacuum cleaner with open lid and open base, showing internal components (no text or symbols visible)

3

Close-up of a black plastic container with a brown package and a white lid, no visible text or symbols.

FILTERS

Close-up of a white and black vacuum cleaner with blue buttons and a white vent, showing internal structure and airflow direction (no text or symbols visible)

Motorfilter

Three views of a white DOHO vacuum cleaner with open lid, showing internal components and airflow direction (no text or symbols)

OPGELET

Symbol of a trash bin with crossed lines indicating no waste or discharge (no text or labels)

⚠AVERTISSEMENTS SPÉCIFIQUES AU PRODUIT

Labeled diagram of a Domo vacuum cleaner with numbered parts and interior views

AVANT LA PREMIÈRE UTILISATION

Close-up of a white handheld device with black cable and blue buttons, no visible text or symbols

TUBE

Black rubber hose component with two curved arrows indicating rotational motion (no text or symbols)

UTILISATION

Front view of a white and blue electric vacuum cleaner with a black ventilation grille and a white arrow pointing to the side panel (no text or symbols visible)

Filtre du moteur

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Labeled diagram of a vacuum cleaner with numbered parts for identification

8 9 10

DOMO 14 13

Front view of a white and black handheld vacuum cleaner with blue handle and ventilation grille, labeled with number 15 (no text or symbols on device body)

Close-up of a white handheld device with a black cable and blue eyes, no visible text or symbols

Mechanical component with two rotational arrows labeled 1 and 2, no text or symbols present

GEBRAUCH

Three-panel image showing a white vacuum cleaner with labeled parts: one open, one filled with boxes, and one closed (no text or symbols visible)

DIE FILTER

Front view of a white and black vacuum cleaner with a visible exhaust pipe and control panel (no text or symbols)

Motorfilter

Three views of a white and black DOWO vacuum cleaner device showing internal components (no text or symbols visible)

ACHTUNG

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Thank you for your confidence in DOMO. We do hope you enjoy your new purchase. Before reaching you, all our products undergo a strict quality inspection. Should you still encounter problems with your appliance, then we are truly sorry and will do everything possible to resolve the situation quickly. Do not hesitate to contact our customer service. Our staff will do all they can to help you!

[phone] [e-mail]

Monday - Thursday: 8.30 - 12.00 and 13.00 - 17.00

Friday: 8.30 - 12.00 and 13.00 - 16.30

This device has a warranty period of 2 years from the date of purchase. During this warranty period, the distributor will assume responsibility for any defects that can be shown to be the result of material, construction or manufacturing errors. Such defects will be remedied by repair or replacement of the device. The 2-year warranty period will be suspended during the repair period and will continue after the repair has taken place for the remaining duration of the warranty period. The warranty will be honoured if proof of purchase clearly showing the date of purchase is provided. If your device becomes defective within the 2-year warranty period, please return it with your proof of purchase to the store you purchased it from or follow the procedure of the relevant webshop if you bought it online.

The warranty does not cover damage to the device, accessories or parts caused by:

• normal wear and tear from use;
• non-compliance with the instructions for use, maintenance and cleaning in the manual;
- incorrect connection, e.g. electrical voltage too high;
- incorrect, heavy-handed or abnormal use;
• repairs or alterations carried out by the consumer or unauthorised third parties;
- use of parts or accessories not recommended nor supplied by the distributor.

SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should always be taken, including the following. Any injury or damage caused by failure to comply with these rules are at your own risk. Neither the manufacturer, importer, or the supplier may be held liable.

• Read all instructions carefully.
• Make sure all packaging materials and promotional stickers have been removed before using the appliance for the first time. Make sure children cannot play with the packaging materials.

• This appliance is only suitable for use in domestic and similar environments, such as:

• staff kitchen areas in shops, offices and other working environments;

• farm houses;
• by clients in hotels, motels and other residential type environments;
• bed and breakfast type environments.

- Children should be supervised to ensure that they do not play with the appliance.

- This appliance can be used by children aged from 16 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

• Children shall not play with the appliance.

- Cleaning and user maintenance shall not be made by children unless they are older than 16 or supervised.

- Keep the appliance and its cord out of reach of children younger than 16 years.

- All repairs should be carried out by the manufacturer or its aftersales service.

▲ELECTRICAL WARNINGS

- In order to avoid a hazard this appliance must not be supplied through an external switching device, such as a timer or a

separate remote control, or connected to a circuit that is regularly switched on and off by the utility.

- The appliance must be disconnected from its power source when not in use, during service and when replacing parts. If present, first turn all the buttons to the 'off' position, then pull the plug out of the socket by grasping the plug itself. Never pull the cord or appliance to remove the plug from the socket.

- Before use, check carefully that the electric tension and frequency of the power net at your home match the indications on the rating label of the appliance.

- The appliance must be plugged into an appropriate outlet that is installed in accordance with local installation regulations.

- Do not let the power supply cord hang over the edge of a counter, or touch hot surfaces.

- Keep the power cord away from hot parts and don't cover the appliance.

- Unwrap the cord completely to prevent overheating of the cord. Do not allow the power cord supply to run underneath or around the unit.

- For safety reasons, never use the appliance if the cord, plug, or appliance itself is damaged, or after a malfunction of the appliance. Return the appliance to the DOMO Service Department or its service agent for examination, repair, or electrical or mechanical adjustment. Do not try to repair the appliance yourself.

⚠️INSTALLATION

- Do not place near flammable materials, gases or explosives.

- Do not use or store this appliance outdoors.

• Always use the appliance on a steady, dry and level surface.

- Never place this appliance near a gas stove or electrical stove or in a place where it may come into contact with a warm appliance.

⚠ USE

- Do not use this appliance for other than intended use.

- Never leave the appliance unattended while it is functioning.

- Do not operate the appliance with wet hands.

- The use of accessories that are not recommended or sold by the manufacturer can cause fire, electrical shock or injuries. Only use the utensils delivered with the appliance.

⚠ CLEANING AND MAINTENANCE

- To protect against electrical shock or burns, do not immerse unit, cord, or plug in water or other liquid.

- Failure to maintain this appliance in a clean condition could adversely affect the life of the appliance and possibly result in a hazardous situation.

⚠️PRODUCTSPECIFIC WARNINGS

- Do not pull the cord. Do not use the cord as a handle. Do not jam the cord between a door or do not pull it around corners or sharp edges. Do not run the vacuum cleaner over the cord. Keep the cord away from hot surfaces.

- Do not put any objects in the openings of the vacuum cleaner. Do not use the appliance when an opening is blocked.

- Keep hair, loose clothing, fingers and other body parts away from openings of the vacuum cleaner and from moving parts.

- Be extra careful when cleaning stairs.

- Never use the vacuum cleaner to pick up any combustible or inflammable liquids like gasoline, or do not use the appliance in places where such substances might be present.

- Remove large and sharp objects from the floor before vacuuming it to prevent possible damage.

- Hold the plug while rewinding the cord onto the cord reel. Do not let the plug whip back and forth during rewinding.

- Unplug the appliance before connecting the hose.

- Do not pick up any burning or smoking objects, like cigarettes, matches or hot ashes.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE

All images and descriptions in this manual are purely indicative and may differ slightly from the actual device.

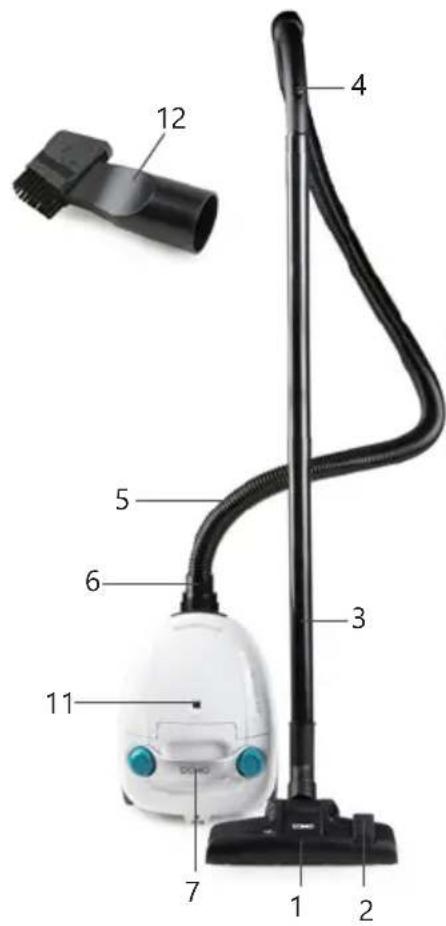

PARTS

1. Floor nozzle
2. Button to pull out or retract brushes
3. Tube
4. Additional suction power control
5. Hose
6. Connection for hose
7. Handle
8. Handle lid dust bag compartment
9. Dust bag: 1,5 l
10. Dust bag frame
11. Full dust bag indicator
12. Crevice nozzle with dusting brush
13. Button for automatic cord rewinding
14. On/off button
15. EPA 10 filter behind grid

Labeled diagram of a vacuum cleaner with numbered parts for identification

8 9 10

DOMO 14 13

Front view of a white and black vacuum cleaner with blue head filter, labeled with number 15 (no text or symbols on device body)

BEFORE THE FIRST USE

• Remove all packaging materials and any promotional stickers.
  • Always unplug the vacuum cleaner before (dis)assembling any parts.

HOSE

• Assembly: Insert the connector at the end of the hose into the connection opening of the vacuum cleaner so that the hose is fixed into place.
• Disassembly: Unplug the vacuum cleaner. Push in the sides of the connector at the end of the hose and pull the hose out of the vacuum cleaner.

Close-up of a white handheld device with black cable and blue buttons, no visible text or symbols

TUBE

1. Put the handle of the hose into the tube.
2. Attach the floor nozzle to the tube by firmly sliding the tube into the nozzle.

ACCESSORIES

1. Crevice nozzle: for hard to reach areas like radiators, crevices, corners, in between pillows,...
2. Dust brush: for furniture, shelves,...

Mechanical component with two rotational arrows labeled 1 and 2, no text or symbols present

USE

- Unwind the cord to a substantial length and plug in the vacuum cleaner. The yellow label on the cord indicates the maximum length of the cord, that should not be exceeded. Make sure that the red label is not visible during use.

• To turn the vacuum cleaner on and off, press the foot pedal with the Ⓐ symbol.

- When you want to clean hard floors, make sure that the brushes in the floor nozzle are down. When you want to clean carpet, make sure that the brushes in the floor nozzle are retracted. The brush can be adjusted by means of the button on the floor nozzle for retraction or extension.

- On the handle that is attached to the tubes, there is a small slide button for extra suction control.

- When you have finished vacuuming, unplug the vacuum cleaner and automatically rewind the cord by pressing the foot pedal with the symbol. Make sure that the plug does not whip back and forth while rewinding the cord, by guiding the cord with your hand. This to prevent possible damage.

CLEANING AND MAINTENANCE

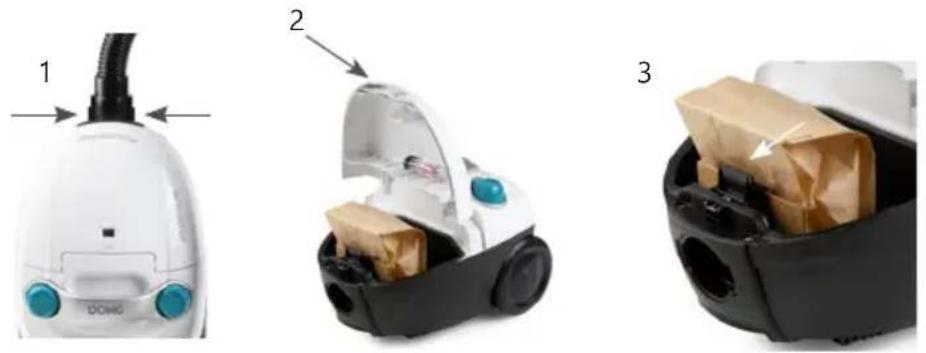

CHANGING THE DUST BAG

The vacuum cleaner cannot be used without the dust bag. When the dust bag is full or damaged you need to replace it immediately. The dust bag full indicator turns red when you need to replace it.

1. Remove the flexible hose.
2. Open the top of the dust bag reservoir via the cover.
3. Pull the dust bag holder towards you to remove the dust bag and place a new one in the correct position. Make sure that the dust bag is fixed into place under the dust bag holder.

THE FILTERS

The appliance has 2 filters. In a normal cleaning session, it is sufficient to tap out the filters. It is recommended that you thoroughly clean the filters under tepid running water 3 to 4 times per year. Make sure that it is completely dry before putting it back in the appliance. You can also replace them if necessary. Avoid direct sunlight or intense overheating. Never put the filters in the washing appliance to prevent deformation. Do not use abrasive or cleaning products and wash from the bottom of the filter.

EPA filter

Remove the EPA filter through the provided valve. Clean it thoroughly under tepid running water. Allow it to dry properly. It is recommended that this filter be replaced once a year. Place all the parts back in the vacuum cleaner before using the appliance again.

Front view of a white and black vacuum cleaner with a white vent and blue handle, showing internal airflow or dust lanes (no text or symbols visible)

Motor filter

The motor filter is located in the dust bag compartment. Remove the flexible hose. Open the lid of the dust bag reservoir. Take out the filter. Clean it thoroughly under tepid running water. Allow it to air-dry properly. Replace it in the vacuum.

Three views of a white and black DQHIO vacuum cleaner with internal components, shown from open to closed (no text or symbols visible)

PLEASE NOTE

• Make sure that all components are correctly assembled before using the vacuum cleaner again.
• Always use the vacuum cleaner with the filters intact. If you do not do this, you may lose suction force or damage the motor.
- Unplug the plug before cleaning the filters.
- Do not put the filter into the dishwasher.
- Do not use a hairdryer to dry the filters.

⚠️Do not immerse unit, cord, or plug in water or other liquid.

⚠️Never use aggressive or abrasive cleaning agents.

PROBLEMS AND SOLUTIONS

PROBLEMS SOLUTIONS
The vacuum cleaner is not working. • Check that	the plug is connected to a working socket.• Check that the dust bag is correctly installed.
The vacuum cleaner does not suck up dust well/there is a loss of suction/it makes lots of noise.	• Check whether the dust bag needs replacing.• Check the floor nozzle, tubes, and hose for obstructions (large pieces of dirt, textiles, dust, etc.).• Clean the EPA filter and motor filter; see ‘Cleaning and maintenance’ section.

GUIDELINES

Symbol of a trash bin crossed with two crossed lines, no text or numbers present

This symbol on the product or on its packaging indicates that this product may not be treated as household waste. Instead it must be brought to the applicable collection point for recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

The packaging is recyclable. Please treat the packaging ecologically.

This appliance conforms to all European requirements in the areas of safety, health, and environmental protection.

The EU declaration concerning this appliance can be requested at any time from [e-mail]

GARANTIA

Estimado cliente,

Front view of a white and black vacuum cleaner with blue handle and ventilation slots (no visible text or symbols)

Close-up of a white handheld device with black cable and blue buttons, no visible text or symbols

TUBO

Mechanical component with two rotational arrows labeled 1 and 2, no text or symbols present

USO

Front view of a white and black vacuum cleaner with blue handle and ventilation grille (no visible text or symbols)

Filtro del motor

Symbol of a trash bin crossed with two crossed lines and a blank rectangular base (no text or numbers present)

Labeled diagram of a vacuum cleaner with numbered parts and component highlights

PRIMA DELL'USO

Close-up of a white handheld device with black cable and blue buttons, no visible text or symbols

TUBO

Mechanical component with two rotational arrows labeled 1 and 2, no text or symbols present

UTILIZZO

Front view of a white and black vacuum cleaner with blue buttons and a white arrow pointing to the side (no text or symbols visible)

Filtro del motore

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Labeled diagram of a Domo vacuum cleaner with numbered parts and interior views

PŘED PRVNÍM POUŽITÍM

Close-up of a white handheld device with black cable and blue circular ports, no visible text or symbols

TRUBICE

Mechanical component with two rotational arrows labeled 1 and 2, no visible text or symbols

POUŽITÍ

Front view of a white and blue handheld vacuum cleaner with visible exhaust grille and control buttons (no text or symbols)

Motorový filtr

Symbol of a trash bin crossed with two crossed lines and a solid black rectangle below (no text or labels)

Front view of a white and black vacuum cleaner with blue handle and ventilation slots (no visible text or symbols)

PRED PRVÝM POUŽITÍM

Close-up of a white handheld device with black cable and blue buttons, no visible text or symbols

TRUBICA

Close-up of a black rubber hose with two curved arrows indicating rotational motion (no text or symbols)

POUŽITIE

Front view of a white and black vacuum cleaner with blue buttons and a white vent, showing no text or symbols.

Motorový filter

Symbol of a trash bin with crossed lines indicating no waste or discharge, and a solid black rectangle below (no text or labels)
