USER MANUAL Bellboy Fatboy

Line drawing of a simple lamp with a coiled spring on top (no text or symbols)

EN Manual - page 2

FR Manuel - page 7

Fatboy® product information Bellboy:

The Fatboy® Bellboy is an atmospheric light with a built-in rechargeable battery. The light source contains 12 Cree® J Series™ LED modules emitting 2700K (warm white) light and the brightness can easily be adjusted. Bellboy can be used both indoors and outdoors and is resistant to moisture from water sprayers or light rain. The lamp comes equipped with a USB-A to Magnetic pogopin connection. Please make sure to use a 5V 2A adapter to charge Bellboy. A fully-charged lamp remains lit for more than 9 hours (at 100% brightness) and up to 3 hours (at lowest brightness setting).

WARNING: READ ALL INSTRUCTIONS BEFORE USE!

SAVE THESE INSTRUCTIONS!

• Make sure to use a 5V 2A USB adapter (using a different power adapter may cause irreparable damage to the luminaire).
• Use only the supplied USB cable to charge the lamp.
  • This is not a toy, please keep away from children.

Battery:

If the battery will not hold a charge anymore, please contact your Fatboy® dealer. The Battery can be replaced following the instructions provided by Fatboy.

All battery disposal should be in compliance with any local regulations that address the disposal of hazardous materials.

Do not incinerate!

Instructions for use:

• When using outdoors basic safety precautions should always be followed to reduce the risk of fire, electric shock, and personal injury, including the following.
• Make sure to position Bellboy on a rigid, horizontal surface on which water is not able to collect. Avoid standing water underneath the base of the Bellboy.
• Make sure to connect the USB connector correctly to avoid damage.
• Do not expose the lamp to excessive heat from heat sources.
• The lamp can be used outdoors, and is protected against light rain and water sprayers. Do not submerge the lamp under water (the lamp is not waterproof).
  • Always charge the lamp indoors.

Connect the USB/Magnetic charging cable to the USB adapter. Plug the recommended 5V 2A adapter into the wall socket.

• For first time use, we advise you

to charge the built-in battery for at least 8 hours.

• For normal charging, it will take approx. 3 hours to fully charge the lamp.

• The lamp can be operated by tapping the button on top of the shade.

• The lamp is turned off.

• Press one time: the light will turn on.

• Press and hold to set the light intensity. The brightness will increase and decrease in a loop and will remain at the chosen intensity once the switch is released.

• Press third time: the light will turn off.

• Press again: the lamp will turn on again to the last intensity setting.

- The lamp can be operated while charging.

- When the lamp stops emitting light, the Bellboy needs to be recharged. Always charge the lamp indoors.

Maintenance:

When not in use for an extended period of time, make sure the lamp is turned off. We recommend recharging the lamp every three months to keep the batteries in good condition. To avoid wear and tear try to store the Bellboy indoors during seasons of heavy rain or low temperatures. Some of the components can be replaced if they are damaged. Visit our website or use the following QR core to find the instructions (we recommend following the instructions in order to guarantee good results):

Cleaning the lamp:

Use a soft cloth, preferably dry or, if needed, moistened with lukewarm water and mild liquid soap. Please be gentle to avoid any scratching. Do not use cleaning agents containing alcohol, ammonia, benzene, or abrasive substances. Never open the lamp when cleaning.

Trouble shooting:

The lamp has fallen and the shade fell off.

- The shade can easily be replaced by putting it back into position and twisting the shade clockwise to lock it. Check to make sure both batteries are still in position before replacing the shade.

The lamp is not working:

- Check the connection with the adapter and make sure the lamp is charging.

The charger works when it's connected to the Bellboy:

- When the lamp is turned off, you will see a red LED blinking while the charing procedure is in

progress. When it lights up green, the charging procedure has completed.

• When the lamp is turned on, it will pulse OFF one time to indicate the charging procedure has started.
• If the lamp doesn't charge anymore, please contact your Fatboy® dealer.
• If the lamp only works with the charger connected, it may indicate that the batteries are defective. These can be replaced with spare batteries offered via www.fatboy.com or your local Fatboy dealer.
• Do not use the lamp if the USB cable is damaged.

If the lamp no longer works it may be unsuitable for use. If this is the case, please contact your Fatboy® dealer for further information on available spare parts.

Never attempt to repair the lamp yourself without following the proper instructions.

IMPORTANT!

Please contact your Fatboy ^® dealer if you have any other problems.

Technical specifications:

Model: Bellboy

Primary rating: 100/240VAC. 50/60HZ

Secondary rating (adapter recom-

mendation): 5 VDC, 2 A

Charging rate: 5V 2A (Charger not included)

Charging cable: 150cm USB-A / Magnetic pogopin (6mm)

Made in China

Indoor/outdoor: This Product is suitable for Wet Location Use

IP Rating: IP44

Safety Class: Class III

Light source: Bellboy 2835

4.2 V DC, 3W, 300 lm, 2700 K

On/Off switch: Stepless dimmer.

Ambient temperature: -10 to 40 °C

Materials: Polyethylene (Diffuser),

Powder coated steel

(Shade/Spring), Aluminum (Base),

ABS (Cap/Baseplate), Silicone (Feet).

Internal battery: Li-ION 2x 2600 mA, 3,7V

Dimensions: 18x30cm

Weight: 1.13kg

If any of the items are damaged or if the lamp doesn't work, contact your Fatboy dealer or search for help via our website.

We do not recommend to use the luminaire with the adapter connected for a long time, this can seriously reduce the battery life time!

NOTE:

THE LUMINAIRE SHALL BE

CHARGED BY AN INDEPENDENT

SELV LED DRIVER WHICH IS CERTI-

FIED WITH STANDARD EN 61347-2-13

t_a:40^

(CLASS II, FAIL-SAFE OR SHORT CIRCUIT PROOF, SELV, WITH SUITABLE OUTPUT RATINGS, AND MAXIMUM OUTPUT VOLTAGE SHALL NOT EXCEED 5 VDC) PLEASE MAKE SURE TO USE A 5V, 2A CHARGER TO PREVENT DAMAGE TO YOUR BELLBOY.

CE-directive:

This product complies with the requirements and other relevant provisions of the current European RoHS and CE directives 2014/35/EC, 2014/30/EC and 2011/65/EC.

UL listed:

This product is produced and tested according to the UL 153 regulations.

FCC compliant Supplier's Declaration of Conformity:

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

WEEE instruction:

This product is subject to the provisions of the WEEE directive 2012/19/EU. Do not dispose of

this product together with regular household waste. Consult your local waste disposal authorities for information on collection points for electrical and electronic waste products.

This product is in conformity with the relevant statutory requirements of the UK applicable to this product.

Terms of guarantee:

We thank you for purchasing this Fatboy® product and trust that you will enjoy using it. Should you need to use our guarantee service, please

contact your Fatboy ^® dealer. For more information about our dealers, please visit www.fatboy.com.

NOTE:

Changes or modifications which are not explicitly approved by the party responsible for compliance may void the user's authorization to use the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an

outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/ TV technician for help.

LOOKING FOR THIS MANUAL IN OTHER LANGUAGES? GO TO WWW.FATBOY.COM

DO YOU NEED OUR SERVICES OR SUPPORT? GO TO SERVICE.FATBOY.COM

FR

4.2 V DC, 3W, 300 lm, 2700 K

Simple line drawing of a USB cable with a circular connector (no text or symbols)

EN Contents of this box

Line drawing of a simple mechanical component with a coiled spring and a flat top (no text or symbols)

1

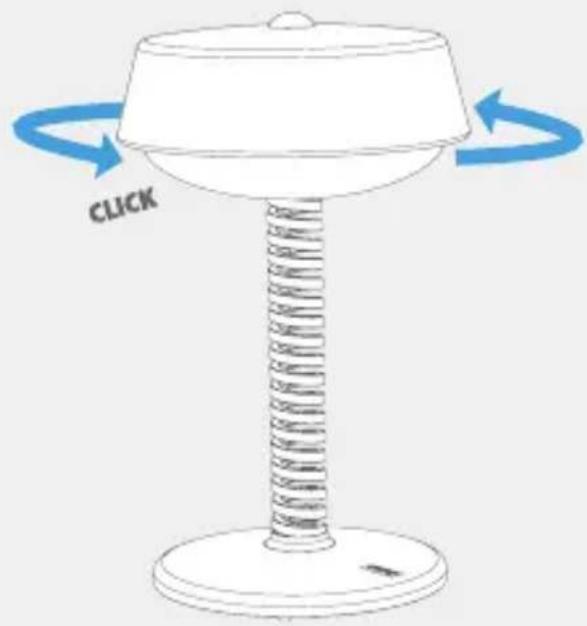

CLICK

Diagram of a robotic arm with a blue arrow indicating motion direction (no text or symbols)

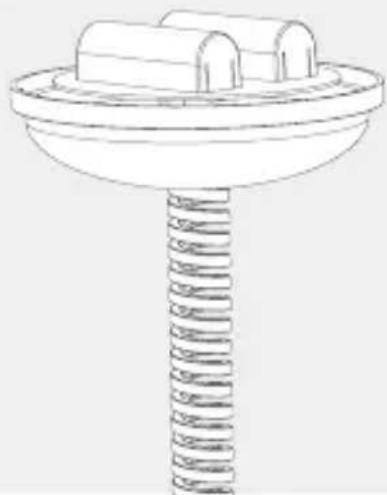

Line drawing of a mechanical component with a coiled spring and two cylindrical features (no text or symbols)

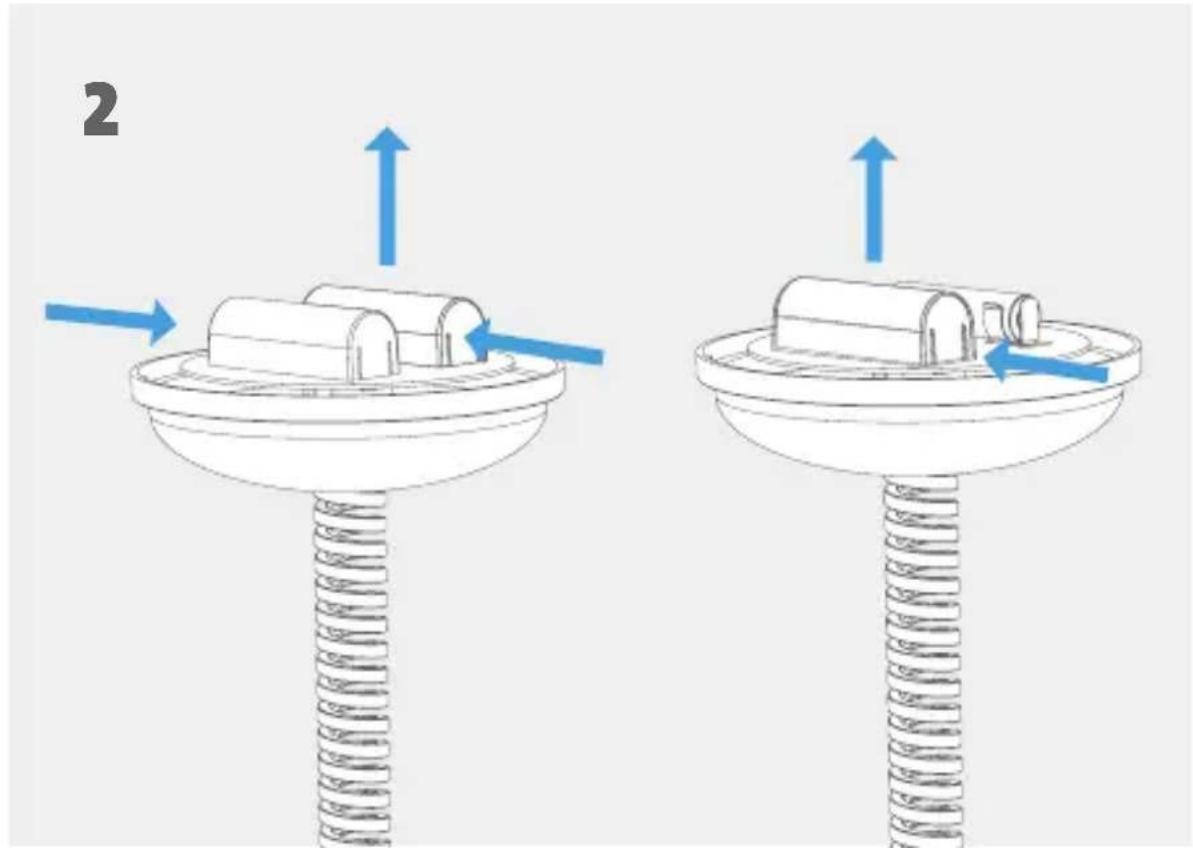

2

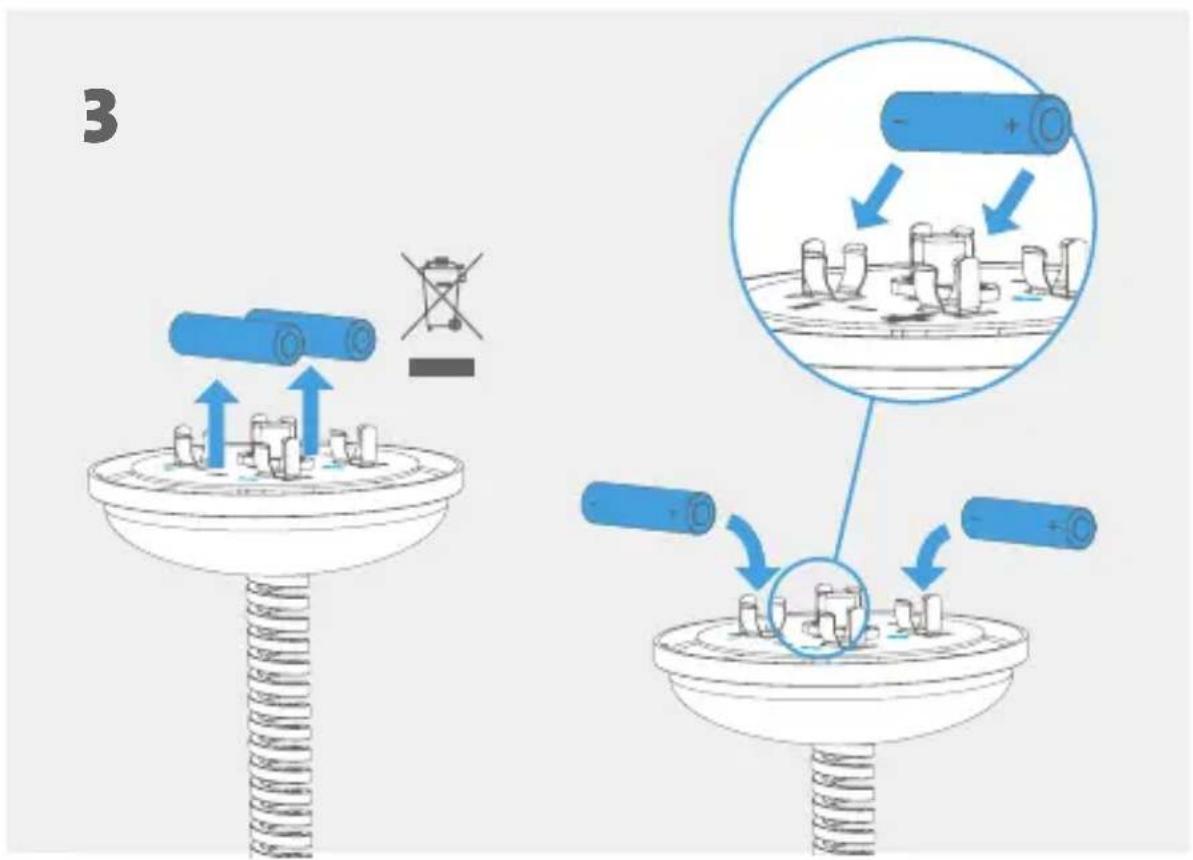

3

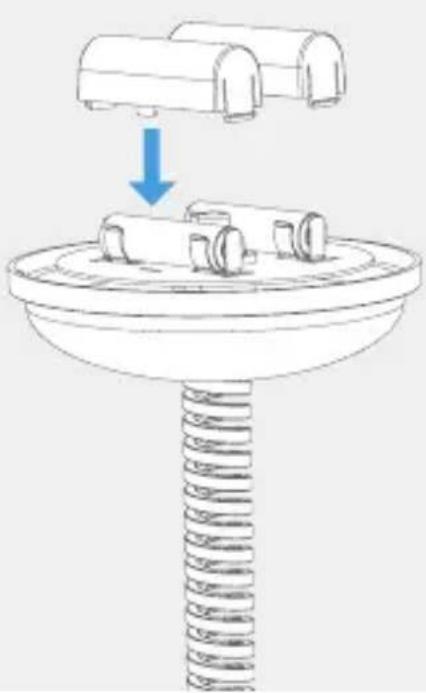

4

Diagram showing a mechanical assembly with a spring and cylindrical components, no text or symbols present

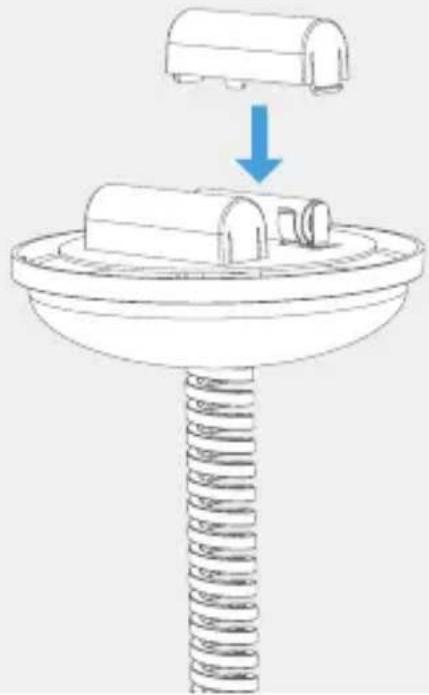

Diagram showing a mechanical assembly with a cylindrical component and a downward arrow, no text or symbols present.

5

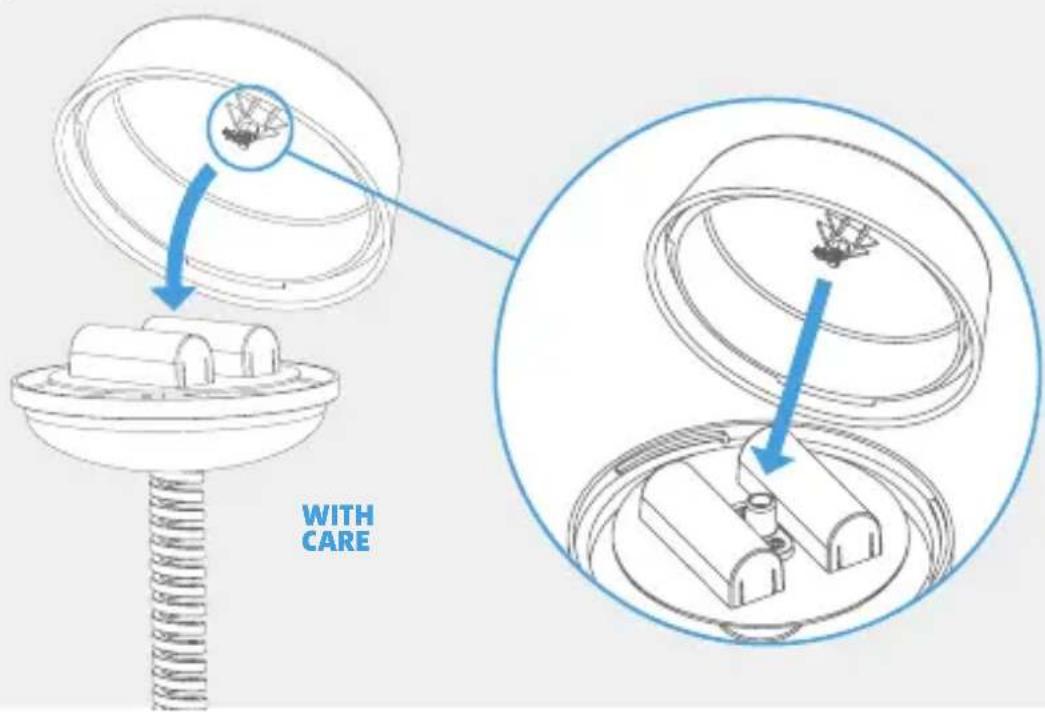

WITH CARE

6

CLICK

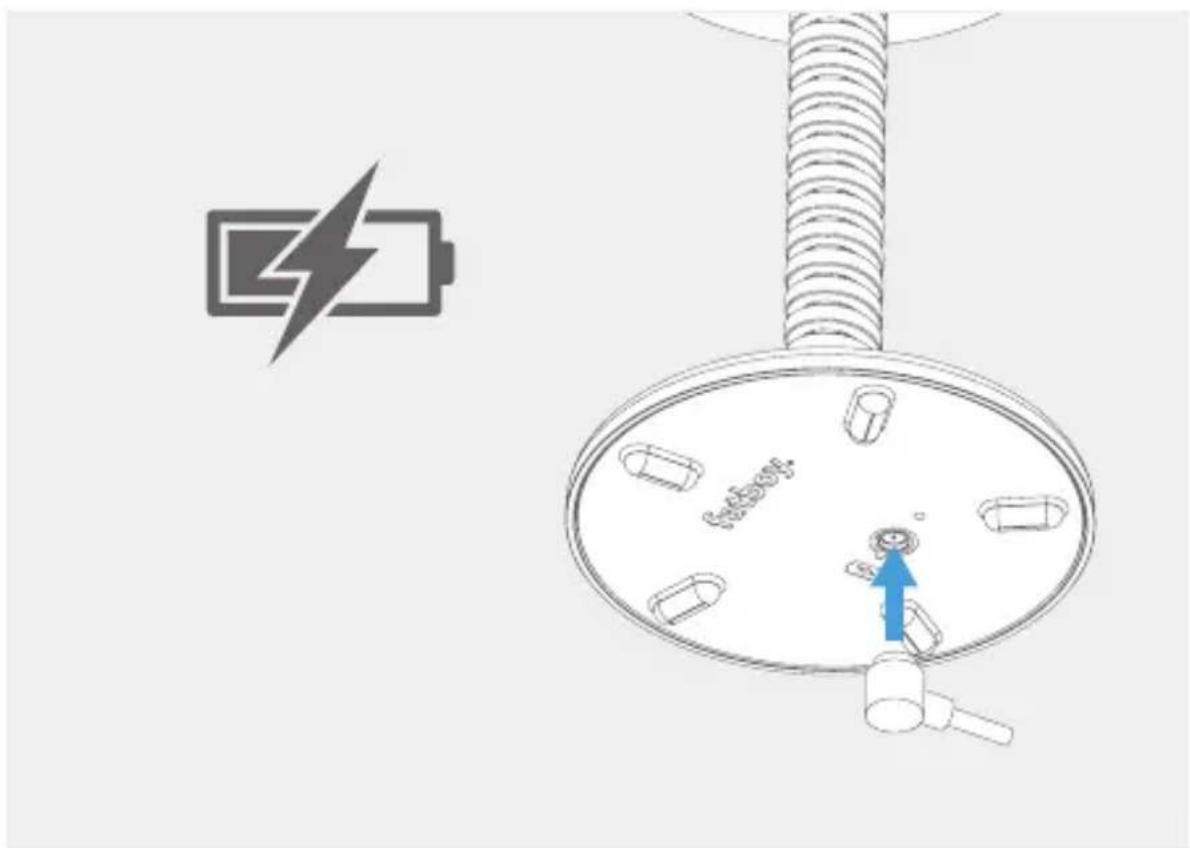

Diagram illustrating battery charging mechanism with battery symbol and labeled components

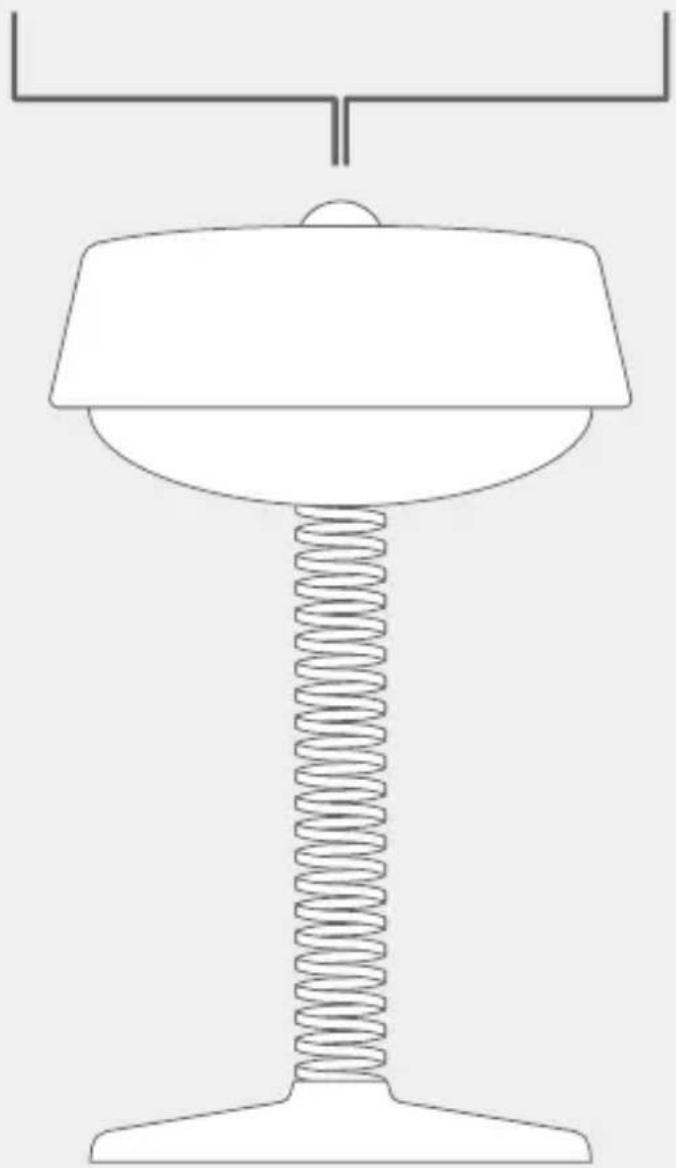

TAP ONCE TO TURN ON/OFF

TAP & HOLD TO ADJUST BRIGHTNESS

Line drawing of a lamp with a coiled spring and a flat top (no text or symbols)

TIPS & TRICKS
This manual in other languages?
Go to www.Fatboy.com
