USER MANUAL CH-1101 SITECOM

Black 48-w power plug with two terminal slots and a plug inserted, no visible text or symbols on the device body.

48W GaN

Power Delivery Wall Charger

Type: CH-1101 (Black) & CH-1111 (White)

SITECOM 1 2 3

EN: User manual 48W Power Delivery Wall Charger.....3

NL: Handleiding 48W Power Delivery Wall Charger.....4

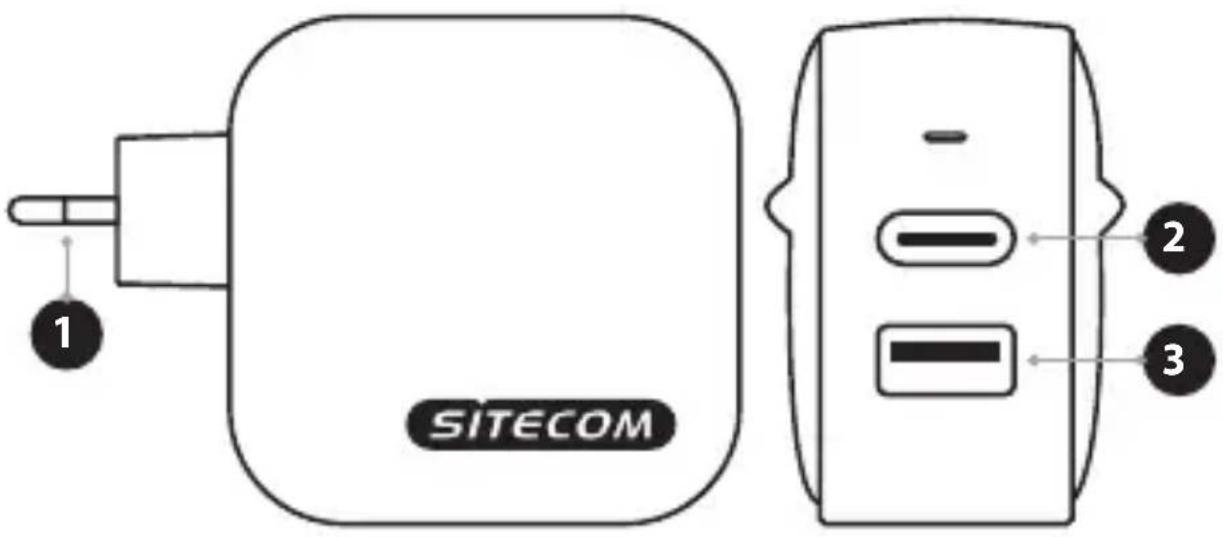

Item Specifications Description

1	EURO plug	EURO mains plug Suitable for use in most European countries.An adapter is needed for use in the UK.
2	USB-C	PPS 3.3-11.0V =3.0A,5.0V/9.0V/11.0V/15.0V=3.0A(15.0W/27.0W/36.0W/45.0W)20.0V=2.25A (45.0W)	Charge any USB-C device up to 45W. Please refer to the technical specifications table for the output rating when using multiple ports.
3	USB-A	5.0V =3.0A (15.0W), 9.0V =2.0A (18.0W), 12.0V=1.5A(18.0W)	Charge any USB-A device up to 18W. Please refer to the technical specifications table for the output rating when using multiple ports.

Other specifications

Supported Devices

USB-C + USB-A devices. Can charge or power any USB-C device that requires 45W power or less and USB-A devices that require 18W power or less. This includes for example: Smartphones, tablets, smartwatches, wireless earbuds, headphones, powerbanks and many more devices. The power supply unit is suitable for mains voltages of 100 – 240 V and therefore can be used worldwide. Please note that a country-specific adapter may be necessary.

Dimensions 51 x 87 x 31 mm Weight 84 grams Package contents 1x CH-1101 (Black) or CH-1111 (White) & 1x User Manual

Important safety instructions, please read the below information carefully

• Do not drop. Frequent dropping may lead to malfunctioning.
• Do not disassemble. Repairs should only be done by qualified service centers. Do not use the product if the AC adapter, adapter cable or power cable is damaged.
• Do not extend cable. Extending cable may lead to poor performance. Always pull directly on the plug when disconnecting the cable, never on the cable itself. Please read the below information carefully.
• Keep this notice for future reference.
• Unplug this product before cleaning. Do not use liquid or spray cleaners and use a dry cloth.
• Do not place this product in a damp place.
• When connecting to an outlet, pay attention to the load capacity of the circuit.
• Read the reference information and precautions for this product.
• Unplug from outlet when not in use for a long time to avoid damage due to over voltage.
  • Use this product near an outlet.
• Do not use this product in liquid, steam, rainwater, snow or humid place. Do not place objects containing water, vases, etc. on the equipment.
• If any of the following problems occur, disconnect from the power supply and contact a service technician. a. Liquid has entered the device, b. When placed in a damp environment, c. When the operation does not work correctly as instructed by the operating instructions or cannot be improved by referring to the instruction manual, d. When there is an obvious defect in the body
• The operating environment temperature of this product is 25^ or less. The altitude during operation of this product is 5000m or less.
  • Product is meant to be used indoors only.

Support

Warranty	24 months warranty. Please note that your rights under national law remain unaffected by this warranty.
Support Lifetime technical support
Disclaimer	Pirox International B.V. assumes no liability and provides no warranty for damage resulting from improper installation/ mounting, improper use of the product or from failure to observe the operating instructions and/or safety notes.
Website www.sitecom.com	Contact [e-mail]

Manufacturer: Pirox International B.V., Linatebaan 101, 3045 AH Rotterdam, The Netherlands

UK Authorized Representative (for authorities only):

ProductIP (UK) Ltd. 8, Northumberland Av.

London WC2N 5BY United Kingdom

Conformity information

Hereby, Pirox International B.V. declares that this product is in compliance with directives 2011/65/EU - 2014/30/EU and all other applicable EU Regulations. The full text of the EU declaration of conformity is available at the following internet address: http://www.sitecom.com

Disposal of the device

The symbol above and on the product means that the product is classed as Electrical or Electronic equipment and should not be disposed with other household or commercial waste at the end of its useful life. The Waste of Electrical and Electronic Equipment (WEEE) Directive has been put in place to recycle products using best available recovery and recycling techniques to minimise the impact on the environment, treat any hazardous substances and avoid the increasing landfill. Contact local authorities for information on the correct disposal of Electrical or Electronic equipment.

Abstract black-and-white icon of a person moving with arrows, enclosed in a circular frame (no text or symbols)

Safe to use any ports combination. Smart output according to device's demand.

Output:

USB-C: PPS: 3.3-11V = 3.0A,

5.0V/9.0V/12.0V/15.0V=3.0A (15.0W/27.0W/36.0W/45.0W),

20.0V=2.25A(45.0W)

USB-A: 5.0V = 3.0A (15.0W), 9.0V = 2.0A (18.0W), 12.0V = 1.5A (18.0W)

USB-C Output (45W)

USB-A Output (18W)

USB-C+USB-A (30W+18W)

Pure electrical circuit lines without any symbols

Symbolic icon of a person moving with arrows, enclosed in a circle (no text or symbols)
