USER MANUAL CERP800B2 CONTINENTAL EDISON

Abstract geometric shapes in gray, no text or symbols present

Continental Edison

Black Continental Edison milkshake blender with control panel and water bath (no visible text or symbols on device body)

CERP800B/CERP800R/CERP800W/CERP800B2

• FR (version originale)
• EN (translated from the original)

Illustration of three labeled medical or laboratory equipment components (F, G, H, I) without any text or symbols on the diagrams themselves.

E D A B C J

Smoothies aux carottes

MISE AU REBUT APPROPRIEE

GENERAL SAFETY INSTRUCTIONS

Read the operating instructions carefully before putting the appliance into operation and keep the instructions for future reference.

• Children shall not play with the appliance.
- In order to ensure your children's safety, please keep all packaging (plastic bags, boxes, polystyrene etc.) out of their reach.
- Appliances can be used by persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved.
- Switch off the appliance and disconnect from supply before changing accessories or approaching parts that move in use.
- Use the appliance according to this instruction, any misuse may cause electric shock or other hazards.
- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
- Do not turn on the appliance if the power cord is damaged.
- The appliance is for household use only. Do not use outdoors.
- Never immerse the machine into any liquid.
- Do not use the appliance with wet hands.
- If the appliance is humid or wet, unplug it immediately.

• Keep your finger away from moving parts and fitted tools.
• Never put your fingers in hinge mechanism.
• Use only original spare parts.
• Do not insert anything into the rotating hooks while the machine is working.
• Place the machine on a smooth, flat and stable working surface.
• Make sure the appliance is completely stopped before raising its arm. Take care when rise up the arm of this appliance in case any strikes.
• About how to clean surfaces in contact with food, please refer to the section “CLEANING”.
• Instructions for operating times and speed setting for each accessory are described in the following pages.
• Precautions should be taken when the bowl is empty and when cleaning.
• Be careful if a hot liquid is poured into the cooker or mixer as it may be ejected from the appliance due to sudden boiling.
• Always disconnect the mixer from the power supply if left unattended and before assembly, disassembly or cleaning.

- The appliance is intended to be used for domestic and similar applications such as:

- employee cooking in shops, offices and other work environments;

- farms;

- by customers of hotels, motels and other residential environments;

- guest room type environments.

- For whipping function: This device may be used by children aged 8 years or older if they are properly monitored or instructed to use the device safely and the risks are understood. Cleaning and maintenance by the user should not be carried out by children unless they are over 8 years old and under supervision. Keep the device and its power cord out of the reach of children under 8 years of age.

- For functions other than whipping: This device should not be used by children. Keep the device and its cable out of the reach of children.

- This user guide is available in the following languages:

• FR (original version)
• EN (translated from the original)

Any other translation would be a translation of the original version.

This user guide, any potential modifications, or new versions are available on our website.

BEFORE CONNECTING TO POWER

• Before connecting to the power, please check whether the type of supply and the mains voltage match with the details given on the rating label on the appliance.
• Using for the first time, rip off all wrapping paper and plastic bags, then clean the accessories.

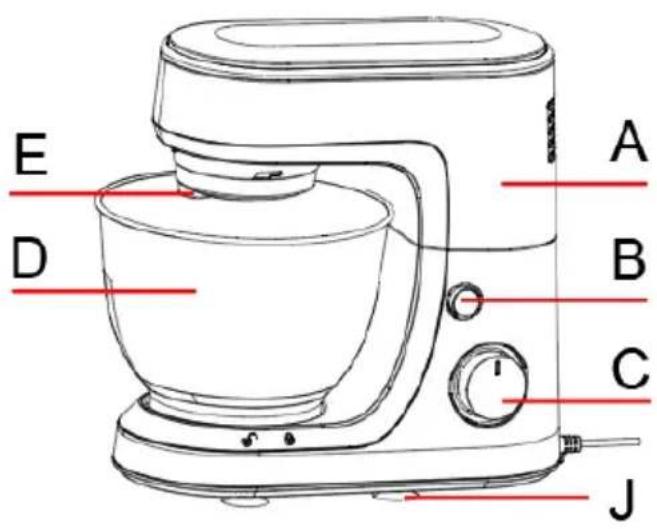

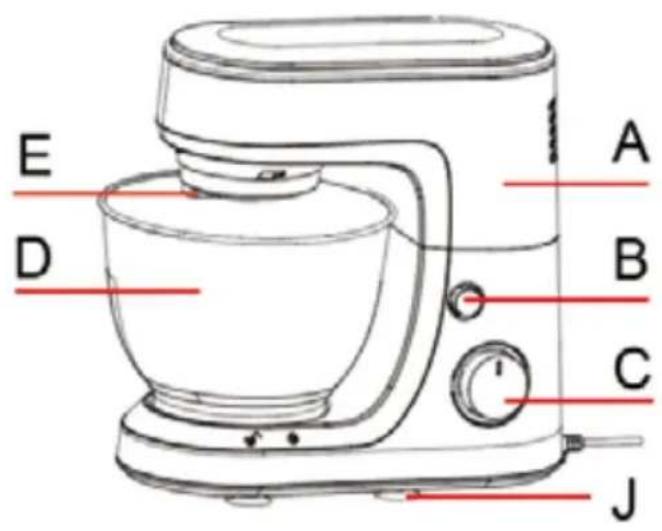

DESCRIPTION OF THE PRODUCT

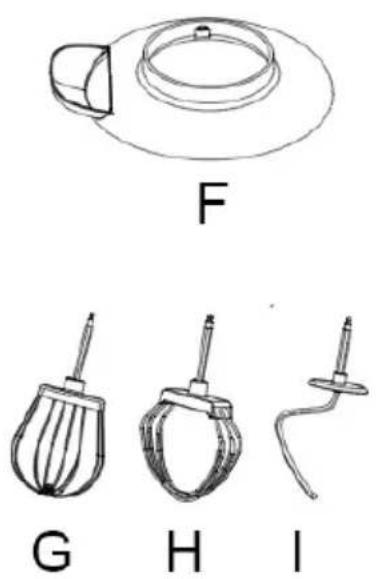

Technical line drawings of three labeled mechanical components (F, G, H, I), no text or symbols present.

E D A B C J

A.	Arm / Housing	F.	Bowl Lid
B.	Locking knob	G.	Whisk
C.	Speeds Selector	H.	Beater
D.	Mixing bowl	I.	Hook
E.	Outlet for accessories	J	Sucker

USING THE MACHINE

1. Press Locking knob (B) down to lift the arm.
2. Lock Bowl Lid(F) into the arm, then insert the whisk (G) or Beater (H) or Hook (I) into outlet(E) (as pic A) till “click” sound (as pic B) to ensure the accessory is inserted well.

Pic.A

Click Pic.B

1. Insert mixing bowl (D) into the housing and turn the bowl until it locks into place.
2. Fill your ingredients into mixing bowl (D). Must follow the max. weight / time for each accessory. Cannot over fill ingredients and over time use, or the machine will be destroyed or its performance is not good.
3. Press Locking knob (B) down again and in the same time press down the arm for lock.
4. Plug in then turn Speeds Selector(C) to start the machine and set the right speed.

Follow speeds of each accessory as manual suggested.

1. After usage, turn the Speeds Selector(C) back to the "0" to stop machine. Then remove the plug. Press Locking knob (B) again for taking off the accessory.

CHOOSING THE RIGHT ACCESSORY

SPEED CONTROLS

Crochet Vitesse 1-6

This machine has "0-16 speed", "0", "P" controls.

(0-16 variable speed controls): from Min speed to Max speed

("0" level): OFF, stop the machine

("P" mode level): Pulse function

After install the accessory you need, before plug in, make sure the knob is switched to "0" level. Then turn the knob to the speed you need.

"0-16 speed" function:

Slow speed: turn the knob to the beginning.

Fast speed: turn the knob till the end.

WARNING:

If using Hook (I), the selected speed cannot more than speed 6. If using Beater (H), the selected speed cannot more than speed 14.

If using Whisk (G), recommend using the speed 12-16.

"Pulse" function:

Turn the knob anticlockwise to "P", the machine will start to work under max speed. Once loosen your hand, the knob will turn back to "0" position automatically and stop the machine.

Speed	Accessory	Max. Time	Types of processing
Hook Max Speeds	Hook;	2-3min	Thick mixture (e.g. bread, pasta)
			Do not put more than 500g of flour with 325g of water.
Beater Max Speeds	Beater	3-4min	Medium thick mixture (e.g. with pancakes or cakes)
			Ingredients cannot more than 1/3 bowl.
Whisk Max Speeds	Whisk	3-4min	Creams (250ml max); whites in snow (4 eggs max)
Pulse	All	1 min	Short time mixing

BASIC RECIPES TIPS:

Whipped Cream

• 220ml cold heavy whipping cream
  • 40g (2 tbsp) sugar, honey, or maple syrup
• 2.5 g (½ tsp) vanilla or other flavorings
  Cool mixer bowl and whisks in the freezer for at least 20 minutes.
  Place all Ingredients into the bowl.
  Keep whisking until stiff peaks form with max speeds

Basic Sponge Cake

• 4 eggs (room temperature)
- 225 g caster sugar
• 225 g self-raising flour
• 10 g (2 tsp) baking powder
• 225 g baking spread, margarine or soft butter at room temperature.

Mix eggs, caster sugar, baking powder and baking spread together with slow speed.

Add the flour into the mixture and beat it until the flour is fully incorporated

with slow speed till to Hook Max Speeds.

Basic Pizza Dough

• 200 ml lukewarm water
• 14 g yeast
• 5 g (1 tsp) salt
• 300 g flour
- Splash of extra virgin olive oil

Place all Ingredients into the bowl and knead them at low speed together.

Keep kneading until the flour is fully incorporated with slow speed till to Hook Max Speeds.

CLEANING

WARNING: Risk of injury:

Unplug the power cable before touching the mixer or other accessories. Otherwise, it could result in injury.

Always unplug the power cable from the wall socket before cleaning the robot.

Do not immerse the robot in water. The outer surface of the appliance should only be cleaned with a soft, moist cloth.

NOTE: Do not use abrasive cleaning products or scour pads when cleaning your robot. Never immerse the robot is case in water or any other liquid.

Remove the mixing bowl, the flat mixer, the whisk, the kneading hook before washing them.

Wash all accessories by hand with clear water with washing-up liquid. Rinse and dry thoroughly before reassembling.

Accessories and bowl should be washed immediately after use to prevent food from drying on.

Before first use, clean the bowl and all accessories with clear water with dishwashing liquid. Rinse and let dry.

SPECIFICATIONS

Item reference: CERP800B/CERP800R/CERP800W/CERP800B2

Model: CY-613C

Rated voltage: 220-240V\~, 50Hz

Power consumption: 800W

Protection class: II

Manual version: V2

ENERGY CONSUMPTION

Power consumption management: N/A

PROPER DISPOSAL

This product contains recyclable materials.

Do not dispose this product as unsorted municipal waste.

Please contact your local municipality for the nearest collection point.

CONTINENTAL EDISON

120/126 Quai de Bacalan

33000 Bordeaux-France

Two overlapping gray semicircles on white background, no text or symbols present

Continental Edison

Three black-and-white icons: a person recycling with arrows, a document, and a trash bin with an 'Recycle' symbol (no text or numbers present)

www.continentaledison.fr
