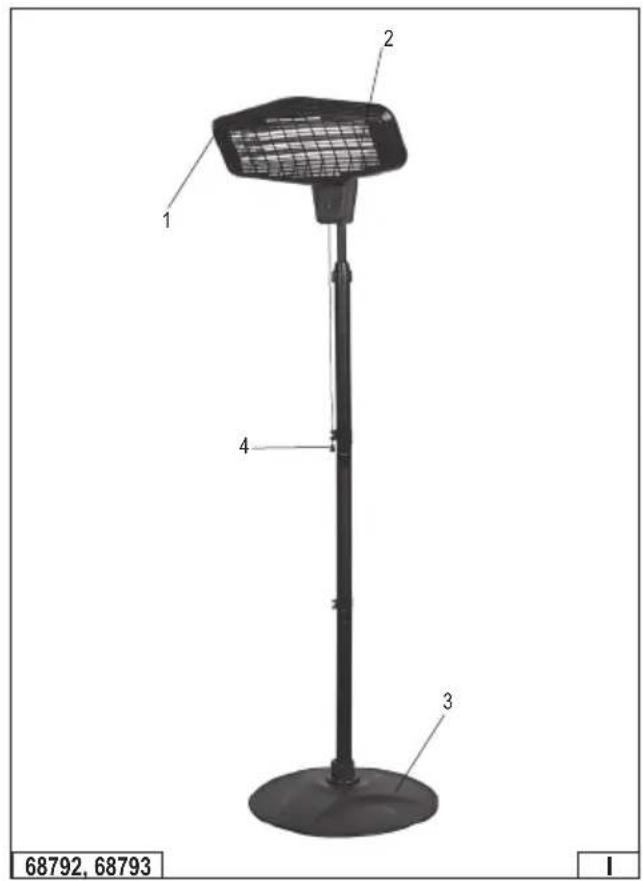

- housing
- heating component
- base
- power switch
- control panel
DE
Read the operating instruction
Caution! Hot surface.
Attention ! Surface chaude
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
WYPOSAŻENIE PRODUKTU
The infrared heater is used to heat rooms. Proper, reliable and safe operation of the product requires its correct use, that is why you should:
Read the entire instructions manual before the first use of the product and keep it for future reference.
The supplier shall not be held liable for any damage or injury resulting from improper use of the product, failure to observe the safety regulations and recommendations of this instructions manual. Use of the product for purposes other than those for which it was intended shall cause the loss of the user's rights to the warranty and under statutory warranty.
PRODUCT ACCESSORIES
The product is delivered complete but requires assembly or proper adjustment for free-standing models.
GENERAL INSTRUCTIONS FOR USE
The appliance heats up to a high temperature during use. Be careful when operating the appliance. Improper use of the appliance may result in serious burns and/or fire.
Do not leave the appliance unattended when it is connected to a power supply.
Do not use the appliance for any other purpose than heating rooms, e.g. for defrosting or drying.
It is forbidden to repair, disassemble, or modify the appliance by yourself. All repairs must be carried out by an authorised service centre.
Children under 3 years of age should be kept away from the appliance, unless they are under constant supervision.
Children over 3 years of age and under 8 years of age should only be allowed to switch the appliance on and off at the place of the appliance's operation and if they are supervised or instructed on how to safely use the appliance and understand the risks involved. Children over 3 years of age and under 8 years of age should not connect, clean or carry out maintenance activities on the appliance.
The product is not intended for use by people with impaired physical or mental abilities, or by people without experience in or understanding of the operation of the product, unless they will be supervised or instructed to use the product safely, in a manner ensuring that the risks involved are understood. Children should not play with the product.
Keep the appliance and the power cord out of reach of children under 8 years of age while the appliance is connected to the power supply or cooling down.
Recommendations for connecting the appliance to the power supply
Before connecting the appliance to the power supply, make sure that the voltage, frequency, and the mains capacity correspond to the values shown on the appliance's rating plate. The plug must fit into the power socket. It is forbidden to modify the plug or socket in any manner to make them fi t.
The appliance must be connected directly to a single mains socket. The supply network circuit should be equipped with a protective conductor and a protective appliance of 16 A. When using extension cords, use an extension cord with three wires that can withstand a 16 A current load.
EN
Avoid contact of the power cord with sharp edges, hot objects or surfaces, including those of the appliance. During operation, the power cord must always be fully extended and the position of the power cord must be set so that it does not become an obstacle during product operation. The power cord should not be placed in a manner which would pose a risk of tripping. The power supply socket should be located in a place where it is always possible to quickly remove the product power cord plug. Always pull the power cord by the plug housing when unplugging it, never by the cord.
If the power cord or the plug is damaged, immediately disconnect it from the mains and contact an authorised service centre of the manufacturer for replacement. Do not replace the power cord by yourself. Do not use the product with a damaged power cord or plug. The power cord or plug cannot be repaired and must be replaced with a new one that is free of defects if these components are damaged.
Instructions for use
The appliance is designed to operate in well-insulated rooms or for occasional use.
The appliance should not be used in potentially flammable or explosive atmospheres, or in highly dusty and humid environments. Do not use the appliance in rooms where flammable materials are present. Do not use the appliance in rooms where animals are present.
Never cover the appliance. The appliance heats up to a high temperature and can ignite the material with which it has been covered.
Portable appliances must not be used in the immediate vicinity of bathing area, shower or swimming pool.
Do not use the appliance if it has been dropped.
Do not use the appliance if it has visible signs of damage.
The appliance should be used on a horizontal and stable surface or fixed to a wall if its design so provides.
The heater must not be located directly under the power supply socket.
Do not use the heater with a programmer, timer, separate remote control system or any other appliance which will switch start the heater on automatically due to the risk of fire if the heater is covered or incorrectly positioned.
WARNING! The appliance is not equipped with a system that allows room temperature adjustment. Unless constant supervision is provided, do not use the appliance in small rooms occupied by people who are unable to leave on their own.
WARNING! To minimise the risk of fire, keep fabrics, curtains or any other combustible materials at least 1 metre away from the air outlet.
Appliances whose protection rating is lower than IPX4 must not be installed in such a manner that their switch is within reach of persons taking a bath or shower.
Appliances whose protection rating is lower than IPX4 must not be used outdoors.
Do not expose the appliance to direct precipitation.
Appliances permanently fixed to ceilings or walls must not be installed lower than 1.8 m above the floor.
Never touch the heating lamp with an uncovered hand, even when it is cold. Fat particles on the skin will settle on the lamp which can lead to damage to the lamp.
EN
HEATER OPERATION
Assembly of 68791 heater
Warning! Before starting any assembly work, make sure that the appliance is disconnected from the power supply socket and is completely cooled down.
Fix the base to the heater with screws (II). The base ensures stability when the appliance is standing. It is forbidden to use the heater without a correctly fixed base.
Place the heater on the floor. A minimum of 1.5 m distance from persons, walls or objects should be kept around the front wall of the heater. The rear wall of the heater should be at least 0.5 m away from people, walls or objects.
68791 heater operation
The heater is activated by turning the switch to the on position - I. The heater is deactivated by turning the switch to the off position - O.
By pressing the I/O control panel switch, the following operating modes can be activated in sequence: P0 – standby, the heater remains switched off; P1 – operation at 650 W; P2 – operation at 1350 W; P3 – operation at 2000 W. The symbol of the selected operation mode will be visible on the control panel display.
By pressing the button marked with the clock symbol, you can set the appliance's timer which switches the heater off after a set number of hours. Successive presses of the button allow setting the time between 1 and 24 hours.
WARNING! The timer switching the heater off automatically does not mean that the appliance is switched off. Switching off takes place only when the switch is turned to the off position - O.
68792, 68793 heater assembly
Warning! Before starting any assembly work, make sure that the appliance is disconnected from the power supply socket and is completely cooled down.
The heater has been adapted for mounting on a wall or on the included column with base.
If mounted on a wall, it should be installed so that its lowest point is situated at least 1.8 m from the floor. Installation should be carried out using four mounting elements appropriate to the surface. Mounting elements are not supplied with the product.

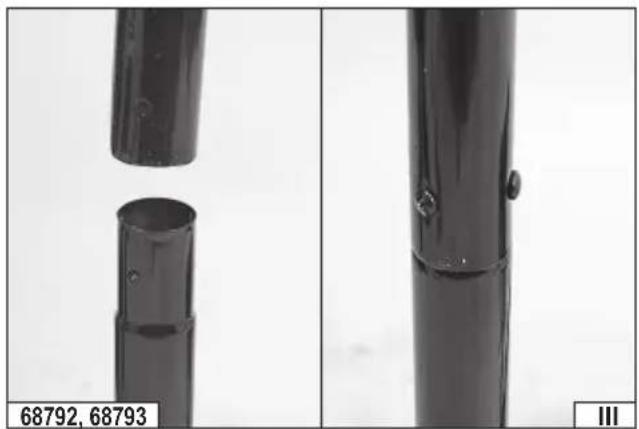

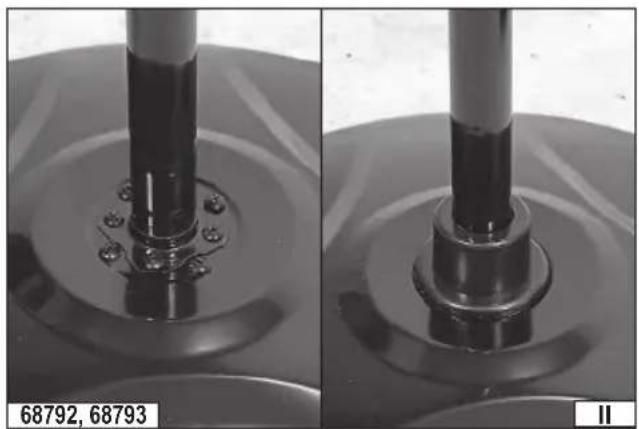

For column mounting, screw the lowest part of the column (II) to the base and apply the cap (II). Slide the subsequent column parts over each other and secure the connection with screws (III). Use all parts of the column, otherwise the heater will be too close to the ground. The tallest part of the column should allow height adjustment. Adjustment should be made by loosening the column ring and then sliding out the inner part of the column which locks by tightening the ring.

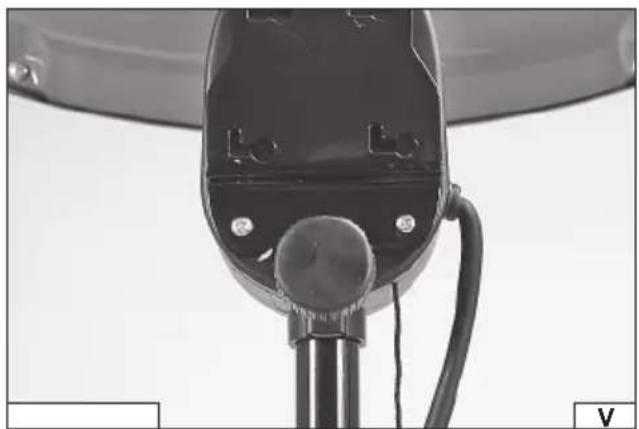

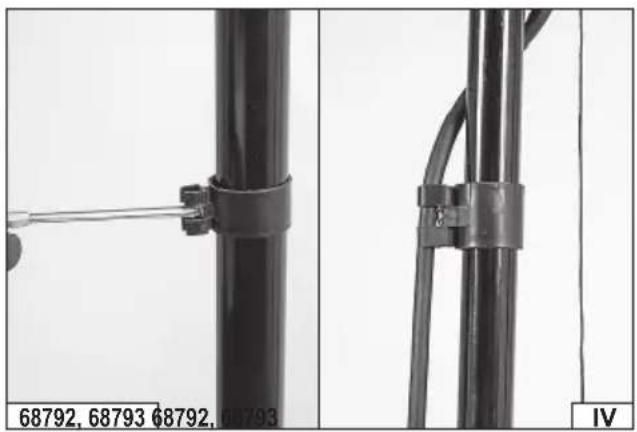

Attach the power cord holders to the column (IV). Mount the heater on top of the column and secure it with the knob (V).
Place the heater on the floor. A minimum of 1.5 m distance from persons, walls or objects should be kept around the front wall of the heater. The rear wall of the heater should be at least 0.5 m away from people, walls or objects.
68792, 68793 heater operation
The heater is activated with a pull cord switch. Subsequent pulls activate the operating modes described below. 68792 heater: 0 – heater off; 1 – heating at 650 W; 2 – heating at 1300 W; 3 – heating at 2000 W. 68793 heater: 0 – heater off; 1 – heating at 730 W; 2 – heating at 1460 W; 3 – heating at 2200 W.
Using the heater
After switching the heater on it will start heating the room. If the room is larger than the maximum heating area, several heaters should be placed in the entire room area, with even spaces between them. Otherwise, the appliance will not function effectively.
The speed of heating a room depends on several factors, its dimensions, the indoor temperature, the heat loss rate in the room, e.g. due to insufficient thermal insulation.
After heating, turn off the heater by moving the switch to the OFF or O position and then unplug the power cord from the socket.

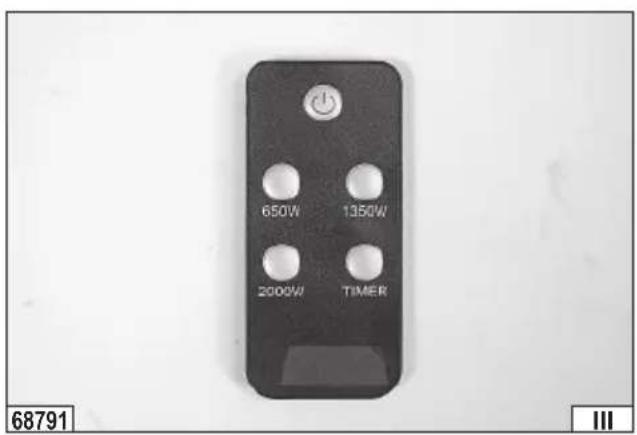

If the appliance is equipped with a remote control, it can be used to turn the appliance on and off and to set the heating level, if the remote control has such a function. Remote control operation is only possible when the appliance switch is in the ON position.
Turning the appliance off using the remote control does not flip the switch to the OFF position. Turning off using only the remote control cannot be regarded as turning the appliance off.
Maintenance
Warning! Before starting any maintenance work, make sure that the appliance is disconnected from the power supply socket and is completely cooled down.
Clean the appliance housing with a cloth slightly dampened with water and dry it. Clean the area around the heating lamp and the vent holes with a stream of compressed air of not more than 0.3 MPa.
Never immerse the appliance in water or any other liquid and do not clean it with a jet of water or any other liquid.
EN
Store the appliance disconnected from power supply. The power cord must be unplugged from the power supply socket. The place of storage should be well ventilated and protected against direct sunlight, moisture and precipitation, as well as against access by unauthorised persons, especially children.
The heating component is not intended to be replaced. If it is damaged, contact an authorised repair centre for replacement. It is forbidden to use the heater with a damaged heating component.
SPECIFICATIONS
| Parameter Unit Value Value Value | ||||
| Catalogue No. 68791 68792 68793 | ||||
| Rated voltage [V~] 220 – 240 220 – 240 220 – 240 | ||||
| Rated frequency [Hz] 50 – 60 50 / 60 50 – 60 | ||||
| Rated power [W] 2000 2000 2200 | ||||
| Protection rating | IP34 | IP34 | IP24 | |
| Weight | [kg] | 5.3 | 8.0 | 8.2 |
| Max. heating area | [m2] | 25 | 25 | 25 |
| Heating component life | [h] | 5000 5000 5000 |
