1. ⚠️ SAFETY INSTRUCTIONS

In the interest of your safety and to ensure the correct use, before installing and first using the appliance, read this user manual carefully, including its hints and warnings. To avoid unnecessary mistakes and accidents, it is important to ensure that all people using the appliance are thoroughly familiar with its operation and safety features. Save these instructions and make sure that they remain with the appliance if it is moved or sold, so that everyone using it through its life will be properly informed on appliance use and safety.

For the safety of life and property keep the precautions of these user's instructions as the manufacturer is not responsible for damages caused by omission.

1.1 Children and vulnerable people safety

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

• Keep all packaging well away from children. There is risk of suffocation.
• If you are discarding the appliance pull the plug out of the socket, cut the connection cable (as close to the appliance as you can) and remove the door to prevent playing children to suffer electric shock or to close themselves into it.
• If this appliance featuring magnetic door seals is to replace an older appliance having a spring lock (latch) on the door or lid, be sure to make that spring lock unusable before you discard the old appliance. This will prevent it from becoming a death trap for a child.

1.2 General safety

WARNING!

Keep ventilation openings, in the appli- ance enclosure or in the built-in structure, clear of obstruction.

- The appliance is intended for keeping foodstuff and/or beverages in a normal household and similar applications such as:

– staff kitchen areas in shops, offices and other working environments;
– farm houses and by clients in hotels, motels and other residential type environments;
- bed and breakfast type environments:
– catering and similar non-retail applications.

• Do not use a mechanical device or any artificial means to speed up the thawing process.
• Do not use other electrical appliances (such as ice cream makers) inside of refrigerating appliances, unless they are approved for this purpose by the manufacturer.
• Do not damage the refrigerant circuit.
• The refrigerant isobutane (R600a) is contained within the refrigerant circuit of the appliance, a natural gas with a high level of environmental compatibility, which is nevertheless flammable.

During transportation and installation of the appliance, be certain that none of the components of the refrigerant circuit become damaged.

If the refrigerant circuit should become damaged:

• avoid open flames and sources of ignition
  – thoroughly ventilate the room in which the appliance is situated

- It is dangerous to alter the specifications or modify this product in any way. Any damage to the cord may cause a short-circuit, fire and/or electric shock.

WARNING!

Any electrical component (power cord, plug, compressor) must be replaced by a certified service agent or qualified service personnel to avoid hazard.

1. Power cord must not be lengthened.
2. Make sure that the power plug is not squashed or damaged by the back of the appliance. A squashed or damaged power plug may overheat and cause a fire.
3. Make sure that you can come to the mains plug of the appliance.
4. Do not pull the mains cable.
5. If the power plug socket is loose, do not insert the power plug. There is a risk of electric shock or fire.

6. You must not operate the appliance without the lamp cover (if foreseen) of interior lighting.

7. This appliance is heavy. Care should be taken when moving it.

8. Do not remove nor touch items from the freezer compartment if your hands are damp/wet, as this could cause skin abrasions or frost/freezer burns.
9. Avoid prolonged exposure of the appliance to direct sunlight.
10. Bulb lamps (if foreseen) used in this appliance are special purpose lamps selected for household appliances use only. They are not suitable for household room illumination.

1.3 Daily Use

• Do not put hot pot on the plastic parts in the appliance.
• Do not store flammable gas and liquid in the appliance, because they may explode.
• Do not place food products directly against the air outlet on the rear wall. (If the appliance is Frost Free)
• Frozen food must not be re-frozen once it has been thawed out.
• Store pre-packed frozen food in accordance with the frozen food manufacturer's instructions.
• Appliance's manufacturers storage recommendations should be strictly adhered to. Refer to relevant instructions.
• Do not place carbonated or fizzy drinks in the freezer compartment as it creates pressure on the container, which may cause it to explode, resulting in damage to the appliance.

- Ice lollies can cause frost burns if consumed straight from the appliance.

1.4 Care and cleaning

• Before maintenance, switch off the appliance and disconnect the mains plug from the mains socket.
• Do not clean the appliance with metal objects.
• Do not use sharp objects to remove frost from the appliance. Use a plastic scraper.

1.5 Installation

For electrical connection carefully follow the instructions given in specific paragraphs.

• Unpack the appliance and check if there are damages on it. Do not connect the appliance if it is damaged. Report possible damages immediately to the place you bought it. In that case retain packing.
• It is advisable to wait at least four hours before connecting the appliance to allow the oil to flow back in the compressor.

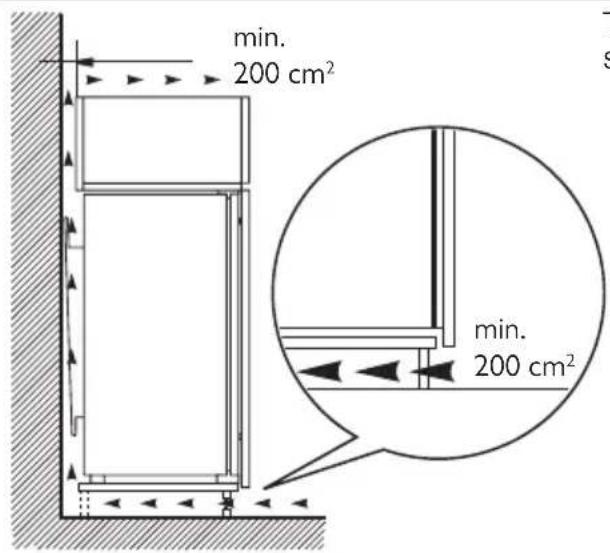

• Adequate air circulation should be around the appliance, lacking this leads to overheating. To achieve sufficient ventilation follow the instructions relevant to installation.
• Wherever possible the back of the product should be against a wall to avoid touching or catching warm parts (compressor, condenser) to prevent possible burn.
• The appliance must not be located close to radiators or cookers.
• Make sure that the mains plug is accessible after the installation of the appliance.
• Connect to potable water supply only (If a water connection is foreseen).

1.6 Service

- Any electrical work required to do the servicing of the appliance should be carried out by a qualified electrician or competent person.

ENGLISH 5

- This product must be serviced by an authorized Service Centre, and only genuine spare parts must be used.

1.7 Environment Protection

This appliance does not contain gasses which could damage the ozone layer, in either its refrigerant circuit or insulation materials. The appliance shall not be discarded

together with the urban refuse and rubbish. The insulation foam contains flammable gases: the appliance shall be disposed according to the applicable regulations to obtain from your local authorities. Avoid damaging the cooling unit, especially at the rear near the heat exchanger. The materials used on this appliance marked by the symbol are recyclable.

2. CONTROL PANEL

① 6 5 1 2 3 4 12 S S ⚠

1 Pilot light

2 Temperature regulator

3 Fast Freeze light

4 Fast Freeze switch

5 Alarm light

2.1 Switching on

Insert the plug into the wall socket.

Turn the Temperature regulator clockwise to a medium setting.

The pilot light will light up.

If the temperature inside the appliance is too high the Alarm light will blink. Active the Fast Freeze function.

2.2 Switching off

To turn off the appliance, turn the Temperature regulator to the "O" position.

The pilot light will switch off.

2.3 Temperature regulation

The temperature is automatically regulated.

To operate the appliance, proceed as follows:

- turn the Temperature regulator toward lower settings to obtain the minimum coldness.

- turn the Temperature regulator toward higher settings to obtain the maximum coldness.

A medium setting is generally the most suitable.

However, the exact setting should be chosen keeping in mind that the temperature inside the appliance depends on:

• room temperature
  • how often the door is opened
  • the quantity of food stored
  • the location of the appliance.

2.4 Fast Freeze function

You can activate the Fast Freeze function by pressing the Fast Freeze switch.

The Fast Freeze light will light up.

This function stops automatically after 52 hours.

It is possible to deactivate the function at any time by pressing the Fast Freeze switch.

The Fast Freeze light will switch off.

2.5 Excessive temperature alarm

An increase in the temperature in a compartment (for example due to an power

3. DAILY USE

3.1 Cleaning the interior

Before using the appliance for the first time, wash the interior and all internal accessories with lukewarm water and some neutral soap so as to remove the typical smell of a brand-new product, then dry thoroughly.

Do not use detergents or abrasive powders, as these will damage the finish.

3.2 Freezing fresh food

The freezer compartment is suitable for freezing fresh food and storing frozen and deep-frozen food for a long time.

To freeze fresh food activate the Action Freeze function at least 24 hours before placing the food to be frozen in the freezer compartment.

Place the fresh food to be frozen in the two top compartments.

The maximum amount of food that can be frozen in 24 hours is specified on the rating plate, a label located on the inside of the appliance.

The freezing process lasts 24 hours: during this period do not add other food to be frozen.

3.3 Storage of frozen food

When first starting-up or after a period out of use, before putting the products in the

failure) is indicated by flashing of the Alarm light.

When normal conditions are restored the Alarm light will switch off automatically.

compartment let the appliance run at least 2 hours on the higher settings.

In the event of accidental defrosting, for example due to a power failure, if the power has been off for longer than the value shown in the technical characteristics chart under "rising time", the defrosted food must be consumed quickly or cooked immediately and then re-frozen (after cooling).

3.4 Thawing

Deep-frozen or frozen food, prior to being used, can be thawed in the refrigerator compartment or at room temperature, depending on the time available for this operation.

Small pieces may even be cooked still frozen, directly from the freezer: in this case, cooking will take longer.

3.5 Ice-cube production

This appliance is equipped with one or more trays for the production of ice-cubes. Fill these trays with water, then put them in the freezer compartment.

Do not use metallic instruments to remove the trays from the freezer.

4. HELPFUL HINTS AND TIPS

4.1 Hints for freezing

To help you make the most of the freezing process, here are some important hints:

• the maximum quantity of food which can be frozen in 24 hrs. is shown on the rating plate;
• the freezing process takes 24 hours. No further food to be frozen should be added during this period;
• only freeze top quality, fresh and thoroughly cleaned, foodstuffs;
• prepare food in small portions to enable it to be rapidly and completely frozen and to make it possible subsequently to thaw only the quantity required;
• wrap up the food in aluminium foil or polythene and make sure that the packages are airtight;
• do not allow fresh, unfrozen food to touch food which is already frozen, thus avoiding a rise in temperature of the latter;

• lean foods store better and longer than fatty ones; salt reduces the storage life of food;

• water ices, if consumed immediately after removal from the freezer compartment, can possibly cause the skin to be freeze burnt;

• it is advisable to show the freezing in date on each individual pack to enable you to keep tab of the storage time.

4.2 Hints for storage of frozen food

To obtain the best performance from this appliance, you should:

• make sure that the commercially frozen foodstuffs were adequately stored by the retailer;
• be sure that frozen foodstuffs are transferred from the foodstore to the freezer in the shortest possible time;
• not open the door frequently or leave it open longer than absolutely necessary;
• once defrosted, food deteriorates rapidly and cannot be refrozen;
• do not exceed the storage period indicated by the food manufacturer.

5. CARE AND CLEANING

CAUTION!

Unplug the appliance before carrying out any maintenance operation.

This appliance contains hydrocarbons in its cooling unit; maintenance and recharging must therefore only be carried out by authorized technicians.

5.1 Periodic cleaning

The equipment has to be cleaned regularly:

• clean the inside and accessories with lukewarm water and some neutral soap.
• regularly check the door seals and wipe clean to ensure they are clean and free from debris.

- rinse and dry thoroughly.

Do not pull, move or damage any pipes and/or cables inside the cabinet.

Never use detergents, abrasive powders, highly perfumed cleaning products or wax polishes to clean the interior as this will damage the surface and leave a strong odour.

Clean the condenser (black grill) and the compressor at the back of the appliance with a brush. This operation will improve the performance of the appliance and save electricity consumption.

Take care of not to damage the cooling system.

Many proprietary kitchen surface cleaners contain chemicals that can attack/dam-

age the plastics used in this appliance. For this reason it is recommended that the outer casing of this appliance is only cleaned with warm water with a little washing-up liquid added. After cleaning, reconnect the equipment to the mains supply.

5.2 Defrosting the freezer

A certain amount of frost will always form on the freezer shelves and around the top compartment.

Defrost the freezer when the frost layer reaches a thickness of about 3-5 mm.

About 12 hours prior to defrosting, set the Temperature regulator toward higher settings, in order to build up sufficient chill reserve for the interruption in operation.

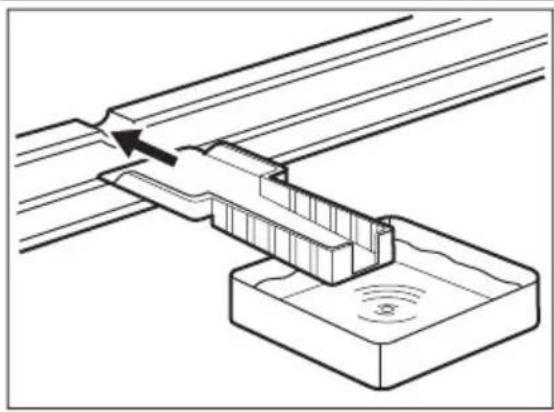

Technical line drawing of a mechanical assembly with no visible text or symbols

To remove the frost, follow the instructions below:

1. Switch off the appliance.
2. Remove any stored food, wrap it in several layers of newspaper and put it in a cool place.

CAUTION!

Do not touch frozen goods with wet hands. Hands can freeze to the goods.

1. Leave the door open and insert the plastic scraper in the appropriate seating at the bottom centre, placing a basin underneath to collect the defrost water.

In order to speed up the defrost-ing process, place a pot of warm water in the freezer compartment. In addition, remove pieces of ice that break away before defrosting is complete.

1. When defrosting is completed, dry the interior thoroughly and keep the scraper for future use.

2. Switch on the appliance.

3. After two or three hours, reload the previously removed food into the compartment.

Never use sharp metal tools to scrape off frost from the evaporator as you could damage it.

Do not use a mechanical device or any artificial means to speed up the thawing process other than those recommended by the manufacturer.

A temperature rise of the frozen food packs, during defrosting, may shorten their safe storage life.

5.3 Periods of non-operation

When the appliance is not in use for long periods, take the following precautions:

• disconnect the appliance from electricity supply
• remove all food
• defrost (if foreseen) and clean the appliance and all accessories

- leave the door/doors ajar to prevent unpleasant smells.

If the cabinet will be kept on, ask somebody to check it once in a while to prevent the food inside from spoiling in case of a power failure.

6. WHAT TO DO IF...

WARNING!

Before troubleshooting, disconnect the mains plug from the mains socket.

Only a qualified electrician or competent person must do the troubleshooting that is not in this manual.

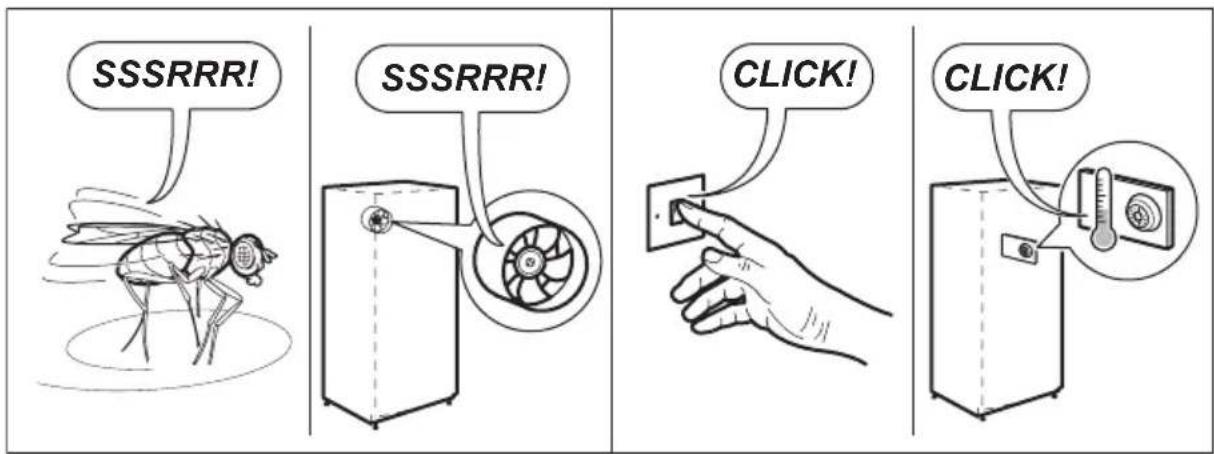

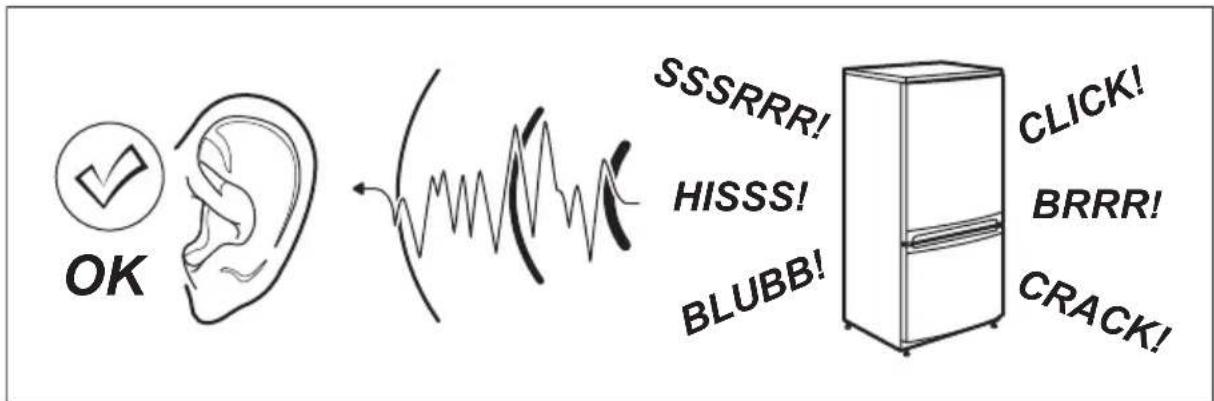

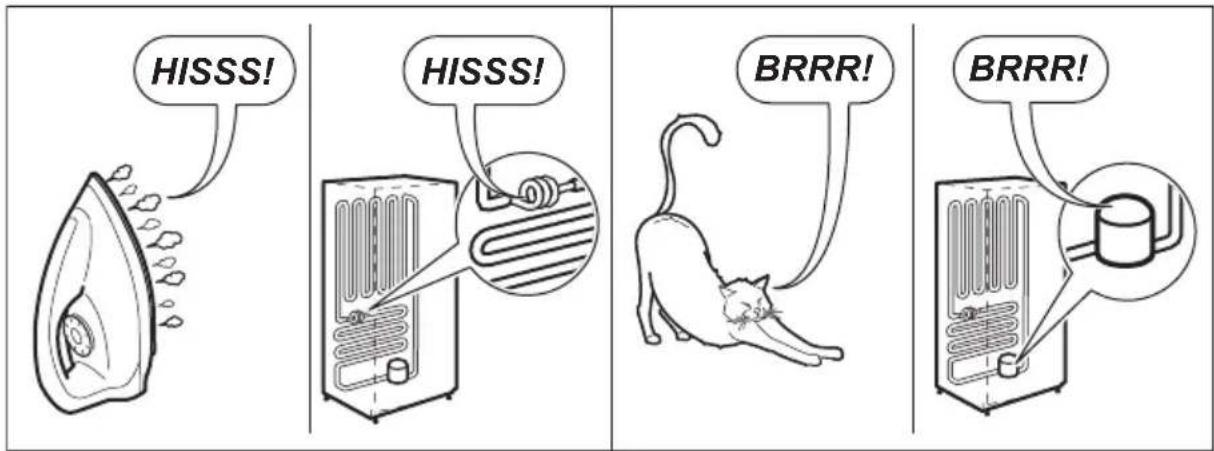

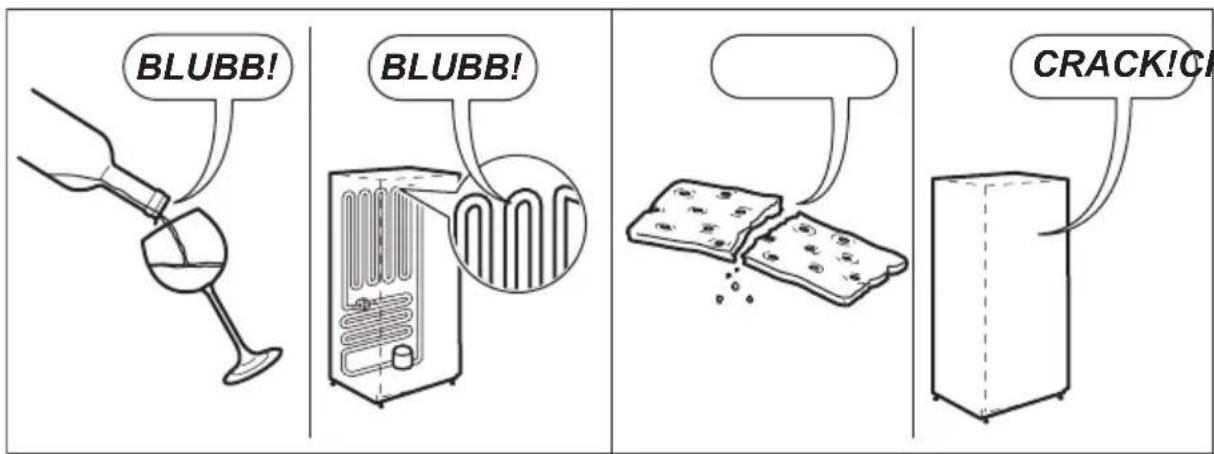

There are some sounds during normal use (compressor, refrigerant circulation).

Problem Possible cause Solution
The appliance does not operate. The Pi-lot light does not flash.	The appliance is switched off.	Switch on the appliance.
The mains plug is not connected to the mains socket correctly.		Connect the mains plug to the mains socket correctly.
The appliance has no power. There is no voltage in the mains socket.		Connect a different electrical appliance to the mains socket.Contact a qualified electrician.
The Pilot light flashes.	The appliance is not working properly.	Contact a qualified electrician.
The Alarm light flashes.	The temperature in the freezer is too high.	Refer to "Excessive Temperature Alarm"
The compressor operates continually.	The temperature is not set correctly.	Set a higher temperature.
The door is not closed correctly.		Refer to "Closing the door".
The door has been opened too frequently.		Do not keep the door open longer than necessary.
The product temperature is too high.		Let the product temperature decrease to room temperature before storage.
The room temperature is too high.		Decrease the room temperature.
The Action Freeze function is switched on.		Refer to "Action Freeze function".
The temperature in the freezer is too low/high.	The temperature regulator is not set correctly.	Set a higher/lower temperature.
The Action Freeze function is switched on.		Refer to "Action Freeze function".
There is too much frost.	Food is not wrapped correctly.	Wrap the food correctly.

Problem Possible cause Solution
The door is not closed correctly.	Refer to "Closing the door".
The temperature regulator is not set correctly.	Set a higher temperature.

6.1 Closing the door

1. Clean the door gaskets.

2. If necessary, adjust the door. Refer to "Installation".

3. If necessary, replace the defective door gaskets. Contact the Service Center.

7. INSTALLATION

WARNING!

Read the "Safety Information" carefully for your safety and correct operation of the appliance before installing the appliance.

7.1 Positioning

Install this appliance at a location where the ambient temperature corresponds to the climate class indicated on the rating plate of the appliance:

Climate class	Ambient temperature
SN +10°C to + 32°C
N +16°C to + 32°C
ST +16°C to + 38°C
T +16°C to + 43°C

7.2 Electrical connection

Before plugging in, ensure that the voltage and frequency shown on the rating plate correspond to your domestic power supply.

The appliance must be earthed. The power supply cable plug is provided with a contact for this purpose. If the domestic power supply socket is not earthed, connect the appliance to a separate earth in compliance with current regulations, consulting a qualified electrician.

The manufacturer declines all responsibility if the above safety precautions are not observed.

This appliance complies with the E.E.C. Directives.

7.3 Ventilation requirements

min. 200 cm² min. 200 cm²

The airflow behind the appliance must be sufficient.

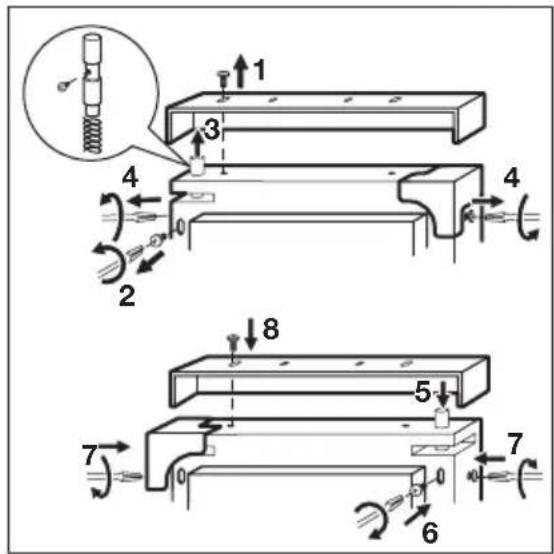

7.4 Door reversibility

Remove the plug from the power socket.

1 2 3 4

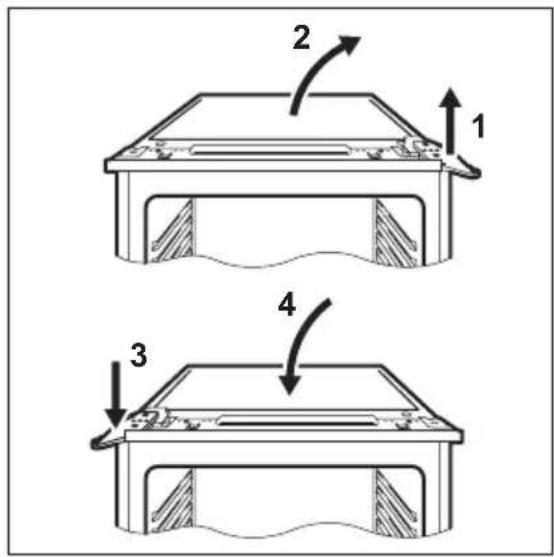

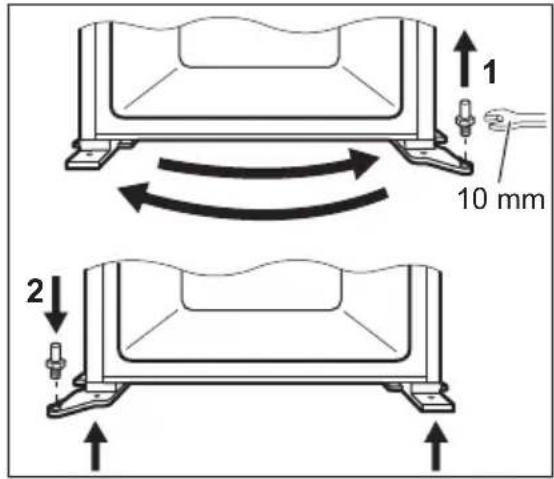

The door of the appliance opens to the right. If you want to open the door to the left, follow the picture before you install the appliance.

Do a final check to make sure that:

• All screws are tightened.
• The door opens and closes correctly. If the ambient temperature is cold (i.e. in Winter), the gasket may not fit perfectly to the cabinet. In that case, wait for the natural fitting of the gasket.

1 10 mm 2

Technical diagram showing mechanical assembly with numbered components and motion indicators

7.5 Installing the appliance

Do the following steps:

CAUTION!

Make sure that the mains cable can move freely.

A F H L K M E G J

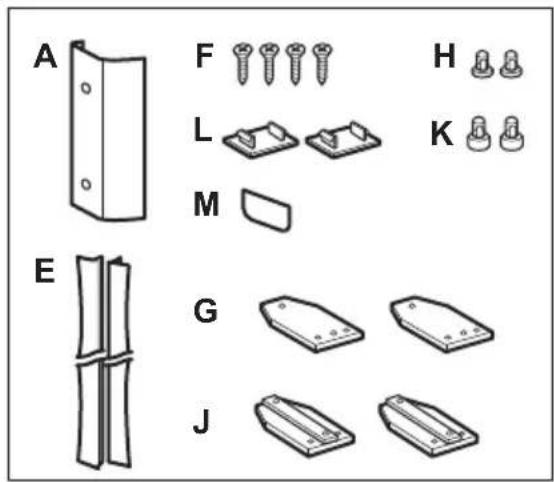

Check the kit components.

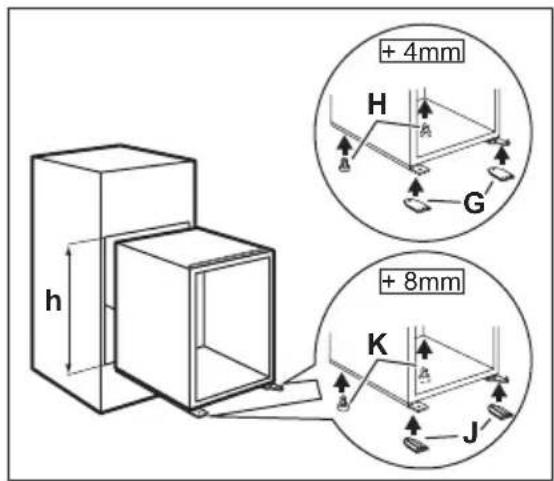

+ 4mm H G + 8mm K J

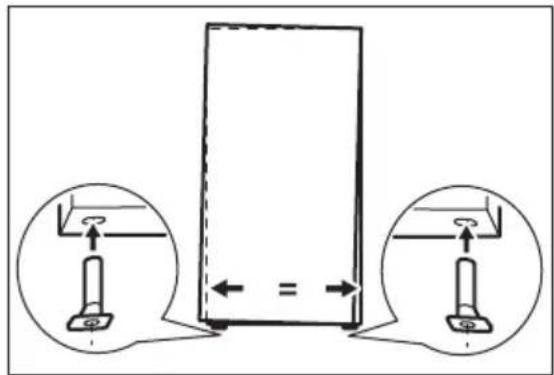

Height adjustments.

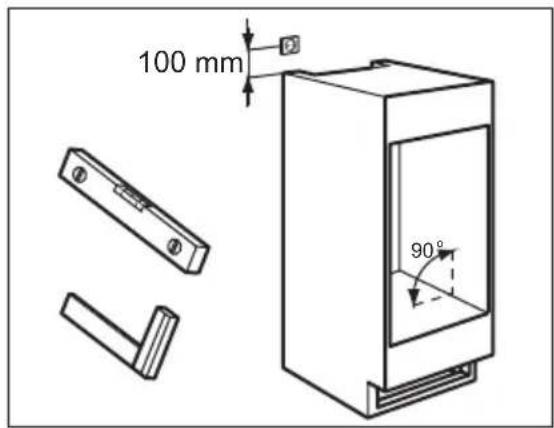

100 mm 90°

Compartment levelling

Technical diagram showing a 3D block connected to a mechanical component with labeled parts and directional arrows.

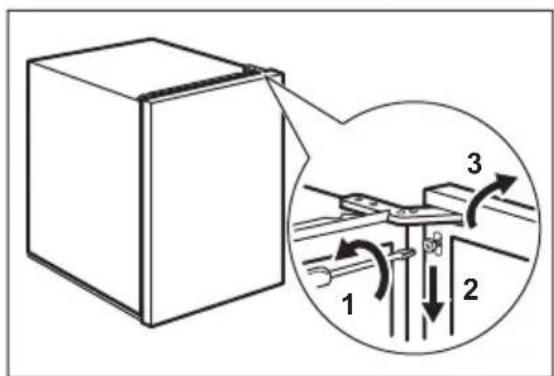

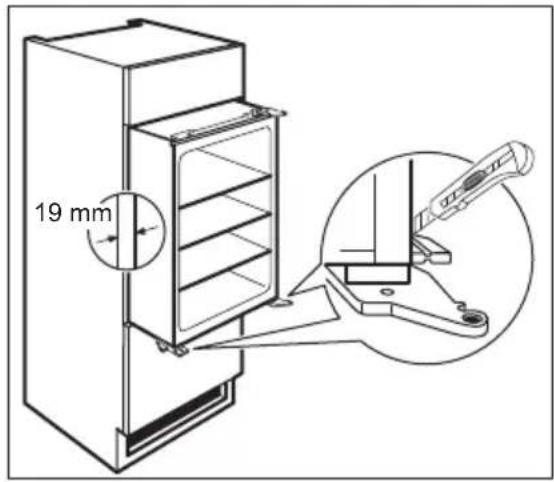

Door removal.

19 mm

Make the adjustments.

Technical diagram illustrating door frame installation with magnified views and dimension labels

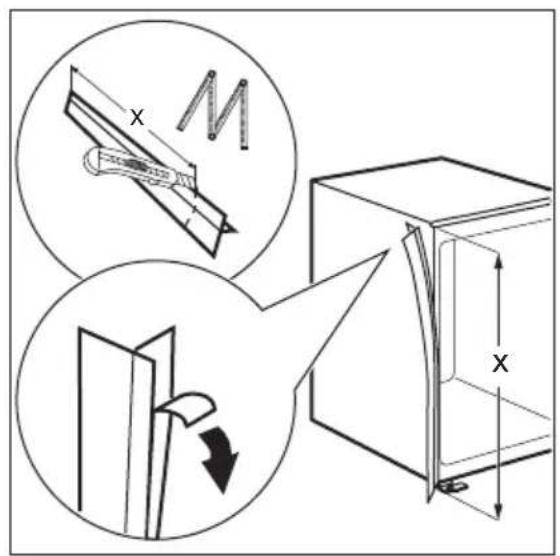

If necessary cut the adhesive sealing strip and then apply it to the appliance as shown in figure

Diagram of a refrigerator with an arrow indicating rotation and force application (no text or symbols)

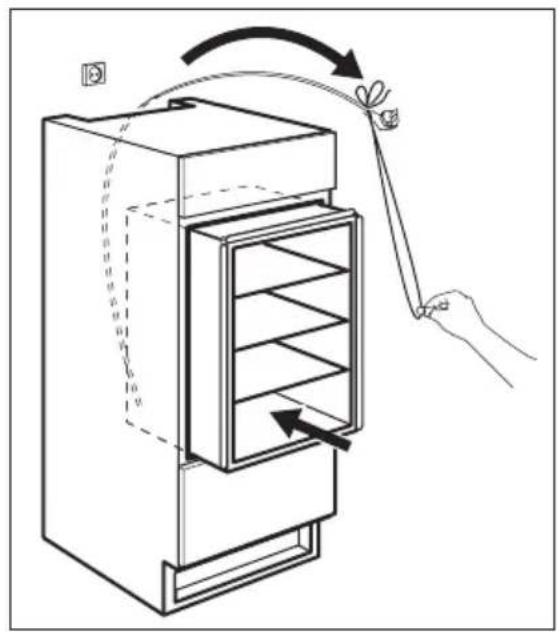

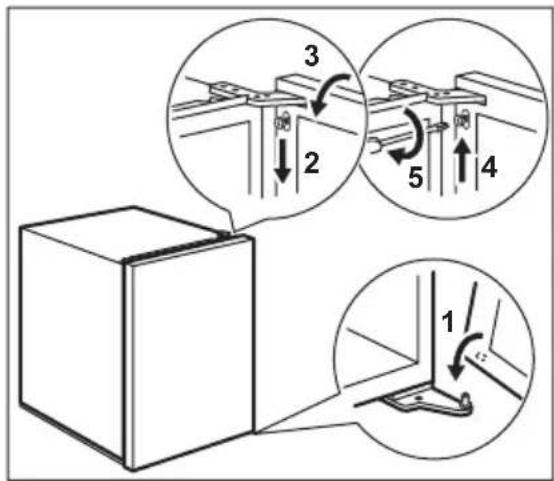

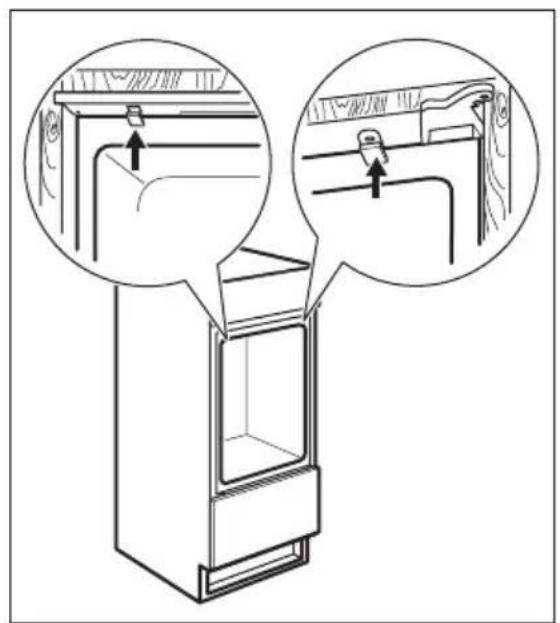

Install the appliance in the ni-che.

Diagram illustrating the stepwise rotation of a door mechanism with labeled parts and directional arrows indicating rotational motion.

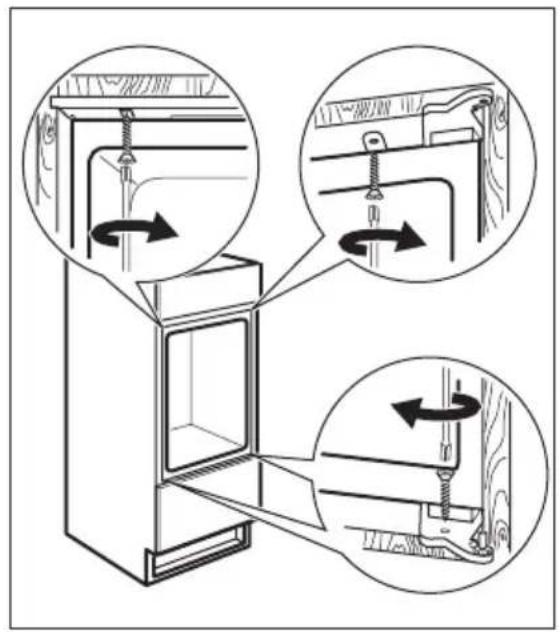

Attach the appliance to the niche with 4 screws.

Line drawing of a refrigerator interior with two magnified views showing internal components (no text or symbols)

Fix the covers on the screws.

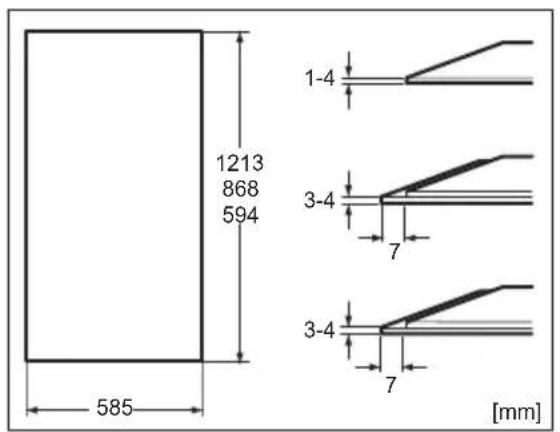

1213 868 594 585 1-4 3-4 7 3-4 7 [mm]

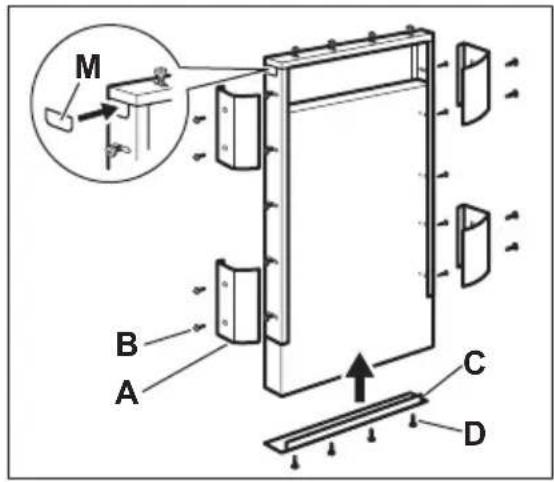

Fit the decorative panel.

M B A C D

Fitting the handle.

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Refit the door.

Diagram showing two views of a rectangular object with arrows indicating alignment or movement, surrounded by circular insets (no text or symbols)

Door alignment (if necessary). Do a final check to make sure that:

• All screws are tightened.
• The sealing strip is attached tightly to the cabinet.
• The door opens and closes correctly.

8. NOISES

There are some sounds during normal running (compressor, refrigerant circulation).

OK SSSRRR! HISSS! BLUBB! CLICK! BRRR! CRACK!

SSSRRR! SSSRRR! CLICK! CLICK!

HISSS! HISSS! BRRR! BRRR!

BLUBB! BLUBB! CRACK! CR

9. TECHNICAL DATA

Dimension of the recess

Height 880 mm

Width 560 mm

Depth 550 mm

Rising Time 20 h

Voltage 230-240 V

Frequency 50 Hz

The technical information are situated in the rating plate on the internal left side of the appliance and in the energy label.

10. ENVIRONMENT CONCERNS

Recycle the materials with the symbol 🌐. Put the packaging in applicable containers to recycle it. Help protect the environment and human health and to recycle waste of electrical

and electronic appliances. Do not dispose appliances marked with the symbol ✗ with the household waste. Return the product to your local recycling facility or contact your municipal office.

SOMMAIRE

1. INSTRUCTIONS DE SÉCURITÉ 21
2. BANDEAU DE COMMANDE 23
3. UTILISATION QUOTIDIENNE 24
4. CONSEILS 25
5. ENTRETIEN ET NETTOYAGE 26
6. EN CAS D'ANOMALIE DE FONCTIONNEMENT 28
7. INSTALLATION 29
8. BRUITS 35
9. CARACTÉRISTIQUES TECHNIQUES 37

NOUS PENSONS À VOUS

① 6 5 1 2 3 12 S S ⚠

1 Voyant

2 Thermostat

3 Voyant Fast Freeze

4 Touche Fast Freeze

5 Voyant Alarme

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with numbered components and motion indicators

A F H L K M E G J

+ 4mm H G + 8mm K J

Diagram showing a mechanical assembly with labeled parts and directional arrows, including numbered annotations 1, 2, and 3.

Technical diagram illustrating door frame installation with magnified views and dimension labels

Diagram of a refrigerator with an arrow indicating rotation and force application (no text or symbols)

Diagram illustrating door lock mechanism with three circular insets showing clockwise rotation of a valve or fixture.

Line drawing of a refrigerator interior with two views of the door (no text or symbols)

M B A C D

Technical diagram showing mechanical assembly steps with numbered components and directional arrows indicating motion

Diagram showing two views of a rectangular object with arrows indicating alignment or movement, surrounded by circular insets (no text or symbols)

www.electrolux.com/productregistration

① 6 5 1 2 3 12 S S ⚠️

1 Kontrolllampe
2 Temperaturregler
3 Fast Freeze-Kontrolllampe
4 Fast Freeze-Taste
5 Alarmleuchte

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with numbered components and motion indicators

7.5 Montage des Geräts

A F H L K M E G J

h + 4mm H G + 8mm K J

Einstellen der Höhe

100 mm 90°

Diagram showing a mechanical assembly with labeled parts and directional arrows, including numbered annotations 1, 2, and 3.

Entfernen der Tür

19 mm

Technical diagram illustrating a door mechanism with labeled parts and directional arrows indicating movement or assembly.

Diagram of a refrigerator with an arrow indicating rotation and force application (no text or symbols)

Diagram illustrating the stepwise rotation of a door mechanism with labeled parts and directional arrows indicating rotational motion.

Line drawing of a refrigerator interior with two magnified views showing internal components (no text or symbols)

M B A C D

Technical diagram showing a 3D cube with labeled components and directional arrows indicating assembly or movement steps.

Diagram showing two views of a rectangular object with arrows indicating alignment or movement, surrounded by circular insets (no text or symbols)

① 6 5 1 2 3 12 S S ⚠️

1 Luz piloto
2 Regulador de temperatura
3 Fast Freeze Luz
4 Fast Freeze Interruptor
5 Luz de alarma

2.1 Encendido

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical diagram showing mechanical assembly with numbered components and motion indicators

A F H L K M E G J

+ 4mm H G + 8mm K J

Ajustes de altura.

100 mm 90°

Technical diagram showing a 3D cube with an inset magnified view of a mechanical assembly with labeled parts 1, 2, and 3.

Technical diagram illustrating door frame installation with magnified views and dimension labels

Diagram of a refrigerator with an arrow indicating rotation and force application (no text or symbols)

Diagram illustrating door lock mechanism with labeled components and rotational arrows indicating movement

Line drawing of a refrigerator interior with two views of the door (no text or symbols)

M B A C D

Montar el tirador.

Technical diagram showing a 3D cube with labeled components and directional arrows indicating assembly or movement steps.

Diagram showing a rectangular object with bidirectional arrows between two circular insets, no text or symbols present.
