USER MANUAL H8W25W-CA TCL

Hi! Let's Get Started.

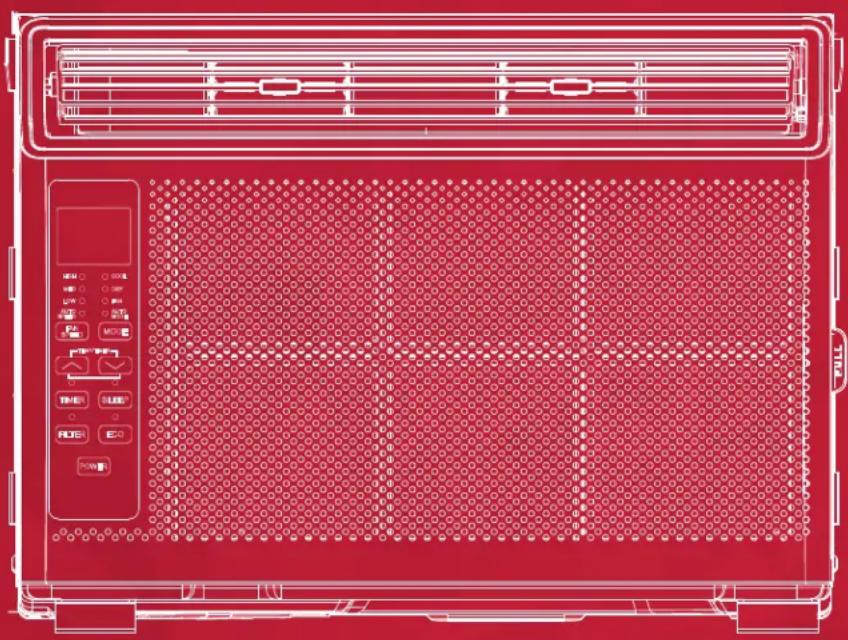

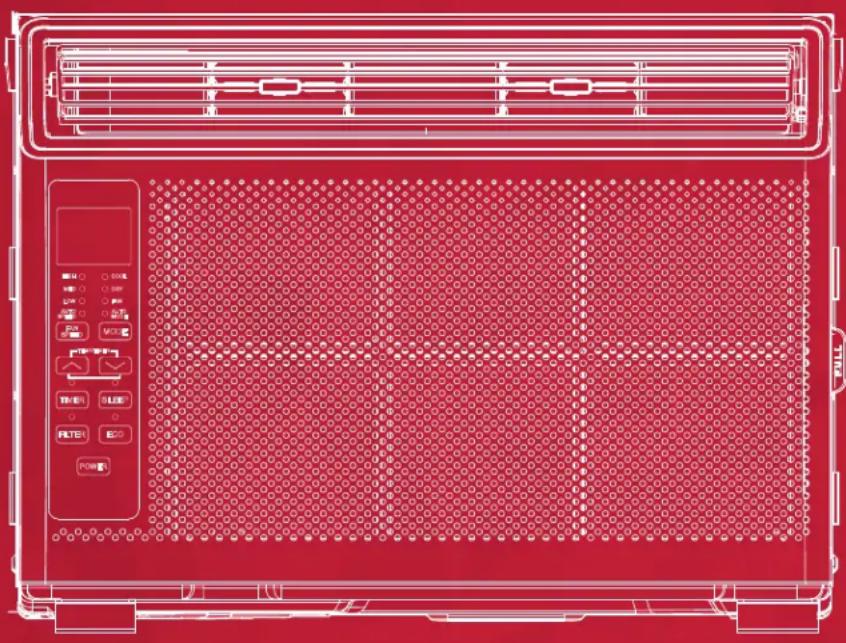

Red technical line drawing of a front panel with grid pattern and control buttons (no text or symbols)

Table of Contents

English

Register and Protect Your Purchase ....3

Important Safety Instructions....4

What's in the Box 5K-12K Units 7

Let's Get Started! 8

How to Control Your AC....10

Troubleshooting 12

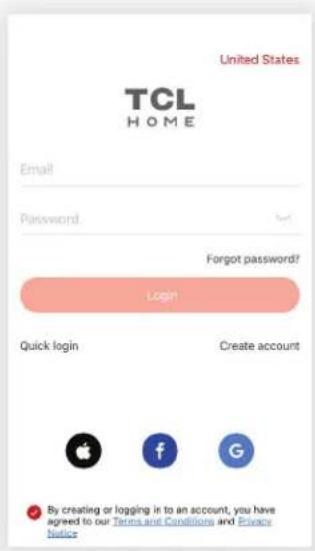

WiFi App Installation (WiFi Modules Only)....13

Warranty Information....16

Spanish

Registre y proteja su compra....18

Register and protect your purchase

TCL-WACDGT PHOTOREGISTERM

Register easily with your smartphone

Scan or text a photo of the camera icon to 71403

Or register online at www.tclusa.com/register

Need help? Visit photoregister.com/help or text HELP to 71403

Add a TCL Protection Plan when you register your product and be covered from life's mishaps

Thank you for choosing TCL. We want your ownership experience to bring you as much joy as the product you purchased does, so we're offering you a special price on TCL Protection Plans when you purchase during registration. Add a TCL Protection Plan within your first 30 days of ownership to receive the best value and we'll make sure nothing gets in the way of you enjoying your new product.

Benefits & Description

Extended Manufacturer CoverageExtended parts & labor coverage for manufacturer defects.	Up To 4 Years	Up To 4 Years
Priority ServiceFree shipping and rapid turn-around time.	3-5 Days	3-5 Days
Product ReplacementFree 1-time replacement if product cannot be fixed.	⊕	⊕
TCL Parts & ServiceGenuine TCL parts & factory certified service.	⊕	⊕
No Deductible$0 out of pocket expense.	⊕	⊕
Accidental Damage ProtectionCoverage for drops, breaks and spills starts after 30 days.		⊕

*Extended service plans (i.e., “Protect” and “Plus” plans) are only offered in the United States (US). All TCL products continue to offer a limited consumer warranty in both the US and Canada. Please refer to the warranty section in this guide for additional details on warranty information.

IMPORTANT SAFETY INSTRUCTIONS

Before installing and using your air conditioner, please read this owner's manual carefully. Store this manual in a safe place for future reference. Your safety and the safety of others is very important to us. Please pay attention to all safety messages outlined in this owner's manual.

WARNING: To reduce the risk of fire, electrical shock or injury when using your air conditioner, follow the following basic precautions:

ELECTRICAL REQUIREMENTS

The electrical ratings for your air conditioner are listed on the model and serial number label located on the front right hand side of the unit (when facing the front).

REGISTER YOUR APPLIANCE

You can register your appliance online by going to register.tcl.com

Be sure to retain your original sales receipt. A valid proof of purchase is required for all warranty claims.

BATTERY WARNING STATEMENT

Do not mix old and new batteries and do not mix alkaline, standard (carbon-zinc) or rechargeable (ni-cad, ni-mh, etc.) batteries

Document your model and serial numbers here:

Model #

Serial #

You can locate your 20 digit serial number underneath the bar code (On the right hand side of the AC).

WARNING

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove the ground prong.

Do not use an adapter

Do not use an extension cord.

Failure to follow these instructions can result in

death, fire, or electrical shock

Specific electrical requirements are shown in the diagram below. Follow the requirements below for the type of plug on the power supply cord.

Wiring Requirements Power Supply Cord

• 115 Volt (103 min - 127 max)
• (5K-8K) (0-8 amps)
• (10K-12K) (0-12 amps)
• (5-8K) (10 amp time-delay fuse or circuit breaker)
• (10K-12K) (15 amp time-delay fuse or circuit breaker)
- Use on single outlet circuit only

RECOMMENDED GROUND METHOD

For your personal safety, this air conditioner must be grounded. This air conditioner is equipped with a 3 prong power supply cord with a grounded plug. To minimize the possibility of electrical shock, the cord must be plugged into a 3 prong outlet and grounded in accordance with all local codes and ordinances. If a 3 prong outlet is not available, it is the customer's responsibility to have a properly grounded 3 prong outlet installed by a qualified electrician.

FCC CAUTION

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

The distance between user and device should be no less than 20cm.

DO NOT RETURN TO STORE

WE ARE

READY TO

HELP

contact us first

with any questions

TCL SUPPORT:

support.tcl.com/us

1-800-825-6747

BE CAREFUL WHEN REMOVING

THE AIR CONDITIONING UNIT

INSTALLATION MANUAL---Important considerations

When compared with other refrigerants, R32 is more environmentally friendly. Please use this product as instructed. This refrigerant is flammable and may combust under certain conditions, however when this product is used as directed these risks are significantly reduced. Always consult with a trained professional when maintaining or repairing an air conditioner.

Warning

• Please read the manual before installing, using, or conducting maintenance.
• Do not use means to accelerate the defrosting process or to clean, other than those recommended by the manufacturer.
• Be aware that refrigerants may not contain an odor.
• Do not pierce or burn the appliance.
• The appliance shall be stored in a room without continuously operating sources (for example: open flames, an operating ignition gas appliance or an operating electric heater).
• Please contact the nearest after-sale service center when maintenance is necessary. At the time of maintenance, the maintenance personnel must strictly comply with the Operation
• Manual provided by the corresponding manufacturer and any non-professional is prohibited to maintain the air conditioner.
• It is necessary to comply with the provisions of gas-related federal, state, and local laws and regulations.
• It is necessary to clear away the refrigerant in the system when maintaining or recycling an air conditioner by a trained professional.

Warning: flammable & Dangerous

Read the user manual Read the installation manual

Read the service manual

Important Considerations

• The air conditioner you buy must be installed by professional personnel and the "Installation manual" is used only for the professional installation personnel!
• The installation specifications should be subject to our after-sale service regulations.
• When filling the flammable refrigerant, please use caution to avoid serious injury.
• A leak test must be done after the installation is completed.
• It is a must to perform the safety inspection before maintaining or repairing an air conditioner using flammable refrigerant in order to ensure that the fire risk is reduced to a minimum.
• Requirements for the total weight of filled refrigerant and the area of a room to be equipped with an air conditioner (are shown as in the following Tables GG.1 and GG.2)

The maximum charge and the required minimum floor area

m1=(4 m3)× LFL, m2=(26 m3))× LFL, m3=(130 m3)× LFL

Where LFL is the lower flammable limit in kg/ m3,R290 LFL is 0.038 kg/ m3,R32 LFL is 0.038 kg/ m3.

For the appliances with a charge amount m1 < M = m2:

The maximum charge in a room shall be in accordance with the following: mmax = 2.5 × (LFL)(5/4) × h0 × (A)1/2

The required minimum floor area Amin to install an appliance with refrigerant charge M (kg) shall be in accordance with following: Amin = (M/ (2.5 x (LFL)(5/4) x h0)) 2

Where:

mmax is the allowable maximum charge in a room, in kg;

M is the refrigerant charge amount in appliance, in kg;

Amin is the required minimum room area, in m2;

A is the room area, in m2;

LFL is the lower flammable limit, in kg/m3;

h0 is the installation height of the appliance, in meters for calculating mmax or Amin, 1.8 m for wall mounted;

Table GG.1 - Maximum charge (kg)

Category	LFL(kg/m3)	h0(m)	Floor area (m2)
			4 7 10	5 20 30 50
R32 0,306		0,6 0,68	0,9 1,08 0,32	1,53 1,87 2,41
		1 1,14 1,51	1,8 2,2 2,54	3,12 4,02
		1,8	2,05 2,71	3,24 3,97	4,58 5,61	7,254
		2,2	2,5	3,31	3,96	4,85	5,6	6,86	8,85

Table GG.2 - Minimum room area (m2)

Category	LFL(kg/m3)	h 0(m)	Charge amount (M) (kg)Minimum room area (m2)
			1,224 kg	1,836 kg	2,448 kg	3,672 kg	4,896 kg	6,12 kg	7,956 kg
R32 0,306		0,6		29	51	116	206	321	543
		1		10	19	42	74	116	196
		1,8		3 6 13	23	36 60
		2,2		2 4	0 15 24 40

Installation Safety Principles

1. Site Safety

Open Flames Prohibited

Ventilation Necessary

2. Operation Safety

Mind Static Electricity

Open Flames Prohibited

Must wear protective clothing and anti-static gloves

Don't use mobile phone

3. Installation Safety

• Refrigerant Leak Detector
- Appropriate Installation Location

The left picture is the schematic diagram of a refrigerant leak detector.

Please note that:

1. The installation site should be in a well-ventilated area.
2. The sites for installing and maintaining an air conditioner using Refrigerant R32 should be free from open fire or welding, smoking, drying oven or any other heat source higher than 548 which easily produces open fire.
3. When installing an air conditioner, it is necessary to take appropriate anti-static measures such as wear anti-static clothing and/or gloves.
4. Installation or maintenance location should not be surrounded by obstacles or close to any heat source, flammable, and/or explosive areas or objects.
5. If the product suers refrigerant leak during the installation, all personnel should go out till the refrigerant leaks completely for 15 minutes. If the product is damaged, a professional must carry such damages product back to the maintenance station. It is prohibited to weld the refrigerant pipe or conduct other operations on the contaminated site.
6. The air conditioner unit needs to sit on a flat even surface.
7. It is necessary to avoid the places where there are other electrical products, power switch plugs and sockets, kitchen cabinet, bed, sofa and other valuables directly under the lines on two sides of the indoor unit.
8. Any ventilation openings of unit should be free from obstructions.

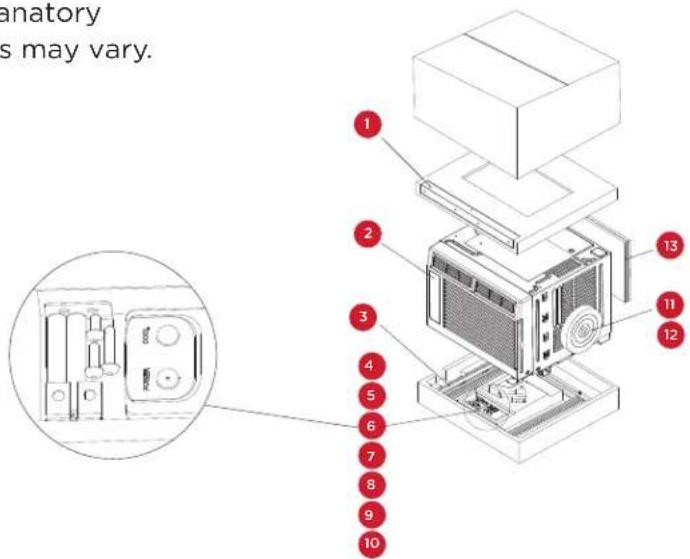

What's in the Box

5K - 12K Units

Open the carton and remove the below parts.

NO. APPEARANCE PART NAME QUANTITY
1		Top Rail 1
2		AC Unit 1
3		Filler Panels(labeled “Left” & “Right”)	2
4	(DHXW)	Remote Control(Digital Display Units Only)	1
5		Sash Lock 1
6		Battery (AAA) 2
7	[A8X6]	Lock Frame 2
8		3/8” Screws 4
9		1/2” Screws 3
10		3/4” Screws 4
11		Window Sash Seal 1
12		Foam Top Window Gasket 1
13		Foam Insulation(only for E-star models)	2

Note: Illustrations in this manual are for explanatory purposes only. Product design and aesthetics may vary.

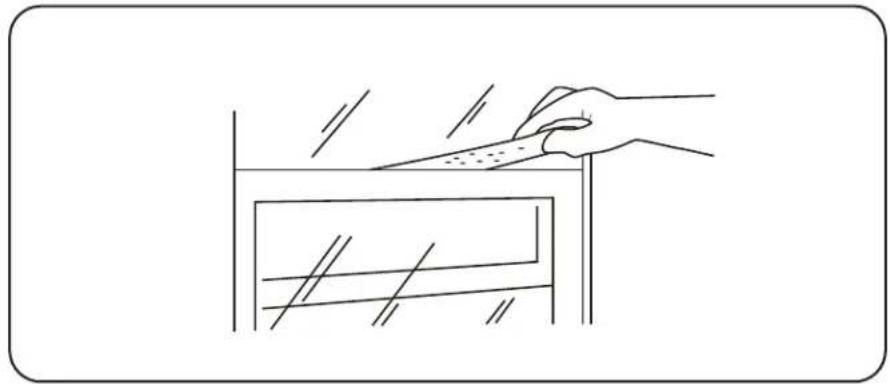

Tip! Before unboxing, cut the tape along the top of the box to loosen contents inside. Once you lift and remove the box, check the inside of the box as some parts may be stuck at the top. You can find the screws and other parts located in the tray beneath the AC unit.

anatory s may vary. 1 2 3 4 5 6 7 8 9 10 11 12 13

Let's get started!

Step 1: Testing

Before installing your AC, let's test it to make sure it works properly and your outlet has the proper power level. First, place it on a flat surface, plug it directly into a wall outlet (never use a power strip or other device), and turn it on. Next, use the Mode button on your control panel to change the AC to Cool Mode and press the down arrow to set the temperature to the lowest setting. After 3 minutes, the AC should be blowing cool air. If so, please continue to the next step. If not, see detailed troubleshooting tips at support.tcl.com/us.

Step 2: Installation

A few quick notes before installing:

• This unit is made to fit inside a standard double-hung window.

• Check the size of your window before installing.

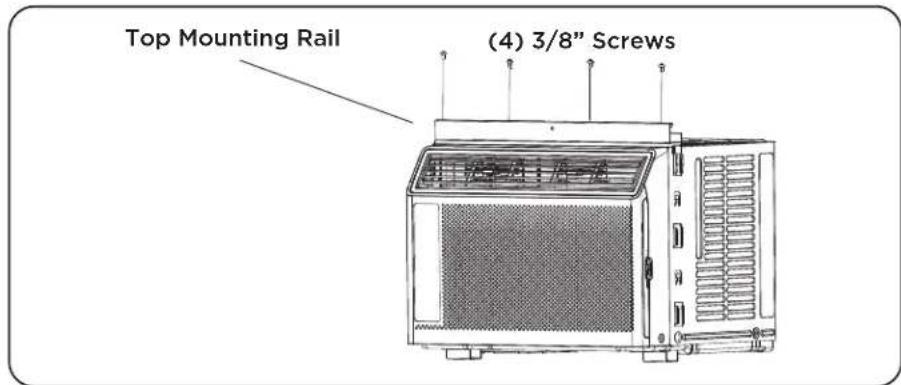

• Use the (4) included 3/8" screws to fasten the top mounting rail to the unit.

Top Mounting Rail (4) 3/8" Screws

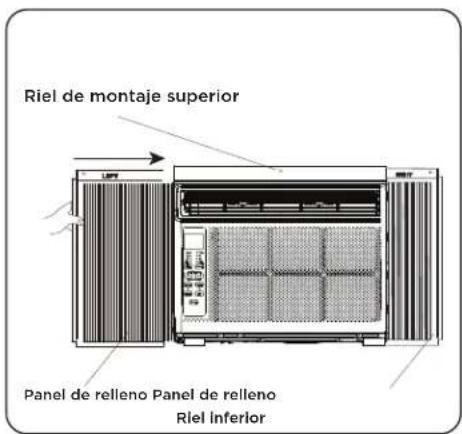

1. Fasten the accordion styled window panel expander pieces to the unit (some models come with the panel extenders already attached). They are marked "Right" and "Left". Pull the leading edge of them to its maximum width. Then slide the panel expanders into the grooved notches on the sides of the unit, (slide downward) and make sure they are inserted into the metal rails tightly.

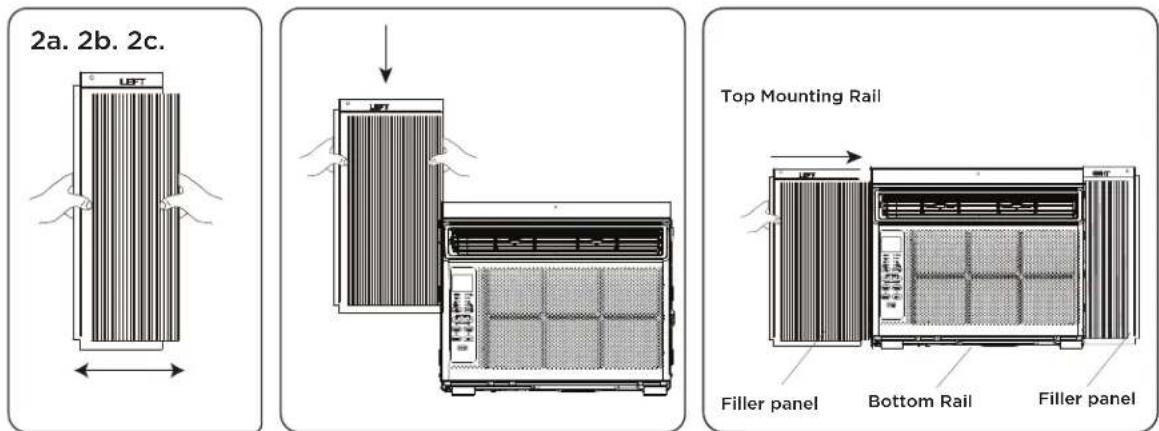

2a. 2b. 2c. Top Mounting Rail Filler panel Bottom Rail Filler panel

1. Carefully place the window air conditioner into the window where it is to be installed (2 people are recommended for this step). Close the window securely. The AC unit should be slightly tilted to the outside area to allow water to drain out from the unit.

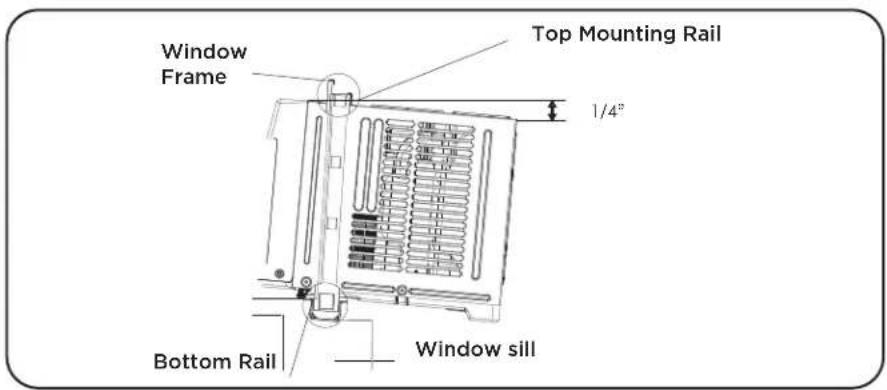

Window Frame Top Mounting Rail 1/4" Bottom Rail Window sill

4a. Fasten the air conditioner to the window frame, using the included 12 " screws. Fasten each of the panel extenders (Left and Right). You may have to drill a pilot hole in the window frame to fasten these screws to the window sash.

4b. Attach the lock frame between the panel extender and the window sill and then fasten them together with the included 34 " locking screw. Repeat for each side.

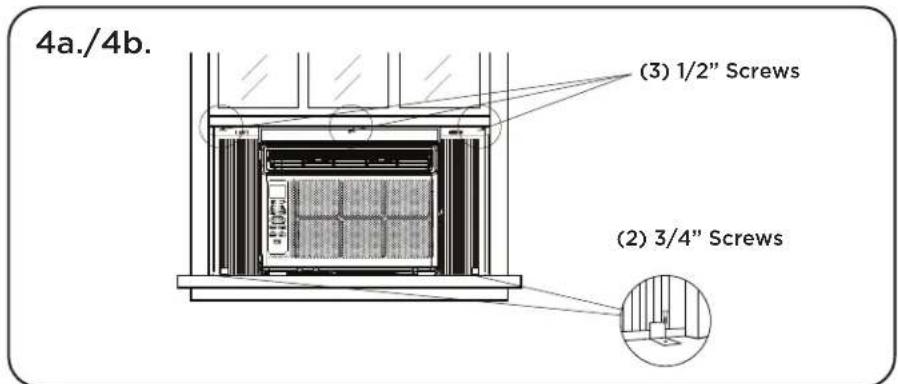

4a./4b. (3) 1/2" Screws (2) 3/4" Screws

4c. Attach the sash lock between the top of the sliding window and window frame, using 1 of the included 34 screws to secure the window closed.

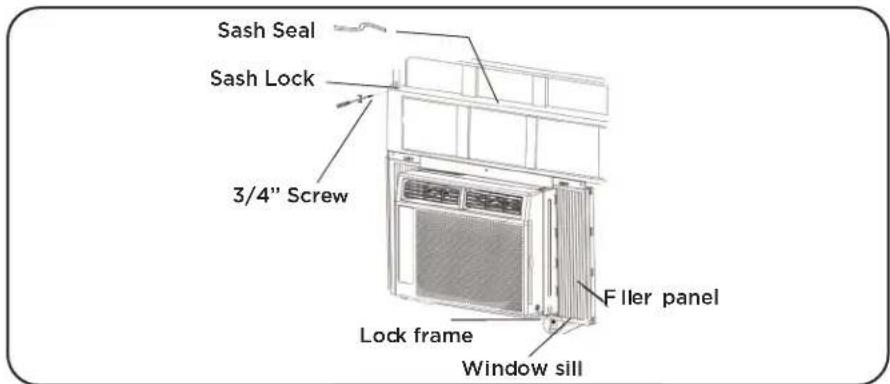

Sash Seal Sash Lock 3/4" Screw Filler panel Lock frame Window sill

4d. To prevent outside air from entering the room, insert the foam top window gasket. You can cut the foam top to match the width of the window.

Line drawing of a hand holding a tool above a rectangular object, no text or symbols present

1. Plug the unit into the electrical outlet as specified above in the electrical requirements. Set the unit to Cool Mode.

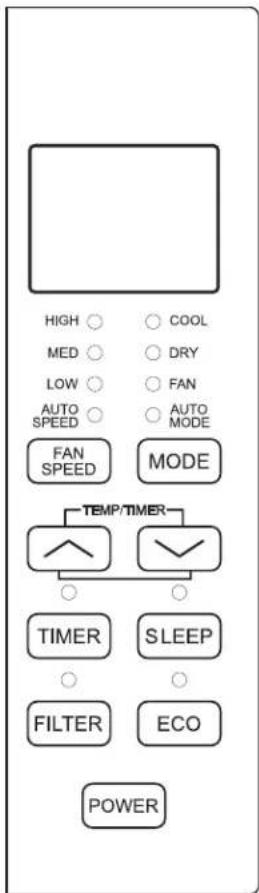

How to Control Your AC

All the basics you need to know to stay cool!

1. Power - turn the air conditioner on and off.

2. and Buttons- use these buttons on the control panel or remote control to increase or decrease the desired temperature, or time using the Timer. The temperature range is: 61 -88 degrees Fahrenheit or 16 - 31 degrees Celsius.

3. Display - By pressing the Display button on the remote, it can switch off/on all lights and LED Display. When the timer is not in use, the operation mode and the set temperature will be displayed. Time will be displayed under the timer setting.

4. Modes - Press the mode button on the control panel to cycle and select a Mode, or select a Mode by pressing the desired button on the remote.

- Auto Mode – The unit automatically chooses the mode of operation (cool, dry or fan). In this mode the temperature will be set according to the room temperature (tested by the temperature sensor which is incorporated in the indoor unit.).

- Cool Mode - The cooling function allows the air conditioner to cool the room and reduce air humidity at the same time. Adjust the fan speed and temperature to your desired comfort level. In this mode, if Eco is not enabled, the fan may continue to run after reaching the desired temperature.

- Eco Mode - In Eco mode, the unit will turn off once the room is cooled to the user-set temperature. The unit will turn back on when the room temperature rises above the user-set temperature. While in Eco mode, the fan will occasionally turn on for a few seconds in order to take an accurate temperature reading.

- Fan Mode - Fan Mode helps to circulate air in your home, but only works when the air conditioner is vented.

- Fan Speed - Press the Fan Speed button to choose the fan speed options. You can choose Hi, Med, Lo or auto speed in cool mode and choose Hi, Med, Lo in fan mode.

- Dry Mode – This function reduces the humidity of the air to make the room more comfortable. Press the Mode button to set to Dry mode. An automatic function of alternating cooling cycles and air fan is activated.

1. Timer Button - press the Timer button on the panel or the Timer button on the remote to set the timer.

- Set Timer On: With the AC off, press the Timer button and then use the ∧ and ∨ buttons to set the desired temperature. Press the Timer button again and use the ∧ and ∨ buttons to set the desired amount of time before the AC turns on. Press the timer button again to start the countdown.

- Set Timer Off: With the AC on, press the Timer button and then use the and buttons to set the length of time before the AC will turn off. Press the timer button again to start the countdown.

Note: It can be set to automatically turn off or on in 0.5-24 hours. Each press of the buttons will increase or decrease the timer. The Timer can be set in 0.5 hours increment below 10 hours and 1-hour increments for 10 hours or above.

The Set light will turn on while setting. To cancel the set function, press the Timer button again.

1. Sleep Button - In Sleep mode, all of the display lights will turn off after a while, but the Sleep light stays on. In Sleep mode, the air conditioner will automatically adjust the temperature and fan speed to make the room more comfortable during the night. The set temperature will automatically raise every 30-60 minutes, and at most change six times until the set temperature is 81 or 82 degrees.

2. Filter Button - After the fan motor runs for 500 total hours, the Filter Check light will turn on to remind the user to clean the filter. After you clean the filter, you can turn off the light by pressing the Filter button.

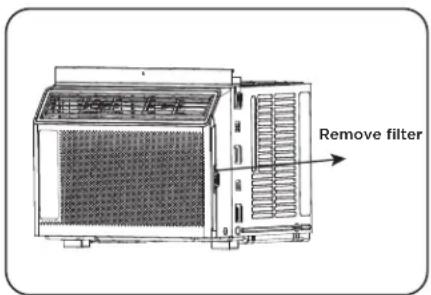

5-6K BTU AC

Remove the filter by sliding it out of the front right side of the air conditioner. Gently wash it with a mild dish washing detergent and let dry completely before reinstalling it into the AC.

Remove filter

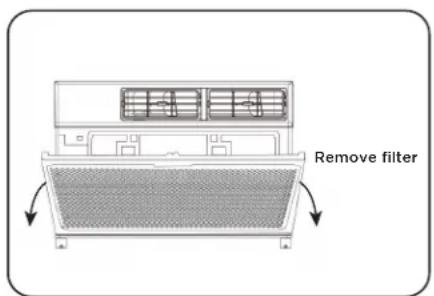

6-12K BTU AC

Remove the filter by removing the air intake grille using the two notches on the top left and right side of the grille cover. Once the grille is removed, you can then remove the filter. Gently wash it with a mild dish washing detergent and let dry completely before reinstalling it into the AC.

Remove filter

Normal Operating Sounds

You may hear a pinging noise, caused by the water hitting the condenser on rainy days, or when the humidity is high. This design feature helps remove moisture and increase efficiency. You may hear the thermostat click when the compressor cycles on and off. Water will collect in the base pan on rainy days, or high humidity days. The water may overflow and drip from the unit on the outside. The fan may run, even when the compressor is not on.

Troubleshooting

Having trouble completing installation? Don't worry, it's usually an easy fix.

PROBLEM POSSIBLE CAUSES SOLUTIONS
Air Conditioner will not start	The air conditioner is unplugged	• Make sure the air conditioner is plug is pushed completely into the outlet
	The fuse is blown/circuit breaker is tripped	• Check the house fuse/circuit breaker box and replace the fuse or reset the breaker
	Power Failure	• The unit will automatically re-start when power is restored• There is a protective time delay (approx. 3 minutes) to prevent damage to the compressor. For this reason, the unit may not start normal cooling for 3 minutes after it is turned back on.
	The current interrupter device is tripped	• Press the RESET button located on the power cord plug• If the RESET button will not stay engaged, discontinue use of the air conditioner and contact a qualified service technician.
Air Conditioner does not cool as it should	Airflow is restricted	• Make sure there are no curtains, blinds, or furniture blocking the front of the air conditioner
	The temperature control may not be set correctly	• Lower the set thermostat tempera ture
	The air filter is dirty	• Clean the filter. See the Cleaning and Care Section of the manual
	The room may be too warm	• Please allow time for the room to cool down after turning on the air conditioner
	Cold air is escaping	• Check for open furnace registers and cold air returns
	The Cooling Coils are frozen • See “Air Conditioner Freezing Up” below
Air Conditioner is freezing up	Ice blocks the air flow and stops the air conditioner from cooling the room	• Set the Mode to High Fan or High Cool and set the thermostat to a higher temperature
Remote Control is not working	The batteries are inserted incorrectly • Check the position of the batteries
	The batteries may be dead • Replace the batteries
Water is dripping outside Hot and humid weather • This is normal
Water is dripping inside the room	The air conditioner is not correctly tilted outside	• For proper water drainage, make sure the air conditioner is slightly tilted downward from the front of the unit to the rear
Water collects in the base pan	Moisture removed from the air is draining into the base pan	• This is normal for a short period in areas with low humidity and nor mal for a longer period in areas with high humidity
Digital Display reads “E1”, “E2”	A sensor has failed • Contact customer service

Step 1: Download and Install the TCL Home App

Using the camera function on your smartphone, scan the QR code below to be directed to the TCL Home page. If your phone does not have a QR scanner, download one from the app store or manually type in the URL below in your smartphone's web browser. Then, download and launch the app.

Download on the App Store

https://tcl.link/homeplusapp

Note: The App only supports the 2.4 GHz WiFi band (all routers have a 2.4 GHz band). Please connect to the 2.4 GHz band before you begin the app setup process.

Step 2: Create an Account

Once you have opened the app, select "Create account." You will then be sent a verification code to your email. Input the code and continue.

United States TCL HOME Email Password Forgot password? Login Quick login Create account By creating or logging in to an account, you have agreed to our Terms and Conditions and Privacy Notice

Create account Name Email Next I've read and agree to TCL's Terms and Conditions

Create account Sent code to [e-mail] Verification code new password Confirms password Verification code is valid for 15 minutes. Confirm

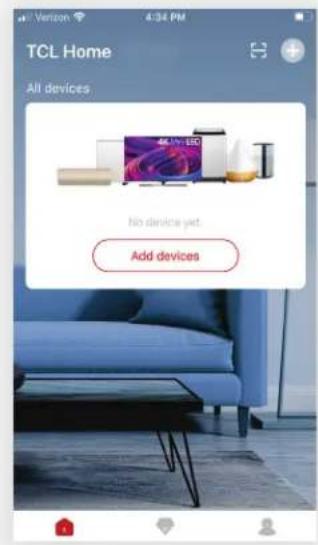

Step 3: Add Your Device

Select the "Add Devices" button and follow the in-app instructions to complete the setup.

TCL Home All devices No device yet. Add devices

Choose device Search for nearby devices to add Television > Window AC > Air purifier > Dehumidifier > Coming Soon >

Troubleshooting

Having trouble completing installation? Don't worry, it's usually an easy fix.

PROBLEM POSSIBLE CAUSES SOLUTIONS
TCL Home App loses connectivity to AC during setup	Wireless router may be too far from AC	• Relocate wireless router closer to AC.
	Network error	• Restart wireless router, AC, and mobile device.
TCL Home App cannot find AC	Network error	• Restart wireless router, AC, and mobile device.
	App & AC are not on the same 2.4GHz channel	• Confirm your device is connected to the 2.4GHz channel.
	Router blocking TCL Home App	• Verify App is not being blocked by the router's firewall.
	Incorrect WiFi Password • Reinput and verify WiFi password.
Unable to find or connect to Wireless Network	App may need permission to location	• Give TCL Home App permission to Location in phone settings.

TCL North America

LIMITED PRODUCT WARRANTY

What your warranty covers: Defects in materials or workmanship to the original owner of this TCL product when purchased as new from an Authorized Dealer of TCL brand products and packaged with this warranty statement.

WARRANTY PERIOD (NON-COMMERCIAL USE):Labor: Twelve (12) Months from the original date of purchase.Parts: Twelve (12) Months from the original date of purchase.

WARRANTY PERIOD (COMMERCIAL USE):Labor: Six (6) Months from the original date of purchase.Parts: Six (6) Months from the original date of purchase.

Commercial Use includes, but is not limited to, the use of this product in a commercial or business environment, the use of this product in an institution or for institutional purposes, or for other commercial purposes including rental purposes.

Should your TCL device prove to be defective in material or workmanship under normal use during the warranty period listed above, effective from the date of original consumer purchase of the product, TCL North America at its sole discretion will, (1) pay an Authorized TCL Service Center for both labor charges and parts to repair your device, or (2) replace your device with a new or refurbished/recertified equivalent product. If repaired at an Authorized TCL Service Center, TCL is not responsible for the transportation costs to the Authorized TCL Service Center. However, TCL will pay for the return shipping. TCL will provide instructions for the packaging and shipping of the unit. Units that are improperly packed and damaged during shipping are not covered under this limited product warranty. This limited product warranty is good only to the original purchaser of the product and effective only when used in North America. You must have your original purchase receipt or proof of purchase (bill of sale or received invoice) which states the condition of the unit (new, used), the unit's date of purchase, place of purchase, and model/serial number.

HOW SERVICE IS HANDLED: Call 1-800-825-6747 and choose the appropriate prompt. Please have product type, model number, serial number, and ZIP code ready. Troubleshooting and prior approval from a TCL representative MUST occur before sending in your product for repair.

Product Registration Information

You can find the model number and serial number on a label on the back or side of the product. Register your product online at register.tcl.com.

NO OTHER WARRANTY IS APPLICABLE TO THIS PRODUCT. THIS LIMITED WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS DISTRIBUTOR SHALL BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. SOME STATES AND/OR TERRITORIES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES OR LIMITATIONS ON THE LENGTH OF TIME AN IMPLIED WARRANTY LASTS, SO THE ABOVE EXCLUSION OR LIMITATION MAY NOT APPLY TO YOU. THIS LIMITED WARRANTY GIVES YOU, THE ORIGINAL PURCHASER, SPECIFIC LEGAL RIGHTS AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE OR TERRITORY TO TERRITORY. THIS WARRANTY IS SUBJECT TO CHANGE WITHOUT NOTICE. PLEASE VISIT WWW.TCL.COM/EN TO VIEW THE MOST CURRENT VERSION.

THIS LIMITED WARRANTY DOES NOT APPLY TO:

1. Service calls to your home for delivery or pick-up, installation, instruction, replacement of house fuses, connection of house wiring or plumbing, or to correct unauthorized repairs.
2. Failure of the product to perform due to signal reception problems not caused by your unit, or due to power failures or interruptions or inadequate electrical service.
3. Damage caused by transportation or handling, including damage during shipment from a Retailer (please contact your Retailer for assistance).
4. Damage caused to the product by accident, vermin, lightning, wind(s), fire, flood(s), or act(s) of God.
5. Damage caused by operating the product in a corrosive or wet atmosphere.
6. Repairs when your TCL product is used in other-than-normal, single-family household use, or contrary to the instructions described in the product User's Guide.

7. Damage resulting from accident, alteration, misuse, abuse, neglect, insects, normal wear-and-tear, cosmetic damage, mishandling, power line surges, improper or faulty installation, or improper repair or maintenance. Improper repair includes the use of parts not approved or specified by TCL.

8. Markings or images on the product's LCD/LED panel resulting from viewing fixed images (including but not limited to certain 4:3 images on wide screen televisions, and/or data or images in fixed screen locations from banners, video games, or certain broadcast networks).

9. Normal maintenance as described in the User's Guide (including but not limited to cleaning or replacing filters, cleaning coils, or other normal maintenance).
10. Use of accessories or components that are not compatible with this product.
11. Products with altered, missing, defaced, unreadable, or removed serial numbers.
12. Changes in the appearance of the product that do not affect product performance.
13. Increases in utility costs and/or additional utility expenses.
14. Products purchased from non-authorized TCL resellers.
15. Products sold in any condition other than new from the original manufacturer, or sold outside of North America.

The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.

CONTACT INFORMATION:

TCL North America

1860 Compton Ave Corona, California 92881

1-800-825-6747

www.tcl.com/en

¡Hola! Comencemos.

Red technical line drawing of a front-mounted air conditioner unit with control panel and buttons (no text or symbols)

Registre y proteja su compra

TCL-WACDGT PHOTOREGISTER™

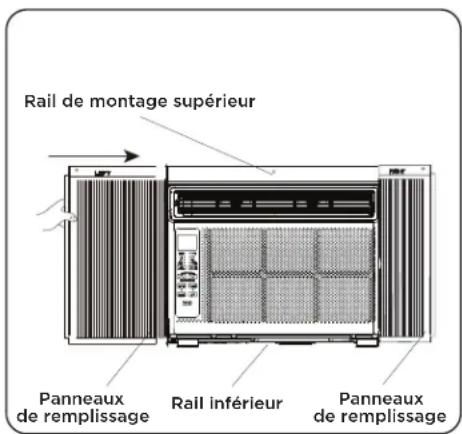

Diagram showing airflow or ventilation system with labeled components and directional arrow indicating flow direction

Riel de montaje superior Panel de relleno Panel de relleno Riel Inferior

Line drawing of a hand using a tool to cut or clean material from a window (no text or symbols)

Remove filter

6-12K BTU AC

Remove filter

Download on the App Store GET IT ON Google Play

https://tcl.link/homeplusapp

United States TCL HOME Email Password Forgot password? Login Quick login Create account By creating or logging in to an account, you have agreed to our Terms and Conditions and Privacy Notice

Create account Name Email Next I've read and agree to TCL's Terms and Conditions

Create account Sent code to [e-mail] Verification code How password Confirm password Verification code is valid for 15 minutes. Confirm

TCL Home All devices No device gets. Add devices

Choose device Search for nearby devices to add Television > Window AC > Air purifier > Dehumidifier > Coming Soon >

Red technical line drawing of a front panel with control buttons and ventilation grilles (no text or symbols)

Text a photo of the camera icon to 71403

Or register online at register.tcl.com/en-ca/ Need help? Visit photoregister.com/help or text HELP to 71403

Enjoy exclusive benefits with registration:

Expedited support and service Insider tips on your appliance

Exclusive offers and promotions Verification of ownership

*All TCL products continue to offer a limited consumer warranty in both the US and Canada. Please refer to the warranty section in this guide for additional details on warranty information.

Diagram showing airflow or ventilation system with labeled components and directional arrow

Line drawing of a hand using a tool to cut or clean material from a window (no text or symbols)

Remove filter

6-12K BTU AC

Remove filter

Download on the App Store

https://tcl.link/homeplusapp

United States TCL HOME Email Password Forgot password? Login Quick login Create account By creating or logging in to an account, you have agreed to our Terms and Conditions and Privacy Notice

Create account Name Email Next I've read and agree to TCL's Terms and Conditions

< Create account Sent code to [e-mail] Verification code 40s New password 3m Confirm password 5m Verification code is valid for 15 minutes. Confirm

Étape 3:

TCL Home All devices No devices yet. Add devices

Choose device Search for nearby devices to add Television > Window AC > Air purifier > Dehumidifier > Coming Soon >

GARANTIE LIMITÉE DU PRODUIT

Copyright © 2021 by TCL. All rights reserved

TCL and the TCL Logo are owned by TCL

Corporation and under license to TTE Technology, Inc.
