USER MANUAL SHAZ 22.2 G8 SILVERCREST

PDF ONLINE www.lidl-service.com

Black vacuum cleaner with attached circuit board, isolated on white surface (no text or symbols visible)

CORDLESS CYCLONE VACUUM CLEANER STAUBSAUGER AKKU ZYKLON ASPIRATEUR SANS FIL CYCLONIQUE SHAZ 22.2 G8

GB IE

Operating instructions

FR BE

ASPIRATEUR SANS FIL CYCLONIQUE

Mode d'emploi

CZ

AKU VYSAVAČ

Návod k obsluze

SK

AKU CYKLÓNOVÝ TYČOVÝ VYSÁVAČ

Návod na obsluhu

DK

BATTERI ST∅VSUGER ZYKLON

Before reading, unfold the page containing the illustrations and familiarise yourself with all functions of the device.

DE AT CH

GB/IE Operating instructions Page 1

Technical diagram of a vacuum cleaner with numbered parts and labeled components

Diagram of three cylindrical containers with a labeled section (17), no text or symbols present

16 15 4x

Contents

Introduction 2

Intended use....2

Warnings and symbols used....2

Important safety instructions....3

Package contents and transport inspection....6

Appliance description 6

Technical data 7

Before first use 8

Setting up the appliance 8

Mounting the wall bracket and accessories holder 8

Getting started 9

Information about the battery 9

Charging the battery 9

Operation and use 10

Switching the appliance on 10

Selecting an operating mode 11

Dismantling the appliance .... 1 1

Using the accessories 11

After use....12

Cleaning 13

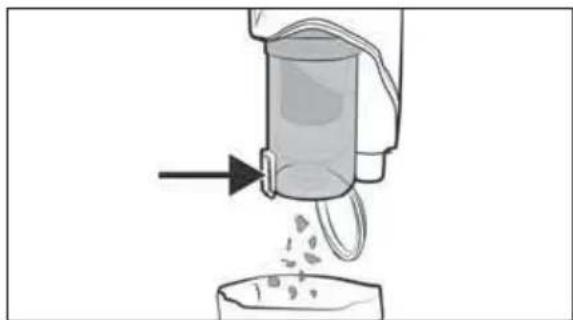

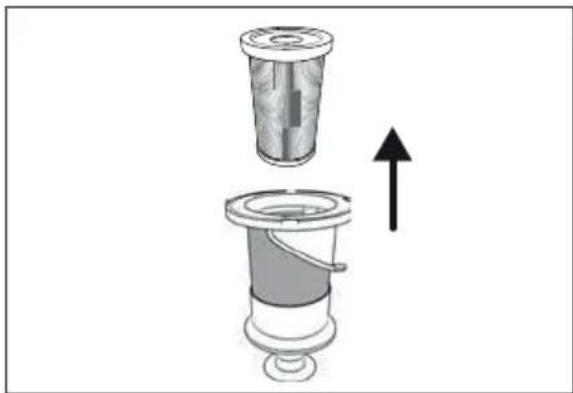

Emptying the dust container and cleaning the filter 13

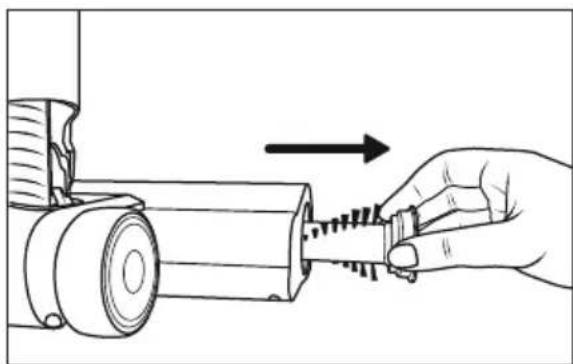

Cleaning the rotary brush 15

Cleaning the appliance 16

Storage 16

Disposal 16

Disposal of the appliance 17

Disposal of the packaging 17

Disposal of batteries 17

Ordering replacement parts 17

Kompernass Handels GmbH warranty 18

Service 19

Importer 19

Introduction

Congratulations on the purchase of your new appliance. You have selected a high-quality product.

The operating instructions are part of this product. They contain important information about safety, usage and disposal. Before using the product, please familiarise yourself with all operating and safety instructions. Use the product only as described and for the specified range of applications. Please also pass on all documents to any future owner.

Intended use

This appliance may only be used for vacuuming dry surfaces or dry vacuumed material. Do not vacuum people or animals with this appliance. Any other usage or modification of the appliance is deemed to be improper and carries a significant risk of accidents. The manufacturer accepts no liability for damages caused by improper use or incorrect operation of the appliance. The appliance is not intended for commercial use.

Warnings and symbols used

The following warnings and symbols are used in these operating instructions, on the packaging and on the appliance (where applicable):

	DANGER! A warning with this symbol and the signal word "DANGER" indicates an imminently hazardous situation which will result in death or serious injury if not avoided.
	WARNING! A warning with this symbol and the signal word "WARNING" indicates a potentially hazardous situation which could result in death or serious injury if not avoided.
	CAUTION! A warning with this symbol and the signal word "CAUTION" indicates a potentially hazardous situation which could result in a minor or moderate injury if not avoided.
	ATTENTION! A warning with this symbol and the signal word "ATTENTION" indicates a potential situation which could result in property damage if not avoided.
	Note: A note provides additional information that will assist you in using the appliance.
---	DC current/voltage
~	AC current/voltage
	Observe the operating instructions

Important safety instructions

■ Check the appliance for visible external damage before use. Do not operate an appliance that has been damaged or dropped.

■ Do not use the mains adapter if it has a damaged plug or cable.

■ The mains adapter and the permanently affixed connection cable may not be repaired. In the event of a defect, the entire mains adapter must be replaced with another of identical design.

■ To prevent accidents, have defective plugs and/or power cables replaced immediately by an authorised specialist, our Customer Service or a similarly qualified person.

■ Have all repairs carried out by a specialist workshop. Under no circumstances should you open the appliance yourself. Repairs that are not carried out by a specialist workshop could lead to physical injuries.

■ Before switching on the appliance, make sure that the mains voltage corresponds to the voltage indicated in the technical data for the appliance.

■ Never touch the mains adapter or the appliance with wet or damp hands.

■ Do not use the mains adapter with an extension cable; connect the mains adapter directly to a power socket.

Do not charge or use the appliance outdoors.

WARNING! RISK OF INJURY!

■ Do not change any accessories while the appliance is switched on.

■ Do not use the vacuum cleaner for vacuuming up water or other liquids.

■ Do not use the vacuum cleaner for vacuuming up sharp objects or glass shards.

■ Do not use the vacuum cleaner for vacuuming up burning matches, glowing embers or cigarette butts.

■ Do not use the vacuum cleaner for vacuuming up chemical products, stone dust, gypsum, cement or similar particles.

■ This appliance is not suitable for use with inflammable and explosive substances or chemical and aggressive liquids.

■ Always store the appliance indoors. To prevent accidents, keep the appliance in a dry location when not in use.

■ Under extreme conditions, leaks in the battery cells may occur. In the event that battery fluid comes into contact with skin or eyes, the affected area must be rinsed off with water immediately. Contact a physician.

■ This appliance may be used by children aged 8 years and above and by persons with limited physical, sensory or mental capabilities or lack of experience and knowledge, provided that they are under supervision or have been told how to use the appliance safely and are aware of the potential risks.

■ Do not allow children to play with the appliance. Cleaning and user maintenance tasks may not be carried out by children unless they are supervised.

■Take special care when using the vacuum cleaner on stairs.

! ATTENTION! PROPERTY DAMAGE!

■ Use only accessories recommended by the manufacturer.
■ The mains adapter may not be used for other purposes. Never carry the wall bracket or the mains adapter by the cable. Do not pull on the cable when you want to move the appliance.
■ Always grip the power plug to disconnect the appliance from the power supply.
■ Always be sure to keep the vacuum cleaner away from heating elements, ovens or other heated appliances and surfaces.
■ Make sure that the ventilation slits are never obstructed.

A blocked ventilation circuit can result in overheating and damage to the appliance.

UN 3481

The product is equipped or supplied with a lithium-ion battery. Do not throw the rechargeable battery into a fire and do not subject it to high temperatures. There is a risk of an explosion!

■ Do not use the vacuum cleaner without the EPA filter inserted.
■ Do not use the mains adapter for a different product and do not attempt to charge this appliance with a different mains adapter. Use only the mains adapter supplied with this appliance (model SHAZ 22.2 G8-1).
■ Never store the device when it is discharged. Prolonged storage in a discharged state can cause permanent damage to the battery. If the device is stored for a longer period of time, the charge level of the battery must be checked regularly. The optimum charge level is between 50% and 80%.

Package contents and transport inspection

1) Remove all parts of the appliance and the operating instructions from the packaging.
2) Remove all packaging materials and any films and labels.

The package contents include the following components (see fold-out page for illustrations):

• Cordless cyclone vacuum cleaner
• Suction pipe
• Floor brush
• Crevice nozzle
  ● Round brush nozzle (with brush attachment)
  • 2-in-1 combination brush
• Wall bracket
• Accessories holder
  ● Installation materials (4 screws, 4 wall plugs)
• Mains adapter
• Replaceable battery
• Operating instructions

(i) Note

▶ Check the package for completeness and signs of visible damage.
▶ If any items are missing or damaged as a result of defective packaging or transportation, please contact the Service Hotline (see section Service).

Appliance description (See fold-out page for illustrations)

① Battery release button
② Replaceable battery
③ Charging socket
④ Ventilation slits
⑤ EPA filter
6 Stainless steel filter
⑦ Dust container
8 Dust container release button
9 Dust container lid
10 Mains adapter
⑪ Barrel plug
⑫ 2-in-1 combination brush
13 Crevice nozzle
14 Round brush nozzle (with brush attachment)
15 Screws
16 Wall plug
⑰ Accessories holder
18 Wall bracket
19 Rotary brush release
20 Rotary brush
21 Floor brush
22 Floor brush release button
23 Suction pipe
24 Suction pipe release button
25 Operating mode
26 Battery indicator
27 Display panel (battery indicator/operating mode)
28 On/Off switch
29 Operating mode button +/- (Eco/Boost)

Technical data

Appliance
Input voltage 27 V	——
Input current 0.5 A
Rated power 130 W (floor brush 15 W)
Polarity	○—●—⊕

Batteries
Model SHAZ 22.2 G8-B
Capacity 2500 mAh/55.5 Wh
Battery	22.2 V---(6 x 3.7 V lithium-ion batteries)
Running time with full battery charge	Eco: approx. 45 minutesBoost: approx. 25 minutes

Mains adapter
Manufacturer	KOMPERNASS HANDELS GMBH, BURGSTRASSE 21, 44867 BOCHUM, GERMANY Registered court: AG Bochum Register number: HRB 4598
Model SHAZ 22.2 G8-1
Input voltage	100–240 V ~
Input AC frequency	50/60 Hz
Output voltage	27.0 V ---
Output current	0.5 A
Output power	13.5 W
Average efficiency in operation	87.5 %
Efficiency at low load (10%)	80.9 %
Power consumption at no load	0.05 W
Power consumption during operation	20 W
Polarity
Protection class	II /double insulation)
Efficiency class	6 VI
Fuse	T2A

(i) Note

▶ No user action is required to switch the product between 50 and 60 Hz. The product switches automatically to either 50 or 60 Hz.

Before first use

Setting up the appliance

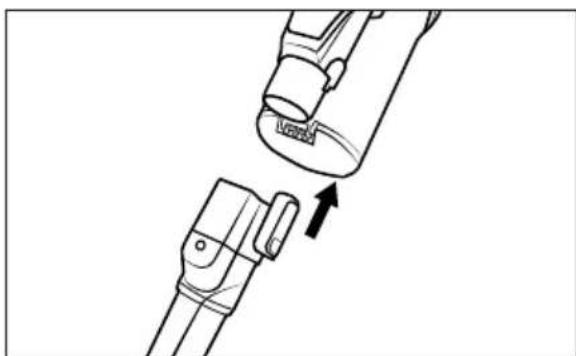

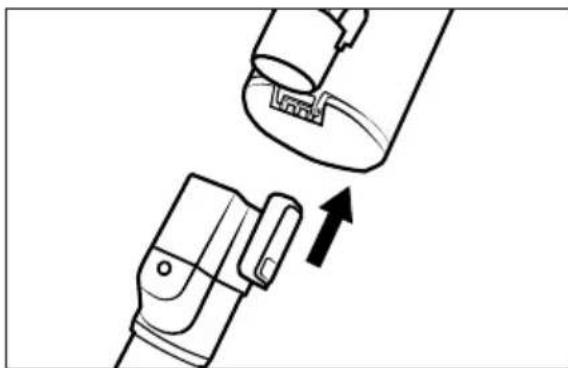

1) Push the suction pipe 23 onto the appliance until it audibly clicks into place (see Fig. 1).

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Fig. 1

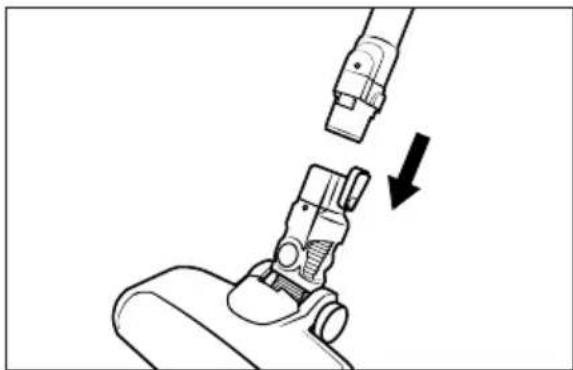

2) Push the suction pipe ②3 into the floor brush ②1 until it audibly clicks into place (see Fig. 2).

Diagram of a mechanical device with a cable and adjustment arrow, no text or symbols present

Fig. 2

3) Push the battery ② into the appliance until it audibly clicks into place (see Fig. 3).

Line drawing of a kitchen blender and a vacuum cleaner (no text or symbols)

Fig. 3

Mounting the wall bracket and accessories holder

DANGER!

▶ Ensure that there are no power cables or other conduits or pipes in the wall at the location where you intend to bore the holes for the wall bracket ⑱. Drilling into a current-carrying electric cable can be potentially fatal!

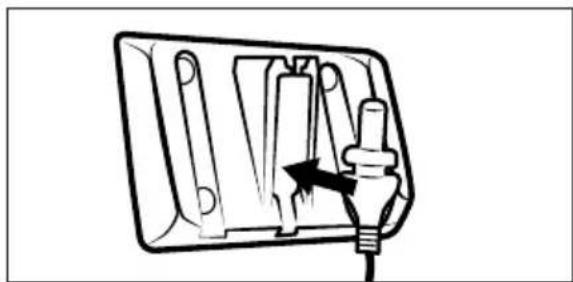

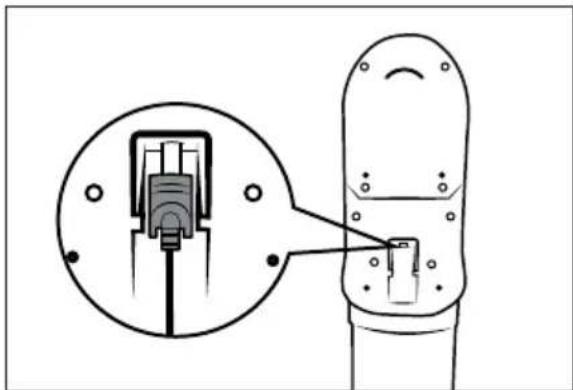

1) Insert the barrel plug ⑪ of the mains adapter ⑩ into the wall bracket ⑬ (see Fig. 4). Secure the barrel plug ⑪ by turning it.

Diagram of a light bulb connector with internal components, no text or symbols present

Fig. 4

2) Find a suitable mounting location for the wall bracket 18:

- The wall bracket 18 must be mounted with sufficient distance to the floor to ensure easy insertion and removal of the appliance from the wall bracket 18. - A mains socket must be accessible for the mains adapter 10.

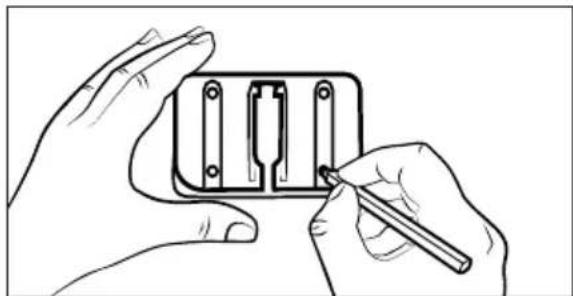

3) Use the wall bracket 18 to mark the four drill holes on the wall (see Fig. 5).

Illustration of hands installing or adjusting a mechanical component with a tool (no text or symbols visible)

Fig. 5

4) Drill the marked holes with a 5-mm drill.
5) Push the supplied wall plugs 16 into the holes.
6) Screw the wall bracket 18 in place using the screws 15 provided.
7) Connect the mains adapter 10 to a mains socket.

Getting started

Information about the battery

The vacuum cleaner is powered by a rechargeable, replaceable lithium-ion battery. Before using the vacuum cleaner for the first time, the battery ② must be charged for around 6 hours.
◆ To care for the batter ^2 , we recommend the following:

Disconnect the mains adapter ⑩ from the mains socket after the battery ② is charged.

i Note

The appliance is equipped with a temperature monitor to protect the battery ②. At high ambient temperatures, the charging process may be interrupted or the appliance may switch off automatically in rare cases:

- The battery indicator ^26 flashes at one second intervals during charging. Charging is interrupted and automatically resumed as soon as the temperature of the appliance has dropped.

- The battery indicator 26 flashes five times at one second intervals during operation. The appliance switches off automatically. Allow the appliance to cool down for about 20-30 minutes before switching it on again.

Charging the battery

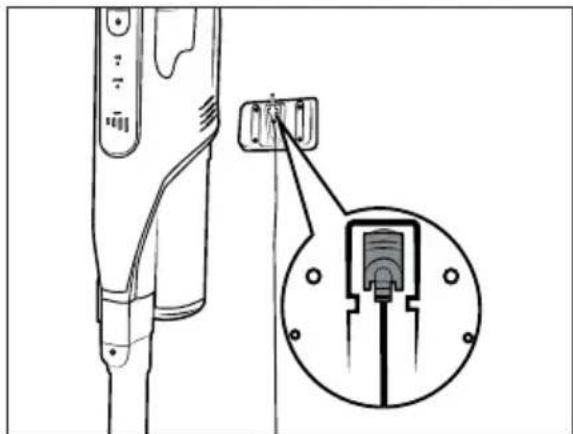

Place the vacuum cleaner in the wall bracket 18 from above so that the barrel plug 11 slips into the charging socket 3 on the bottom of the appliance.

The battery indicator 26 starts flashing and the charging process starts (see Fig. 6 and 7).

Technical line drawing of a mechanical component with an inset showing a close-up of a connector detail (no text or symbols)

Fig. 6

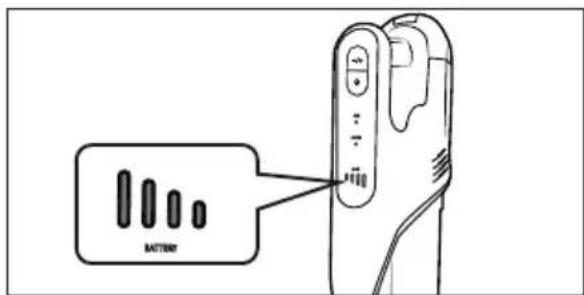

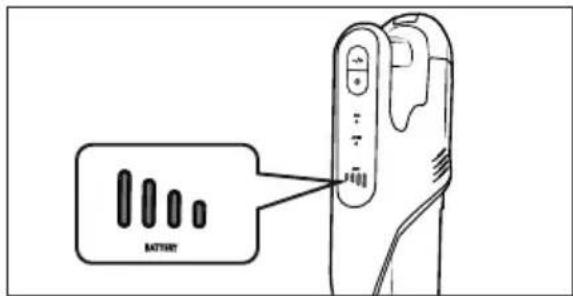

BATTERY

Fig. 7

When charging is complete, which can take about 6 hours if the battery ② is completely discharged, the battery indicator ⑳ lights up.

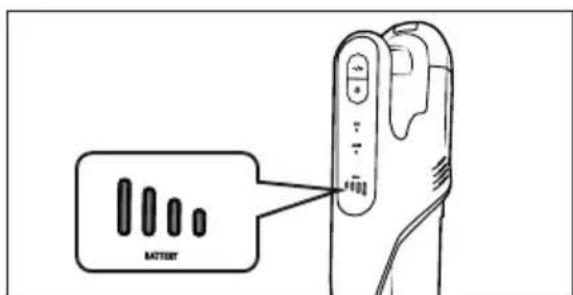

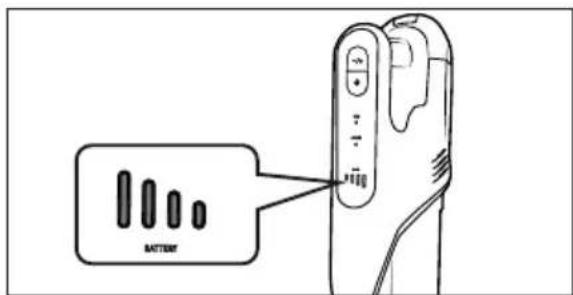

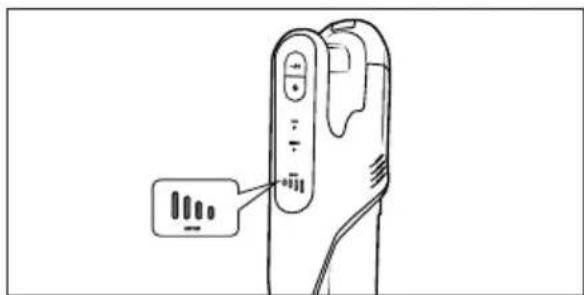

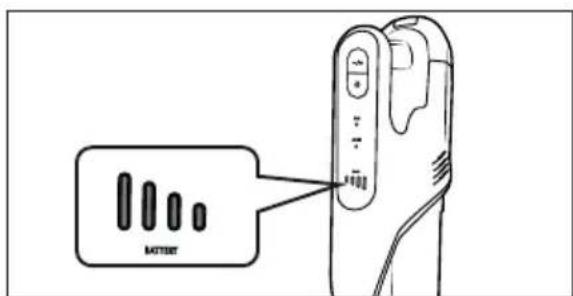

Battery indicators

The display panel 27 features five different battery indicators 26 to show the actual charging status of the battery 2:

The battery is fully charged.
The battery is charged to approx. 50%.
The battery is charged to approx. 25%.
The battery has only a small amount of charge left.
000 The battery is empty.

i Note

▶ Recharge the battery ② as soon as the battery indicator ⑳ shows a low remaining charge of the battery ⑦

The appliance switches off shortly after an empty battery ② is displayed.
▶ The vacuum cleaner can also be charged directly via the mains adapter 10.

To do this, remove the barrel plug 11 from the wall bracket 18 by turning it slightly and insert it into the charging socket 3 on the appliance (see Fig. 8).

Diagram of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Fig. 8

Operation and use

! ATTENTION!

The suction openings of the appliance and the floor brush ②1 and the suction pipe ③ must be free at all times and must not be blocked. Blockages lead to overheating and damage to the motor.
▶ Make certain that the EPA dust filter ⑤ is always inserted before using the appliance.

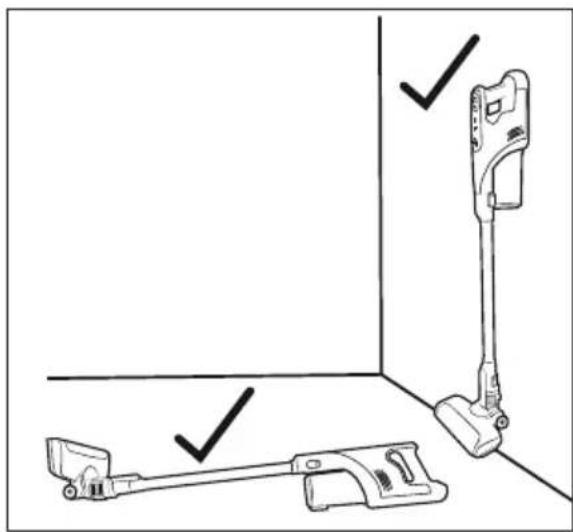

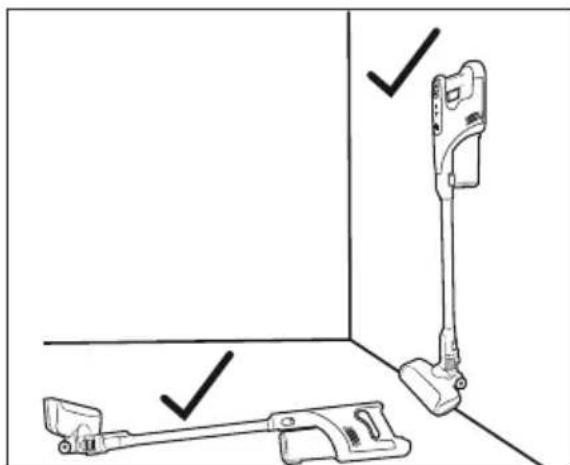

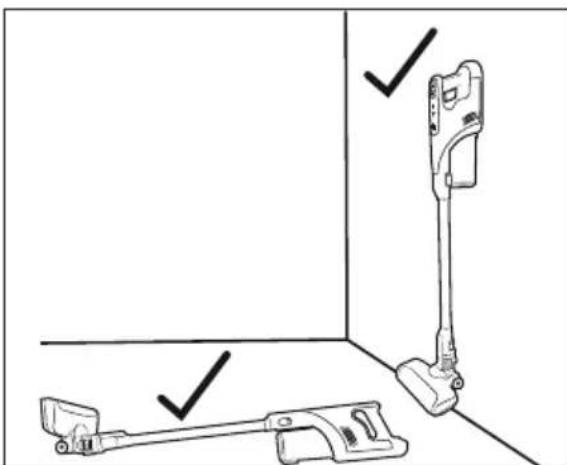

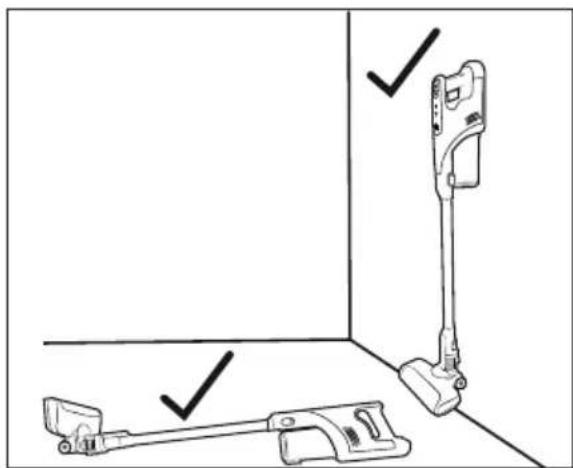

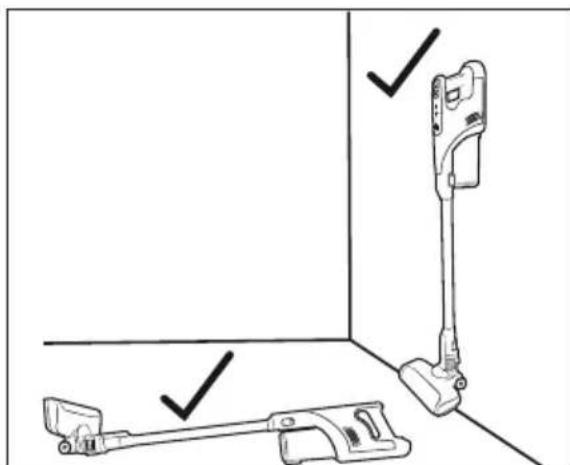

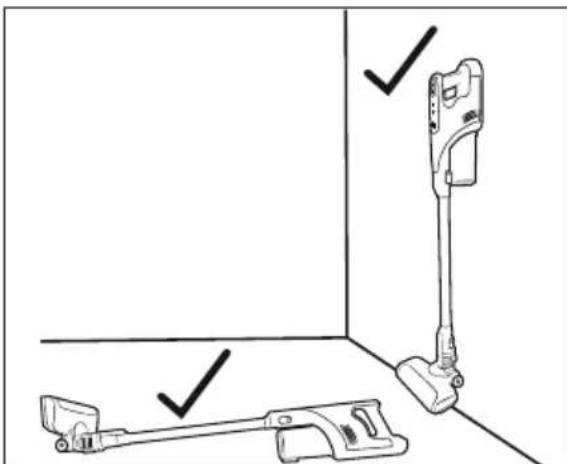

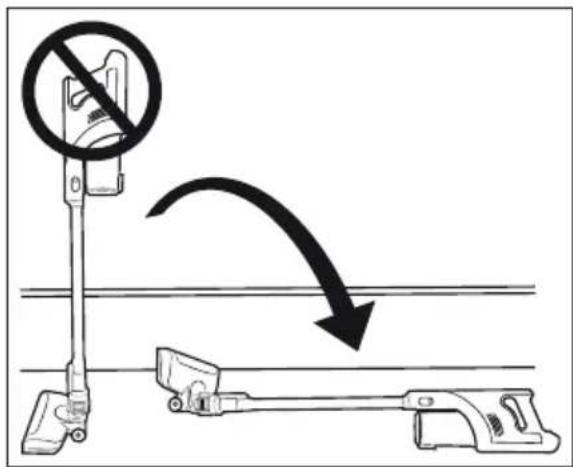

▶ Do not try to place the vacuum cleaner upright when you want to put it down or take it out of your hand in the meantime. To do this, place the vacuum cleaner in the wall bracket 18 or lay it on the floor (see Fig. 9 and 10). Due to its high centre of gravity, the vacuum cleaner may otherwise tip over and be damaged and possibly damage other objects when tipping over.

Diagram illustrating a no-smoking device with a circular stopper and a lever mechanism, showing a downward arrow indicating motion.

Fig. 9

Technical line drawing of a vacuum cleaner assembly with mounting bracket and vertical guide (no text or symbols)

Fig. 10

Switching the appliance on

1) Remove the vacuum cleaner from the wall bracket ⑱. When you are not using the wall bracket ⑱, pull the barrel plug ⑪ out of the charging socket ③ on the underside of the appliance.
2) Press the On/Off switch ⏻ 28 to switch on the appliance. The display panel 27 shows the battery indicator 26 and operating mode 25 (Eco/Boost).

(i) Note

▶ The appliance always starts in operating mode Eco after being switched on.

Selecting an operating mode

The appliance has two different operating modes, each of which differs in terms of suction power and running time. Press the +/- 24 button to select the operating mode:

Eco

-For vacuuming hard floors, delicate carpets and rugs with low to medium soiling.
- The appliance consumes less battery power and the running time is therefore longer.
- Running time with fully charged battery approx. 45 minutes.

Boost

-For vacuuming hard floors and carpeting with heavy soiling
- Due to the high suction power, the best suction result is achieved with a short running time.
- Running time with fully charged battery approx. 25 minutes.

Dismantling the appliance

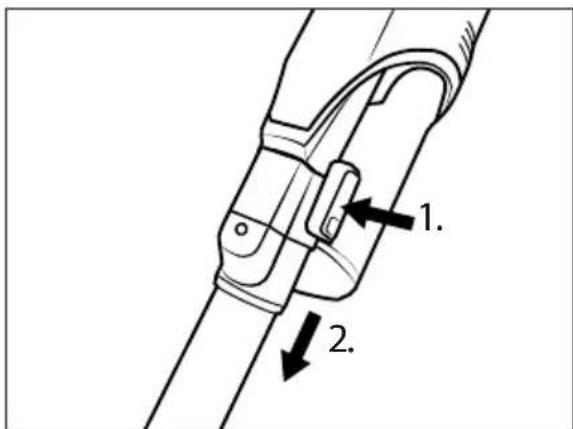

Suction pipe

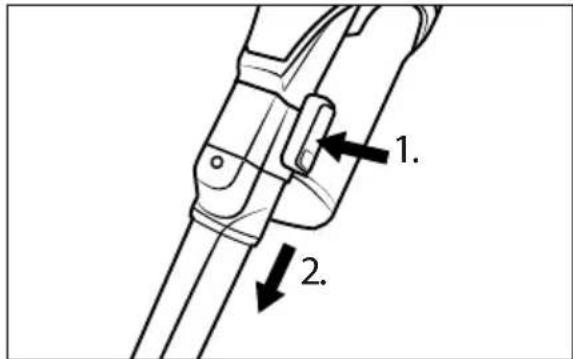

To remove the suction pipe from the appliance, hold down the suction pipe release button and pull the suction pipe off the suction opening of the appliance (see Fig. 11).

1. 2.

Fig. 11

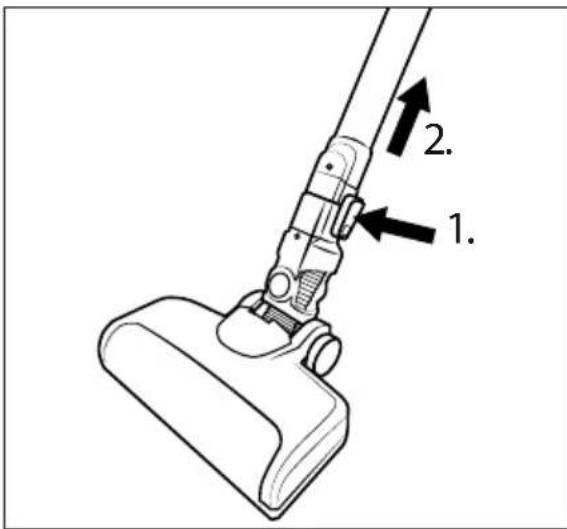

Floor brush

To remove the floor brush from the suction pipe, hold down the floor brush release button and pull the suction pipe off the floor brush (see Fig. 12).

1. 2.

Fig. 12

Battery

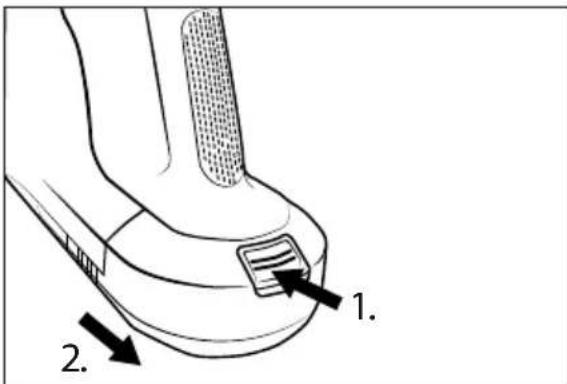

To remove the battery 2 from the appliance, press and hold the battery release button 1 and pull the battery 2 out of the appliance (see Fig. 13).

1. 2.

Fig. 13

Using the accessories

i Note

Before using an accessory, you must remove the floor brush 21. To remove the floor brush 21, see section Dismantling the appliance.

▶ You can use the accessories with or without the suction pipe 23 as required. To remove the suction pipe 23, see section Dismantling the appliance.

The package contents include three different nozzles/brushes for different areas of application as accessories:

Crevice nozzle

- Use the crevice nozzle ^13 to clean narrow, hard-to-reach places such as joints or corners.

2-in-1 combination brush

- The 2-in-1 combination brush ^12 can be used as a wide nozzle or as a brush. Press and hold the release button and slide the brush attachment forward or backward as needed. Use the 2-in-1 combination brush ^12 to vacuum drawers or storage compartments, for example, or to dust keyboards or delicate surfaces with the soft brush attachment.

Round brush nozzle (with brush attachment)

- Use the round brush nozzle ^14 with its hard bristles for deep-seated dirt on coarse carpets or heavily soiled car interiors. The brush attachment can be removed from the nozzle to vacuum rounded inserts or storage compartments in the car, for example.

♦ Push the accessory onto the suction pipe 23 or onto the suction opening of the appliance until it clicks into place (see Fig. 14). Make sure that the locking mechanism is in the correct position.

Technical line drawing of a mechanical component with an arrow indicating assembly or motion (no text or symbols)

Fig. 14

To remove the accessory, press and hold the release button on the accessory, then pull the accessory off the suction pipe 23 or the suction opening of the appliance (see Fig. 15).

1. 2.

Fig. 15

After use

After use, press the On/Off switch ⏻ 28 to switch off the appliance. The display panel 27 goes out.

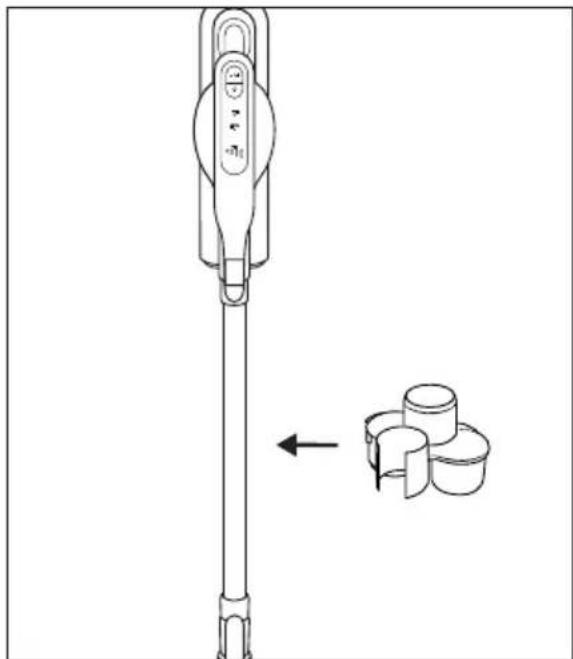

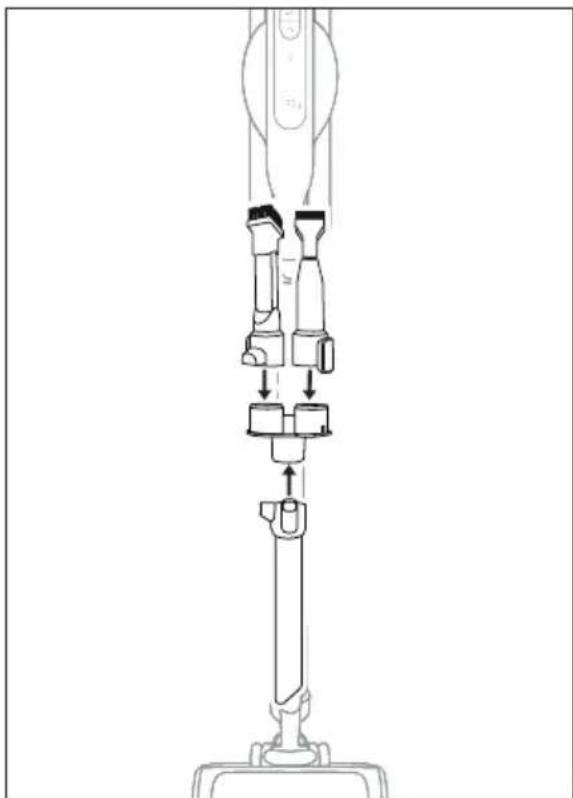

◆ Attach the accessories hold to the suction pipe (see Figure 16).

Technical line drawing of a mechanical device with a separate inset showing a cylindrical component (no text or symbols)

Fig. 16

◆ Remove accessories from the appliance and place them on the accessories holder 17 for storage (see Figure 17).

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 17

Place the vacuum cleaner in the wall bracket 18. Start charging when the battery 2 has only a small amount of charge left

Cleaning

WARNING!

▶ Always switch off the appliance before cleaning it.

Emptying the dust container and cleaning the filter

i Note

▶ Empty the dust container ⑦ and clean the stainless steel filter ⑥ and the EPA filter ⑤ when the dust container ⑦ level reaches the MAX mark.

1) Hold the dust container ⑦ in a waste bin and press the release button for the dirt container lid ⑧. The dust container lid ⑨ opens and the contents are emptied into the waste bin (see Fig. 18). Then close the dust container lid ⑨.

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

Fig. 18

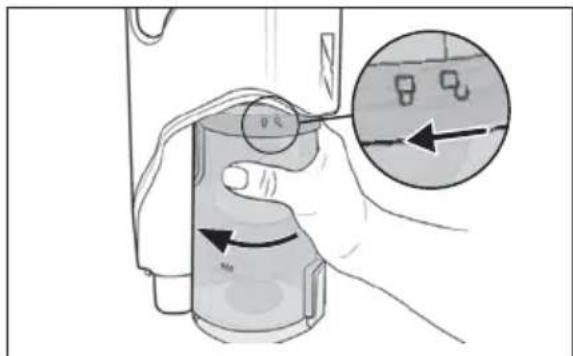

2) To remove the dust container ⑦ from the appliance, turn it towards the symbol open) until it can be detached from the appliance (see Fig. 19).

Diagram showing a hand holding a device with labeled parts and an inset magnified view of a device's internal structure.

Fig. 19

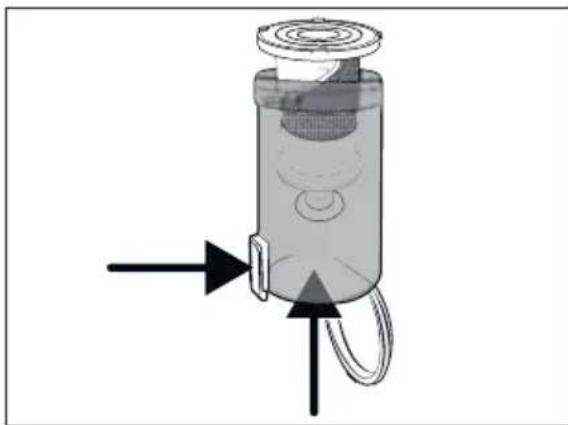

3) Remove the stainless steel filter ⑥ from the dust container ⑦ by pressing the dirt container lid release button ⑧. Then slide the stainless steel filter ⑥ out of the dust container ⑦ from below (see Fig. 20).

Diagram of a cylindrical device with internal components and directional arrows, no visible text or symbols

Fig. 20

4) Remove the EPA filter ⑤ from the stainless steel filter ⑥ by reaching into the opening of the EPA filter ⑤ and pulling it out of the stainless steel filter ⑥ (see Fig. 21).

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols)

Fig. 21

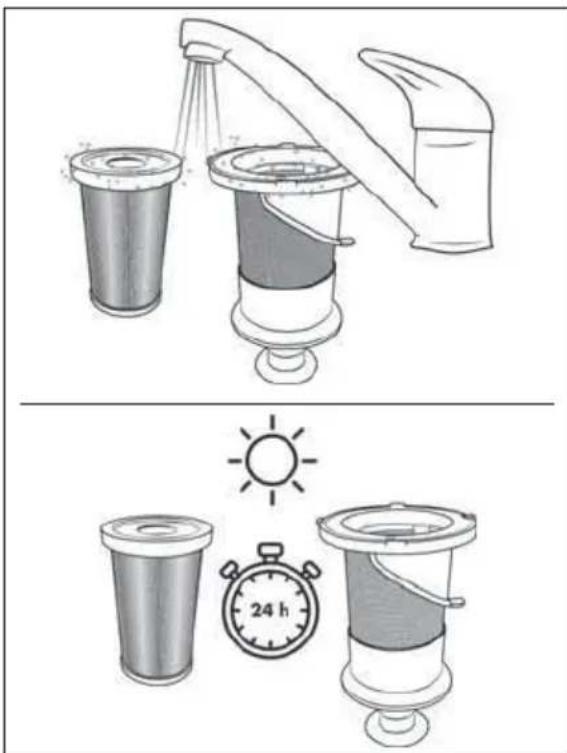

5) Rinse the EPA filter ⑤ and the stainless steel filter ⑥ under cold or lukewarm water. Allow the EPA filter ⑤ and stainless steel filter ⑥ to air dry completely before putting them back into the dust container ⑦ (see Fig. 22).

Diagram illustrating a water spray system with two cups, one spraying and the other holding a 24-hour stopwatch.

Fig. 22

(i) Note

▶ When cleaning the stainless steel filte ^6 , take care not to lose the rubber supports on the lower opening.

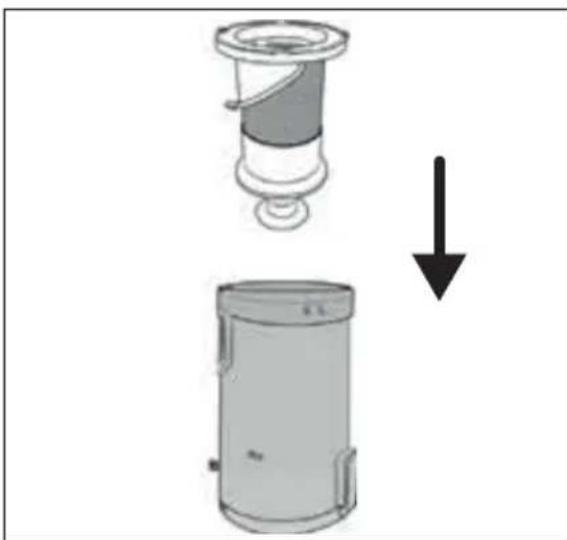

6) Insert the stainless steel filter ⑥ into the dust container ⑦ and push it all the way down (see Fig. 23). Pay attention to the different sized locks on the stainless steel filter ⑥. The stainless steel filter ⑥ can only be inserted into the dust container ⑦ in one position due to these locks.

Diagram showing a mechanical device with a spool and a cylindrical container, both with a downward arrow indicating process (no text or symbols present)

Fig. 23

(i) Note

▶ Do not turn the stainless steel filte ⑥ while inserting it into the dust container ⑦. Pay attention to the two markings on the stainless steel filter ⑥ and on the dust container ⑦ to insert the stainless steel filter ⑥ correctly.

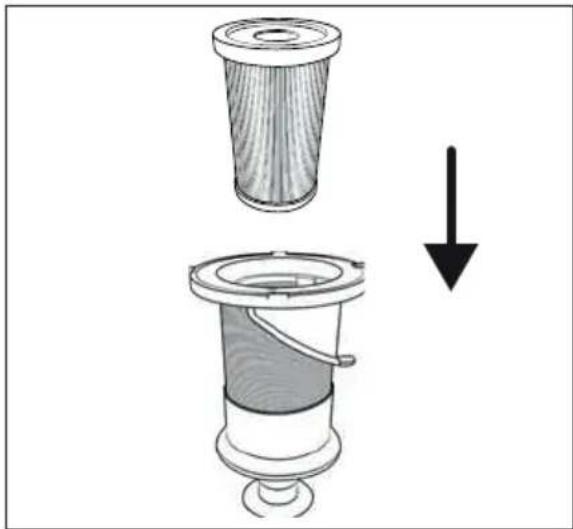

7) Insert the EPA filter ⑤ into the stainless steel filter ⑥ (see Fig. 24).

Diagram showing a cylindrical filter being inserted into a mechanical component, with an arrow indicating the process (no text or symbols present)

Fig. 24

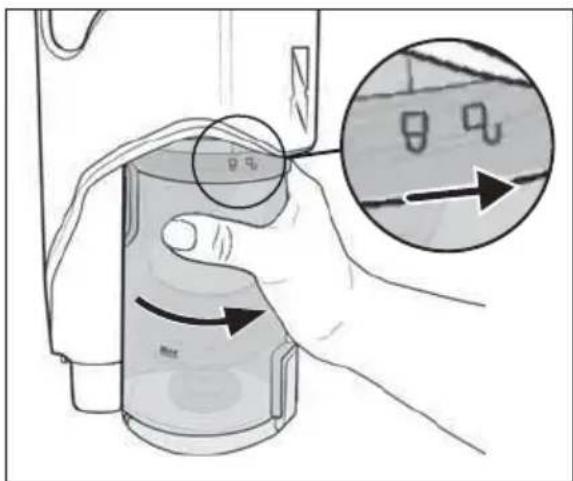

8) Put the dust container ⑦ back into the appliance and turn it in the direction of the symbol (close) until it is firmly seated in the appliance (see Fig. 25).

Diagram showing a hand holding a water can with directional arrows indicating flow or movement, alongside an inset image of a container with handwritten symbols.

Fig. 25

Cleaning the rotary brush

ATTENTION!

▶ Only use the appliance with the rotary brush 20 properly mounted.

(i) Note

▶ Clean the rotary brush ^20 regularly to ensure proper operation of the appliance and avoid malfunctions.

1) Remove the floor brush 21 from the suction pipe 23 or from the appliance (see section Dismantling the appliance).

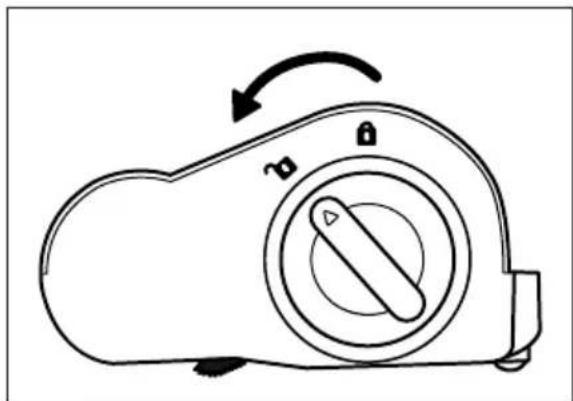

2) Unlock the rotary brush 21 by turning the rotary brush release 19 towards the symbol 2 (open) (see Fig. 26).

Line drawing of a mechanical device with a circular button and directional arrow (no text or symbols)

Fig. 26

3) Pull the rotary brush 21 (see Fig. 27).

20 out of the floor brush

Illustration of a hand turning a screw into a mechanical component (no text or symbols)

Fig. 27

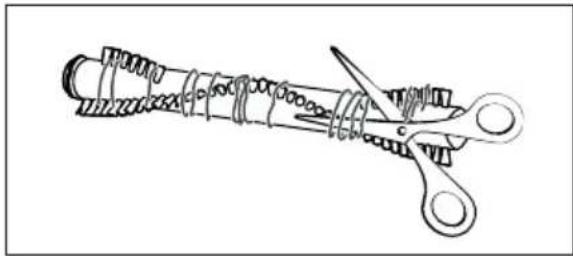

4) Cut threads and hairs along the bristles of the rotary brush 20 with scissors (see Fig. 28). Remove threads and hair from the rotary brush 20.

Line drawing of a coiled spring with scissors cutting through it (no text or symbols)

Fig. 28

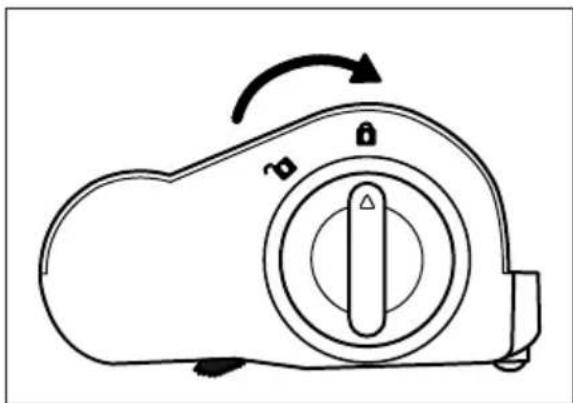

5) Insert the rotary brush 20 into the floor brush 21 and turn the rotary brush release 19 in the direction of the symbol 🔒 (close) (see Fig. 29).

Line drawing of a device with a rotary knob and arrow indicating rotation (no text or symbols)

Fig. 29

Cleaning the appliance ⚠️ DANGER!

▶ Always remove the barrel plug ⑪ of the mains adapter ⑩ from the charging socket ③ of the appliance before cleaning it. There is a risk of electric shock!

! ATTENTION!

▶ Do not use aggressive, chemical or abrasive cleaning agents. They could damage the outer surfaces of the appliance.
▶ To avoid irreparable damage to the appliance, ensure that no moisture gets into it during cleaning.

• Clean the appliance housing and the attachments with a slightly damp cloth. For stubborn soiling use a mild detergent on the cloth.
• Dry all parts thoroughly before using the appliance again or storing it.

Storage

! ATTENTION!

▶ Never store the device when it is discharged. Prolonged storage in a discharged state can cause permanent damage to the battery. If the device is stored for a longer period of time, the charge level of the battery must be checked regularly. The optimum charge level is between 50% and 80%.

◆ Place the appliance on the wall bracket when you are not using it.

- Attach the accessories holder 17 to the suction pipe 23 and place the accessory on the accessories holder 17 for storage (see section After use).

◆ Store the appliance in a dust-free and dry location out of direct sunlight.

Disposal

Applies only to France:

The product, its packaging and the operating instructions are recyclable. They

are subject to an extended manufacturer responsibility and will be collected separately.

Disposal of the appliance

The adjacent symbol of a crossed-out dustbin means that this appliance is subject to Directive 2012/19/EU. This directive states that this appliance may not be disposed of in the normal household waste at the end of its useful life, but must be taken to specially set-up collection locations, recycling depots or disposal companies.

The disposal is free of charge for the user. Protect the environment and dispose of this appliance properly.

If your old appliance has stored any personal data, you are responsible for deleting it yourself before returning it.

If it is possible to do so without destroying the old appliance, remove the old batteries or rechargeable batteries before returning the appliance for disposal and take them to a separate collection point. In the case of permanently installed rechargeable batteries, you must indicate during disposal that the appliance contains a battery.

Your local community or municipal authorities can provide information on how to dispose of the worn-out product.

Disposal of the packaging

The packaging materials have been selected for their environmental friendliness and ease of disposal and are therefore recyclable.

Dispose of packaging materials that are no longer needed in accordance with applicable local regulations.

Dispose of the packaging in an environmentally friendly manner. Note the labelling on the packaging and separate the packaging material components for disposal, if necessary. The packaging material is labelled with abbreviations (a) and numbers (b) with the following meanings: 1-7: plastics, 20-22: paper and cardboard, 80-98: composites.

Applies only to Spain:

The packaging contains paper and/or cardboard components.

The packaging contains plastic and/or metal components.

Disposal of batteries

Batteries/rechargeable batteries must be treated as hazardous waste and must therefore be disposed of in an environmentally sound manner by appropriate bodies (dealers, specialist dealers, public municipal bodies, commercial disposal companies). Batteries/rechargeable batteries may contain toxic heavy metals.

The heavy metals contained are identified by letters below the symbol: Cd = cadmium, Hg = mercury, Pb = lead.

For this reason, do not dispose of batteries/rechargeable batteries in domestic waste. Take them to a specialist collection point.

Only return batteries that are fully discharged.

Ordering replacement parts

You can order replacement parts for this product on the Internet at www.kompernass.com.

QR code image containing encoded data, no visible human-readable text

Scan the QR code with your smartphone/tablet. You can use this QR code to go directly to our website to view and order the available spare parts.

i Note

▶ If you have problems with your online order, you can contact our service centre by phone or e-mail.

▶ Always quote the article number (IAN) 478842_2410 in your order.

▶ Please note that online ordering of replacement parts is not possible for all countries.

KompernassHandels GmbH warranty

Dear Customer,

This appliance has a 3-year warranty valid from the date of purchase. If this product has any faults, you, the buyer, have certain statutory rights. Your statutory rights are not restricted in any way by the warranty described below.

Warranty conditions

The warranty period starts on the date of purchase. Please keep your receipt in a safe place. This will be required as proof of purchase.

If any material or manufacturing fault occurs within three years of the date of purchase of the product, we will either repair or replace the product for you or refund the purchase price (at our discretion). This warranty service requires that you present the defective appliance and the proof of purchase (receipt) within the three-year warranty period, along with a brief written description of the fault and of when it occurred.

If the defect is covered by the warranty, your product will either be repaired or replaced by us. The repair or replacement of a product does not signify the beginning of a new warranty period.

Warranty period and statutory claims for defects

The warranty period is not prolonged by repairs effected under the warranty. This also applies to replaced and repaired components. Any damage and defects present at the time of purchase must be reported immediately after unpacking. Repairs carried out after expiry of the warranty period shall be subject to a fee.

Scope of the warranty

This appliance has been manufactured in accordance with strict quality guidelines and inspected meticulously prior to delivery.

The warranty covers material faults or production faults. The warranty does not extend to product parts subject to normal wear and tear or to fragile parts which could be considered as consumable parts such as switches or parts made of glass.

The warranty does not apply if the product has been damaged, improperly used or improperly maintained. The directions in the operating instructions for the product regarding proper use of the product are to be strictly followed. Uses and actions that are discouraged in the operating instructions or which are warned against must be avoided.

This product is intended solely for private use and not for commercial purposes. The warranty shall be deemed void in cases of misuse or improper handling, use of force and modifications / repairs which have not been carried out by one of our authorised Service centres.

Warranty claim procedure

To ensure quick processing of your case, please observe the following instructions:

■ Please have the till receipt and the item number (IAN) 478842_2410 available as proof of purchase.

■ You will find the item number on the type plate on the product, an engraving on the product, on the front page of the operating instructions (below left) or on the sticker on the rear or bottom of the product.

If functional or other defects occur, please contact the service department listed either by telephone or by e-mail.

■ You can return a defective product to us free of charge to the service address that will be provided to you. Ensure that you enclose the proof of purchase (till receipt) and information about what the defect is and when it occurred.

You can download these instructions along with many other manuals, product videos and installation software at www.lidl-service.com.

This QR code will take you directly to the Lidl service page (www.lidl-service.com) where you can open your operating instructions by entering the item number (IAN) 478842_2410.

Service

GB Service Great Britain

Tel.: [phone]

E-Mail: [e-mail]

IE ServiceIreland

Tel.: [phone]

E-Mail: [e-mail]

IAN 478842_2410

Importer

Please note that the following address is not the service address. Please use the service address provided in the operating instructions.

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Inhaltsverzeichnis

Einleitung 22

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Abb. 1

Diagram of a vacuum cleaner's internal structure with a downward arrow indicating motion (no text or symbols present)

Abb. 2

Line drawing of a kitchen blender and a digital washing machine (no text or symbols)

Abb. 3

Diagram of a light bulb connector with internal components, no text or symbols present

Abb. 4

Illustration of hands using a tool to adjust or install a component into a rectangular housing (no text or symbols visible)

Abb. 5

Technical diagram of a hairpin connector with an inset showing internal components (no text or symbols)

Abb. 6

Line drawing of a handheld electronic device with a small inset showing internal components (no text or symbols)

Abb. 7

Diagram of a mechanical component with an inset showing a close-up of a internal structure (no text or symbols)

Abb. 8

Diagram illustrating a no-smoking device with a circular stopper and a lever mechanism, showing a downward arrow indicating motion.

Abb. 9

Technical line drawing of a vacuum cleaner assembly with mounting bracket and vertical guide (no text or symbols)

Abb. 10

Gerät einschalten

Technical line drawing of a mechanical component with an arrow indicating assembly or motion (no text or symbols)

Abb. 14

Line drawing of a handheld device with a left-side inset showing two cylindrical containers (no text or symbols)

Abb. 16

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

Abb. 17

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

Abb. 18

Diagram showing hand holding a container with labeled arrows and a magnified inset showing measurement markings for 'B' and 'q'.

Abb. 19

Diagram of a cylindrical device with internal components and directional arrows, no text or symbols present

Abb. 20

Diagram of a mechanical device with a cylindrical component and an upward arrow indicating motion (no text or symbols)

Abb. 21

Diagram illustrating a water spray system with two cups, one spraying and the other handling a 24-hour stopwatch.

Abb. 22

i Hinweis

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Abb. 23

i Hinweis

Diagram showing a cylindrical filter being inserted into a mechanical component, with an arrow indicating the process (no text or symbols present)

Abb. 24

Diagram showing a hand holding a container with directional arrows and a magnified inset highlighting a component with labeled parts 'g' and 'q'.

Abb. 25

Bürstenrolle reinigen

! ACHTUNG!

Line drawing of a mechanical device with a circular dial and directional arrow (no text or symbols)

Abb. 26

Illustration of a hand inserting a screw into a mechanical component (no text or symbols)

Abb. 27

Line drawing of a mechanical spring with scissors cutting through it (no text or symbols)

Abb. 28

Line drawing of a device with a rotary knob and arrow indicating rotation (no text or symbols)

Abb. 29

Gerät reinigen

GEFAHR!

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DEUTSCHLAND

www.kompernass.com

Table des matières

Introduction 42

Diagram showing two mechanical components with an arrow indicating a process or transformation (no text or symbols present)

Fig. 1

Diagram of a vacuum cleaner's internal structure with a downward arrow indicating motion (no text or symbols present)

Fig. 2

Line drawing of a kitchen appliance with a hand tool and a close-up of its lid (no text or symbols)

Fig. 3

Diagram of a mechanical switch or socket assembly with internal components and an arrow indicating direction (no text or labels)

Fig. 4

Illustration of hands assembling a mechanical component with a tool (no text or symbols visible)

Fig. 5

Technical line drawing of a hairbrush connector with an inset close-up showing internal components (no text or symbols)

Fig. 6

BATTERY

Fig. 7

Diagram of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Fig. 8

Diagram illustrating a no-smoking device with a circular symbol and an arrow indicating downward motion.

Fig. 9

Technical line drawing of a right-angle mechanical device with mounting bracket and vertical support (no text or symbols)

Fig. 10

Allumer l'appareil

Technical line drawing of a mechanical device with a lever and handle, showing a step without any text or symbols.

Fig. 14

Technical line drawing of a mechanical device with a separate inset showing a cylindrical component (no text or symbols)

Fig. 16

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

Fig. 17

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

Fig. 18

Diagram showing hand holding a device with directional arrows and a magnified inset highlighting internal components.

Fig. 19

Diagram of a cylindrical device with a valve and tubing, showing internal components and directional arrows (no text or labels)

Fig. 20

Diagram of a mechanical device with a cylindrical component and an upward arrow indicating motion (no text or symbols)

Fig. 21

Diagram illustrating a water spray system with labeled components and a 24-hour stopwatch for use.

Fig. 22

i Remarque

Diagram showing a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Fig. 23

i Remarque

Diagram showing a mechanical component being lifted by a force, with no visible text or symbols

Fig. 24

Diagram showing a hand holding a device with directional arrows and a magnified inset highlighting internal components.

Fig. 25

Simple line drawing of a device with a circular button and directional arrow (no text or symbols)

Fig. 26

Illustration of a hand using a tool to adjust or install a mechanical component, showing a shaft and housing (no text or symbols present)

Fig. 27

Line drawing of a coiled spring with scissors cutting through it (no text or symbols)

Fig. 28

Line drawing of a device with a rotary knob and handle, no text or symbols present

Fig. 29

Nettoyer l'appareil

DANGER!

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALLEMAGNE

www.kompernass.com

Inhoud

Inleiding 64

⚠ WAARSCHUWING! LETSELGEVAAR!

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Afb. 1

Diagram of a mechanical device with a cable and adjustment arrow, no text or symbols present

Afb. 2

Line drawing of a kitchen appliance with a close-up view of its side panel (no text or symbols)

Afb. 3

Diagram of a light bulb inserted into a rectangular device with internal components (no text or symbols)

Afb. 4

Line drawing of hands assembling a mechanical component with a tool (no text or symbols)

Afb. 5

Technical line drawing of a device with an inset showing a close-up of a component (no text or symbols present)

Afb. 6

BATTERY

Afb. 7

Diagram of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Afb. 8

Diagram illustrating a no-smoking mechanism with a circular sign and directional arrow indicating movement or change.

Afb. 9

Technical line drawing of a vacuum cleaner assembly with mounting bracket and vertical guide (no text or symbols)

Afb. 10

Technical line drawing of a mechanical component with an arrow indicating assembly or motion (no text or symbols)

Afb. 14

Technical line drawing of a mechanical device with a left-side inset showing a cross-sectional view of its components (no text or symbols present)

Afb. 16

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

Afb. 17

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

Afb. 18

Diagram showing hand holding a container with labeled parts and directional arrows, including a magnified inset of a container with internal symbols.

Afb. 19

Diagram of a cylindrical device with a coiled tube and directional arrows indicating flow or movement (no text or symbols)

Afb. 20

Diagram of a mechanical device with a cylindrical component and an ascending arrow, no text or symbols present

Afb. 21

Diagram illustrating a water spray system with labeled components and a 24-hour stopwatch for use.

Afb. 22

Diagram showing a mechanical component being lifted by a downward arrow, with no visible text or symbols.

Afb. 23

i Opmerking

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Afb. 24

Diagram showing hand operating a device with labeled components and an inset magnified view of the device's internal structure.

Afb. 25

Borstelrol reinigen

LET OP!

Simple line drawing of a device with a circular button and directional arrow (no text or symbols)

Afb. 26

Illustration of a hand turning a screw into a mechanical component (no text or symbols)

Afb. 27

Line drawing of a coiled spring with scissors cutting through it (no text or symbols)

Afb. 28

Line drawing of a device with a rotary knob and handle, no text or symbols present

Afb. 29

Apparaat reinigen

GEVAAR!

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

DUITSLAND

www.kompernass.com

Obsah

Úvod....84

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Obr. 1

Diagram of a vacuum cleaner's internal structure with a downward arrow indicating motion (no text or symbols present)

Obr. 2

Line drawing of a kitchen appliance with a hand operating the door (no text or symbols)

Obr. 3

Diagram of a light bulb inside a rectangular device with internal components (no text or symbols)

Obr. 4

Line drawing of hands installing or adjusting a component with a tool (no text or symbols)

Obr. 5

Technical line drawing of a device with an inset showing a close-up of a component (no text or symbols)

Obr. 6

BATTERY

Obr. 7

Diagram of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Obr. 8

Obsluha a provoz

! POZOR!

Diagram illustrating a safety or clearance mechanism with a no-smoking sign and directional arrow indicating process flow.

Obr. 9

Technical line drawing of a vacuum cleaner assembly with mounting bracket and handle (no text or symbols)

Obr. 10

Zapnutí přístroje

Technical line drawing of a mechanical component with an arrow indicating assembly or motion (no text or symbols)

Obr. 14

Technical line drawing of a mechanical device with a separate inset showing a cylindrical component (no text or symbols)

Obr. 16

Technical line drawing of a mechanical device with lever and adjustment components (no text or symbols)

Obr. 17

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

Obr. 18

Diagram showing a hand holding a container with a magnified inset illustrating the process with arrows and labels.

Obr. 19

Diagram of a cylindrical device with internal components and directional arrows, no text or symbols present

Obr. 20

Diagram of a mechanical device with a cylindrical component and an ascending arrow, no text or symbols present

Obr. 21

Diagram illustrating a water spray system with labeled components and a 24-hour stopwatch for use.

Obr. 22

i Upozornění

Diagram showing a mechanical component being lifted by a downward arrow, with no visible text or symbols.

Obr. 23

i Upozornění

Diagram showing a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Obr. 24

Diagram showing a hand holding a beverage can with directional arrows indicating flow or movement, alongside an inset image of a container with handwritten symbols.

Obr. 25

Simple line drawing of a mechanical device with a circular component and directional arrow (no text or symbols)

Obr. 26

Illustration of a hand turning a screw into a mechanical component (no text or symbols)

Obr. 27

Line drawing of a mechanical tool with coiled spring and two metal clips (no text or symbols)

Obr. 28

Line drawing of a device with a rotary knob and arrow indicating rotation (no text or symbols)

Obr. 29

Čištění přístroje

NEBEZPEČÍ!

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NĚMECKO

www.kompernass.com

Spis treści

W step 104

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Rys. 1

Diagram of a vacuum cleaner with a downward arrow indicating motion (no text or symbols present)

Rys. 2

Line drawing of a kitchen appliance with a right-hand rule for adding a component (no text or symbols)

Rys. 3

Diagram of a mechanical component with internal parts and a bulb, no text or symbols present

Rys. 4

Line drawing of hands assembling a mechanical component with a tool (no text or symbols)

Rys. 5

Technical line drawing of a mechanical component with an inset close-up showing a pin inserted into a housing (no text or symbols)

Rys. 6

BATTERY

Rys. 7

Diagram of a mechanical component with an inset showing a close-up of a connector (no text or symbols present)

Rys. 8

Diagram illustrating a mechanical device with a no-smoking symbol and a downward arrow indicating motion or change.

Rys. 9

Technical line drawing of a mechanical device with three views (no text or symbols)

Rys. 10

Diagram showing two mechanical components with an arrow indicating a process or movement (no text or symbols present)

Rys. 14

Technical line drawing of a handheld device with a left-side inset showing three cylindrical components (no text or symbols)

Rys. 16

Technical line drawing of a mechanical device with no visible text or symbols

Rys. 17

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

Rys. 18

Diagram showing hand holding a device with directional arrows and a magnified inset highlighting internal components.

Rys. 19

Diagram of a cylindrical device with internal components and directional arrows, no text or symbols present

Rys. 20

Diagram of a mechanical device with a cylindrical component and an ascending arrow, no text or symbols present

Rys. 21

Diagram illustrating a water spray system with two cups, one spraying water and the other handling a 24-hour stopwatch.

Rys. 22

Diagram showing a mechanical component being lifted by a downward arrow, with no visible text or symbols.

Rys. 23

i Wskazówka

Diagram showing a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Rys. 24

Diagram showing a hand holding a container with arrows indicating flow or movement, and an inset magnified view of a liquid surface with labeled points.

Rys. 25

Line drawing of a mechanical device with a circular button and directional arrow (no text or symbols)

Rys. 26

Illustration of a hand using a screwdriver to adjust a mechanical component (no text or symbols present)

Rys. 27

Line drawing of a coiled spring with scissors cutting through it (no text or symbols)

Rys. 28

Line drawing of a mechanical device with a rotary knob and handle (no text or symbols)

Rys. 29

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NIEMCY

www.kompernass.com

Obsah

Úvod....124

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Obr. 1

Diagram of a mechanical device with a cable and adjustment arrow, no text or symbols present

Obr. 2

Line drawing of a kitchen appliance with a hand operating the door (no text or symbols)

Obr. 3

Diagram of a light bulb inside a rectangular device with internal components (no text or symbols)

Obr. 4

Line drawing of hands assembling a mechanical component with a tool (no text or symbols)

Obr. 5

Technical line drawing of a hairbrush connector with an inset close-up showing internal components (no text or symbols)

Obr. 6

BATTERY

Obr. 7

Diagram of a mechanical component with an inset showing a close-up of a connector (no text or symbols present)

Obr. 8

Obsluha a prevádzka

! POZOR!

Diagram illustrating a foot traffic stopper mechanism with no stopper and directional arrow indicating motion

Obr. 9

Technical line drawing of a mechanical device with three views (no text or symbols)

Obr. 10

Zapnutie prístroja

Technical diagram of a mechanical clamp or connector with numbered parts and directional arrows indicating assembly or movement.

Obr. 11

Podlahová kefa

Technical line drawing of a mechanical component with an arrow indicating assembly or motion (no text or symbols)

Obr. 14

Technical line drawing of a handheld device with a separate inset showing a mechanical component (no text or symbols)

Obr. 16

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

Obr. 17

Vysávač nasad'te do držiaka na sten ^18 . Proces nabíjania spustite, ked' akumulátor má ešte malé zvyškové nabitie

Čistenie

VÝSTRAHA!

Diagram of a mechanical device pouring liquid into a container (no text or symbols)

Obr. 18

Diagram showing hand holding a device with labeled parts and directional arrows, including a magnified inset showing a droplet on a surface.

Obr. 19

Diagram of a cylindrical device with internal components and directional arrows, no text or symbols present

Obr. 20

Diagram of a mechanical device with a cylindrical component and an ascending arrow, no text or symbols present

Obr. 21

Diagram illustrating a water spray system with two cups, one spraying and the other emitting a 24-hour stopwatch.

Obr. 22

i Upozornenie

▶ Pri čistení filtra z ušl'achtilej ocele ⑥ dbajte na to, aby sa nestratila gumová objímka na spodnom otvore.

Diagram showing a mechanical component being lifted by an arrow, with no visible text or symbols.

Obr. 23

i Upozornenie

Diagram showing a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Obr. 24

Diagram showing a hand holding a device with a magnified inset highlighting a component with markings 'B' and 'q'.

Obr. 25

Line drawing of a mechanical device with a rotary knob and curved arrow indicating rotation (no text or symbols)

Obr. 26

Illustration of a hand inserting a screw into a mechanical component (no text or symbols)

Obr. 27

Line drawing of a coiled spring with scissors cutting through it (no text or symbols)

Obr. 28

Line drawing of a mechanical device with a rotary knob and handle (no text or symbols)

Obr. 29

Čistenie prístroja

⚠️ NEBEZPEČENSTVO!

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

NEMECKO

www.kompernass.com

Índice

Introducción....144

Uso previsto 144

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Fig. 1

Diagram of a mechanical device with a connector and a downward arrow indicating motion (no text or symbols)

Fig. 2

Line drawing of a kitchen appliance with a close-up view of its side panel (no text or symbols)

Fig. 3

Diagram of a mechanical switch or connector assembly with internal components and an arrow indicating direction (no text or symbols)

Fig. 4

Diagram of a light bulb connector with internal components and an arrow indicating direction (no text or symbols)

Fig. 5

Technical line drawing of a handheld device with an inset close-up showing internal components (no text or symbols)

Fig. 6

BATTERY

Fig. 7

Diagram of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Fig. 8

Diagram illustrating a device with a prohibition symbol and a right-hand rule for lifting a device, showing mechanical components and motion direction.

Fig. 9

Technical line drawing of a vacuum cleaner assembly with mounting bracket and handle (no text or symbols)

Fig. 10

Technical diagram showing a mechanical assembly with labeled parts 1 and 2, likely illustrating a tool or component assembly.

Fig. 11

Cepillo para suelos

Technical line drawing of a mechanical component with an arrow indicating assembly or adjustment (no text or symbols present)

Fig. 14

Technical line drawing of a mechanical device with a separate inset showing a cylindrical component (no text or symbols)

Fig. 16

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

Fig. 17

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

Fig. 18

Diagram showing hand operating a device with labeled components and directional arrows, including a magnified inset of the component.

Fig. 19

Diagram of a cylindrical device with internal components and directional arrows, no text or symbols present

Fig. 20

Diagram of a mechanical device with a cylindrical component and an ascending arrow, no text or symbols present

Fig. 21

Diagram illustrating a water spray system with labeled components and a 24-hour stopwatch.

Fig. 22

i Indicación

Diagram showing a mechanical component being lowered into a cylindrical housing, with an arrow indicating the process (no text or symbols present)

Fig. 23

i Indicación

Diagram showing a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Fig. 24

Diagram showing a hand holding a water can with directional arrows indicating flow or movement, and an inset magnified view of the water can with labeled arrows.

Fig. 25

Line drawing of a mechanical device with a circular button and directional arrow (no text or symbols)

Fig. 26

Illustration of a hand turning a screw into a mechanical component (no text or symbols)

Fig. 27

Line drawing of a mechanical tool with coiled spring and cutting edge (no text or symbols)

Fig. 28

Line drawing of a device with a rotary knob and arrow indicating rotation (no text or symbols)

Fig. 29

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

ALEMANIA

www.kompernass.com

Indholdsfortegnelse

Indledning....164

Anvendelsesområde 164

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Fig. 1

Diagram of a vacuum cleaner's internal structure with a downward arrow indicating motion (no text or symbols present)

Fig. 2

Line drawing of a blender and a vacuum cleaner (no text or symbols)

Fig. 3

Diagram of a plug inserted into a socket with a bulb, showing internal components and wiring (no text or labels)

Fig. 4

Line drawing of hands assembling a mechanical component with a tool (no text or symbols)

Fig. 5

Technical line drawing of a device with an inset showing a close-up of a component (no text or symbols)

Fig. 6

BATTERY

Fig. 7

Diagram of a mechanical component with an inset close-up showing internal structure (no text or symbols)

Fig. 8

Diagram showing a no-smoking device with a circular symbol and an arrow indicating motion or change, alongside a mechanical device.

Fig. 9

Technical line drawing of a vacuum cleaner with three mounting brackets and a vertical support (no text or symbols)

Fig. 10

Technical line drawing of a mechanical component with an arrow indicating assembly or motion (no text or symbols)

Fig. 14

Technical line drawing of a mechanical device with a separate inset showing a cylindrical component (no text or symbols)

Fig. 16

Technical line drawing of a mechanical device with multiple ports and a central shaft (no text or symbols)

Fig. 17

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

Fig. 18

Diagram showing hand operating a device with labeled buttons and directional arrows, including a magnified inset showing a circular diagram with symbols.

Fig. 19

Diagram of a cylindrical device with internal components and directional arrows, no text or symbols present

Fig. 20

Diagram of a mechanical device with a cylindrical component and an ascending arrow, no text or symbols present

Fig. 21

Diagram illustrating a water spray system with labeled components and a 24-hour stopwatch.

Fig. 22

i Bemærk

Diagram showing a mechanical device with a spool and a cylindrical container, both with a downward arrow indicating a process or transformation (no text or symbols present)

Fig. 23

i Bemærk

Diagram showing a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

Fig. 24

Diagram showing hand holding a device with directional arrows and a magnified inset highlighting internal components.

Fig. 25

Line drawing of a mechanical device with a rotary knob and curved arrow indicating rotation (no text or symbols)

Fig. 26

Illustration of a hand using a screwdriver to adjust a mechanical component (no text or symbols present)

Fig. 27

Line drawing of a mechanical tool with coiled spring and cutting edge (no text or symbols)

Fig. 28

Line drawing of a device with a rotary knob and handle, no text or symbols present

Fig. 29

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

TYSKLAND

www.kompernass.com

Contents

Introduzione....182

Uso conforme 182

Diagram showing two mechanical components with an arrow indicating direction (no text or symbols)

Fig. 1

Diagram of a mechanical device with a cable and adjustment arrow, no text or symbols present

Fig. 2

Line drawing of a kitchen appliance with a close-up view of its side panel (no text or symbols)

Fig. 3

Diagram of a mechanical component with internal parts and a cable, no text or symbols present

Fig. 4

Line drawing of hands assembling a mechanical component with a tool (no text or symbols)

Fig. 5

Technical line drawing of a mechanical component with an inset close-up showing a connector detail (no text or symbols)

Fig. 6

BATTERY

Fig. 7

Diagram of a mechanical component with an inset showing a close-up view of a connector (no text or symbols present)

Fig. 8

Diagram illustrating a no-smoking device with a circular symbol and an arrow indicating downward motion.

Fig. 9

Technical line drawing of a mechanical device with three views (no text or symbols)

Fig. 10

Technical line drawing of a mechanical component with an arrow indicating assembly or motion (no text or symbols)

Fig. 14

Technical line drawing of a handheld device with a separate inset showing internal components (no text or symbols)

Fig. 16

Technical line drawing of a mechanical device with no visible text or symbols

Fig. 17

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

Fig. 18

Diagram showing hand holding a container with labeled parts and directional arrows, including a magnified inset of a container with internal symbols.

Fig. 19

Diagram of a cylindrical device with internal components and directional arrows, no text or symbols present

Fig. 20

Diagram of a mechanical device with a cylindrical component and an ascending arrow, no text or symbols present

Fig. 21

Diagram illustrating a water spray system with two cups, one spraying water and the other handling a 24-hour stopwatch.

Fig. 22

i Nota

Diagram showing a mechanical device with a downward arrow indicating a process or transformation (no text or symbols present)

Fig. 23

i Nota

Diagram showing a cylindrical device with a downward arrow indicating a process or transformation (no text or symbols present)

Fig. 24

Diagram showing hand holding a device with a magnified inset highlighting a component with handwritten symbols and arrows indicating motion or movement.

Fig. 25

Line drawing of a mechanical device with a rotary knob and curved arrow indicating rotation (no text or symbols)

Fig. 26

Illustration of a hand using a screwdriver to adjust a mechanical component (no text or symbols present)

Fig. 27

Line drawing of a coiled spring with scissors cutting through it (no text or symbols)

Fig. 28

Line drawing of a device with a rotary knob and arrow indicating rotation (no text or symbols)

Fig. 29

QR code image containing encoded data, no visible human-readable text

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANIA

www.kompernass.com

Tartalomjegyzék

Bevezető 202

Diagram showing two mechanical components with an arrow indicating a process or transformation (no text or symbols present)

1. ábra

Diagram of a mechanical device with a cable and adjustment arrow, no text or symbols present

1. ábra

Line drawing of a kitchen appliance with a close-up view of its side panel (no text or symbols)

1. ábra

Diagram of a light bulb connector with internal components, no text or symbols present

1. ábra

Line drawing of hands assembling a mechanical component with a tool (no text or symbols)

1. ábra

Technical line drawing of a mechanical device with an inset showing a close-up of a component (no text or symbols)

1. ábra

BATTERY

1. ábra

Diagram of a mechanical component with an inset close-up showing internal structure (no text or symbols)

1. ábra

Diagram illustrating a device with no stop sign and directional arrow indicating motion or change

1. ábra

Technical line drawing of a vacuum cleaner assembly with mounting bracket and handle (no text or symbols)

1. ábra

Technical line drawing showing a mechanical component being inserted into a cylindrical device (no text or symbols present)

1. ábra

Technical line drawing of a handheld device with a separate inset showing internal components (no text or symbols)

1. ábra

Technical line drawing of a mechanical device with a vertical support and internal components (no text or symbols)

1. ábra

Diagram of a mechanical device pouring granular material into a container (no text or symbols)

1. ábra

Diagram showing hand holding a device with labeled parts and directional arrows, including a magnified inset showing measurement or alignment.

1. ábra

Diagram of a cylindrical device with internal components and directional arrows, no visible text or symbols

1. ábra

Diagram of a mechanical device with a cylindrical component and a base, showing an upward arrow (no text or symbols present)

1. ábra

Diagram illustrating a water spray system with labeled components and a 24-hour stopwatch.

1. ábra

iTudnivaló

Diagram showing a mechanical component with a downward arrow indicating a process or transformation (no text or symbols present)

1. ábra

i Tudnivaló

Diagram showing a cylindrical filter being inserted into a mechanical component, with an arrow indicating the process (no text or symbols present)

1. ábra

Diagram showing a hand holding a container with directional arrows and a magnified inset highlighting a device component with 'B' and 'q' labels.

1. ábra

Line drawing of a mechanical device with a circular button and directional arrow (no text or symbols)

1. ábra

Illustration of a hand inserting a screw into a mechanical component (no text or symbols)

1. ábra

Line drawing of a coiled spring with scissors cutting through it (no text or symbols)

1. ábra

Line drawing of a mechanical device with a rotary knob and handle, no text or symbols present

1. ábra

QR code image containing encoded data, no visible human-readable text

FR © Document Recycle Bin

KOMPERNASS HANDELS GMBH

BURGSTRASSE 21

44867 BOCHUM

GERMANY

www.kompernass.com

Last Information Update · Stand der Informationen · Version des informations

Stand van de informatie · Stav informací · Stan informacji · Stav informácií

Estado de las informaciones · Tilstand af information · Versione delle informazioni
