USER MANUAL 67520 Lund
FR CHAUFFE-SANDWITCH
IT TOSTIERA
Read the operating instruction
Safe contact with food
Caution! Hot surface.
Attention! Surface chaude.

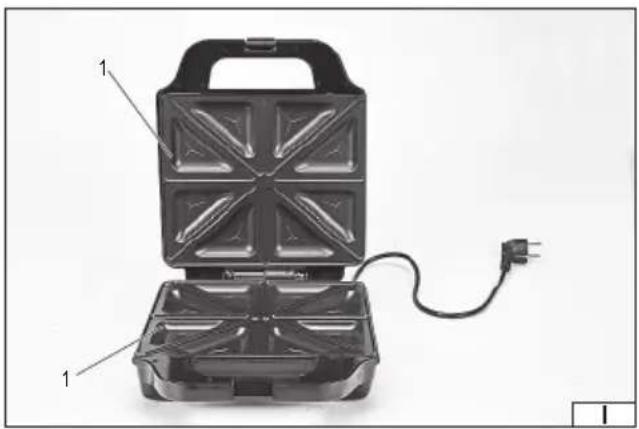

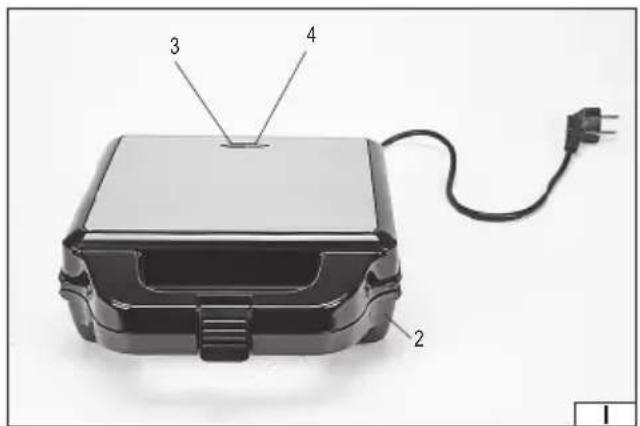

- cooking plate
- base
- power indicator light
- ready indicator light
DE
This symbol indicates that waste electrical and electronic equipment (including batteries and storage cells) cannot be disposed of with other types of waste. Waste equipment should be collected and handed over separately to a collection point for recycling and recovery, in order to reduce the amount of waste and the use of natural resources. Uncontrolled release of hazardous components contained in electrical and electronic equipment may pose a risk to human health and have adverse effects for the environment. The household plays an important role in contributing to reuse and recovery, including recycling of waste equipment. For more information about the appropriate recycling methods, contact your local authority or retailer.
APPLIANCE CHARACTERISTICS
The electric grill is an appliance designed for heating, cooking and preparing dishes requiring heat processing. The appliance is not intended for commercial use. Proper, reliable and safe operation of the appliance depends on appropriate use, that is why you should
Read and keep the entire manual before the first use of the appliance.
The supplier shall not be held liable for any damage or injury resulting from improper use of the appliance or failure to observe the safety regulations and recommendations of this manual. Use of the appliance for purposes other than those for which it was intended shall cause the loss of the user's rights to the guarantee and also under warranty.
ACCESSORIES
The appliance is supplied complete and does not require assembly. However, before using the appliance, remove all packaging and transport protection elements. Preparatory activities described later in this manual are also required.
GENERAL INSTRUCTIONS FOR USE
The appliance has been designed for home use and is not allowed to be used in commercial applications, e.g. in catering facilities.
The appliance is intended for indoor use only. Do not expose the appliance to rain or other precipitation.
The appliance can be used only for heat processing of food placed directly on the cooktop. It is forbidden to use the appliance in any other way, for example as a heater for the products inside a dish.
It is forbidden to repair, disassemble or modify the appliance on one's own. All repairs to the appliance must be carried out by an authorised service centre.
The appliance must be kept under supervision at all times during operation.
WARNING! During operation, the appliance heats up to high temperature, do not touch the cooktop and the walls of the appliance during operation, as this may cause severe burns.
The appliance is not intended for use by children under at least 8 years of age and by persons with reduced physical and/or mental abilities and by persons without experience in or understanding of the operation of the appliance. Unless they will be supervised or instructed to use the appliance safely, in a manner ensuring that the risks involved are understood.
Children should not play with the appliance. Unattended children should not be allowed to perform the cleaning and maintenance of the appliance.
Recommendations concerning transport and installation of the appliance
The appliance may only be placed on a hard, flat, level and non-flammable surface. The surface should be able to withstand the weight of the appliance itself and of the food placed on it. Ensure that there is a minimum distance of 10 cm around the side walls of the appliance, and do not place non-high temperature resistant materials above the appliance. This will allow for the proper ventilation of the appliance. Do not place near edges of, e.g., a table. Do not place the appliance near flammable materials, e.g. curtains or drapes.
Do not place any electrical equipment above the appliance. During operation, water vapour is released, which can cause a short circuit in the electrical system and lead to electric shock. It is forbidden to drill any holes in the product, as well as making any other modifications of
EN
the appliance not described in the manual.
Move the appliance only when cooled, grasping the housing. Do not move the appliance by pulling on the power cord.
The temperature at the place of installation and use of the appliance must be within the range of +10 °C ÷ +38 °C, and the relative humidity must be below 90% without condensation.
Recommendations for connecting the appliance to the power supply
Before connecting the appliance to the power supply, make sure that the voltage, frequency and performance of the power supply corresponds to the values shown on the appliance's rating plate. The plug must fit into the outlet. It is forbidden to modify the plug in any way.
The appliance must be connected directly to a single power supply socket. It is forbidden to use extension cords, adapters or double sockets. The power supply circuit must be fitted with a protective conductor and at least a 16 A protective device.
Avoid contact of the power cord with sharp edges, hot objects or surfaces. During operation, the power cord must always be fully extended and the position of the power cord must be set so that it does not become an obstacle during operation. The power cord shall not be placed a manner that would pose a risk of tripping. The power supply socket should be located in a place where it is always possible to quickly remove the appliance power cord plug. Always pull the power cord by the plug housing when unplugging it, never by the cord.
If the power cord or the plug are damaged, immediately disconnect it from the power supply and contact an authorised service centre of the manufacturer for replacement. Do not use the appliance with a damaged power cord or plug. The power cord or plug cannot be repaired and must be replaced with a new one that is free of defects if these components are damaged. Replacement of the power cord and plug must be carried out by an authorised service centre of the manufacturer.
Instructions for the use of the appliance
WARNING! The cooktop surface can be hot after use. Do not touch it, as it may cause severe burns. Allow the cooktop to cool down.
When preparing dishes which may spread hot food fragments, personal protective equipment should be worn to protect from burns.
Make sure that the floor near the appliance is not slippery. This will prevent slipping, which can cause serious injuries.
Observe the food at all times and prevent it from burning during its preparation. Food left unattended can burn, which can cause fire and serious burns.
When preparing dishes, touch the cooktop surface only with utensils made of wood or plastic. The utensils should be able to withstand the temperature generated by the cooktop. It is forbidden to remove and distribute food using hands.
If any food is left on the cooktop during or after preparation, remove the food remains before preparing another dish. Food remains can be burned, causing smoke, unpleasant smell, and affect the taste of the prepared food. They may also be the cause of fire. Use utensils made of wood or plastic able withstand the temperature generated by the cooktop. Do not use sharp or metal utensils. Such utensils can damage the cooktop surface.
EN
If the preparation of a dish requires the use of oil, spread it on the surface of the cooktop with a soft brush. The appliance is not used for preparing dishes by deep-frying.
APPLIANCE OPERATION
Installation, start-up and operation of the appliance
The appliance must be unpacked and all parts of the packaging completely removed. It is recommended to keep the packaging, as it can be helpful for further transport and storage of the appliance.
Prepare the appliance according to the instructions specified in the "Product Maintenance" section.
The appliance allows to toast up to 4 toast prepared from toasting bread in the most popular size.

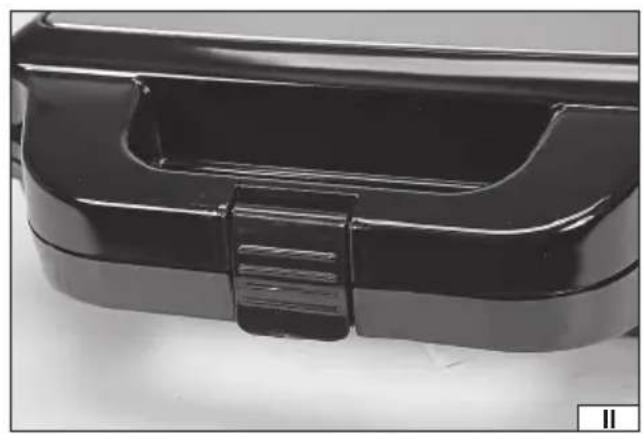

Warm up the cooking plates before toasting. To do this, close the sandwich maker lid and secure it with the latch (II). Plug the power cord plug into the socket. The power indicator light will light up and the cooking plates will start to heat up. The end of the heating process will be indicated by the ready indicator light. Carefully lift the lid and place 1 to 4 toasts on the cooking plate. Do not place the toast on top of each other, spread them on the surface of the plate. Close the lid and secure it with the latch. The ready indicator light goes out and toasting starts. When the toasting is finished, the ready indicator light will light up again. Lift the lid carefully and remove the toasts from the cooking plate.
Depending on the number of toasts placed on the cooking plate, the toasting time will vary. The more toasts the longer the toasting time. The appliance can be switched off at any time by unplugging the power cord plug from the socket. Do not leave the appliance unattended during operation. When the indicator light lights up, the appliance will not switch off automatically and will start to heat up again after a while. Leaving the appliance unattended with toasts between the cooking plates can lead to fire.
WARNING! Special care should be taken when opening the heated lid. Use gloves which protect against high temperatures.
The cooktop heats up to a high temperature, contact with unprotected body can lead to serious burns. When preparing food, care should be taken not to touch the cooktop, and the cooked food should check using appropriate utensils, e.g. pliers or paddles made of plastic or wood.
When selecting utensils, it is important to take into account whether they can withstand the temperature generated by the cooktop. Do not use metal utensils or utensils with sharp edges. Such utensils can damage the cooktop surface.
Appliance maintenance
CAUTION! All maintenance must be carried out with the appliance switched off. To do this, unplug the power cord from the socket.
The appliance is used to prepare food placed directly on the cooktop, therefore care must be taken to maintain proper hygiene so that the preparation of food is safe.
The cooktop can be protected with a preservative agent for transport and storage. Before first use, after cleaning, heat the cooktop to its maximum temperature and allow all residues of the preservative agent to evaporate. The evaporating preservative agent can cause smoke, which is a normal phenomenon. Therefore, evaporation should be carried out in a place with efficient ventilation. Do not inhale the vapours of the preservative agent.
After the evaporation is finished and the smoke stops flowing, disconnect the appliance from the power supply, wait until the cooktop cools down completely and clean it again with a cleaning agent. Only then can the cooktop be used for food preparation.
Clean the cooktop and other parts of the appliance with a cloth soaked in a water solution of a mild dishwashing detergent. Remove any residues of the solution with a cloth soaked in water. After cleaning, wipe the appliance dry. The cooktop should be cleaned after each use, once it cooled down completely. Clean any food residue remaining on the cooktop to prevent it from burning when used again, and to prevent the machine's performance from being impaired.
Do not use solvents, caustics, alcohol, petrol or abrasives for cleaning.
Clean the ventilation openings with a vacuum cleaner.
Caution! Never immerse the appliance in water or any other liquid.
The drip trays should be removed from the unit and cleaned with dishwashing liquid under running water or in a dishwasher.
If the appliance has removable cooking plates, they must be removed and cleaned with a dishwashing liquid under running water stream. Do not use abrasive cleaning agents to clean cooking plates. Do not wash the cooking plates in a dishwasher or with a high-pressure water jet.
Appliance storage
If the appliance will not be used for an extended period of time, disconnect it from the power supply.
During storage, keep the appliance indoors, and make sure it is not exposed to dust, dirt, or moisture. It is recommended to store the appliance in its original packaging.
Store the appliance in working position. Do not stack products in layers. Do not place anything on the product during storage.
SPECIFICATION
| Parameter Units Value | ||
| Catalogue No. 67520 | ||
| Rated voltage [V~] 220 – 240 | ||
| Rated frequency [Hz] 50 / 60 | ||
| Rated power [W] 1400 | ||
| Protection class I | ||
| Cooktop size [mm] 250 x 210 | ||
| Net weight [kg] 1,7 |
