Important assembling suggestions:

1.) Before starting, please read our assembling instructions carefully and make yourself familiar with them.
2.) Follow our assembling instructions carefully.
3.) Compare the listed parts and fitting list to the contents of the cardboard.
4.) Prepare the necessary tools for assembling and make sure that the tools are in proper condition. Bad tools lead in some way to difficulties during the assembling.
5.) To make sure that the furniture will not be damaged or grated during assembling, prepare an adequate area and cover the floor with the cardboards or another soft pad (i.e. cloth or carpet).
6.) We recommend operating always with two or more people.
7.) Do not overwind screws. Check the screws from time to time and if necessary retight them.
8.) Keep the instruction and service sheets. Perhaps you will need them later on.

Maintenance advice:

For wooden furniture consisting of glass and steel or MDF and coated surface:

Wooden Furniture: Stains can be taken off with a soft, moistened cloth or by using a special polish (available in supermarket and specialized stores). But do not forget to wipe the surface with a dry and soft cloth afterwards.

Steel furniture:

The metal has a varnished surface. The material could show little discrepancies in colour, clouds or stains due to the machine mode production which should not be a reason for a complaint.

If some metal parts have been twisted out of shape during transport, you could carefully try to twist them into the original position. Please do not overwind the screws and retight them from time to time.

MDF and coated surfaces:

MDF consists of wooden fibres (please read the a.m. instructions). Do not work on the coated surfaces with knives or sharp objects, as this could cause damage the material.

That should not be a reason for complaints afterwards.

Due to machine mode production, the MDF parts can have sharp edges. You could chamfer them with a fine standard sand paper. Please do it carefully in order to make sure that you will not remove too much of the material.

Warning:

Carrying out the assembly is for adults only. Please, keep your children away during assembling. Children might take small parts or fittings away or swallow them up. During assembling it could also happen that parts of your furniture fall down on your children. Please, therefore, protect them and make sure that you carry out the assembling in their absence.

If your piece of furniture consists of glass, it should be handled carefully during assembling. Glass can break at any time and cause injuries. Therefore, you should protect your eyes and hands by wearing special clothing and safety shoes, available in the supermarkets and specialized stores.

We are not liable for any material damage or injuries resulting from faulty assembling. We are also not liable for any damage resultant from lack of maintenance during use. (i.e. retightening of screws, and etc...). We are not liable for any damage caused by faulty use or use against its purpose.

We wish you a lot of joy and pleasure with your new piece of furniture.

Your Quality Assurance Team by Inter Link SAS

Warning

Do not move your piece of furniture if loaded. Doing so, your piece of furniture could become instable, collapse, tip over, and/or cause serious injuries.

Risk of breaking glass. If your piece of furniture consists of glass handle it carefully during assembling. Use eye and hand protection. Improper handling can result in cuts or lacerations.

NIEDERLÄNDISCH

01 2x W W W W W W W 11 A L I 13 A L I 15 10x A L I 12 A L I

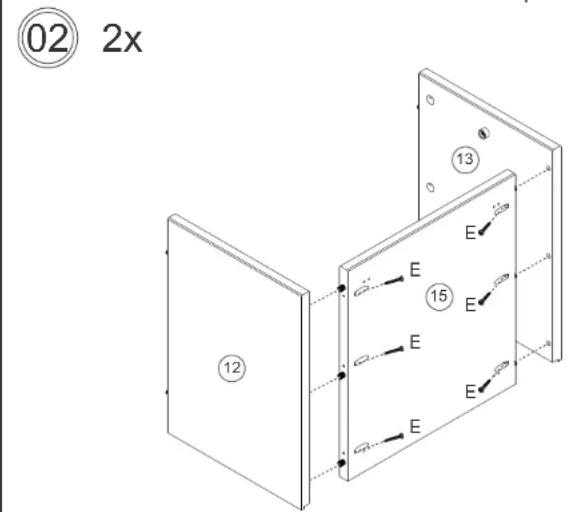

02 2x 13 E E E E E E E 15 12

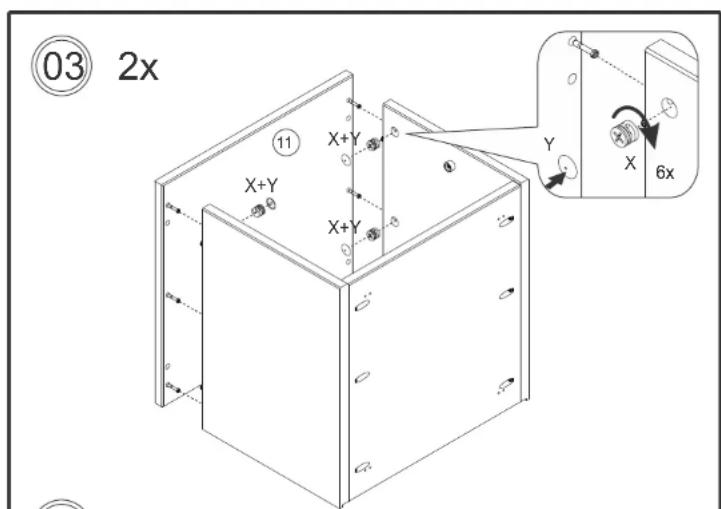

03 2x 11 X+Y X+Y X+Y Y X 6x

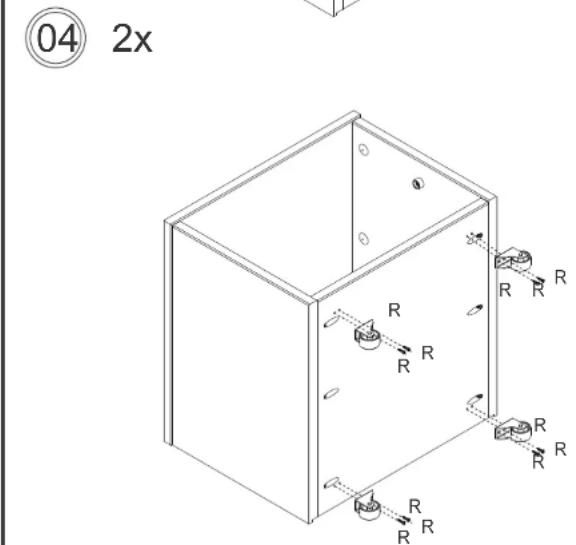

04 2x R R R R R R R R R R

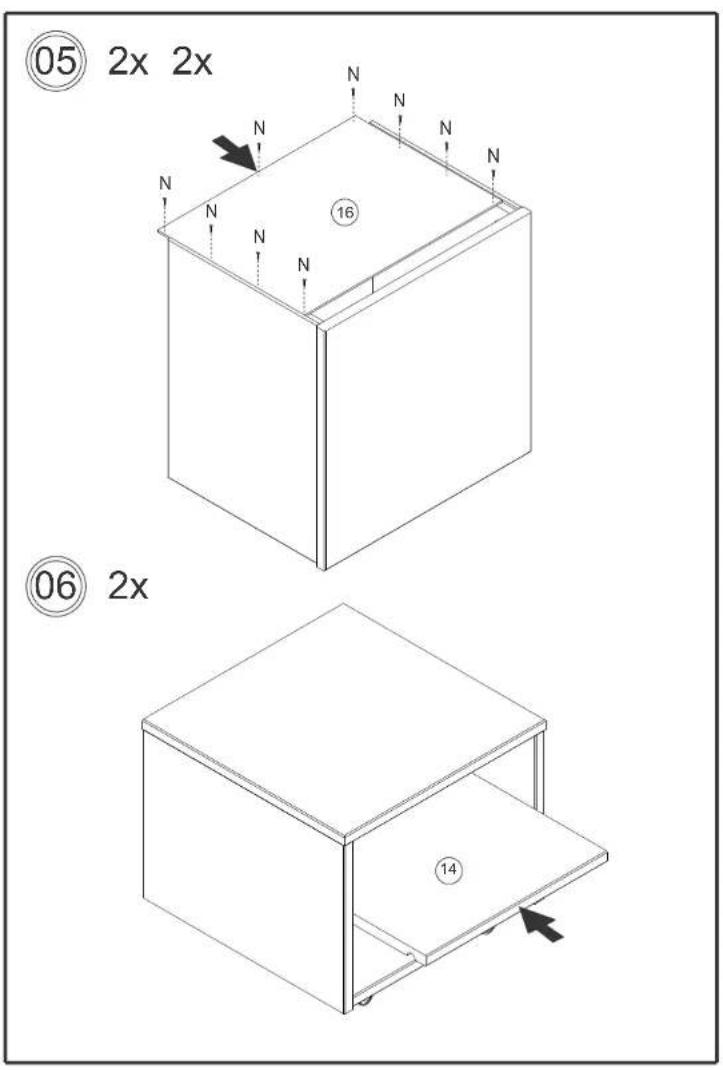

07

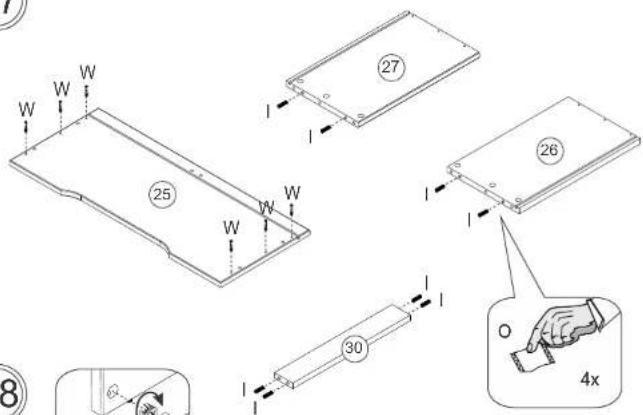

W W W 25 W W 27 26 30 4x

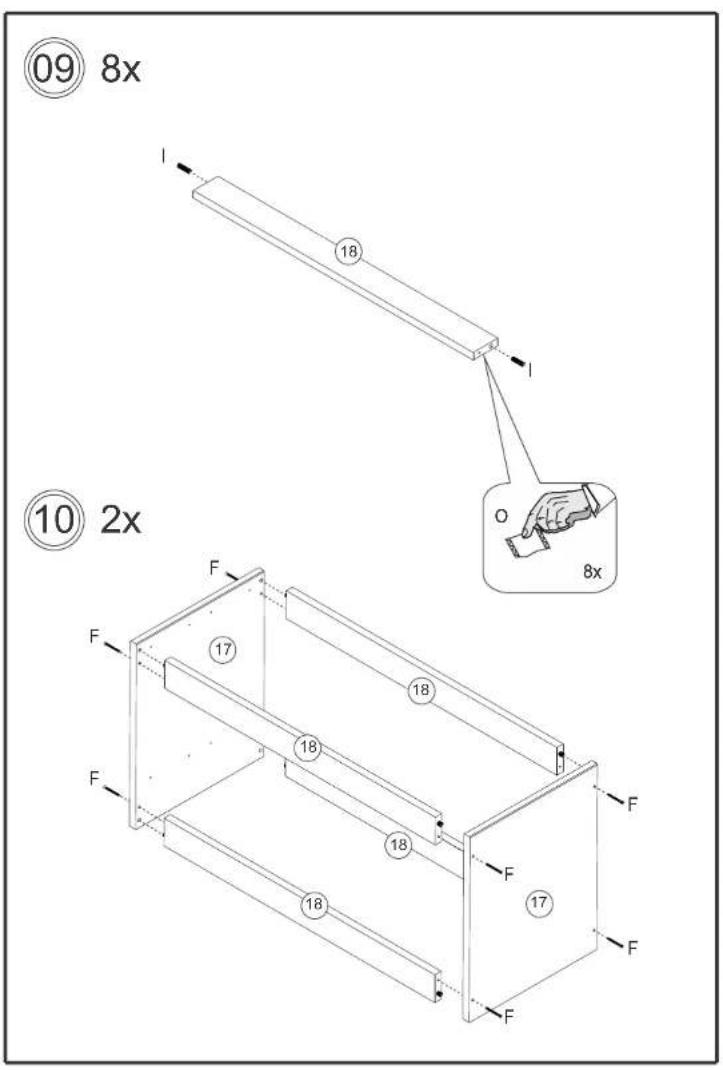

08

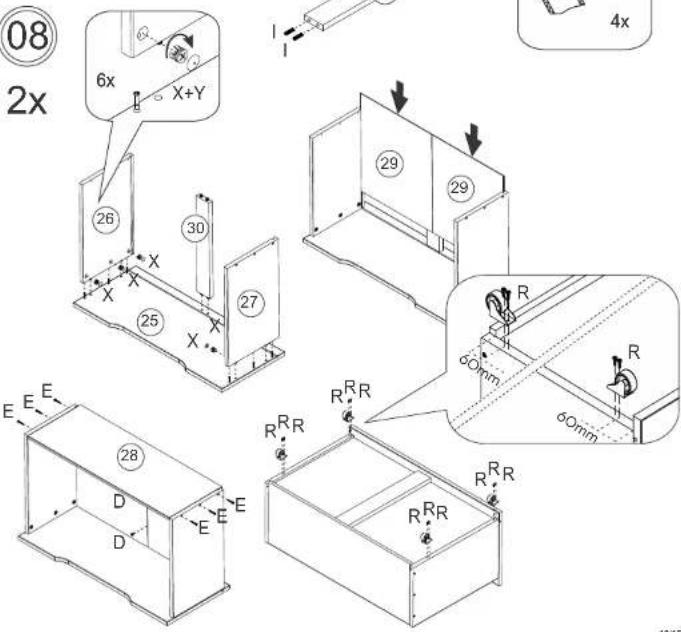

08 2x 6x X+Y 26 30 25 27 E E E 28 D E D R R R R R R 4x 60mm 60mm R R R R R R

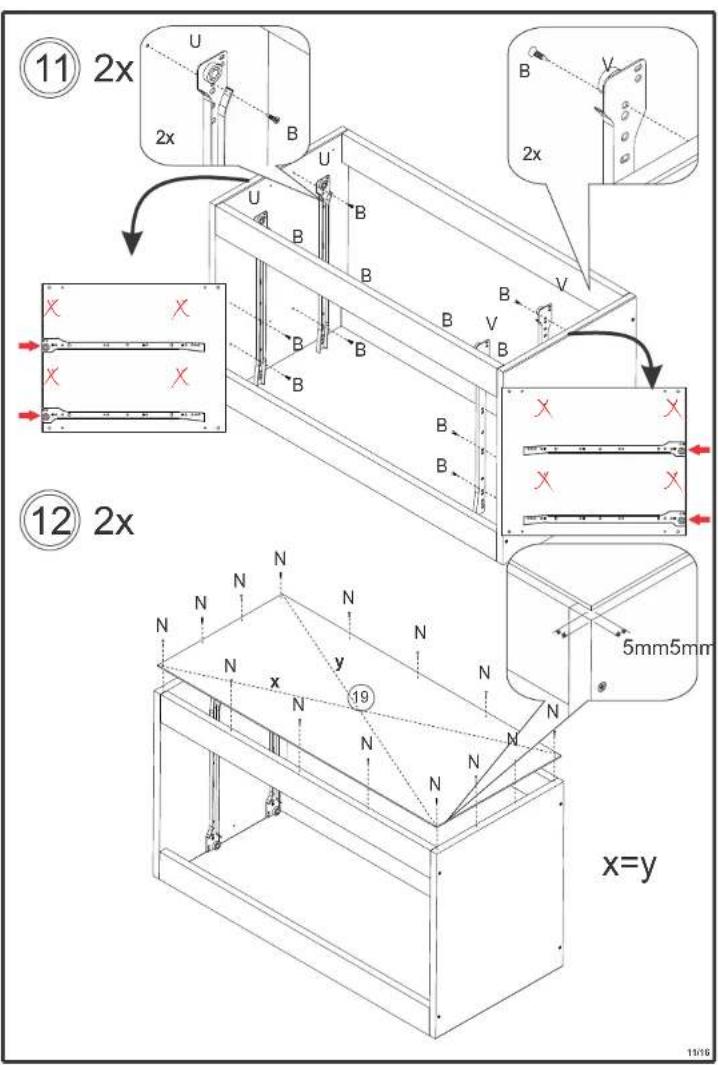

10/16

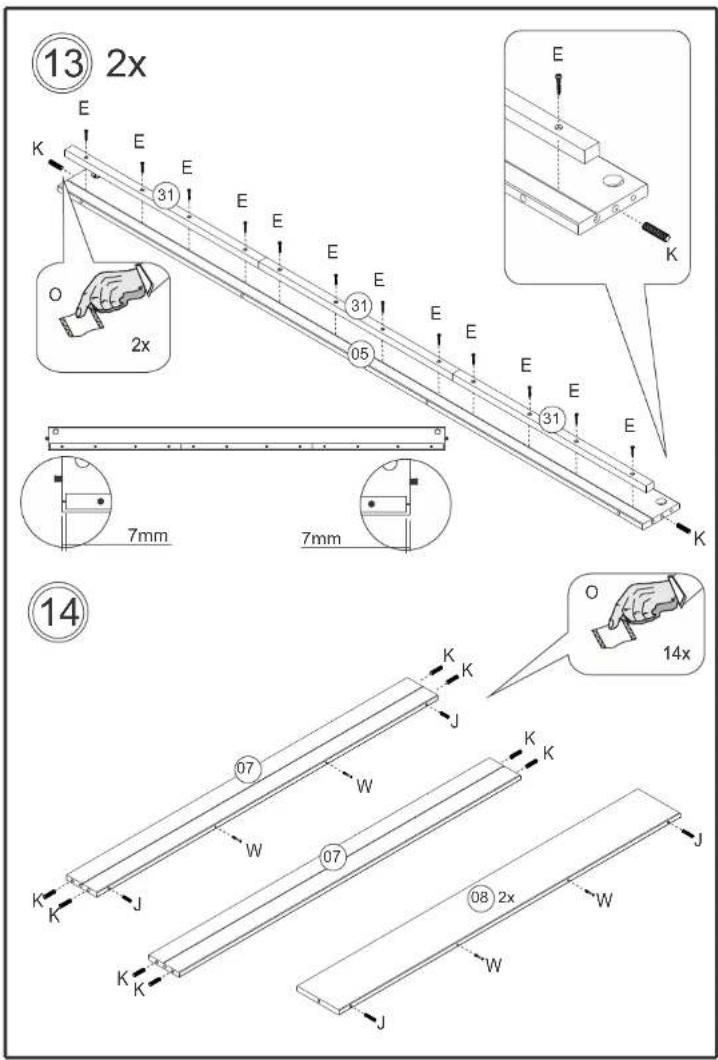

⑬ 2x E K 31 E E E E 31 05 E E E 31 E E K 2x 7mm 7mm ⑭ O 14x K K J W K K 07 07 08 2x W J K K W J

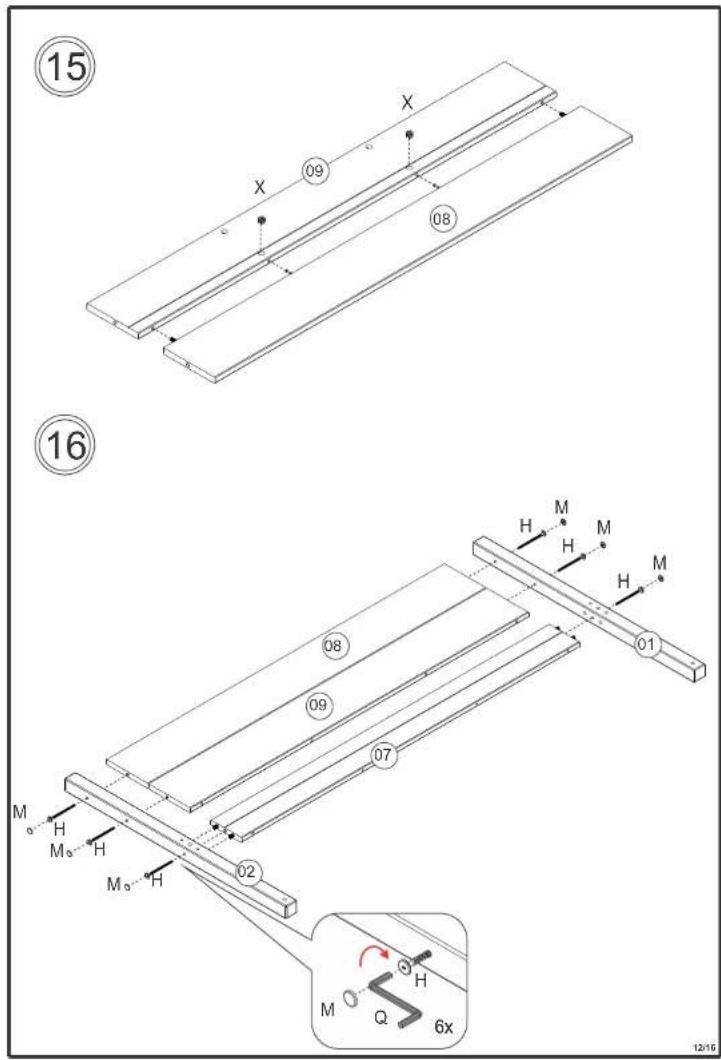

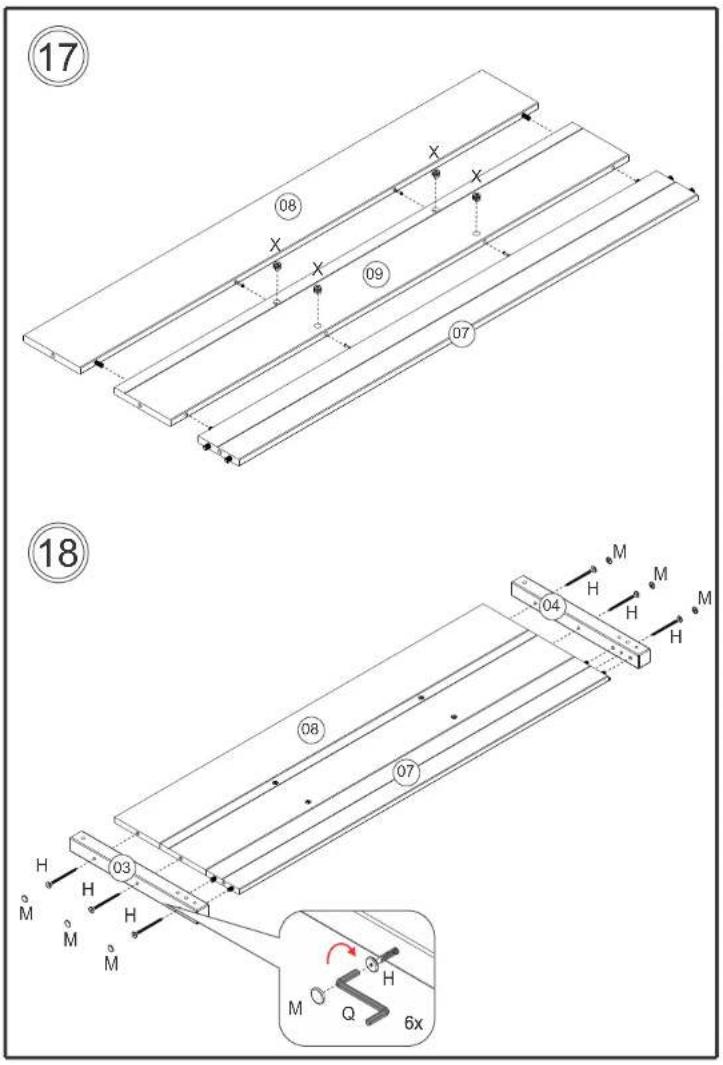

15 X 09 08 16 M H M₀ H M₀ H 02 07 08 09 H M H M H 01 M Q H 6x 12/16

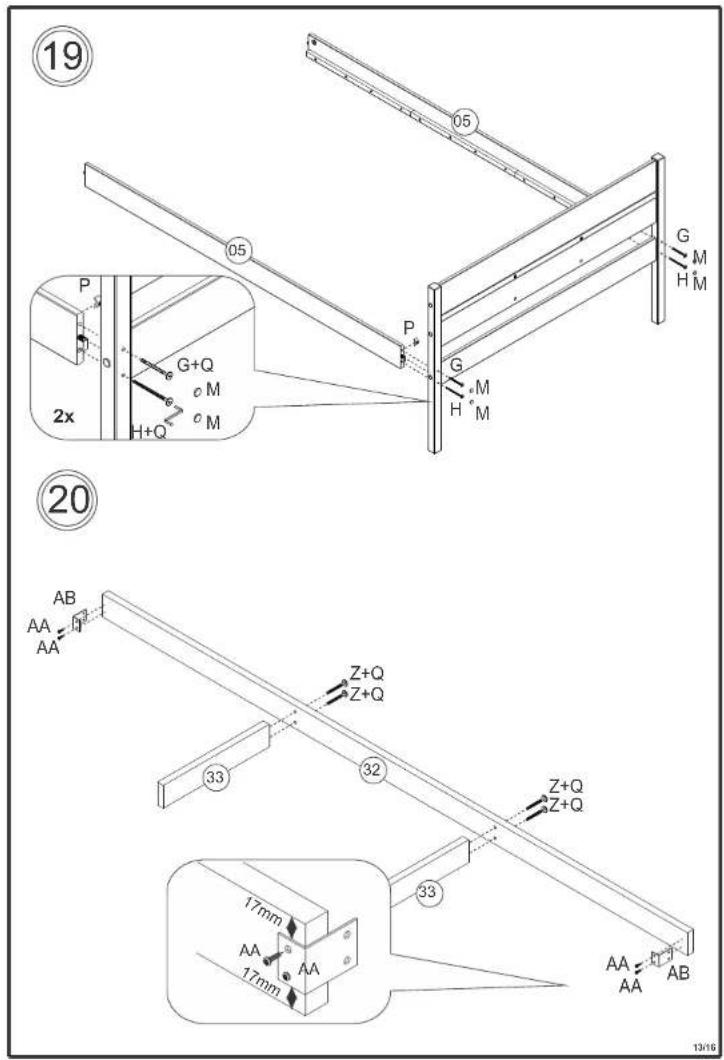

21 32 P G+Q M H+Q 2x P G M H M 22 260X200 x=766mm y=766mm AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA AA

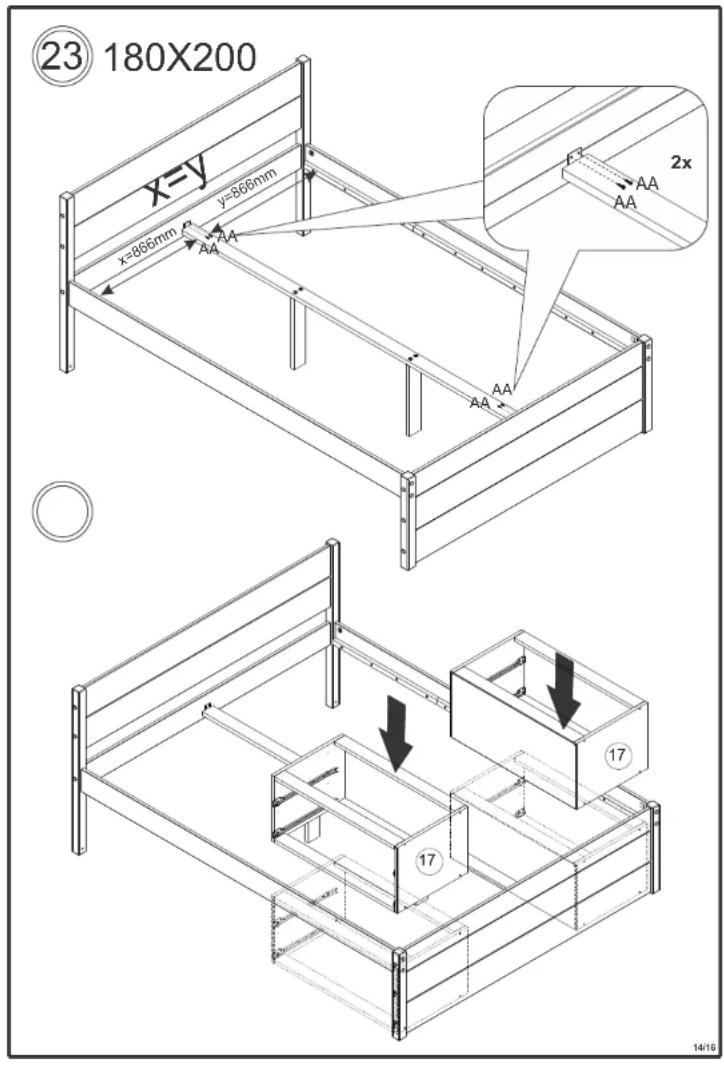

23 180X200 x=y x=866mm y=866mm AA AA AA 2x AA AA 17 14/16

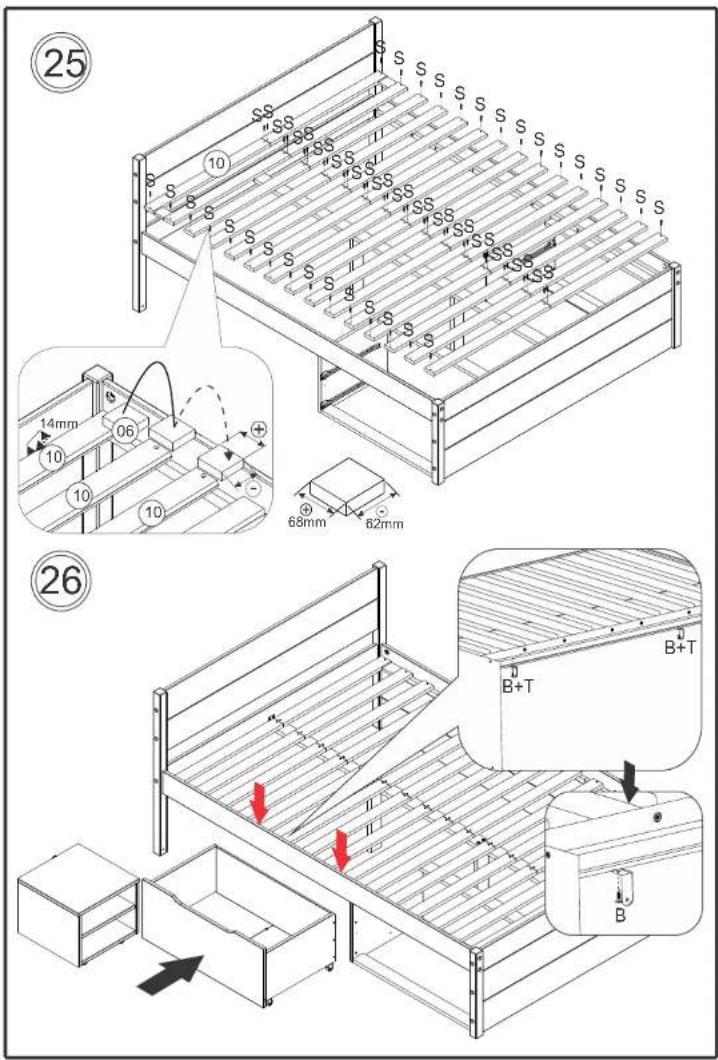

25 10 S S S S S S S S S 14mm 06 10 10 68mm 62mm 26 B+T B B

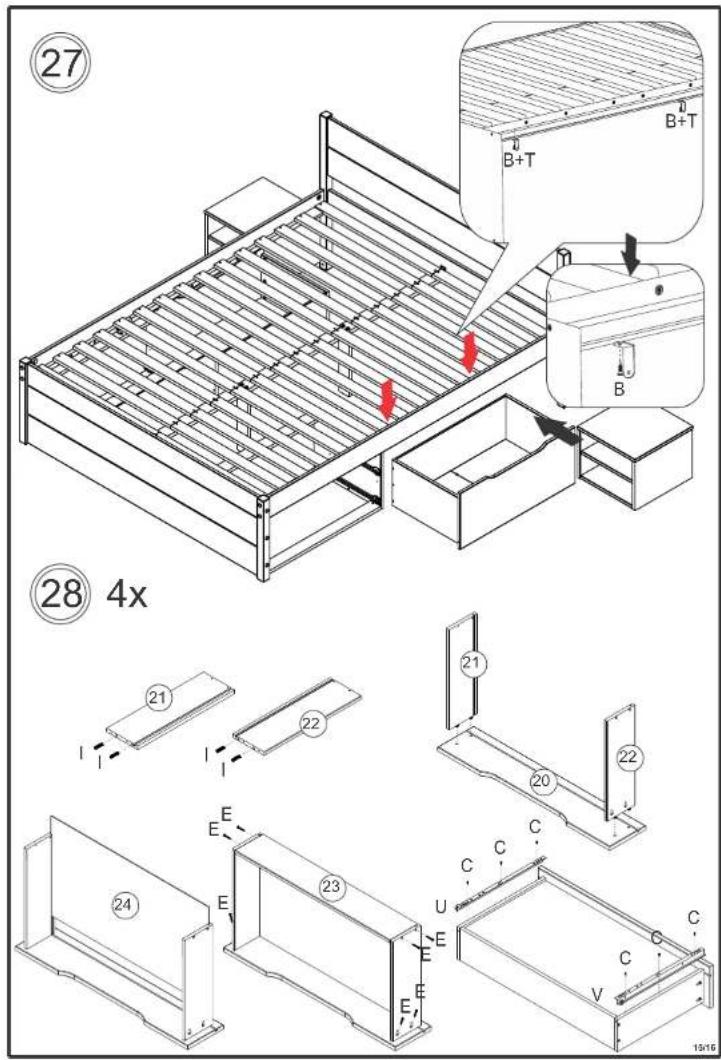

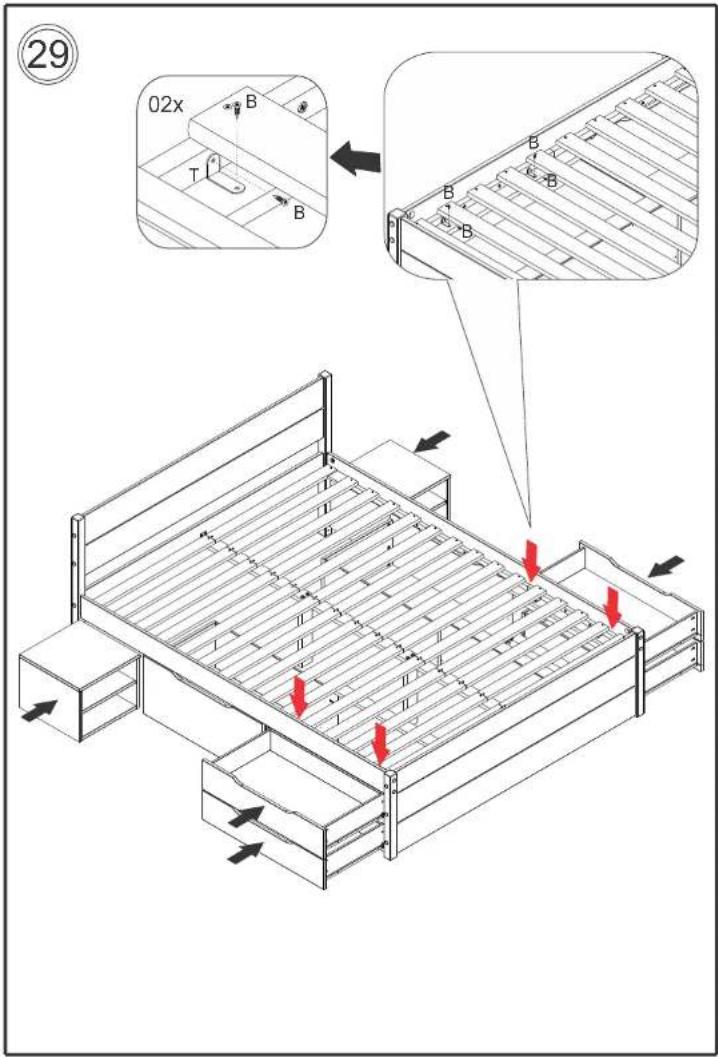

27 B+T B 28 4x 21 22 21 20 22 E E E E U C C C 23 24 V 19/16

Please, if your drawers are misaligned (for right or for left), follow the steps below to make the correct adjustment.

Take off the screws as illustrated below.

Technical line drawing of a rectangular frame with mounting holes and directional arrows, plus an inset showing a screw fastening detail (no text or symbols)

Use the adjustable holes and align the sliders to right or left according to your need.

Technical diagram of a mechanical assembly with a magnified inset showing a detail view of a component (no text or symbols present)

Replace the central screw. And it's done!
