USER MANUAL BMP7O7TK BAUKNECHT

Line drawing of a circular metal grate with slatted edges and two legs (no text or symbols)

Simple line drawing of a square frame with rounded corners and no text or symbols

1 2 3

UHR 12:00

[●] 10:30 180°C TASTENSFERRE

THANK YOU FOR BUYING A BAUKNECHT PRODUCT

In order to receive a more complete assistance, please register your product on www.register10.eu

Before using the appliance carefully read the Safety Instruction.

PLEASE SCAN THE QR CODE ON YOUR APPLIANCE IN ORDER TO REACH MORE INFORMATION

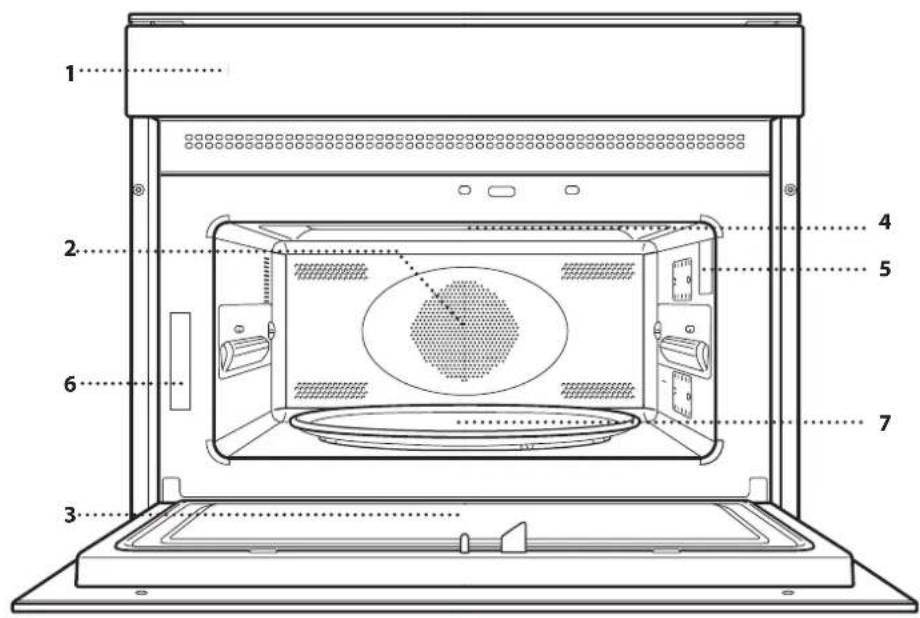

PRODUCT DESCRIPTION

1 2 3 4 5 6 7

1. Controlpanel
2. Fan (not visible) and Circular heating element (not visible)
3. Door
4. Upper heating element/grill
5. Lamp
6. Identification plate (do not remove)
7. Glass turntable

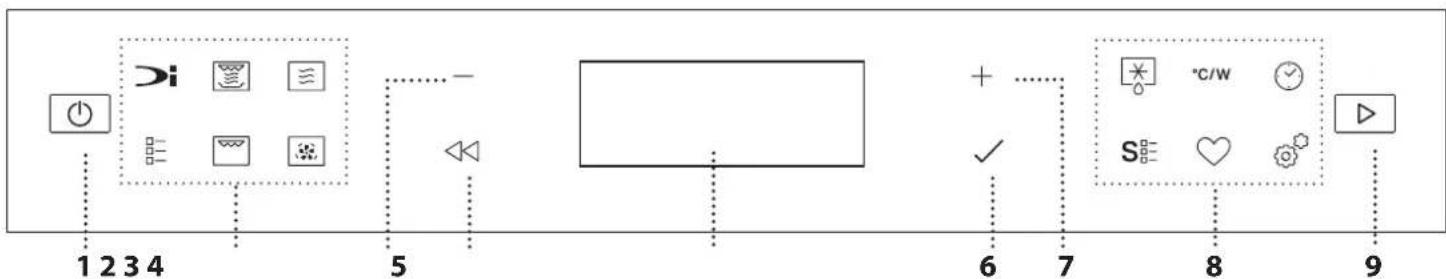

CONTROL PANEL DESCRIPTION

1 2 3 4 5 6 7 8 9

1. ON / OFF

For switching the oven on and off and for stopping an active function.

2. MENU / FUNCTIONS DIRECT ACCESS

For quick access to the functions and menu.

3. NAVIGATION BUTTON MINUS

For scrolling through a menu and decreasing the settings or values of a function.

4. BACK

For returning to the previous screen.

During cooking, allows settings to be changed.

5. DISPLAY

6. CONFIRM

For confirming a selected function or a set value.

7. NAVIGATION BUTTON PLUS

For scrolling through a menu and increasing the settings or values of a function.

8. OPTIONS / FUNCTIONS DIRECT ACCESS

For quick access to the functions, settings and favorites.

9. START

For starting a function using the specified or basic settings.

ACCESSORIES

Before purchasing other accessories that are available on the market, make sure that they are heat-resistant and suitable for steaming.

Make sure that there is a gap of at least 30 mm between the top of any container and the walls of the

cooking compartment in order to allow steam to flow sufficiently.

Accessories during microwave function may raise in temperature. It is recommended to use protection to handle accessories at the end of the cycle.

TURNTABLE TURNTABLE SUPPORT CRISP PLATE			HANDLE FOR CRISP PLATE
Placed on its support, the glass turntable can be used with all cooking methods.The turntable must always be used as a base for other containers or accessories, with the exception of the rectangular baking tray.	Only use the support for the glass turntable.Do not rest other accessories on the support.	Only for use with the designated functions. The Crisp plate must always be placed in the center of the glass turntable or wire rack and can be pre-heated when empty, using the special function for this purpose only. Place the food directly on the Crisp plate.	Useful for removing the hot Crisp plate from the oven.

Line drawing of a circular metal grate with slatted top and three legs (no text or symbols)

Simple line drawing of a square frame with side indentations (no text or symbols)

1 2 3

This allows you to place food closer to the grill, for perfectly browning your dish and allows an optimal air circulation. It must be used as base for the crisp plate in some "Crisp Fry" functions. Place the wire rack on the turntable, making sure that it does not come into contact with other surfaces.

Only use the baking tray with functions that allow for convection cooking; it must never be used in combination with microwaves. Insert the plate horizontally, resting it on the rack in the cooking compartment. Please note: You do not need to remove the turntable and its support when using the rectangular baking tray.

To steam foods such as fish or vegetables, place these in the basket (2) and pour drinking water (100 ml) into the bottom of the steamer (3) to achieve the right amount of steam. To boil foods such as potatoes, pasta, rice or cereals, place these directly on the bottom of the steamer (the basket is not required) and add an appropriate amount of drinking water for the amount you are cooking. For best results, cover the steamer with the lid (1) provided. Always place the steamer on the glass turntable and only use it with the microwave function. The steamer bottom has been designed also to be used in combination with the special MW self clean function.

The number of accessories may vary depending on which model is purchased.

*Other accessories can be purchased separately from the After-sales Service.

FUNCTIONS

DYNAMIC FUNCTIONS

With the Dynamic functions, simply select the

type and weight or the quantity of the food items to obtain the best results. The oven will automatically calculate the optimum settings and continue to change them as cooking progresses.

DYNAMIC REHEAT

For reheating ready-made food that is either frozen or at room temperature. The oven automatically calculates the settings required to achieve the best results in the shortest amount of time. Place food on a microwave-safe and heatproof dinner plate or dish.

Food	Weight/ portions/ pieces	Note
Plated Meal 250 - 800 g Take out from packaging being careful to remove any aluminium foil. At the end of reheating process 1-2 minutes standing time always improves the result.
Lasagna [frozen] 400g - 1 kg Take out from packaging being careful to remove any aluminium foil.
Water 100 - 500 g		Heat uncovered in a single container.
Soup 200 - 800 g

DYNAMIC CRISP MENU

For quickly reheating and cooking frozen foods and giving them a golden, crunchy top. Only use this function with the crisp plate provided. Turn the food when prompted.

Food	Weight/portions/ pieces	Notes
Pieces 400 g - 1.2 kg		Brush with oil and season as you prefer. Evenly distribute in the crisp plate with the skin side down
Burger patties 100 - 500 g		Brush with oil and sprinkle with salt before cooking
Chicken nuggets *(frozen)	100 - 500 g	Distribute evenly in the crisp plate
Pizza *(frozen) 350 - 600 g		Take out from packaging being careful to remove any aluminium foil
Fish fingers *(frozen)	100 - 500 g	Distribute evenly in the crisp plate

Required accessories: Crisp plate, handle for crisp plate.

DYNAMIC CRISP FRY

This healthy and exclusive function combines the quality of crisp function with the properties of the warm air circulation. It allows crunchy, tasty frying results to be achieved, with a remarkable reduction of oil needed compared to the traditional way of cooking, even removing the need for oil in some recipes. It is possible fry a variety of preset foods, either fresh or frozen.

Food	Weight/portions/ pieces	Notes
Potatoes fried *(frozen)	100 - 500 g	Distribute evenly in the crisp plate
Fish and Chips *(frozen)		Distribute evenly in the crisp plate alternating the fish fillets and the potatoes
Breaded fried Chicken		Brush with oil. Distribute evenly in the crisp plate
Pepper fried		Cut in pieces and season with oil. Distribute evenly in the crisp plate
Fried Seafood *(frozen)		Distribute evenly in the crisp plate

Required accessories: Crisp plate, handle for the Crisp plate.

DYNAMIC CRISP

For perfectly browning a dish, both on the top and bottom of the food. This function must only be used with the special Crisp plate.

FOOD DURATION (min)

Leavened cake 7 - 8
Hamburgers* 8 - 10

*Turn food halfway through cooking

Required accessories: Crisp plate, wire rack, handle for crisp plate.

MICROWAVE

Use microwave function only with food or beverages inside to preserve the correct functionality of the product.

900	Quickly reheating drinks or other foods with a high water content. If the food contains egg or cream choose a lower power.
750	Cooking vegetables.
650	Cooking meat and fish.
500	Cooking meaty sauces, or sauces containing cheese or egg. Finishing off meat pies or pasta bakes.
350	Slow, gently cooking. Perfect for melting butter or chocolate.
160	Defrosting frozen foods or softening butter and cheese.
90	Softening ice cream.

ACTION	FOOD	POWER (W) DURATION (min)
Reheat	2 cups	900	1 - 2
Reheat	Mashed potatoes 1 kg	900	10 - 12
Defrost	Minced meat 500 g	160	15 - 16
Cook	Sponge cake	750	7 - 8
Cook	Egg custard	500	13 - 16
Cook	Meat loaf	750	17 - 20

Required accessories: microwave-safe and heatproof container.

For quickly preheating the oven before a cooking cycle. Wait for the function to finish before placing food inside the oven. Once preheating has finished, the oven will select the "Forced Air" function automatically.

TURBO GRILL

For perfect results, combining the grill and oven air convection. We recommend turning the food during cooking.

FOOD GRILL LEVEL DURATION (min)

Chicken kebab High 25 - 35

Recommended accessories: wire rack

• COMBI FUNCTIONS

GRILL + MW

For quickly cooking and gratinating dishes, combining the microwave and grill functions.

FOOD W power GRILL LEVEL			DURATION (min)
Potatoes gratin	650	medium	20 - 22
Jacked potatoes	650	high	10 - 12

Required accessories: wire rack, microwave-safe and heatproof container.

TURBO GRILL + MW

For quickly cooking and browning your food, combining the microwave, grill and the oven air convection.

FOOD W power	GRILL LEVEL	DURATION (min)
Cannelloni frozen	650	high	25 -35
Pork chops	350	high	30 -40

Required accessories: wire rack, microwave-safe and heatproof container.

FORCED AIR + MW

For cooking any kind of dish on one shelf only combining hot air circulation and the microwave.

FOOD W power	TEMP °C		DURATION (min)
Roasts	350	170	35 - 40
Meat pie	160	180	25 - 35

Required accessories: wire rack, microwave-safe and heatproof container

GRILL

For browning, grilling and gratins. We recommend turning the food during cooking.

FOOD GRILL LEVEL DURATION (min)
Toast*	High	5 - 6
Prawns	Medium	18 - 22

Recommended accessories: wire rack.

* For thick bread slices preheat the empty microwave with grill high for 3 minutes.

FORCED AIR

For cooking dishes in a way that achieves similar results to using a common oven. The baking plate or other cookware that is suitable for oven use can be used to cook certain foods. To achieve best results this function have a preheating phase: wait the end of preheat to insert the food.

Required accessories: Rectangular baking tray / Wire rack.

Food	Temp. (°C)	Duration (min.)
Cupcake / Smallcakes	160	20 - 30
Cookies	160 - 170	20 - 30

DYNAMIC DEFROST

For quickly defrosting various different types of food simply by specifying their weight. Always place the food directly on the glass turntable for best results. At the end let the food stand for 5 minutes.

FOOD	WEIGHT
Timed Defrost	-
Meat	100g - 2.0 kg
Poultry	100g - 3.0 kg
Fish	100g - 2.0 kg
Crisp Bread Defrost	50 - 800 g

CRISP BREAD DEFROST

This exclusive function allows you to defrost frozen bread. Combining both Defrost and Crisp technologies, your bread will taste and feel as if it were freshly baked. Use this function to quickly defrost and heat frozen rolls, baguettes & croissants. The Crisp Plate must be used in combination with this function.

» SPECIAL FUNCTIONS

KEEP WARM

For keeping just-cooked food hot and crisp, including meat, fried foods or cakes.

RISING

For optimal proving of sweet or savoury dough. To maintain the quality of proving, do not activate the function if the oven is still hot following a cooking cycle.

Required accessories: wire rack and heatproof container.

HYDRO SELF CLEAN

The action of the steam released during this special cleaning cycle allows dirt and food residues to be removed with ease. Pour a cup of drinking water into the steamer bottom or a microwave proof container and activate the function.

°C/W TEMPERATURE/POWER

To adjust the temperature or the microwaves power during cooking.

MINUTEMINDER

For keeping time without activating a function.

FAVORITES

For retrieving the list of 20 favorite functions.

SETTINGS

For adjusting the oven settings.

When "ECO" mode is active the brightness of the display will be reduced to save energy and lamp switches off after 1

minute.

When "DEMO" is "On" all commands are active and menus available but the oven doesn't heat up. To deactivate this

mode, access "DEMO" from "SETTINGS" menu and select "Off". By selecting "FACTORY RESET", the product switches off and then it returns to first switch on. All settings will be deleted.

FIRST TIME USE

1. SELECT THE LANGUAGE

You will need to set the language and the time when you switch on the appliance for the first time: "English" will show on the display.

English

Press or to scroll through the list of available languages and select the one you require.

Press to confirm your selection.

Please note: The language can subsequently be changed by selecting "LANGUAGE" in "SETTINGS" menu, available by pressing 🔒

2. SET THE TIME

After selecting the language, you will need to set the current time: The two digits for the hour will flash on the display.

12:00 CLOCK

Press + or — to set the current hour and press √ :

DAILY USE

1. SELECT A FUNCTION

Press to switch on the oven: the display will show the last running main function or the main menu.

The functions can be selected by pressing the icon for one of the main functions or by scrolling through a menu. To select a function contained in a menu, press + or to select the desired one, then press to √ confirm.

Please note: Once a function has been selected, the display will recommend the most suitable level for each function.

2. SET THE FUNCTION

After having selected the function you require, you can change its settings. The display will show the settings that can be changed in sequence. Pressing ◀ allows you to change the previous setting again.

TEMPERATURE / POWER

TEMPERATURE 200°C

When the value flashes on the display, press or to change it, then press to confirm and continue with the settings that follow (if possible).

The microwave power or the grill level can be set in the same way.

There are defined three power levels for grilling: 3 (high), 2 (mid), 1 (low).

The two digits for the minutes will flash on the display. Press + or to set the minutes and press to confirm.

Please note: You may need to set the time again following lengthy power outages. Select "CLOCK" in "SETTINGS" menu, available by pressing 🔒

3. HEAT THE OVEN

A new oven may release odours that have been left behind during manufacturing: this is completely normal. Before starting to cook food, we therefore recommend heating the oven with it empty in order to remove any possible odours.

Remove any protective cardboard or transparent film from the oven and remove any accessories from inside it. Heat the oven to 200 °C for around one hour, using the "Fast Preheat" function. Odors and smoke are normal when the oven is used the first few times, or when it is heavily soiled. Follow the instructions for setting the function correctly.

Please note: It is advisable to air the room after using the appliance for the first time.

[ ] 750w MW POWER

Please note: Once the function has been activated, the temperature can be changed using or. —

When combined with other functions, microwave power will be reduced to 500 W max.

DURATION

[ ] - - : - - DURATION

When the icon flashes on the display, press or + to set the cooking time you require and then press √ to confirm.

Please note: You can adjust the cooking time that has been set during cooking by pressing press or to amend it and then press to confirm.

In not-microwave functions you do not have to set the cooking time if you want to manage cooking manually (untimed): Press √ or to confirm and start the function. By selecting this mode, you cannot program a delayed start.

3. DYNAMIC FUNCTIONS

These functions automatically select the best cooking mode, temperature and duration to cook, roast or bake all the dishes available.

When required, simply indicate the characteristic of food to obtain an optimal result.

WEIGHT / PORTIONS / BATCH / PIECES

To set the function correctly, follow the indications on the display, when prompted, and press+ or to set the required value then press √ to confirm.

4. ACTIVATE THE FUNCTION

At any time, if the default values are those desired or once you have applied the settings you require, press ▶ to activate the function.

Please note: At any time you can stop the function that has been activated by pressing Ⓓ

If the oven is hot and the function requires a specific maximum temperature, a message will be shown on the display. Press ≪ to return to previous screen and select a different function or wait for a complete cooling.

JET START

When the oven is switched off, press to activate cooking with the microwave function set at full power (900 W) for 30 seconds.

5. PREHEATING

Some functions have an oven preheating phase: Once the function has started, the display indicates that the preheating phase has been activated.

- - : - - 180°C PREHEATING

Once this phase has finished, an audible signal will sound and the display will indicate that the oven has reached the set temperature, requiring food to be added. At this point, open the door, place the food in the oven, close the door and start cooking by pressing √ or ▶

Please note: Placing the food in the oven before preheating has finished may have an adverse effect on the final cooking result. Opening the door during the preheating phase will stop pause it.

The cooking time does not include a preheating phase. You can always change the temperature you want the oven to reach by using + or .—

6. PAUSE COOKING / ADD OR TURN FOOD

PAUSE

By opening the door, the cooking will be temporarily paused through deactivating heating elements.

To resume the cooking, close the door and press.

Please note: During Dynamic functions open the door only when prompted.

ADD OR TURN FOOD

Some Dynamic Cook recipes will require the food to be added after the preheating phase or ingredients to be added to complete cooking. In the same way, there will be prompts to turn or stir the food during cooking.

0:30 180°C TURN FOOD

An audible signal will sound and the display shows the action to be done.

Open the door, do the action prompted by the display and close the door, then press ▶ to continue cooking.

Please note: When turning is needed, after 2 minutes, even if no action is performed, the oven will resume the cooking. The "ADD FOOD" phase last 2 minutes: if no action is taken, the function will be ended.

7.END OF COOKING

An audible signal will sound and the display will indicate that cooking is complete.

END - -: - - 180°C

Press to continue cooking in manual mode (untimed) or press + to extend the cooking time by setting a new duration. In both cases, the cooking parameters will be retained.

8. FAVORITES

To make the oven easier to use, it can save up to 20 of your favorite functions. Once cooking is complete the display will prompt you to save the function in a number between 1 and 20 on your list of favorites.

[ ] - - : - - ADD FAVORITE?

If you would like to save a function as a favorite and store the current settings for future use, press √ otherwise, to ignore the request press ≈ Once √ has been pressed, press or to select the number position, then press √ to confirm.

Please note: If the memory is full or the number chosen has already been taken, the oven will ask you to confirm overwriting the previous function.

To call up the functions you have saved at a later time, press ♥: The display will show your list of favorite functions.

[ ] 100 180°C i. CRISP

Press or to select the function, confirm by pressing √, and then press to activate.

9. HYDRO SELF CLEAN FUNCTION

Press S and select "Hydro Self Clean" Function.

0:10 Hydro Self Clean

Press to activate the function: the display will prompt you to carry out all actions needed to obtain the best cleaning results: Follow the indications and

then press when done. Once all the steps have been completed, when required, press ▶ to activate the cleaning cycle.

Please note: It is recommended to do not open the oven door during the cleaning cycle to avoid a loss of water vapor that could get an adverse effect on the final cleaning result. An appropriate message will start flashing on the display once the cycle has finished. Leave the oven to cool and then wipe and dry the interior surfaces with a cloth or sponge.

10. MINUTEMINDER

When the oven is switched off, the display can be used as a timer. To activate this function, make sure that the oven is switched off and press ⏻: The ⏻ icon will flash on the display.

0:01 MINUTE-MINDER

Press or to set the length of time you require and then press to activate the timer. An audible signal will sound and the display will indicate once the minuteminder has finished counting

The MW Steam Cooking method offers a convenient and faster alternative to traditional steam cooking, providing comparable results. To achieve the best results, make sure to use room temperature water without added salt and place the steamer in the center of turning plate. Pour 100g of water into the bottom part of the steam accessory. Place the food in the basket, always close the lid and avoid opening it during cooking. Keep in mind that microwave cooking can sometimes result in uneven heating.

down the selected time. Once the minuteminder has been activated, you can also select and activate a function. Press Ⓞ to switch on the oven and then select the function you require. Once the function has started, the timer will continue to count down independently without interfering with the function itself. During this phase, it isn't possible to see the minuteminder (only the ⏻ icon will be displayed), that will continue counting down in background. To retrieve the minuteminder screen press Ⓞ to stop the function that is currently active.

11. KEYLOCK

To lock the keypad, press and hold for at least three seconds. Do this again to unlock the keypad.

[ * ] ① C 0:30 180°C KEYLOCK

Please note: This function can also be activated during cooking. For safety reasons, the oven can be switched off at any time by pressing the Keylock could also be activated by entering the Settings menu

Therefore, check the food after cooking and, if necessary, extend the cooking time using a power setting between 160W and 500W. The table below outlines suggested microwave power levels and cooking times for various food types and quantities. For larger quantities, increase the cooking time accordingly. This table provides guidelines. Feel free to experiment with other foods based on these recommendations.

Required accessories: Steamer

CATEGORY FOOD	WEIGHT (g)		POWER(W)	COOKING TIME (MIN.)	NOTES
VEGETABLES& FRUIT	Frozen Vegetables	100 - 400 500 6 - 15			Evenly distribute the frozen vegetables into the steamer basket removing any large pieces of ice. Stir when cooking finishes and let food rest for around 5 minutes.
		400 - 800 650 12 - 24
	Potatoes and Root Vegetables	100-300 500 4 - 12			Cut vegetables in pieces of around 3 cm and evenly distribute them in the steamer basket. Stir when cooking finishes and let food rest for around 5 minutes.
		300-800 750 9 - 19
	Soft Vegetables	100 - 300 650 4 - 9			Cut vegetables in pieces of around 3 cm and evenly distribute them in the steamer basket. Stir when cooking finishes and let food rest for around 5 minutes.
		300 - 800 750 6 - 15
	Fruit Pieces	100 - 500 500 3 - 12			Cut fruit in piece/slices and evenly distribute it in the steamer basket. Stir when cooking finishes and let food rest for around 5 minutes.
		500 - 800 650 9 - 15
MEAT & FISH	Poultry Breast	100 - 400 650 5 - 10			Use poultry cuts thicker than 1 cm and evenly distribute them in the steamer basket.Turn the food when you prolong if needed.
		400 - 600 750 7 - 11
	Fish Fillets	100 - 500 350 8 - 22			Use fillets thicker than 3 cm and distribute them evenly in the steamer basket.Turn the food when you prolong if needed.
	Whole Fish	300 - 750 650 9 - 17			Put the fish in the center of the steamer basket. It is recommended to use whole fish in a weight range from 300g to 700g. Turn the food when you prolong if needed.
	Mussels	300 - 1000 650 5 - 15			Evenly distribute the mussels still in their closed shells in the steamer basket.
	Shrimps	200 - 800 650 4 - 15			Evenly distribute the shrimps without removing the shell in the steamer basket.

CLEANING AND MAINTENANCE

Make sure that the oven has cooled down before carrying out any maintenance or cleaning.

Do not use steam cleaners.

Wear protective gloves.

Do not use wire wool, abrasive scourers or abrasive/corrosive cleaning agents, as these could damage the surfaces of the appliance.

The oven must be disconnected from the mains before carrying out any kind of maintenance work.

EXTERIOR & INTERIOR SURFACES

- Clean the surfaces with a damp microfibre cloth. If they are very dirty, add a few drops of pH-neutral detergent. Finish off with a dry cloth.

- Clean the glass in the door with a suitable liquid detergent.

- At regular intervals, or in case of spills, remove the turntable and its support to clean the bottom of the oven, removing all food residue.

- The grill does not need to be cleaned as the intense heat burns away any dirt. Use this function on a regular basis.

- Activate the "Hydro Self clean" function for an optimum cleaning of the internal surfaces.

ACCESSORIES

Soak the accessories in a washing-up liquid solution after use, handling them with oven gloves if they are still hot. Food residues can be removed using a washing-up brush or a sponge.

All accessories are dishwasher safe with the exception of the Crisp plate.

The Crisp plate should be cleaned using water and a mild detergent. For stubborn dirt, rub gently with a cloth. Always leave the Crisp plate to cool down before cleaning.

TROUBLESHOOTING

Problem Possible cause Solution
The display shows letter ‘F’ followed by a number or letter different from F4E1.	Oven failure.	Contact the Call Center and state the number following the letter ‘F’.
The oven is not switching on.	Power cut.Disconnection from the mains.	Check the presence of mains electrical power and whether the oven is connected to the electricity supply. Turn off the oven and restart it to see if the fault persists.
The display shows unclear text and appears to be broken.	Another language set. Contact the Call Center
The oven makes noises, even when it is switched off.	Cooling fan active.	Open the door or hold and wait, until the cooling process has finished.
The oven does not heat up.	When “DEMO” is “On” all commands are active and menus available but the oven doesn’t heat up.DEMO appears on display every 60 seconds.	Access “DEMO” from “SETTINGS” and select “Off”.

Policies, standard documentation and additional product information can be found by:

• Using the QR code in your appliance

- Visiting our website docs.bauknecht.eu

• Alternatively, contact our After-sales Service (See phone number in the warranty booklet). When contacting our After-sales Service, please state the codes provided on your product's identification plate.

MERCI D'AVOIR ACHETÉ UN PRODUIT BAUKNECHT

Line drawing of a circular metal grate with slatted top and two legs (no text or symbols)

RECTANGULAIRE PLAQUE DE CUISSON

Simple line drawing of a square frame with rounded corners and no text or symbols

PANIER-VAPEUR

1 2 3

3. NAVIGATIETOETS MIN

12:00 KLOK

[ ] 750w VERMOGEN MAGN.

Line drawing of a circular metal tray with horizontal slats and three legs (no text or symbols)

Simple line drawing of a square frame with rounded corners and a flat center (no text or symbols)

1 2 3

Italiano .1

[ ] 750w POTENZA MW
