FMS-290HJ - Massage device HOMEDICS - Free user manual and instructions

Product Type	3-in-1 Shiatsu Massager
Brand	HoMedics
Model	FMS-290HJ
Power Supply	120 V AC, 50/60 Hz power adapter
Power	24 W (estimated)
Main Functions	Kneading Shiatsu massage, infrared heat, 2 intensity levels, automatic shut-off after 15 minutes
Uses	Footrest, foot massager, back massager
Hood	Removable (zipper), for foot massage or use without
Approximate Dimensions	40 x 30 x 15 cm
Approximate Weight	2.0 kg
Material	Soft fabric, ABS plastic
Care and Cleaning	Unplug and let cool; clean with a slightly damp soft sponge; do not immerse
Safety	Automatic shut-off after 15 minutes; overheat protection thermostat; do not use for more than 15 consecutive minutes
Warranty	1-year limited
Repairability	Contains no user-serviceable parts; repair only by authorized HoMedics
Included Accessories	Power adapter (part no. PP-FMS290HJADP), removable hood
Regulatory Information	FCC Part 15, ICES-003, household use only

Frequently Asked Questions - FMS-290HJ HOMEDICS

What are the usage positions of the massager?

The FMS-290HJ massager can be used as a footrest, foot massager (with or without the hood), or back massager. Simply remove the removable hood to massage the back.

How to activate the heat function?

Press the heat button on the device. Heat can only be activated when the massage is running. Press again to turn it off.

What is the maximum recommended usage time?

Do not use for more than 15 consecutive minutes. The device automatically shuts off after this time. Let it cool for 30 minutes before reuse.

Can the massager be used without socks?

It is highly recommended to wear socks for hygiene and comfort. Do not use with shoes.

How to clean the device?

Unplug the device and let it cool. Clean with a slightly damp soft sponge. Never use abrasive cleaners and do not immerse the device in water.

What to do if the device overheats?

The device is equipped with a protection thermostat that stops the motor. Unplug it and let it cool for 30 minutes before plugging it back in.

Can the massager be used by people with heart conditions or pregnant women?

Consult a doctor before use if pregnant, have a pacemaker, or any health problem. Not recommended for people with diabetes.

How to adjust the massage intensity?

Press the power button once to turn on and get low intensity. Press a second time to switch to high intensity (the button lights green). Press a third time to turn off.

What is the required power voltage?

The device operates with the supplied 120 V AC power adapter. Use only the adapter referenced as PP-FMS290HJADP.

What to do in case of malfunction?

Contact HoMedics customer service at 1-800-466-3342 (USA) or 1-888-225-7378 (Canada) or by email at [e-mail]. Do not attempt to repair yourself.

USER MANUAL FMS-290HJ HOMEDICS

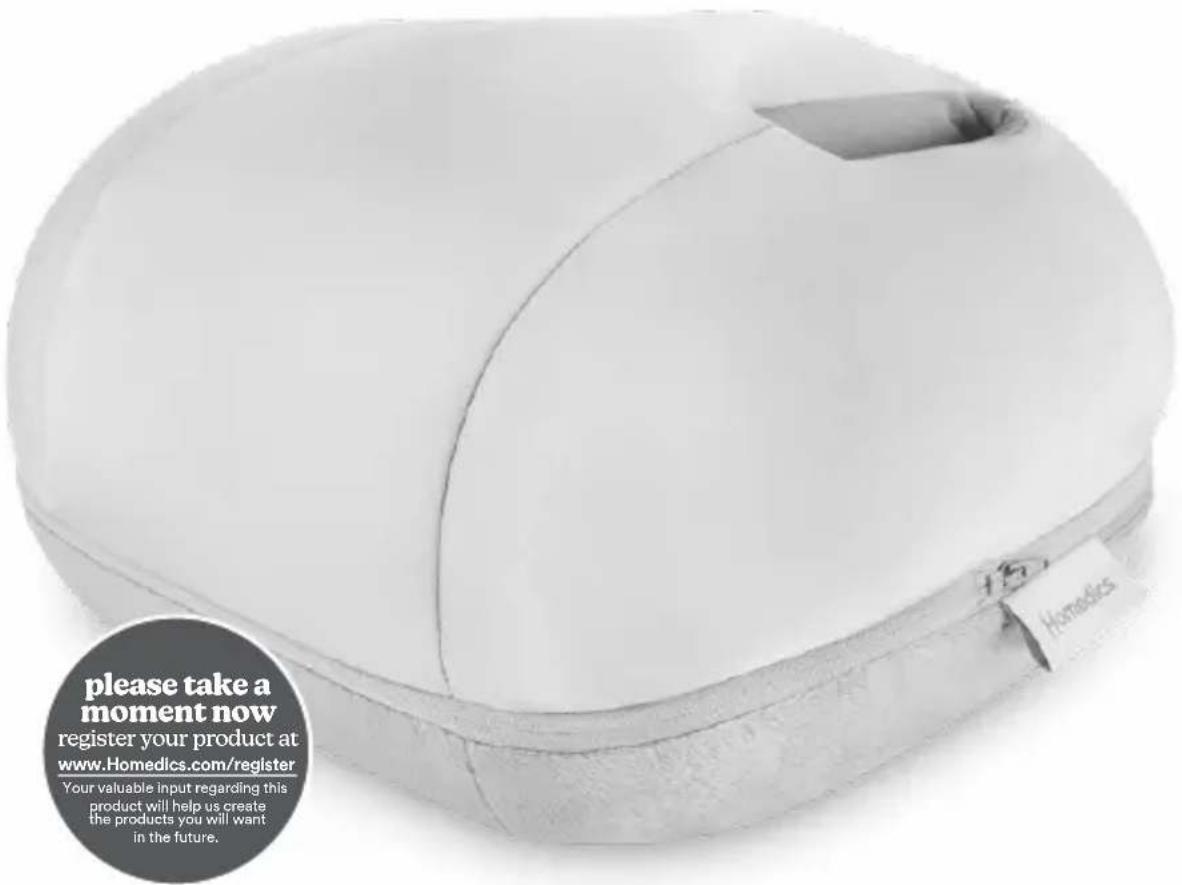

3-in-1 shiatsu massager

please take a moment now register your product at www.Homedics.com/register Your valuable input regarding this product will help us create the products you will want in the future.

INSTRUCTION MANUAL AND WARRANTY INFORMATION

1-year limited warranty

FMS-290HJ | L-03902 Rev. 1

IMPORTANT SAFETY INSTRUCTIONS

WHEN USING ELECTRICAL PRODUCTS, ESPECIALLY WHEN CHILDREN ARE PRESENT, BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE FOLLOWED, INCLUDING:

READ ALL INSTRUCTIONS BEFORE USING.

DANGER – TO REDUCE THE RISK OF ELECTRIC SHOCK:

• ALWAYS unplug this appliance from the electrical outlet immediately after using and before cleaning.
• DO NOT reach for a unit that has fallen into water. Unplug it immediately.
• NEVER use pins or other metallic fasteners with this appliance.

WARNING – TO REDUCE THE RISK OF BURNS, FIRE, ELECTRIC SHOCK, OR INJURY TO PERSONS:

• An appliance should NEVER be left unattended when plugged in. Unplug from outlet when not in use and before putting on or taking off parts.
• Not for use by children.
• Close supervision is necessary when this unit is used by, on, or near children, invalids, or disabled persons.
  • DO NOT use outdoors.
• Use this appliance only for its intended use as described in this manual.
• DO NOT use attachments not recommended by Homedics; specifically, any attachments not provided with the unit.
• DO NOT carry this appliance by supply cord or use cord as a handle.
• NEVER operate this appliance if it has a damaged cord or plug, if it is not working properly, or if it has been dropped or damaged, or dropped into water. Return the appliance to a Homedics Service Center for examination and repair.
• Keep the cord away from heated surfaces.
• NEVER operate the appliance with the air openings blocked. Keep the air openings free of lint, hair, and the like.
• NEVER drop or insert any object into any opening.
• DO NOT operate where aerosol (spray) products are being used or where oxygen is being administered.
• DO NOT operate under blanket or pillow. Excessive heating can occur and cause fire, electric shock, or injury to persons.
• To disconnect, turn all controls to the "OFF" position, then remove plug from outlet.
• Use heated surfaces carefully. May cause serious burns. DO NOT use over

insensitive skin areas or in the presence of poor circulation. The use of heat by children or incapacitated persons may be dangerous.

• DO NOT stand on or in appliance. Use only while seated.
• DO NOT use massager in close proximity to loose clothing or jewelry.
• Keep long hair away from massager while in use.
• DO NOT use any other AC Adapter than what is supplied with the product. Use of any other AC adapter may damage the product and may increase risk of harm to user or property. Only AC Adapter bearing the Part#: PP-FMS290HJADP should be used.

CAUTION: All servicing of this massager must be performed by authorized Homedics service personnel only.

SAVE THESE INSTRUCTIONS

CAUTION – PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING.

- Consult your doctor prior to using this product, if:

• You are pregnant
• You have a pacemaker

• You have any concerns regarding your health

• NOT recommended for use by diabetics.

• NEVER leave the unit unattended, especially if children are present.
• NEVER cover the unit when it is in operation.
• DO NOT use this product for more than 15 minutes at a time.
• Extensive use could lead to the product's excessive heating and shorter life. Should this occur, discontinue use and allow the unit to cool before operating.
• NEVER use this product directly on swollen or inflamed areas or skin eruptions.
• DO NOT use this product as a substitute for medical attention.
• This product should NEVER be used by any individual suffering from any physical ailment that would limit the user's capacity to operate the controls or who has sensory deficiencies.
  • Not for use by children.
• This unit should NOT be used by invalids without adult supervision.
• This appliance is intended for household use only.

NOTE: This unit is equipped with a protective thermostat that will shut off the motor if it overheats (LEDs may remain on). If your unit overheats, unplug the unit and let cool for 30 minutes before plugging in again and continuing use.

INSTRUCTIONS FOR USE

Insert the adapter jack into the foot massager, then insert the power cord into a 120-volt AC outlet.

Close-up of hands holding a textured, folded object (no visible text or symbols)

Close-up of a person's foot resting on a small object, possibly a lamp or cushion (no visible text or symbols)

Person sitting on a sofa holding a white cushioned pillow (no text or symbols visible)

Person sitting in a car seat with visible seat number 18 (no text or symbols)

Fig.2Fig.1

See pages 6-7 for controls and features.

The 3-in-1 Shiatsu Massager is versatile and designed for use as a footrest, foot massager, or back massager.

REMOVABLE HOOD

The massager includes a removable hood (Fig. 1) that, when used, will provide a cozy foot massage. The massager may be operated with or without the removable hood. Without the hood, the massager is versatile and designed for use on the upper and lower back. Use the zipper to attach or remove the hood from the massager. Add heat for added comfort and relaxation.

MAINTENANCE

TO CLEAN THE MASSAGER

Unplug the unit and allow it to cool before cleaning. Clean only with a soft, slightly damp sponge. NEVER allow water or any other liquids to come into contact with the unit.

• DO NOT immerse in any liquid to clean.
- NEVER use abrasive cleaners, brushes, or strong chemicals that might or might not be flammable and/or damaging to the product to clean.
- DO NOT attempt to repair the massager. There are no user-serviceable parts. For service, contact the Consumer Relations telephone number listed in the Warranty section.

TO STORE

Place massager in its box or in a safe, cool, dry place. Avoid contact with sharp edges or pointed objects. To avoid breakage, DO NOT wrap the power cord around the unit. DO NOT hang the unit by the controller cord.

SUPPLIER'S DECLARATION OF CONFORMITY

Product Description: 3 IN 1 SHIATSU FOOT MASSAGER

Model Number: FMS-290HJ

Trade Name: Homedics

FCC Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation.

U.S. Contact Information

Company: Homedics, LLC.

Address: 3000 N Pontiac Trail, Commerce Township, MI 48390

8:30am-7:00pm EST Monday-Friday 1-800-466-3342

Homedics is not responsible for any radio or TV interference caused by unauthorized modifications to this equipment. Such modifications could void the user authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment to an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

CAN ICES-003(B)/NMB-003(B)

CAUTION: To avoid injury and irreparable damage, always remain seated when using massager. Never stand on the unit.

SHIATSU MASSAGE

Shiatsu is a deep-kneading circular massage. This unit features a spot shiatsu massage mechanism that works a specific area of your body.

HEAT BUTTON

For soothing heat, when massage is on. To deselect, press the button again. For your safety, heat can only be turned on when massage is activated.

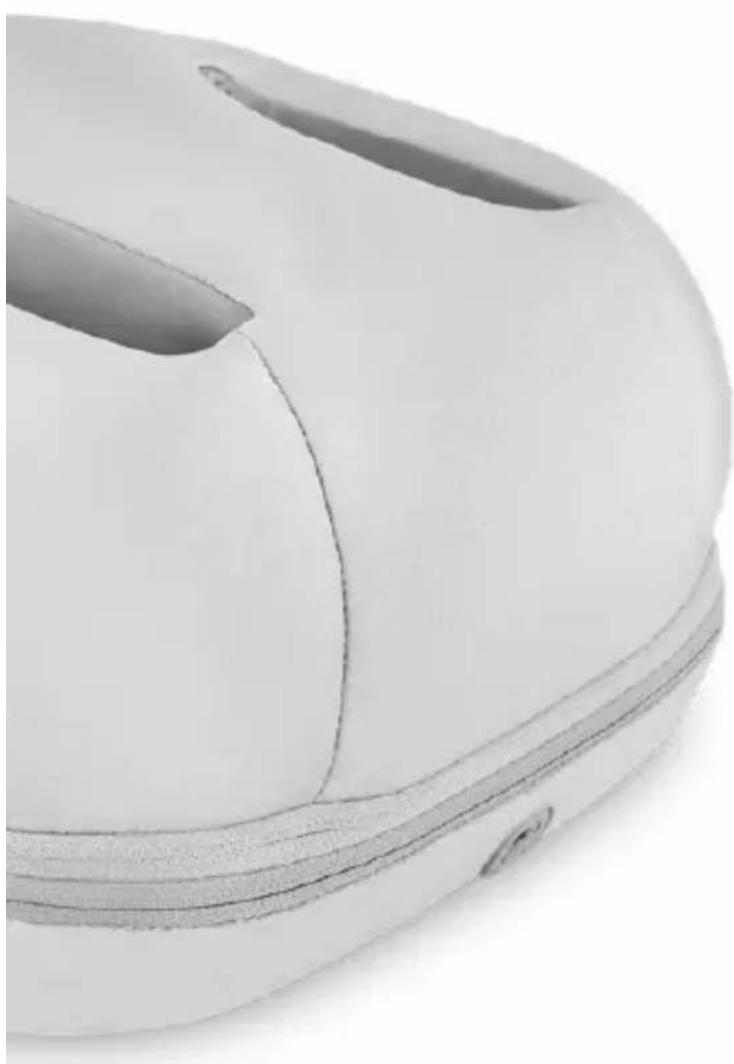

POWER BUTTON

Press the power button to turn on the massager. The shiatsu massage will start in low intensity. To increase the intensity, press the button a second time; it will illuminate green to indicate high intensity. Press the button a third time to turn the unit off.

NOTE: As with all high-quality massage products, there is a 15-minute auto shut-off on the massage mechanism.

Close-up of a white plastic shoe with visible stitching and side slots (no text or symbols)

CONVENIENT AND PORTABLE

Perfect for use at home or in the office.

POWER SUPPLY CORD

The 3-in-1 Shiatsu

Massager is powered by

a 120-volt adapter.

NOTE: It is highly recommended that the foot massager be used with socked feet. Do not use the unit with shoes.

Homedics

1-YEAR LIMITED WARRANTY

Homedics sells its products with the intent that they are free of defects in manufacture and workmanship for a period of 1 year from the date of original purchase, except as noted below. Homedics warrants that its products will be free of defects in material and workmanship under normal use and service. This warranty extends only to consumers and does not extend to Retailers.

To obtain warranty service on your Homedics product, contact a Consumer Relations representative for assistance. Please make sure to have the model number of the product available.

Homedics does not authorize anyone, including, but not limited to, Retailers, the subsequent consumer purchaser of the product from a Retailer or remote purchasers, to obligate Homedics in any way beyond the terms set forth herein. This warranty does not cover damage caused by misuse or abuse; accident; the attachment of any unauthorized accessory; alteration to the product; improper installation; unauthorized repairs or modifications; improper use of electrical/power supply; loss of power; dropped product; malfunction or damage of an operating part from failure to provide manufacturer's recommended maintenance; transportation damage; theft; neglect; vandalism; or environmental conditions; loss of use during the period the product is at a repair facility or otherwise awaiting parts or repair; or any other conditions whatsoever that are beyond the control of Homedics.

This warranty is effective only if the product is purchased and operated in the country in which the product is purchased. A product that requires modifications or adoption to enable it to operate in any other country than the country for which it was designed, manufactured, approved and/or authorized, or repair of products damaged by these modifications is not covered under this warranty.

THE WARRANTY PROVIDED HEREIN SHALL BE THE SOLE AND EXCLUSIVE WARRANTY. THERE SHALL BE NO OTHER WARRANTIES EXPRESS OR IMPLIED INCLUDING ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS OR ANY OTHER OBLIGATION ON THE PART OF THE COMPANY WITH RESPECT TO PRODUCTS COVERED BY THIS WARRANTY. HOMEDICS SHALL HAVE NO LIABILITY FOR ANY INCIDENTAL, CONSEQUENTIAL, OR SPECIAL DAMAGES. IN NO EVENT SHALL THIS WARRANTY REQUIRE MORE THAN THE REPAIR OR REPLACEMENT OF ANY PART OR PARTS WHICH ARE FOUND TO BE DEFECTIVE WITHIN THE EFFECTIVE PERIOD OF THE WARRANTY. NO REFUNDS WILL BE GIVEN. IF REPLACEMENT PARTS FOR DEFECTIVE MATERIALS ARE NOT AVAILABLE, HOMEDICS RESERVES THE RIGHT TO MAKE PRODUCT SUBSTITUTIONS IN LIEU OF REPAIR OR REPLACEMENT.

This warranty does not extend to the purchase of opened, used, repaired, repackaged and/or resealed products, including but not limited to sale of such products on internet auction sites and/or sales of such products by surplus or bulk resellers. Any and all warranties or guarantees shall immediately cease and terminate as to any products or parts thereof which are repaired, replaced, altered, or modified, without the prior express and written consent of Homedics.

This warranty provides you with specific legal rights. You may have additional rights which may vary from state to state and country to country. Because of individual state and country regulations, some of the above limitations and exclusions may not apply to you.

For more information regarding our product line in the USA, please visit www.Homedics.com. For Canada, please visit www.Homedics.ca.

FOR SERVICE IN THE USA

[e-mail]

8:30AM-7:00PM EST MONDAY-FRIDAY

1-800-466-3342

FOR SERVICE IN CANADA

[e-mail] 8:30AM-5:00PM EST MONDAY-FRIDAY

1-888-225-7378

©2023 Homedics, LLC. All rights reserved.

Homedics is a registered trademarks of Homedics, LLC.

Distributed by Homedics, LLC, 3000 N Pontiac Trail, Commerce Township, MI 48390

IB-FMS290HJ

Made in China

Homedics

FMS-290HJ | L-03902 Rev. 1
