USER MANUAL VARMFRONT 605.616.82 IKEA

Design and Quality IKEA of Sweden

1 2 3 4 IN OUT OUT OUT

Line drawing of a device with a hand inserting a plug into the top panel (no text or symbols)

Diagram illustrating device connection and battery charging process, showing packet transmission from a device to laptop and connected to a device with battery.

Diagram illustrating battery charging process with labeled components and connection to a mobile phone

Illustration of a battery icon on a tablet device (no text or symbols)

English 6 Latviešu 63
Deutsch 9 Lietuvių 67
Français 13 Portugues 70
Nederlands 17 Româna 74
Dansk 21 Slovensky 78
Íslenska 24 Български 82
Norsk 28 Hrvatski 86
Suomi 32 Ελληνικά 89
Svenska 35 Русский 93
Česky 39 Українська 98
Español 43 Srpski 102
Italiano 47 Slovenščina 105
Magyar 51 Türkçe 109
Polski 55 عرب 112
Eesti 59

English

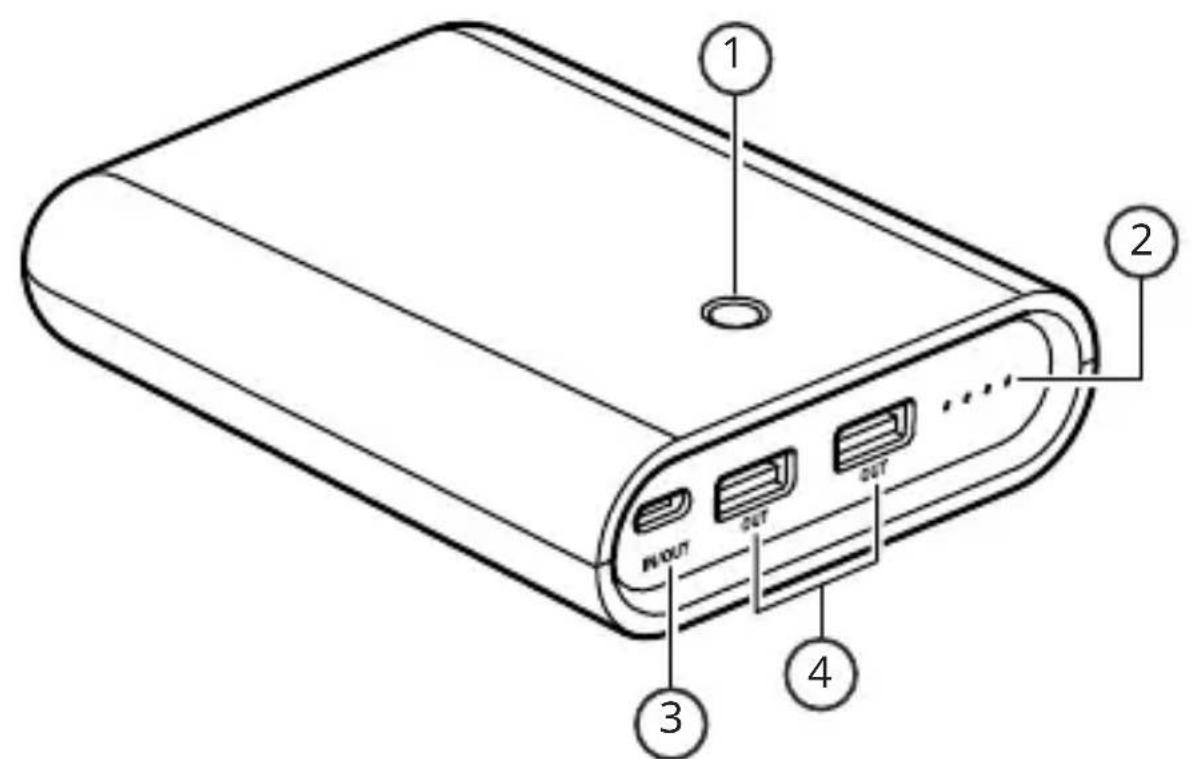

Functions

1. POWER button
2. LED indicators
3. USB-C (charging and supply power)
4. USB-A (only supply power)

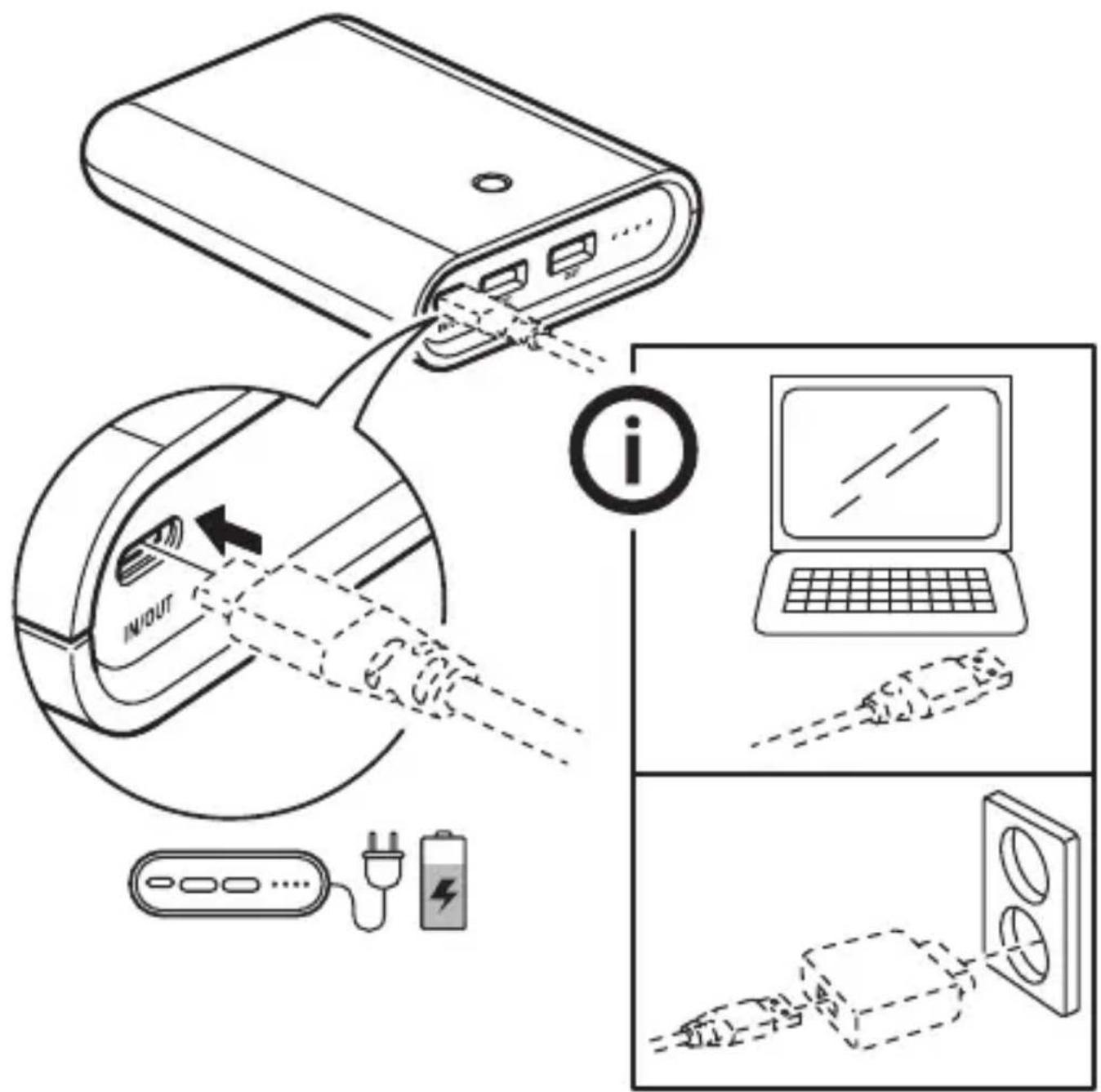

Charging power bank

- Connect the USB-C cable to the USB-C port of the power bank first and then connect the USB cable to a USB-charger or USB-outlet that can provide sufficient power to charge the power bank. The LED indicators will display the charging status.

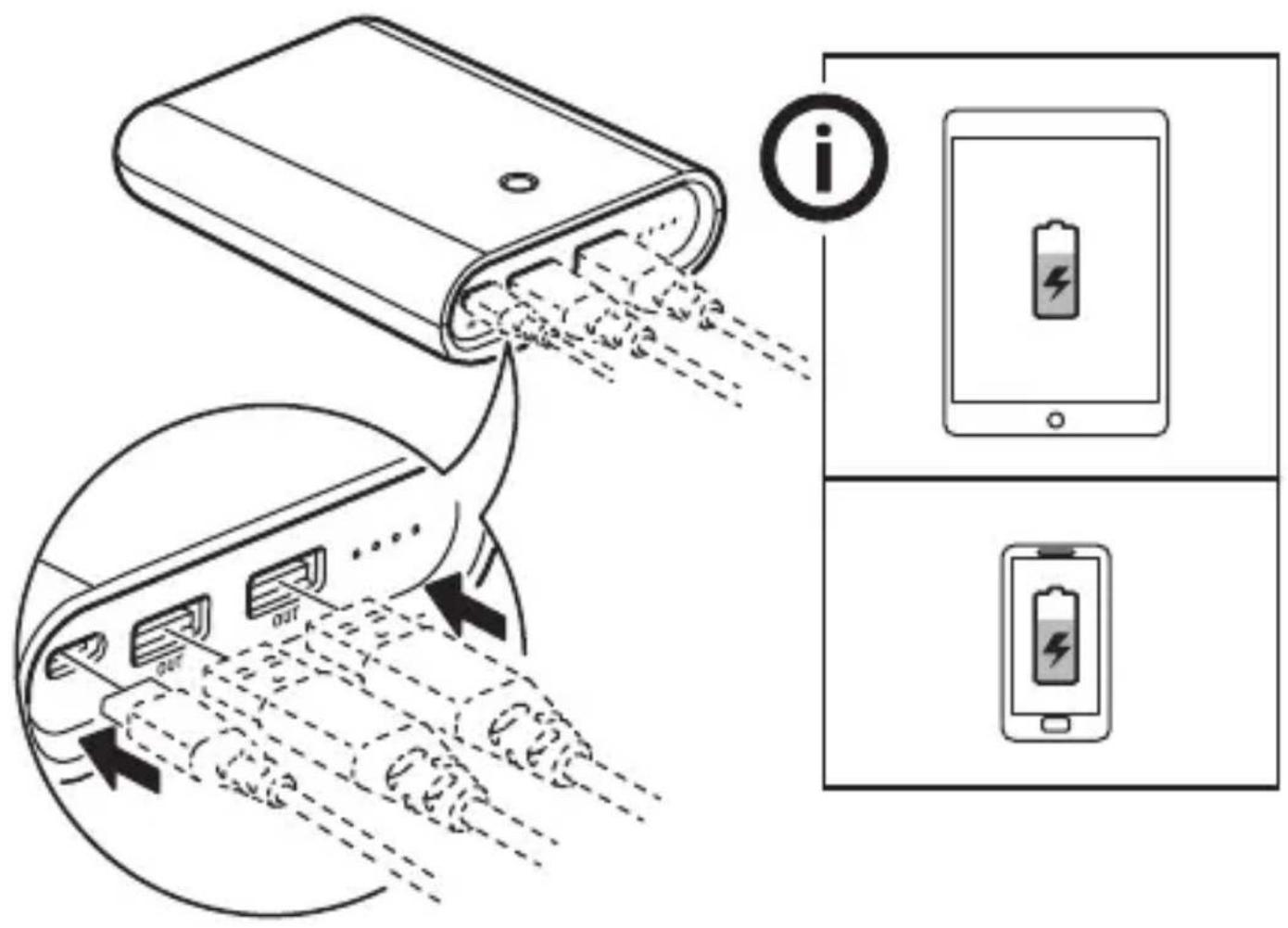

Supply power to devices

• Connect the USB cable to USB-C or USB-A port of the power bank first and then connect the USB-cable to your device that you want to charge.
• The power bank will detect a connected device and start charging automatically.
• The LED indicators will display the remaining charge in the power bank during discharging.

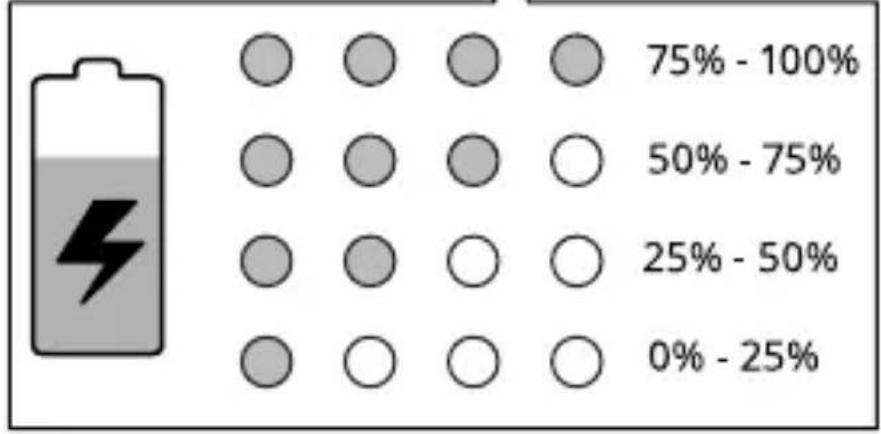

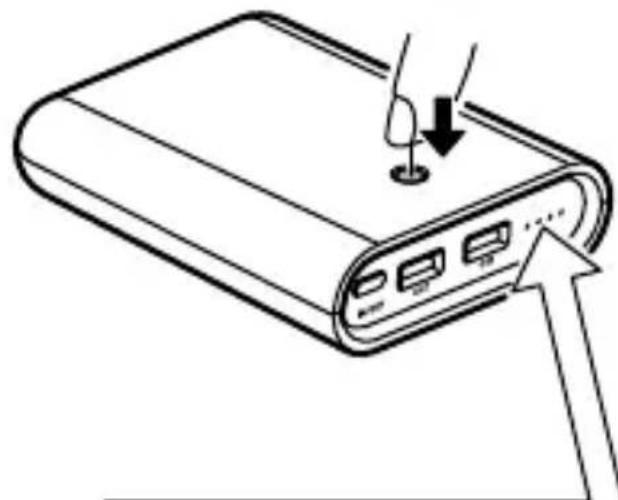

Check power status

• Click once on the POWER button and the LED indicators will light up and indicate the remaining power status.
• If the USB cable is not disconnected while the charging process finishes, push the POWER button first to restart the charging.

Small current supply mode

• Press the POWER button for 8 seconds when your device is being charged.
• The function is mainly used to charge certain wearable electronic devices. When charging a device that needs a charging current less than 100mA via a USB-A port, this mode should be activated. You can press the button for 3 seconds to exit this mode, it also automatically closes after 2 hours.

Good to know

- You can charge up to 3 devices at the same time since the charger has 2 USB-A ports and 1 USB-C port. (Power Delivery and Quick Charge)

• The USB-C port is compatible with the Power Delivery (PD) 3.0 standard and Quick Charge (QC) 3.0 standard.
• The USB-A ports are compatible with the Quick Charge (QC) 3.0 standard.
• USB cable length and quality influences charging speed and performance.
  • Devices may get warm during charging; this is completely normal and they will gradually cool down again after they are fully charged.
• Charging time may vary based on the device's battery capacity, charge level, the age of the battery and the temperature in the surrounding area.
  • Storage temperature: -10^ to 25^ .
  • Power bank operating temperature: 0^ C to 40^ C.
• Unplug the power bank from the power source before cleaning and when it is not in use.
• Power bank should not be left discharged for a longer period.
• Power bank should not be charged while in contact with flammable materials like textiles.

WARNING

• Do not modify, disassemble, open, drop, crush, puncture or shred product.
• Only use in dry locations.
• Risk of fires and burns. Do not open, crush, heat above 60°C (140°F) or incinerate.
• Do not subject the product to wet, moist or excessively dusty environments since this can cause damage to the unit.
• Keep the product away from open flames or sunlight to prevent heat buildup.
• Keep the product away from high voltage devices.
• Children should be supervised to ensure they do not play with the product.
• Do not short-circuit the product or its cells.
• In the event of a cell leaking, do not allow the liquid to come in contact with the skin or eyes.

CARE INSTRUCTION

To clean the unit, wipe with a soft cloth moistened with a little mild detergent. Use another soft dry cloth to wipe dry.

Product servicing

Do not attempt to repair this product yourself. If you open or remove parts, you may expose yourself to dangerous voltage points or other risks.

TECHNICAL DATA

Type: E2038

Capacity: 10400mAh/37.44Wh

Input: 5.0Vdc, 3.0A/ 9.0Vdc, 2.0A/ 12.0Vdc, 1.5A (USB-C QC&PD)

Output: 5.0Vdc, 3.0A, 15.0W/ 9.0Vdc, 2.0A, 18.0W/ 12.0Vdc, 1.5A, 18.0W

(USB-C QC&PD, USB-A QC)

When two or three ports output at the same time, they share 5.0V/3.0A.

For indoor use only

Rechargeable Li-Ion battery cell inside.

Power button function (E2038)

Current mode	Sleeping mode	Charging mode	Supply power mode
Single press	Shows via LED the remaining charge and that USB-A is ready to use.	USB-A is ready to use.	No action
Double press	No action	No action	Stop supplying power
Long press	Turn off after restart	No action	Switch to the small current supply mode or back to normal supply power mode

Manufacturer: IKEA of Sweden AB

Address: Box 702 SE-343 81 Älmhult SWEDEN

The crossed-out wheeled bin symbol indicates that the item should be disposed of separately from household waste. The item should be handed in for recycling in accordance with local environmental regulations for waste disposal. By separating a marked item from household waste, you will help reduce the volume of waste sent to incinerators or land-fill and minimize any potential negative impact on human health and the environment. For more information, please contact your IKEA store.
