Product Type	Two-piece toilet (bowl and tank)
Brand	American Standard
Model	Edgemere 4519A104
Bowl Shape	Elongated (model 3519A) or round (model 3519B) depending on version
Flush Type	Dual flush (partial and full) on dual-flush models; single on single-flush models
Flush Capacity (Dual Flush)	Partial: 1.0 gal (3.8 L); Full: 1.6 gal (6 L)
Material	Vitreous china
Flush System	Adjustable, non-coated flush valve
Water Connection	Standard water supply line (1/2 in NPT recommended)
Drain Type	Floor drain (standard flange)
Included Accessories	EZ installation kit including bolts, washers, gaskets, bolt caps
Water Level Adjustment	Via float adjustment knob
Seat Maintenance	Warm water and mild soap; avoid abrasives and chemicals
Tank Maintenance	Do not use cleaners in tank; possible corrosion
Installation Warning	Do not overtighten nuts; risk of cracking
Warranty	Contact American Standard: 800-442-1902 (US) or 800-387-0369 (Canada)

Frequently Asked Questions - Edgemere 4519A104 American Standard

How to adjust the water level in the tank?

Turn the adjustment knob on the float (located on the fill valve) to raise or lower the float until the level reaches the mark on the tank.

My toilet won't flush, what to do?

First check that the water supply valve is open. Then, for single-flush models, ensure the flush valve chain is neither too loose nor detached. For dual-flush models, adjust the threaded rods on the push buttons (see step 9 of the manual).

How to clean the toilet seat?

Use only warm soapy water and a soft cloth. Rinse and dry. Never use abrasive powder, scouring pad, or harsh chemical cleaners on the seat.

Flush flow is weak or slow, what to check?

Make sure the water level in the bowl is correct. Check that the fill tube is connected and inserted into the overflow tube without kinks. Fully open the supply valve. Also check water pressure is at least 20 psi.

Toilet leaks at tank or bowl, what to do?

Check the water supply line connections (step 7 of installation) and the bowl/tank fasteners (steps 1-6). If the flapper seal leaks, clean debris or replace the flapper/flush valve.

How to adjust partial and full flush on a dual-flush model?

Refer to the diagram in step 9. The 3-dot button (partial flush) should align with the blue actuator, and the 9-dot button (full flush) should align with the white actuator. Adjust the threaded rods under the cover if necessary.

Bowl moves after installation, how to stabilize?

Tighten the bowl-to-floor fasteners. If the floor is uneven, use a toilet shim or apply a bead of putty under the base to stabilize.

Can I use a cleaner in the tank to remove stains?

No. Cleaners in the tank corrode internal parts (valves, seals) and void the warranty. Use only water and gentle exterior cleaning.

What to do if the toilet won't stop filling?

This can be due to a flapper seal leaking or debris in the water control. Shut off the supply, remove the fill valve cap, and clean it following Fluidmaster instructions. Also adjust the flapper chain if too short.

How to install the toilet correctly?

Follow the steps in the manual: clean the flange, place the wax ring, set the bowl with T-bolts, attach the tank with gasket and nuts, and connect the water supply line. Do not overtighten to avoid cracking.

USER MANUAL Edgemere 4519A104 American Standard

INSTALLATION INSTRUCTIONS CARE AND MAINTENANCE

Edgemere® 2-piece Toilet Elongated and Round Front Models 204AA, 204BA Series

Thank you for selecting American Standard - the benchmark of fine quality for over 100 years. To ensure this product is installed properly, please read these instructions carefully before you begin. (Certain installations may require professional help.) Also be sure your installation conforms to local codes.

CAUTION: PRODUCT IS FRAGILE. TO AVOID BREAKAGE AND POSSIBLE INJURY HANDLE WITH CARE! NOTE: Pictures may not exactly define contour of china and components.

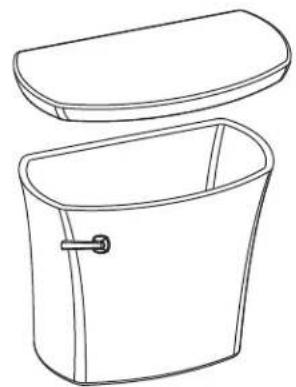

TANK 4519A and 4519B

EZ-INSTALL KIT INCLUDED WITH TANK

Tank To Bowl Gasket

Attachment Handle with 2 Nuts

2 Plastic Washers

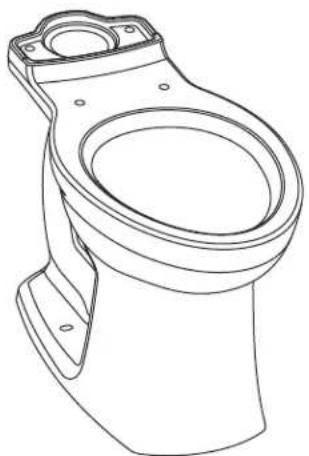

BOWL 3519A ELONGATED / BOWL 3519B ROUND FRONT

EZ-INSTALL KIT INCLUDED WITH BOWL

T-Bolts with Retainer (2)

Bolt Caps (2)

Bowl-To-Floor Knobs (2)

SOLD SEPARATELY

Wax Ring

Water Supply Line

Slow Close Toilet Seat

Before You Start: If Removing An Existing Toilet

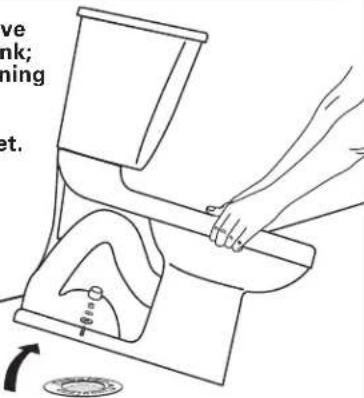

Turn Off Water Supply	Flush to remove water from tap sponge remain water from bowl before removing toilet		Clean Flange Caution: If leaving floor flange open for more than 1-2 hours, cover flange to prevent escaping sewer gases.
Recommended fitting type for back-to-back installations.	BACK-TO-BACK INSTALLATIONDepending upon your plumbing and venting conditions, the flow from the toilet in a back-to-back installation may create a vacuum on the system and draw water from the opposing bowl. The National Standards Plumbing Code prohibits the use of a cross fitting for drainage as throw over is possible. The code does approve a directional "Y" style fitting with proper venting to direct the water downward and away from the other toilet.

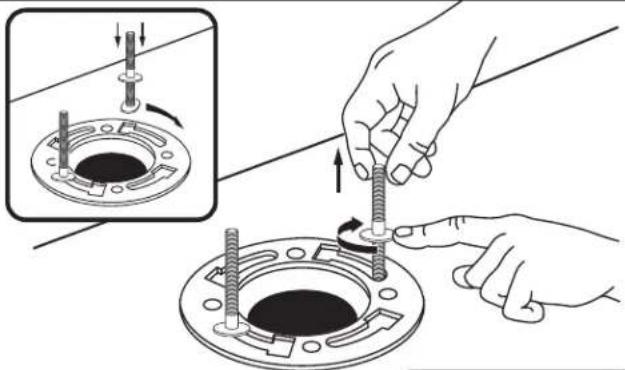

1	NOTE: 1/4" EZ-BOLTS INCLUDED.IF 5/16" BOLTS ARE REQUIRED,PURCHASE SEPARATELY.		2 Print ing eparately)

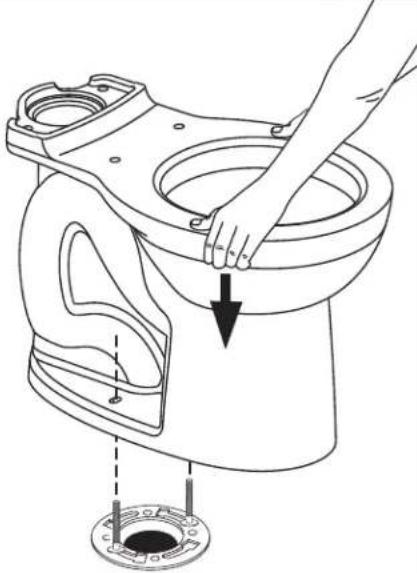

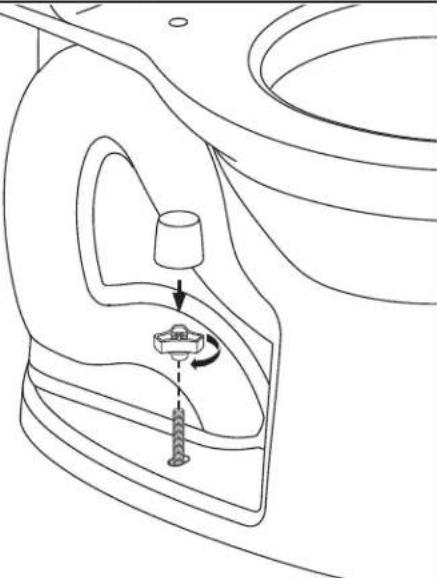

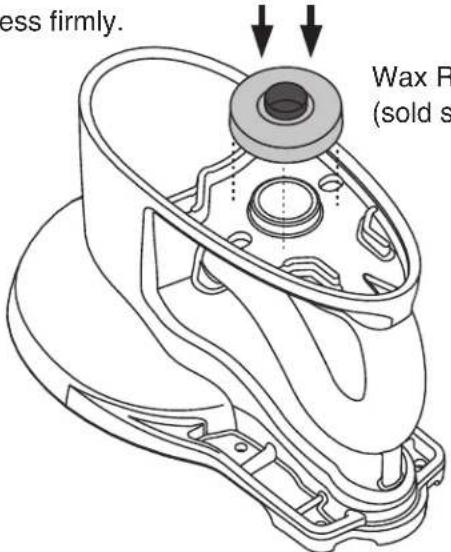

3	Apply weight evenly.Do not move after placement. Water tight seal may break.		4[022A] Hand tighten only. Do not overtighten.

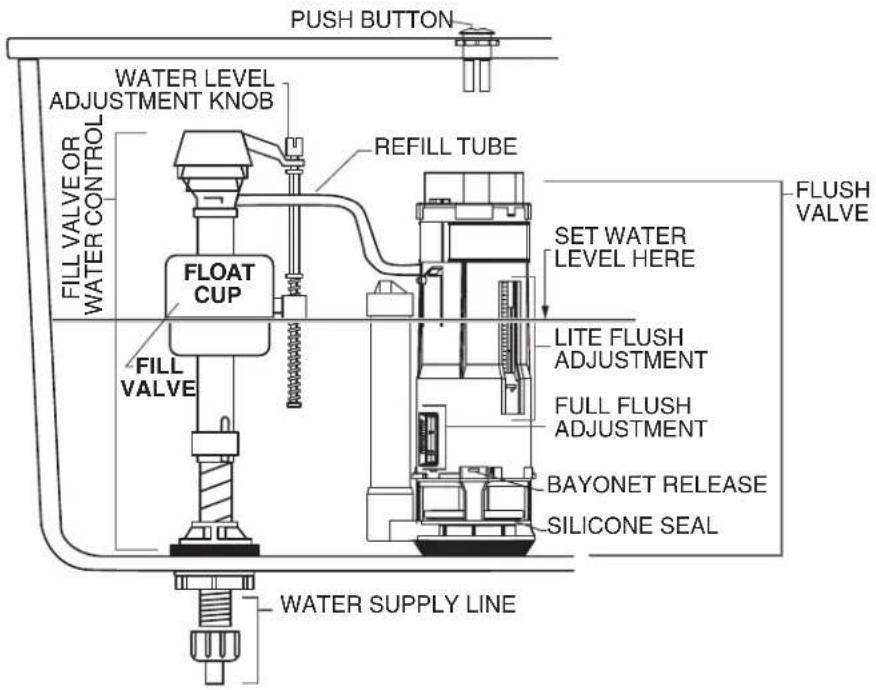

9 DUAL FLUSH

ADJUSTMENTS

a. Adjust water level. Water level should be adjusted to level indicated on tank by adjusting float cup using water level adjustment knob.
b. Flush Valve Setting Adjustments:

Flush Valve Setting Adjustments	Without Liner Tank
Full Flush Adjustment	2
Lite Flush Adjustment	2.5

NOTE: All other settings will result in either more or less water and are not recommended.

• To remove Flush Valve, apply slight downward pressure and twist it until the flush valve disengages from the bayonet.
- To reinstall Flush Valve, reverse the above procedure.

FLUSH BUTTONS ON TANK

Pressing both buttons at once will flush the low flush amount of 1.0 gal/flush or 3.8 L/flush. The Lite Flush Button (with 3 dots) should line up over the blue actuator on the flush tower in the tank. The Full Flush Button (with 9 dots) should line up over the white actuator on the flush tower in the tank.

Lite Flush Button (with 3 dots) for liquid waste.

1.0 gal/flush
3.8 L/flush
1.0 gal/flush
3.8 L/flush

Lite Flush Button (with 3 dots) for liquid waste.

TIPS:

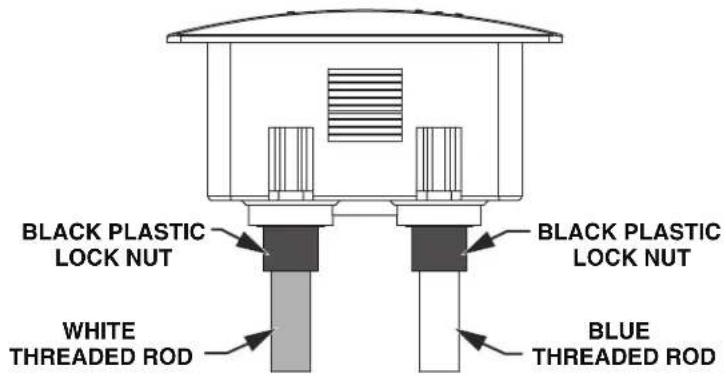

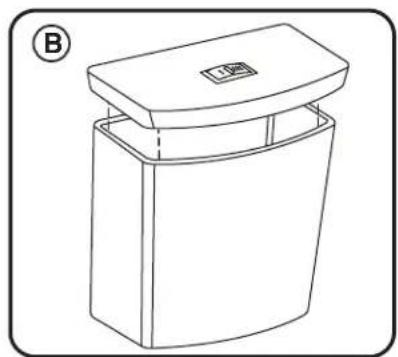

If the bowl still does not flush properly after following the steps outlined in the troubleshooting guide, remove the tank lid and push one of the flush buttons on top of the flush valve in the tank. If the flush appears to be normal, you will need to adjust the length of the threaded rods for the push buttons mounted on the tank lid with the settings as follows:

1. Turn the lid upside down.
2. Loosen the black plastic lock nut.
3. Adjust the white threaded rod one turn counterclockwise.
4. Re-tighten the black plastic lock nut.
5. Put lid back on tank and test the flush. If it is still not flushing properly, repeat steps 1 through 4 until the problem is resolved.
6. If one counterclockwise turn is too much and causes the flush valve to stay open, adjust 1/2 turn clockwise and return to step 4.

Full Flush Button (with 9 dots) for solid waste.

1.6 gal/flush
6 L/flush

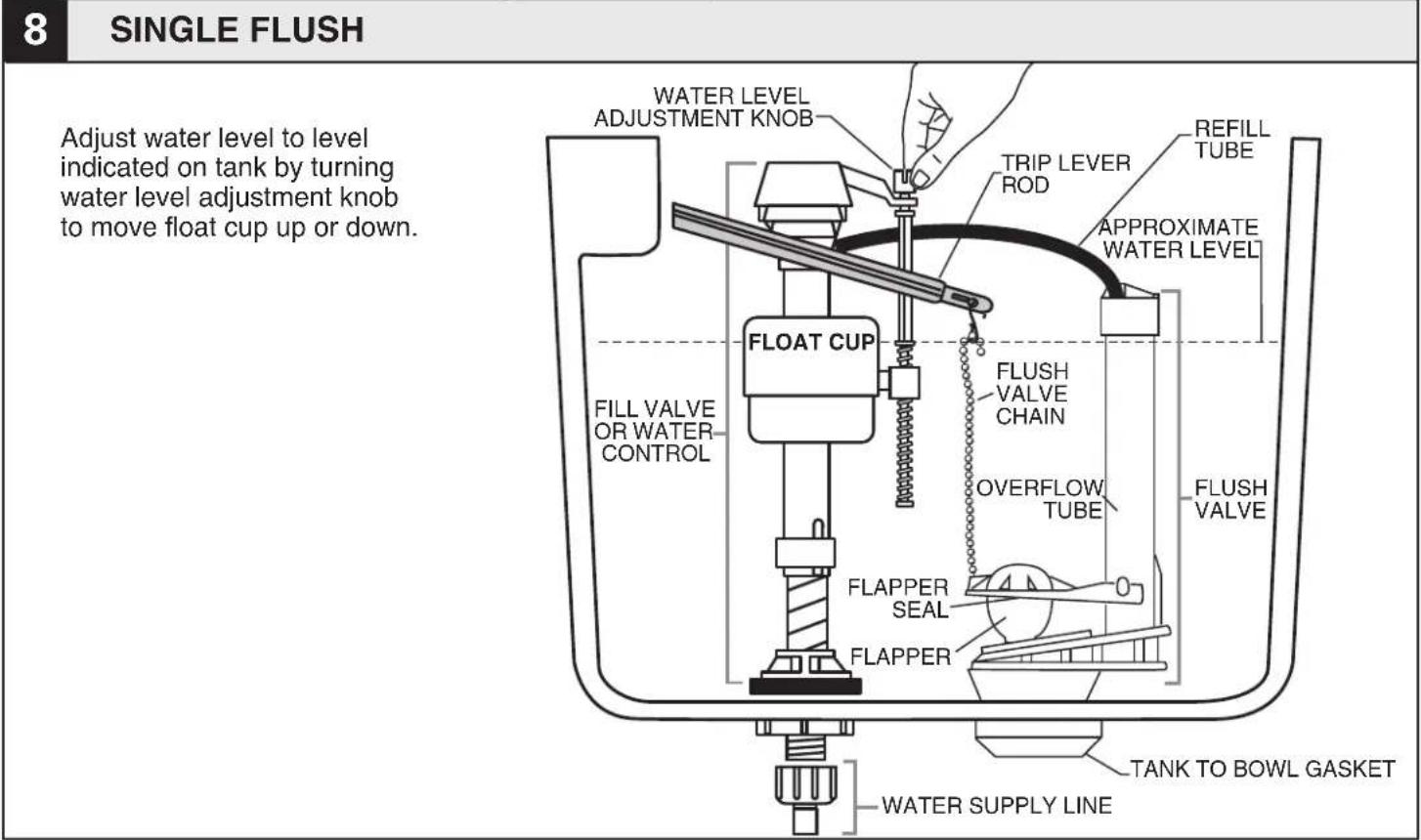

* for SINGLE FLUSH Models ONLY* See Step 8 For Diagram		TROUBLESHOOTING GUIDE		** for DUAL FLUSH Models ONLY** See Step 9 For Diagram
Problem Possible Cause Corrective Action
Does not flush	a. Water supply valve closed.b. Supply line blocked.*c. Flush valve chain too loose or disconnected.**c. Push button requires adjustment.d. Sand or debris lodged in water control.		a. Open valve and allow water to fill tank.b. Shut off water supply, disconnect supply line and inspect all gaskets and washers. Reassemble.*c. Readjust chain length as required.**c. Adjust rods per step 9d. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at:www.americanstandard-us.com/enews/fluidmasterguide.pdf
Poor or sluggish flush	a. Bowl water level too low.b. Supply valve partly closed.c. Partially clogged trapway and/or drain pipe and/or vent.d. Supply pressure too low.		a. Check that refill tube is connected to water control and inserted into overflow tube without being kinked or damaged.b. Open supply valve fully. Be sure that proper supply tube size is used.c. Remove obstruction. Consult a plumber if necessary.d. Normal supply pressure must be at least 20 psi.

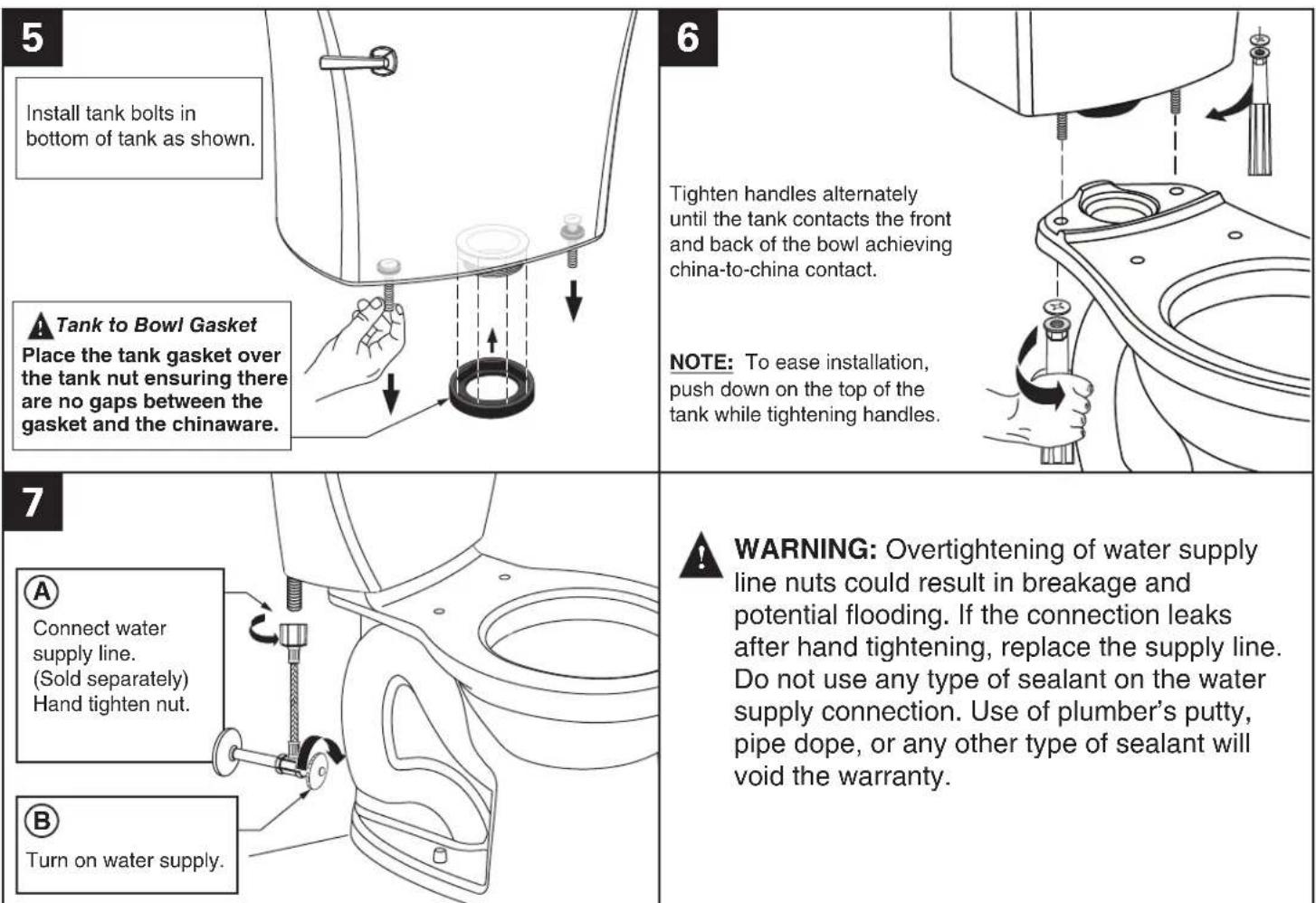

Toilet leaks	a. Poor supply line connection.b. Poor bowl to tank/floor connection.		a. Review Step 7 of installation procedure.b. Review Step 1 through 6 of installation procedure.
Toilet does not shut off	a. Flapper/Flush Valve seal leaking or deformed.b. Sand or debris lodged in water control.*c. Flush valve chain too tight, holding flapper open.		a. Clean debris from seal surface. Replace Flapper/Flush Valve seal as needed. See web for more info.b. Shut off water supply. Remove cap and clean as per Fluidmaster maintenance instructions at:www.americanstandard-us.com/enews/fluidmasterguide.pdf*c. Readjust chain length as needed.
Toilet bowl rocks after installation	a. Wax ring not fully compressed.b. Floor not level.		a. Retighten bowl-to-floor knobs.b. Use toilet shims and /or place a bead of caulk around the base of the toilet.

CARE AND CLEANING

When cleaning your toilet, wash it with mild, soapy water, rinse thoroughly with clear water and dry with a soft cloth. Avoid detergents, disinfectants, or cleaning products in aerosol cans. NEVER use abrasive scouring powders or abrasive pads on your toilet seat. Some bathroom chemicals and cosmetics may damage the seat's finish.

WARNING: Do not use in-tank cleaners. These products can seriously corrode fittings in the tank. This damage can cause leakage and property damage. American Standard shall not be responsible or liable for any damage caused by the use of in-tank cleaners.
