USER MANUAL DBC031L1SS DANBY

OWNER'S MANUAL MANUEL DU PROPRIÉTAIRE MANUAL DEL PROPIETARIO

BEVERAGE CENTER

Owner's Manual....1 - 11

CENTRE DE BREUVAGES

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9

Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com

f in x p

Printed in China | Imprimé en Chine | Impreso en China

2025.11.18

Welcome to the Danby family.

We are proud of our quality products and we believe in dependable service. We suggest that you read this owner's manual before plugging in your new appliance as it contains important operation information, safety information, troubleshooting, and maintenance tips to ensure the reliability and longevity of your appliance.

You are entitled to the warranty coverage as described in the owner's manual provided with your new appliance.

1. Please write down your appliance information below. You must keep the original proof of purchase receipt to validate and receive warranty services.
2. Register your product online and receive a FREE 2 MONTH WARRANTY EXTENSION after filling out a product survey, at www.danby.com/support/product-registration/

Model Number:

Serial Number:

Date of Purchase:

Need Help?

1. Read your Owner's Manual for installation help, troubleshooting, and maintenance assistance.
2. Visit www.Danby.com to access self-service tools, FAQs and much more by searching your model number in the search bar.
3. For the Quickest Customer Service, please fill out the web form at www.danby.com/support. Your submission will go directly to an expert on your particular appliance. Our average response times are between 20 minutes and 2 hours, during EST business hours.
4. Call 1-800-263-2629 - please note that during peak hours, hold times can exceed one hour.

Important Safety Information READ AND FOLLOW ALL SAFETY INSTRUCTIONS

SAFETY REQUIREMENTS

DANGER: Risk of fire or explosion. Flammable refrigerant used. Do not puncture refrigerant tubing.

• Do not use mechanical devices to defrost refrigerator.
• Ensure that servicing is done by factory authorized service personnel, to minimize product damage or safety issues.
• If the power supply cord is damaged, it must be replaced by the manufacturer, its service agent or similar qualified person in order to avoid hazard.
• Consult repair manual or owner's guide before attempting to service this product. All safety precautions must be followed.
• Dispose of properly in accordance with federal or local regulations.
  • Follow handling instructions carefully.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

CAUTION: Children should be supervised to ensure that they do not play with the appliance.

DANGER: Risk of child entrapment. Before throwing away an old appliance:

• Remove the door or lid.
• Leave shelves in place so that children may not easily climb inside.

DANGER: Do not add a lock to the door or lid. This can cause child entrapment and harm.

SAFETY REQUIREMENTS

This appliance is not intended for use by persons (including children) whose physical, sensory or mental capabilities may be different or reduced, or who lack experience or knowledge, unless such persons receive supervision or training to operate the appliance by a person responsible for their safety.

This appliance is intended to be used in household and similar applications such as:

• Staff kitchen areas in shops, offices and other working environments;
• Farm houses and by clients in hotels, motels and other residential type environments;
  • Bed and breakfast type environments;
  • Catering and similar non-retail applications.

GROUNDING INSTRUCTIONS

This appliance must be grounded. Grounding reduces the risk of electrical shock by providing an escape wire for the electrical current.

This appliance has a cord that has a grounding wire with a 3-prong plug. The power cord must be plugged into an outlet that is properly grounded. If the outlet is a 2-prong wall outlet, it must be replaced with a properly grounded 3-prong wall outlet. The serial rating plate indicates the voltage and frequency the appliance is designed for.

WARNING - Improper use of the grounding plug can result in a risk of electric shock. Consult a qualified electrician or service agent if the grounding instructions are not completely understood, or if doubt exists as to whether the appliance is properly grounded.

Do not connect your appliance to extension cords or together with another appliance in the same wall outlet. Do not splice the power cord. Do not under any circumstances cut or remove the third ground prong from the power cord. Do not use extension cords or ungrounded (two prongs) adapters.

INSTALLATION INSTRUCTIONS

LOCATION

• Two people should be used when moving the appliance.
• Remove interior and exterior packaging prior to installation. Wipe the outside of the appliance with a soft, dry cloth and the inside with a lukewarm wet cloth.
• Before connecting the appliance to a power source, let it stand upright for approximately 6 hours. This will reduce the possibility of a malfunction in the cooling system from handling during transportation.
  • Install the handle on the door (page 4)
• Place the appliance on a floor that is strong enough to support it when it is fully loaded.
• Do not install the appliance near an oven, radiator or other heating source, such as a stove or heater, as this can increase electrical consumption.
• Do not place the appliance in direct sunlight, as this may affect the acrylic coating.
• Extreme cold ambient temperatures may cause the appliance to perform improperly. Do not install in a location where the temperature will fall below 64^ F ( 18^ C).
• The recommended ambient temperature for this appliance is between 64°F - 100°F (18°C - 38°C).
• For best performance, do not install the appliance behind a cabinet door or block the base grille.
• Avoid placing the unit in moist areas.

• Do not use the appliance near water, for example in a wet basement or near a sink.

• This appliance is 48 cm (18.9 inches) wide by 85cm (33.5 inches) high by 46.9cm(18.5 inches) deep

• This appliance is intended for free-standing installation only and is not intended to be built into a cabinet or counter. Building in this appliance can cause it to malfunction.
• For free-standing installation, leave 12.7 cm (5 inches) of space around the back and sides of the unit to allow proper air circulation to cool the compressor and condenser

IMPORTANT: Plug the Beverage Cooler into an exclusive, properly grounded wall outlet. Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.

Any questions concerning power and/or grounding should be directed towards a certified electrician or an authorized service center.

WARNING

This appliance is intended for household use only. It is not designed for outside installation, including anywhere that is not temperature controlled (garages, porches, vehicles, etc.).

CAUTION

This appliance is designed for storing and cooling beverages and drinks. Do not store perishable food, medicine or other products in this appliance.

INSTALLATION INSTRUCTIONS

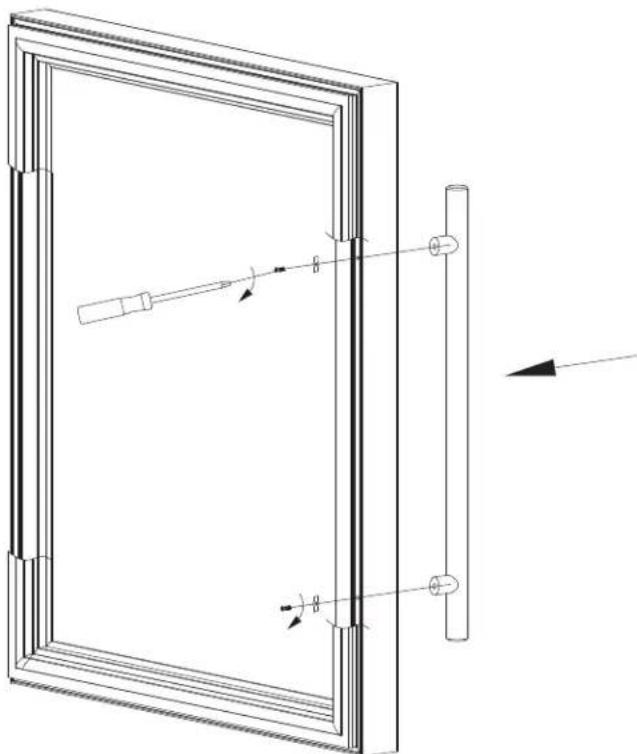

DOOR HANDLE INSTALLATION

Required Tools: Phillips screwdriver

1. Lift the door seal to reveal the handle's fixing screws inside the seal groove
2. Align the pull handle holes with the screws on the door frame
3. Use a Phillips screwdriver to install the handle (turn fixing screws clockwise)
4. Reset the door seal and press it firmly into the seal groove to avoid cold leaks

Technical line drawing of a door frame with a tool and directional arrows indicating movement (no text or symbols)

OPERATING INSTRUCTIONS

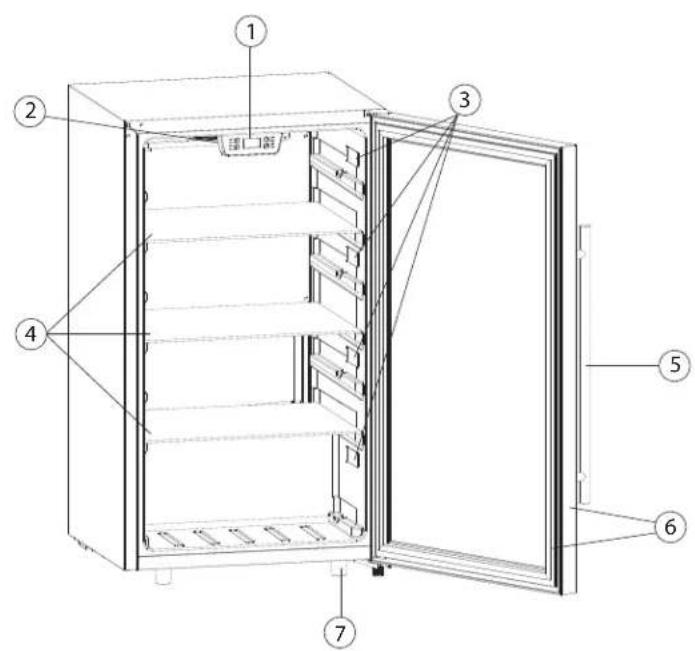

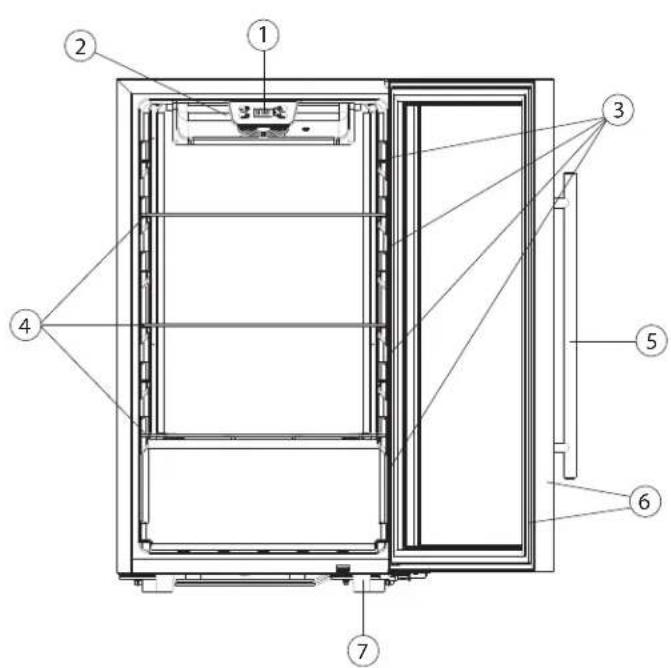

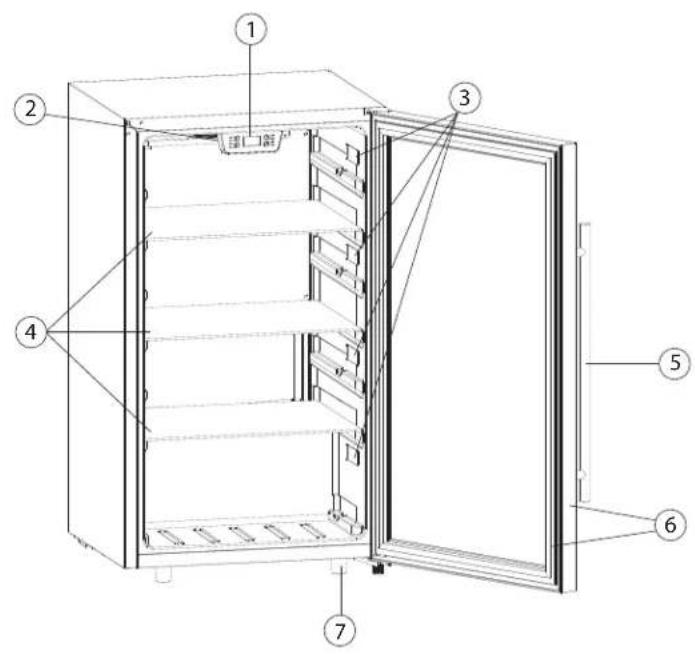

PRODUCT FEATURES

1. Temperature control panel
2. Interior lights
3. Strip lights
4. Glass shelves (x3)
5. Door handle: Follow door reversal instructions (page 7) to flip door handle location to other side
6. Door/door seal
7. Leveling legs (x2)

Technical diagram of a refrigerator with numbered components for identification

Diagram of an open refrigerator with numbered parts for identification

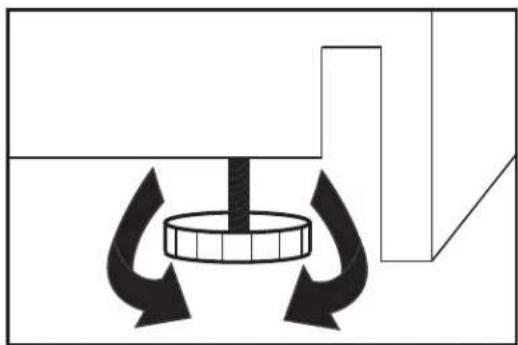

LEVELING INSTRUCTIONS

There are two adjustable legs on the bottom of the appliance that can be turned up or down to ensure that the appliance is level.

1. Turn the leveling leg counter-clockwise as far as it will go, until the top of the foot is touching the bottom of the cabinet.
2. Slowly turn the leveling leg clockwise until the appliance is level.

Pure mechanical diagram showing a rotating shaft and curved arrows indicating motion (no text or symbols)

OPERATING INSTRUCTIONS

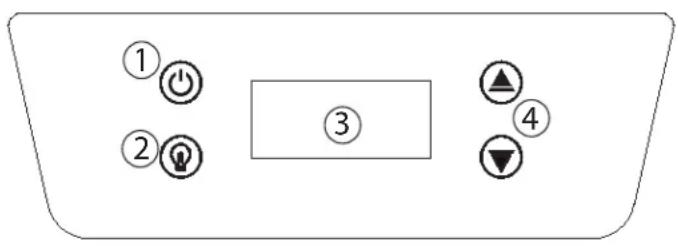

CONTROL PANEL

1. Power button: press and hold this button for 3 seconds to turn the appliance on or off.
   NOTE: When the unit is turned off, the fan will continue to run for approximately 5 minutes. This is designed to help cool down internal components
2. Light button: press to turn the interior light on or off.
3. Display: shows the set temperature.
4. Up and down buttons:

- Use to set the desired temperature. Each press will increase or decrease the set temperature in 1^ increments.

- Press and hold the up and down buttons for approximately 3 seconds to change the temperature scale between Celsius and Fahrenheit.

① ② ③ ④

STOCKING INSTRUCTIONS

This beverage center has a maximum capacity of 83,355 ml cans.

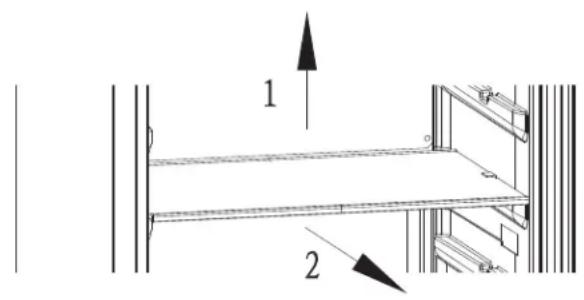

SHELF INSTRUCTIONS

To remove a shelf from its locked position, lift the rear of the shelf upward and then slide the shelf out of the unit.

To replace the shelf, ensure it is resting securely on the support brackets and then push inward until the shelf locks into place.

1 2

OPERATING INSTRUCTIONS

DOOR REVERSAL INSTRUCTIONS

NOTE: As the appliance is placed on its back during this process, it must be allowed to remain upright for a minimum of 6 hours before plugging it in to avoid damage to the internal components.

IMPORTANT: Before beginning door reversal, remember to empty and unplug the appliance

Required Tools: Phillips screwdriver

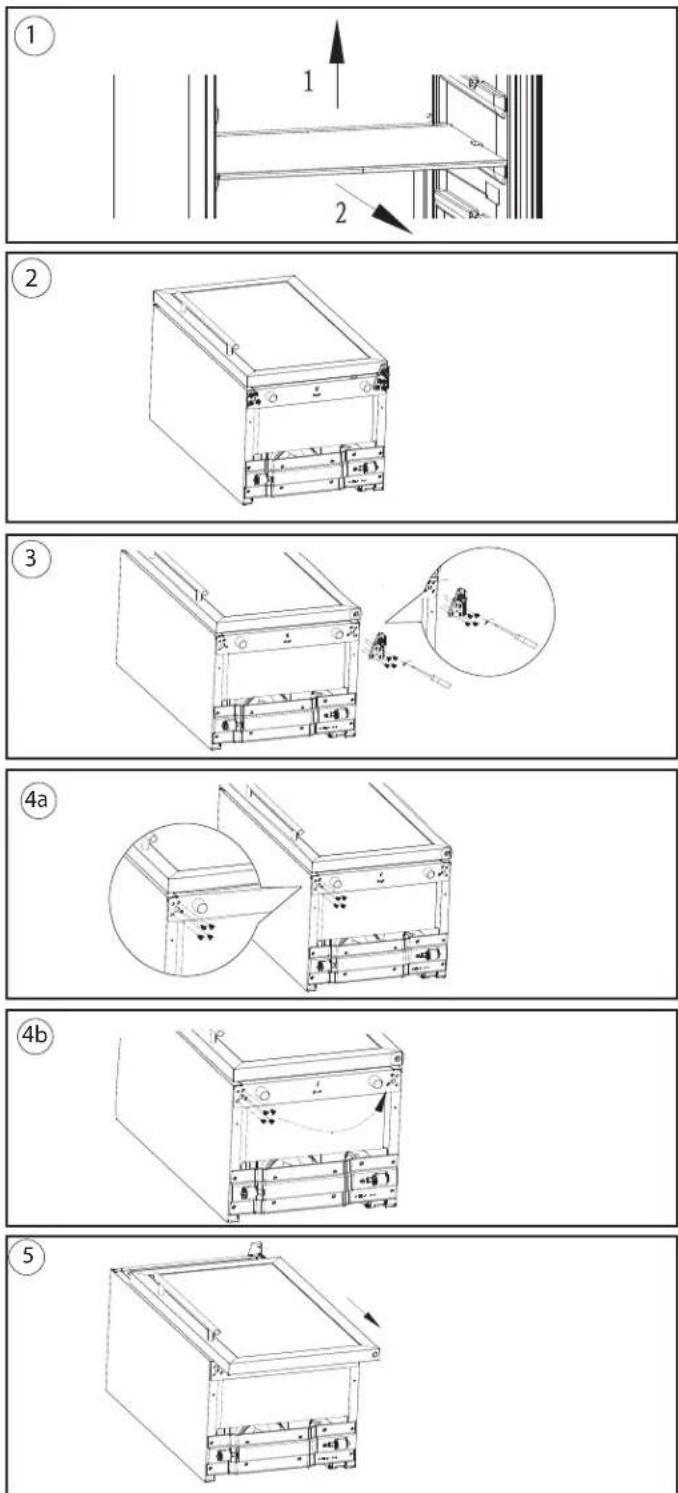

DOOR REVERSAL STEPS:

1. Pull out glass shelf
2. Lay the unit down with the front side facing up

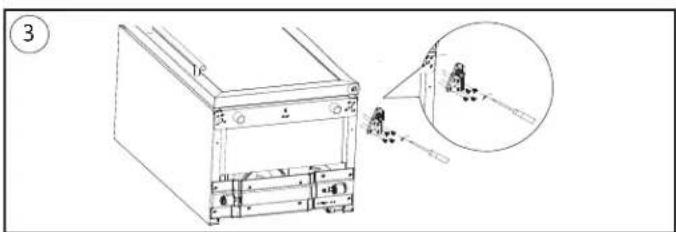

3. Using a Phillips screwdriver, remove screws & take off lower right door hinge

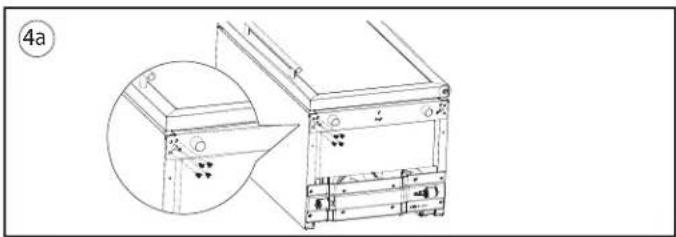

4. Switch pre-installed screws from left to right

a) Remove pre-installed screws from the left hinge mounting position

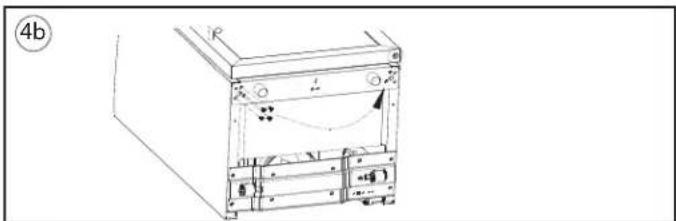

b) Install the screws into the right hinge mounting positions

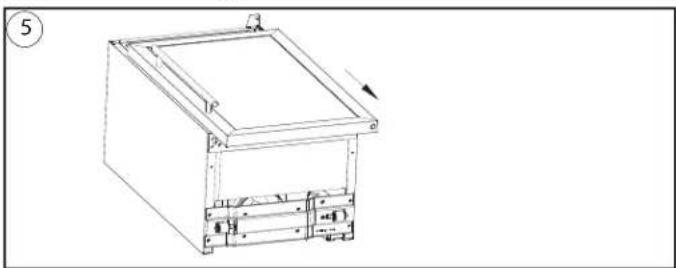

1. Remove the door in the direction of the arrow

OPERATING INSTRUCTIONS

1. Using a Phillips screwdriver, remove the screws and take off the upper right hinge

2. Switch hole covers from left to right

a) Remove the left hinge hole covers

b) Install the hole covers in the right hinge holes

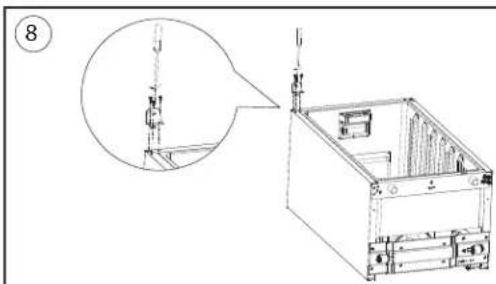

1. Using a Phillips screwdriver, install the upper left door hinge

NOTE: The left door hinge assembly can be found in the plastic bag of the instruction manual

1. Install the reversed door

a) Rotate the door 180^

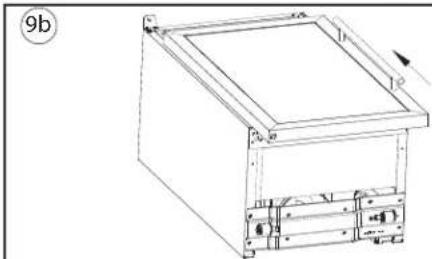

b) Install the door into the unit following the arrow direction

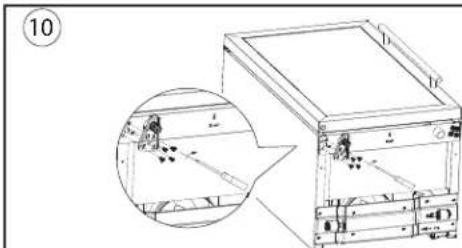

1. Insert the lower door hinge into the door pivot hole, aligning it with the left hinge hole. Secure it to the unit with screws.

Technical line drawing of a mechanical device with internal components and a magnified inset showing internal structure (no text or symbols)

7a

Technical line drawing of a mechanical housing or enclosure with internal compartments and mounting brackets (no text or symbols)

⑧

Diagram showing a door opening with an arrow indicating direction (no text or symbols)

Technical line drawing of a rectangular electronic device with mounting brackets and a central screen (no text or symbols)

10 D D

CARE & MAINTENANCE

CLEANING

Ensure the appliance is unplugged before cleaning.

• To clean the inside of the appliance, use a soft cloth and a solution of a tablespoon of baking soda to one quart of water or some mild detergent.
• Wash removable shelves in a mild detergent solution, then dry and wipe with a soft cloth.
• Clean the outside with a soft, damp cloth and some mild detergent.
• It is important to keep the area clean where the door seals against the cabinet. Clean this area with a soapy cloth. Rinse with a damp cloth and let dry.

Note: Do not use cleaners containing ammonia or alcohol on the appliance. Ammonia or alcohol can damage the appearance of the appliance. Never use any commercial or abrasive cleaners or sharp objects on any part of the appliance.

CAUTION

Failure to unplug the appliance during cleaning could result in electrical shock or other personal injury

POWER FAILURE

Most power failures are corrected within a few hours and should not affect the temperature of your appliance if you minimize the number of times the door is opened. If the power is going to be off for a longer period of time, take the proper steps to protect your contents.

Note: Wait 3 to 5 minutes before attempting to restart the appliance if operation has been interrupted.

DEFROST

This appliance is equipped with an automatic defrost function and does not require manual defrosting. Defrost water from the appliance is channeled into a drip tray located above the compressor. Heat transfer from the compressor causes the defrost water to evaporate.

VACATION

• Short vacations: Leave the appliance operating during vacations of less than three weeks.
• Long vacations: If the appliance will not be used for several months, remove all items and turn off the appliance. Clean and dry the interior thoroughly. To prevent odor and mold growth, leave the door open slightly, blocking it open if necessary.

MOVING

• Ensure the appliance is empty.
• Secure all loose items (shelves) inside the appliance.
• Secure the door with tape.
• Turn the adjustable leg up to the base to avoid damage.
• Protect the outside of the appliance with a blanket or similar item.
• Ensure the appliance stays in the upright position during transportation.
• If the appliance is placed on its back or side during transportation, upon reaching the destination, allow it to remain upright for 6 hours before plugging in to avoid damage to the internal components.

ENERGY SAVING TIPS

• The appliance should be located in the coolest area of the room, away from heat producing appliances and out of direct sunlight.
• Ensure that the unit is adequately ventilated.
• Do not keep the door open any longer than necessary

DISPOSAL

This appliance may not be treated as regular household waste, it should be taken to the appropriate waste collection point for recycling of electrical components. For information on local waste collection points, contact your local waste removal agency or government office.

TROUBLESHOOTING

Danby Consumer Care: 1-800-263-2629

Hours of operation:

Monday to Thursday 8:30 am - 6:00 pm Eastern Standard Time

Friday 8:30 am - 4:00 pm Eastern Standard Time

Information in this manual is subject to change without notice.

PROBLEM POTENTIAL CAUSES AND SOLUTIONS

Appliance is not running • Appliance is not plugged in/plug is not fully inserted into the wall outlet• Appliance is not turned on• Incorrect voltage during installation• A fuse may be blown or the circuit breaker tripped

Appliance is not cold enough• Check the temperature control setting• Check if the ambient temperature is beyond the appliance's operating temperature• The door is opened too frequently• The door is not closed properly• The door is not sealing correctly• There is insufficient free space around the appliance

The compressor starts and stops continuously• The external temperature is high• A large quantity of bottles has been put into the cellar• The appliance is opened frequently• The door is not closed properly

LED lights do not operate • The appliance is not on/plugged in• A fuse has blown• LED lights are broken• The light switch is OFF

Condensation on the cabinet or door • Door is not shut properly or opened excessively• Ambient temperature or humidity is very high

The appliance vibrates or makes a lot of noise• A rattling noise may come from the flow of the refrigerant, which is normal• When the cooling cycle ends, you can hear the noise of water circulating. Expansion and contraction of the internal walls may cause a cracking sound.• Check the appliance feet to make sure it is level• Check if the fan is in good condition

Door will not close, or will not stay closed• Ensure that the appliance is level• The door seal is dirty or damaged• Ensure that the shelves are positioned correctly• A part of the contents of the appliance is preventing the door from closing

Excessive ice build-up on the evaporator • Adjust the temperature setting slightly higher• Ensure the door gasket is sealing well

Danby.

Limited "In-Home" Warranty

This quality product is warranted to be free from manufacturer's defects in material and workmanship, provided that the unit is used under the normal operating conditions intended by the manufacturer. This warranty is available only to the person to whom the unit was originally sold by Danby Products Limited (Canada) or Danby Products Inc. (U.S.A.) (hereafter "Danby") or by an authorized distributor of Danby, and is non-transferable.

Terms of Warranty

Plastic parts are warranted for thirty (30) days from the date of purchase, with no extensions provided.

First 24 months

During the first twenty four (24) months, any functional parts of this product found to be defective, will be repaired or replaced, at warrantor's option, at no charge to the original purchaser.

To obtain service

Contact the dealer where the unit was purchased, or contact the nearest authorized Danby service depot, where service must be performed by a qualified service technician. If service is performed on the unit by anyone other than an authorized service depot, all obligations of Danby under this warranty shall be void.

Boundaries of in-home service

Danby reserves the right to limit the boundaries of “In Home Service” to the proximity of an authorized service depot. Any appliance requiring service outside the limited boundaries of “In Home Service”, will be the consumer’s responsibility to transport at their own expense to the original point of purchase or a service depot for repair. If the appliance is installed in a location that is 100 kilometers (62 miles) or more from the nearest service center, it must be delivered to the nearest authorized Danby Service Depot by the purchaser.

Transportation charges to and from the service location are not protected by this warranty and are the responsibility of the purchaser.

Exclusions

Save as herein provided, by Danby, there are no other warranties, conditions, representations or guarantees, express or implied, made or intended by Danby or its authorized distributors and all other warranties, conditions, representations or guarantees, including any warranties, conditions, representations or guarantees under any Sale of Goods Act or like legislation or statute is hereby expressly excluded. Save as herein provided, Danby shall not be responsible for any damages to persons or property, including the unit itself, howsoever caused or any consequential damages arising from the malfunction of the unit and by the purchase of the unit, the purchaser does hereby agree to indemnify and hold harmless Danby from any claim for damages to persons or property caused by the unit.

General Provisions

No warranty or insurance herein contained or set out shall apply when damage or repair is caused by any of the following:

1. Power failure.
2. Damage in transit or when moving the appliance.
3. Improper power supply such as low voltage, defective house wiring or inadequate fuses.
4. Accident, alteration, abuse or misuse of the appliance such as inadequate air circulation in the room or abnormal operating conditions (ie. extremely high or low room temperature).
5. Use for commercial or industrial purposes (ie. If the appliance is not installed in a domestic residence).
6. Fire, water damage, theft, war, riot, hostility, acts of God such as hurricanes, floods etc.
7. Service calls resulting in customer education.
8. Improper Installation (ie. Building-in of a free standing appliance or using an appliance outdoors that is not approved for outdoor application, including but not limited to: garages, patios, porches or anywhere that is not properly insulated or climate controlled).

Proof of purchase date will be required for warranty claims; retain bills of sale. In the event that warranty service is required, present the proof of purchase to our authorized service depot.

Technical line drawing of a door frame with a tool and directional arrows indicating movement (no text or symbols)

CONSIGNES D'UTILISATION

CARACTÉRISTIQUES DU PRODUIT

Line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

CONSIGNES D'UTILISATION

Technical line drawing of a door frame with a vertical post and directional arrows indicating movement (no text or symbols)

Technical diagram of a refrigerator with numbered components for identification

Technical diagram of an open refrigerator with numbered parts for identification

Pure mechanical diagram showing a rotating shaft and curved arrows indicating motion (no text or symbols)

Line drawing of a rectangular electronic device with internal components and mounting holes (no text or symbols)

Technical line drawing of a mechanical device with an inset showing a close-up view of a component (no text or symbols present)

Technical line drawing of a mechanical device with an inset close-up view (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

Technical line drawing of a mechanical assembly with no visible text or symbols

PROBLEMA POSIBLES CAUSAS Y SOLUCIONES

Danby Products Limited, Guelph, Ontario, Canada N1H 6Z9 Danby Products Inc. Findlay, Ohio, U.S.A. 45840

www.danby.com
