USER MANUAL KRBL36 Hestan

A person holding a woven basket filled with fresh tomatoes, tomatoes, apples, and yellow peppers (no text or symbols visible)

INDOOR PRESERVATION

Refrigerators and Freezers

KRP / KRB / KRC / KFC

Use and Care Manual

WARNING

IF THE INFORMATION IN THIS MANUAL IS NOT FOLLOWED EXACTLY, A FIRE OR EXPLOSION MAY RESULT CAUSING PROPERTY DAMAGE, PERSONAL INJURY, OR DEATH.

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

Installation and service must be performed by a qualified installer or service agency.

DO NOT REPAIR, REPLACE OR REMOVE ANY PART OF THE APPLIANCE UNLESS SPECIFICALLY RECOMMENDED IN THE MANUAL. IMPROPER INSTALLATION, SERVICE OR MAINTENANCE CAN CAUSE INJURY OR PROPERTY DAMAGE. REFER TO THIS MANUAL FOR GUIDANCE. ALL OTHER SERVICING SHOULD BE DONE BY A QUALIFIED TECHNICIAN.

READ THESE INSTRUCTIONS CAREFULLY AND COMPLETELY BEFORE INSTALLING OR USING YOUR APPLIANCE TO REDUCE THE RISK OF FIRE, BURN HAZARD, OR OTHER INJURY. KEEP THIS MANUAL FOR FUTURE REFERENCE.

SAFETY DEFINITIONS

WARNING

THIS INDICATES THAT DEATH OR SERIOUS INJURY MAY OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING

CAUTION

THIS INDICATES THAT MINOR OR MODERATE INJURY MAY OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING.

NOTICE

THIS INDICATES THAT DAMAGE TO THE APPLIANCE OR PROPERTY MAY OCCUR AS A RESULT OF NOT OBSERVING THIS WARNING.

INSTALLER: LEAVE THIS MANUAL WITH THE OWNER OF THE APPLIANCE.

HOMEOWNER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.

Message from Hestan: Message from Hestan:

Hestan's award-winning culinary innovations and purpose-built features reinvented the restaurant kitchen and redefined culinary experience in some of America's most acclaimed restaurants. Hestan now takes this performance from the back of the house and puts it front and center in yours. Thoughtfully designed and meticulously built, Hestan will serve you beautifully for years to come.

Hestan is the only residential brand born from the dreams and demands of professional chefs. From ranges to refrigeration, every detail is designed to deliver the performance and reliability expected in a restaurant – now available for you.

We appreciate you choosing Hestan, and we promise to deliver the very best to you.

Welcome to Hestan Welcome to Hestan

Group of people sharing a meal together with wine glasses and a pie chart, surrounded by fresh dishes (no visible text or symbols)

3 SAFETY PRECAUTIONS - BEFORE YOU BEGIN
8 MODEL NUMBERS
9 RATING LABEL
9 REGULATORY / CODE REQUIREMENTS
10 GETTING TO KNOW YOUR APPLIANCE
13 CONTROLS AND OPERATION
29 INTERNAL LAYOUT
33 FOOD PRESERVATION
36 CARE AND CLEANING
37 TROUBLESHOOTING
40 PARTS / SERVICE
41 LIMITED WARRANTY

SAFETY PRECAUTIONS - BEFORE YOU BEGIN

When properly cared for, your Hestan appliance will provide safe, reliable service for many years. When using this appliance, basic safety practices must be followed as outlined below.

IMPORTANT: Save these instructions for the local Utility Inspector's use.

INSTALLER: Please leave these instructions with the owner.

OWNER: Please retain these instructions for future reference.

This appliance is NOT designed for installation in manufactured (mobile) homes or recreational park trailers. Do NOT install this appliance outdoors.

WARNING

ELECTRICAL SHOCK HAZARDELECTRICAL SHOCK HAZARD

Disconnect power before installing or servicing appliance. Failure to do so can result in death or electrical shock.

ELECTRICAL GROUNDING ELECTRICAL GROUNDING

• This appliance must be grounded. Grounding reduces the risk of electric shock in the event of a short circuit. Read the CONNECTIONS section of the Installation Manual for complete instructions.
  • DO NOT ground to a gas pipe.
• DO NOT use an extension cord with this appliance.
• DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL or GROUNDING circuit could result in an electrical shock.

Silhouette of a person shooting a curved arrow, no text or symbols present

GENERAL SAFETY PRECAUTIONS GENERAL SAFETY PRECAUTIONS

If this appliance is replacing an existing appliance which must be removed or disposed of, make sure that it does not become a dangerous trap for children by cutting its power supply cable and rendering it impossible to close the door. Use the same caution at the end of the lifespan of the new appliance.

Line drawing of a cabinet with chains attached to the top panel (no text or symbols)

- This appliance is designed to refrigerate beverages and foods and is intended for domestic use.

- The appliance must be installed by following the instructions in the Installation Manual, particular care should be taken not to obstruct the vent openings of the appliance and of the built-in units.

- The appliance features a concentrated lighting system with LED lamps. Do not stare into these lamps when they are on to avoid possible eyesight damage. This warning is also contained on the label attached to the inside of the refrigerator door.

- When the freezer is functioning do not touch the inner surfaces in stainless steel with wet or damp hands, since skin may stick to the very cold surfaces.

- Do not use any type of electrical equipment inside of the food conservation compartments.

- When positioning the shelves, do not place fingers in the shelf slide guides.

- Do not position containers of flammable liquids near the appliance.

- Completely switch off the appliance and unplug the power supply cable during cleaning operations. If the plug is not easily reached, it is a good idea to turn off the breaker or remove the fuse that controls the socket that the appliance is connected to.

- The packaging parts can be dangerous for children: do not allow children to play with the plastic bags, plastic film or Styrofoam.

- Any repairs must be performed by a qualified Hestan Service technician.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

- Do not damage the appliance refrigerant circuit pipes.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- If the power cord of this appliance is damaged, it must be replaced by the manufacturer, customer service or a similarly qualified person. Improper installations and repairs may put the user at considerable risk.

• Repairs may be performed by the manufacturer, customer service or a similarly qualified person only.

- Plug into a grounded 3 prong outlet.

- Do not remove ground prong.

- Do not use an adapter.

- Do not use an extension cord.

- Disconnect power to all units before servicing.

• Children should be supervised to ensure that they do not play with the appliance

IMPORTANT INFORMATION WHEN USING THE APPLIANCE

- Never use electrical appliances inside the appliance (e.g. heater, electric ice maker, etc.). Explosion hazard!

- Never defrost or clean the appliance with a steam cleaner! The steam may penetrate electrical parts and cause a short-circuit. Risk of electric shock!

• Do not use pointed and sharp-edged implements to remove frost or layers of ice. You could damage the refrigerant tubes. Leaking refrigerant may cause eye injuries or ignite.
• Do not store products which contain flammable propellants (e.g. spray cans) or explosive substances in the appliance. Explosion hazard!
• Do not stand on or lean heavily against base of appliance, drawers or doors, etc.
• Before cleaning the appliance, pull out the power cord plug or switch off the fuse. Do not pull out the power cord plug by tugging on the power cord.
• Store high-percentage alcohol tightly closed and standing up.
• Keep plastic parts and the door seal free of oil and grease. Otherwise these parts will become porous.
• Never cover or block the ventilation openings for the appliance.

CLEANING, SANITIZING AND MAINTENANCE OF THE ICE MAKER (IF PRESENT)

Failure to follow the instructions regarding sanitizing can compromise the hygienic safety of the ice dispensed. Follow all the instructions on proper sanitizing.

• When using the appliance for the first time and every time the filter is changed, it is recommended to let the water flow in the circuit using the "Manual Cleaning" cycle, and discard the ice produced in the first 24 hours. See "Manual Clean - Water Filter" on page 21.
• Clean the ice bucket or drawer regularly using only drinking water.
• The filter must be changed when indicated on the control panel or when the ice maker has not been used for more than 30 days.
• With each filter replacement, sanitize the ice system using the "Manual Cleaning" cycle, and discard the ice produced in the first 24 hours. See "Manual Clean - Water Filter" on page 21.
• Only original spare parts supplied by the manufacturer should be used when replacing components in the ice maker. Any work on the appliance must be carried out by a qualified technician or Hestan Service.

WARNING

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Clean regularly surfaces that can come in contact with food and accessible drainage systems.
• Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or may drip onto other foods.
• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mold developing within the appliance.

INSTALLATIONINSTALLATION

Make sure installation of this refrigeration appliance is performed correctly by a qualified installer using the instructions in the Installation Manual provided with the appliance.

WARNING

Always connect the water before the power.

CONNECTION TO THE WATER SYSTEM CONNECTION TO THE WATER SYSTEM

The models provided with Ice Maker require a connection to the domestic water supply system. This can be executed through the 1/4" water line (copper or polyethylene) to the house water supply.

The system pressure must be between from 8 psi to 75 psi (between 0.5 Bar and 5 Bar). Different pressures can cause malfunctions or leaks in the water system.

The appliance should be supplied only with drinkable water.

Use only the new adapter which is supplied with the appliance. The solenoid connection on the rear of the appliance looks like 3/4" diameter but is metric threaded. A standard garden hose threaded connector such as a braided stainless hose found at typical hardware stores will strip or damage the solenoid threads. Use only the supplied 1/4" quick connect elbow adapter for connecting a 1/4" copper or polyethylene source water line to the appliance.

WARNING

CONNECTION TO THE ELECTRICAL POWER SUPPLY CONNECTION TO THE ELECTRIC

The appliance operates at 115 VAC, 60 Hz and is equipped with a power supply cord with a 3-prong grounded plug, which must be connected to a corresponding 3-prong (15 Amp) grounding-type wall receptacle.

A circuit breaker or suitable fuse should be easily accessible so that it can be easily switched off before performing any installation or maintenance.

Illustration of hands inserting a plug into an electrical outlet (no text or symbols)

• DO NOT ground to a gas pipe.
- DO NOT have a fuse in the NEUTRAL or GROUNDING circuit. A fuse in the NEUTRAL or GROUNDING circuit could result in an electrical shock.

WARNING

- Do not use extension cords and/or multiple adapters for the power supply connection.

CARING FOR THE ENVIRONMENTCARING FOR THE ENVIRONMENT

Pay special attention to correct disposal procedure for all the packaging materials.

The appliance must not be disposed of with urban waste. Contact local waste disposal centers on how to dispose of recyclable waste.

Prior to disposal, cut the power supply cord and make it impossible to close the door, as stated in "GENERAL SAFETY PRECAUTIONS" above. During disposal, avoid damage to the electronics.

The appliance does not contain hazardous substances for the atmospheric ozone layer, neither in the electronics nor in the insulation.

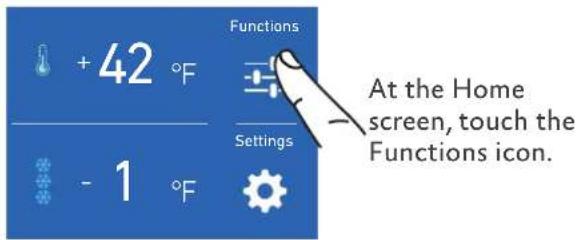

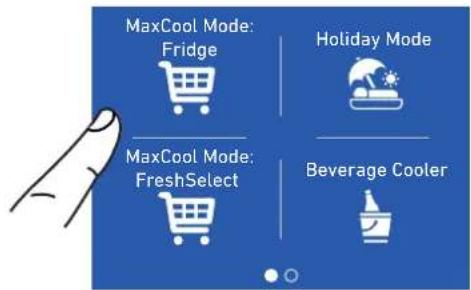

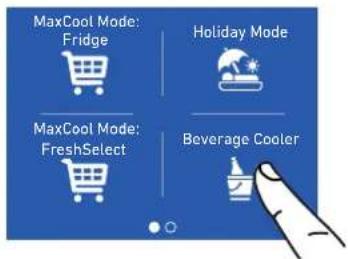

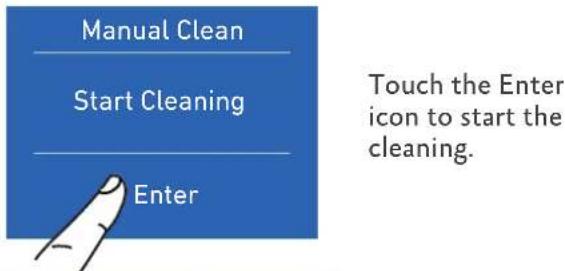

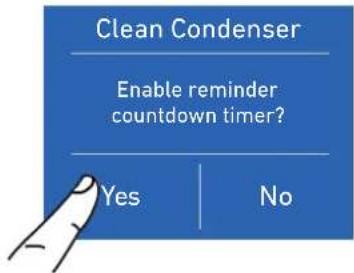

USING THE CONTROL MENUS USING THE CONTROL MENUS

The unit features a touch-screen control. Many features and settings are only accessible through the control menus. Here are the basics for the control panel:

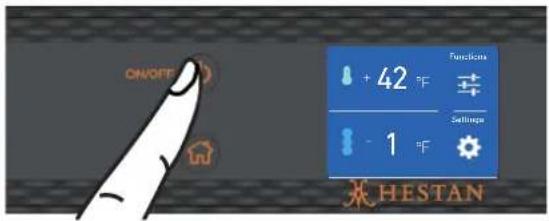

1) Touch the ⏻ (power) button to turn on the unit.
2) Touch the home button as needed to return to the main menu.
3) Touch the actual blue screen itself to access control menus. Some menus are extensive and can be scrolled left or right to see other menu items.

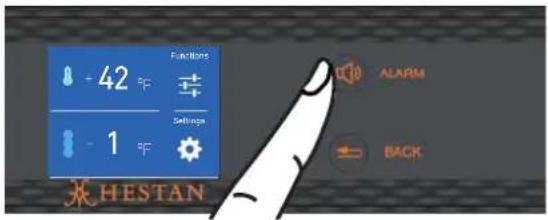

4) Touch the (alarm) button to deactivate any warning tones.
5) Touch the ← (back) button to return to the previous menu.

See CONTROLS AND OPERATION" on page 13 for details.

Model No.	Description
KRPR36	Bottom Mount Refrigerator, Top Compressor, Pro, Right Hinged, 36"
KRPL36	Bottom Mount Refrigerator, Top Compressor, Pro, Left Hinged, 36"
KRPR36-XX	Bottom Mount Refrigerator, Top Compressor, Pro, Color, Right Hinged, 36"
KRPL36-XX	Bottom Mount Refrigerator, Top Compressor, Pro, Color, Left Hinged, 36"
KRBR36	Bottom Mount Refrigerator, Bottom Compressor, Right Hinged, 36"
KRBL36	Bottom Mount Refrigerator, Bottom Compressor, Left Hinged, 36"
KRBR36-OV	Bottom Mount Refrigerator, Bottom Compressor, Overlay, Right Hinged, 36"
KRBL36-OV	Bottom Mount Refrigerator, Bottom Compressor, Overlay, Left Hinged, 36"
KRBR36-XX	Bottom Mount Refrigerator, Bottom Compressor, Color, Right Hinged, 36"
KRBL36-XX	Bottom Mount Refrigerator, Bottom Compressor, Color, Left Hinged, 36"
KRCR24	Refrigerator Column, Right Hinged, 24"
KRCL24	Refrigerator Column, Left Hinged, 24"
KRCR24-OV	Refrigerator Column, Overlay, Right Hinged, 24"
KRCL24-OV	Refrigerator Column, Overlay, Left Hinged, 24"
KRCR24-XX	Refrigerator Column, Color, Right Hinged, 24"
KRCL24-XX	Refrigerator Column, Color, Left Hinged, 24"
KRCR30	Refrigerator Column, Right Hinged, 30"
KRCL30	Refrigerator Column, Left Hinged, 30"
KRCR30-OV	Refrigerator Column, Overlay, Right Hinged, 30"
KRCL30-OV	Refrigerator Column, Overlay, Left Hinged, 30"
KRCR30-XX	Refrigerator Column, Color, Right Hinged, 30"
KRCL30-XX	Refrigerator Column, Color, Left Hinged, 30"

FREEZER MODELSFREEZER MODELS

Model No.	Description
KFCR18 Freezer Column, Right Hinged, 18"
KFCL18 Freezer Column, Left Hinged, 18"
KFCR18-OV Freezer Column, Overlay, Right Hinged, 18"
KFCL18-OV Freezer Column, Overlay, Left Hinged, 18"
KFCR18-XX Freezer Column, Color, Right Hinged, 18"
KFCL18-XX Freezer Column, Color, Left Hinged, 18"
KFCR24 Freezer Column, Right Hinged, 24"
KFCL24 Freezer Column, Left Hinged, 24"
KFCR24-OV Freezer Column, Overlay, Right Hinged, 24"
KFCL24-OV Freezer Column, Overlay, Left Hinged, 24"
KFCR24-XX Freezer Column, Color, Right Hinged, 24"
KFCL24-XX Freezer Column, Color, Left Hinged, 24"
KFCR30 Freezer Column, Right Hinged, 30"
KFCL30 Freezer Column, Left Hinged, 30"
KFCR30-OV Freezer Column, Overlay, Right Hinged, 30"
KFCL30-OV Freezer Column, Overlay, Left Hinged, 30"
KFCR30-XX Freezer Column, Color, Right Hinged, 30"
KFCL30-XX Freezer Column, Color, Left Hinged, 30"

The rating label contains important information about your Hestan appliance such as the model and serial number and electrical rating.

The rating label is located on the inside wall of the refrigerator.

HESTAN COMMERCIAL CORP. ANAHEIM, CA - USA Quantité de Gaz Réfrigerateur 4,5 oz Fridge Gas Fill Charge Freezer Gas Fill Charge oz4 2 Quantité de Gaz Congélateur Total Absorbed Current 4,8 A Courant Absorbée Totale Voltage 115 V Tension Frequency 60 Hz Frequence Refrigerant Gas Type R134a Type de Gaz Réfrigerant Made in Italy CODE KRPR36 SER.NO./N° SERIE F202000000000001 ETL LISTED CONFORMS TO ANSI/UL STD 250 CERTIFIED TO CAN/CSA STD C22.2 NO.63 Intertek

TYPICAL RATING LABEL

REGULATORY/CODE REQUIREMENTS

Installation of this refrigeration appliance must be made in accordance with local codes. In the absence of local codes, this unit should be installed in accordance with the National Electrical Code and local codes.

This appliance must be electrically grounded in accordance with local codes or in the absence of local codes with the National Electrical Code ANSI/NFPA 70, or Canadian Electrical code CSA C22.1.

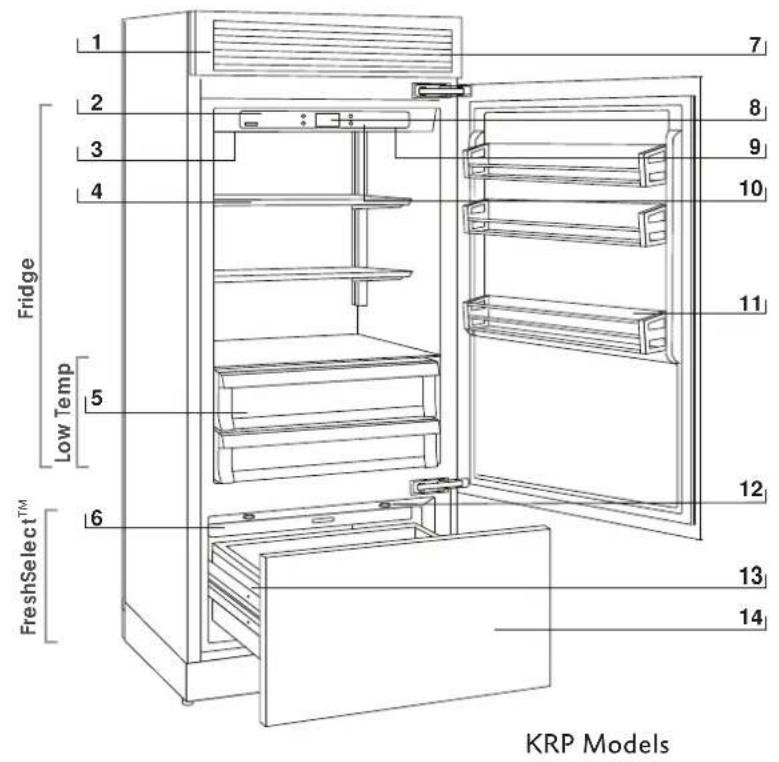

FEATURES OF THE KRP / KRB REFRIGERATOR FEATURES OF THE KRP / KRB REFRIGER.

EN

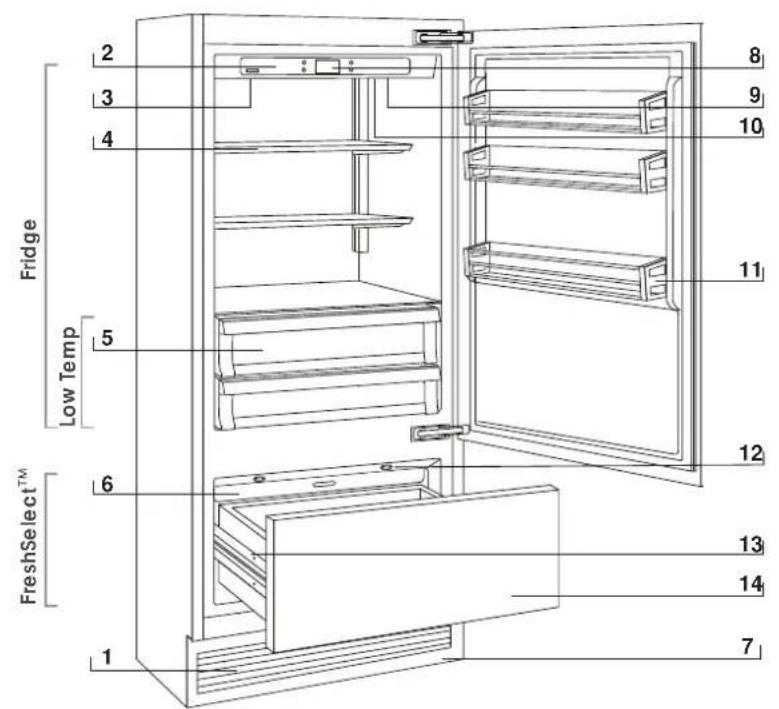

1 2 3 4 Fridge Low Temp 5 6 FreshSelect™ 7 8 9 10 11 12 13 14 KRP Models

Fridge Low Temp FreshSelect™ 1 2 3 4 5 6 7 8 9 10 11 12 13 14

KRB Models

1 Stainless steel grille, aluminum trim
2 Control panel with display
3 Water Filter
4 Shelf positioning system
5 "Low Temp" crisper compartments
6 Automatic ice maker
7 Dual refrigeration system
8 Temperature display
9 Sound signals
10 Holiday function
11 Adjustable door shelves

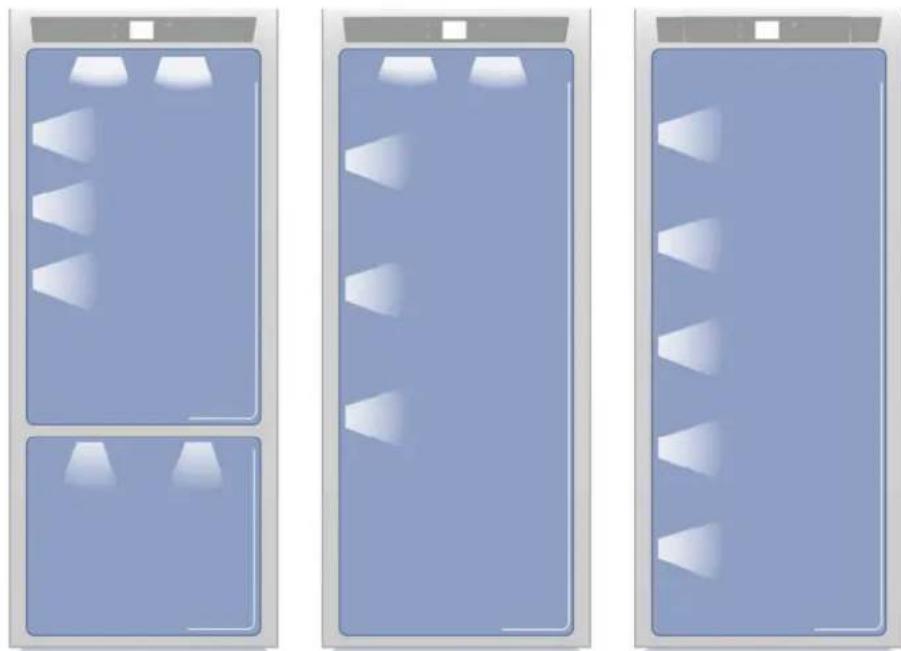

12 LED lighting - multiple locations in each compartment
13 Automatic drawer closing system

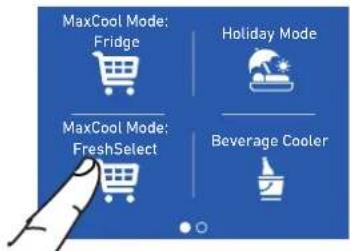

14 FreshSelect™/freezer compartment. When the appliance is first turned on, the FreshSelect™/freezer compartment is set to the freezer mode. It can be transformed into a refrigerator or ExtendFresh compartment.

FEATURES OF THE REFRIGERATOR OR FREEZER COLUMN (KRC/KFC)

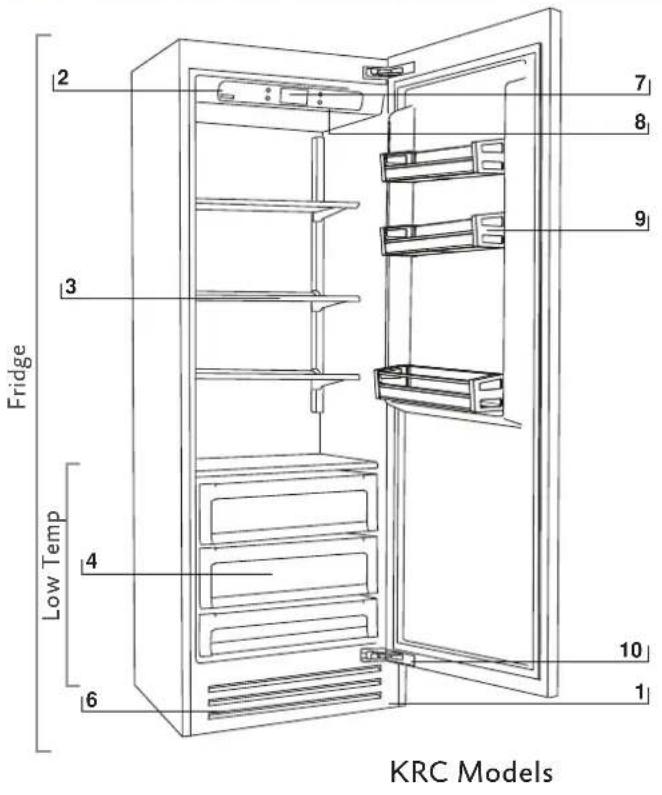

Fridge Low Temp 6 1 10 1 2 3 4 5 6 7 8 9 KRC Models

1 Stainless steel grille, aluminum trim
2 Control panel with display
3 Shelf positioning system
4 "Low Temp" crisper compartments
5 Automatic ice maker
6 Refrigeration system
7 Temperature display
8 Sound signals
9 Adjustable door shelves
10 Automatic door closing system
11 LED lighting, multiple locations

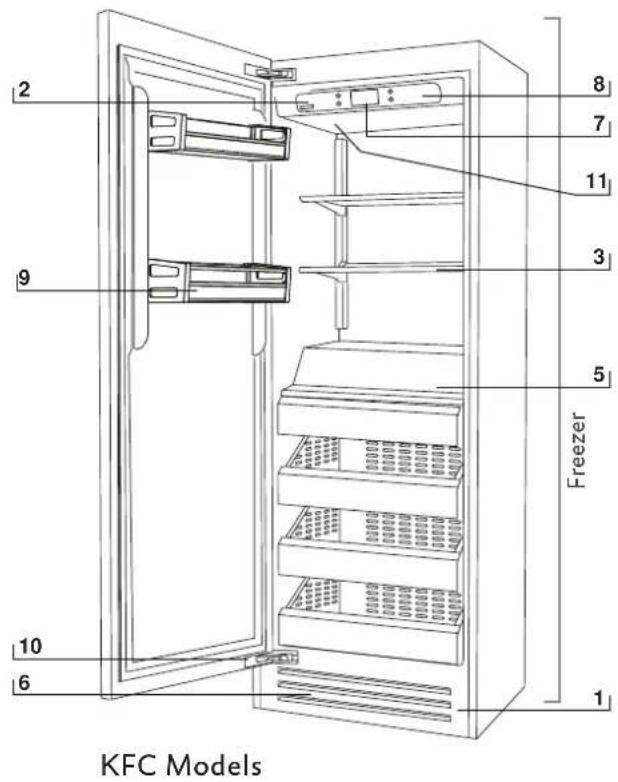

2 9 10 6 8 7 11 3 5 Freezer 1 KFC Models

CONTROL PANEL (ALL MODELS) CONTROL PANEL (ALL MODELS)

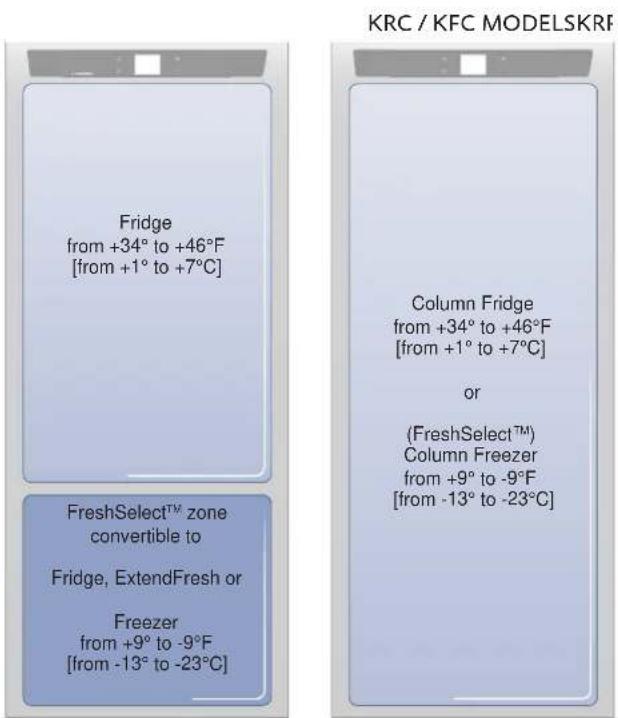

The electronic touch-screen control system of your Hestan refrigeration product maintains constant temperature in all compartments and displays the measured temperature on the control panel. It also allows the user to personalize settings of the various functions and provides alerts should a malfunction occur.

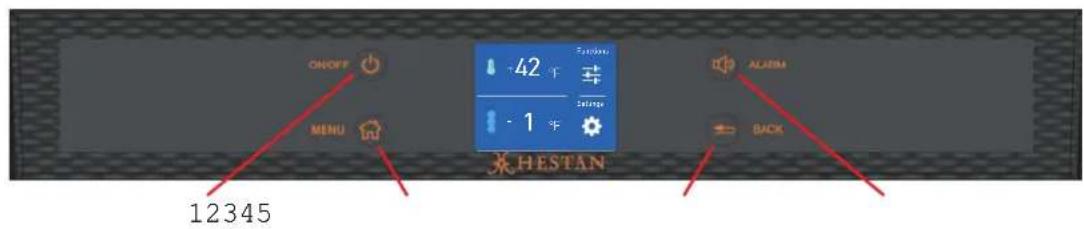

ON/OFF MENU 42 -1 HESTAN ALARM BACK 12345

1

On/Off

Switches the appliance between ON and Stand-by (Press for 3 seconds).

2

Menu

Touch this home icon to return to the main control panel menu.

3

+ 42 °F - 1 °F Functions Settings

Display

Shows the temperature of the compartment(s), allows access to control panel menu (Functions and Settings), and displays other messages.

4

Back

Touch this arrow icon to go back to the previous display screen.

5

Alarm

Flashes to signal user alerts such as door being left open in combination with a warning tone. Tap this icon to deactivate the warning tone.

Many features and settings are only accessible through the control menus (Functions and Settings). See CUSTOM FUNCTIONS AND SETTINGS on page 17 for details.

FreshSelectFreshSelectCompartment (KRP, KRB and KFC models only)

KRP and KRB models have a FreshSelect™ feature which allows you to operate the bottom drawer in one of three different modes.

• Classic refrigerator mode: From 34 to 46^ [+1 to +7^] , recommended pre-set temperature is 42^ [+6^] .
• ExtendFresh mode preserves fresh food longer: From 28 to 36^ [-2 to +2^] , recommended pre-set temperature is 32^ [0^] .
• Freezer mode: From -9 to +9°F [-23 to -13°C], recommended pre-set temperature is -1°F [-18°C].

NOTE: KFC models have a MaxCool FreshSelect™ feature only. See page 18 for details.

TURN APPLIANCE ON AND OFF TURN APPLIANCE ON AND OFF

First time start up.

Touch the ON/OFF button for 3 seconds. The display shows the following launch screens:

HESTAN

Hestan logo.

Initial test ... please wait. Functions Settings

Initial test (lasts 3 minutes).

The display shows the Home screen with the temperature measured from inside the various compartments. The unit automatically starts to cool down until reaching these factory set temperatures.

+ 42 °F - 1 °F Functions Settings

Home screen*:

• Fridge compartment +42°F
• FreshSelect™/Freezer compartment -1°F

As seen above, the FreshSelect™ compartment is set in the freezer mode (-1°F).

* The Home screen varies depending on the models. See ADJUSTING VARIOUS TEMPERATURE SETTINGS on page 15 for details.

NOTICE

When the appliance is first switched on, it is recommended to wait at least 12 hours without opening the doors and before placing any food inside the unit. During such period deactivate any error message by touching the Alarm button.

Each time the unit is turned on, it goes through a self-diagnostic procedure lasting 3 minutes before completely starting up.

During the first startup, it will not be possible to use the menu to modify the factory settings until the preset temperatures have been reached.

Shutdown.

Touch the ON/OFF button for 3 seconds to shutdown the unit.

ON/OFF Functions + 42 °F - 1 °F Settings HESTAN

Are you sure you want to power off this compartment? Yes N

Touch the YES icon.

Are you sure? Yes N

Confirm shutdown by touching YES again.

NOTICE

When the appliance is off, there are no warning signs that prove the unit is unplugged from the power source (wall outlet).

Switching off for long periods.

During long absence periods, it is recommended to switch off the appliance by touching the ON/OFF button for 3 seconds and disconnecting the electrical plug or shutting off the breaker at your electrical panel.

Completely empty the appliance, clean and dry it, and leave the doors and drawers slightly open to prevent the formation of unpleasant odors and mold.

Turning off Fridge compartment.

(Models KRP & KRB)

The Fridge compartment can be shutdown individually, whereas the freezer (FreshSelect™) drawer cannot be turned off unless through the complete shutdown of the unit.

+ 42 °F Settings - 1 °F

At the Home screen, touch the icon for the compartment you wish to shut off.

OFF + 44 + 43 + 42 °F + 41 + 40 OK

Touch the OFF icon.

i Turn Compartment OFF? Yes No

Touch the YES icon.

Are you sure? Yes | No

Confirm shutdown by touching YES again.

NOTICE

If the Fridge compartment is turned off, the specific fan will continue to operate to prevent the formation of unpleasant odors and mold.

Turning on the Fridge compartment again.

(Models KRP & KRB)

To turn on the unit again, touch the ON/OFF button, the display will turn on; the starting screen and the Home screen. The temperature measured from the fridge inside the compartments will appear again. The fridge will start cooling off until reaching the set temperatures.

Turn back on individual compartments.

In case you wish to turn on again the Fridge compartment.

Functions Off Settings - 1 °F

For example, at the Home screen, to turn back on the Fridge compartment, touch the OFF icon.

ON + 44 + 43 + 42 | °F + 41 + 40 OK

Touch the ON icon.

i Turn Compartment ON? Yes No

Touch the YES icon.

Are you sure? Yes | No

Confirm activation by touching YES again.

+ 42 °F Settings - 1 °F

Now the Fridge compartment will turn back on. The Home screen will appear again.

ADJUSTING VARIOUS TEMPERATURE SETTINGS ADJUSTING VARIOUS TEMPERATURE SE

Each model has been carefully tested before leaving the factory and is adjusted in such a way to ensure high performance and low power consumption.

Usually, it is not necessary to modify the settings. Nevertheless, according to special needs, it is possible to modify the set temperatures within a certain range. The "recommended" settings below are also the factory presets for each of the zones and modes.

Home screen in the various models:

Modify the compartment temperatures. Example: How to modify the Fridge compartment temperature.

EN

+ 42 °F Settings - 1 °F

At the Home screen, touch the icon of Fridge compartment.

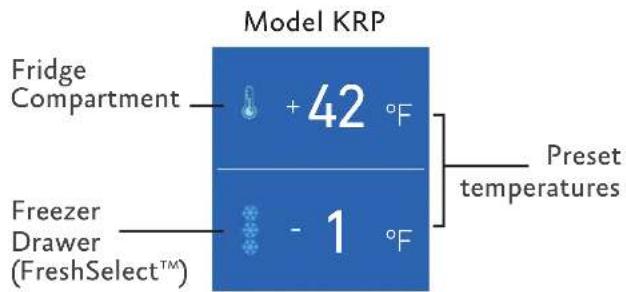

Model KRP Fridge Compartment + 42 °F - 1 °F Freezer Drawer (FreshSelect™) Preset temperatures

OFF + 44 + 43 + 42 °F | + 41 + 4- OK

Scroll up or down to select the desired temperature.

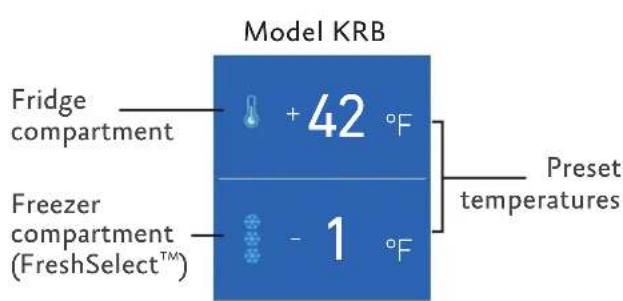

Model KRB Fridge compartment + 42 °F Freezer compartment (FreshSelect™) - 1 °F Preset temperatures

OFF + 44 + 43 + 42 °F | + 41 + 40 OK Tou to c desi

Touch the OK icon to confirm the desired temperature.

Model KRC Fridge compartment + 42 °F Preset temperature

The same procedure is required to set the temperature in the the FreshSelect™ bottom drawer.

Freezer compartment Model KFC - 1 °F Preset temperature

NOTICE

The temperature shown can vary slightly in respect to the set temperature following frequent openings of the doors or insertion of room temperature foods or large quantities of foods.

6 to 12 hours may be necessary to reach the selected temperature.

The padlock icon shows up when the temperatures are set up. The icon shows that it is or is not possible to modify the compartment's temperatures anymore.

Usually an open yellow padlock means you can scroll up or down with a finger on the display to select the desired temperature and touch OK for confirming.

OFF + 44 + 43 + 42 °F + 41 + 40 OK

Whereas a closed padlock can be seen if the user has activated some functions (described later) that modify the settings of the Fridge and Freezer Compartment. Therefore the user will not be able to change the temperature of the compartments anymore.

OFF + 44 + 43 + 42 °F + 41 + 40 OK

If a special function is set (for example Holiday, MaxCool, FreshSelect™, etc.), the yellow padlock will be seen closed and it will not be possible to change the temperature of the compartments as long as the function is active, or if it is manually deactivated.

Display Information and Malfunction Messages

An integrated control system provides information through light signals or text messages visualized on the display. Problems that cannot be solved by the user are reported through a fault code. Some messages or alarms frequently appear for particular conditions of use or during start-up. In these cases, deactivate the audible alarm by touching the Alarm button and leave the appliance running, and limit the opening of the doors for about 10-12 hours.

A list of malfunction messages is located at the end of this manual.

If a malfunction message continues after repeated attempts, contact Hestan Customer Care.

Functions -42 °F Settings -1 °F HESTAN ALARM BACK

CUSTOM FUNCTIONS AND SETTINGS CUSTOM FUND Fridge (not in KFC models)

It is possible to personalize the operation of your Hestan unit in order to adapt it to the different ways you might want to use it.

FUNCTIONSFUNCTIONS

After touching the Function icon 📄 on the Home screen, the following available functions will be seen. A small white dot at the bottom of these screens indicate further choices which can be accessed by scrolling left or right.

MaxCool Mode: Fridge Holiday Mode MaxCool Mode: FreshSelect Beverage Cooler

MaxCool Mode - Fridge (not in KFC Models)

Holiday Mode

MaxCool Mode - FreshSelect™ (not in KRC models)

Beverage Cooler (not in KRC models)

Ice Maker (optional, not in KRC models)

Water filter (optional, not in KRC models)

Water System Cleaning (optional, not in KRC models)

This function lowers the refrigerator temperature to 36^ F [+2°C] for 12 hours, permitting more rapid cooling of food that has just been placed inside. The more quickly an item can be cooled or frozen, the better it will be preserved.

This mode can also be effective at maintaining compartment temperatures while entertaining, when higher than average door and drawer openings are anticipated.

Once the 12 hours have expired, the function deactivates automatically, returning to the previously set temperature. It is possible to program a delayed activation of 1-12 hours for the function.

If a power outage occurs while this mode is active, the unit will default to normal operation.

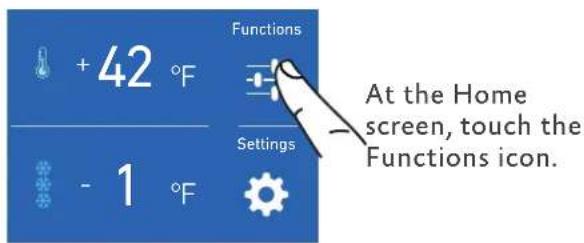

Functions + 42 °F Settings - 1 °F At the Home screen, touch the Functions icon.

MaxCool Mode: Fridge Holiday Mode MaxCool Mode: FreshSelect Beverage Cooler

Touch the icon MaxCool Mode Fridge.

Activate MaxCool Mode: Fridge? (up to 24 hours) Yes No

Touch the YES icon to activate the function.

8 9 hour | 10 | 11 12 OK

Scroll up or down to set the desired delay time and then touch OK.

It is possible to program in advance between 1 and 12 hours.

This function is recommended in case of prolonged absences since it allows considerable energy savings. This function brings the refrigerator compartment temperature to 57^ F [+14°C].

It is possible to program the duration, or it can be manually deactivated upon re-entry after a period of absence. This function remains active even if during the period of absence there is a prolonged power outage.

It is possible to program a duration of 1 to 90 days.

At the Home screen, touch the Functions icon.
Touch the Holiday Mode icon.
Touch the YES icon to activate the function.
Scroll up or down to set the desired time and then touch OK.

MaxCool Mode - FreshSelect™ (not in KRC Models)

Similar to the mode described on the previous page. This must be activated at least 24 hours before inserting room temperature items into the freezer, or several hours before placing into the freezer previously frozen items which have been subject to a slight temperature rise.

This function is automatically deactivated when the programmed time period expires. It is possible to program a delayed activation of 1-12 hours for the function.

If a power outage occurs while this mode is active, the unit will default to normal operation.

+ 42 °F - 1 °F Functions Settings

At the Home screen, touch the Functions icon.

MaxCool Mode: Fridge Holiday Mode MaxCool Mode: FreshSelect Beverage Cooler

Touch the MaxCool Mode FreshSelect™ icon.

Activate MaxCool Mode: FreshSelect? (up to 24 hours) Yes No

Touch the YES icon to activate the function.

8 9 10hour 11 12 OK

Scroll up or down to set the desired delay time and then touch OK.

Beverage Cooler (not in KRC Models)

This function can be activated when it is necessary to cool off beverages quickly, by placing them inside the freezer compartment.

It is possible to select a duration of 1 to 45 minutes. A sound signal will indicate when the optimal temperature has been reached.

After removing the beverages, deactivate the sound signal by touching the Alarm button 📷.

+ 42 °F - 1 °F Functions Settings

At the Home screen, touch the Functions icon.

MaxCool Mode: Fridge Holiday Mode MaxCool Mode: FreshSelect Beverage Cooler

Touch the Beverage Cooler icon.

Activate Rapid Beverage Cooler? Yes No

Touch the YES icon to activate the function.

35 36 min | 37 | 38 39 OK

Scroll up or down to set the desired time and then touch OK.

Ice Maker (optional, not in KRC Models)

The Ice Maker will produce 10 cubes per cycle, in approximately 10 cycles every 24 hours. For more details, see USING THE ICE MAKER on page 30.

A prewash of the water circuit should be performed before activating the Ice Maker for the first time. See CLEANING, SANITIZING AND MAINTENANCE OF THE ICE MAKER on page 5 for details.

After a few minutes the Ice Maker can be activated.

When the Ice Maker is started for the first time, it is recommended to empty the first full tray of ice cubes.

+ 42 °F Settings - 1 °F

At the Home screen, touch the Functions icon.

Ice Maker Water Filter Water System Purge

Scroll left, then touch the Ice Maker icon.

Ice Maker Yes | No

Touch the YES icon to activate the function.

NOTICE

Do not activate the Ice Maker unless the appliance is connected to the water source.

Ice Maker Cube Size (not in KRC models)

This function permits selecting the size of the ice cubes, by choosing between Large (default setting) or Medium, and activation of the Fast Ice function, which increases the quantity of ice produced.

The Fast Ice function deactivates automatically after 24 hours.

At the Home screen, Touch the Functions icon.

Scroll left, then touch the Ice Maker icon.

Touch the Set Cube Size icon.

Touch the icon to choose the desired Set Cube Size.

If you would like to increase the production of ice, touch the Fast Ice icon. This will enable the freezer to produce more ice, up to 3.3 lbs [1.5 kg] a day.

Confirm the function by touching YES or NO.

Water Filter (optional, not in KRC models)

The water filter is essential for the purification of the water used to produce ice, and to clean the circuit. The display permits visualizing the time left before the filter needs to be replaced.

+ 42 °F - 1 °F Functions Settings

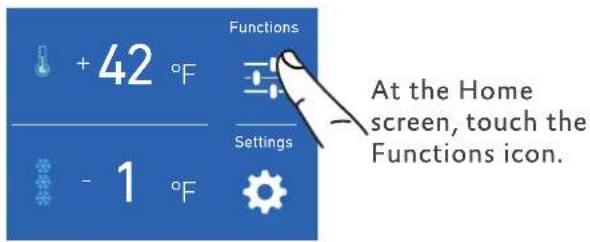

At the Home screen, touch the Functions icon.

Ice Maker Water Filter Water System Purge

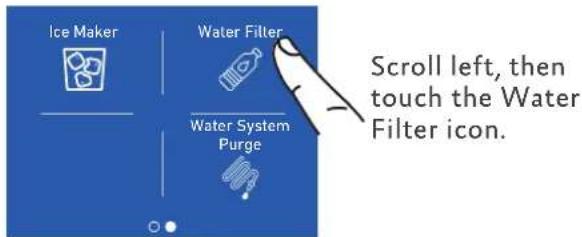

Scroll left, then touch the Water Filter icon.

Water Filter Are you sure? On

Confirm the function by touching ON.

Water Filter Enable reminder countdown timer? Yes No

Touch the YES icon to disable the reminder.

Water Filter Next reminder... left 180 days Off Reset

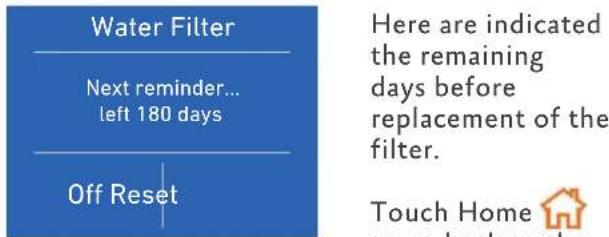

Here are indicated the remaining days before replacement of the filter.

Touch the OFF icon to disable this option.

Touch Home to go back to the main screens.

Reset Filter

The Reset Filter function sets to zero the time left before the filter needs to be replaced. It is necessary to set the counter to zero each time the cartridge is replaced.

Manual Clean, Water Filter (optional, not in KRC models)

If ice production has been disabled or unused for a long period, it is recommended to perform a Manual Clean function. Before proceeding it is important to turn off the Ice Maker.

+ 42 °F Settings - 1 °F Functions At the Home screen, touch the Functions icon.

Functions + 42 °F Settings - 1 °F At the Home screen, touch the Functions icon.

Ice Maker Water Filter Water System Purge Scroll left, then touch the Water Filter icon.

Ice Maker Water Filter Water System Purge Scroll left, then touch the Water System Purge icon.

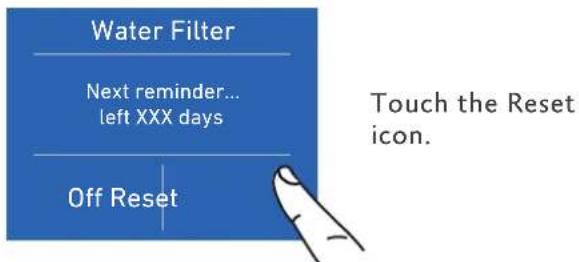

Water Filter Next reminder... left XXX days Off Reset Touch the Reset icon.

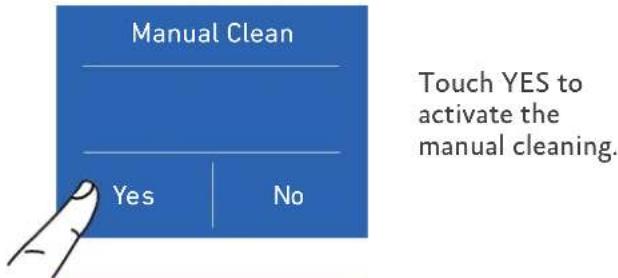

Manual Clean Touch YES to activate the manual cleaning. Yes No

Water Filter Reset reminder countdown? Yes No Touch YES to proceed.

Cleaning started Please wait... Please wait...

Water Filter Next reminder... left 180 days Off Reset Here are indicated the remaining days before replacement of the filter. Touch Home

Manual Clean Start Cleaning Enter Touch the Enter icon to start the cleaning.

Bypass Filter

The included filtration system can be bypassed when excellent water quality is available from the home water system. You simply remove the water filter from the adapter and the system will automatically bypass the cartridge.

Manual Clean Cleaning running Cleaning running...

Manual Clean

Empty water from ice bin Replace ice bin and press OK

At the end of the cleaning, empty water from ice bin, then press OK.

Cleaning completed

Please wait...

Wait a few seconds, the home screen will appear.

NOTICE

Place a suitable tray or bowl under the Ice Maker for gathering the water during the cleaning process. Repeat the cleaning process until the water in the ice bin is clear. When done, remove the tray or bowl.

Bypass Filter

The included filtration system can be bypassed when excellent water quality is available from the home water system. You simply remove the water filter from the adapter and the system will automatically bypass the cartridge.

CUSTOM FUNCTIONS AND SETTINGS CUSTOM FUNCTIONS AND SETTINGS

It is possible to personalize the operation of your Hestan unit in order to adapt it to the different ways you might want to use it.

The display will show the date in the format (day:month:year). By touching the display you can modify the settings.

SETTINGS SETTINGS

After touching the Settings icon 📋 on the Home screen, the following available settings will be seen. A small white dot at the bottom of these screens indicate further choices which can be accessed by scrolling left or right.

Date

Time

Set Temperature °C / °F

Language

FreshSelect™

Sabbath

Reset

Demo Mode

Maintenance

Service

Info System

+ 42 °F - 1 °F Functions Settings A so Se

At the Home screen, touch the Settings icon.

TimeDate Language°C / °F

Touch the Date icon.

2018 2019 2020year 2021 2021 OK

Scroll up or down to select the desired year and touch OK.

7 8 9month 10 1 OK

Scroll up or down to select the desired month and touch OK.

23 24 25day 26 OK

Scroll up or down to select the desired day and touch OK.

The display shows the hours and minutes in the format hh:mm. This function also selects the display at 12 or 24 hour (military time) mode.

+ 42 °F - 1 °F Functions Settings

At the Home screen, touch the Settings icon.

TimeDate Language°C / °C

Touch the Time icon.

Hour? 12 | 24

Select 12 or 24 hour time display.

8 9 10hour 11 OK

Scroll up or down to select the desired hour and touch OK.

35 36 37min 38 OK

Scroll up or down to select the desired minutes and touch OK.

Set Temperature to ^ / ^

This function permits visualizing the temperature in Centigrade or Fahrenheit degrees. Normally, the appliance is set for Centigrade degrees.

+ 42 °F Settings - 1 °F

At the Home screen, touch the Settings icon.

TimeDate 1 Language°C / °C

Touch the icon °C / °F.

°C °F OK

Scroll up or down to select either Centigrade or Fahrenheit degrees and touch OK.

To set the language of the unit.

+ 42 °F Settings - 1 °F

At the Home screen, touch the Settings icon.

TimeDate Language°C / °F

Touch the Language icon.

Italiano English Français Deutsch Español OK

Scroll up or down to select the desired language and touch OK.

FreshSelect™

The freezer compartment can be operated in 3 different modes, Fridge, ExtendFresh, or normal Freezer mode. See page 12 for details.

+ 42 °F - 1 °F Functions Settings

At the Home screen, touch the Settings icon.

FreshSelect Sabbath Reset Demo Mode

Scroll left once and touch the FreshSelect™ icon.

Fridge | ExtendFresh | Freezer OK

Scroll up or down and select one of the three modes, then touch OK.

Configure FreshSelect as ExtendFresh?

Confirm the function by touching YES.

The function makes it possible to comply to certain religious observances requiring that the operation of the appliance is not affected by the opening or closing of the doors (the thermostatic control, the inner lighting and the ice maker are deactivated).

+42 °F - 1 °F Functions Settings A to id

At the Home screen, touch the Settings icon.

SabbathFreshS Demo ModeReset

Scroll left once and touch the Sabbath icon.

i Sabbath Mode On Off

Confirm the function by touching ON.

Sabbath Yes | No

Touch YES to activate the function.

Sabbath Mode

The fridge will work accordingly to this configuration.

Note:

When you turn Sabbath Mode off, the unit will return to normal operation, except the menus will not be available for several minutes.

Reset (Restore Defaults)

This function restores the default factory settings, cancelling all the changes that have been made thereafter.

+ 42 °F Settings

At the Home screen, touch the Settings icon.

SabbathFreshS Demo ModeReset

Scroll left once and touch the Reset icon.

i Confirm resetting to factory default settings? Yes No

Confirm the function by touching YES.

Reset Yes No

Touch YES to activate the function.

Reset complete

The reset has been performed. The factory settings have been restored.

Note:

If the default settings are restored, the default mode of FreshSelect™ compartment is Freezer mode. If it was previously being used in Fridge or ExtendFresh mode, you will have to set this feature again.

Maintenance (due to alarm signal)

For correct operation, the unit requires periodic cleaning of the ventilation grille and the condenser.

An audible signal and message on the display occurs every 6 months. It is possible to disable the signal and see the time left before the next cleaning that has to be done. For cleaning details see CARE AND CLEANING on page 36.

Disable Maintenance

It is possible to disable the signal and see the time left before the next cleaning that has to be done.

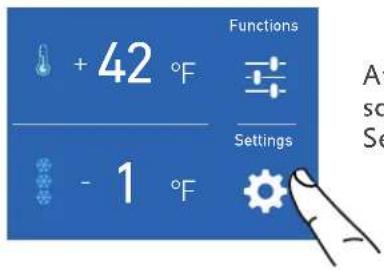

+ 42 °F - 1 °F Functions Settings

At the Home screen, touch the Settings icon.

+ 42 °F - 1 °F Functions Settings A so Se

At the Home screen, touch the Settings icon.

Maintenance Service Info System

Scroll left twice and touch the Maintenance icon.

Maintenance Service Info System i

Scroll left twice and touch the Maintenance icon.

Clean Condenser Are you sure? On

When you start the unit, the warning is disabled.

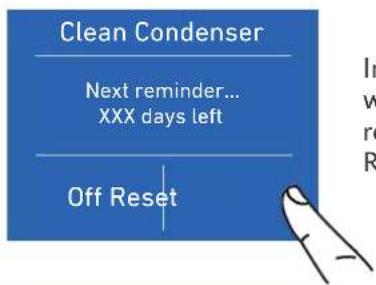

Clean Condenser Next reminder... XXX days left Off Reset

Instead, if you want to disable the reminder, touch the Reset icon.

Clean Condenser Enable reminder countdown timer? Yes No

To enable the reminder, touch the YES icon.

Clean Condenser Disable reminder? Yes No

To disable the reminder, touch the YES icon.

Clean Condenser Next reminder... 180 days left Off Reset

The display shows the remaining days before the next cleaning.

Clean Condenser Are you sure? Yes

When you start the unit, the warning is disabled.

Touch Home to go back to the main screens.

Touch Home to go back to the main screens.

The service function is reserved for Hestan service personnel.

Info System

The function Info System shows product data such as the model and serial number, software code, and other factory codes of the fridge. A Hestan Customer Care associate may request this information.

Demo Mode

If the unit you purchased was used as a showroom model, it may be in a special energy-saving mode call Demo Mode. In this mode, the lighting works, but the display shows false temperatures and no actual cooling takes place. If you believe the unit is in Demo mode, please contact your point of purchase, or Hestan Customer Care for assistance in disabling this mode.

+ 42 °F - 1 °F Functions Settings

At the Home screen, touch the Settings icon.

FreshSelect Sabbath Reset Demo Mode

+ 42 °F Settings - 1 °F

At the Home screen, touch the Settings icon.

Maintenance Service Info System i

Scroll left twice and touch the Info System icon.

SK Power | HW: 0504 SW: 0518 SK User | HW: 1002 SW: 1069 - G1011

Information on the unit is displayed.

Demo Mode 1 | 2 3 | 4

Scroll left once and touch the Demo Mode icon.

Insert the password for the activation.

Default password 1-2-3-4

Demo Mode On Off

Push On or Off Button.

FRESHSELECTFRESHSELECT DRAWERS, LOW-TEMP DRAWERS

The FreshSelect ^TM drawer is held to the slide guides by a thumbscrew on each side. Release the thumbscrews to remove the drawer.

To remove the inner drawer unscrew and remove its thumbscrews.

When replacing the drawer, make certain the back of the drawer engages under the clips on the slide guides. Once the drawer is properly in position, reinstall the thumb screws as they are necessary to keep the drawer in place.

ICE TRAYICE TRAY

The ice tray is located in the upper drawer of the freezer compartment.

After removal, make sure to reposition it correctly - small protrusions from the bottom of the ice bin should align with holes in the upper freezer drawer.

Illustration of a device with a magnified view showing a circular component and a scroll, no text or symbols present.

Architectural rendering of a building facade with structural elements and window grilles (no text or symbols visible)

CAUTION

Do not place hands or fingers near the ice maker when it is functioning.

EXTENDFRESH DRAWERS (KRP & KRB Models only)

The ExtendFresh drawer is held to the slide guides by a thumbscrew on each side. Release the thumbscrews to remove the drawer.

Illustration of a hand opening a blue drawer with metal sheets, no text or symbols present

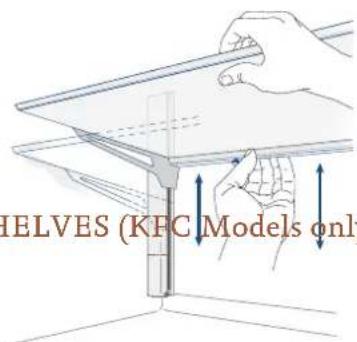

ADJUSTABLE SHELVES (KRP, KRB, KRC Models only)

It is recommended that the shelves be emptied prior to adjusting the position. The shelves are able to slide up and down and can be easily re-positioned by the user as follows:

1) Slightly loosen the small locking knob (located under the shelf on the left side at the back) by turning it counter-clockwise.
2) Support the back of the shelf and tilt it upward at the front. This will allow you to raise or lower the shelf to the desired position.
3) Once in position, lower the front of the shelf and tighten the locking knob.
- The locking knob keeps the shelf locked safely in position. If the locking knob is loose, the shelf could slide down if it were raised or tilted upward at the front.

Illustration of a hand holding a metal rod with a curved arrow indicating motion (no text or symbols)

HELVES (KFC Models only)

ADJUSTABLE SHELVES (KFC Models only) ADJUSTABLE SHELVES (KFC Models only)

Freezer models feature traditional shelf ladders left and right, which are adjusted by lifting the shelf upward and raising to the desired position - there is no locking knob.

To remove a shelf: To remove a shelf:

1) Remove the top cap of the left and right side ladder
2) Tilting the front of the shelf upward, slide the shelf to the top to remove.
- It is not necessary to remove the shelves for cleaning.

INTERNAL LAYOUT (CONT.)

DOOR BINS DOOR BINS

The door bins are adjusted by lifting the bin upward and sliding into the desired position. The lower door bin has a retaining support to keep taller items from falling out. The upper door bins do not have the support and are meant for storage of shorter items.

The door bins are easily removable for cleaning. To remove a door bin from the door, remove the top cap of the left and right side ladder then slide the bin upward and out.

Technical line drawing of a two-tiered mechanical frame structure with no text or symbols

USING THE ICE MAKER USING THE ICE MAKER

To activate the ice maker after installation of the appliance, see ICE MAKER instructions on page 19.

Please note that 12 to 24 hours are necessary before ice production may begin. The production is 10 cubes per cycle, approximately 10 cycles in 24 hours.

The yield depends on the temperature set in the freezer, the room temperature and the frequency of door opening. If the appliance is operating without being connected to the water system, make sure that the ice maker is deactivated.

The ice maker produces ice until the ice tray is full and will automatically stop once the maximum level is reached.

With the Fast Ice function, it is possible to increase the quantity of ice produced in 24 hours, while the Set Cube Size function permits selection of the size of the produced ice cubes.

NOTICE

If the ice is not used frequently, it is advisable to empty the ice bin once every 8-10 days.

It is normal that some ice cubes stick to one another. If the ice is not frequently used, the older cubes can become opaque, will have an odd flavor and become smaller.

The ice maker automatically deactivates if and when the Holiday function is activated.

When the ice maker is started for the first time, it is recommended to dispose of the first full bin of ice.

If the equipment has been switched off for a month or more, it is recommended to perform a manual cleaning cycle.

KRB/KRP models: The ice maker will only produce ice with the FreshSelect ^TM compartment set to Freezer Mode.

All models: The ice maker will continue to operate even when the ice bin is not in position.

If the ice cubes have an unusual odor

Ice is a porous material which can absorb odors from the environment. Ice cubes which have been in the ice cube container for a long time may absorb odors, stick together and slowly become smaller. We recommend that old ice cubes not be used.Other means of preventing odors:The ice cube container should be cleaned occasionally with warm water. Make sure that you switch off the ice maker before clearing the container. Rinse out and wipe dry.Check the contents of the freezer for spoiled or out-of-date food. All odorous foods should be wrapped thoroughly or stored in airtight containers to prevent the build-up of odors.The water filter may have to be replaced in some models.In some cases, the quality of the water connection in the house should be checked.

Identifying normal and unusual noises

Grumbling: The refrigeration unit is running. The recirculated air system fan is running.Bubbling, humming or gurgling noises: refrigerant is flowing through the coolant lines.Clicking: motor is switching on or off. Solenoid valve on the water connection is opening/closing.Rumbling: ice cubes are falling into the ice cube container.Note: the appliance is powered by two independent compressors. It is therefore normal to always have one of two compressors in operation.

NOTICE

Do not place any bottles or food for rapid cooling in the ice cube container. The ice maker may become blocked and be damaged.

WATER FILTER WATER FILTER

The Water Filter makes available high-quality water for the production of ice cubes. It provides up to 1056 gallons [4000 liters] of water for a maximum time of 6 months.

When the filter has nearly expired the message "Replace Filter Cartridge" will appear on the display.

Models KRP, KRB Models KRP, KRB

The filter is located inside the refrigerator compartment, above the top glass panel. Prior to changing the filter, switch off the ice maker per the instructions on page 19.

Open the top glass panel and carefully rotate the filter cartridge a quarter rotation in a counter-clockwise direction until it detaches from its housing. It is normal for a small quantity of

water to come out. Remove the cap of the new cartridge and insert it into the housing by gently rotating it for a quarter rotation in a clockwise direction until it locks into place.

Illustration of a hand holding a small object near a table (no text or symbols visible)

Model KFC Model KFC

Freezer models are equipped with an externally mounted filter kit. The kit is typically mounted in an adjacent cabinet to allow for periodic filter replacement. Water line connections to the filter must be in place before the unit is installed. The same filter cartridge is used as in the KRP/KRB above, and is replaced in the same manner.

LIGHTINGLIGHTING

Lighting is provided using LED strips and spots to completely illuminate the interior. Depending on the model, side lamps may be on the left of right interior wall of the unit.

In case of malfunction or failure, contact Hestan for service.

KRC MODELSKRP / KRB MODELS KFC MODELS

Three identical diagrams showing a blue storage unit with white ventilation grilles, no text or symbols present.

CAUTION

Your refrigerator is designed to ensure precise, constant temperatures and appropriate humidity levels in all compartments.

In addition, the refrigeration system ensures that frozen foods and ice do not absorb the odor of fresh foods and that the humidity in the refrigerator does not freeze and build up frost.

Nevertheless, to properly preserve all of your foods, it is not enough to have an excellent refrigerator. It is also necessary to know the rules for correct food preservation.

Do bear in mind that all foods will inevitably change their characteristics over the passage of time. This change begins long before the food is consumed, since foods contain micro organisms which multiply and can cause deterioration. This process occurs more rapidly due to improper handling, preservation temperatures and humidity levels.

It is therefore recommended to follow the directions presented below which will permit using your refrigerator/freezer in the most effective and safe manner to keep your foods in the best way for as long as possible.

Periodically check that all foods are in a perfect state of preservation. It is usually quite clear when a food item is deteriorated, due to mold, unpleasant odor and an unpleasant aspect. Nevertheless, there are cases in which these conditions are not so evident. If you believe that a food item was kept for an excessive period of time and may be deteriorated, do not consume this item or even taste it, even if it seems to still be healthy, since the bacteria that cause deterioration of food can also cause poisoning and illness.

When in doubt, throw the food away.

KRC / KFC MODELSKRF Fridge from +34° to +46°F [from +1° to +7°C] Column Fridge from +34° to +46°F [from +1° to +7°C] or (FreshSelect™) Column Freezer from +9° to -9°F [from -13° to -23°C] FreshSelect™ zone convertible to Fridge, ExtendFresh or Freezer from +9° to -9°F [from -13° to -23°C]

POWER INTERRUPTIONS POWER INTERRUPTIONS

After a prolonged power outage, once the electrical power is reactivated, an audible signal will indicate if the temperature has raised above normal levels. In addition to this the display will show for one minute the highest temperature detected inside the compartments, to allow the user to decide how to better use the food items.

After one minute the display will resume normal operation, while the Alarm button will continue to blink.

Press the Alarm button to display the highest recorded temperatures.

WHEN BUYING GROCERIES WHEN BUYING GROCERIES

Always take the following precautions:

• Place any packages of raw meat, fish or poultry in plastic bags so that they do not drip on other foods.
• Purchase meat, poultry and fish last. Do not leave your groceries in a warm car after shopping. Keep a freezer bag in your car and use it in case of very high temperatures or long trips.
• Check the production dates and "best before" times on foods to be sure that they are fresh.
• Be very careful when buying fresh foods, and only buy a quantity that can be consumed during your planned preservation period.
• When possible, let warm foods adjust to room temperature for up to two hours before placing them in the refrigerator, unless you have activated the MaxCool function before.

PRECAUTIONSPRECAUTIONS

Check the refrigeration temperature of the various compartments on the control panel:

The refrigerator temperature must be 45^ F [+8°C] or lower and the freezer temperature must be 0^ F [-18°C]

Follow the recommendations regarding the preservation times and temperatures indicated in the tables to follow.

Keep raw meat, fish and poultry separate from other foods and avoid any possible drippings.

WHEN PLACING FOODS INWHEN PLACING FOODS IN

When placing your meat, fish or poultry in the refrigerator, leave them in their original packaging, unless the packaging is ripped or punctured. Repeated handling could introduce bacteria into these foods.

To keep food in the freezer, it is a good idea to use freezer containers.

Label and date the packages

Be careful to correctly position the food items on the shelves in a way that does not obstruct the air circulation vents inside the compartment.

HUMIDITY AND CONDENSATION HUMIDITY AND CONDENSATION

When a high level of humidity is present either in the environment or in the foods placed in the ExtendFresh drawers, the bottom of the ExtendFresh compartment might be covered with some water or ice (if the temperature is set between 32^ F and 28^ F [ 0^ C and -2^ C]).

Such condition is normal and it is due to the high humidity levels of the ExtendFresh compartment. High humidity together with low temperatures is what guarantees a longer preservation of foods.

Water or ice can disappear on its own if the air humidity level should lower. It is also possible to remove the water with a towel. If a thin layer of ice has formed, set the temperature of the ExtendFresh compartment to 35^ F [+2^] and after one day remove the water with a towel.

If the layer of ice is thicker, it might be necessary to shut off the ExtendFresh compartment for one day in order to melt it.

RECOMMENDED STORAGE DURATIONS RECOMMENDED STORAGE DURATIONS

Fresh foods	Preservation area		Time
Raw meats
Large cuts	ExtendFresh	Compartment	4 days
Beef steaks, poultry and wild game Ground meat	ExtendFresh	Compartment	3 days
	ExtendFresh	Compartment	1-2 days
Carpaccio	ExtendFresh	Compartment	Immediately
Cooked meat
Boiled meat and roasted meat	Refrigerator	Compartment	2 days
Meat sauce	Refrigerator	Compartment	6 days
Fish
Raw and cooked fish	ExtendFresh	Compartment	2 days
Other
Soups and broths	Refrigerator	Compartment	2 days
Pasta	Refrigerator	Compartment	2 days
Opened cold cuts	ExtendFresh	mtrapmoC	3 dayent
Fresh cheeses	ExtendFresh	Compartment	2-3 days
Well sealed aged cheeses	Refrigerator	Compartment	Several months
Eggs (fresh and unwashed)	Refrigerator	Compartment	2 weeks
Opened cans	Refrigerator	Compartment	2-3 days
Raw vegetables (in perforated bags)	ExtendFresh	Compartment	1 week

Frozen foods	Preservation area		Time
Beef, veal, lamb and goat meat	Freezer Compartment	(steaks)	6-12 months
Beef, veal, lamb and goat meat	Freezer Compartment	(Meat with bone)	4-6 months
Ground beef	Freezer Compartment		1-2 months
Pork	Freezer Compartment	(Without bones)	4-6 months
Pork	Freezer Compartment	(With bones)	2-3 months
Ground pork	Freezer Compartment		1-2 months
Meat leftovers	Freezer Compartment		2-3 months
Whole chicken and turkey	Freezer Compartment		8-12 months
Goose, duck and pheasant	Freezer Compartment		4-8 months
Fish	Freezer Compartment		1-2 months
Shellfish	Freezer Compartment		2-3 months
Cooked food	Freezer Compartment		1-2 months
Vegetables	Freezer Compartment		8-12 months
Fruit	Freezer Compartment		6-12 months
Desserts and cakes	Freezer Compartment		2-3 months

NOTICE

Before performing any sort of cleaning, disconnect the appliance from the electrical power supply.

To clean the parts made of stainless steel use a microfiber cloth and the special sponge provided in the kit with the appliance. Always use the cloth and sponge in the direction of the steel's satin finish. For painted surfaces, use a mild household liquid detergent solution to remove dust and other deposits. Never use any solvent-based cleaners, stainless steel cleaners, heavy degreasers, oven cleaners, etc. on the painted surfaces. They can permanently damage the paint. Rinse off with clean fresh water and dry with a clean cloth.

Do not use the sponge on aluminum parts, such as the handles and the profiles of the glass shelves.

You should use special care to keep the ventilation openings in the appliance or in the cabinet that houses it free of obstructions.

Scrupulously follow the detailed directions that can be found in the provided kit and never use abrasive or metallic products which could scratch and damage the satin finishing on the appliance permanently.

Be careful not to damage the refrigerant circuit in any way.

Ventilation Grille Ventilation Grille

A ventilation grille is located either at the top of the appliance or at the bottom according to the model type.

To clean it, use a vacuum cleaner with a soft brush attachment at maximum power, sweeping it along the vent slits.

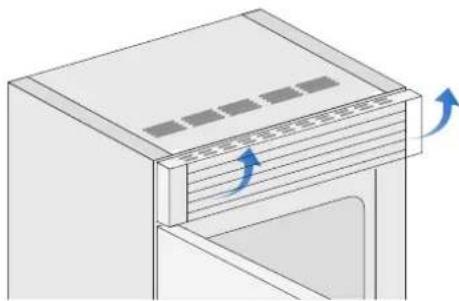

In case of significant dust build up, the ventilation grille can be opened or removed for more complete cleaning and to clean the condenser.

Condenser Condenser

The condenser is located behind the ventilation grille. Switch off the appliance by pressing the ON/OFF button ⏻ on the main control panel for about 3 seconds.

Wait about 30 minutes, until the finned condenser cools down to room temperature.

On models with ventilation at the base, remove the grille at the bottom (magnetically attached) and take it off. On models with ventilation at the top, lift the grille as shown in the picture. Thoroughly clean the grille and the condenser fins by means of a vacuum cleaner with soft brush attachment. Clean any dust build up thoroughly as shown in the picture, taking care not to damage the fins.

Start up the appliance again, by pressing the ON/OFF button ⏻ on the control panel for 3 seconds.

Internal Cleaning Internal Cleaning

Clean the internal and removable parts by washing them with a solution of lukewarm water, a small amount of dishwashing detergent.

Rinse and dry right away.

Diagram of a door handle assembly with arrows indicating rotation (no text or symbols)

Illustration of a hand using a tool to press or install a blue panel inside a cabinet (no text or symbols visible)

CAUTION

The edges of the condenser are sharp, therefore use adequate protection for the hands and arms when cleaning the condenser.

CAUTION

Do not use water on the electrical parts, lights and control panel.

Do not use mechanical devices or other methods to speed up defrosting.

NOTICE

Do not bring cold glass parts into contact with boiling water. Do not wash any parts of the refrigerator in a dishwashing machine since this could damage or irreparably deform the parts.

The use of chlorine-based detergents or cleaners (bleach) should be avoided.

TROUBLESHOOTING GUIDETROUBLESHOOTING GUIDE

If you notice malfunctions in your appliance, use this guide before calling for service. This guide can help you personally resolve the problem or could provide important information to be conveyed to the service technician to ensure rapid and effective repair.

Malfunction message Malfunction message

A malfunction is usually indicated by a message on the display.

Problems that cannot be solved by the user are signaled through a malfunction code.

The refrigerator or the freezer does not work The refrigerator or the freezer does not work

Is the appliance connected to the electrical power supply? Is electrical power available at the electricity socket?

Is the ON/OFF (Power) button ⏻ activated?

Is the unit in 'Demo' Mode?

The refrigerator or the freezer is warmer than usual

Does the display show a malfunction code?

Is the temperature adjusted correctly?

Were the doors or drawers open for a long period of time? Were large quantities of food recently inserted?

Is the unit in 'Demo' Mode?

The appliance keeps running for a long time The appliance keeps running for a long time

Bear in mind that during very hot weather and with very high temperatures in the room, it is normal that the compressor remains on for prolonged periods of time.

Were the doors or drawers open for a long period of time? Were large quantities of food recently inserted?

Check that the doors are closed and that the food or containers do not obstruct the perfect closure of the door.

Is one or more compartments in Max Cool Mode?

If you hear unusual noises If you hear unusual noises

It is normal to hear noises from the ventilators or compressors during operation or during the defrost phase.

Noise could be more marked depending on the position of the appliance and the surrounding environment.

Condensation inside and outside of the refrigerator

If the climate is very humid, the formation of condensation is normal. Opening the door or drawers for prolonged periods of time can contribute to the formation of condensation.

In any case, make sure that the doors are always perfectly closed.

Ice or frost build up inside the refrigerator or freezer

Did you leave the doors open for a long period of time? Do the doors close perfectly?

If the doors do not close perfectly, contact your installer.

Unpleasant odors inside the refrigerator Unpleasant odors inside the refrigerator

Clean the appliance completely according to the instructions.

Hermetically cover all the food. Do not conserve food for prolonged periods of time.

The doors are difficult to open The doors are difficult to open

The appliance is designed to ensure a fully hermetic closure. When the door is closed, a vacuum condition can occur: in this case it is necessary to wait a few seconds until the pressure balances before opening the door.

Appliance is cooling but lights and display are not working

Check to see if the appliance was accidentally placed into Sabbath Mode.

The Ice Maker does not work The Ice Maker does not work

Make sure that the Ice Maker is on. To switch on the Ice Maker see ICE MAKER on page 19.

Make sure that the appliance is connected to the water supply.

The Ice Maker does not produce sufficient amounts of ice

On average, the Ice Maker produces approximately 10 cubes of ice every two and half hours.

The ice cubes freeze into one block The ice cubes freeze into one block

If the ice is not used frequently, it is possible that blocks of ice may form. It is recommended to remove the block of ice cubes and then let the Ice Maker fill the ice tray again.

The ice has an unusual flavor or color The ice has an unusual flavor or color

When the Ice Maker is started for the first time, it is recommended to empty the first full tray of ice cubes.

If the refrigerator was switched off for more than one month or if the cartridge was not changed for more than six months, it could be necessary to replace the filter cartridge.

Contact a plumber or a water treatment expert to make sure that the problem is not due to the water supply itself.

NOTICE

If the unit you purchased was used as a showroom model, it may be in a special energy-saving mode call Demo Mode. In this mode, the lighting works, but the display shows false temperatures and no actual cooling takes place. If you believe the unit is in Demo mode, please contact your point of purchase, or Hestan Customer Care for assistance in disabling this mode in disabling this mode.

MALFUNCTION INDICATIONS APPEARING ON THE DISPLAY

Display Message Malfunction Description Action Required
Power Failure!! Prolonged interruption of electrical power		The appliance resumes work automatically, the display shows the warmest temperatures achieved
Door Fridge OPEN Fridge door open The message appears after a few minutes from the door opening
FreshSelectTM OPEN Freezer drawer open The message appears after a few minutes from the drawer opening
Replace filter Replace filter cartridge Message appears when only 30% offilter capacity is left
Fridge too warm Fridge too warm See Troubleshooting Guide
Fridge too cold Fridge too cold Wait for 12 hours: if malfunction persists, call Customer Care for advice
ExtendFresh too warm	ExtendFresh Compartment too warm	See Troubleshooting Guide
ExtendFresh too cold	ExtendFresh Compartment too cold	Wait for 12 hours: if malfunction persists, call Customer Care for advice
FreshSelectTM too warm	Freezer too warm	See Troubleshooting Guide
FreshSelectTM too cold	Freezer too cold	Wait for 12 hours: if malfunction persists, call Customer Care for advice
Error Code...	Functional problems	Call Customer Care who may help you to solve the problem or put you in contact with the nearest Service Agent
Check condenser	Check Condenser	Every 6 months the display shows the message “Check Cond”. After cleaning the condenser, press the OK button for 5 seconds to reset the notification.

In the case of anomalies, Press the Alarm button 📄 to show the anomaly message with its error code.

The error message will be shown for 3 seconds, then the display will go back to the Home screen. To display the message for a longer period of time, touch the display, then press on the symbol. The word STOP will appear in the upper left corner of the display.

In case there is more than one error message, the display will show the different messages in time sequence. After 30 seconds, the display will go back to the Home screen.

STOP AM 10:37 25 Sept 2020 Warning i FreshSelect too warm

SERVICE DATA RECORD SERVICE DATA RECORD

The location of the serial tag on the product can be seen when the refrigerator door is opened.

It is located on either the left or right side depending on the specific model.

Now is a good time to write this information in the space below provided. Keep your invoice for warranty validation.

Model Number ____

Serial Number ____

Date of Installation or Occupancy ____

PARTS LIST

Please visit the Hestan website to access the parts list for your Hestan Indoor product: www.hestanhome.com.www.hestanhome.com.

SERVICE

All warranty and non-warranty repairs should be performed by qualified service personnel. To locate an authorized service agent in your area, contact your Hestan dealer, local representative, or the manufacturer. Before you call, please have the model number and serial number information ready.

Hestan Commercial Corporation

3375 E. La Palma Avenue

Anaheim, CA 92806

[phone]

WHAT THIS LIMITED WARRANTY COVERS: WHAT THIS LIMITED WARRANTY COVERS:

Hestan Commercial Corporation ("HCC") warrants to the original consumer purchaser of a Hestan Indoor Cooling product (the "Product") from an HCC authorized dealer that the Product is free from defective materials or workmanship for a period of three (3) years from the date of original retail purchase or closing date for new construction, whichever period is longer ("Limited Warranty Period"). HCC agrees to repair or replace, at HCC's sole option, any part or component of the Product that fails due to defective materials or workmanship during the Limited Warranty Period. This Limited Warranty is not transferable and does not extend to anyone beyond the original consumer purchaser ("Purchaser"). This Limited Warranty is valid only on Products that are (i) purchased and received from an HCC authorized dealer, (ii) delivered after purchase to a consumer, and (iii) continuously thereafter remain located, in the fifty United States, the District of Columbia and Canada. Events that will void this warranty include purchasing or taking delivery in, or moving Products to any location outside of, the fifty United States, the District of Columbia and Canada. This Limited Warranty applies only to Products in non-commercial use and does not extend to Products used in commercial applications.

HOW TO OBTAIN WARRANTY SERVICE: HOW TO OBTAIN WARRANTY SERVICE:

If the Product fails during the Limited Warranty Period for reasons covered by this Limited Warranty, the Purchaser must immediately contact the dealer from whom the Product was purchased or HCC at 888.905.7463.

Purchaser is responsible for making the Product reasonably accessible for service or for paying the cost to make the Product reasonably accessible for service. Service is to be provided during normal business hours of the authorized Hestan Commercial Service Provider. To the extent Purchaser requests service outside of the normal business hours of the authorized Hestan Commercial Service Provider, Purchaser will pay the difference between regular rates and overtime or premium rates. Purchaser is required to pay all travel costs for travel beyond 50 miles (one way) from the nearest authorized Hestan Commercial Service Provider.

EXTENSIONS TO THREE YEAR LIMITED WARRANTY PERIOD:

In addition to the Three-Year Limited Warranty, the following components have extended warranty coverage as specifically set forth below:

1. The Product's compressor, condenser, evaporator, drier and all connecting tubing (where applicable are warranted to be free from defects in material and workmanship under normal non-commercial use and service for a period of five (5) years of the original Purchaser. This excludes surface corrosion, scratches, and discoloration which may occur during normal use and is limited to replacement of the defective part(s), including labor, shipping and handling, as applicable.
2. The Product's compressor, condenser, evaporator, drier and all connecting tubing (where applicable) are warranted to be free from defects in material and workmanship under normal non-commercial use and service for a period of twelve (12) years of the original Purchaser. This excludes surface corrosion, scratches, and discoloration which may occur during normal use and is limited to replacement of the defective part(s), with the Purchaser paying all other costs, including labor, shipping and handling, as applicable.

WHAT THIS LIMITED WARRANTY DOES NOT COVER: WHAT THIS LIMITED WARRANTY DOES NO

This Limited Warranty does not cover and HCC will not be responsible for and will not pay for: damage to or defects in any Product not purchased from an HCC authorized dealer; color variations in color finishes or other cosmetic damage; failure or damage from abuse, misuse, accident, fire, natural disaster, commercial use of the Product, or loss of electrical power to the Product; damage from alteration, improper installation, or improper operation of the Product; damage from improper or unauthorized repair or replacement of any part or component of the Product; damage from service by someone other than an authorized agent or representative of the Hestan Commercial Service Network; normal wear and tear; damage from exposure of the Product to a corrosive atmosphere containing chlorine, fluorine, or any other damaging chemicals; damage resulting from the failure to provide normal care and maintenance to the Product; damage HCC was not notified of within the Limited Warranty Period; and incidental and consequential damages caused by any defective material or workmanship.

ARBITRATION: ARBITRATION:

This Limited Warranty is governed by the Federal Arbitration Act. Any dispute between Purchaser and HCC regarding or related to the Product or to this Limited Warranty shall be resolved by binding arbitration only on an individual basis with Purchaser. Arbitration will be conducted by the American Arbitration Association (“AAA”) in accordance with its Consumer Arbitration Rules or by JAMS. The arbitration hearing shall be before one arbitrator appointed by the AAA or JAMS. The arbitrator shall not conduct class arbitration and Purchaser shall not bring any claims against HCC in a representative capacity on behalf of others.

LIMITATION OF LIABILITY: LIMITATION OF LIABILITY:

This Limited Warranty is the final, complete and exclusive agreement between HCC and Purchaser regarding the Product.

THERE ARE NO EXPRESS WARRANTIES OTHER THAN THOSE LISTED AND DESCRIBED ABOVE. NO WARRANTIES WHETHER EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE SHALL APPLY AFTER THE LIMITED WARRANTY PERIOD STATED ABOVE. NO OTHER EXPRESS WARRANTY OR GUARANTY GIVEN BY ANY PERSON, FIRM OR CORPORATION WITH RESPECT TO THIS PRODUCT SHALL BE BINDING ON HCC. HCC ASSUMES NO RESPONSIBILITY THAT THE PRODUCT WILL BE FIT FOR ANY PARTICULAR PURPOSE, EXCEPT AS OTHERWISE PROVIDED BY APPLICABLE LAW. HCC SHALL NOT BE LIABLE FOR LOSS OF REVENUE OR PROFITS, FAILURE TO REALIZE SAVINGS OR OTHER BENEFITS, OR ANY OTHER SPECIAL, INCIDENTAL OR CONSEQUENTIAL DAMAGES CAUSED BY THE USE, MISUSE OR INABILITY TO USE THE PRODUCT, REGARDLESS OF THE LEGAL THEORY ON WHICH THE CLAIM IS BASED, AND EVEN IF HCC HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. NO RECOVERY OF ANY KIND AGAINST HCC SHALL BE GREATER IN AMOUNT THAN THE PURCHASE PRICE OF THE PRODUCT. WITHOUT LIMITING THE FOREGOING, YOU ASSUME ALL RISK AND LIABILITY FOR LOSS, DAMAGE OR INJURY TO YOU AND YOUR PROPERTY AND TO OTHERS AND THEIR PROPERTY ARISING OUT OF THE USE, MISUSE OR INABILITY TO USE THE PRODUCT NOT CAUSED DIRECTLY BY THE NEGLIGENCE OF HCC. THIS LIMITED WARRANTY STATES YOUR EXCLUSIVE REMEDY.

No oral or written representation or commitment given by anyone, including but not limited to, an employee representative or agent of HCC will create a warranty or in any way increase the scope of this express Limited Three Year Warranty. If there is any inconsistency between this Limited Warranty and any other agreement or statement included with or relating to the Product, this Limited Warranty shall govern. If any provision of this Limited Warranty is found invalid or unenforceable, it shall be deemed modified to the minimum extent necessary to make it enforceable and the remainder of the Limited Warranty shall remain valid and enforceable according to its terms.

INTERACTION OF LAWS WITH THIS LIMITED WARRANTY:

Some states, provinces or territories may not allow limitations on how long an implied warranty lasts or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. Some states, provinces or territories may provide for additional warranty rights and remedies, and the provisions contained in this Limited Warranty are not intended to limit, modify, take away from, disclaim or exclude any mandatory warranty requirements provided by states, provinces or territories, including certain implied warranties. This warranty gives you specific legal rights, and you may also have other rights which vary depending on location.

Any questions about this Limited Warranty may be directed to:

Hestan Commercial Corporation at [phone]

⚠ AVERTISSEMENT

LE NON-RESPECT À LA LETTRE DEA CES INSTRUCTIONS PEUT CAUSER UN INCENDIE OU UNE EXPLOSION, QUI POURRAIT ENTRAÎNER DES DOMMAGES MATÉRIELS, DES BLESSURES OU LA MORT.

Group of people sharing a meal together with wine glasses and a pie chart, surrounded by fresh dishes (no visible text or symbols)

3 PRÉCAUTIONS DE SÉCURITÉ - AVANT DE COMMENCER
8 NUMÉROS DE MODÈLE
9 PLAQUE SIGNALÉTIQUE
9 EXIGENCES RÉGLEMENTAIRES / CODE
10 APPRENDRE À CONNAÎTRE VOTRE APPAREIL
13 CONTRÔLES ET FONCTIONNEMENT
29 DISPOSITION INTERNE
33 LA CONSERVATION DES ALIMENTS
36 ENTRETIEN ET NETTOYAGE
37 DÉPANNAGE
40 PIÈCES / SERVICE
40 GARANTIE LIMITÉE

PRÉCAUTIONS DE SÉCURITÉ - AVANT DE COMMENCER

Silhouette of a person in motion, possibly running or falling, with no visible text or symbols

Line drawing of a cabinet with chains attached to the top panel and a door on the left (no text or symbols)

PRÉCAUTIONS DE SÉCURITÉ - AVANT DE COMMENCER(SUITE)

Technical illustration of a mechanical component with three views: threaded pipe fitting, cross-section view, and flanged cylindrical housing (no text or symbols)

Heure? 12 | 24

Illustration of a server rack with a monitor and antenna, no text or symbols present

Architectural rendering of a building facade with storage tanks and ventilation grilles (no text or symbols visible)

PRÉCAUTION

Illustration of a hand holding a metal rod above a vertical structure with a curved arrow indicating motion (no text or symbols)

Illustration of a hand holding a rectangular object over a flat surface, with no visible text or symbols.

Technical line drawing of a two-tiered shelving unit with mounting brackets and a directional arrow indicator (no text or symbols)

FR

UTILISATION DE LA MACHINE À GLAÇONS UTILISATION DE LA MACHINE À GLAÇONS

Illustration of a hand holding a circular object with a face, placed on a surface (no text or symbols)

Three identical blue rectangular panels with white triangular cutouts, each showing a single white square on top (no text or symbols)

PRÉCAUTION

COUPURES DE COURANT COUPURES DE COURANT

Diagram of a door handle with internal compartments and directional arrows indicating movement (no text or symbols)

Illustration of a hand inserting a cylindrical tube into a blue mesh chamber (no text or symbols)

PRÉCAUTION

Hestan Commercial Corporation

3375 E. La Palma Avenue

Anaheim, CA 92806

[phone]

GARANTIE LIMITÉE

ÉLÉMENTS COUVERTS PAR LA PRÉSENTE GARANTIE LIMITÉE:

Hestan Commercial Corporation

3375 E. La Palma Ave.

Anaheim, CA 92806

[phone]
