Product Type	Built-in heating shelf for hot holding
Brand	Vollrath
Model	FC-4HS-42120-BKR
Heating Zones	2 independent zones
Temperature Range	Settings 1 to 9 (low 1-3, medium 4-6, high 7-9)
Maximum Temperature	Approximately 93.3 °C (200 °F)
Display	Control panel with heating indicator light
Power Supply	See rating plate (grounded outlet required)
Intended Use	Hot holding of pre-cooked food on plates, commercial use
Material	Stainless steel (estimated)
Cleaning	Damp cloth with soapy water, rinse and dry
Safety	Automatic shutoff? Not mentioned; precautions: do not spray liquid, do not use extension cord
Warranty	Vollrath commercial warranty, see terms on Vollrath.com
Spare Parts	Available on Vollrath.com
After-Sales Service	Contact Vollrath technical support
Weight	Not specified
Dimensions	Not specified
Default Setting	Last setting used
Heating Indicator	Light that turns on/off during holding

Frequently Asked Questions - FC-4HS-42120-BKR Vollrath

What is the difference between a food warmer and a cooking surface?

The Vollrath food warmer is designed only to keep warm pre-cooked food, not to cook it. It should not be used in direct contact with food.

How do I adjust the temperature on the heating shelf?

Use the temperature adjustment knobs (H) to select a level from 1 to 9. Low (1-3), medium (4-6), and high (7-9) levels correspond to increasing temperatures up to approximately 93°C.

Can I use an extension cord?

No, use of an extension cord is prohibited. Plug the appliance directly into a suitable grounded outlet.

How do I clean the appliance?

Unplug and let it cool down. Clean with a damp cloth and mild soap, rinse with clean water and dry. Never use steel wool or harsh chemicals.

Why does the heating indicator light turn on and off?

This is normal: the light indicates that the heating element cycles to maintain the set temperature. It does not indicate power-on.

What should I do if the control panel does not light up?

Check that the appliance is plugged into a working outlet. If the internal USB cable is disconnected, it may block the display. Contact Vollrath technical support.

Does the heating shelf heat unevenly?

Uneven temperature may indicate a defective internal component (heating element, thermistor). Contact Vollrath technical service.

Can I place food directly on the shelf?

No, food must be placed on plates or suitable containers. Do not put anything directly on the shelf to avoid damaging the surface or the food.

Where can I find the serial number of my appliance?

The serial number is on the rating plate located under the heating shelf. Write it down to facilitate support requests.

What is the Vollrath warranty policy?

The Vollrath warranty covers defects in materials and workmanship for commercial use. It does not apply to domestic use. See Vollrath.com for complete details.

USER MANUAL FC-4HS-42120-BKR Vollrath

Thank you for purchasing this Vollrath equipment. Before operating the equipment, read and familiarize yourself with the following operating and safety instructions. SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

SAFETY PRECAUTIONS

To ensure safe operation, read the following statements and understand their meaning. This manual contains safety precautions which are explained below. Please read carefully.

WARNING

Warning is used to indicate the presence of a hazard that will or can cause severe personal injury or death.

CAUTION

Caution is used to indicate the presence of a hazard that will or can cause minor or major personal injury if the caution is ignored.

NOTICE: Notice is used to note information that is important but not hazard-related.

To reduce risk of injury or damage to the equipment:

• This equipment must be installed by a qualified person. - Use only grounded electrical outlets that match the rated voltage on the nameplate. - Do not use an extension cord with this equipment. Do not plug this equipment into a power strip or multi-outlet power cord. - This equipment should only be used in a flat, level position. - Do not spray the controls or the outside of equipment with liquids or cleaning agents. - Keep the equipment and power cord away from open flames, electric burners over excessive heat. - Do not operate equipment if it is damaged or malfunctioning. - Unplug and allow the equipment to cool before cleaning. - Do not clean this equipment with steel wool.

NOTICE: Do NOT modify the cord or plug on the drop-in. Modifying any component may damage the drop-in or cause injury, and will void the warranty. See the specification sheet on Vollrath.com for electrical specifications.

FUNCTION AND PURPOSE

This equipment is intended to hold plated, pre-cooked, hot food for short period of time. It is not intended to heat food or for direct contact with food. It is not intended for household, industrial or laboratory use.

Heated Shelf Drop-in

ItemNo.	Shelf Material	MountingType	Length In(cm)
FC-4HS-24120-SSR		Recessed	24"(61)
FC-4HS-30120-SSR30"(76.2)
FC-4HS-36120-SSR36"(91.4)
FC-4HS-42120-SSR42"(106.7)
FC-4HS-48120-SSR48"(121.9)
FC-4HS-54120-SSR54"(137.2)
FC-4HS-60120-SSR60"(152.4)
FC-4HS-66120-SSR66"(167.6)
FC-4HS-72120-SSR72"(182.9)
FC-4HS-24120-SSF	Steel Finish	FlushMount	24"(61)
FC-4HS-30120-SSF30"(76.2)
FC-4HS-36120-SSF36"(91.4)
FC-4HS-42120-SSF42"(106.7)
FC-4HS-48120-SSF48"(121.9)
FC-4HS-54120-SSF54"(137.2)
FC-4HS-60120-SSF60"(152.4)
FC-4HS-66120-SSF66"(167.6)
FC-4HS-72120-SSF72"(182.9)
FC-4HS-24120-BKR		Recessed	24"(61)
FC-4HS-30120-BKR30"(76.2)
FC-4HS-36120-BKR36"(91.4)
FC-4HS-42120-BKR42"(106.7)
FC-4HS-48120-BKR48"(121.9)
FC-4HS-54120-BKR54"(137.2)
FC-4HS-60120-BKR60"(152.4)
FC-4HS-66120-BKR66"(167.6)
FC-4HS-72120-BKR72"(182.9)
FC-4HS-24120-BKF	Hardcoat Finish	FlushMount	24"(61)
FC-4HS-30120-BKF30"(76.2)
FC-4HS-36120-BKF36"(91.4)
FC-4HS-42120-BKF42"(106.7)
FC-4HS-48120-BKF48"(121.9)
FC-4HS-54120-BKF54"(137.2)
FC-4HS-60120-BKF60"(152.4)
FC-4HS-66120-BKF66"(167.6)
FC-4HS-72120-BKF72"(182.9)

RECORD YOUR SERIAL NUMBER

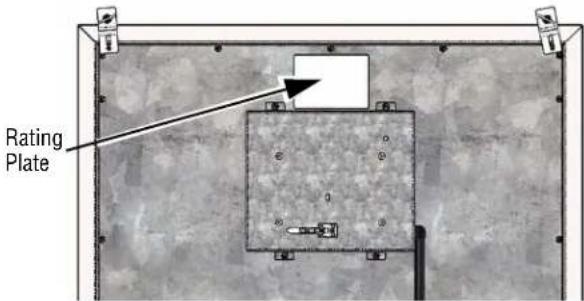

The serial number for your Heated Shelf Drop-in can be found on the rating plate located on the underside of the heated shelf. To aid in future communication about your product, please record the serial number in the space below.

Serial Number

FEATURES AND CONTROLS

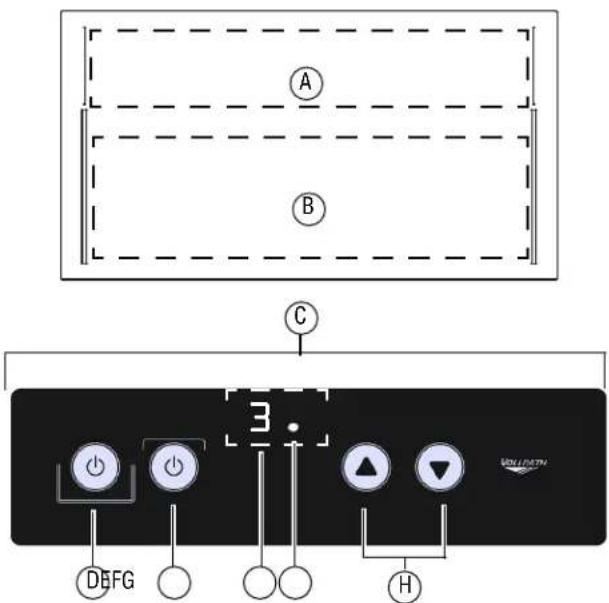

A Heat zone 2, B Heat zone 1, C Control panel, D Heat zone 2 power button, E Heat zone 1 power button, F Current heat setting, G Heating indicator light. This is not a power indicator light. H Heat control buttons. Settings 1 to 9.

Low: 1-3

Medium: 4-6

High: 7-9

OPERATION

CAUTION

Burn Hazard

Do not touch hot food, liquid, or heating surfaces while equipment is heating or operating.

NOTICE: Food must be plated. Do not place food directly onto the heated shelf.

NOTICE: The heated shelf can reach temperatures up to 200°F (93.3°C). Do not place materials on the shelf that can become damaged at that temperature.

NOTICE: Do not slide plates, pans, cookware, etc. across the hardcoat finish. This could create damage to the finish that is not covered under warranty.

Tip: To extend the duration at which food stays at optimal holding temperatures, use a Vollrath heat strip in conjunction with the heated shelf.

1. Press the heat zone(s) power button(s) to turn on the heated shelf. The button(s) will illuminate. The heat zone setting(s) will default to the settings from the previous use.
2. Press the heat control button(s) to select a heat setting. Note: The heat setting will apply to both zones.
3. The control panel will display the selected heat setting and the heating indicator light will illuminate.

1. The light will cycle on and off as the shelf periodically heats to maintain the heat setting.

1. Plate pre-cooked food, heated to proper serving temperature. Place the plated food onto the pre-heated shelf.

NOTICE: Monitor food temperature closely for food safety. The United States Public Health Service recommends that hot food be held at a minimum of 140°F (60°C) to help prevent bacteria growth.

1. Monitor food and adjust the heat settings as needed.
2. When finished using the shelf, remove the food and turn off the shelf.

CLEANING

WARNING

Electrical Shock Hazard

Do not spray water or cleaning products. Liquid could contact the electrical components and cause a short circuit or an electrical shock.

CAUTION

Burn Hazard

Hot surfaces and food can burn skin. Allow the hot surfaces to cool before handling.

To maintain the appearance and increase the service life, clean your equipment daily.

NOTICE: Do not use caustic cleaning chemicals, steel wool, or commercial lime removal products to clean the equipment. Thoroughly rinse equipment with water after cleaning.

1. Press the heat zone button(s) to turn off the equipment.
2. Unplug the equipment.
3. Use gloves, mitts, or pot holders to protect hands when removing containers of hot food.
4. Allow the equipment to cool completely before cleaning.
5. Use a damp cloth or sponge dipped in soapy water to clean the equipment.
6. Use a damp cloth or sponge dipped in clean water to rinse the equipment.
7. Use a soft cloth to thoroughly dry the equipment.

TROUBLESHOOTING

ProblemMightbeCausedByCourseofAction
Shelftemperaturesistoohigh,too loworisheatingunevenly.	Problemwithaninternalcomponent.	ContactVollrathTechnicalServices.Problemwiththeheatingelement
	Problemwiththethermistor.
Shelfdoesnotheat,butcontrolpanel isilluminated.	Electricalfailure	ContactVollrathTechnicalServices.
	Heatingelementfailure
Shelfsuddenlyturnsoff.	Problemwithaninternalcomponent.ContactVollrathTechnicalServices.
	PowercordisdisconnectedPluginthepowercord
	USBcontrolcableisdisconnected	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheshelf.
Controlpaneldoesnotilluminate.	Controlpanelisnotcommunicatingwith shelfbecauseUSBcableisdisconnectedor damaged	ChecktheUSBcableconnectionstothecontrolpanelandthe powerboxmountedtothebottomoftheshelf.
	Issuewiththeelectricalpowertothedrop-in	Verifytheequipmentispluggedintoanelectricaloutletwith thecorrectvoltage,andonitsownseparatecircuit
	Problemwithinternalcomponents	ContactVollrathTechnicalServices.
	Damagetocontrolpanel
Controlpanelisbeeping.Aproblemwithasensororheatingelement.ContactVollrathTechnicalServices.

WARRANTY STATEMENT FOR THE VOLLRATH CO. L.L.C.

This warranty does not apply to products purchased for personal, family, or household use, and The Vollrath Company LLC does not offer a written warranty to purchasers for such uses.

The Vollrath Company LLC warrants the products it manufactures or distributes against defects in materials and workmanship as specifically described in our full warranty statement. In all cases, the warranty runs from the date of the end user's original purchase date found on the receipt. Any damages from improper use, abuse, modification, or damage resulting from improper packaging during return shipment for warranty repair will not be recovered under warranty.

For complete warranty information, product registration, and new product announcements, visit www.vollrath.com.

SERVICE AND REPAIR

Serviceable parts are available on Vollrath.com.

To avoid serious injury or damage, never attempt to repair the unit or replace a damaged power cord yourself. Do not send units directly to The Vollrath Company LLC. Please contact Vollrath Technical Services for instructions.

When contacting Vollrath Technical Services, please be ready with the item number, model number (if applicable), serial number, and proof of purchase showing the date the unit was purchased.

www.vollrath.com

The Vollrath Company, L.L.C.

1236 North 18th Street

Sheboygan, WI 53081-3201 U.S.A.

Main Tel: [phone] or 920.457.4851

Main Fax: [phone] or 920.459.6573

Customer Service: 800.628.0830

Canada Customer Service: 800.695.8560

Technical Services

[e-mail]

Induction Products: 800.825.6036

Countertop Warming Products: 800.354.1970

Toasters: 800-309-2250

All Other Products: 800.628.0832

Built-in Warming Shelf

Numéro d'article	Étagère material	Typedemontage	Longeur po(cm)
FC-4HS-24120-SSR		Encastré	24"(61)
FC-4HS-30120-SSR30"(76,2)
FC-4HS-36120-SSR36"(91,4)
FC-4HS-42120-SSR42"(106,7)
FC-4HS-48120-SSR48"(121,9)
FC-4HS-54120-SSR54"(137,2)
FC-4HS-60120-SSR60"(152,4)
FC-4HS-66120-SSR66"(167,6)
FC-4HS-72120-SSR72"(182,9)
FC-4HS-24120-SSF	NaturelInoxFini	Affleurant	24"(61)
FC-4HS-30120-SSF30"(76,2)
FC-4HS-36120-SSF36"(91,4)
FC-4HS-42120-SSF42"(106,7)
FC-4HS-48120-SSF48"(121,9)
FC-4HS-54120-SSF54"(137,2)
FC-4HS-60120-SSF60"(152,4)
FC-4HS-66120-SSF66"(167,6)
FC-4HS-72120-SSF72"(182,9)
FC-4HS-24120-BKR		Encastré	24"(61)
FC-4HS-30120-BKR30"(76,2)
FC-4HS-36120-BKR36"(91,4)
FC-4HS-42120-BKR42"(106,7)
FC-4HS-48120-BKR48"(121,9)
FC-4HS-54120-BKR54"(137,2)
FC-4HS-60120-BKR60"(152,4)
FC-4HS-66120-BKR66"(167,6)
FC-4HS-72120-BKR72"(182,9)
FC-4HS-24120-BKF	Revêtementdûrenaluminium	Affleurant	24"(61)
FC-4HS-30120-BKF30"(76,2) Fini
FC-4HS-36120-BKF36"(91,4)
FC-4HS-42120-BKF42"(106,7)
FC-4HS-48120-BKF48"(121,9)
FC-4HS-54120-BKF54"(137,2)
FC-4HS-60120-BKF60"(152,4)
FC-4HS-66120-BKF66"(167,6)
FC-4HS-72120-BKF72"(182,9)

NOTE YOUR SERIAL NUMBER

Serial number

FUNCTIONS AND CONTROLS

Standard: 800.624.2051 or 920.457.4851

Fax: [phone] or 920.459.6573

Customer Service: 800.628.0830

Customer Service Canada: 800.695.8560

Technical Services:

[e-mail]

Toasters: 800.309.2250

Número de artículo	Material delarepisa	Tipode montaje	Longitud (cm)
FC-4HS-24120-SSR		Empotrado	24"(61)
FC-4HS-30120-SSR30"(76,2)
FC-4HS-36120-SSR36"(91,4)
FC-4HS-42120-SSR42"(106,7)
FC-4HS-48120-SSR48"(121,9)
FC-4HS-54120-SSR54"(137,2)
FC-4HS-60120-SSR60"(152,4)
FC-4HS-66120-SSR66"(167,6)
FC-4HS-72120-SSR72"(182,9)
FC-4HS-24120-SSF	Acabado	Montajearas	24"(61)
FC-4HS-30120-SSF30"(76,2)
FC-4HS-36120-SSF36"(91,4)
FC-4HS-42120-SSF42"(106,7)
FC-4HS-48120-SSF48"(121,9)
FC-4HS-54120-SSF54"(137,2)
FC-4HS-60120-SSF60"(152,4)
FC-4HS-66120-SSF66"(167,6)
FC-4HS-72120-SSF72"(182,9)
FC-4HS-24120-BKR		Empotrado	24"(61)
FC-4HS-30120-BKR30"(76,2)
FC-4HS-36120-BKR36"(91,4)
FC-4HS-42120-BKR42"(106,7)
FC-4HS-48120-BKR48"(121,9)
FC-4HS-54120-BKR54"(137,2)
FC-4HS-60120-BKR60"(152,4)
FC-4HS-66120-BKR66"(167,6)
FC-4HS-72120-BKR72"(182,9)
FC-4HS-24120-BKF	dedurode aluminio	Montajearas	24"(61)
FC-4HS-30120-BKF30"(76,2)
FC-4HS-36120-BKF36"(91,4)
FC-4HS-42120-BKF42"(106,7)
FC-4HS-48120-BKF48"(121,9)
FC-4HS-54120-BKF54"(137,2)
FC-4HS-60120-BKF60"(152,4)
FC-4HS-66120-BKF66"(167,6)
FC-4HS-72120-BKF72"(182,9)

RECORD YOUR SERIAL NUMBER

Serial number

FEATURES AND CONTROLS

A Heat zone 2 B Heat zone 1 C Control panel D Heat zone 2 power button E Heat zone 1 power button F Current heat setting G Heat indicator light. This is not a power indicator light. H Heat control buttons. Settings from 1 to 9.

Low: 1-3

Medium: 4-6

High: 7-9

OPERATION

CAUTION

Burn hazard
