USER MANUAL V7 ENG SE Electronics
User Manual
Thank you
Thank you for choosing an sE product! In addition to some basic safety precautions, this manual includes details and specifications to help you get the most out of your microphone. Please take a few minutes to read through it.
Capturing excellent audio is our passion. We sincerely hope you'll enjoy using this microphone as much as we've enjoyed designing and building it for you.
Happy Tracking,
The sE Team
Brief description
The V7 ENG is a dynamic vocal hand-held microphone featuring a super-cardioid polar pattern. It utilizes the very same capsule used on the acclaimed V7. Its longer body, as well as the microphone's stunning sound quality, high intelligibility, impressive off-axis response and remarkable handling noise rejection makes it the perfect choice for professional ENG/EFP applications.
With its super-cardioid pattern, the sophisticated capsule design aids in efficiently isolating your sound source, even in the case of loud and less-than-ideal environments. The capsule's unique, patented suspension also helps eliminate any handling, footfall and/or rumbling noise.
The robust all-metal construction, stainless-spring-steel mesh grille and gold-plated XLR contacts will ensure durability and reliability with no corrosion for many years to come. Proven Neodymium magnets, tight production tolerances and a high level of workmanship ensure excellent sensitivity, high-end sound quality and superb consistency.
What's in the box
Your packaging should contain the following items. If anything is missing, please contact your sE Electronics dealer and let them know.
- microphone
- internal windscreen
- external windscreen
- microphone pouch
Technical specifications
| Capsule | Dynamic |
| Voice coil | Aluminum |
| Magnet | Neodymium |
| Polar patterns | Super-cardioid |
| Frequency range | 40 – 19,000 Hz |
| Sensitivity | 2.0 mV/Pa -54 dBV |
| Electrical Impedance | 300 ohms |
| Connectivity | 3-pin male XLR connector |
| Dimensions | Diameter: 54 mm (2.12 in.) Length 250 mm (9.84 in.) |
| Weight | 320 g (11.29 oz.) |

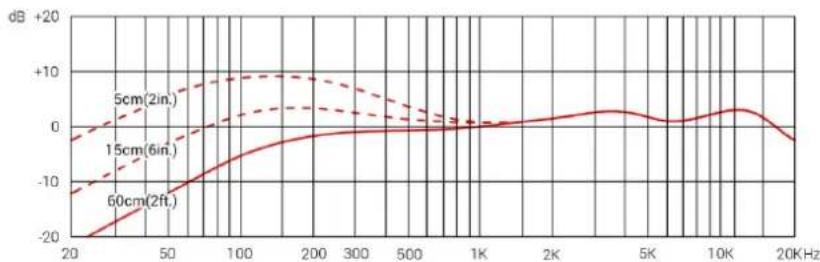

Frequency Response
line
| Frequency | 5cm(2in.) | 15cm(6in.) | 60cm(2ft.) | | --------- | --------- | ---------- | ---------- | | 20 | -10 | -15 | -20 | | 50 | -5 | -10 | -15 | | 100 | 0 | 0 | -5 | | 200 | 5 | 5 | 0 | | 300 | 10 | 10 | 5 | | 500 | 5 | 5 | 0 | | 1K | 0 | 0 | 0 | | 2K | 0 | 0 | 0 | | 5K | 0 | 0 | 0 | | 10K | 0 | 0 | 5 | | 20K | -5 | -5 | -10 |Polar Pattern

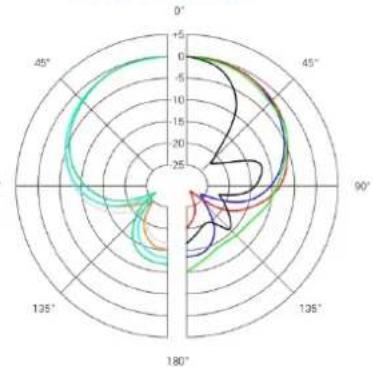

radar
| Angle | Value | |---|---| | 0° | 5 | | 45° | 10 | | 90° | 15 | | 135° | 20 | | 180° | 25 | | 225° | 30 | | 270° | 35 | | 315° | 40 | | 360° | 45 | | 405° | 50 | | 450° | 55 | | 505° | 60 | | 550° | 65 | | 605° | 70 | | 650° | 75 | | 705° | 80 | | 750° | 85 | | 805° | 90 | | 850° | 95 | | 905° | 100 | | 950° | 105 | | 1005° | 110 | | 1050° | 115 | | 1105° | 120 | | 1150° | 125 | | 1205° | 130 | | 1250° | 135 | | 1305° | 140 | | 1350° | 145 | | 1405° | 150 | | 1450° | 155 | | 1505° | 160 | | 1550° | 165 | | 1605° | 170 | | 1650° | 175 | | 1705° | 180 | | 1750° | 185 | | 1805° | 190 | | 2250° | 225 | | 2700° | 270 | | 3250° | 325 | | 3700° | 370 | | 4250° | 425 | | 4700° | 470 | | 5250° | 525 | | 5700° | 570 | | 6250° | 625 | | 6700° | 670 | | 7250° | 725 | | 7700° | 770 | | 8250° | 825 | | 8700° | 870 | | 9250° | 925 | | 9700° | 970 | | 10250° | 1025 | | 10700° | 1070 | | 11250° | 1125 | | 11700° | 1170 | | 12250° | 1225 | | 12700° | 1270 | | 13250° | 1325 | | 13700° | 1370 | | 14250° | 1425 | | 14700° | 1470 | | 15250° | 1525 | | 15700° | 1570 | | 16250° | 1625 | | 16700° | 1670 | | 17250° | 1725 | | 17700° | 1770 | | 18250° | 1825 | | 18700° | 1870 | | 19250° | 1925 | | 19700° | 1970 | | 22250° | nan |Safety and maintenance
The product may contain small, detachable parts, which may cause choking, personal injury, or death, especially in children. Please exercise care in the use and handling of small parts and keep them away from children under four years of age.
- This product is safe under normal and reasonably foreseeable operating conditions.
- Do not open or modify the product.
- The product must be returned to the manufacturer or destined vendors for any service or repair.
- Do not disassemble or attempt to service this product.
- This is not a children's product and is not intended to be used by children under 14 years old.
Please make sure that any piece of equipment to which your sE product will be connected fulfills the safety regulations enforced in your country and is fitted with a ground lead.
Compliance
This product complies with relevant legal requirements for Restriction of Hazardous Substances (RoHS) and management of waste electronic and electrical equipment (WEEE).
For RoHS and WEEE information, go to http://www.seelectronics.com/compliance
Maintenance is not required for product compliance.
Batteries, electronic and electrical equipment should not be disposed of with household waste. Wherever possible, they should be separated and brought to an appropriate collection point to be recycled and to avoid potential impact on the environment and/or human health. For more information, contact your local authorities or place of purchase, or visit
http://www.seelectronics.com/recycling
sE Electronics warrants that its hardware product shall be free from defects in materials and workmanship beginning from the date of original retail purchase.
See http://www.seelectronics.com/warranty for specific warranty information about your product and procedures for a warranty claim.
sE Electronics' entire liability and your exclusive remedy for any breach of warranty shall entail, at sE Electronics' option, to repair or replace a functional equivalent of the product, or to refund the price paid, provided that the hardware is returned to the purchased location along with a receipt.
Warranty protections are in addition to rights provided under local consumer laws and may vary among countries. See the full warranty information to know your consumer rights and the additional protections provided by this product warranty.
Our headquarters:
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Our R&D and manufacturing center:
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China
Full Warranty Information:
https://www.seelectronics.com/warranty
Support
In case you have any questions about your new sE product, please do not hesitate to contact us directly:
http://www.seelectronics.com/contact-us
In the event that your new sE product is operating improperly, it must be returned to us as the manufacturer or to a destined vendor for any service or repair. For the fastest and most direct service, please contact your dealer first. If authorized service is required, it will be arranged by that dealer:
http://www.seelectronics.com/dealers
If you are experiencing difficulties with support or assistance, please do not hesitate to contact us directly:
http://www.seelectronics.com/contact-us
Lastly, please remember to register your new gear with sE to extend your warranty to a full three years:
http://www.seelectronics.com/registration
Contact
Feel free to contact us:
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Our international distributors & sales representatives: http://www.seelectronics.com/contact-us
Danke
http://www.seelectronics.com/recycling
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China
https://www.seelectronics.com/warranty
Kundenservice
http://www.seelectronics.com/registration
Kontakt
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
Unsere internationalen Händler & Vertriebsvertreter: http://www.seelectronics.com/contact-us
致谢
http://www.seelectronics.com/recycling
保修条款
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
我们的研发和制造中心:
http://www.seelectronics.com/registration
联系方式
请随时联系我们:
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
http://www.seelectronics.com/recycling
CE Prodotte in Cina
Garanzia
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949 USA
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, Cina
https://www.seelectronics.com/warranty
Assistenza
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949 USA
I nostri distributori e responsabili commerciali internazionali: http://www.seelectronics.com/contact-us
Remerciements
radar
| Angle | Value | |---|---| | 0° | 15 | | 45° | 12 | | 90° | 8 | | 135° | 6 | | 180° | 4 | | 225° | 2 | | 270° | 1 | | 315° | 0.5 | | 360° | 0.3 | | 405° | 0.2 | | 450° | 0.1 | | 495° | 0.05 | | 540° | 0.03 | | 585° | 0.02 | | 630° | 0.01 | | 675° | 0.01 | | 720° | 0.01 | | 765° | 0.01 | | 810° | 0.01 | | 855° | 0.01 | | 900° | 0.01 | | 945° | 0.01 | | 990° | 0.01 | | 1035° | 0.01 | | 1080° | 0.01 | | 1125° | 0.01 | | 1170° | 0.01 | | 1215° | 0.01 | | 1260° | 0.01 | | 1305° | 0.01 | | 1350° | 0.01 | | 1395° | 0.01 | | 1440° | 0.01 | | 1485° | 0.01 | | 1530° | 0.01 | | 1575° | 0.01 | | 1620° | 0.01 | | 1665° | 0.01 | | 1710° | 0.01 | | 1755° | 0.01 | | 1800° | 0.01 | | 1845° | 0.01 | | 1890° | 0.01 | | 1935° | 0.01 | | 2080° | 0.01 | | 2125° | 0.01 | | 2170° | 0.01 | | 2215° | 0.01 | | 2260° | 0.01 | | 2305° | 0.01 | | 2350° | 0.01 | | 2395° | 0.01 | | 2440° | 0.01 | | 2485° | 0.01 | | 2530° | 0.01 | | 2575° | 0.01 | | 2620° | 0.01 | | 2665° | 0.01 | | 2710° | 0.01 | | 2755° | 0.01 | | 2800° | 0.01 | | 2845° | 0.01 | | 2890° | 0.01 | | 2935° | 0.01 | | 2980° | 0.01 | | Note: The data is presented in a single column as it is not explicitly labeled in the image. The values are estimated based on the provided code format.
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, Chine
https://www.seelectronics.com/warranty
Support
http://www.seelectronics.com/registration
Contact
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
radar
| Angle | Value | |---|---| | 0° | 5 | | 45° | 3 | | 90° | 2 | | 135° | 1 | | 180° | 0.5 | | 225° | 1 | | 270° | 2 | | 315° | 3 | | 360° | 4 | | 405° | 5 | | 450° | 4 | | 495° | 3 | | 540° | 2 | | 585° | 1 | | 630° | 0.5 | | 675° | 1 | | 720° | 2 | | 765° | 3 | | 810° | 4 | | 855° | 5 | | 900° | 4 | | 945° | 3 | | 990° | 2 | | 1035° | 1 | | 1080° | 0.5 | | 1125° | 1 | | 1170° | 2 | | 1215° | 3 | | 1260° | 4 | | 1305° | 5 | | 1350° | 4 | | 1395° | 3 | | 1440° | 2 | | 1485° | 1 | | 1530° | 0.5 | | 1575° | 1 | | 1620° | 2 | | 1665° | 3 | | 1710° | 4 | | 1755° | 5 | | 1800° | 4 | | 1845° | 3 | | 1890° | 2 | | 1935° | 1 | | 2080° | 0.5 | | Note: The data is presented in a circular format with angles labeled around the circle perimeter. The last row is a duplicate of the first row to close the circle. The values are estimated based on the number of entries in the matrix 'A' and 'B'.text_image
Warning sign with red triangle and exclamation mark symbolAdvertencia
http://www.seelectronics.com/recycling
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China
https://www.seelectronics.com/warranty
Asistencia
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
Novato, CA 94949, USA
сделаны в Китае
EP Electronics 289 B2 West Songxiu Road, Shanghai 201703, China (Китай)
http://www.seelectronics.com/registration
Обратная связь
sE Electronics International, Inc.
448 Ignacio Boulevard, STE 411
This page has been intentionally left blank.
This page has been intentionally left blank.
This page has been intentionally left blank.
WARRANTY REGISTRATION
Thank you for purchasing an sE product! You are automatically entitled to a two-year warranty but can extend this to a full three years with registration. To register your new equipment and to read the full warranty details, please go here:
http://www.seelectronics.com/registration
Sincerely, Your sE Team
