USER MANUAL Tassimo Style Friendly BOSCH

Black Bosch BOSCH brand vacuum cleaner with white base, displayed against a yellow gradient background (no text or symbols on device)

QR code image containing encoded data, no visible human-readable text

https://digitalguide.bsh-group.com?mat-no=8001310623

[de]	Scannen Sie den QR-Code oder besuchen Sie die Webseite, um die erweiterten Hinweise zur Benutzung zu öffnen. Dort finden Sie zusätzliche Informationen zu Ihrem Gerät oder Zubehör.
[en]	Scan the QR code or visit the website to open the Further Notices for Use. You can find additional information about your appliance or accessory here.
[fr]	Scanner le code QR ou visiter le site Web pour ouvrir les informations d’utilisation complémentaires. Vous y trouverez des informations supplémentaires concernant votre appareil ou accessoire.
[es]	Para abrir las indicaciones ampliadas sobre el uso, visite la página web o escanee el código QR. Allí encontrará más información sobre el aparato o los accesorios.
[el]	Σαρώστε τον κωδικό QR ή επισκεφτείτε την ιστοσελίδα, για να ανοίξετε τις διευρυμένες υποδείξεις για τη χρήση. Εκεί θα βρείτε πρόσθετες πληροφορίες για τη συσκευή σας ή τα εξαρτήματα.
[pl]	Aby uzyskać rozszerzone informacje na temat zastosowań urządzenia, należy zeskanować kod QR albo wejść na stronę internetową. Można tam znaleźć dodatkowe informacje na temat posiadanego urządzenia i akcesoriów.
[cs]	Pro další informace k používání načtěte QR kód nebo navštivte webovou stránku. Tam najdete další informace ke spotřebiči nebo příslušenství.
[sk]	Naskenujte QR kód alebo navštívte webovú stránku, aby ste sa dozvedeli rozšírené informácie o používaní. Tam nájdete d’alšie informácie o vašom spotrebiči alebo príslušenstve.
[ro]	Scanați codul QR sau accesăți site-ul web pentru a obține mai mult recomandări privind utilizarea. Acolo veți găsi mai multe informații privind aparatul dumneavoastră sau accesoriile.

8 7 6 5 4 9 10 max calc TASSIMO 11 TASSIMO 12 13 1 2 3 1

1

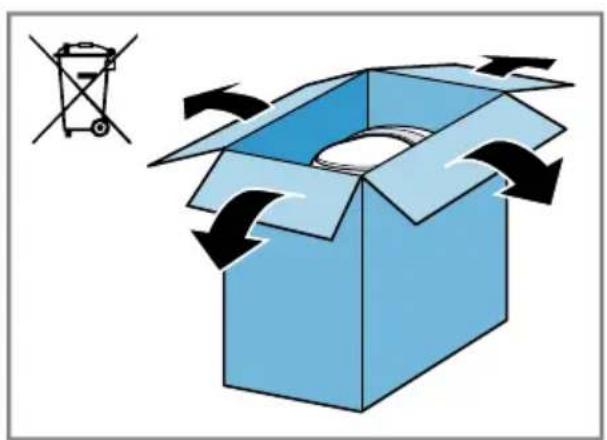

Illustration of a blue open box with arrows indicating rotation and a no-smoking symbol (no text or labels)

2

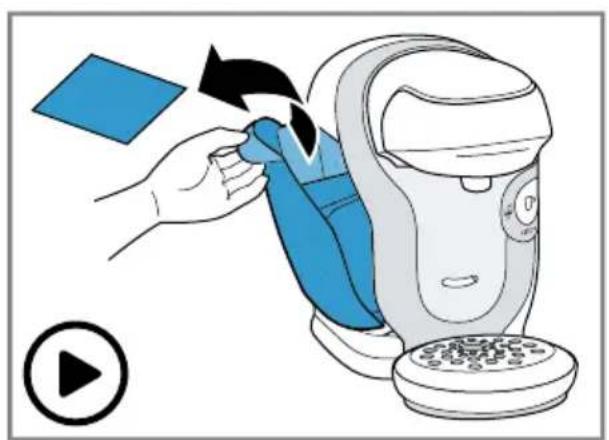

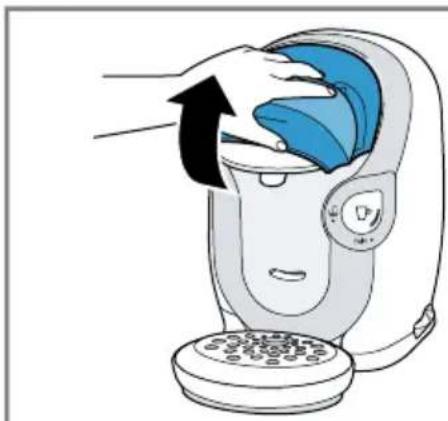

Illustration of a hand using a blue tool to lift a device, with a play button icon nearby (no text or symbols)

3

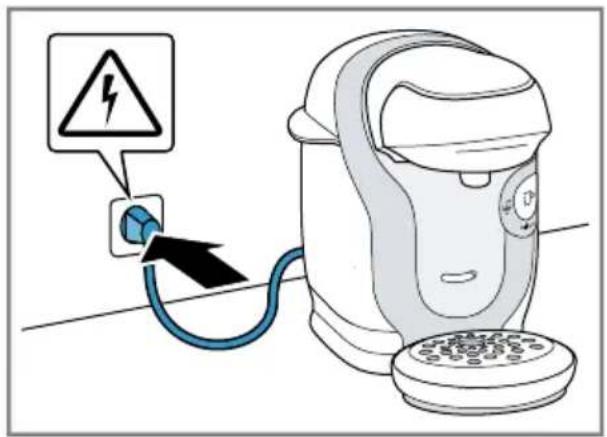

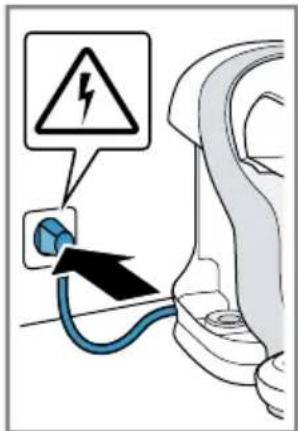

Diagram showing a car's electrical plug connected to a car, with warning symbol and cable diagram

4

calc°

calc°

Diagram showing a hand pouring liquid into a bag with a blue liquid, accompanied by a warning symbol.

5

max

max

Illustration of a car seatbelt being adjusted for a blue belt, with no text or symbols present.

6

calc

calc

Illustration of a hairdryer with blue mesh head and black arrow indicating force (no text or symbols)

7

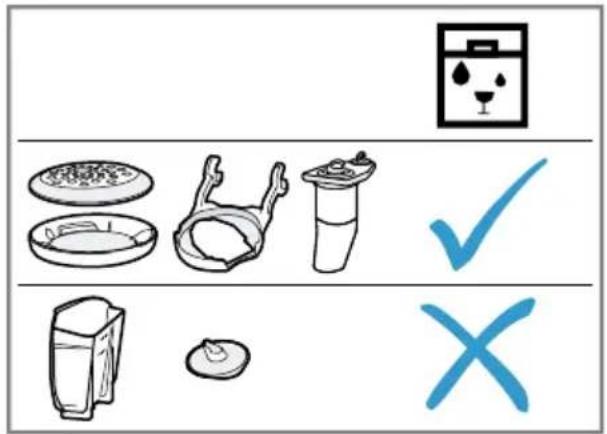

Diagram illustrating a washing machine operation with checkmarks and X/XX labels indicating different states or conditions.

8

Illustration of a hand using a handheld device to lift a blue component, with no visible text or symbols.

9

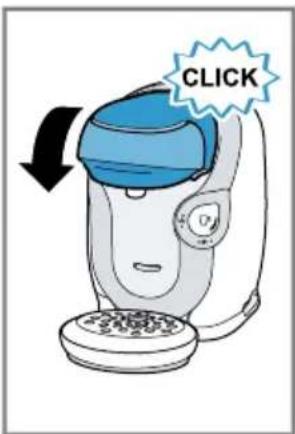

CLICK

CLICK

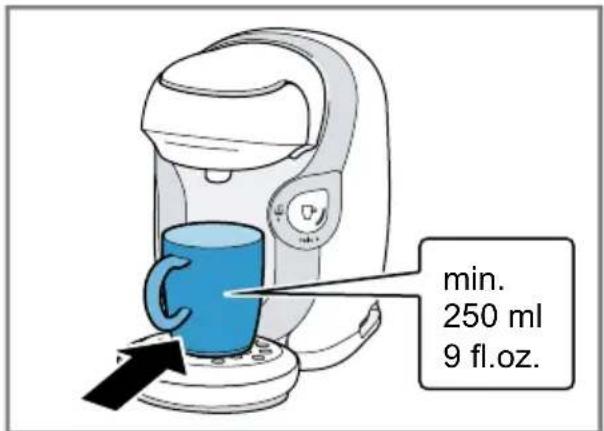

min. 250 ml 9 fl.oz.

10

The image is too blurry to recognize any text content.

calc

Medical diagram showing a device with an upward arrow and warning symbol, indicating respiratory or metabolic hazard.

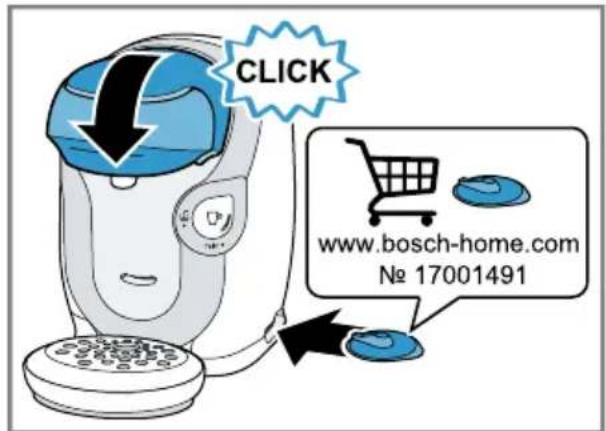

CLICK www.bosch-home.com No 17001491

12

Line drawing of a portable flash unit with a circular base and handle, plus a blue checkmark (no text or symbols)

14

max

Illustration of a hand holding a blue belt or grip, with a black arrow indicating clockwise motion (no text or symbols)

15

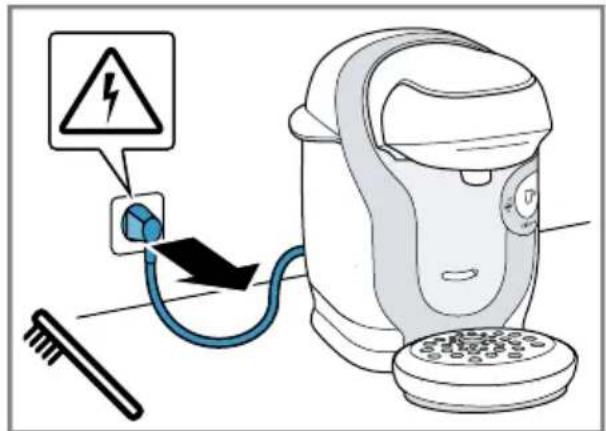

Diagram showing an electric shock test device connected to a plug with warning symbol and warning label

16

Diagram illustrating a robotic device's motion with blue components and three side-view views of a coffee maker.

The image is too blurry to recognize any text content.

Illustration of a coffee maker with blue cup and hand gesture, showing mechanical components (no text or symbols)

18

Diagram illustrating a cooking step with labeled icons and checkmarks, showing a blender being opened with a lid.

CLICK

calc

alc

calc

20

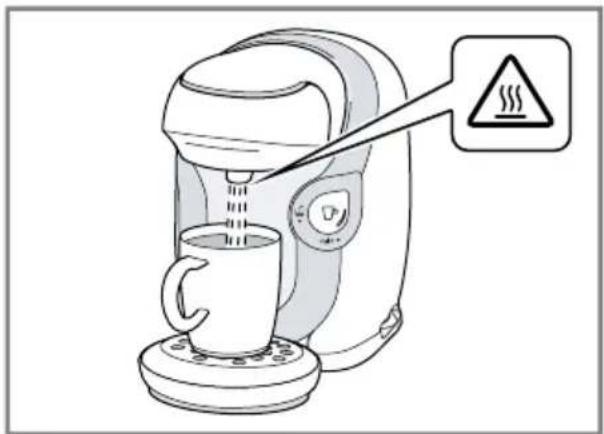

Illustration of a coffee maker with warning sign indicating heat release

Diagram showing a hand washing a coffee maker with a 'calc' device, accompanied by a warning symbol and a magnified view.

22

STOP alco

Diagram showing a hand interacting with a device and four pie charts illustrating the addition of different symbols to a coffee cup.

24

calc ↑ 热 ℃

25

Illustration showing a hand dropping a trash bin into a cup and another with a coffee maker and a checkmark indicating inspection.

26

Diagram showing food items including a trash bin, plate with meat, fork, and side table with checkmark and cross symbols

28

Diagram showing a hairdryer with warning symbol and a brush, illustrating electrical hazard and usage instructions.

29

Diagram illustrating a device's internal components and cleaning process, showing a hand holding a lid with arrows indicating upward and downward movement.

30

Diagram illustrating a medical procedure for glucose injection, showing step 1 and step 2 with arrows and a blue anatomical model.

31

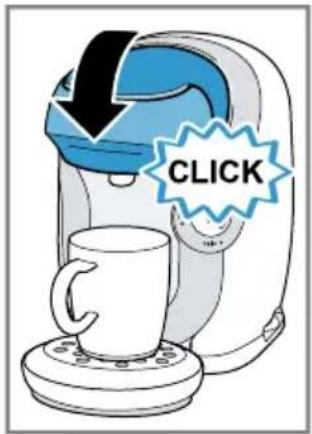

CLICK

32

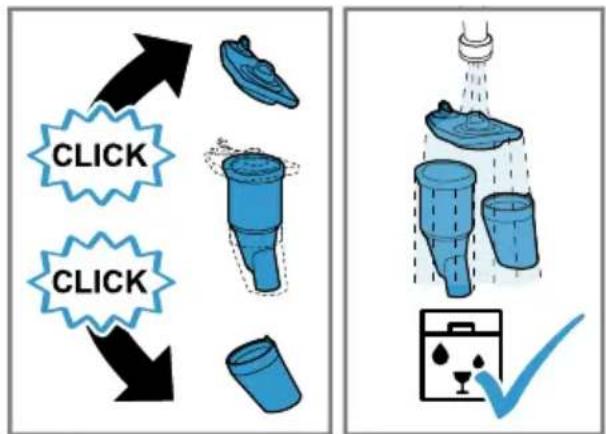

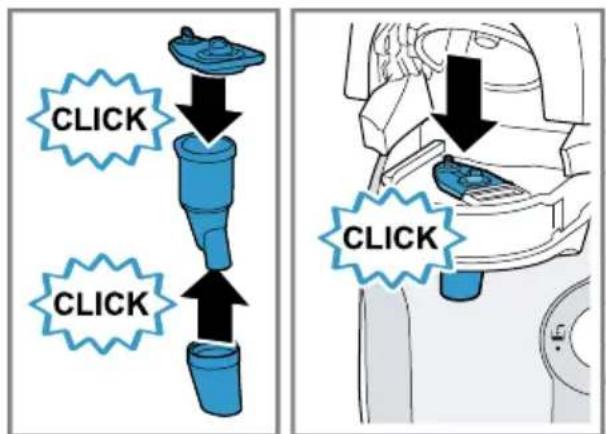

CLICK CLICK

The image is too blurry to recognize any text content.

Illustration showing two steps of cleaning a baby's seat, one with a cloth and the other with a blue bandage (no text or symbols)

34

CLICK CLICK

The image is too blurry to recognize any text content.

Diagram showing a hand holding a blue tool inside a car seat, with numbered arrows indicating movement or assembly steps.

36

Diagram illustrating a hand-operated device with control buttons and a checkmark, accompanied by instructional arrows.

The image is too blurry to recognize any text content.

max

38

Diagram illustrating a washing machine operation with checkmarks and X/XX labels indicating different steps of cleaning or repair.

The image is too blurry to recognize any text content.

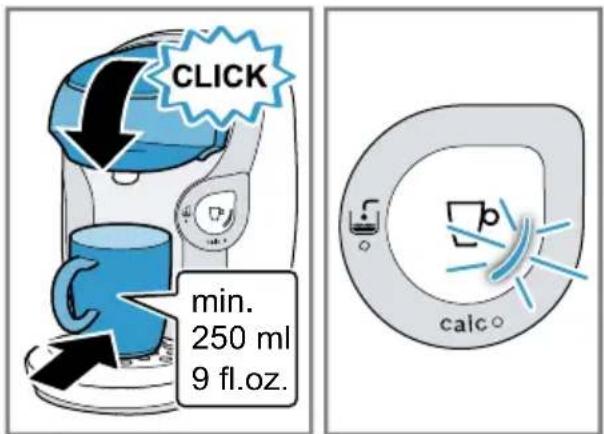

CLICK min. 250 ml 9 fl.oz.

40

calc calc

The image is too blurry to recognize any text content.

calco

42

Diagram illustrating a hot air filter device with warning sign and checkmark, showing internal components and safety instructions.

The image is too blurry to recognize any text content.

calc calc

Illustration of a hand holding a blue and white belt buckle, with a black arrow indicating direction (no text or symbols)

calc

www.tassimo.com www.bosch-home.com No TCZ6004/ 00311909 No TCZ6008/ 00312249

44

Illustration of a hand using a blue bandie brush to lift a small blue button (no text or symbols present)

46

Diagram illustrating a hand using a blender to adjust or remove a blue object, with checkmarks indicating cancellation.

The image is too blurry to recognize any text content.

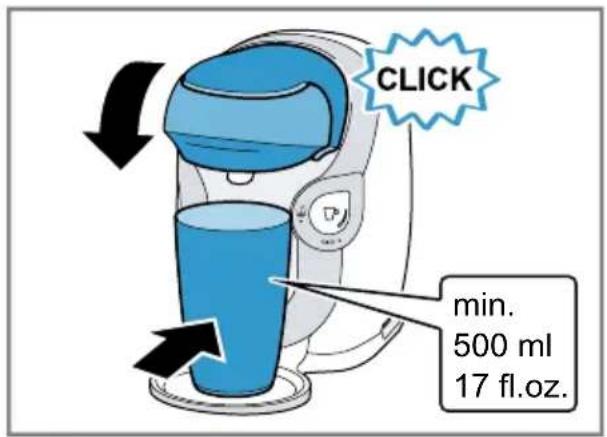

CLICK min. 500 ml 17 fl.oz.

48

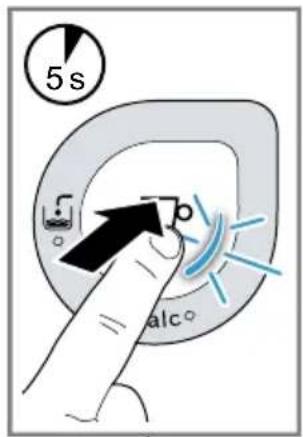

5 s calc

49

calc

calc

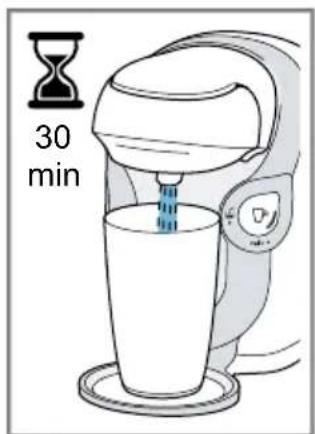

30 min

p calc

50

Illustration of a handwashing a blue cup with warning symbol and warning sign in Chinese

The image is too blurry to recognize any text content.

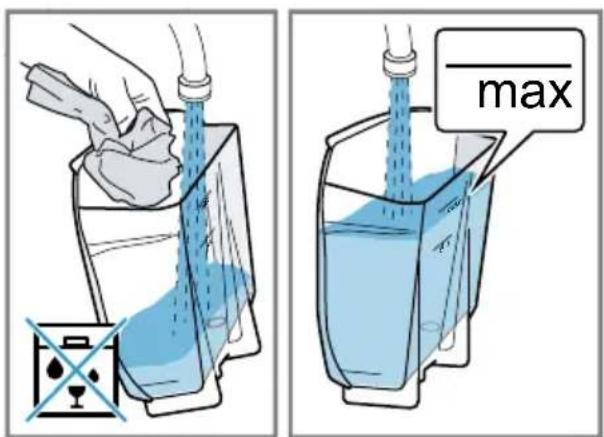

Illustration of a hand cleaning a water-filled container with a pipe, showing liquid and a blue object (no text or symbols)

max

Illustration of a hand using a blue and white device to lift a blue cup, with arrows indicating motion (no text or symbols)

52

calc°

Diagram illustrating a medical or industrial device with an upward arrow and warning symbol, indicating heat or stress.

54

CLICK

max

Illustration of a hand holding a blue object with an arrow indicating rotation (no text or symbols)

56

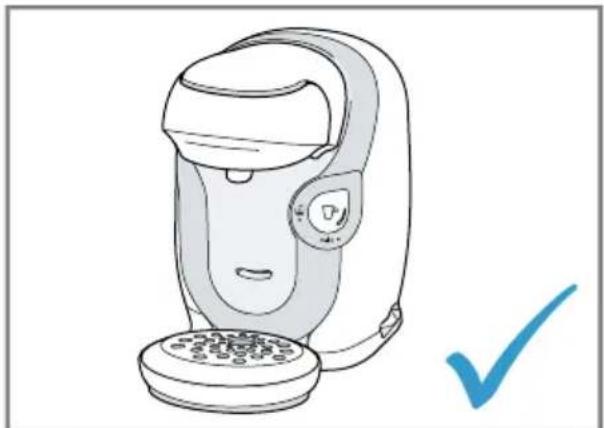

Line drawing of a coffee maker with a checkmark indicating selection (no text or symbols on the device itself)

57
58

Inhaltsverzeichnis

1 Sicherheit 12

1.1 General information 19
1.2 Intended use.... 19
1.3 Restriction on user group 19
1.4 Safety information.... 19

2 Overall view 21

2.1 Control panel 21

3 Performing initial start-up ...... 21

4 Operation.... 21

4.1 To prepare a drink 21

5 Cleaning and servicing 21

5.1 Cleaning the appliance and parts 21
5.2 Cleaning the appliance .... 21
5.3 Descale the appliance.... 22

6 Troubleshooting.... 22

7 Technical specifications .... 23

8 Disposing of old appliance...... 23

9 Customer Service.... 23

Safety

• Read this instruction manual carefully.
• Keep the instruction manual and the product information safe for future reference or for the next owner.
  ■ Do not connect the appliance if it has been damaged in transit.

Only use this appliance:

■ for preparing hot drinks.
■ in private households and in enclosed spaces in a domestic environment.
■ up to an altitude of max. 2000 m above sea level.

This appliance may be used by children aged 8 or over and by people who have reduced physical, sensory or mental abilities or inadequate experience and/or knowledge, provided that they are supervised or have been instructed on how to use the appliance safely and have understood the resulting dangers.

Do not let children play with the appliance.

Children must not perform cleaning or user maintenance unless they are at least 8 years old and are being supervised.

Keep children under the age of 8 years away from the appliance and power cable.

• Keep packaging material away from children.
• Do not let children play with packaging material.
• Keep small parts away from children.
  ▶ Do not let children play with small parts.
• Connect and operate the appliance only in accordance with the specifications on the rating plate.
• Connect the appliance to a power supply with alternating current only via a properly installed socket with earthing.
• The protective conductor system of the domestic electrical installation must be properly installed.
  ▶ Never operate a damaged appliance.
  ▶ Never operate an appliance with a cracked or fractured surface.
  ▶ Never pull on the power cord to unplug the appliance. Always unplug the appliance at the mains.
  ▶ If the appliance or the power cord is damaged, immediately unplug the power cord or switch off the fuse in the fuse box.
  ▶ Call customer services. → Page 23

en Safety

• Repairs to the appliance should only be carried out by trained specialist staff.
  ▶ Only use genuine spare parts when repairing the appliance.
  If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.
  ▶ Never immerse the appliance or the power cord in water.
• Liquids must not be spilled on the appliance plug connection.
  ▶ Only use the appliance in enclosed spaces.
  ▶ Never expose the appliance to intense heat or humidity.
• Do not use steam- or high-pressure cleaners to clean the appliance.
  ▶ Ventilate the appliance adequately.
  ▶ Never operate the appliance in a cabinet.
  ▶ Never leave the appliance unattended while it is switched on.
• Do not use extension cables or multiple socket strips.
  ▶ Only use adapters and power cords approved by the manufacturer.
• If the power cord is too short and a longer one is not available, please contact an electrician to have the domestic installation adapted.

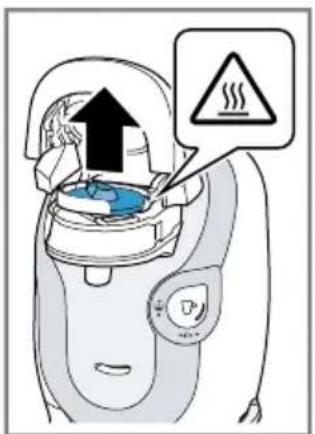

  ▶ Never open the brewing system during operation.
  ▶ Only use the original Tassimo T DISCs.
  ▶ Never use a damaged T DISC.
  ▶ Never use a drinks T DISC more than once.

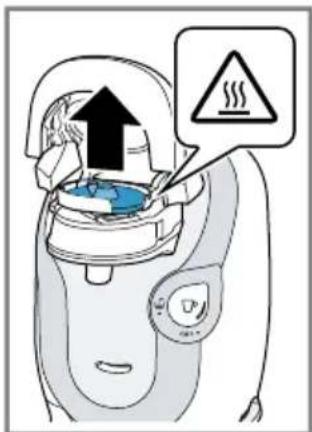

  ▶ Never touch hot appliance parts.
  ▶ After use, allow hot appliance parts to cool down before touching.
  Leave drinks to cool down if necessary.
• Do not let escaping liquids or steam come into contact with your skin.
  ▶ To avoid injuries, only use the appliance for its intended purpose.
  ▶ Be careful of your fingers when inserting or cleaning the T DISC.
  ▶ People with electronic implants must stand at least 10 cm away from the appliance.
• This minimum distance of 10 cm must also be observed for the water tank when removed.

- To ensure hygiene, follow the cleaning instructions for the appliance.

Overall view

You can find an overview of the parts of your appliance here.

Note: Individual details and colours may differ, depending on the appliance model.

→ Fig. 1

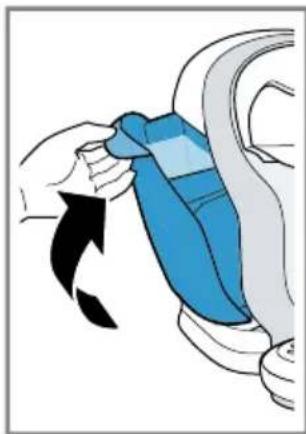

1	Float
2	Calc mark
3	Max mark
4	Water tank
5	T DISC reading window
6	T DISC piercing unit
7	T DISC holder
8	Lock
9	Brewing system
10	Control panel
11	Storage compartment
12	Brief cleaning / descaling instructions
13	Service T DISC
14	Bowl
15	Cup stand
16	Drip grate

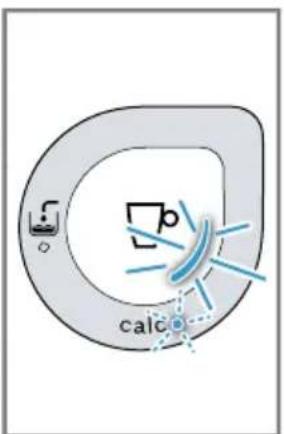

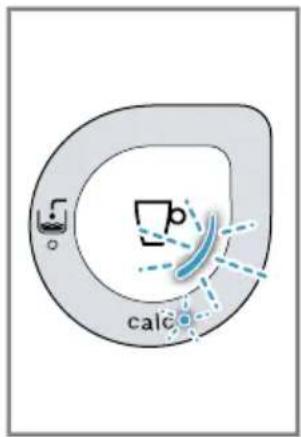

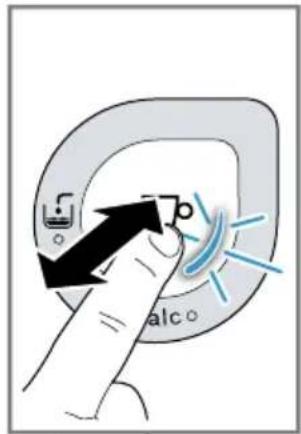

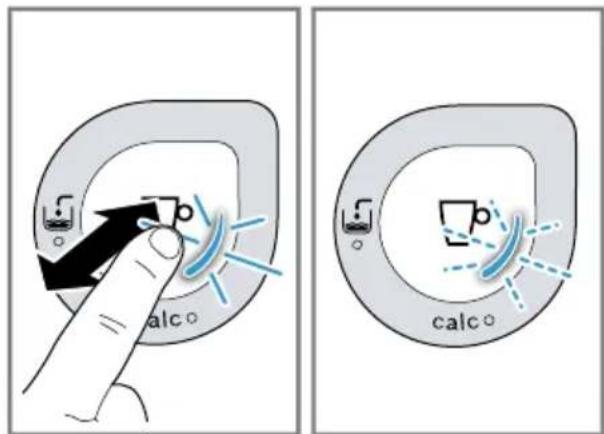

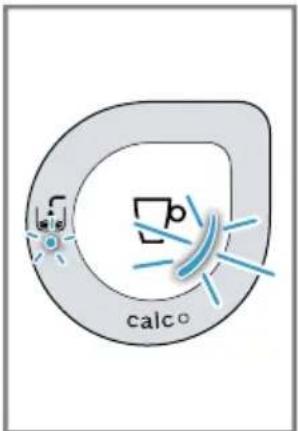

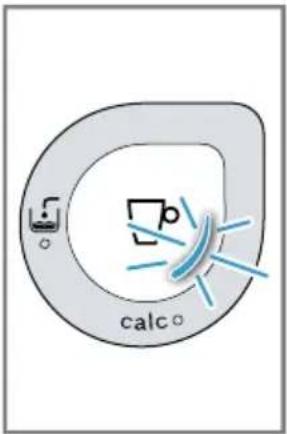

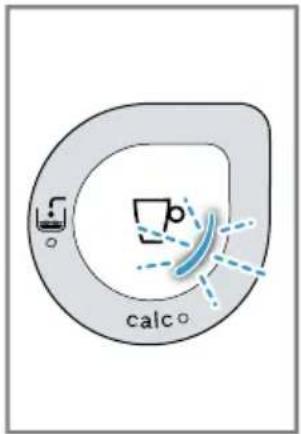

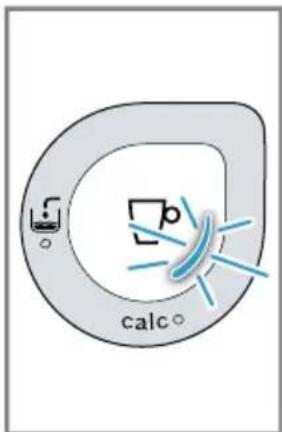

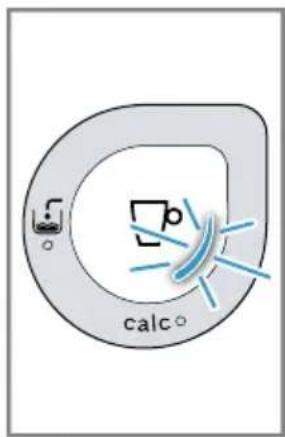

Control panel

You can use the control panel to configure all functions of your appliance and to obtain information about the operating status.

■ Activate the appliance.
■ Start, stop and prolong dispensing of drinks.
■ Start service programme.

Fill water tank.

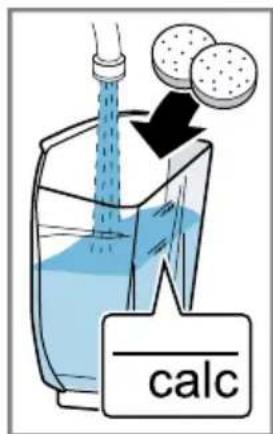

Display status.

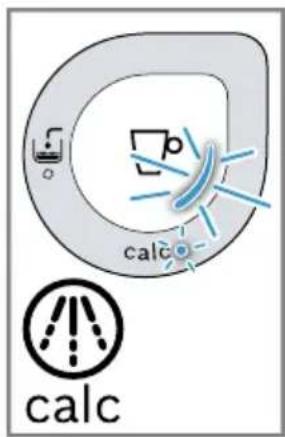

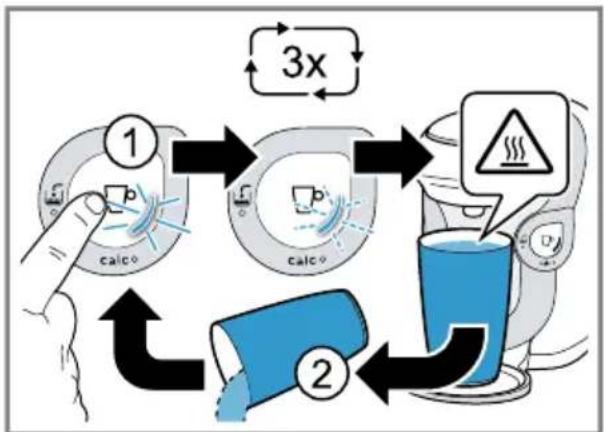

Descale appliance.

Performing initial start-up

Follow the pictorial instructions at the start of these instructions.

$$ \rightarrow \text { Fig. } \boxed {2} - \boxed {1 4} $$

Note: You can prepare a wide range of hot beverages with the multiple hot drinks machine. When you insert a T DISC, the scanner reads the barcode and controls the flow of hot water automatically.

Operation

To prepare a drink

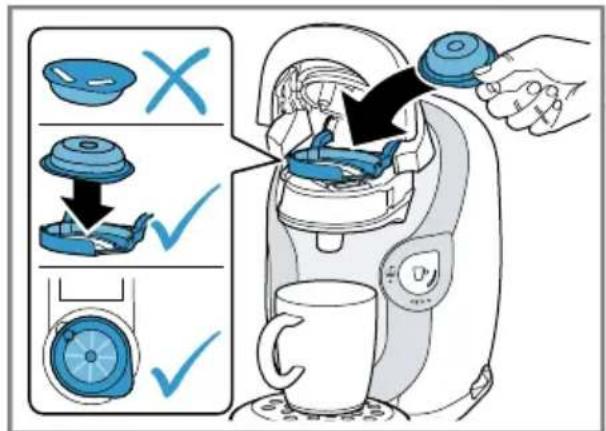

Find out how to prepare a drink of your choice. Follow the pictorial instructions at the start of these instructions.

$$ \rightarrow \text { Fig. } 1 5 - 2 7 $$

Tips

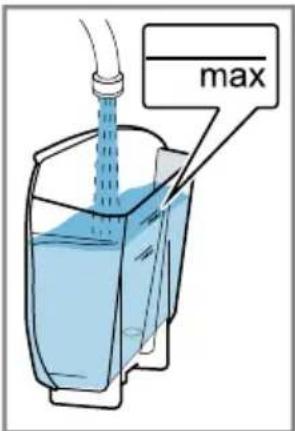

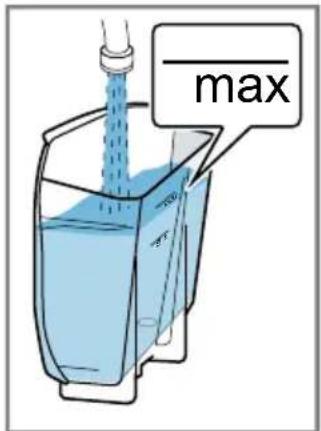

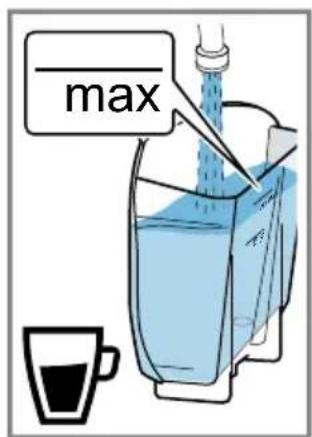

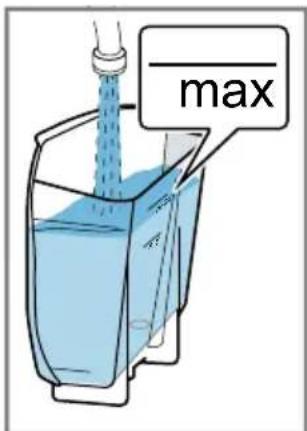

• Fill the water tank each day with fresh, cold, non-carbonated water.
  ■ Do not use chemically decalcified water.
  ■ You can also pre-heat cups before dispensing using hot water.

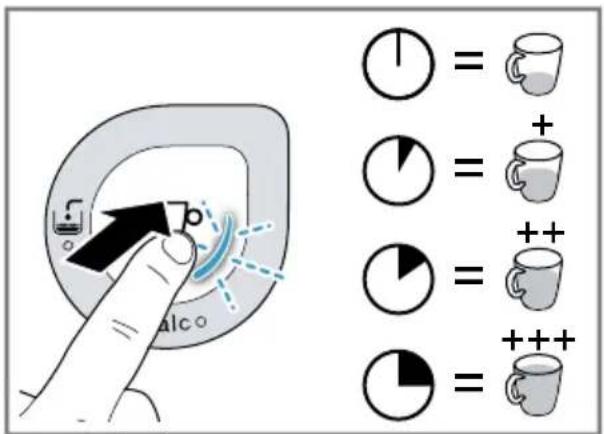

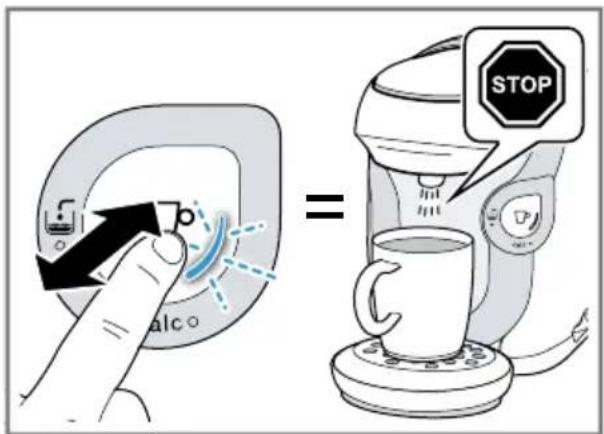

  ■ To interrupt the dispensing process, briefly press ▼.
  ■ To prolong dispensing, press and hold □ until the required quantity is reached.

Cleaning and servicing

To keep your appliance working efficiently for a long time, it is important to clean and maintain it carefully.

Cleaning the appliance and parts

- Clean the individual parts as indicated in the table.

$$ \rightarrow \text { Fig. } \boxed {2 8} $$

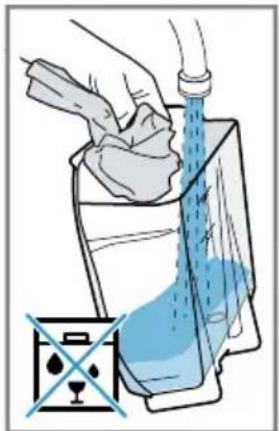

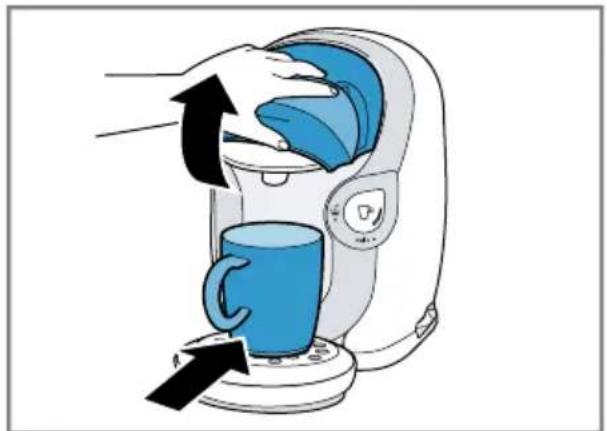

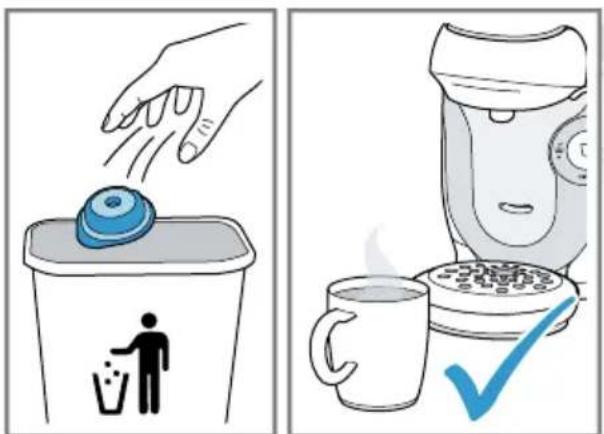

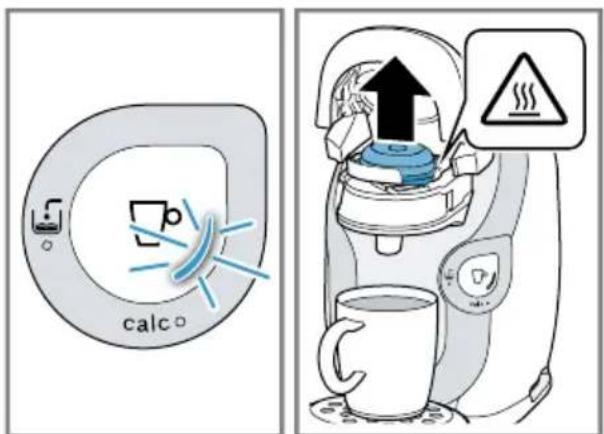

Cleaning the appliance

Follow the pictorial instructions at the start of these instructions.

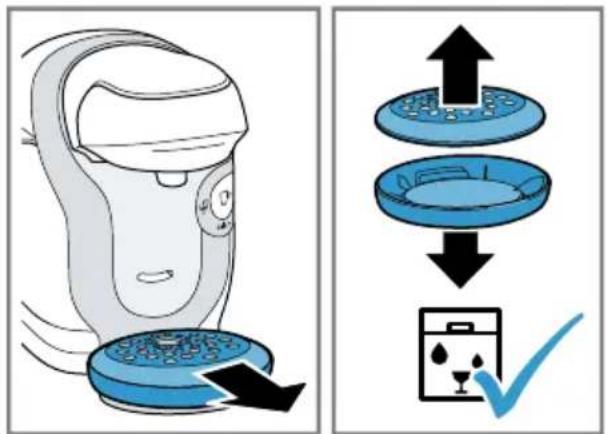

$$ \rightarrow \text { Fig. } \boxed {2 9} - \boxed {4 3} $$

en Troubleshooting

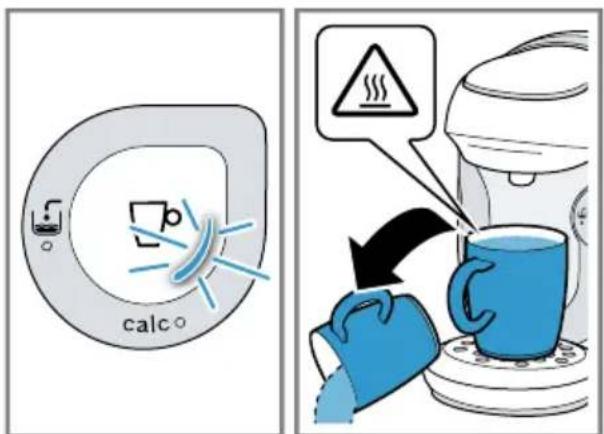

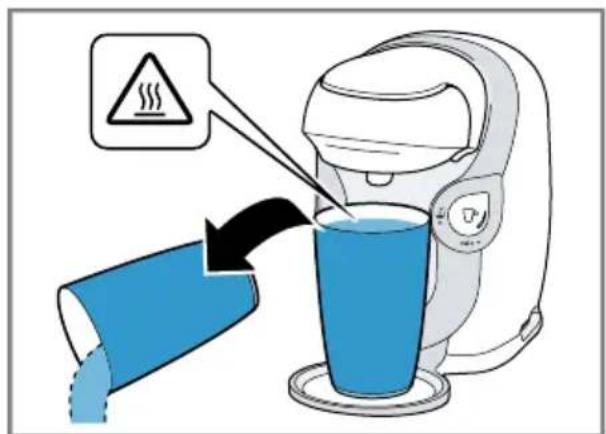

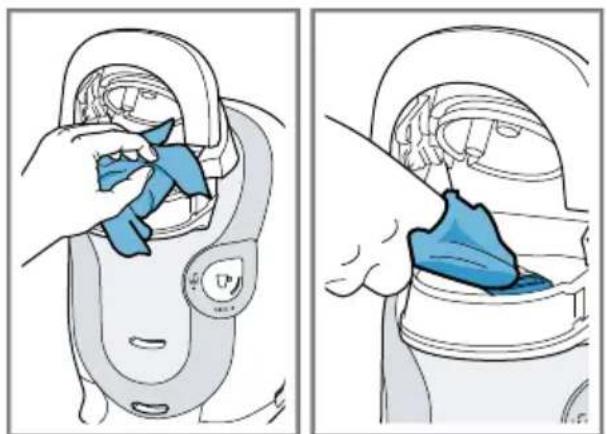

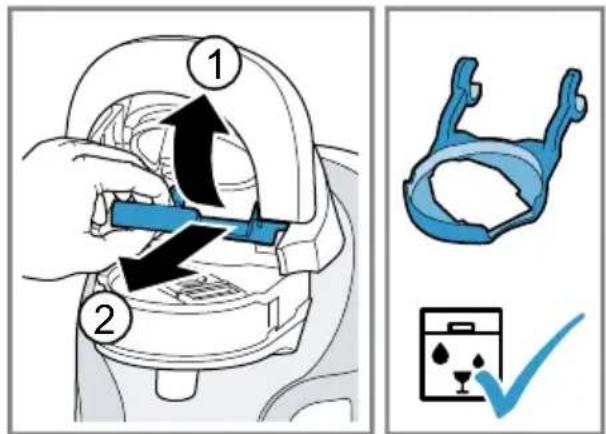

Descale the appliance

If calc lights up, run the descaling programme. Follow the illustrated instructions at the beginning of this manual.

▶ Immediately perform the descaling process in accordance with the instructions.
- Do not use descaling agent with phosphoric acid.

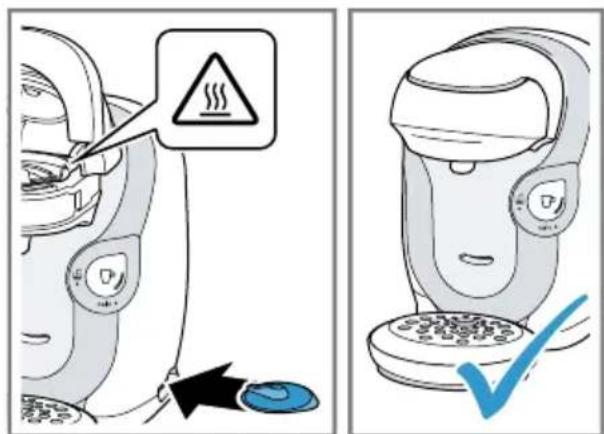

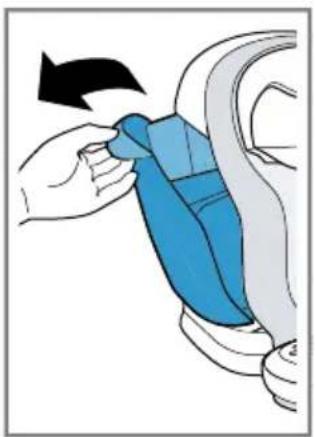

→ Fig. 44 - 58

Troubleshooting

▶ Repairs to the appliance should only be carried out by trained specialist staff.
▶ Only use genuine spare parts when repairing the appliance.
If the power cord of this appliance is damaged, it must be replaced by the manufacturer, the manufacturer's Customer Service or a similarly qualified person in order to prevent any risk.

The appliance is not working.

LEDs do not light up.

The appliance has no power supply.

- Check to see whether the appliance is connected to the mains.

Brewing process starts, drink is not dispensed.

Water tank was removed during brewing and inserted again or appliance has not been used for a long time.

▶ Start cleaning with the Service T DISC.

Float is stuck in the water tank.

1. Descale the appliance. → "Descale the appliance", Page 22

2. Reach into the water tank and move the float up and down.

Brewing process does not start.

Status display lights up red.

T DISC has not been correctly inserted.

▶ Check whether the T DISC is inserted.

The T DISC bar code is not recognised.

- Clean the T DISC reading window with a soft, damp cloth.

▶ Smooth out the film of the T DISC.
- Contact the TASSIMO careline if the problem persists.

The appliance not connected to the power supply when the T DISC was inserted.

- Connect the appliance to the power supply before inserting the T DISC.

Brewing unit cannot be closed.

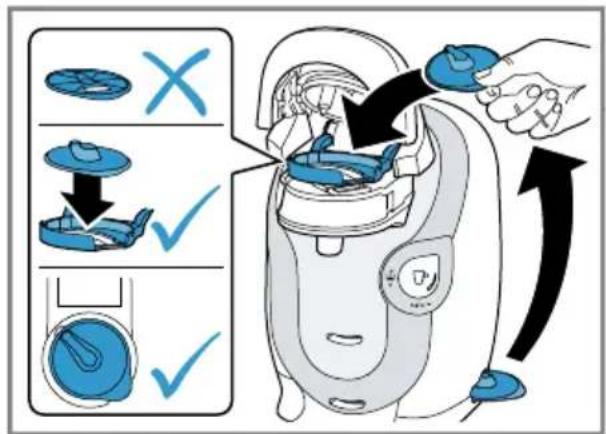

T DISC piercing unit or T DISC holder is not correctly inserted.

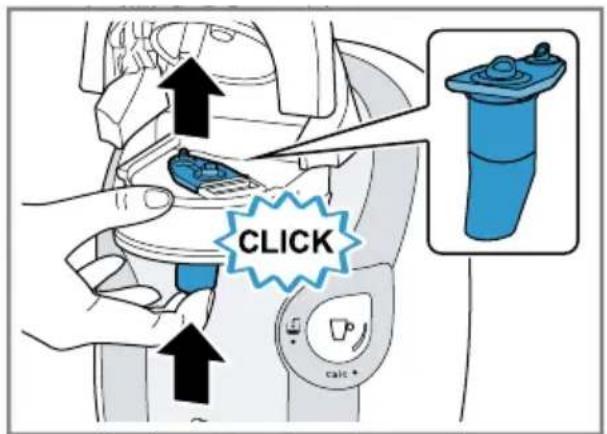

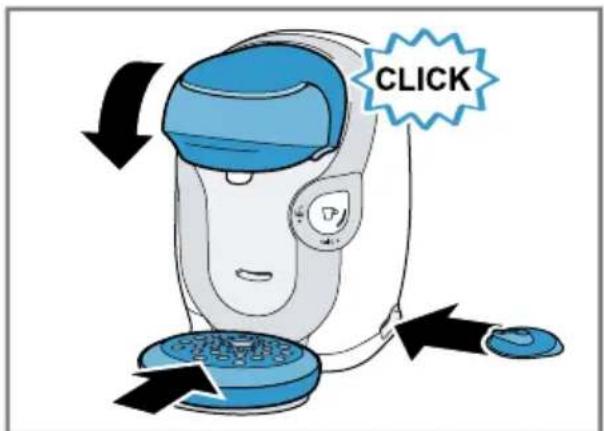

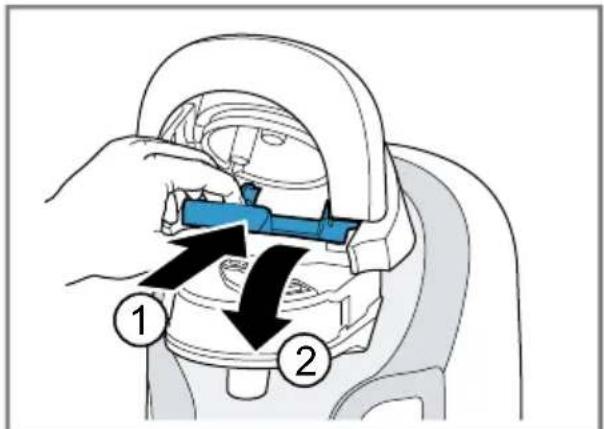

1. Press the T DISC piercing unit into the holder until it clicks audibly into place.

2. Check the position of the T DISC holder.

T DISC has not been correctly inserted.

1. Insert the T DISC with the printed side facing downwards.

2. Check whether the tab of the T DISC is in the recess.

Brewing unit cannot be opened.

Brewing unit is locked.

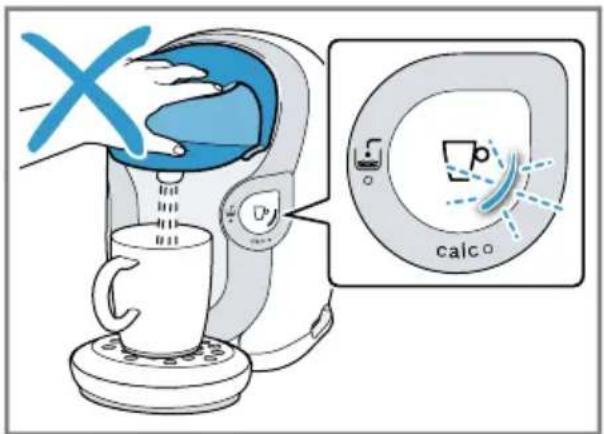

▶ Only open the brewing unit when the status display remains lit continuously.
▶ If the brewing unit remains locked, contact the TASSIMO careline.

Water is dripping from the brewing unit.

T DISC is damaged or not correctly inserted.

▶ Use a new T DISC.

T DISC piercing unit is not correctly inserted.

- Press the T DISC piercing unit into the holder until it clicks audibly into place.

There is water under the cup stand.

Condensation has formed due to technical reasons or valves are clogged with limescale.

▶ Descale the appliance. → "Descale the appliance", Page 22

No LED is lit.

Appliance is in idle mode.

- Press □ or open or close the brewing system.

All LEDs flashing.

There are problems with the power supply.

1. Pull out the mains plug, wait 5 minutes and plug it back in.
2. If the problem persists, contact the TASSIMO careline.

LED lights up even though there is enough water in the water tank.

Float is stuck in the water tank.

1. Descale the appliance.
   → "Descale the appliance", Page 22

2. Reach into the water tank and move the float up and down.

LED lights up although softened water has been used.

Decalcified water still contains small amounts of lime.

▶ Descale the appliance.
→ "Descale the appliance", Page 22

calc LED and LED are simultaneously lit and the brewing process is not possible.

Appliance has a fault.

1. Unplug the mains plug.
2. Contact the TASSIMO careline.

Quality of beverages has deteriorated, e.g. crema or volume.

Beverage outlet is soiled.

▶ Clean the beverage outlet.
- Clean the brewing unit with the T DISC.

Build-up of limescale in the appliance.

▶ Descale the appliance.
→ "Descale the appliance", Page 22

Drink volume has reduced.

Drink dispensing halts.

Water tank has not been sufficiently filled.

1. Fill the water tank with fresh, cold water up to the mark max.
2. Keep □ pressed until the desired fill volume is reached.

Technical specifications

Voltage 220-240 V \~

Frequency 50 Hz

Power rating 1400 W

Disposing of old appliance

1. Unplug the appliance from the mains.
2. Cut through the power cord.
3. Dispose of the appliance in an environmentally friendly manner. Information about current disposal methods are available from your specialist dealer or local authority.

This appliance is labelled in accordance with European Directive 2012/19/EU concerning used electrical and electronic appliances (waste electrical and electronic equipment - WEEE). The guideline determines the framework for the return and recycling of used appliances as applicable throughout the EU.

Customer Service

Detailed information on the warranty period and terms of warranty in your country is available from our after-sales service, your retailer or on our website.

The contact details for Customer Service can be found in the enclosed Customer Service directory or on our website.

fr

Table des matières

1 Sécurité 25

You'll find it here.

Expert advice for your Bosch home appliances, help with problems or a repair from Bosch experts.

Find out everything about the many ways Bosch can support you:

www.bosch-home.com/service

Contact data of all countries are listed in the attached service directory.

Visit tassimo.com for registration, accessories and more.

Illustration of a tablet with email envelope, gift box, shopping cart, and cursor pointer (no text or symbols)
