Product Type	LED TV
Brand	SENCOR
Model	SLE 43FS804B
Screen Diagonal	108 cm (43 inches)
Resolution	1920 x 1080 pixels (Full HD)
Display Technology	LED LCD
Refresh Rate	60 Hz
Energy Class SDR	E
Energy Class HDR	F
Power Consumption Standby	0.5 W
Network Standby Consumption	2.0 W
Power Supply	Internal 100-240 V AC
Connectivity	HDMI (x3), USB (x2), AV, CI, Ethernet, Optical
Bluetooth	Version 5.0
WiFi	Dual-band 2.4 and 5 GHz
Operating System	WebOS Hub
Supported USB Formats	AVI, MP4, MKV, MOV, MP3, JPEG, etc.
Audio	Dolby Audio
Features	Teletext, Electronic Program Guide, Parental Control
Included Accessories	Remote control, AAA batteries (x2), stand, screws
Repairability	Spare parts available for 7 years, software updates for 8 years
Maintenance and Cleaning	Use a soft, dry cloth for the screen. Do not use abrasive products.
Safety	Double insulation, do not expose to humidity. Avoid prolonged static images.
Warranty	2 years

Frequently Asked Questions - SLE 43FS804B SENCOR

How to install the stand of the SLE 43FS804B TV?

Use the provided screws to attach the stand to the back of the TV. Ensure the supports are properly aligned and tightened to guarantee stability. Refer to the diagram in the manual for models SLE XX803B, XX804B and XX830MB.

How to turn on the TV for the first time?

Connect the power cable (100-240V AC) or the 12V adapter. Press the POWER button on the remote control or on the TV set. Follow the setup wizard to select language, country and perform channel search.

How to connect a USB device?

Insert the USB drive into a USB port on the TV. Press the HOME button on the remote, then open the Photo & Video app. Select the USB device and choose the file to play. Supported formats: AVI, MP4, MKV, JPEG, MP3, etc.

How to tune channels?

During the initial setup, a wizard guides you through the automatic channel search. To restart a search, go to the settings menu, select 'Channel Search' or 'Installation', then 'Automatic Search'. Choose the source (antenna, cable or satellite).

How to use the standby function?

Press the POWER button on the remote to put the TV into standby. Standby power consumption is 0.5 W. For additional energy savings, unplug the device if not used for an extended period.

What is the power consumption of the TV?

In SDR mode, the consumption is 42.0 W. In HDR mode, it is 46.0 W. In standby, it is 0.5 W and in network standby 2.0 W. The energy class is E for SDR and F for HDR.

How to clean the TV screen?

Use a soft, dry cloth to gently wipe the screen. Never use chemicals, alcohol or abrasive cleaners. Avoid pressing too hard to avoid damaging the LCD panel.

What to do if the remote control does not work?

First check the batteries: open the compartment and insert two new AAA batteries respecting the polarity. Make sure no obstacle blocks the infrared signal between the remote and the TV. If the problem persists, reset the remote by removing the batteries and pressing a button for 3 seconds, then reinsert the batteries.

How to update the TV software?

Updates are available for 8 years from the end of commercialization. To check for updates, go to the 'Settings' menu > 'Support' > 'Software Update'. Connect the TV to the internet via WiFi or Ethernet, then select 'Search for update'.

How to contact Sencor after-sales service?

For any questions or warranty service, contact the authorized after-sales service: FAST POLAND Sp. z o.o., Kwietniowa 36, 05-090 Wypędy, Poland. Phone: [phone], e-mail: [e-mail]. The warranty is 2 years for domestic use.

USER MANUAL SLE 43FS804B SENCOR

EN QUICK GUIDE LED TV

CZ ■ RYCHLÝ PRŮVODCE LED TV

SK ■ RÝCHLY SPRIEVODCA LED TV

HU ■ GYORS ÚTMUTATÓ LED TV

PL ■ KRÓTKI PRZEWODNIK LED TV

CONTENT/ OBSAH/ OBSAH/ ZADOWOLONY/TARTALOM

English 3

Čeština 13

Slovenčina 23

Magyar 33

Polski 45

Product Information Sheet 55

Manufactured under license from Dolby Laboratories. Dolby, Dolby Audio, and the double-D symbol are trademarks of Dolby Laboratories Licensing Corporation.

HDMI®

HIGH-DEFINITION MULTIMEDIA INTERFACE

The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

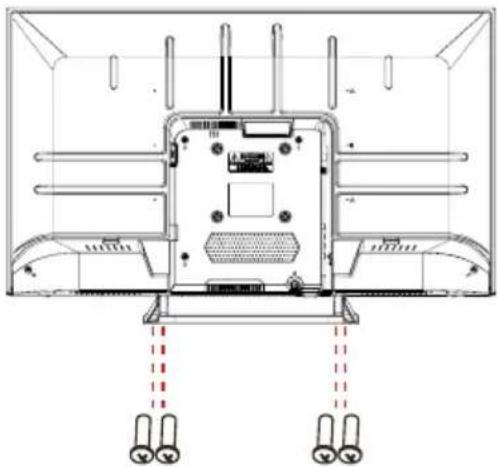

Technical diagram of a mechanical assembly with dashed red lines indicating alignment or support points (no text or symbols present)

Model: SLE XX860B i SLE XX871B

Technical line drawing of a mechanical component with mounting holes and internal structure (no text or symbols)

Technical line drawing of a mechanical or electronic component with internal components and a circular symbol below (no text or labels)

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32S803B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1 366	x	768	pixels
13.	Screen diagonal	80,0 cm
14.	Screen diagonal	32 inches
15.	Visible screen area	27,3 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value andprecision					Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 24S803B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)			E
4. On mode power demand in SDR 17,5 W
5. Energy Efficiency Class for High Dynamic Range (HDR)			F
6. On mode power demand in HDR, if implemented 21,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable 2,0 W
10. Electronic display category Television
11. Size ratio 16			:	9
12. Screen resolution 1366			x	768	pixels
13. Screen diagonal 60,0 cm
14. Screen diagonal 24 inches
15. Visible screen area 15,3 dm2
16. Panel technology used LED LCD
17. Automatic Brightness Control (ABC) available No
18. Voice recognition sensor available No
19. Room presence sensor available No
20. Image refresh frequency rate (default) 60 Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market) 8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market) 7 Years
23. Minimum guaranteed product support 8 Years
Minimum duration of the general guarantee offered by the supplier 2 Years
24. Power supply type Internal
25. External power supply (non standardized and included in the product box)
i -
	ii	Input voltage - V
	iii	Output voltage - V
26. External standardised power supply (or suitable one if not included in the product box)
	i -
	ii	Required output voltage - V
	iii	Required delivered current (minimum) - A
	iv	Required current frequency - Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 24S830MB
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 17,5 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 21,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1 366	x	768	pixels
13.	Screen diagonal	60,0 cm
14.	Screen diagonal	24 inches
15.	Visible screen area	15,3 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	- Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and	precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32S830MB
3. Energy Efficiency Class for Standard Dynamic Range (SDR)	E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)	F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable	2,0 W
10. Electronic display category Television
11. Size ratio	16	:	9
12. Screen resolution	1 366	x	768	pixels
13. Screen diagonal	80,0 cm
14. Screen diagonal	32 inches
15. Visible screen area	27,3 dm ^2
16. Panel technology used	LED LCD
17. Automatic Brightness Control (ABC) available	No
18. Voice recognition sensor available	No
19. Room presence sensor available	No
20. Image refresh frequency rate (default)	60			Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23. Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier	2 Years
24. Power supply type	Internal
25. External power supply (non standardized and included in the product box)
i -
ii Input voltage	-			V
iii Output voltage	- V

1. External standardised power supply (or suitable one if not included in the product box)

i	-
ii	Required output voltage	-	V
iii	Required delivered current (minimum)	-	A
iv	Required current frequency	-	Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 32QF860B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 26,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 28,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16 :		9
12.	Screen resolution	1920 x		1080	pixels
13.	Screen diagonal	80,0 cm
14.	Screen diagonal	32 inches
15.	Visible screen area	27,3 dm2
16.	Panel technology used	QLED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i
	ii	Input voltage	- V
	iii	Output voltage	- V
26. External standardised power supply (or suitable one if not included in the product box)
	i
	ii	Required output voltage	- V
	iii	Required delivered current (minimum)	-		A
	iv	Required current frequency	-		Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 40QF860B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 36,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 39,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1920	x	1080	pixels
13.	Screen diagonal	101,0 cm
14.	Screen diagonal	40 inches
15.	Visible screen area	42,6 dm ^2
16.	Panel technology used	QLED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i
	ii	Input voltage	-		V
	iii	Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i
	ii	Required output voltage	- V
	iii	Required delivered current (minimum)	-		A
	iv	Required current frequency	-		Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		Unitprecision
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 43US804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR 50,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 51,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11. Size ratio		16	:	9
12. Screen resolution		3 840	x	2 160 pixels
13. Screen diagonal		108,0 cm
14. Screen diagonal		43 inches
15. Visible screen area		49,7 dm2
16. Panel technology used		LED LCD
17. Automatic Brightness Control (ABC) available		No
18. Voice recognition sensor available		No
19. Room presence sensor available		No
20. Image refresh frequency rate (default)		60 Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)		8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)		7 Years
23. Minimum guaranteed product support		8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24. Power supply type Internal
25. External power supply (non standardized and included in the product box)
i
ii	Input voltage	- V
iii	Output voltage	- V
26. External standardised power supply (or suitable one if not included in the product box)
i
ii	Required output voltage	-	V
iii	Required delivered current (minimum)	-	A
iv	Required current frequency	-	Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 50US804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 53,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		E
6. On mode power demand in HDR, if implemented 54,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	3 840	x	2 160	pixels
13.	Screen diagonal	126,0 cm
14.	Screen diagonal	50 inches
15.	Visible screen area	67,5 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii	Input voltage	-		V
	iii	Output voltage	-		V
26. External standardised power supply (or suitable one if not included in the product box)
Product Information SheetCOMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays
Parameter Parameter or value and		precision		Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 50Q871B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR W		64,0
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented W		65,0
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16 :	9
12.	Screen resolution	3 840 x	2 160 pixels
13.	Screen diagonal	126,0 cm
14.	Screen diagonal	50 inches
15.	Visible screen area	67,5 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60 Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	- V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet
COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 65Q871B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR 101 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 102 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	3 840	x	2 160	pixels
13.	Screen diagonal	164,0 cm
14.	Screen diagonal	65 inches
15.	Visible screen area	114,7 dm ^2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i -
	ii Input voltage	-			V
	iii Output voltage	- V
26.	External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	- A
	iv Required current frequency	- Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 55Q871B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR 76,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 77,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11. Size ratio		16	:	9
12. Screen resolution		3 840	x	2 160	pixels
13. Screen diagonal		139,0 cm
14. Screen diagonal		55 inches
15. Visible screen area		82,2 dm ^2
16. Panel technology used		LED LCD
17. Automatic Brightness Control (ABC) available		No
18. Voice recognition sensor available		No
19. Room presence sensor available		No
20. Image refresh frequency rate (default)		60			Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)		8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)		7 Years
23. Minimum guaranteed product support		8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24. Power supply type Internal
25. External power supply (non standardized and included in the product box)
i -
	ii Input voltage	-			V
	iii Output voltage	- V
26. External standardised power supply (or suitable one if not included in the product box)
	i -
	ii Required output voltage	- V
	iii Required delivered current (minimum)	-			A
	iv Required current frequency	-			Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and	precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 55US804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)	E
4. On mode power demand in SDR 63,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)	E
6. On mode power demand in HDR, if implemented 64,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable	2,0 W
10. Electronic display category Television
11. Size ratio	16	:	9
12. Screen resolution	3 840	x	2 160	pixels
13. Screen diagonal	139,0 cm
14. Screen diagonal	55 inches
15. Visible screen area	82,3 dm2
16. Panel technology used	LED LCD
17. Automatic Brightness Control (ABC) available	No
18. Voice recognition sensor available	No
19. Room presence sensor available	No
20. Image refresh frequency rate (default)	60 Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23. Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier	2 Years
24. Power supply type	Internal
External power supply (non standardized and included in the product box)
i -
ii Input voltage	- V
iii Output voltage	- V
External standardised power supply (or suitable one if not included in the product box)
i -
ii Required output voltage	- V
iii Required delivered current (minimum)	- A
iv Required current frequency	- Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 65US804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		F
4. On mode power demand in SDR 101 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 102 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11. Size ratio		16	:	9
12. Screen resolution		3 840	x	2 160	pixels
13. Screen diagonal		164,0 cm
14. Screen diagonal		65 inches
15. Visible screen area		114,7 dm ^2
16. Panel technology used		LED LCD
17. Automatic Brightness Control (ABC) available		No
18. Voice recognition sensor available		No
19. Room presence sensor available		No
20. Image refresh frequency rate (default)		60			Hz
21. Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)		8 Years
22. Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)		7 Years
23. Minimum guaranteed product support		8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24. Power supply type		Internal
25. External power supply (non standardized and included in the product box)
i	-
	ii	Input voltage	-		V
	iii	Output voltage	-		V
26. External standardised power supply (or suitable one if not included in the product box)
	i	-
	ii	Required output voltage	-		V
	iii	Required delivered current (minimum)	-		A
	iv	Required current frequency	-		Hz

Product Information Sheet

COMMISSION DELEGATED REGULATION (EU) 2019/2013 with regard to energy labelling of electronic displays

Parameter Parameter or value and		precision			Unit
1. Supplier's name or trademark. SENCOR
Supplier's address. -
2. Model identifier SLE 43FS804B
3. Energy Efficiency Class for Standard Dynamic Range (SDR)		E
4. On mode power demand in SDR 42,0 W
5. Energy Efficiency Class for High Dynamic Range (HDR)		F
6. On mode power demand in HDR, if implemented 46,0 W
7. Off mode, power demand, if applicable 0,0 W
8. Standby mode power demand, if applicable 0,5 W
9. Networked standby mode power demand, if applicable		2,0 W
10. Electronic display category Television
11.	Size ratio	16	:	9
12.	Screen resolution	1920	x	1080	pixels
13.	Screen diagonal	108,0 cm
14.	Screen diagonal	43 inches
15.	Visible screen area	49,7 dm2
16.	Panel technology used	LED LCD
17.	Automatic Brightness Control (ABC) available	No
18.	Voice recognition sensor available	No
19.	Room presence sensor available	No
20.	Image refresh frequency rate (default)	60			Hz
21.	Minimum guaranteed availability of software and firmware updates (from the date of end of the placement on the market)	8 Years
22.	Minimum guaranteed availability of spare parts (from the date of end of the placement on the market)	7 Years
23.	Minimum guaranteed product support	8 Years
Minimum duration of the general guarantee offered by the supplier		2 Years
24.	Power supply type	Internal
25.	External power supply (non standardized and included in the product box)
	i
	ii	Input voltage	-		V
	iii	Output voltage	-		V
26.	External standardised power supply (or suitable one if not included in the product box)
	i
	ii	Required output voltage	-		V
	iii	Required delivered current (minimum)	-		A
	iv	Required current frequency	-		Hz

Never place a television set in an unstable location. A television set may fall, causing serious personal injury or death. Many injuries, particularly to children, can be avoided by taking simple precautions such as:

1. Using cabinets or stands recommended by the manufacturer of the television set.
2. Only using furniture that can safely support the television set.
3. Ensuring the television set is not overhanging the edge of the supporting furniture.
4. Not placing the television set on tall furniture (for example, cupboards or bookcases). without anchoring both the furniture and the television set to a suitable support.
5. Not placing the television set on cloth or other materials that may be located between the television set and supporting furniture,
6. Educating children about the dangers of climbing on furniture to reach the television set or its controls.

If your existing television set is being retained and relocated, the same considerations as above should be applied.

Wall-mounted screw:22-24inch M4, 28-70inch M6, 75inch M8

Note: don't hang at an angle to avoid the risk of falling off.
