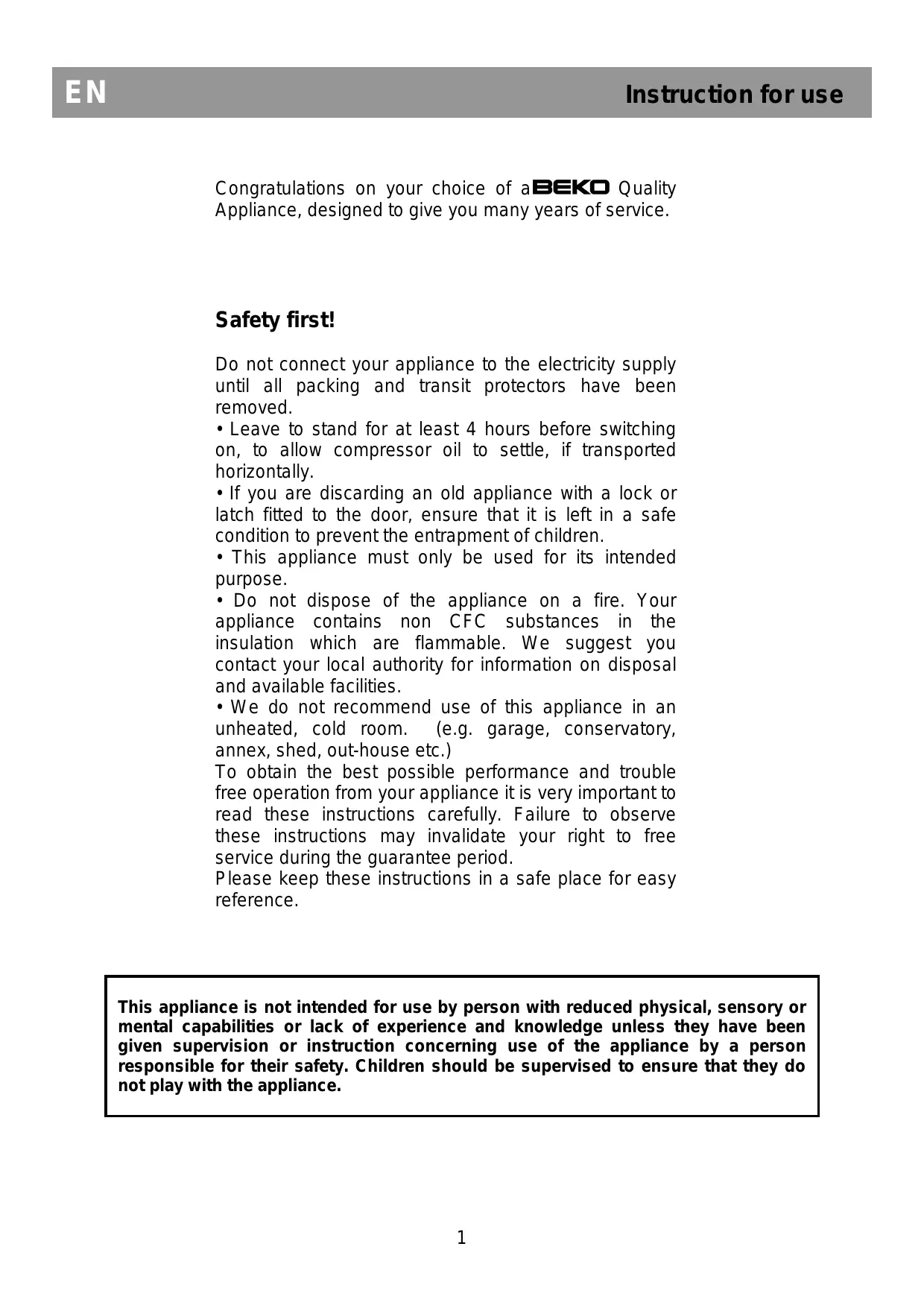

Congratulations on your choice of a BEKO Quality
Appliance, designed to give you many years of service.
Safety first!
Do not connect your appliance to the electricity supply until all packing and transit protectors have been removed.
- Leave to stand for at least 4 hours before switching on, to allow compressor oil to settle, if transported horizontally.
- If you are discarding an old appliance with a lock or latch fitted to the door, ensure that it is left in a safe condition to prevent the entrapment of children.
- This appliance must only be used for its intended purpose.
- Do not dispose of the appliance on a fire. Your appliance contains non CFC substances in the insulation which are flammable. We suggest you contact your local authority for information on disposal and available facilities.
- We do not recommend use of this appliance in an unheated, cold room. (e.g. garage, conservatory, annex, shed, out-house etc.)
To obtain the best possible performance and trouble free operation from your appliance it is very important to read these instructions carefully. Failure to observe these instructions may invalidate your right to free service during the guarantee period.
Please keep these instructions in a safe place for easy reference.
This appliance is not intended for use by person with reduced physical, sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
Electrical requirements
Before inserting the plug into the wall socket, make sure that the voltage and the frequency shown on the rating plate inside the appliance correspond to your electricity supply. We recommend that this appliance is connected to the mains supply via a suitably switched and fused socket in a readily accessible position.
Warning! This appliance must be earthed.
Repairs to electrical equipment should only be performed by a qualified technician. Incorrect repairs carried out by an unqualified person carry risks that may have critical consequences for the user of the appliance.
ATTENTION!
This appliance operates with R600a, which is an environmentally friendly but flammable gas. During transportation and fixing of the product, care must be taken not to damage the cooling system. If the cooling system is damaged and there is a gas leakage from the system, keep the product away from open flame sources and ventilate the room for a while.
WARNING - Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
WARNING - Do not damage the refrigerant circuit.
WARNING - Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
Transportation instructions
- The appliance should be transported only in an upright position. The packing as supplied must be intact during transportation.
- If during transport the appliance has been positioned horizontally, it must not be operated for at least 4 hours to allow the system to settle.
- Failure to comply with the above instructions could result in damage to the appliance, for which the manufacturer will not be held liable.
- The appliance must be protected against rain, moisture and other atmospheric influences.
Important!
- Care must be taken while cleaning/carrying the appliance not to touch the bottom of the condenser metal wires at the back of the appliance, as this could cause injury to fingers and hands.
- Do not attempt to sit or stand on top of your appliance as it is not designed for such use. You could injure yourself or damage the appliance.
- Make sure that the mains cable is not caught under the appliance during and after moving, as this could damage the cable.
- Do not allow children to play with the appliance or tamper with the controls.
Installation instructions
- Do not keep your appliance in a room where the temperature is likely to fall below 10 degrees C (50 degrees F) at night and/or especially in winter, as it is designed to operate in ambient temperatures between +10 and +32 degrees C (50 and 90 degrees F). At lower temperatures the appliance may not operate, resulting in a reduction in the storage life of the food.
- Do not place the appliance near cookers or radiators or in direct sunlight, as this will cause extra strain on the appliance's functions. If installed next to a source of heat or freezer, maintain the following minimum side clearances:
From Cookers 30 mm
From Radiators 300 mm
From Freezers 25 mm
- Make sure that sufficient room is provided around the appliance to ensure free air circulation (Item 2).
- Put the back airing lid to the back of your refrigerator to set the distance between the refrigerator and the wall (Item 3).
- The appliance should be positioned on a smooth surface. The two front feet can be adjusted as required. To ensure that your appliance is standing upright, adjust the two front feet by turning clockwise or anticlockwise until firm contact is secured with the floor. Correct adjustment of feet prevents excessive vibration and noise (Item 4). 5. Refer to "Cleaning and Care" section to prepare your appliance for use.
Getting to know your appliance (Item 1)
1 - Thermostat and lamp housing 2 - Adjustable cabinet shelves 3 - Wine bottles support 4 - Water collector 5 - Crisper cover 6 - Crisper 7 - Ice tray support & ice tray 8 - Compartment for quickly freezing 9 - Compartments for frozen foods keeping 10 - Adjustable foot 11 - Dairy compartment 12 - Shelf for jars 13 - Keeping cup 14 - Shelf for bottles
Suggested arrangement of food in the appliance
Guidelines for obtaining optimum storage and hygiene:
- The fridge compartment is for the short-term storage of fresh food and drinks.
- The freezer compartment is rated and suitable for the freezing and storage of pre-frozen food.
The recommendation for storage as stated on the food packaging should be observed at all times. 3. Dairy products should be stored in the special compartment provided in the door liner.
- Cooked dishes should be stored in airtight containers.
- Fresh wrapped produce can be kept on the shelf. Fresh fruit and vegetables should be cleaned and stored in the crispers.
- Bottles can be kept in the door section.
- To store raw meat, wrap in polythene bags and place on the lowest shelf. Do not allow to come into contact with cooked food, to avoid contamination. For safety, only store raw meat for two to three days.
- For maximum efficiency, the removable shelves should not be covered with paper or other materials to allow free circulation of cool air.
- Do not keep vegetable oil on door shelves. Keep the food packed, wrapped or covered. Allow hot food and beverages to cool before refrigerating. Leftover canned food should not be stored in the can.
- Fizzy drinks should not be frozen and products such as flavoured water ices should not be consumed too cold.
- Some fruit and vegetables suffer damage if kept at temperatures near 0°C. Therefore wrap pineapples, melons, cucumbers, tomatoes and similar produce in polythene bags.
- High-proof alcohol must be stored upright in tightly closed containers. Never store products that contain an inflammable propellant gas (e.g. cream dispensers, spray cans, etc.) or explosive substances. These are an explosion hazard.
- To take out the baskets from the freezer compartment please proceed as in Item 9.
Temperature control and adjustment
Operating temperatures are controlled by the thermostat knob (Item 5) and may be set at any position between MIN and MAX (the coldest position).
The average temperature inside the fridge should be around +5°C (+41°F).
Therefore adjust the thermostat to obtain the desired temperature. Some sections of the fridge may be cooler or warmer (such as salad crisper and top part of the cabinet) which is quite normal. We recommend that you check the temperature periodically with a thermometer to ensure that the cabinet is kept to this temperature. Frequent door openings cause internal temperatures to rise, so it is advisable to close the door as soon as possible after use.
Before operating
Final Check
Before you start using the appliance check that:
- The feet have been adjusted for perfect levelling.
- The interior is dry and air can circulate freely at the rear.
- The interior is clean as recommended under "Cleaning and care."
- The plug has been inserted into the wall socket and the electricity is switched on.
When the door is open, the interior light will come on.
And note that:
- You will hear a noise as the compressor starts up. The liquid and gases sealed within the refrigeration system may also make some noise, whether the compressor is running or not. This is quite normal.
- Slight undulation of the top of the cabinet is quite normal due to the manufacturing process used; it is not a defect.
- We recommend setting the thermostat knob midway and monitor the temperature to ensure the appliance maintains desired storage temperatures (See section Temperature Control and Adjustment).
- Do not load the appliance immediately it is switched on. Wait until the correct storage temperature has been reached. We recommend checking the temperature with an accurate thermometer (see; Temperature Control and Adjustment).
Storing frozen food
Your freezer is suitable for the long-term storage of commercially frozen foods and also can be used to freeze and store fresh food. If there is a power failure, do not open the door. Frozen food should not be affected if the failure lasts for less than 18 hrs. If the failure is longer, then the food should be checked and either eaten immediately or cooked and then re-frozen.
Freezing fresh food
Please observe the following instructions to obtain the best results.
Do not freeze too large a quantity at any one time. The quality of the food is best preserved when it is frozen right through to the core as quickly as possible.
Do not exceed the freezing capacity of your appliance in 24 h.
Placing warm food into the freezer compartment causes the refrigeration machine to operate continuously until the food is frozen solid. This can temporarily lead to excessive cooling of the refrigeration compartment.
When freezing fresh food, keep the thermostat knob at medium position. Small quantities of food up to 1/2 kg (1 lb) can be frozen without adjusting the temperature control knob.
Take special care not to mix already frozen food and fresh food.
Making ice cubes
Fill the ice-cube tray 3/4 full with water and place it in the freezer. Loosen frozen trays with a spoon handle or a similar implement; never use sharp-edged objects such as knives or forks.
Defrosting
A) Fridge compartment
The fridge compartment defrosts automatically. The defrost water runs to the drain tube via a collection container at the back of the appliance (Item 6).
During defrosting, water droplets may form at the back of the fridge compartment where a concealed evaporator is located. Some droplets may remain on the liner and refreeze when defrosting is completed. Do not use pointed or sharp-edged objects such as knives or forks to remove the droplets which have refrozen.
If, at any time, the defrost water does not drain from the collection channel, check that no food particles have blocked the drain tube. The drain tube can be cleared with a pipe-cleaner or similar implement.
Check that the tube is permanently placed with its end in the collecting tray on the compressor to prevent the water spilling on the electric installation or on the floor (Item 7).
B) Freezer compartment
Defrosting is very straightforward and without mess, thanks to a special defrost collection basin.
Defrost twice a year or when a frost layer of around 7 mm (1/4") has formed. To start the defrosting procedure, switch off the appliance at the socket outlet and pull out the mains plug.
All food should be wrapped in several layers of newspaper and stored in a cool place (e.g. fridge or larder).
Containers of warm water may be placed carefully in the freezer to speed up the defrosting.
Do not use pointed or sharp-edged objects, such as knives or forks, to remove the frost.
Never use hairdryers, electrical heaters, or other such electrical appliances for defrosting. Sponge out the defrost water collected in the bottom of the freezer compartment. After defrosting, dry the interior thoroughly (Item 8). Insert the plug into the wall socket and switch on the electricity supply.
Replacing the interior light bulb (Item 10)
If the light bulb is out of function, it is easy to replace. First, make sure that the refrigerator/freezer is disconnected from the power supply by removing the plug. Take a flat screwdriver and carefully, without force, insert it into the left gap between the lamp cover and the internal cabinet. Then press the handle of the screwdriver carefully to the left side until you notice that the left pin of the cover is disengaged. Repeat this procedure on the right gap, but now press the handle of the screwdriver carefully to the right side. If both sides are loosened, the cover can be removed easily.
Ensure that the bulb is screwed securely in the bulb holder. Plug the appliance into the power supply. If the light still fails, replace the E14 screw-cap type 15 Watt (Max) bulb from your local electrical store and then fit it. Carefully dispose of the burnt-out light bulb immediately.
If you have changed the light bulb, please fix the cover again in its former position. Take care that the cover snaps in correctly.
Cleaning and care
- We recommend that you switch off the appliance at the socket outlet and pull out the mains plug before cleaning.
- Never use any sharp instruments or abrasive substances, soap, household cleaner, detergent, or wax polish for cleaning.
- Use lukewarm water to clean the cabinet of the appliance and wipe it dry.
- Use a damp cloth wrung out in a solution of one teaspoon of bicarbonate of soda to one pint of water to clean the interior and wipe it dry.
- Make sure that no water enters the temperature control box.
- If the appliance is not going to be used for a long period of time, switch it off, remove all food, clean it, and leave the door ajar.
- We recommend that you polish the metal parts of the product (i.e., door exterior, cabinet sides) with a silicone wax (car polish) to protect the high-quality paint finish.
- Any dust that gathers on the condenser, which is located at the back of the appliance, should be removed once a year with a vacuum cleaner.
- Check door seals regularly to ensure they are clean and free from food particles.
10. Never:
- Clean the appliance with unsuitable material; eg petroleum based products.
- Subject it to high temperatures in any way,
- Scour, rub etc., with abrasive material.
11. Removal of dairy cover and door tray :
- To remove the dairy cover, first lift the cover up by about an inch and pull it off from the side where there is an opening on the cover.
- To remove a door tray, remove all the contents and then simply push the door tray upwards from the base.
- Make sure that the special plastic container at the back of the appliance which collects defrost water is clean at all times. If you want to remove the tray to clean it, follow the instructions below:
- Switch off at the socket outlet and pull out the mains plug
- Gently uncrimp the stud on the compressor, using a pair of pliers, so that the tray can be removed
- Lift it up.
- Clean and wipe it dry.
- Reassemble, reversing the sequence and operations.
- To remove a drawer, pull it as far as possible, tilt it upwards, and then pull it out completely.
Repositioning the door.
Proceed in numerical order (Item 11).
Do's and don'ts.
Do: Clean and defrost your appliance regularly (See "Defrosting"). Do: Keep raw meat and poultry below cooked food and dairy products. Do: Take off any unusable leaves on vegetables and wipe off any soil. Do: Leave lettuce, cabbage, parsley, and cauliflower on the stem. Do: Wrap cheese firstly in greaseproof paper and then in a polythene bag, excluding as much air as possible. For best results, take out of the fridge compartment an hour before eating. Do: Wrap raw meat and poultry loosely in polythene or aluminium foil. This prevents drying. Do: Wrap fish and offal in polythene bags. Do: Wrap food with a strong odour or which may dry out, in polythene bags, or aluminium foil, or place in an airtight container. Do: Wrap bread well to keep it fresh. Do: Chill white wines, beer, lager, and mineral water before serving. Do: Check contents of the freezer every so often. Do: Keep food for as short a time as possible and adhere to "Best Before" and "Use by" etc. dates. Do: Store commercially frozen food in accordance with the instructions given on the packets. Do: Always choose high quality fresh food and be sure it is thoroughly clean before you freeze it. Do: Prepare fresh food for freezing in small portions to ensure rapid freezing. Do: Wrap all food in aluminium foil or freezer quality polythene bags and make sure any air is excluded. Do: Wrap frozen food immediately after purchasing and put it into the freezer as soon as possible. Do: Defrost food in the fridge compartment.
Don't: Store bananas in your fridge compartment.
Don't: Store melon in your fridge. It can be chilled for short periods as long as it is wrapped to prevent it flavouring other food.
Don't: Cover the shelves with any protective materials which may obstruct air circulation.
Don't: Store poisonous or any dangerous substances in your appliance. It has been designed for the storage of edible foodstuffs only.
Don't: Consume food which has been refrigerated for an excessive length of time.
Don't store cooked and fresh food together in the same container. They should be packaged and stored separately.
Don't let defrosting food or food juices drip onto food.
Don't leave the door open for long periods, as this will make the appliance more costly to run and cause excessive ice formation.
Don't use sharp edged objects such as knives or forks to remove the ice.
Don't put hot food into the appliance. Let it cool down first.
Don't put liquid-filled bottles or sealed cans containing carbonated liquids into the freezer, as they may burst.
Don't exceed the maximum freezing loads when freezing fresh food.
Don't give children ice-cream and water ices direct from the freezer. The low temperature may cause 'freezer burns' on lips.
Don't freeze fizzy drinks.
Don't try to keep frozen food which has thawed; it should be eaten within 24 hours or cooked and refrozen.
Don't remove items from the freezer with wet hands.
To keep the selected temperature constant, your appliance occasionally switches ON the compressor.
The resulting noises are quite normal.
As soon as the appliance has reached the operating temperature, the noises automatically reduce in volume.
The humming noise is emitted by the motor (compressor). When the motor switches ON, the noise may briefly increase in volume.
The bubbling, gurgling or whirring noise is emitted by the refrigerant as it flows through the pipes.
The clicking noise can always be heard when the thermostat switches ON/OFF the motor. A clicking noise may occur when
- the automatic defrosting system is active.
- the appliance is cooling down or warming up (material expansion).
If these noises are excessively loud, the causes are probably not serious and are usually very easy to eliminate.
- The appliance is not level - Use the height-adjustable feet or place packing under the feet.
- The appliance is not free-standing - Please move the appliance away from kitchen units or other appliances.
- Drawers, baskets or shelves are loose or stick - Please check the detachable components and, if required, refit them.
- Bottles and/or receptacles are touching each other - Please move bottles and/or receptacles away from each other.
Trouble - shooting
If the appliance does not operate when switched on, check;
- That the plug is inserted properly in the socket and that the power supply is on. (To check the power supply to the socket, plug in another appliance)
- Whether the fuse has blown/circuit breaker has tripped/main distribution switch has been turned off.
- That the temperature control has been set correctly.
- That the new plug is wired correctly, if you have changed the fitted, moulded plug. If the appliance is still not operating at all after above checks, contact the dealer from whom you purchased the unit. Please ensure that above checks have been done, as a charge will be made if no fault is found.
Technical data
| Brand | BEKO |
| Appliance type | REFRIGERATOR-FREEZER type I CS234000S ※ ※ ※ |
| Total gross volume (l.) | 340 |
| Total usable volume (l.) | 292 |
| Freezer - usable volume (l.) | 87 |
| Refrigerator - useful volume | 205 |
| Freezing capacity (kg/24 h) | 5 |
| Energy class (1) | A |
| Power consumption (kWh/year) (2) | 333 |
| Autonomy (h) | 18 |
| Noise [dB(A) re 1 pW] | 40 |
| Ecological refrigerating agent R600a |
| (1) Energy class : A . . . G (A = economical . . . G = less economical)
(2) The real power consumption depends on using conditions and appliance location. |
The symbol
On the product or on packaging indicates that this product may not be treated as a product. Instead it shall be handed over to the applicable collection point for the recycling of electronic equipment. By ensuring this product is disposed of correctly, you will prevent potential negative consequences for the environment and human health, which are otherwise caused by inappropriate waste handling of this product. For more information about recycling of this product, please contact your local city office, your disposal service or the shop where you purchased the product.
Instructions for installation
- Do not install the appliance in a room where the temperature falls below 10°C during the night or especially during winter, as it is designed to operate at temperatures between +10 and +32°C.
- Do not place your refrigerator/freezer near a stove, heater, or in direct sunlight, as this increases energy consumption in the operation of your refrigerator/freezer. If it is placed near a heat source or freezer, maintain the following distances:
From electric stove
From radiator 300 mm
From freezer 25 mm
- Make sure there is enough space around the refrigerator/freezer to ensure free air circulation. (Fig. 2)
Place the spacers on the rear panel of the refrigerator/freezer, by doing so you separate the refrigerator/freezer from the wall (Fig. 3).
- Place your refrigerator/freezer on a flat surface. The two front feet can be adjusted by turning them clockwise or counterclockwise. Leveling the appliance prevents increased vibrations and noise (Fig. 3).
- Follow the instructions "Use and care" to prepare the device for use.
Familiarization with your device (Fig. 1)
1 - Thermostat with interior lighting 2 - Air vents 3 - Loading door 4 - Drain pipe 5 - Valve on the container for fruits and vegetables 6 - Container for storing fruits and vegetables 7 - Door for eggs 8 - Container for quick freezing 9 - Container for storing frozen food 10 - Adjustable feet 11 - Container with lid 12 - Supply with bottles 13 - Handle 14 - Bottle racks
Precautions when storing food
Basic precautions for optimal storage and hygiene:
1. This device is intended for short-term storage of fresh food and beverages. 2. The containers are marked with
suitable for freezing and storing food.
Temperature control and adjustment
The operating temperature is controlled by the thermostat (Fig. 5) and can be set to any position between 1 and 5.
The average temperature inside the refrigerator will be about +5°C. We recommend that you check the temperature with a thermometer to achieve the most suitable temperature.
Frequent opening of the door leads to an increase in the internal temperature, therefore it is recommended that the door be closed properly and immediately after use.
Before operation
Final check
Before switching on your device, make sure that:
- The feet are adjusted to the correct level.
- The appliance can circulate air freely. 3. The interior is clean according to the instructions in "Cleaning and care".
- Connect the appliance to the mains. The green and red indicator will light up and the compressor will start working.
Pay attention to the following:
- You will hear a sound when the compressor switches on. The refrigerant in the cooling system may make noise, which is quite normal.
- It is normal for moisture to appear on the outer side of your appliance; this is due to the production technology used and is not a defect.
- We recommend setting the thermostat to a medium position and measuring the temperature to ensure that the appliance maintains the desired storage temperature. (See "Temperature control and adjustment")
- Do not load your appliance immediately after switching it on. Wait until the desired temperature is reached. We recommend measuring the temperature with a suitable thermometer. (See "Temperature control and adjustment")
Do not clean the appliance with unsuitable materials; such as petroleum-based products. Under no circumstances expose the appliance to high temperatures. Do not use abrasive materials for cleaning.
- To remove the compartment for dairy products: Lift the cover and pull it out. To remove the containers, press them slightly upwards.
- The plastic container for collecting defrost water must be well cleaned. To clean it, follow these instructions: First remove the container. Disconnect the appliance from the power supply. Carefully remove the screws of the compressor cover to take out the plastic container. Lift the cover slightly upwards. Now you can clean it. After cleaning, put it back.
- To remove any of the containers, pull them out as far as possible, tilt them slightly forward, and take them out.
The door gasket is removable.
Do not refreeze thawed drinks.
Do not store thawed products for a long time; they must be used within 24 hours, or boiled and refrozen.
Do not take products out of the refrigerator with wet hands.
The symbol on the product or its packaging indicates that the product must not be disposed of
with household waste. Instead, it should be taken to a
designated collection point for waste electrical and electronic equipment. By ensuring proper disposal of this product, you will help prevent potential negative consequences for the environment and human health, which could otherwise arise from incorrect handling of its waste. For more detailed information on recycling this product, please contact your local city administration, household waste recycling service, or the store where you purchased the product.
