DS1363 - Range hood Air King - Free user manual and instructions

Brand	Air King
Model	DS1363
Product Type	Kitchen Hood
Width	76.2 cm (30 in)
Power Supply	120 V ~, 60 Hz
Venting Type	Vertical or horizontal, rectangular duct 8.25 x 25.4 cm (3-1/4 x 10 in); adaptable to 17.78 cm (7 in) round duct or non-ducted recirculation
Lighting Power	A19 bulb, max 60 W
Controls	2 rotary switches: lighting (3 positions: high, low, off) and variable speed fan
Grease Filter	Washable aluminum, model RF35
Charcoal Filter (optional)	Model RF55 (combined grease/odor) for recirculation
Warranty	1 year parts and labor; 5 years motor/fan
Grease Filter Maintenance	Monthly cleaning with hot water and detergent
Charcoal Filter Maintenance	Annual replacement or as needed
Hood Cleaning	With mild detergent and soft cloth; do not immerse electrical parts
Duct Material	Metal only (mandatory for fire safety)
Grounding	Required
Disconnection	Cut power at distribution panel before service
Replacement Parts Available	Filter, motor, switches, lens, knobs, etc. (see manual)

Frequently Asked Questions - DS1363 Air King

How to install the Air King DS1363 hood?

Installation must be performed by a qualified person. Unpack the hood and verify all parts are present. Choose the venting type (vertical, horizontal, or recirculation). Remove the appropriate knockouts. Install the damper and connect the metal ducts. Secure the hood under the cabinet using the provided screws. Connect the electrical power in compliance with local codes. Refer to the complete manual for details.

How to clean the hood grease filter?

The aluminum grease filter should be cleaned once a month in hot water with mild detergent. Remove it by pressing the front tabs and pulling. Let it dry completely before reinstalling. Do not use abrasive cleaners.

When should the charcoal filter be replaced?

The charcoal filter (model RF55) is used only in recirculation mode and cannot be washed. Replace it when visibly dirty, when it no longer filters odors, or at least once a year.

What to do if the hood does not work?

First check the fuse or circuit breaker. Ensure power is restored. If the problem persists, cut the power and inspect the wiring: white wires should be connected together, black wires together, and grounding must be correct.

The hood makes a clicking noise, what to do?

This may be due to a loose motor or duct connection. Cut power, remove the filter, and check that all motor screws are tight. Also inspect duct connections and tighten if necessary.

Can I use an electronic speed controller with this hood?

No, using an electronic speed controller is strictly prohibited. It could damage the motor and pose a fire or electric shock risk. Use only the provided rotary switch.

What type of duct should I use?

Ducts must be metal (steel, aluminum, etc.) to reduce fire risk. Never use plastic or combustible duct material.

How to set up the hood in recirculation mode (without external duct)?

Remove the front louver cover to expose the air slots. Install a charcoal filter model RF34 or the combined filter RF55. The air will then be filtered and returned to the kitchen.

What bulb to use for the lighting?

Use an A19 type bulb with a maximum power of 60 watts. To replace the bulb, press the two lamp cover tabs to open it, install the new bulb, and close the cover.

What is the warranty for the Air King DS1363 hood?

The hood is warranted for 1 year against defects in workmanship and materials. The motor, fan, and associated components are warranted for 5 years. Filters and bulbs are not covered. You must be the original purchaser and present the invoice.

USER MANUAL DS1363 Air King

IMPORTANT INSTRUCTIONS - OPERATING MANUAL

DS Series

AirKing Ventilation Products®

Range Hood

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE, INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED. PROTECT

YOURSELF AND OTHERS BY OBSERVING ALL SAFETY INFORMATION. FAILURE TO COMPLY WITH

INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR PROPERTY DAMAGE!

RETAIN INSTRUCTIONS FOR FUTURE REFERENCE.

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions

should always be followed to reduce the risk of fire,

electric shock and injury to person, including the following:

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK AND INJURY TO PERSON, OBSERVE THE FOLLOWING:

1. Read all instructions before installing or using range hood.
2. Use this unit only in the manner intended by the manufacturer. If you have questions, contact the manufacturer.
3. Before servicing or cleaning the unit, switch power off at service panel and lock the service disconnecting means to prevent power from being switched on accidentally. When the service disconnecting means cannot be locked, securely fasten a prominent warning device, such as a tag, to the service panel.
4. Installation work and electrical wiring must be done by qualified person(s) in accordance with all applicable codes and standards, including fire-related construction.
5. Sufficient air is needed for proper combustion and exhausting of gases through the flue (chimney) of fuel burning equipment to prevent back drafting. Follow the heating equipment manufacturer's guideline and safety standards such as those published by the National Fire Protection Association (NFPA) and the American Society for Heating, Refrigeration, and Air Conditioning Engineers (ASHRAE), and the local code authorities.

CAUTION: FOR GENERAL VENTILATING USE ONLY. DO NOT USE TO EXHAUST HAZARDOUS OR EXPLOSIVE MATERIALS AND VAPORS.

1. When cutting or drilling into wall or ceiling, do not damage electrical wiring and other hidden utilities.

CAUTION: TO REDUCE THE RISK OF FIRE AND TO PROPERLY EXHAUST AIR, BE SURE TO DUCT AIR OUTSIDE - DO NOT VENT EXHAUST AIR INTO SPACES WITHIN WALLS OR CEILINGS OR INTO ATTICS, CRAWL SPACES, OR GARAGES.

1. This unit must be grounded.
2. To avoid motor bearing damage and noisy and/or unbalanced impellers, keep drywall spray, construction dust, etc. off power unit.

WARNING: TO REDUCE THE RISK OF FIRE, ELECTRIC SHOCK, DO NOT USE THIS FAN WITH ANY SOLID-STATE SPEED CONTROL DEVICE.

WARNING: TO REDUCE THE RISK OF A RANGE TOP GREASE FIRE:

a) Never leave surface units unattended at high settings. Boilovers cause smoking and greasy spillovers that may ignite. Heat oils slowly on low or medium settings.
b) Always turn hood ON when cooking at high heat or when flambéing food (ie. Crepes Suzette, Cherries Jubilee, Peppercorn Beef Flambé).
c) Clean ventilating fans frequently. Grease should not be allowed to accumulate on fan filter.
d) Use proper pan size. Always use cookware appropriate for the size of the surface element.

WARNING: TO REDUCE THE RISK OF INJURY TO PERSONS IN THE EVENT OF A RANGE TOP GREASE FIRE, OBSERVE THE FOLLOWING:

a) SMOTHER FLAMES with a close-fitting lid, cookie sheet, or metal tray, then turn off burner. BE CAREFUL TO PREVENT BURNS. If the flames do not go out immediately, EVACUATE AND CALL THE FIRE DEPARTMENT.
b) NEVER PICK UP A FLAMING PAN - You may be burned.
c) DO NOT USE WATER, including wet dishcloths or towels - a violent steam explosion will result.
d) Use an extinguisher ONLY if:

I. You know you have a Class ABC extinguisher, and you already know how to operate it.
II. The fire is small and contained in the area where it started.
III. The fire department is being called.
IV. You can fight the fire with your back to an exit.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

SAVE THESE INSTRUCTIONS

INSTALLATION INSTRUCTIONS

1. Unpack hood from the carton and confirm that all pieces are present. In addition to the range hood you should have:

1 - Aluminum Grease Filter
1 - 3-1/4"x 10" Damper
3 - Damper Mounting Screws
4 - #8 Mounting Screws
1 - Wire Compartment Cover and Screw
1 - Instruction/Safety Sheet

1. Lay the hood flat on a table so the underside is facing you. Use a piece of cardboard to avoid damaging the table or the hood.

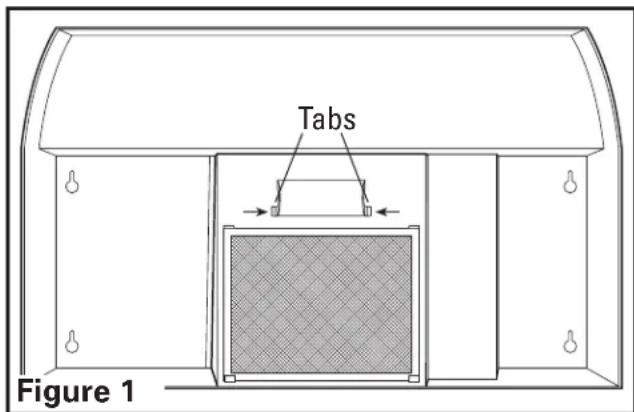

2. Remove lamp cover by squeezing the two tabs together (Figure 1).

1. Install a 60 watt maximum type A19 bulb and reinstall the lamp cover.

Prepare the location for Hood Support

1. If the hood will be installed under cabinets that have a recessed bottom, it will be necessary to install wood mounting strips (not included) so the hood will mount properly (Figure 2).

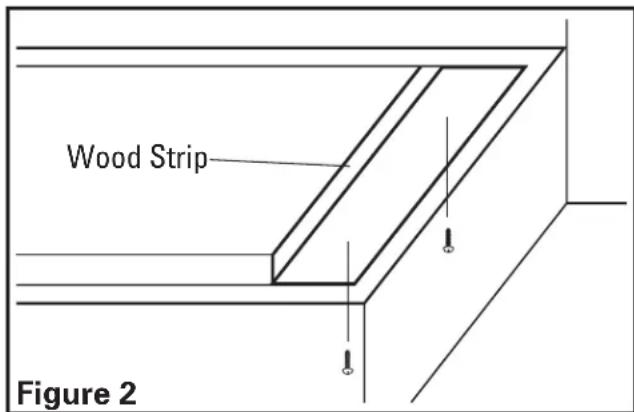

1. The thickness of the strips should be the same as the recess of the cabinet and they should be approximately 2" wide.
2. Install the strips using appropriate length wood screws (not included). Make sure the strips line up to the keyhole slots of the range hood.

Prepare the Hood for Installation

1. Choose the type of ducting you will require. This model is equipped to vent either Vertically or Horizontally through a 3-1/4" x 10" duct. It can be modified to be ductless (re-circulates the air back into

the kitchen) with the addition of a model RF34 Charcoal Filter (not included) or vented through a 7" round duct with the addition of a model E-22a or RDC7 Duct Collar (not included) (Figure 3).

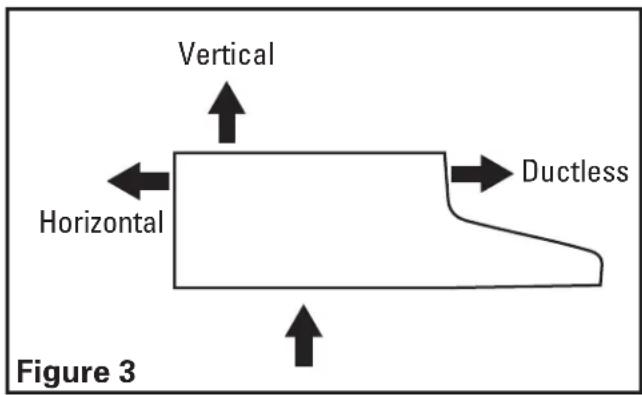

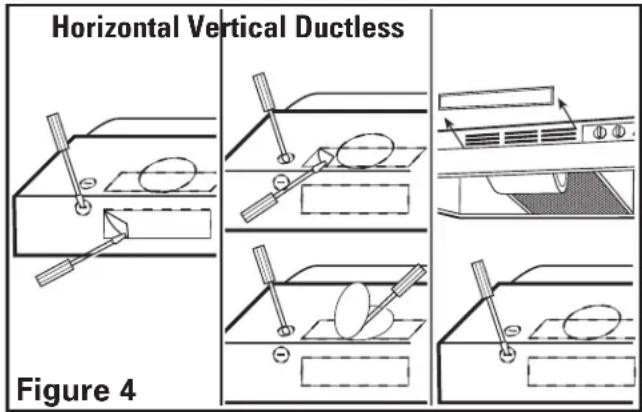

2a. Horizontal or Vertical - Remove the square knockout by inserting a screw driver under the edge and break the tabs holding it in place. Peel back with pliers (Figure 4).

2b. Ductless - Remove the hood's front louver cover, exposing the front air slots. To remove louver slide to one side and lift the trailing edge. Do not use a screwdriver or any other object that could scratch the hood (Figure 4).
2c. 7" Round - Remove the round knockout located on the top of the hood by inserting a screw driver under the edge and break the tabs holding it in place. Peel back with pliers (Figure 4).
3. Determine where the electrical service will enter the hood and remove the appropriate electrical knockout by inserting a screw driver into the slot and rocking back and forth until the knockout comes loose (Figure 4).

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE STARTING INSTALLATION.

Installing the Range Hood

1. Once the proper knockout(s) have been removed, either hold the hood up to the installation location and mark the locations of the ducting, electrical, and mounting holes or mark the locations by measurement.
2. Cut appropriate holes for ducting connection and electrical connection in the wall/cabinet.

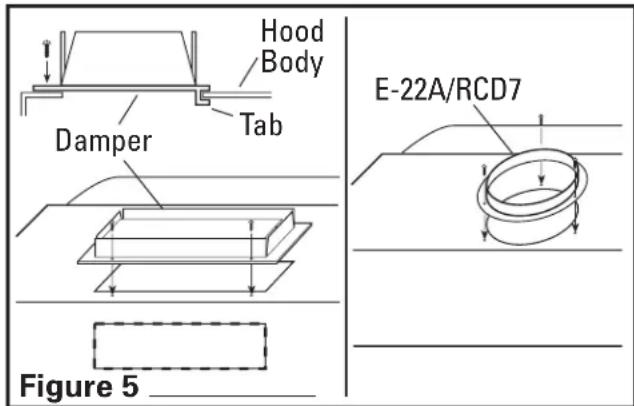

3. For 3-1/4" x 10" vertical or horizontal ducting, install the damper assembly to the hood by sliding the tabbed section of the damper

under the hood body and securing with the two provided screws. For 7" round ducting, secure either a model E-22A or RCD7 Duct Collar (not included) to the hood with the three provided screws (Figure 5).

1. Install an approved wire connector to the electrical knockout of the hood and guide the electrical cable through the hood, allowing at least 6" of wire for connections and tighten.

NOTE: If installing into existing construction and you will not have access to the ductwork once the hood is in place, make ducting connections at this point. Refer to the Ducting Section for instructions.

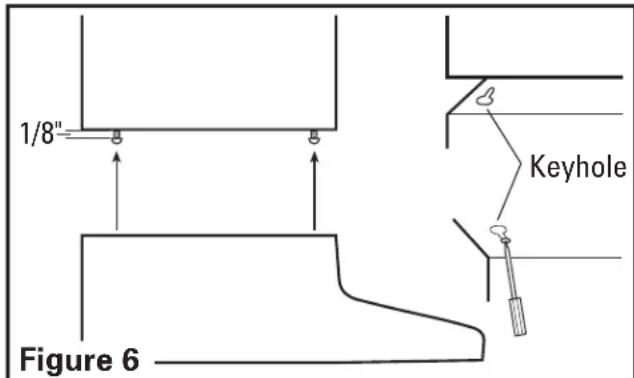

1. Install the 4 mounting screw at the previously marked locations. Leave approximately 1/8" clearance. Slide the hood in place through the keyhole slots and align the front of the hood so that it is flush with the front of the cabinets. Tighten all screws securely (Figure 6).

Wiring

CAUTION: ALL ELECTRICAL CONNECTIONS MUST BE MADE IN ACCORDANCE WITH LOCAL CODES, ORDINANCES, OR NATIONAL ELECTRICAL CODE. IF YOU ARE UNFAMILIAR WITH METHODS OF INSTALLING ELECTRICAL WIRING, SECURE THE SERVICES OF A QUALIFIED ELECTRICIAN.

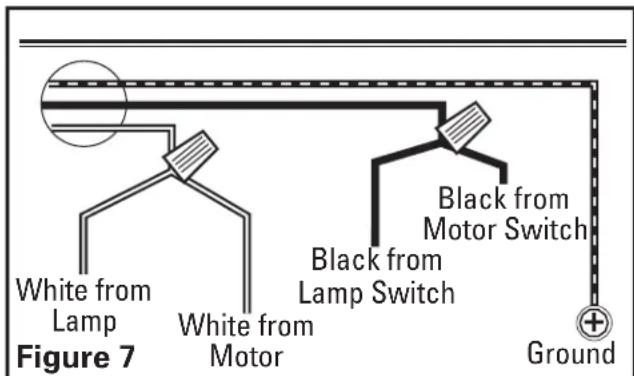

1. Connect the 2 loose White wires from the range hood to the White wire from the supply, and the 2 loose Black wires from the range hood to the Black wire of the supply. Connect the ground wire (green or bare) from the supply to the green ground screw of the hood. Use approved methods for all connections (Figure 7).

NOTE: DO NOT disconnect any wiring that has already been crimped with a wire connector from the factory.

1. Install the wire compartment cover and tighten screw. Make sure all wiring is securely contained within the wire compartment.

Ducting

CAUTION: ALL DUCTING MUST COMPLY WITH LOCAL AND NATIONAL BUILDING CODES.

WARNING: TO REDUCE THE RISK OF FIRE, USE ONLY METAL DUCTWORK.

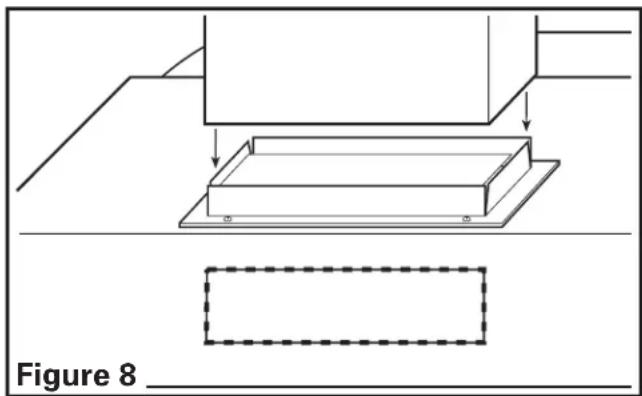

1. Connect the ducting to the hood's duct collar and damper. Secure in place using tape to seal all joints (Figure 8).

CAUTION: ALWAYS DUCT THE FAN TO THE OUTSIDE THROUGH A WALL OR ROOF CAP.

Finishing the Installation

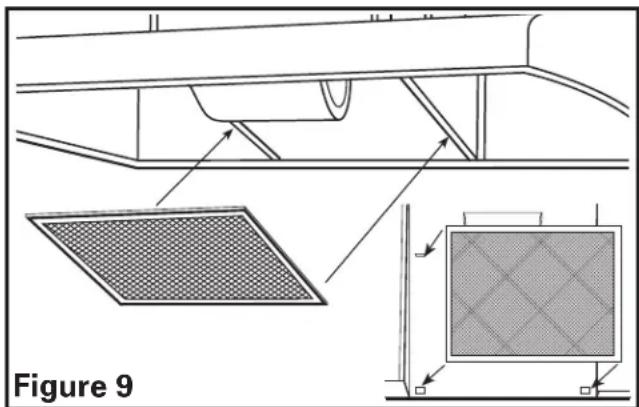

1. Install the appropriate filters sliding the back side of the filter into the tab and pressing the front of the filter into place (Figure 9).

1. Turn switches to the "OFF" position and restore power. Test that the light and the fan are operating properly.
2. If there is any vibration noise, check for the source and try to tighten fasteners or adjust the tape to make a tighter connection or seal.

Operation

Controls

Your Range Hood is equipped with two rotary switches with one controlling the lighting and the other controlling the exhaust fan. The light switch has three positions, HIGH (●), LOW (●), and OFF (■). The fan switch is an infinite speed control that can be adjusted to your desired setting. Rotating the switch counter clockwise until you hear a click will turn the hood off.

Maintenance

CAUTION: MAKE SURE POWER IS SWITCHED OFF AT SERVICE PANEL BEFORE SERVICING THE UNIT.

Filters

1. Grease Filter - Included with your range hood is an aluminum grease filter that should be washed in hot water with detergent

once a month. Reverse the instructions in the "Finishing the Installation" section of the instructions to remove filter. If the grease filter becomes damaged, replace with Air King Model RF35 Grease Filter.

1. Charcoal Odor Filter - If you have installed an optional combination grease/charcoal filter, it cannot be washed and must be discarded and replaced when it becomes noticeably dirty, has stopped filtering the odors, or at least once per year. Replace with Air King Model RF55 Combination Odor/Grease Filter.

Cleaning

CAUTION: DO NOT USE GASOLINE, BENZINE, THINNER, HARSH CLEANSERS, ETC., AS THEY MAY DAMAGE THE RANGE HOOD.

1. Clean your range hood with a mild detergent, such as dishwashing liquid, and dry with a soft cloth. NEVER USE ANY ABRASIVE PADS OR SCOURING POWDERS. Completely dry before restoring power. NEVER IMMERSE ELECTRICAL PARTS IN WATER.
2. The fan assembly can be vacuumed when build up (dirt, lint, etc.) accumulates over time. The fan is permanently lubricated and does not require oiling.

Troubleshooting Guide

Trouble Probable Cause Suggested Remedy
1. Hood does not operate when the switch is on.	1a. A fuse may be blown or a circuit tripped.1b. Wiring is not connected properly. 1b. Turn off power to unit. Check that all wires are connected	1a. Replace fuse or reset circuit breaker.
2. Hood is operating, but air moves slower than normal.	2. Obstruction in the exhaust ducting.	2. Check for any obstructions in the ducting including filter.
3. Hood is making a rattling noise.	3a. Motor is loose.3b. Duct connection is loose. 3b. Turn off power to unit. Check that duct connection is tight.	3a. Turn off power to unit. Remove filter, check that all screws are fully tightened.

LIMITED WARRANTY

All products manufactured by Air King Limited are warranted for one year from the date of purchase against defects in workmanship and/or material. In addition, all ventilating/exhaust fans, heaters, combination fan lights and/or heaters, and range hoods are guaranteed for five years from the date of purchase against defects in workmanship and/or material.

This warranty does not cover any labor or shipping costs or the cost of replacement components as part of routine maintenance such as: range hood grease filters, charcoal filters or combination charcoal/grease filters; replacement light bulbs in range hoods or bathroom fan/light/bulb heater combinations. As well, any damage or failure caused by abuse, misuse, abnormal usage, faulty installation, or improper maintenance will not be covered by this warranty.

In order to make a claim on this warranty, you must be the original consumer of the product. You will be required to present to Air King the original bill of sale showing: date of purchase, place of purchase and model purchased. Failure to meet these requirements will void your warranty.

Air King will not be held responsible for any bodily injury or damages to personal property or real estate whether caused directly or indirectly by the product. Some states and provinces do not allow the exclusion or limitation of incidental or consequential damages and some states do not allow limitations on how long an implied warranty lasts, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights and you may have other rights which vary from state to state and province to province.

FOR PARTS OR TECHNICAL ASSISTANCE

Please call: 1-800-465-7300, MONDAY THROUGH FRIDAY, BETWEEN THE HOURS OF 8 AM AND 4:00 PM EST. PLEASE DO NOT RETURN PRODUCT TO PLACE OF PURCHASE.

Reference the type and style of product (located on label inside of the product) when you call.

For more information please visit our website: www.airkinglimited.com

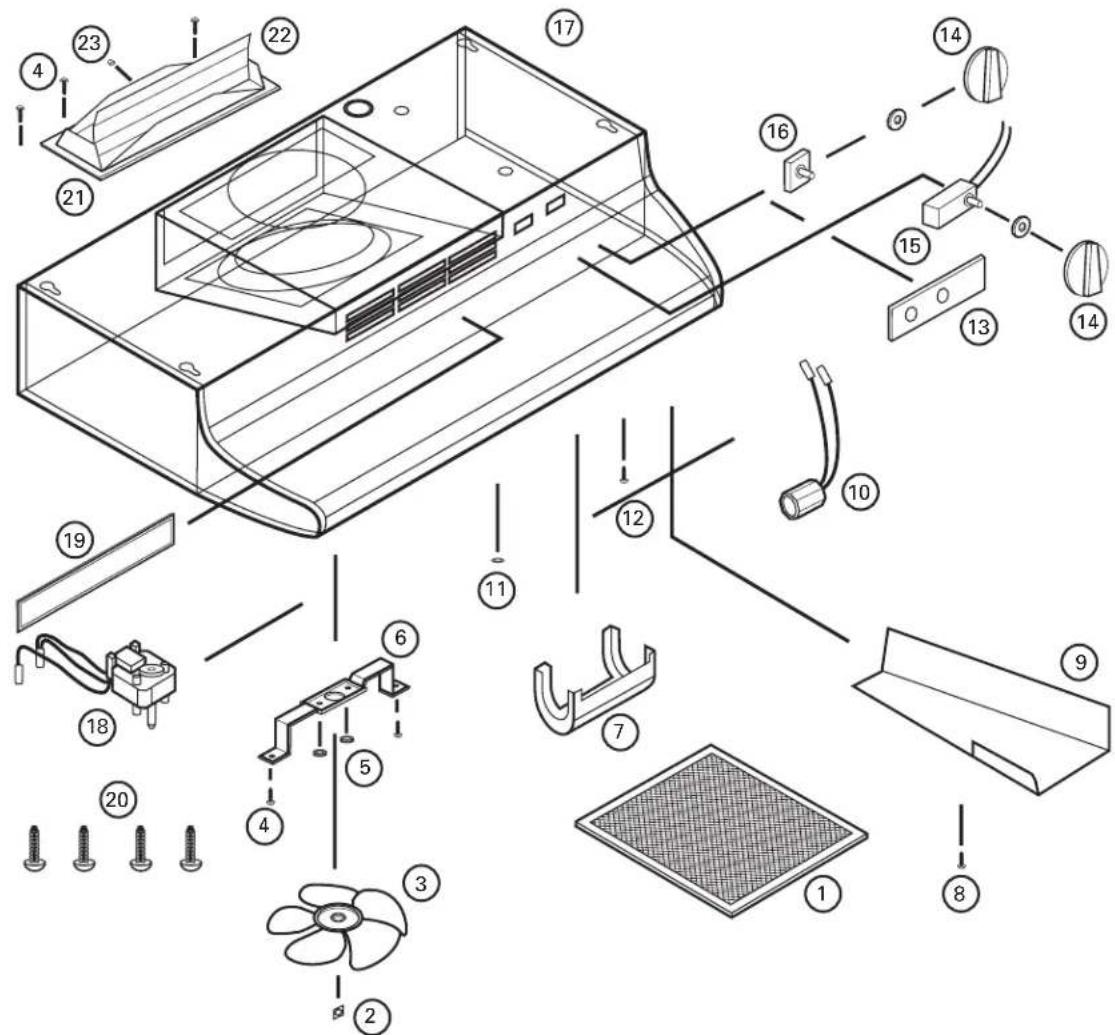

REPLACEMENT PARTS DIAGRAM

# Description Replacement Part #
1 Filter RF35		5S4199011
2 Push Nut 5S4199001
3 Fan Blade		5S4199002
4 #8 B Screw		5S1999015
5 Hex Nut		5S1999006
6 Motor Bracket 5S4199003
7 Light Lens 5S4199004
8 #6 AB Screw		5S1999004
9 Wire Compartment Cover		5S4199005
10 Lamp Holder		5S4199020
11 Bushing		5S1999016
12 #10 Ground Screw		5S1999002
13 Switch Plate - White		5S1422003

# Description Replacement Part #
14 Knobs - White 5S1420003
		Biscuit 5S1420004
		Almond 5S1420005
		Black 5S1420006
15 Speed Control 5S4199017
16 Light Switch 5S4199018
17 Wrapper -30" 5S1427030
		36" 5S1427040
18 Motor 5S2110001
19 Louver Plate - White 5S1429003
		Biscuit 5S1429004
		Almond 5S1429005
		Black 5S1429006
20 #8 Screw 5S1999017
21 Damper Frame		5S4199013
22 Damper		5S4199014
23 Damper Bumper		5S4199015

Installer:

Installation Date:

Place of Purchase:

Model Number:

INSTRUCTIONS IMPORTANTES - MANUEL D'OPÉRATION

Séries DS

Hotte de Cuisine

LIRE ET CONSERVER CES INSTRUCTIONS

LIRE SOIGNEUSEMENT AVANT DE TENTER D'ASSEMBLER, INSTALLER, OPÉRER OU DE RÉPARER LE PRODUIT DÉCRIT. PROTÉGEZ VOUS-MÊME ET LES AUTRES EN OBSERVANT TOUTE L'INFORMATION DE SÉCURITÉ. FAILIR À SE CONFORMER AUX INSTRUCTIONS PEUT RÉSULTER EN BLESSURE PERSONNELLE GRAVE ET/OU EN DOMMAGE À LA PROPRIETÉ.

CONSERVER CES INSTRUCTIONS POUR RÉFÉRENCES FUTURES.

INSTRUCTIONS GÉNÉRALES DE SÉCURITÉ

Technical diagram showing a mechanical assembly with a rectangular component and a dashed outline, labeled Figure 8 (no text or symbols on the diagram itself)

AVERTISSEMENT: TOUJOURS PASSER LES CONDUITS DU VENTILATEUR VERS L'EXTÉRIEUR EN UTILISANT UN CAPUCHON MURAL OU DE TOIT.

# Descripción Número de Repuesto
1 Filtro RF35		5S4199011
2 Tuercas A Presión		5S4199001
3 Aspa del Ventilador		5S4199002
4 Tornillo #8 B		5S1999015
5 Tuerca Hexagonal		5S1999006
6 Ménsula del Motor		5S4199003
7 Lentes de la Luz 5S4199004
8 Tornillo #6 AB		5S1999004
9 Cubierta del Compartimiento de Cable		5S4199005
10 Soporte de la Lámpara		5S4199020
11 Buje		5S1999016
12 Tornillo a Tierra #10		5S1999002
13	Placa del Interruptor - Blanco	5S1422003
	Bizcocho 5S1422004
	Almendra 5S1422005
	Negro 5S1422006
