USER MANUAL TRF3628FFD Thor

36-Inch 28.9 cu. ft. French Door Full Depth Refrigerator with Water Dispenser and Dual Ice Maker

TRF3628FFD

TRF3628FFDB

CONTENTS

THANK YOU FOR YOUR PURCHASE---- 01

SAFETY INSTRUCTIONS 02

PRODUCT OVERVIEW 09

OPERATION INSTRUCTIONS 10

CLEANING AND MAINTENANCE 15

TROUBLESHOOTING 17

WARRANTY 19

THANK YOU FOR YOUR PURCHASE

Thank you for choosing THOR KITCHEN. This refrigerator has been manufactured by Thor International, 4651 E Airport Drive, Ontario, CA 91761. This manual contains all the information you will need to install / use your refrigerator correctly and safely. Please read all the instructions prior using the appliance and keep this manual in a secure place for future reference. Do not remove the attached adhesive identification label containing code, model number, manufacturer and other information from the refrigerator. This label will be used by the THOR KITCHEN authorized service representative in the event that your refrigerator needs servicing.

ENVIRONMENTAL ADVICE

The packaging material used is recyclable; we recommend that you separate plastic, paper and cardboard and give them to recycling companies. To help preserve the environment, the refrigerant used in this product is R600a, which does not affect the ozone layer and has little impact on the greenhouse effect. According to WEEE guidelines (Waste of Electrical and Electronic Equipment), waste from electrical and electronic devices should be collected separately. If you need to dispose of this appliance in the future, DO NOT throw it away with the rest of your domestic garbage. Instead, please take the appliance to the nearest WEEE collection point, where available.

SAFETY INSTRUCTIONS

Intended use

Before switching on the appliance for the first time read the following safety information!

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farmhouses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

If the appliance is used commercially or for purposes other than cooling food, please note that the manufacturer cannot accept any liability for any damage.

Modifications or alterations to the unit are not permitted for safety reasons.

Explanation of symbols

Danger

This symbol indicates that there are dangers to the life and health of persons due to extremely flammable gas.

Warning of electrical voltage

This symbol indicates that there is a danger to life and health of persons due to voltage.

Warning

The signal word indicates a hazard with a medium level of risk which, if not avoided, may result in death or serious injury.

Caution

The signal word indicates a hazard with a low degree of risk which, if not avoided, may result in minor or moderate injury.

Attention

The signal word indicates important information (e.g. damage to property), but not danger.

Observe instructions

This symbol indicates that a service technician should only operate and maintain this appliance in accordance with the operating instructions.

Read these operating instructions carefully and attentively before using/commissioning the unit and keep them in the immediate vicinity of the installation site or unit for later use!

WARNING

Risk of fire / Flammable material

- DANGER Risk of fire or explosion. Flammable refrigerant used. Do not use mechanical devices to defrost refrigerator. Do not puncture refrigerant tubing.

- DANGER Risk of fire or explosion. Flammable refrigerant used. To be repaired only by trained service personnel. Use only manufacturer authorized service parts. Any repair equipment used must be designed for flammable refrigerants. Follow all manufacturer repair instructions. Do not puncture refrigerant tubing.

CAUTION

- CAUTION Risk of fire or explosion. Dispose of refrigerator properly in accordance with the applicable federal or local regulations. Flammable refrigerant used.

- CAUTION Risk of fire or explosion due to puncture of refrigerant tubing. Follow handling instructions carefully. Flammable refrigerant used.

WARNING General safety

- Install in accordance with the manufacturer's instructions.

- This product should not be recessed or built in an enclosed cabinet. It is designed for freestanding installation only.

- WARNING - Keep ventilation openings in the product, clear of obstruction.

- Do not install near any heat sources, such as radiators, heat registers, stoves, other cooking appliances or in direct sunlight.

- Do not sit gasoline or anyuflasmenagle liquids inside or in the vicinity of this refrigerator.

- Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

- Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

- Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

- Do not damage the refrigerant circuit.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

WARNING Electrical safety

Incorrect electrical installation or excessive mains voltage can lead to electric shocks!

• Ensure your fridge-freezer is connected only to a properly installed grounded outlet, with the socket's mains voltage matching the specifications on the rating label*.
• Please use a dedicated power outlet. Do not share a power outlet with other electrical appliances. Do not use an extension cord, power-strip, ungrounded (two-pin) adapters or similar devices.
• Make sure that all electrical cables outside the appliance are protected from damage (e.g. by animals or sharp edges).
• Avoid placing multiple portable socket outlets or power supplied behind the appliance.
• Improper power supply may result in fire or electric shocks.
• Prevent electrical overload by unplugging the unit from the mains socket before performing any care, maintenance, or repairs.
• Switch off the unit and disconnect the mains plug from the mains socket when you are not using the unit.
• Do not pull the power cord to disconnect from the outlet. Please firmly grasp the plug and pull it out from the socket directly.
• Ensure the plug is firmly seated in the power outlet to ensure a proper connection. Loose fitting or improperly seated plugs pose a fire hazard.
• In the event of a gas leak, first close the gas valve, then open the doors and windows to provide proper ventilation. Do not disconnect the power cord from the outlet at this time to avoid an electric spark potentially igniting the flammable gas.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• When positioning the appliance, ensure the supply cord is not trapped or damaged.
• If the products are equipped with LEDs, do not remove the lighting cover and LED yourself. Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

This product is not recommended for use with sockets or main switch with the AFCI/GFCI function, otherwise it may cause false tripping.

1. The product does not pose a safety risk when tripped.

2. If tripping persists, it is recommended to replace the sockets or main switch without AFCI/GFCI function.

WARNING Child safety

• Children should be supervised to ensure that they do not play with the appliance.
• Destroy any cartons, plastic bags, and any exterior wrapping material immediately after the product is unpacked.
• Children should never use these items to play. Cartons covered with rugs, bedspreads, plastic sheets or stretch wrap may become airtight chambers, and can quickly cause suffocation.
• Remove all staples from the carton. Staples can cause severe cuts, and destroy finishes if they come in contact with other appliances or furniture.

Risk of child entrapment. Before you throw away your old refrigerator or freezer:

• Take off the doors.
- Leave the shelves in place so that children may not easily climb inside.

CAUTION Risk of injury and damage!

• Never put frozen food in your mouth immediately after taking it out of the freezer.
• Avoid prolonged skin contact with frozen food, ice and the pipes in the freezer compartment.
• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. Also do not place flammable products near the product.
• Do not store beer, drinks or other liquids in bottles or tightly closed containers in the freezer compartment!

WARNING

State of California Proposition 65 Warnings:

- This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, and bisphenol A (BPA) and lead which are known to the state of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

CAUTION

To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.
• Regularly clean surfaces that come into contact with food, as well as accessible drainage systems.
• Clean water tanks if they have not been used for 48h; flush the water system connected to a water supply if water has not been drawn for 5 days.(*)
• WARNING: Fill with potable water only.(*)
• WARNING: Connect to potable water supply only. (Suitable for ice making machine)(*)

ATTENTION

(*): This feature varies depending on the model purchased. Please confirm whether it is applicable according to your product.

Before The First Use

The packaging must be undamaged. Check the device for transport damage. Do not connect a damaged device under any circumstances. In case of damage, please contact the supplier.

Remove transport cover

The unit and parts of the interior are protected for transport. You can remove all adhesive tapes on the right and left side of the device door as well as any adhesive residues with cleaning solvent. Remove all adhesive tapes and packaging parts from the interior of the device as well.

CAUTION Risk of damage!

Set up device

• The ambient temperature affects the power consumption and proper functioning of the device. Therefore, the device should be placed in a well-ventilated and dry room with an ambient temperature corresponding to the climate class for which the device is designed.
• Do not place the device outdoors (e.g. balcony, terrace, garden shed, etc.).

Do not use sharp knives or pointed objects when opening the device. Please observe the notes when setting up: "Tips for Energy Saving"

Remove the device doors

- If the unit does not fit through the entry doors or hallways, the unit doors can be unscrewed.

ATTENTION

The unscrewing of the unit doors may only be carried out by customer service.

CAUTION Notes for cleaning

Disconnect the appliance from the power supply before cleaning.

• Dust behind the product and on the floor must be cleaned to improve the cooling effect and energy saving.
• Check the door gasket regularly to make sure there is no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.
• The interior of the product should be cleaned regularly to avoid odors.
• Please turn off the power before cleaning the interior, remove all foods, drinks, shelves, drawers, etc.
• Use a soft cloth or sponge to clean the inside of the product, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.
• For areas that are difficult to clean inside the product (such as narrow places, gaps or corners), we recommend to wipe them regularly with a soft rag, soft brush, etc. and when necessary, with some tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.
• Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors inside the product or contaminate food.
• Clean the door tray, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.
• Wipe the outer surface of the product with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.
• Do not use hard brushes, scouring pads, wire brushes, abrasives (such as toothpaste), organic solvents (such as alcohol, acetone, Isoamyl acetate, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.
• Do not rinse directly with water or other liquids during cleaning to avoid short circuit or affect electrical insulation after immersion.

PRODUCT OVERVIEW

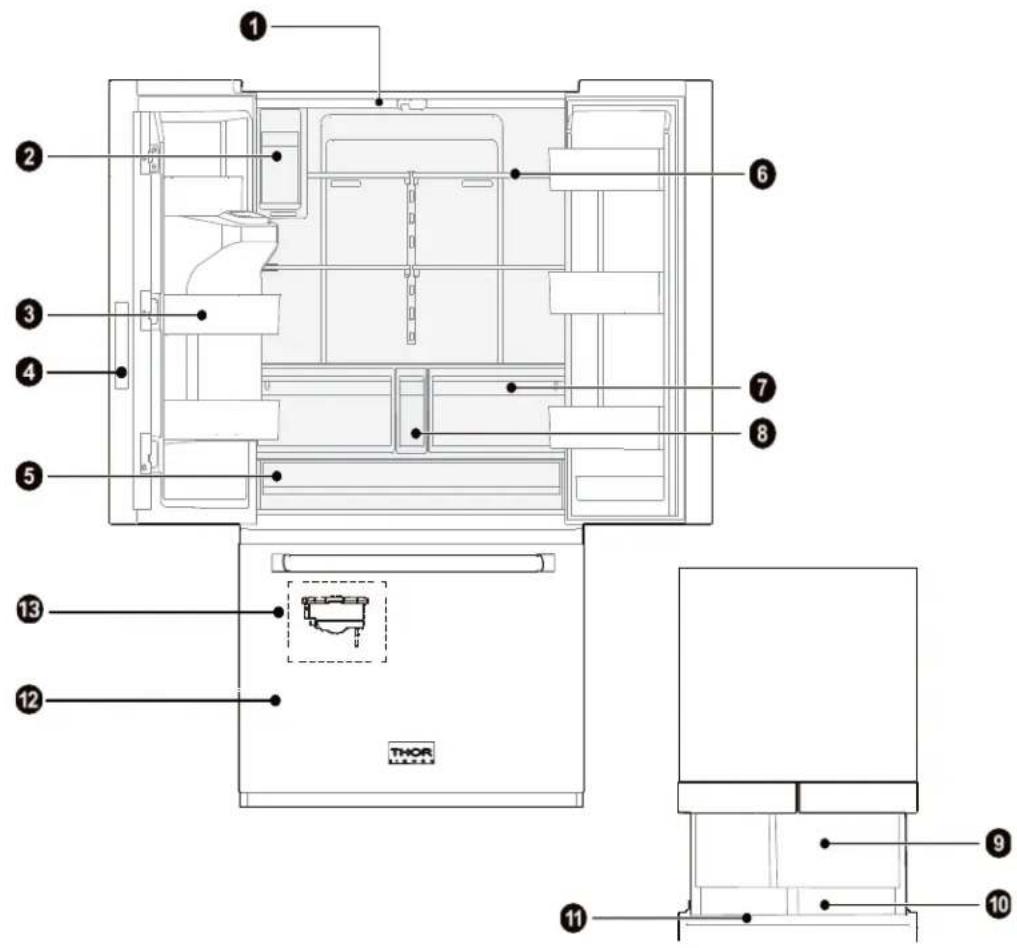

Names of components

Technical diagram of a Theror appliance with numbered components and labeled parts

1 LED lighting

8 Small drawer

2 Ice maker

9 Upper freezer drawer

3 Door tray

10 Lower freezer drawer

4 Control panal

11 Freezer tray

5 Big drawer

12 Freezer door

6 Shelf

13 Ice maker

7 Crisper drawer

ATTENTION

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor

OPERATION INSTRUCTIONS

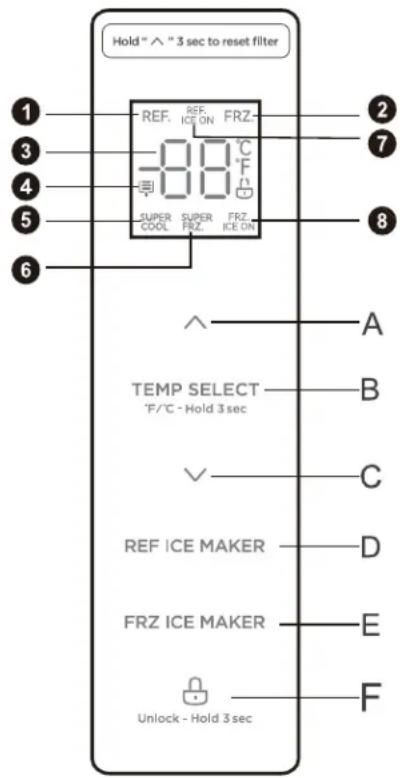

Feature Panel

Hold " ^ " 3 sec to reset filter 1 2 3 4 5 6 REF. REFRZ- ICE ON FRZ- 80 °C SUPER SUPER FRZ COOL COOL FRZ ICE ON TEMP SELECT °F/°C - Hold 3 sec ✓ C REF ICE MAKER D FRZ ICE MAKER E Unlock - Hold 3 sec F

Display
1	• Refrigerator icon
2	• Freezericon
3	• Temperature Display icon
4	• Filter Replace
5	• Super Cool icon
6	• Super Freeze icon
7	• Refrigerating Ice On icon
8	• Freezer Ice On icon
Button
A	• Temperature Up button
B	• Celsius / Fahrenheit Conversion
C	• Temperature Down button
D	• Fridgelce Make
E	• Freezer Ice Maker button
F	• Lock / Unlock b

Display

1. When the refrigerator is powered on, the display screen will fully light up for 3 seconds, the startup bell will ring, and then the display will switch to the normal operation mode. (For the first-time power-on, the default temperatures are 39^ F for the refrigerator compartment and 0^ F for the freezer compartment.)
2. The set temperatures for both the refrigerator and freezer compartments will be displayed when no faults are detected.
3. Normally, the display light turns off after 30 seconds in lock mode. Button presses wake the screen, while opening the door turns it on and closing it turns it off immediately. For "fault code visible" errors, the light stays on for 30 seconds.

ATTENTION

The actual control panel may differ from model to model.

Operating instructions

Lock/Unlock

1. In the unlock state, press and hold the lock/unlock button ☐ for 3 seconds to enter the lock state, and the buzzer sound rings.
2. In the lock state, press and hold the lock button for 3 seconds to enter the unlock state and the buzzer sound rings.
3. It will enter the lock state if there is no opening door action or any buttons operation within 30 seconds.
4. The alarm sound can be stopped by pressing any one button in lock state, but all other button operations need to be performed in unlock state. If you operate in the lock state, an error beep will be given.

Refrigerator temperature setting

- Click the button to change the set temperature of refrigerator section, Each time click the or the set temperature will drop 1°F or will rise 1°F. The temperature setting will take effect after the display panel is locked.

Freezer temperature setting

- Click the button TEMP SELECT to change the set temperature of freezer section. Each time click the √ or ∧, the set temperature will drop 1°F or will rise 1°F. The temperature setting will take effect after the display panel is locked.

Mode setting

• After setting the minimum fridge temperature at 34 °F, continue to press √ button once to enable the super cool function, and the SUPER COOL light is on; If you want to manually exit the super cool mode, press the TEMP SELECT button first, and then press ∧ button to set the temperature;
• After setting the minimum freezer temperature to -7 °F, continue to press √ button once to enable the super freeze function, and the SUPER light is on; If you want to manually exit the super freeze mode, press the TEMP SELECT button first, and then press ∧ button to set the temperature;
• Press the REF ICE MAKER button to switch on/off the fridge ice maker. Correspondingly, press the FRZ ICE MAKER button to switch on/off the freezer ice maker. When the function setting of the ice maker is switched on, the indicator light of the ice maker will be on, otherwise it will be off.

Filter element time reset

- Hold down ^for 3 seconds after filter is replaced. It will reset the filter change timeline and remind you to replace next time when the filter change is due.

Celsius and Fahrenheit conversion

- Long press the TEMP SELECT 3 seconds to achieve Celsius / Fahrenheit conversion function.

Sabbath mode

- Press the REFICE MAKER and the for 3 seconds to enter or exit Sabbath mode.

• After 6 seconds in Sabbath mode lock, the display turns off, the buzzer stays silent, the door light remains off, and the distributor shows the selected function in dim lighting.

Anticondensation heating element on/off mode.

- Press the 📄 and √ for 3 seconds. The Fahrenheit icon flashes, and then press the button for 3 seconds, and the anti-condensation heating wire shutdown function is successfully set.

- Under the above settings, unlock and enter again, continue to press the and √ for 3 seconds, the Fahrenheit icon no longer flashes. Press the button to release the anti-condensation heating element off function.

- At the same time, press and button for 3 seconds to activate or deactivate, close or open the door prompt tone.

ATTENTION

If the rear door is not closed after power-on, the machine will give an alarm, call three times after exceeding 2 minutes, and then add one alarm every 1 minute.

Fault indication

- If the following messages appear on the display, it signals an issue with the refrigerator. While cooling/freezing functions may still work, users should contact maintenance personnel to ensure proper operation of the refrigerator.

Fault Code	Fault Description
EH The humidity sensor fails
F5	Refrigerator ice maker fails to turn over ice
F4	The sensor at the bottom of refrigerator ice maker fails
CC	The defrosting sensor in the ice making chamber fails
C9	The sensor in the ice making chamber fails
CA	The communication between main control board and ice making board fails
F6	The initialization of refrigerator ice maker fails
E0	The initialization of freezer ice maker fails
E1	The temperature sensor in the refrigerator chamber fails
E2	The temperature sensor in the freezer chamber fails
E5	Frosting sensor for freezing fails
E6	The communication between display board and main control board fails
E7	The ambient temperature fails
EE	The sensor at the bottom of freezer ice maker fails
EP	Freezer ice maker fails to turn over ice

Fetching Water and Ice (Freezer Compartment)

• Sounds may occur during ice-making and crushing: the water valve may buzz, water flowing into the ice vessel may produce sounds, grinding ice into smaller pieces or ice falling into the container may cause noise, and scratching sounds can occur when removing ice cubes. These sounds are normal and not a cause for concern. Avoid placing fresh and frozen food together, as frozen food may thaw.
• If the ice in the container is stuck together, remove the container and carefully separate the ice into pieces using plastic or wooden spoons.
• Fetch ice from the ice container if a large quantity of ice is needed.
• Regularly clean the ice container to avoid unpleasant smells or taste.
• Ice and water can only be dispensed when the door is closed.
• The ice/water dispenser is on the refrigerator chamber door, offering cubed or crushed ice and cold water. It operates only when the door is placed.

Fetching crushed ice

Simple line drawing of a hand holding a cylindrical object inside a rectangular frame (no text or symbols)

• Press the CUBED button until the signal lights up.
• Push the container toward the water dispensing cushion.
• Ice cubes will then start to fall into the container.
• Remove the container from the water dispensing cushion to stop the ice dispensing process.

Fetching cold water

Simple line drawing of a hand holding a cylindrical object inside a rectangular frame (no text or symbols)

• Press the WATER button until the signal lights up.
• Push the container toward the water dispensing cushion to start the flow of cold water. Remove the container to stop the water dispensing.

Fetching crushed ice

Simple line drawing of a hand holding a cylindrical object inside a rectangular frame (no text or symbols)

- Press the CUBED button until the signal lights up. Push the container toward the water dispensing cushion to start the flow of ice cubes. Remove the container to stop dispensing ice.

Tips on Storing Food

Freezer compartment

• The freezer compartment is designated for the low-temperature freezing of food, long-term storage of frozen food, and for the production of ice cubes.
• Pay attention to the star classifications (4 star, 2 star and 1 star) in the freezer compartment and the resulting storage periods for frozen food.
• Do not put fresh and frozen food next to each other. The frozen food may thaw.
• When freezing large amounts of fresh food (such as meat, fish or chopped meat), please divide them into several small pieces before putting in, so that they can be quickly frozen and retrieved easily.
• Abide by the storage times recommended by food manufacturers on the packages. If there is no information on the packaging, food should not be stored frozen for longer than three months from the date of purchase.
• When purchasing frozen food, make sure that it was frozen at a suitable temperature and that the packaging is not damaged.
• Frozen food should be kept in suitable individual packages to ensure that adjacent food cannot be contaminated. Consume thawed and defrosted foods immediately, do not refreeze them.
• In case of prolonged power failure or malfunction of the appliance, remove the stored frozen food and check whether they are still edible, then store them in a sufficiently cool place or in another appliance.
• To defrost food, remove it from the freezer and let it defrost at room temperature or in the refrigerator. To defrost food quickly, you can use the defrost function on your microwave, for example.
• If you only want to defrost part of a pack, remove the portion you need and immediately close the rest of the pack. In this way, you will avoid “freezer burn” and will reduce ice formation on the remaining foods.

Cooling compartment

• To reduce moisture and subsequent ice build-up, never put liquid into the refrigerator in unsealed containers. Frost tends to concentrate in the coolest parts of the evaporator. Storing uncovered liquids results in a more frequent need for defrosting.
• Never put warm foods in the refrigerator. These should first cool down at room temperature and then be placed so as to ensure adequate air circulation in the refrigerator.
• Foods or food containers should not touch the back wall of the refrigerator because they could freeze to the wall. Do not keep regularly opening the door of the refrigerator.
• Meat and clean fish (packed in a package or plastic foil) can be placed in the refrigerator, which can be used in 1–2 days.
• Fruit and vegetables without packaging can be placed in the part designated for fresh fruit and vegetables.

ATTENTION

Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator.

CLEANING AND MAINTENANCE

Defrosting

- The refrigerator operates on the air-cooling principle and features an automatic defrosting function. Frost caused by seasonal or temperature changes can also be manually removed by unplugging the appliance or wiping it with a dry towel.

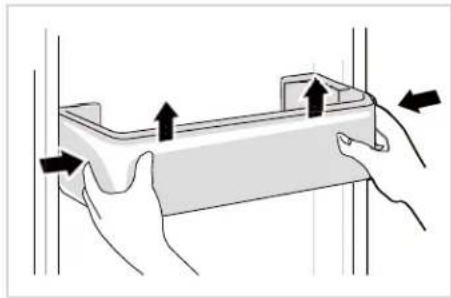

Cleaning of Door Tray

• Follow the arrow shown in the figure to the right: squeeze the tray with both hands, push it upwards, and remove it.
  • After cleaning the removed tray, you can adjust its installation height as needed.

Illustration of two hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

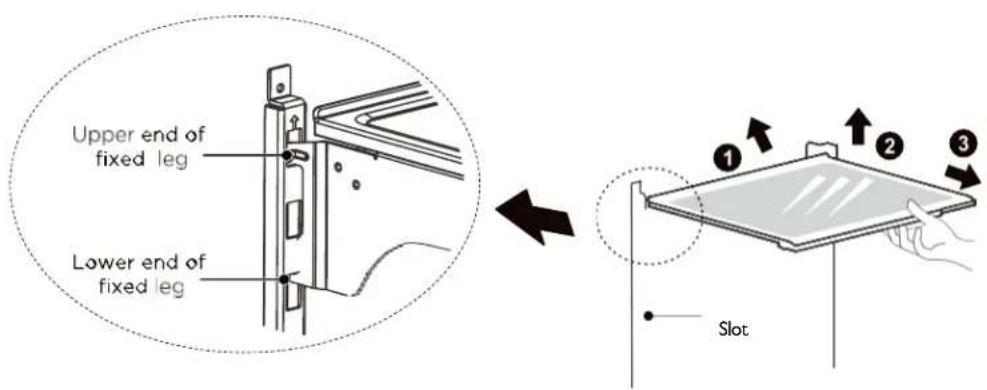

Cleaning the Glass Shelf

Upper end of fixed leg Lower end of fixed leg Slot

To remove the cantilever shelf, follow the directions shown in the arrows above:

1. Hold the front edge of the shelf and tilt it inward until the lower end of the fixed leg detaches from the supporting iron slot.
2. Lift the entire shelf until it cannot go higher.
3. Pull the shelf out horizontally.

During installation, put the upper end of the fixed leg into one of the upper slots on the supporting iron first and then put the lower end of the fixed leg into the third slot on the lower part of the supporting iron.

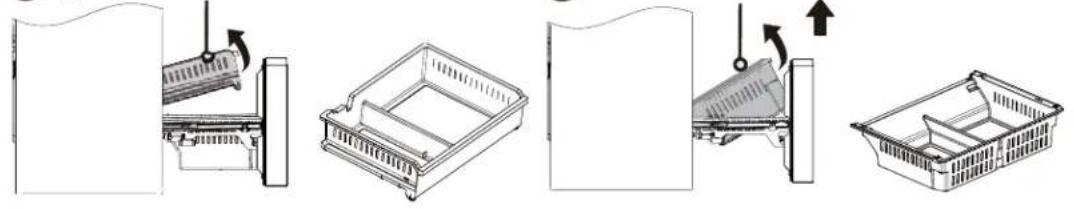

Cleaning the Freezer Lower Drawer

① Upper freezer drawer

Illustration of a refrigerator interior with hand gestures indicating move (no text or symbols)

Upper freezer drawer :

- Open the freezing chamber door to the maximum stroke, lift the tail of the upper drawer of the freezing chamber, take out the upper freezer drawer.

Lower freezer drawer :

- Open the freezing chamber door to the maximum stroke, Lift the end of the lower freezer drawer and lift it up.

ATTENTION

Note: Don't remove the lower freezer drawer if not necessary.

Stop Using

Power Failure:

During a power failure, even in summer, the food inside the appliance can remain preserved for several hours. Minimize door openings and avoid adding fresh food during this time.

Extended Periods of Nonuse:

Unplug the appliance, clean it thoroughly, and leave the doors open to prevent odors.

Moving:

Before moving the refrigerator, empty its contents, secure the glass shelves, vegetable bins, and freezer drawers with tape, and tighten the leveling feet. Close and tap the doors. During transport, keep the appliance upright to avoid vibrations, ensuring an inclination of no more than 45^ .

ATTENTION

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted; otherwise the service life may be impaired. Foods can be preserved for a couple of hours even in summer in case of power failure; it is recommended to reduce the frequency of opening the doors.

TROUBLESHOOTING

The following simple issues can be handled by the user. Please call the after-sale service department if the issues are not solved.

Problem Possible reason
Failed operation	·Check the appliance is properly connected to power and the plug is securely in place.
	·Check whether the voltage is too low.
	·Check whether there is a power failure or partial circuits have tripped.
Odor	·Odorous foods should be tightly wrapped.
	·Check whether there is any rotten food.
	·Clean the inside of the refrigerator.
Prolonged compressor operation	·Long operation of the refrigerator is normal in summer.
	·When the ambient temperature is high, it is not advisable to store excessive food in the appliance simultaneously.
	·Food should be cooled being placed in the appliance.
	·The doors are being too frequently opened.
Light does not turn on	·Check whether the refrigerator is connected to power supply and whether the illuminating light is damaged
	·Have the light replaced by a specialist
Door can not be properly closed	·Door is blocked by food packaging or there is too much food.
	·The refrigerator is tilted.
Loud noises	·Check whether the floor is level and whether the refrigerator is placed stably.
	·Check whether accessories are placed at proper locations.

Problem Possible reason
Door seal fails to be tight	Remove foreign materials on the door seal.
	Heat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating).
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.
	The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting.
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal When housing becomes hot due to high ambient temperature, storage of too much food or shutdown of the compressor is shut down, provide sound ventilation to facilitate heat dissipation
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensation with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce a creaking noise, which is normal.

WARRANTY

Warranty & Service

This product has been manufactured by Thor International, 4651 E Airport Dr, Ontario, CA 91761

For Customer Service, please call (877) 288 - 8099

For the most up to date warranty and service policy, please refer to our website

WWW.THORKITCHEN.COM/WARRANTY-REGISTRATION

For in-warranty service requests, please visit our website at

WWW.THORKITCHEN.COM/SERVICE

Please Note: You must provide proof of purchase or installation date for any inwarranty service requests.

WELCOME TO THE CLUB

You chose THOR Kitchen to enhance your culinary journey and we're stoked to have you in the club. Think of it as a secret society of really savvy people, such as yourself, choosing professional power and performance at an affordable price.

Register your product by following the steps below.

WARRANTY REGISTRATION

Scan the QR code or visit thorkitchen.com/warranty

Input your product info and select register

You're done. Let's get cookin'.

?STRAP DEENY

THOR

THOR

MANUEL D'UTILISATION ET D'ENTRETIEN

D'UTILISATION ET D'ENTRETIEN

MERCI POUR VOTRE ACHAT

Risk of fire / Flammable material

Technical diagram of a Theror appliance with numbered components and labeled parts

Simple line drawing of a hand holding a cylindrical object inside a rectangular frame (no text or symbols)

Simple line drawing of a hand holding a cylindrical object, enclosed in a rectangular frame (no text or symbols)

Simple line drawing of a hand holding a cylindrical object inside a rectangular frame (no text or symbols)

Illustration of hands holding a rectangular object with arrows indicating force or movement (no text or symbols)

Upper end of fixed leg Lower end of fixed leg Fente
