USER MANUAL GDS18V-230C Professional BOSCH

Safety SymbolsThe definitions below describe the level of severity for each signal word.Please read the manual and pay attention to these symbols.
	This is the safety alert symbol. It is used to alert you to potential personal injury hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.
	DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.
	WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.
	CAUTION indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

Table of Contents

General Power Tool Safety Warnings.....3

Additional Safety Warnings .... 5

FCC Caution 7

Industry Canada 7

Intended use .... 7

Symbols....9

Getting to Know Your Product.....11

Assembly 13

Inserting and Removing

the Battery Pack 13

Inserting and Removing

Accessories 13

GCY42 Connectivity Module

Installation....14

Connectivity....15

Bluetooth ^® 15

Think safety 15

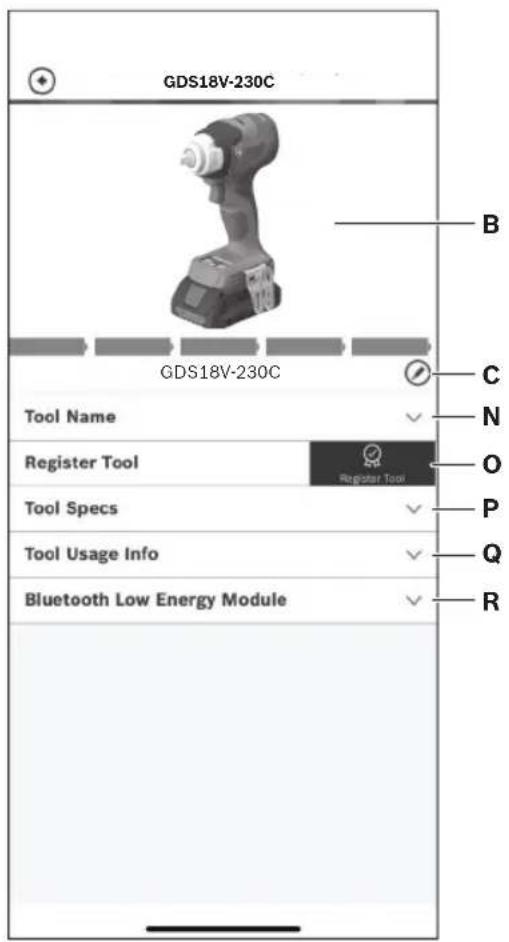

Using "Bosch Toolbox" App ..... 15

Operating Instructions....17

Variable Speed Controlled

Trigger Switch ..... 17

Brake 17

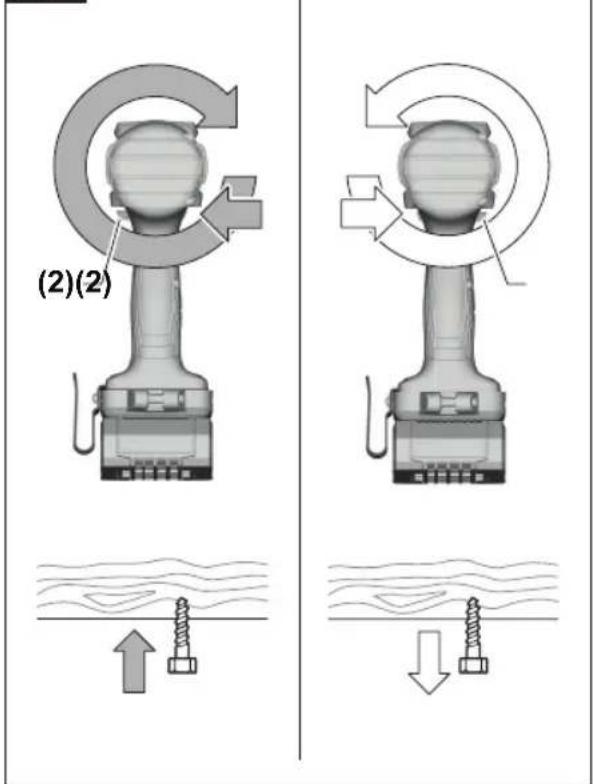

Forward/Reversing Lever and

Trigger Lock....17

Built-In Work Light....17

Operating tips .... 17

User Interface 19

Belt Clip....19

Maintenance 20

Service....20

Batteries 20

Tool Lubrication....20

Motors 20

Cleaning....20

Accessories 20

General Power Tool Safety Warnings

WARNING

Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure to follow all instructions listed be-

low may result in electric shock, fire and/or serious injury.

SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE

The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents.
b. Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c. Keep children and bystanders away while operating a power tool. Distractions can cause you to lose control.

2. Electrical safety

a. Power tool plugs must match the outlet. Never modify the plug in any way. Do not use any adapter plugs with earthed (grounded) power tools. Unmodified plugs and matching outlets will reduce risk of electric shock.
b. Avoid body contact with earthed or grounded surfaces, such as pipes, radiators, ranges and refrigerators. There is an increased risk of electric shock if your body is earthed or grounded.
c. Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
d. Do not abuse the cord. Never use the cord for carrying, pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
e. When operating a power tool outdoors, use an extension cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
f. If operating a power tool in a damp location is unavoidable, use a Ground Fault Circuit Interrupter (GFCI) protected supply. Use of an GFCI reduces the risk of electric shock.

3. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce personal injuries.
c. Prevent unintentional starting. Ensure the switch is in the off-position before connecting to power source and / or battery pack, picking up or carrying the tool. Carrying power tools with your finger on the switch or energizing power tools that have the switch on invites accidents.
d. Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury.
e. Do not overreach. Keep proper footing and balance at all times. This enables better control of the power tool in unexpected situations.
f. Dress properly. Do not wear loose clothing or jewelry. Keep your hair and clothing away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
g. If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used. Use of dust collection can reduce dust-related hazards.
h. Do not let familiarity gained from frequent use of tools allow you to become complacent and ignore tool safety prin-

General Power Tool Safety Warnings

ciples. A careless action can cause severe injury within a fraction of a second.

4. Power tool use and care

a. Do not force the power tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it was designed.
b. Do not use the power tool if the switch does not turn it on and off. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
c. Disconnect the plug from the power source and/or remove the battery pack, if detachable, from the power tool before making any adjustments, changing accessories, or storing power tools. Such preventive safety measures reduce the risk of starting the power tool accidentally.
d. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users.
e. Maintain power tools and accessories. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. If damaged, have the power tool repaired before use. Many accidents are caused by poorly maintained power tools.
f. Keep cutting tools sharp and clean. Properly maintained cutting tools with sharp cutting edges are less likely to bind and are easier to control.
g. Use the power tool, accessories and tool bits etc. in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations different from those intended could result in a hazardous situation.
h. Keep handles and grasping surfaces dry, clean and free from oil and grease. Slippery handles and grasping surfaces do not allow for safe handling and control of the tool in unexpected situations.

5. Battery tool use and care

a. Recharge only with the charger specified by the manufacturer. A charger that is suitable for one type of battery pack may create a risk of fire when used with another battery pack.
b. Use power tools only with specifically designated battery packs. Use of any other battery packs may create a risk of injury and fire.
c. When battery pack is not in use, keep it away from other metal objects like paper clips, coins, keys, nails, screws, or other small metal objects that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire.
d. Under abusive conditions, liquid may be ejected from the battery; avoid contact. If contact accidentally occurs, flush with water. If liquid contacts eyes, additionally seek medical help. Liquid ejected from the battery may cause irritation or burns.
e. Do not use a battery pack or tool that is damaged or modified. Damaged or modified batteries may exhibit unpredictable behaviour resulting in fire, explosion or risk of injury.
f. Do not expose a battery pack or tool to fire or excessive temperature. Exposure to fire or temperature above 265 °F may cause explosion.
g. Follow all charging instructions and do not charge the battery pack or tool outside the temperature range specified in the instructions. Charging improperly or at temperatures outside the specified range may damage the battery and increase the risk of fire.

6. Service

a. Have your power tool serviced by a qualified repair person using only identical replacement parts. This will ensure that the safety of the power tool is maintained.
b. Never service damaged battery packs. Service of battery packs should only be performed by the manufacturer or authorized service providers.

Safety Rules for Cordless Impact Wrenches

a. Hold the power tool by insulated gripping surfaces, when performing an operation where the fastener may contact hidden wiring. Fasteners contacting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock.
b. Use clamps or another practical way to secure and support the workpiece to a stable platform. Holding the work by hand or against your body leaves it unstable and may lead to loss of control.
c. Do not drive fasteners into existing walls or other blind areas where electrical wiring may exist. If this situation is unavoidable, disconnect all fuses or circuit breakers feeding this worksite.
d. Use only sockets designed for power impact wrenches. Sockets designed for hand use may break under the load this tool generates.
e. Be certain to seat the socket completely and securely on the output drive.
f. Do not use worn or damaged sockets.
g. Select the correct size sockets and keep the inside of the socket clean.

h. Do not allow a loose fastener to spin freely within the socket. The fastener may be thrown out of the socket.
i. Use thick cushioned gloves and limit the exposure time by taking frequent rest periods. Vibration caused by impact driver action may be harmful to your hands and arms.
j. Remove battery pack before changing accessories. Accidental starting may occur because battery appliances with a battery inserted are in the operative condition.
k. Be prepared for a reaction torque when "seating" or removing a fastener. The tool housing may tend to twist in the opposite direction of accessory rotation when "seating" or removing a fastener depending on the torque setting of the tool.
I. Do not run the tool while carrying it at your side. The rotating drive could become entangled with clothing and injury may result.
m. Place the tool onto the fastener only when the tool is switched off. Rotating driver tools can slide off the fastener.

Additional Safety Warnings

GFCI and personal protection devices like electrician's rubber gloves and footwear will further enhance your personal safety.

Develop a periodic maintenance schedule for your tool. When cleaning a tool be careful not to disassemble any portion of the tool since internal wires may be misplaced or pinched or safety guard return springs may be improperly mounted. Certain cleaning agents such as gasoline, carbon tetrachloride, ammonia, etc. may damage plastic parts.

Ensure trigger lock is engaged before inserting battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.

WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are:

• Lead from lead-based paints,
  • Crystalline silica from bricks and cement and other masonry products, and
• Arsenic and chromium from chemically-treated lumber.

Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles.

Additional Safety Warnings

WARNING

• INGESTION HAZARD: This product contains a button cell or coin battery.
• DEATH or serious injury can occur if ingested.
• A swallowed button cell or coin battery can cause Internal Chemical Burns in as little as 2 hours.
• KEEP new and used batteries OUT OF REACH of CHILDREN.
• Seek immediate medical attention if a battery is suspected to be swallowed or inserted inside any part of the body.

Remove and immediately recycle or dispose of used batteries according to local regulations and keep away from children. Do NOT dispose of batteries in household trash or incinerate.

Even used batteries may cause severe injury or death.

Call a local poison control center for treatment information.

This product is compatible with CR2032 batteries with a nominal battery voltage of 3V.

Non-rechargeable batteries are not to be re-charged.

Do not force discharge, recharge, disassemble, heat above (manufacturer's specified temperature rating) or incinerate. Doing so may result in injury due to venting, leakage or explosion resulting in chemical burns.

Ensure the batteries are installed correctly according to polarity (+ and -).

Do not mix old and new batteries, different brands or types of batteries, such as alkaline, carbon-zinc, or rechargeable batteries.

Remove and immediately recycle or dispose of batteries from equipment not used for an extended period of time according to local regulations.

Always completely secure the battery compartment. If the battery compartment does not close securely, stop using the product, remove the batteries, and keep them away from children.

FCC Caution

The manufacturer is not responsible for radio interference caused by unauthorized modifications to this equipment. Such modifications could void the user's authority to operate the equipment.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This device may not cause harmful interference, and
2) This device must accept any interference received, including interference that may cause undesired operation.

NOTE! This equipment has been tested and found to comply with the limits for a Class B digital devices, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

"Exposure to Radio Frequency (RF) Signals: The wireless device is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limit for exposure to radio frequency (RF) energy set by the Ministry of Health (Canada), Safety Code 6. These limits are part of comprehensive guidelines and established permitted levels of RF energy for the general population.

These guidelines are based on the safety standards previously set by international standard bodies. These standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health.

This device and its antenna must not be co-located or operating in conjunction with any other antenna or transmitter.

Industry Canada

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:

(1) this device may not cause interference, and

(2) this device must accept any interference, including interference that may cause undesired operation of the device.

Intended use

WARNING

This tool is intended for the tightening and loosening of bolts, nuts and various threaded fasteners. This tool is not intended for use as a drill.

Specifications

Model Number GDS18V-230C
Voltage rating 18 V
No load speed
- Setting 1 0–1200 RPM
- Setting 2 0–1900 RPM
- Setting 3 0–2800 RPM
Impact rate
- Setting 1 0–2400 IPM
- Setting 2 0–3100 IPM
- Setting 3 0–3800 IPM
Maximum torque
- Setting 1 130 Ft-lbs
- Setting 2 160 Ft-lbs
- Setting 3 230 Ft-lbs
Breakaway torque 400 Ft-lbs
Output drive 3/8” Square drive with Friction Ring
Weight tool only 2.65 lbs
Permitted battery temperature during charging	+32...+113°F (0...+45°C)
Permitted ambient temperature during operation and storage	-4...+122°F (-20...+50°C)
Recommended ambient temperature during charging	+32...+95°F (0...+35°C)
Data Transmission (GCY42 installed)
Bluetooth® Bluetooth® 4.1 (Low Energy)	A
Signal interval, approx. 8 s
Signal range	maximum 98ftB

A The mobile terminal devices must be compatible with Bluetooth® Low Energy devices (version 4.1) and support the Generic Access Profile (GAP).

B The signal range may vary greatly depending on external conditions. The Bluetooth® range may be significantly weaker inside closed rooms and through metallic barriers (e.g. walls, shelving units, cases, etc.).

Battery Packs / Chargers:

Please refer to the battery/charger list, included with your tool.

NOTE: For tool specifications refer to the nameplate on your tool.

Symbols

Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation/Explanation
V Volts (voltage)
A Amperes (current)
Hz Hertz (frequency, cycles per second)
W Watt (power)
kg Kilograms (weight)
min Minutes (time)
s Seconds (time)
∅	Diameter (size of drill bits, grinding wheels, etc.)
n_0	No load speed (rotational speed, at no load)
n Rated	speed (Maximum attainable speed)
.../min	Revolutions or reciprocation per minute (revolutions, strokes, surface speed, orbits etc. per minute)
0 Off position (zero speed, zero torque...)
1, 2, 3, ...I, II, III,	Selector settings (speed, torque or position settings. Higher number means greater speed)
0	Infinitely variable selector with off (speed is increasing from 0 setting)
→	Arrow (action in the direction of arrow)
~	Type or a characteristic of current
---	Type or a characteristic of current
~	Type or a characteristic of current
☐	Designates Double Insulated Construction tools
⊕	Grounding terminal

Symbols

Important: Some of the following symbols may be used on your tool. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the tool better and safer.

Symbol Designation/Explanation
	Alerts user to read manual.
	Alerts user to wear eye protection.
	Alerts user to wear respiratory protection.
	Alerts user to wear hearing protection.
	Alerts user to wear eye, respiratory, and hearing protection.
	This symbol designates that this tool is listed by the Canadian Standards Association, to United States and Canadian Standards.
	Designates Li-ion battery recycling program.
	This WARNING symbol indicates CONTAINS COIN BATTERY. This product contains a button cell or coin battery.
	This WARNING symbol indicates INGESTION HAZARD. This product contains a button cell or coin battery.

Getting to Know Your Product

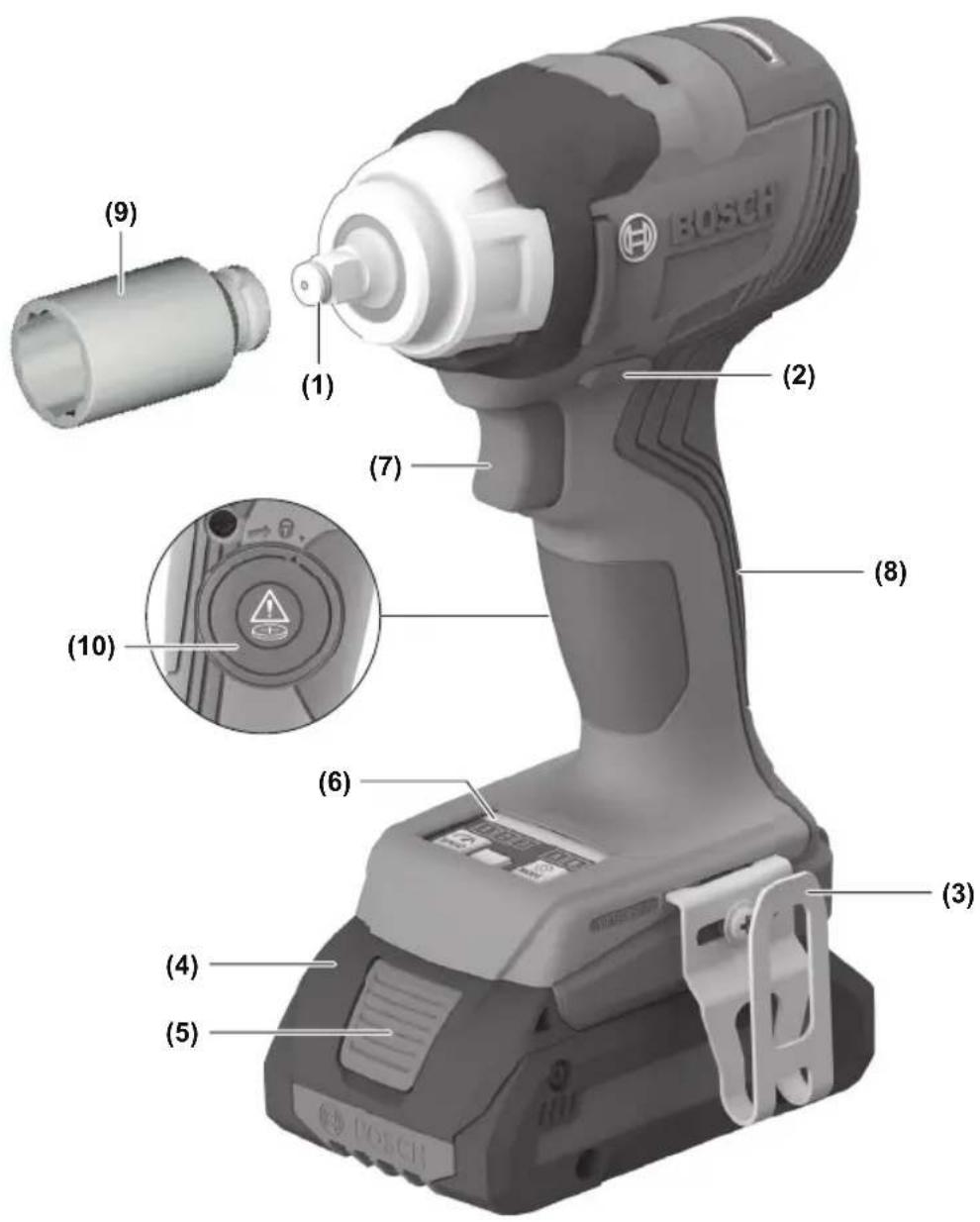

Fig. 1
Cordless Impact Wrench GDS18V-230C

(9) (1) (2) (7) (8) (10) (6) (3) (4) (5) BOSCH

Getting to Know Your Product

1 Output Drive
2 Forward/Reversing Lever and Trigger Lock
3 Belt Clip
4 Battery Pack*
5 Battery Pack Release Button*
6 User Interface
7 Variable Speed Trigger Switch
8 Handle (insulated gripping surface)
9 Socket*
10 Connectivity Module Compartment

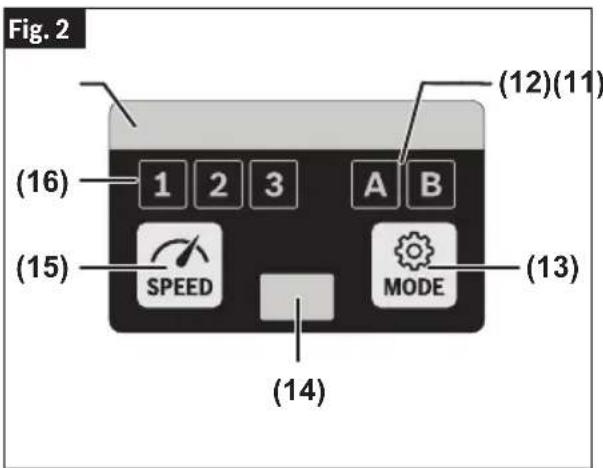

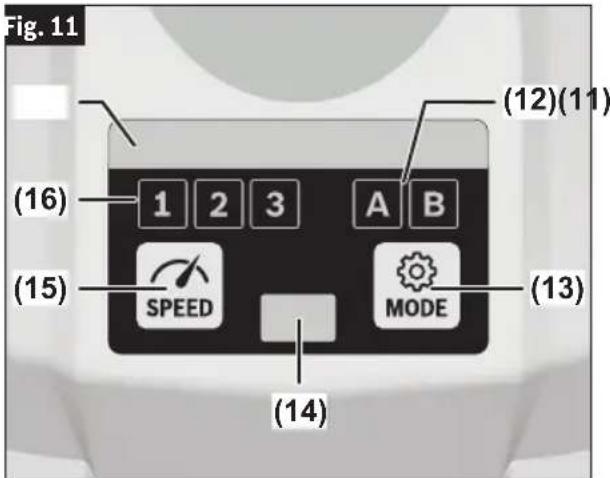

Fig. 2 (16) 1 2 3 A B (15) SPEED MODE (14)

User Interface

11 Status Indicator LED
12 Mode Selection Indicator
13 Mode Button
14 Worklight
15 Speed Preselection Button
16 Speed Preselection Level Indicator

*Accessories shown or described are not included with the product as standard. You can find the complete selection of accessories in our accessories range.

Assembly

WARNING

Disconnect battery pack from tool before making any assembly, adjustments or changing accessories. Such preventive safety measures reduce

the risk of starting the tool accidentally.

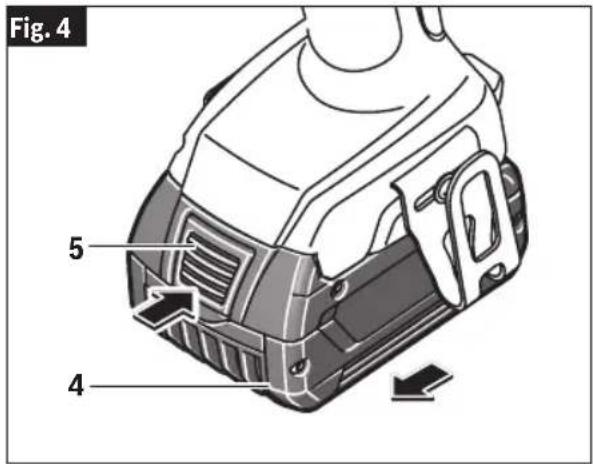

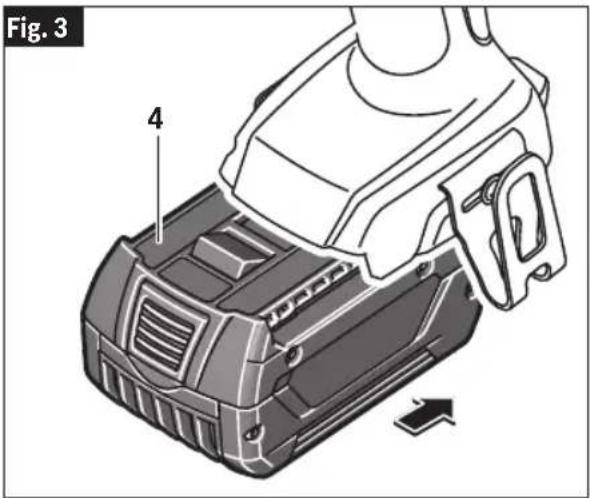

Inserting and Removing the Battery Pack

WARNING

Use only Bosch or AMP-Share batteries recommended in the battery/charger list, included with your tool. Use of any other types of batteries may result in personal injury or property damage.

WARNING

Ensure the trigger lock is engaged before inserting

battery pack. Inserting the battery pack into power tools that have the switch on invites accidents.

To Insert the Battery Pack

(Fig. 3)

1. Set Trigger Lock 2 to the locked position.
2. Slide charged Battery Pack 4 into the housing until the battery pack locks into position.

Your tool is equipped with a secondary locking latch to prevent the battery pack from completely falling out of the handle, should it become loose due to vibration.

To Remove the Battery Pack

(Fig. 4)

1. Press the Battery Pack Release Button 5 and slide the Battery Pack 4 from the housing.
2. Press the Battery Pack Release Button 5 again and slide the Battery Pack 4 completely out of tool housing.

Inserting and Removing Accessories

(Fig. 5)

Attach only high quality impact ready accessories with the proper size square drive designed for use with impact wrenches.

Your tool is equipped with with a 3/8" square drive 1 with friction ring.

To install a socket 9, simply push completely onto output drive 1.

Technical illustration of a mechanical component with labeled parts and directional arrow (no text or symbols beyond labels)

Fig. 4 5 4

Fig. 5 (9) (1)

To remove, simply pull socket off the output drive.

Assembly

GCY42 Connectivity Module Installation

WARNING

To reduce the risk of in- jury read the operating instructions included with Bosch GCY42 connectivity module. Operating instructions for GCY42 connectivity module include important information not covered in this manual.

WARNING

Only use Button/coin cell 3V lithium CR2032 battery. Do not use any other button/coin cells or other forms of electrical power supply.

WARNING

Ensure that battery replacement is carried out properly. There is a risk of explosion.

WARNING

Chemical Burn Hazard. Keep batteries away from children. This product contains a lithium button/coin cell battery. If a new or used lithium button/coin cell battery is swallowed or enters the body, it can cause severe internal burns and can lead to death in as little as 2 hours. If you think a battery might have been swallowed or placed inside any part of the body, seek immediate medical attention.

WARNING

Always completely secure the connectivity module compartment. If the connectivity module compartment does not close securely, stop using the product, remove the battery, and keep it away from children.

WARNING

When discarding batteries, insulate the '+' and ‘-’ terminals with insulating tape. When disposed of improperly, lithium batteries may short, causing them to become hot, burst or ignite.

WARNING

Never dispose of the batteries in a fire or expose to high heat. The batteries may explode.

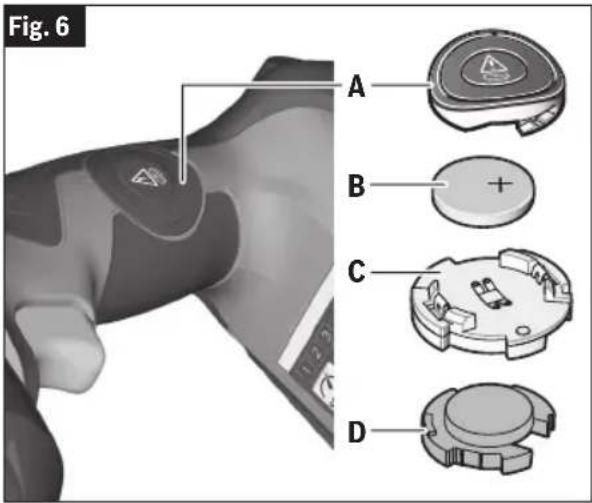

Fig. 6 A B + C D

If GCY42 connectivity module is not purchased with the tool, or if the replacement of the module or the battery becomes necessary, please follow this procedure (See Fig. 6):

— Push down and rotate counterclockwise, using two fingers or thumbs, and remove the cover (A) from the side of the handle.

- If the tool is already equipped with the connectivity module, remove the battery (B), but do not remove the connectivity module (C).

- If the connectivity module is installed for the first time, remove the plastic placeholder (D) from the connectivity module compartment, and place the connectivity module (C) in the compartment observing correct orientation. Note: Store the placeholder (D) in a safe place. Reinsert the placeholder again if the communications module is removed.

- Next place new battery (B) on the top of the connectivity module with the "+" polarity facing up.

— Place the cover (A) over the battery, and push down and rotate clockwise, using two fingers or thumbs, until the arrow on the cover is aligned with the arrow on the tool housing.

Connectivity

WARNING

To reduce the risk of injury read the operating instructions included with Bosch GCY42 connectivity module. Operating instructions for GCY42 con-

nectivity module include important information not covered in this manual.

Bluetooth®

WARNING

Do not use the power tool with Bluetooth® in the vicinity of gas stations, chemical plants, areas where there is danger of explosion and areas subject to blasting. Do not use the power tool with Bluetooth® in airplanes. Do not use the power tool with Bluetooth® in the vicinity of medical devices. Avoid operation in the direct vicinity of the human body over longer periods of time. When using the power tool with Bluetooth®, interference with other devices and systems, airplanes and medical devices (e.g., cardiac pacemakers, hearing aids) may occur. The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Robert Bosch Tool Corporation is under license.

WARNING

Follow all instructions and warnings provided by your Bluetooth ^® device manufacturer. Failure to follow recommended procedures could result in personal injury or property damage.

WARNING

Exercise extreme caution when using Bluetooth® devices to control or change power tool functions. Operation of the device may be in a different area than the paired power tool. Paired devices may have functionality which allows timed event programming, including automatically powering on (e.g. flood light). Depending upon the power tool, these unattended operations or function changes without direct line of sight to the paired tool could result in personal injury or property damage.

CAUTION

Always check tool settings before use. Settings may be different than when the tool was last used. The connectivity module enables transfer of data and settings based on Bluetooth® wireless technology. With module installed, select tool settings may be changed remotely by a paired Bluetooth® device and user installed app.

CAUTION

The connectivity module GCY42 is equipped with a radio interface. Local operating restrictions, e.g. in military sites or hospitals, are to be observed. Transmitters have demonstrated an ability to unintentionally interfere with other devices.

Think safety

SAFETY IS A COMBINATION OF OPERATOR COMMON SENSE AND ALERTNESS AT ALL TIMES WHEN THE TOOL IS BEING USED.

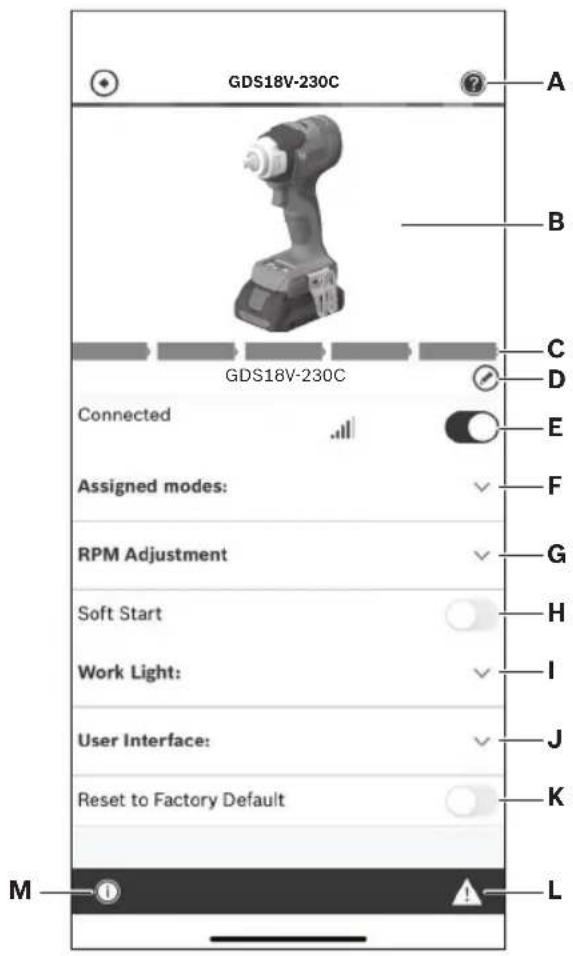

Using "Bosch Toolbox" App

After pairing your tool with a mobile device you can adjust certain functions or check the status of the power tool using Bosch Toolbox app (Fig. 7 and Fig. 8).

Every time you change any setting, the tool will confirm the changes by flashing the Status indicator LED 11 blue.

A. Help button – Tapping this button will bring up help screen.

B. Tool photo – Tapping the photo will let you customize the photograph of the tool.

C. Power tool battery charge status – The number of battery icons in green indicates the estimated charge level of the battery pack. Note: Number of battery icons may not be equal to the number of LEDs on the battery fuel gauge.

D. Power tool nickname – Tapping the “pencil” icon will let you customize the tool nickname. You can also do it when changing the tool photo.

E. Connection status bar – The connection (signal) strength is indicated by vertical bars. You can use the toggle switch to disconnect the tool from your mobile device.

F. Assigned modes – Allows you to define two modes of operation (A and B), specifying options such as Auto Shut Off, Auto Slow Down, and the direction of rotation for each mode.

G. RPM Adjustment – Allows you to select the rotation speed.

Connectivity

H. Soft Start – Allows speed ramp-up of the tool.

I. Work Light – Allows you to set the work light's brightness and afterglow.

J. User Interface – Allows you to set the brightness and afterglow of the user interface.

K. Reset to Factory Default – Returns the tool to its original settings.

L. Tool alerts – Tapping the alerts triangle will display any alerts received from the tool.

M. Info button - Displays tool information and specifications.

N. Tool Name - Tapping this displays the tool's model, serial number, manufacturing date, and baretool number.

O. Register Tool – Tapping this registers the tool.

P. Tool Specs - Tapping this displays the tool's voltage, maximum torque, no load speed, impact rate, drive/bit holder type, head length, and weight (excluding battery).

Q. Tool Usage Info - Tapping this displays the tool's run time.

R. Bluetooth Low Energy Module – Tapping this displays the Bluetooth module's name, firmware version, and whether the firmware is up to date.

Note: Refer to the in-app Help screen (A) for more information on connectivity features, modes, and settings.

Fig. 7

GDS18V-230C Connected Assigned modes: RPM Adjustment Soft Start Work Light: User Interface: Reset to Factory Default M A B C D E F G H I J K L

GDS18V-230C GDS18V-230C Tool Name Register Tool Tool Specs Tool Usage Info Bluetooth Low Energy Module B C N O P Q R

Operating Instructions

Variable Speed Controlled Trigger Switch

(Fig. 1)

Your tool is equipped with a variable speed trigger switch. The tool can be turned "ON" or "OFF" by squeezing or releasing the trigger. The speed can be adjusted from the minimum to maximum nameplate RPM by the pressure you apply to the trigger. Apply more pressure to increase the speed and release pressure to decrease speed.

Brake

When the trigger switch is released it activates the brake to stop the chuck quickly. This is especially useful in the repetitive driving and removal of screws.

Forward/Reversing Lever and Trigger Lock

WARNING

After tool use, engage trigger lock in center position to help prevent accidental starts and accidental discharge.

CAUTION

Do not change direction of rotation until the tool comes to a complete stop. Shifting during rotation of the chuck can cause damage to the tool.

(Fig. 9)

Your tool is equipped with a Forward/Reversing Lever and Trigger Lock 2 located above the trigger. This lever was designed for changing rotation of the socket, and for locking the trigger in an "OFF" position.

To lock the trigger, move the lever to the center.

For forward rotation, (with chuck pointed away from you) move the lever to the far left.

For reverse rotation move the lever to the far right. To activate trigger lock move lever to the center off position.

Fig. 9

(2)(2)

Built-In Work Light

Your tool is equipped with an LED light 14 for better visibility when using the tool.

After the trigger 7 is activated, the LED will then stay on for 10 seconds. The length of time for afterglow can be changed in 'Bosch ToolBox' app setting (if connected).

Operating tips

You will extend the life of your bits and do neater work if you always put the bit in contact with the work before pulling the trigger. During the oper a tion, hold the tool firmly and exert light, steady pressure. Too much pressure at low speed will stall the tool. This can be damaging to both tool and bit.

Driving with Variable Speed

The technique is to start slowly, increasing the speed as the screw runs down. Set the screw snug ly by slowing to a stop. Prior to driving screws, pilot and clearance holes should be drilled.

Operating Instructions

Always hold the tool straight on the bolt to be tightened.

The best method to determine the right impacting/tightening duration is by means of a trial. For small screws, the right impacting/tightening duration can be reached in less than 0.5 Sec. Therefore, work with low RPM and switch the tool off immediately when the screw is tight and the impacting sound can be heard.

For screwing larger, longer wood screws into hard material, pre-drilling is the best method.

Tightening Torque

The tightening torque depends on the duration of the impacting/tightening action.

The largest tightening torque is achieved after approx. 6 to 10 Sec. impacting/tightening action.

The torque build-up depends on the following factors:

• Hardness of the bolts/nuts.
- Type of washer (disk washer, spring washer, seal).
• Hardness of the material to be joined.
- Lubricating effect at the surfaces of the junction.

This leads to the following application cases:

Hard joining application: The joining of metal to metal with a disk washer. The maximum torque is reached after a relative short impacting/tightening action.

Medium joining application: The joining of metal to metal when using spring ring washer, disk spring washer, stud bolts or bolts/nuts with conical seats.

Soft joining application: The joining of e.g. metal to wood or insulation material.

For middle or soft joining cases, the maximum tightening torque is less than for hard cases. Therefore, a longer impacting/tightening action is necessary to arrive at the maximum tightening torque.

Fastening with Screws

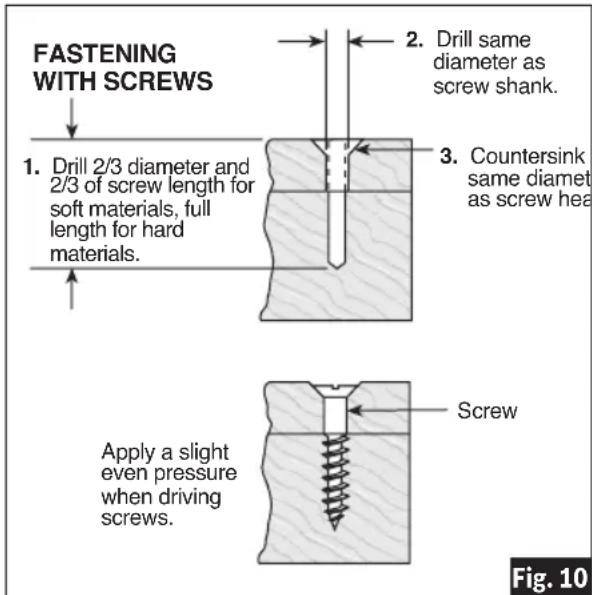

The procedure shown in (Fig. 10) will help to fasten materials together with your tool and will reduce the possibility of stripping, splitting or separating the material.

FASTENING WITH SCREWS 1. Drill 2/3 diameter and 2/3 of screw length for soft materials, full length for hard materials. 2. Drill same diameter as screw shank. 3. Countersink same diamet as screw heat Apply a slight even pressure when driving screws. Screw Fig. 10

First, clamp the pieces together and drill the first hole 2/3 the diameter of the screw. If the material is soft, drill only 2/3 the proper length. If it is hard, drill the entire length.

Second, unclamp the pieces and drill the second hole the same diameter as the screw shank in the first or top piece of wood.

Third, if flat head screw is used, countersink the hole to make the screw flush with the surface. Then, simply apply even pressure when driving the screw. The screw shank clearance hole in the first piece allows the screw head to pull the pieces tightly together.

Driving Nuts and Bolts

Use variable speed control with caution for driving nuts and bolts with socket attachments. The technique is to start slowly, increasing speed as the nut or bolt runs down. The nut or bolt is set when the socked comes to a stop.

Note: Ensure that no metal particles enter the power tool. After working at a low speed for an extended period, you should operate the power tool at the maximum speed for approximately three minutes without load to cool it down.

Cold Weather Use (32°F)

Due to the lubrication used in the impacting mechanism, the tool should be ran for three minutes at no load prior to actual usage. This will warm the lubricant and provide better performance.

Operating Instructions

User Interface

(Fig. 11)

Status Indicator LED

The LED bar at the top of the user interface illuminates in various colors to help the user identify the status of the tool. When the Status Indicator LED 11 is green, the tool and battery pack are operating normally and temperatures are ok. If the indicator changes to yellow, it means that the tool or battery temperatures have risen to a high level, and the use of the tool must stop to allow the tool to cool off. It is best to back off the load and give the tool chance to cool down. If the indicator turns red, the tool will shut off to protect itself and/or the battery pack from an overheating situation.

The Status Indicator LED 11 will also blink blue when the Speed 15 or Mode 13 buttons are held for 7 seconds. This will reset the tool settings to factory default.

Selecting the Speed

The power tool has three preset speed levels. Press the Speed Preselection Button 15 to select the desired speed. The selected speed will be displayed on the Preselection Level Indicator 16. For speed and impact ratings for each preset level, see section "Functional Description and Specifications".

Selecting the Working Mode

The power tool has two preset working modes: A and B. You can adjust settings within the existing A and B modes or program custom working modes for specific applications via the Bosch Toolbox app.

Press the Mode button 13 to switch between working modes A and B. The selected mode will be displayed on the Mode Selection Indicator 12.

- Default mode A has two features that are designed for metal bolts: Shut-off After Time in the forward direction and Auto-Bolt Release in the reverse direction. Shut-off After Time will stop the power tool after 1 second of fastening. Auto-Bolt Release will stop the power tool once a sudden decrease in resistance is detected while loosening.

- Default mode B is designed for wood screws: the feature Auto Shutoff is activat-19

(Fig. 11) (16) 1 2 3 A B (15) SPEED MODE (14)

ed in the forward direction. Auto Shutoff will stop the power tool once added resistance is detected while fastening.

Note: only one speed setting or mode can be active on the tool at a time: 1, 2, 3, A, or B. The Bosch Toolbox app can be used to combine specific working mode features and speeds.

Belt Clip

WARNING When using the belt clip always be aware that the accessory is exposed. Always hang the tool in an area where yourself and bystanders cannot accidentally make contact with the accessory.

WARNING To reduce the risk of injury, do not use the belt clip if it appears damaged or deformed. This could result in unstable hanging and the tool unexpectedly falling.

⚠ WARNING To reduce the risk of injury, use care in selecting the location for hanging the tool.

(Fig. 1)

The optional belt clip accessory will allow you to conveniently attach your tool to your belt. This feature will allow you to have both hands free when climbing a ladder or moving to another work area.

The Belt Clip 3 can be attached to either side of the tool by securing it with a mounting screw. Always make sure you securely tighten the mounting screw before use (Fig.1).

To use clip, turn tool upside down and attach to your belt.

Maintenance

WARNING

To avoid accidents, always disconnect the battery pack from tool before servicing or cleaning.

Service

WARNING

NO USER SERVICEABLE PARTS INSIDE. Preventive maintenance performed by un authorized personnel may result in misplacing of internal wires and components which could cause serious hazard. We recommend that all tool service be performed by a Bosch Factory Service Center or Authorized Bosch Service Station.

Batteries

Be alert for battery packs that are nearing their end of life. If you notice decreased tool performance or significantly shorter running time between charges then it is time to replace the battery pack. Failure to do so can cause the tool to operate improperly or damage the charger.

Tool Lubrication

Your Bosch tool has been properly lubricated and is ready for use.

Motors

The motor in your tool has been engineered for many hours of dependable service. To maintain peak efficiency of the motor, we recommend it be examined every six months. Only a genuine Bosch replacement motor specially designed for your tool should be used.

Cleaning

CAUTION

Certain cleaning agents and solvents damage

plastic parts. Some of these are: gasoline, car bon tetrachloride, chlorinated cleaning solvents, ammonia and household detergents that contain ammonia.

Ventilation openings and switch levers must be kept clean and free of foreign matter. Do not attempt to clean by inserting pointed objects through opening.

Accessories

WARNING

Store accessories in a dry and temperate environment to avoid corrosion and deterioration.

This product is compatible with CR2032 batteries with a nominal battery voltage of 3V. (translation needed)

Numéro de modèle GDS18V-230
Tension nominale 18 V
No load speed
—Setting 1 0–1200 RPM
—Setting 2 0–1900 RPM
—Setting 3 0–2800 RPM
Impact rate
—Setting 1 0–2400 IPM
—Setting 2 0–3100 IPM
—Setting 3 0–3800 IPM
Maximum torque
—Setting 1 130 Ft-lbs
—Setting 2 160 Ft-lbs
—Setting 3 230 Ft-lbs
Breakaway torque 400 Ft-lbs
Output drive 3/8" Square drive with Friction Ring
Weight tool only 2.65 lbs
Permitted battery temperature during charging	+32...+113°F (0...+45°C)
Permitted ambient temperature during operation and storage	-4...+122°F (-20...+50°C)
Recommended ambient temperature during charging	+32...+95°F (0...+35°C)
Data Transmission (GCY42 installed)
Bluetooth®	Bluetooth® 4.1 (Low Energy)†
Signal interval, approx.	8 s
Signal range maximum 98ft	B

GDS18V-230C Connected Assigned modes: RPM Adjustment Soft Start Work Light: User Interface: Reset to Factory Default M A B C D E F G H I J K L

GDS18V-230C GDS18V-230C Tool Name Register Tool Tool Specs Tool Usage Info Bluetooth Low Energy Module B C N O P Q R

Technical diagram of a robotic device with labeled components and directional arrows indicating motion or feedback.

This product is compatible with CR2032 batteries with a nominal battery voltage of 3V.

Model Number GDS18V-230
Voltage rating 18 V
No load speed
—Setting 1 0–1200 RPM
—Setting 2 0–1900 RPM
—Setting 3 0–2800 RPM
Impact rate
—Setting 1 0–2400 IPM
—Setting 2 0–3100 IPM
—Setting 3 0–3800 IPM
Maximum torque
—Setting 1 130 Ft-lbs
—Setting 2 160 Ft-lbs
—Setting 3 230 Ft-lbs
Breakaway torque 400 Ft-lbs
Output drive 3/8" Square drive with Friction Ring
Weight tool only 2.65 lbs
Permitted battery temperature during charging	+32...+113°F (0...+45°C)
Permitted ambient temperature during operation and storage	-4...+122°F (-20...+50°C)
Recommended ambient temperature during charging	+32...+95°F (0...+35°C)
Data Transmission (GCY42 installed)
Bluetooth® Bluetooth® 4.1 (Low Energy)	A
Signal interval, approx. 8 s
Signal range maximum 98ft	B

GDS18V-230C Connected Assigned modes: RPM Adjustment Soft Start Work Light: User Interface: Reset to Factory Default M A B C D E F G H I J K L

GDS18V-230C GDS18V-230C Tool Name Register Tool Tool Specs Tool Usage Info Bluetooth Low Energy Module B C N O P Q R

Copyright © 2004 - 2020, Texas Instruments Incorporated

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

– Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
– Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
- Neither the name of Texas Instruments Incorporated nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright © 2009-2020 ARM LIMITED

All rights reserved.

Redistribution and use in source and binary forms, with or without modification, are permitted provided that the following conditions are met:

• Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.
  – Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.
• Neither the name of ARM nor the names of its contributors may be used to endorse or promote products derived from this software without specific prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Copyright © 2011 Petteri Aimonen

This software is provided ‘as-is’, without any express or implied warranty. In no event will the authors be held liable for any damages arising from the use of this software.

Permission is granted to anyone to use this software for any purpose, including commercial applications, and to alter it and redistribute it freely, subject to the following restrictions:

1. The origin of this software must not be misrepresented; you must not claim that you wrote the original software. If you use this software in a product, an acknowledgment in the product documentation would be appreciated but is not required.
2. Altered source versions must be plainly marked as such, and must not be misrepresented as being the original software.
3. This notice may not be removed or altered from any source distribution.

LIMITED WARRANTY

For details on the terms of the limited warranty for this product, go to https://rb-pt.io/PowerToolWarranty or call 1-877-BOSCH99.

GARANTIE LIMITÉE

© Robert Bosch Tool Corporation

1800 W. Central Road

Mt. Prospect, IL 60056-2230

1605A002DT 04/2024

Barcode image with black and white vertical bars, no visible text or symbols beyond the pattern

1605A002DT
